At a Glance
Sub-Brand
Scotchlok
Material
Nylon
For Use On
Metal
Application
Electrical
Description
Description
3M 7000005801 Description

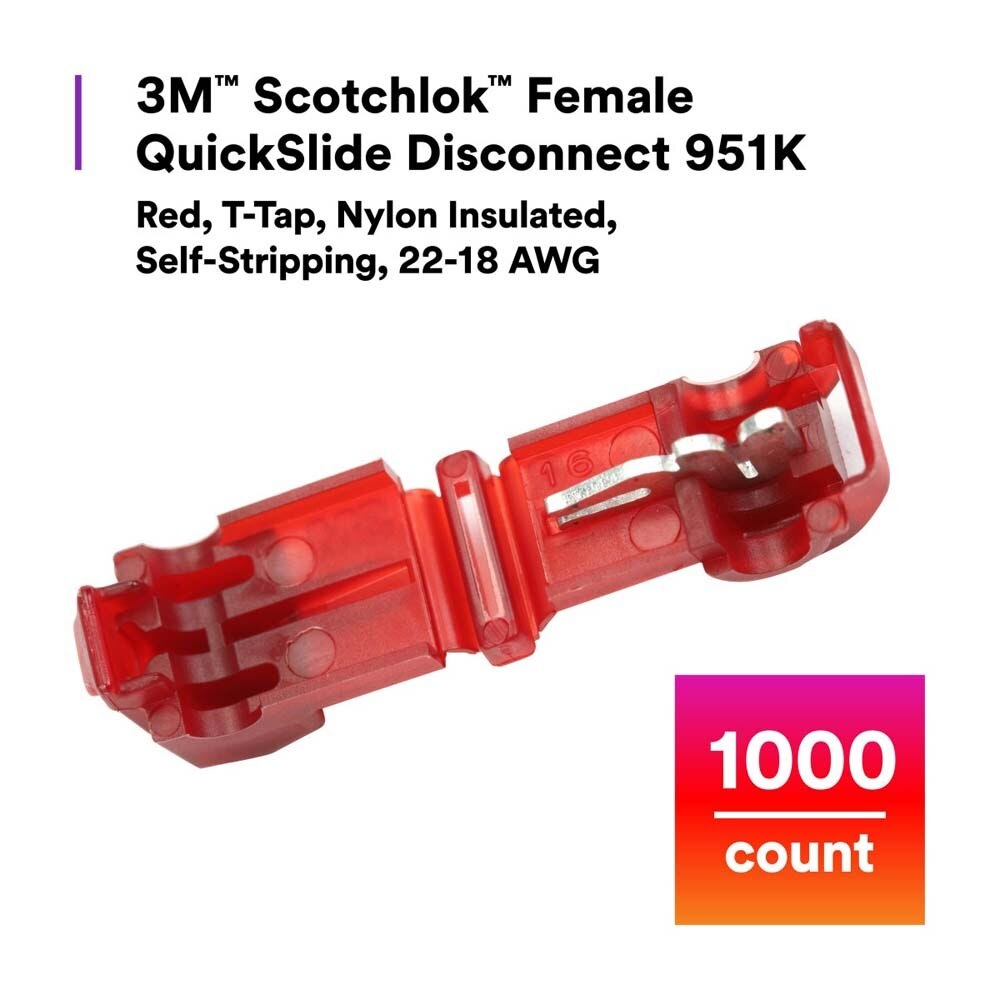

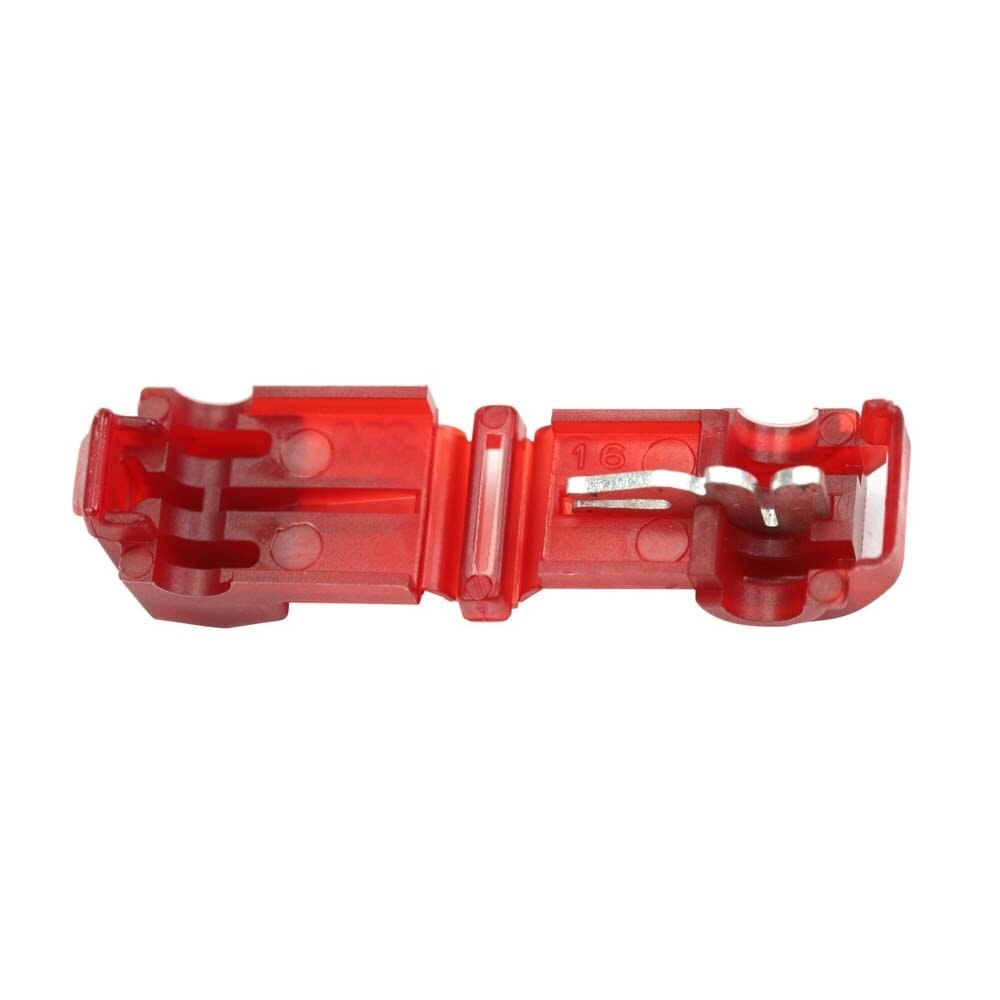

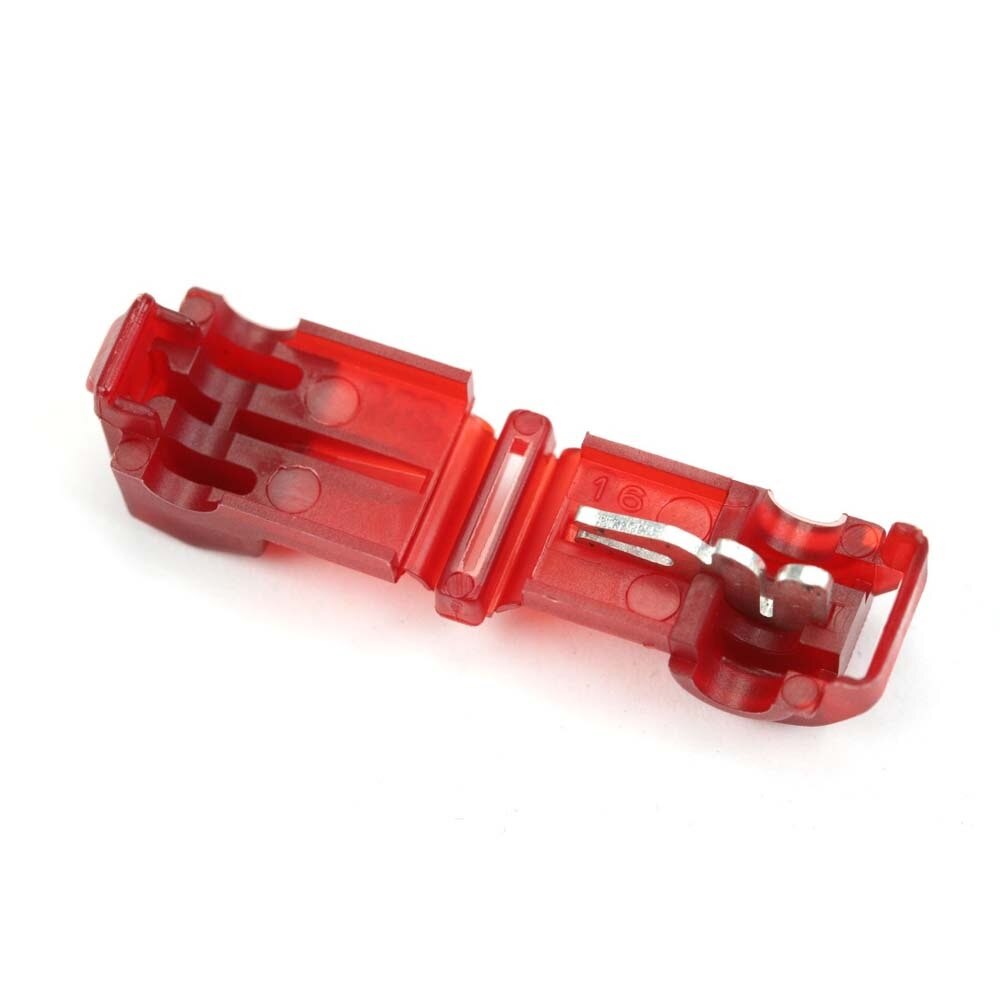

3M Scotchlok Female QuickSlide Disconnect 951K is a red, nylon-insulated, self-stripping T-Tap connector for 22–18 AWG wires, enabling quick, reusable connections without cutting or stripping.
3M 7000005801 Includes
- (1000) Female QuickSlide Disconnect 951K T-Tap Connectors
3M 7000005801 Features

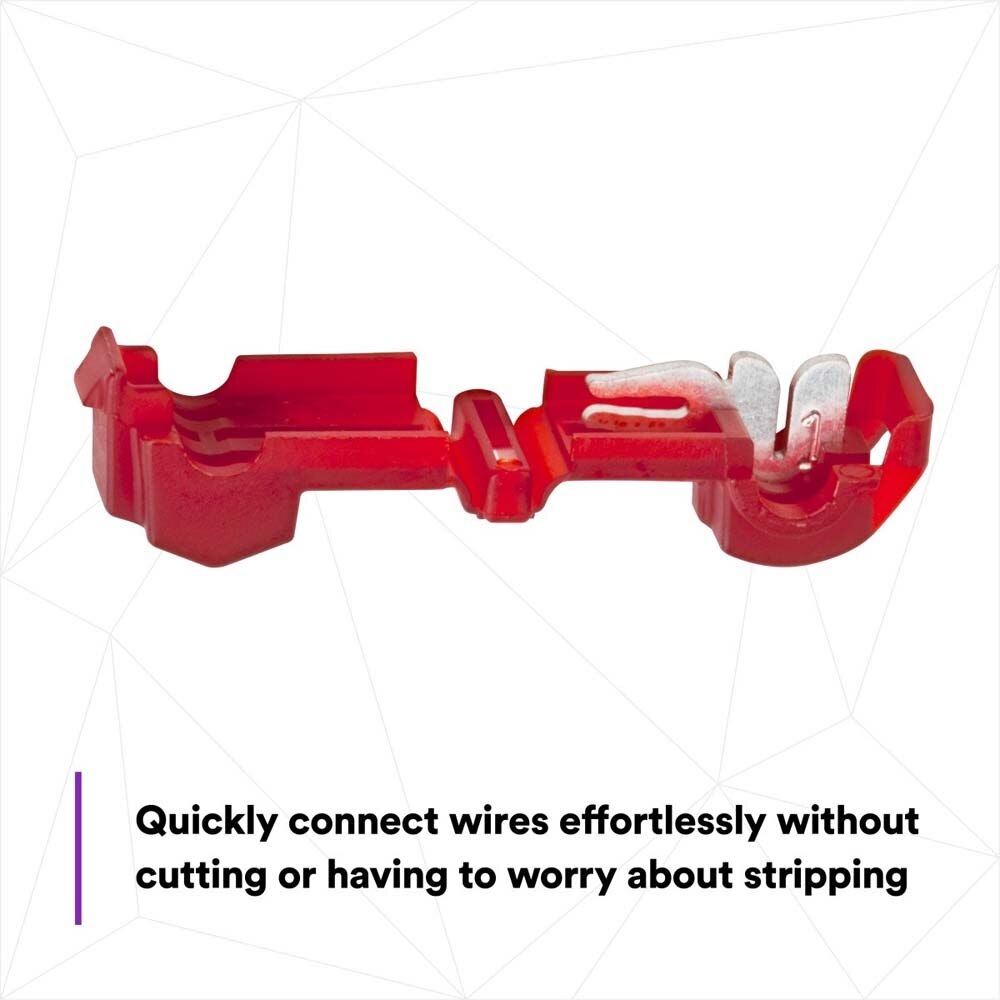

- Self-stripping design for fast installation
- Nylon-insulated red T-Tap for 22–18 AWG wires
- Reusable connection mates with 0.250 inch (6.35 mm) male tab

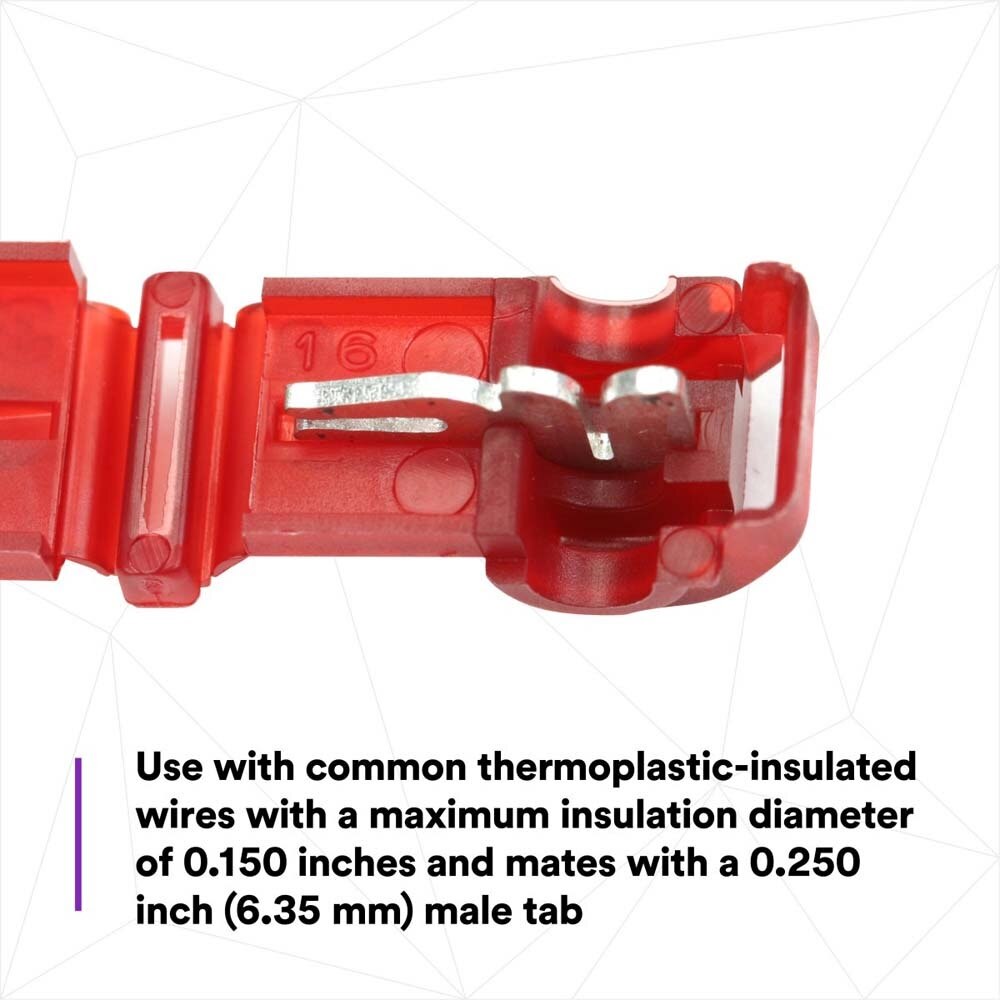

- Works with common thermoplastic-insulated wires up to 0.150 inch insulation diameter
- UL 310 (AWG only) and CSA 22.2 certified
- Flame-retardant nylon construction with tin-plated brass element

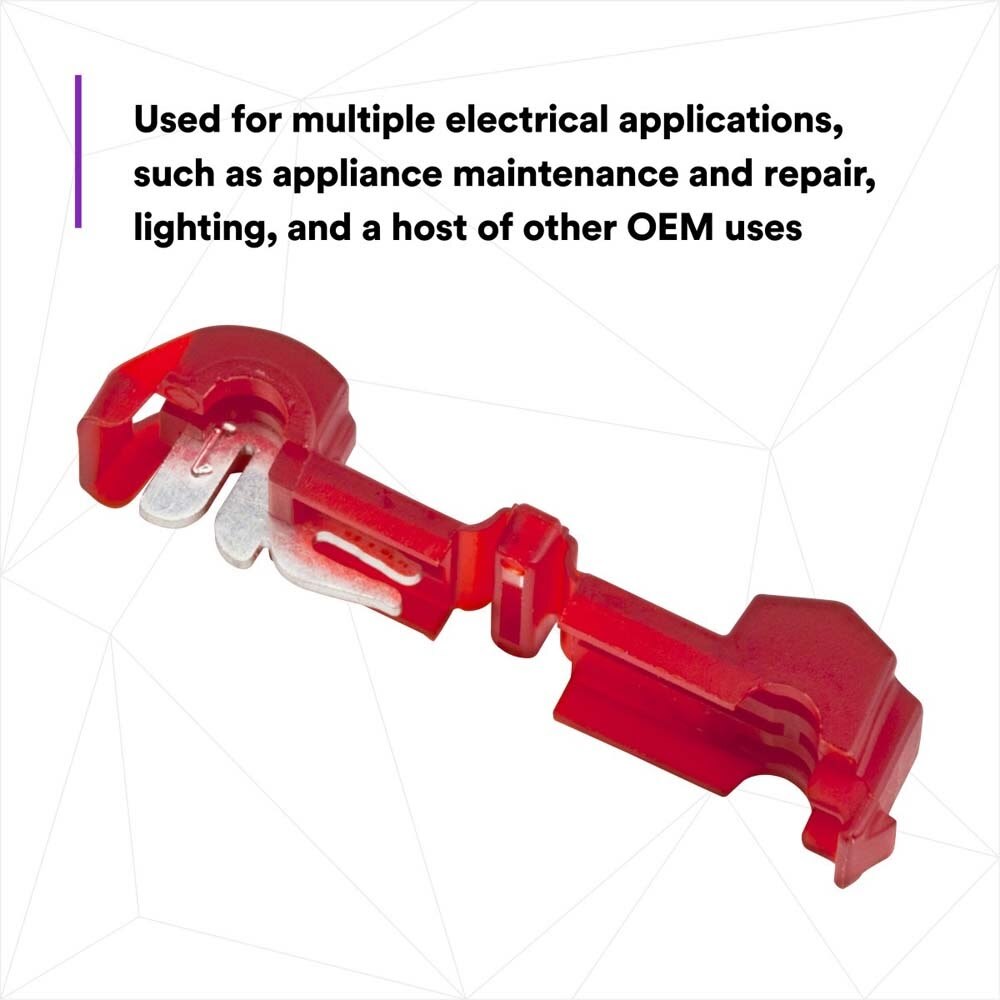

- Ideal for appliance maintenance, lighting, and OEM electrical applications
3M 7000005801 Specifications
| Connector Type | Female QuickSlide Disconnect, T-Tap |
| Wire Size | 22–18 AWG |
| Color | Red |
| Insulation Material | Flame retardant nylon |
| Element Material | Tin plated brass, 0.03 in (0.8 mm) thick |
| Max Insulation Diameter | 0.150 in |
| Male Tab Size | 0.250 in (6.35 mm) |
| Max Voltage Rating | 600 V building wire; 1000 V signs/fixtures |
| Max Operating Temperature | 221°F (105°C) |
| Flammability Rating | C2.2 No. 0.6 V-2 |
| Certifications | UL 310 (AWG only), CSA 22.2 |
Toolup Part # :
839625
