At a Glance
Length
36 yd
Width
3/4 in
Thickness
7 mil
Adhesive Type
Silicone
Max Temperature
392�F
Tape Type
Electrical
Material
Fiberglass Fabric
Description
Description
3M 7000031350 Description

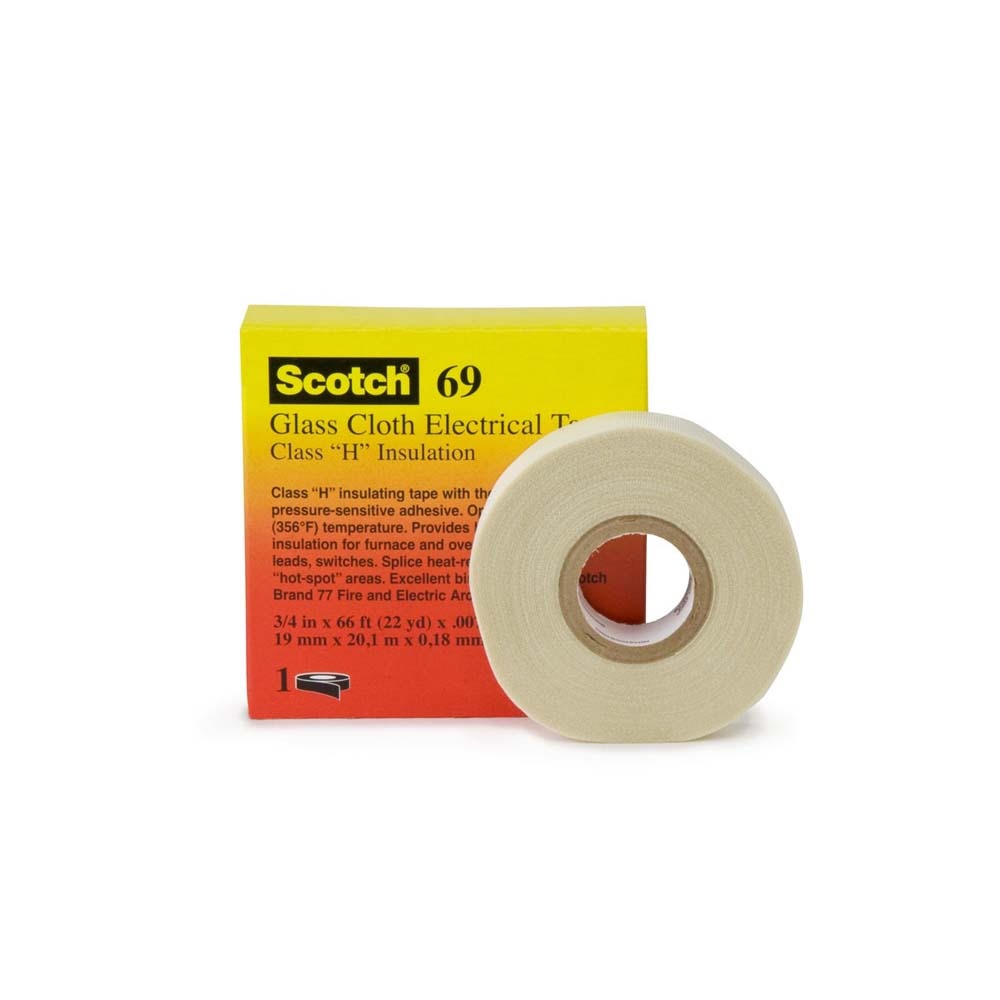

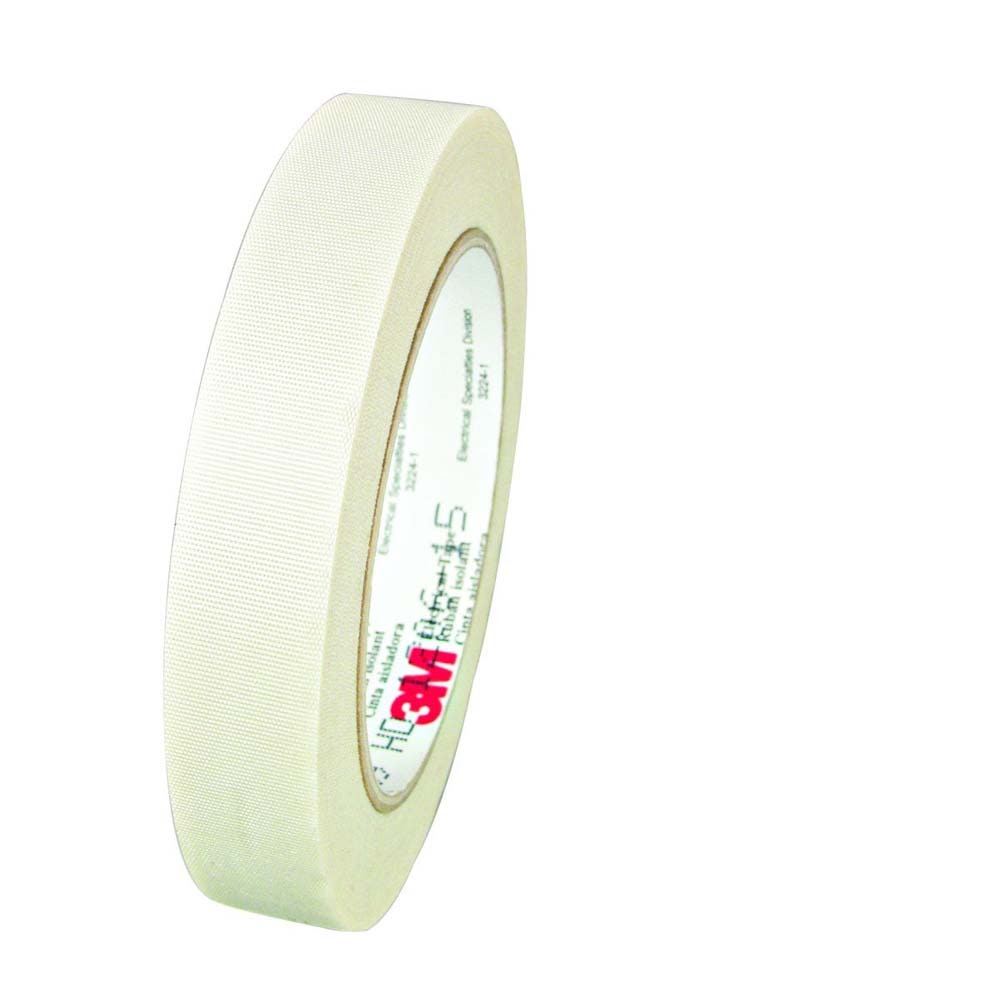

3M Glass Cloth Electrical Tape 69 is a white, 7-mil glass cloth insulating tape with a high-temperature, thermosetting silicone adhesive for Class H applications, rated up to 600V and suitable for continuous operation up to 200°C (UL) or 180°C (CSA).
3M 7000031350 Includes
- (1) Glass Cloth Electrical Tape 69 roll
3M 7000031350 Features
- High-temperature thermosetting silicone adhesive
- 7 mil thickness glass cloth backing

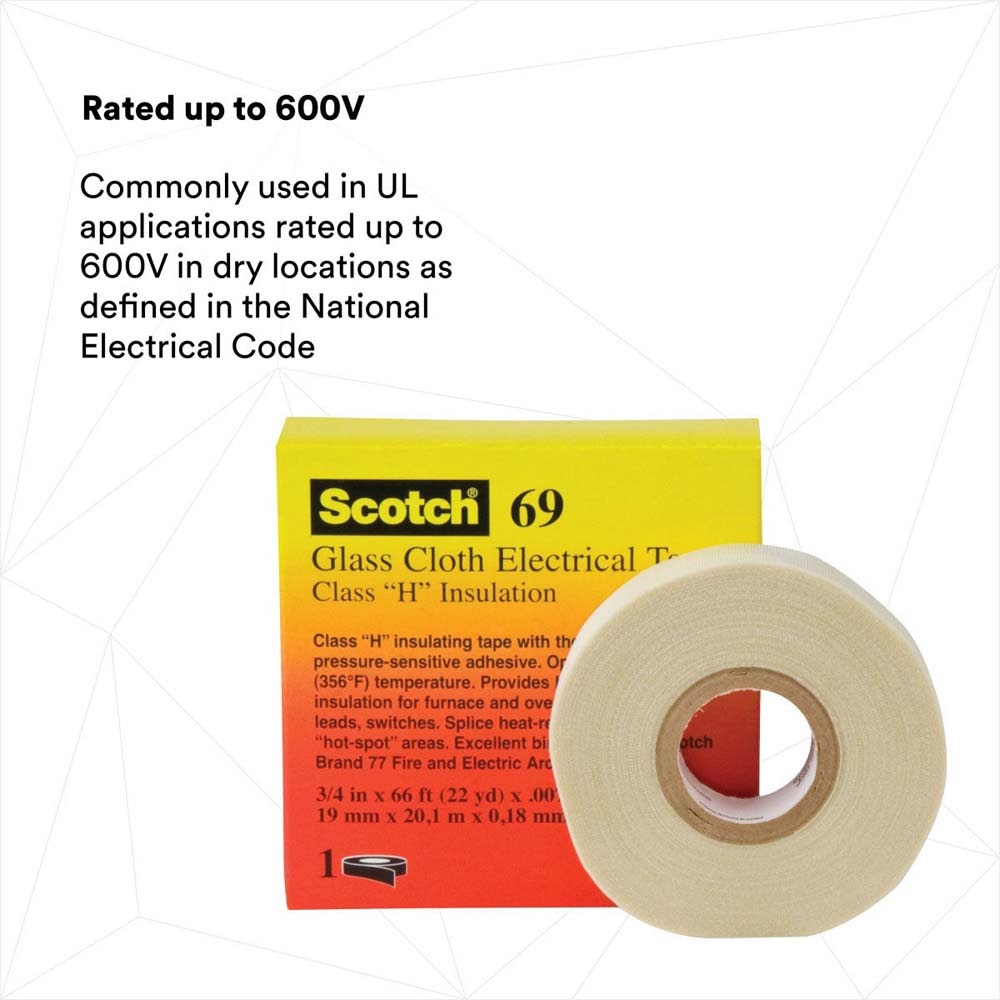

- Rated up to 600V for dry locations

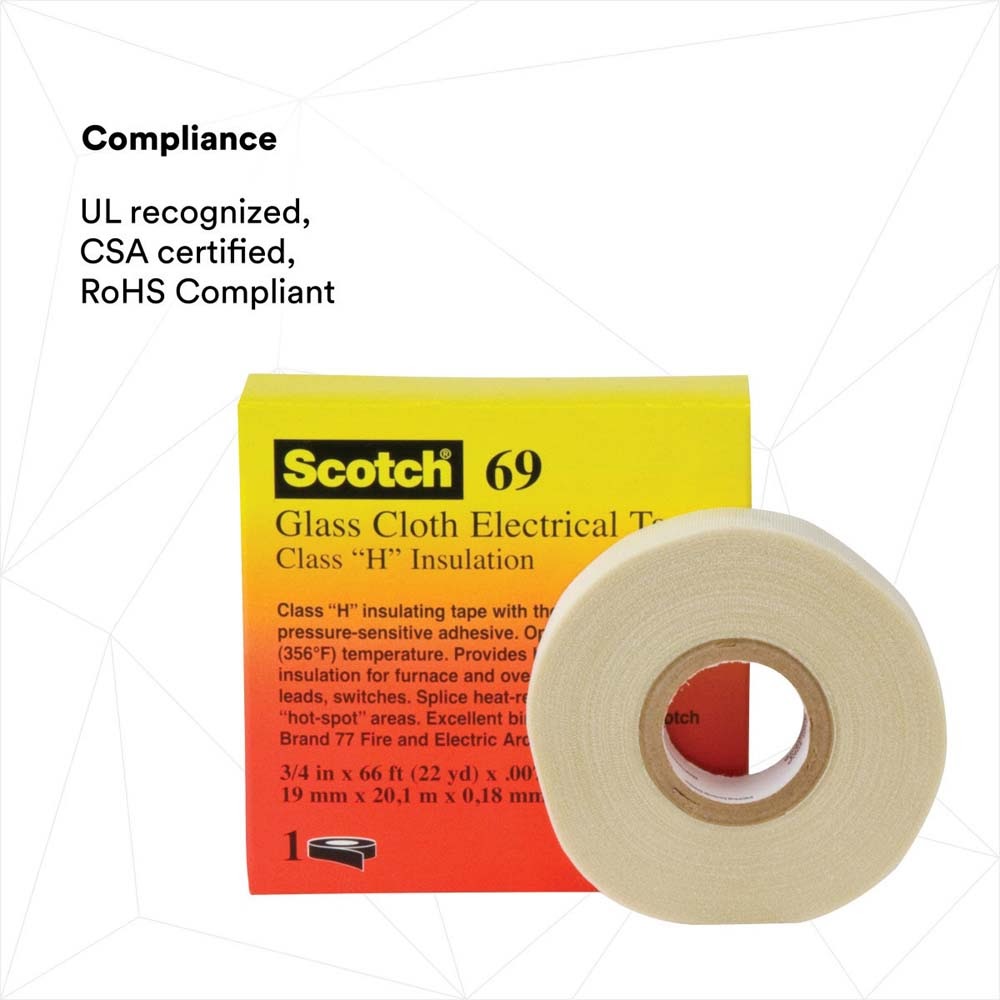

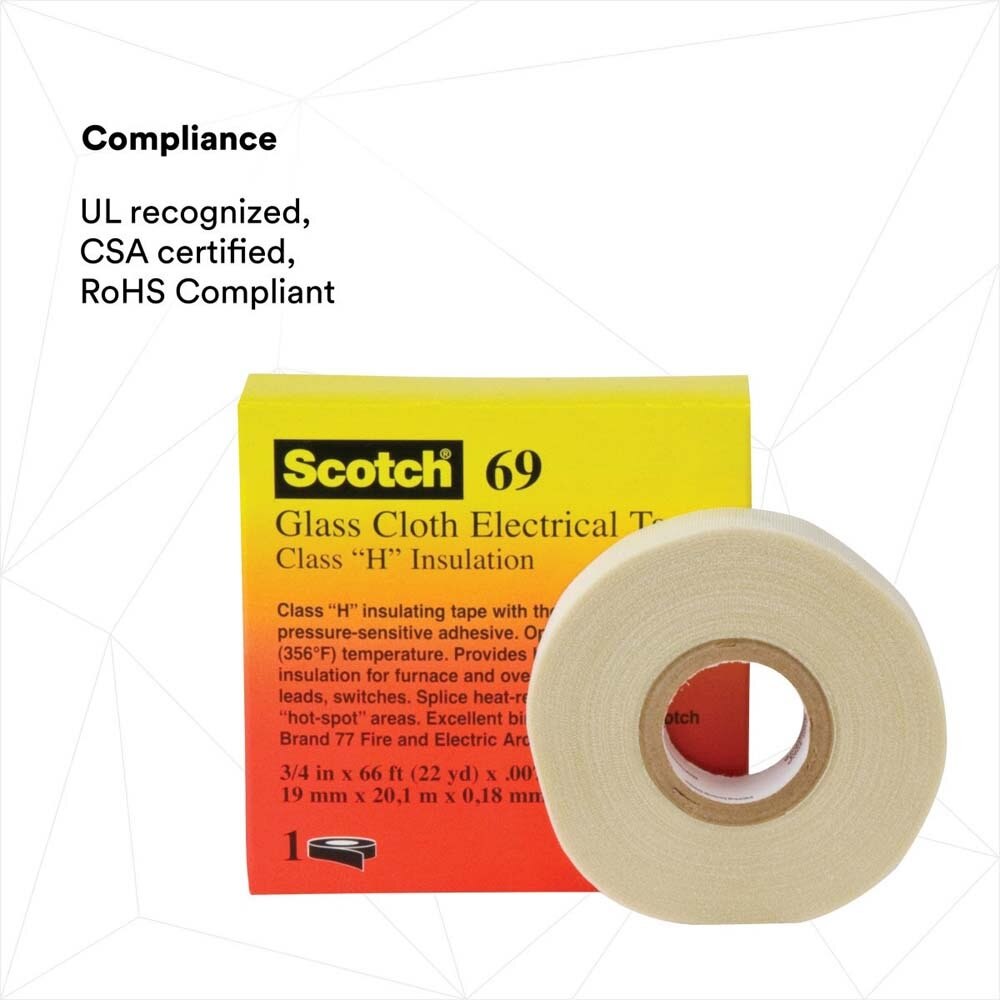

- UL recognized; CSA certified; RoHS compliant

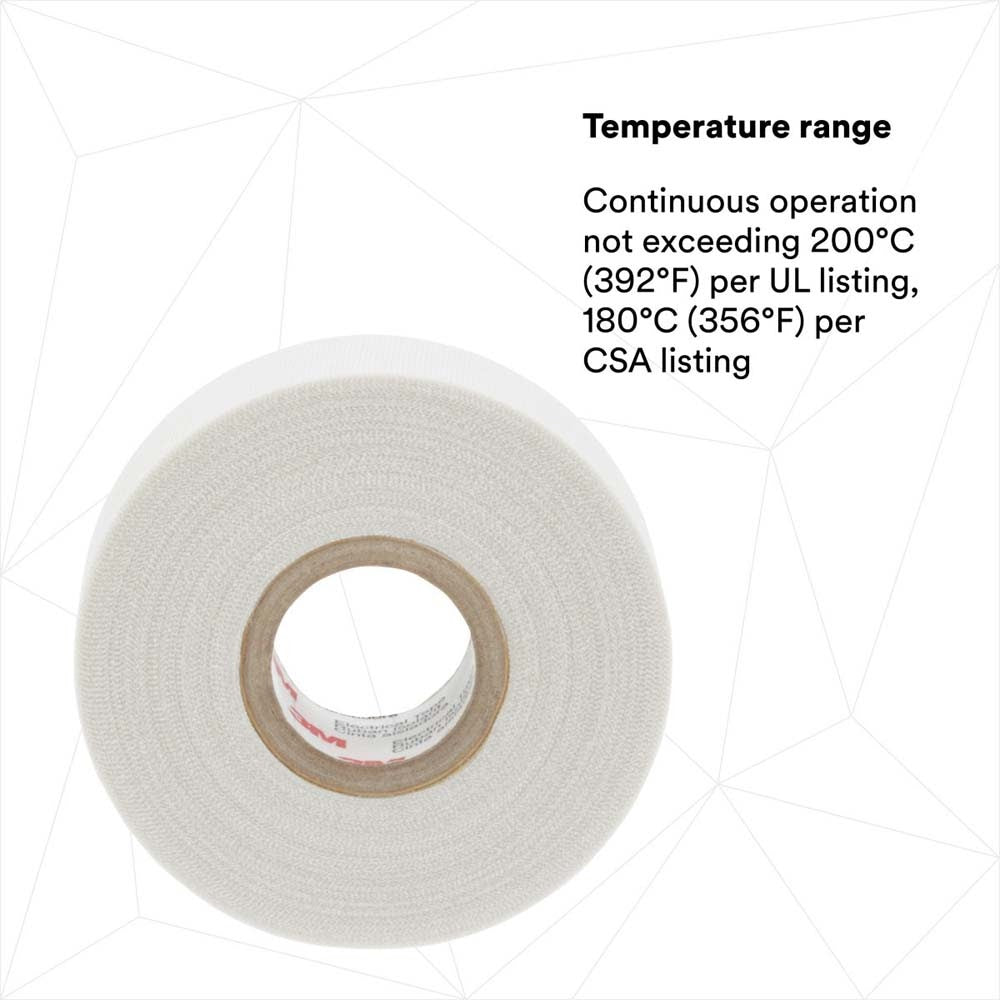

- Continuous operating temperature up to 200°C (UL) / 180°C (CSA)

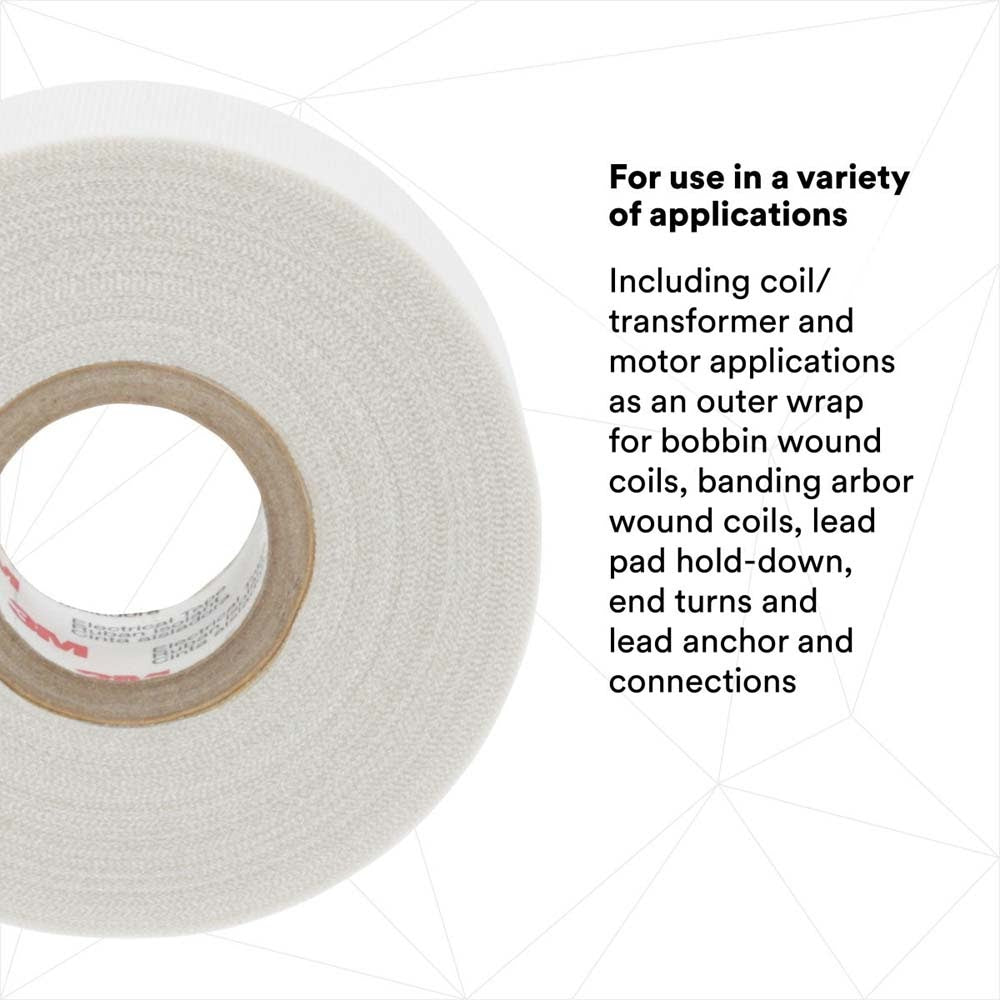

- Ideal for coils, transformers, motors, and lead anchoring

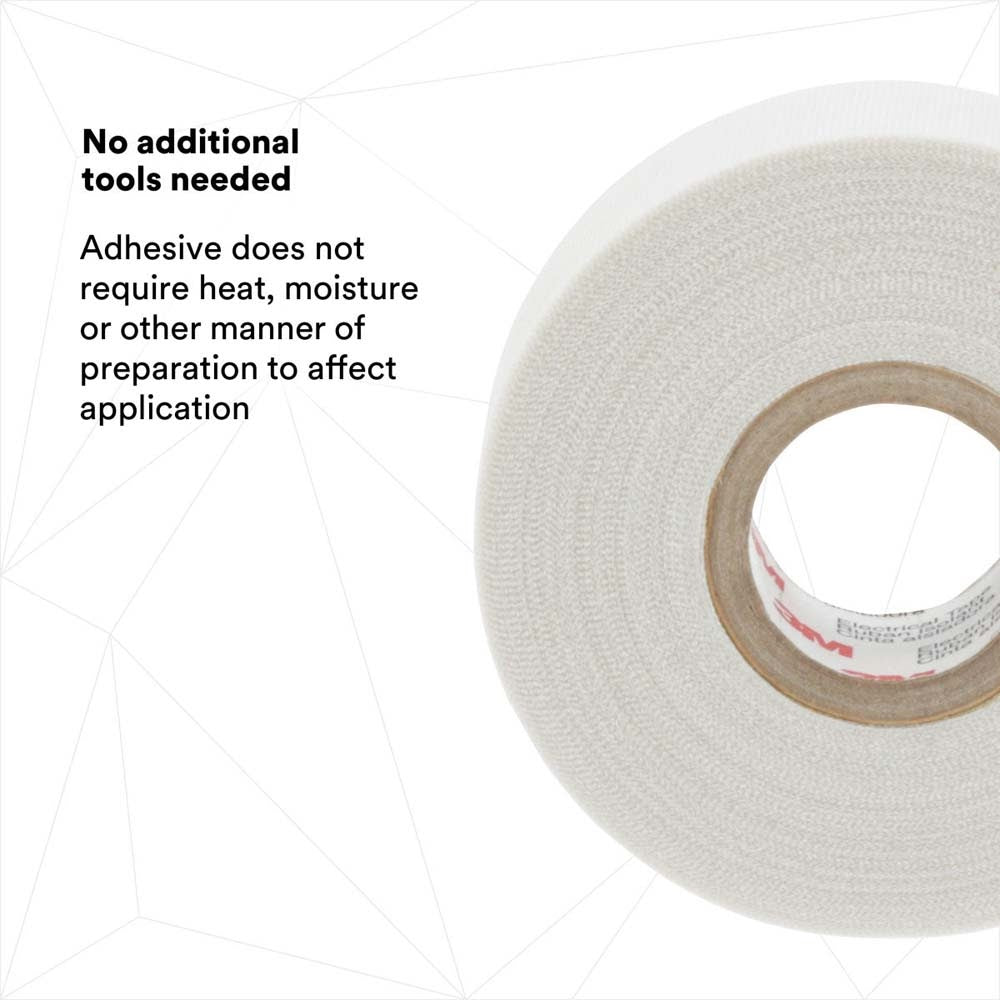

- No heat or moisture needed to activate adhesive
3M 7000031350 Specifications
| Brand: | 3M |
| Tape Type: | Glass Cloth Electrical Tape 69 |
| Color: | White |
| Width: | 0.75 in |
| Length: | 36 yd |
| Thickness: | 7 mil (0.178 mm) |
| Adhesive Type: | Silicone, pressure-sensitive, thermosetting |
| Voltage Rating: | Up to 600 V (dry locations) |
| Temperature Rating (UL): | 200°C (392°F) |
| Temperature Rating (CSA): | 180°C (356°F) |
| Certifications: | UL Recognized; CSA Certified; RoHS Compliant |
| UPC: | 54007274933 |
Toolup Part # :
835458
