Description
Description
3M 7000031842 Description

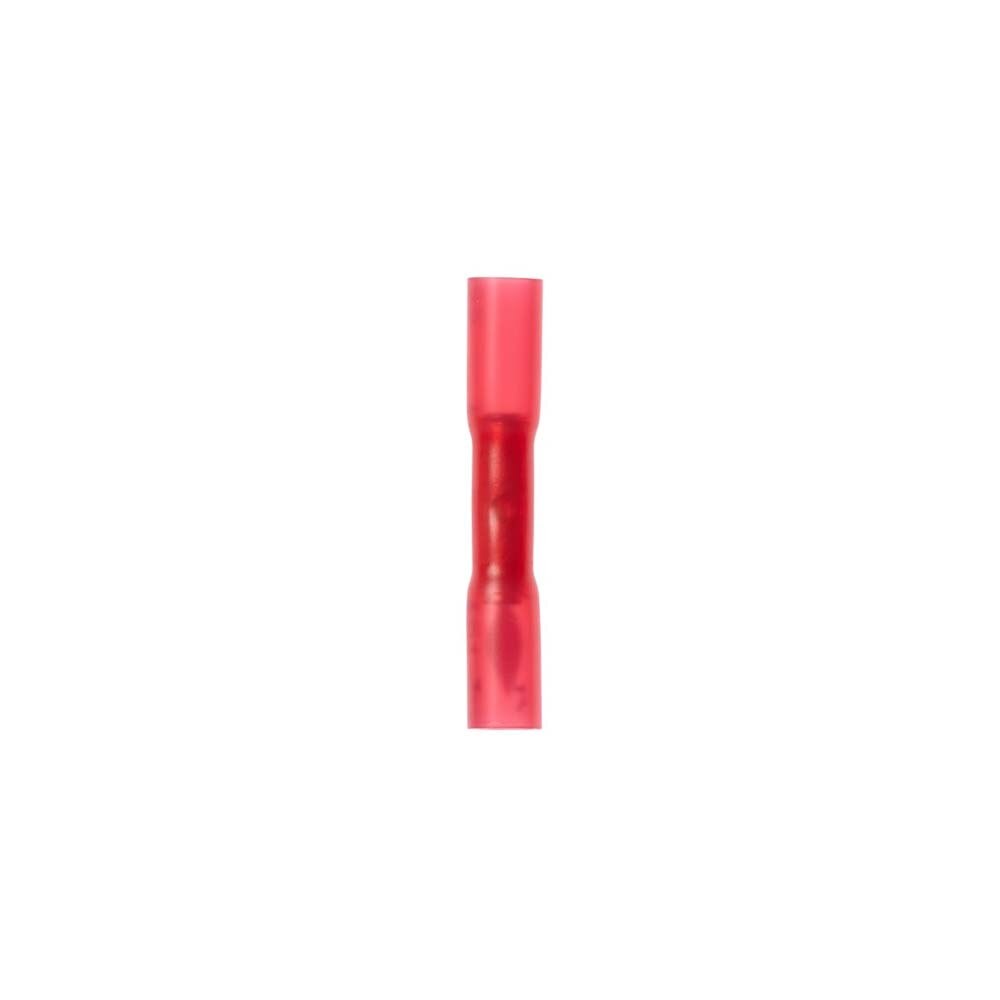

3M Scotchlok heat shrink butt connectors feature a seamless electrolytic copper barrel with transparent, pre-insulated tubing for a watertight, corrosion-resistant seal and built-in wire stop for correct positioning.
3M 7000031842 Includes
- (25) Heat shrink butt connectors (Red, 22–18 AWG)
3M 7000031842 Features
- Seamless copper barrel for reliable conductivity
- Heat-shrink transparent tubing seals out water, salt, and contaminants
- Built-in wire stop ensures proper positioning
- Color-coded red for 22–18 AWG wires
- Tin-plated for corrosion resistance
- Withstands up to 221 Degree F (105 Degree C)
3M 7000031842 Specifications
| Brand | Scotchlok |
| Connector Type | Butt |
| Color | Red |
| Wire Size | 22–18 AWG |
| Barrel Inside Diameter | 0.062 inch |
| Overall Length | 1.2 in |
| Insulation Material | Heat Shrink |
| Body Material | Copper Alloy, tin-plated |
| Maximum Operating Temperature | 105 Degree Celsius (221 Degree F) |
| RoHS | RoHS 2011/65/EU compliant |
Toolup Part # :
839675
