3M 7000058006 Description

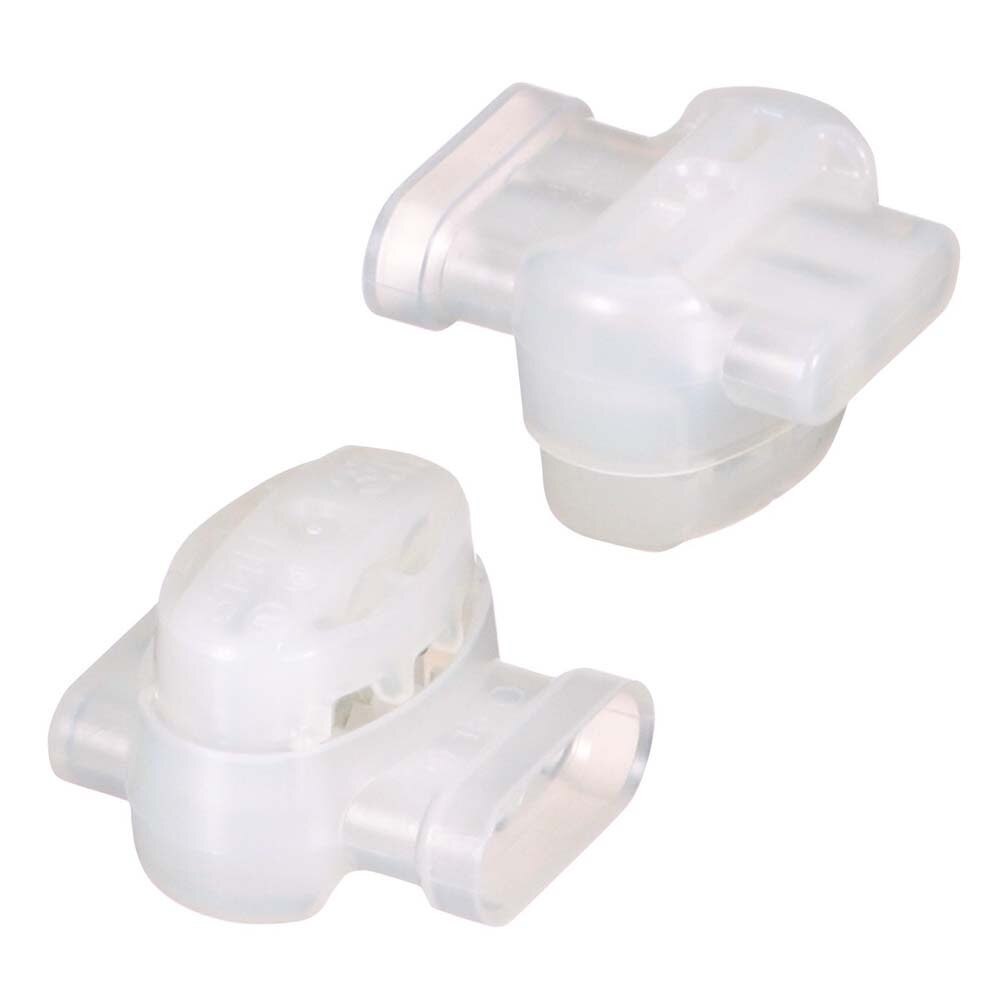

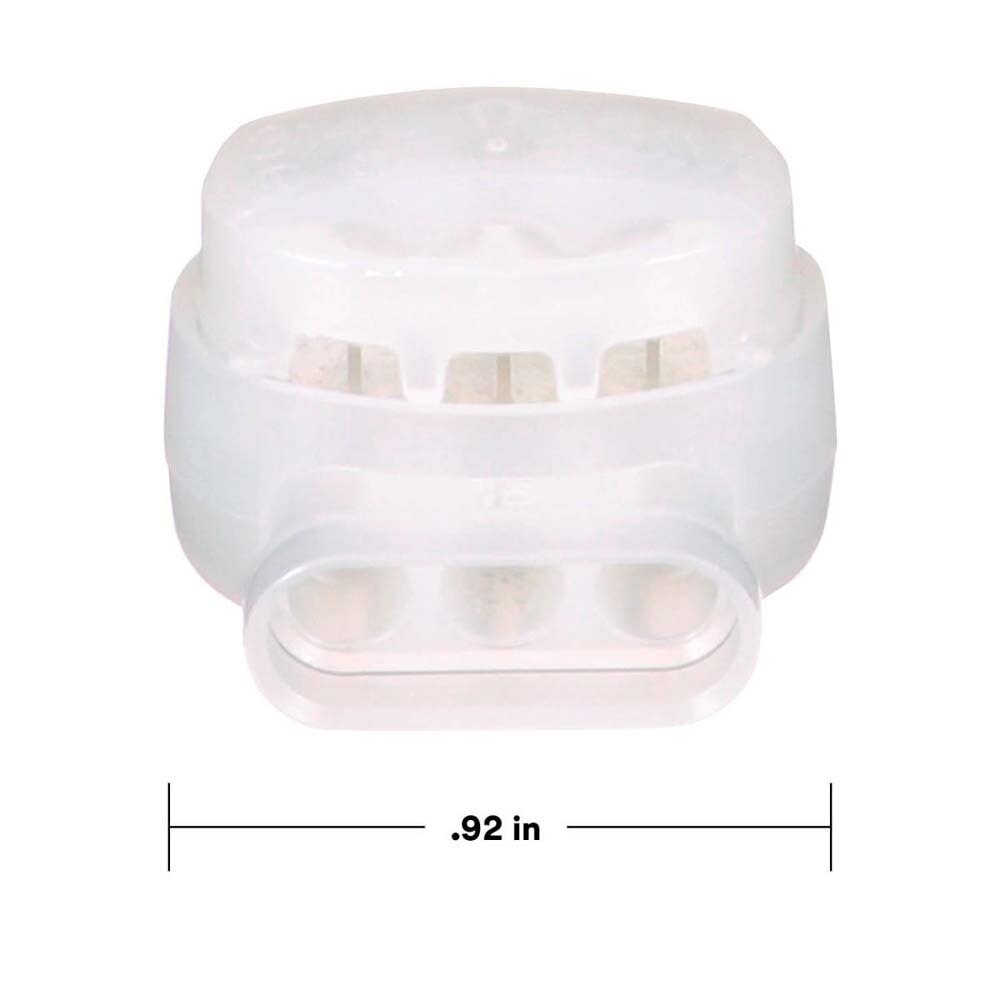

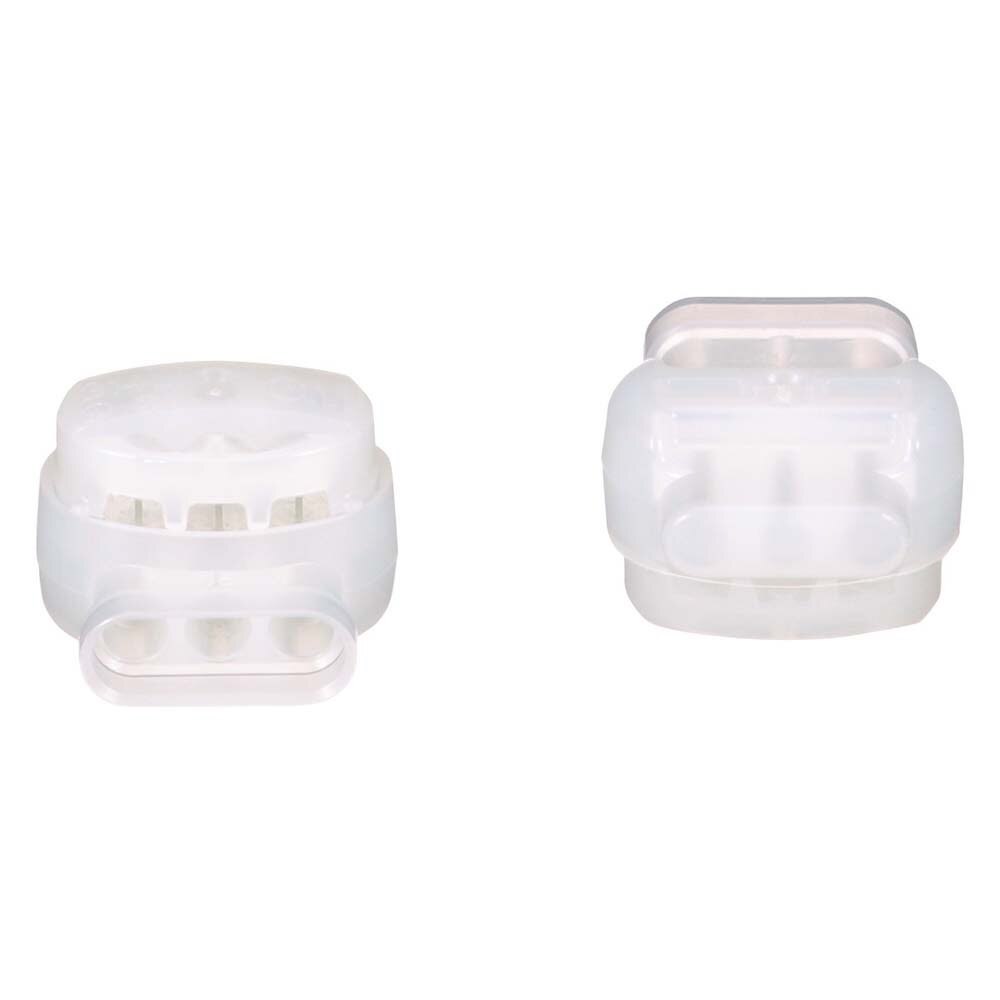

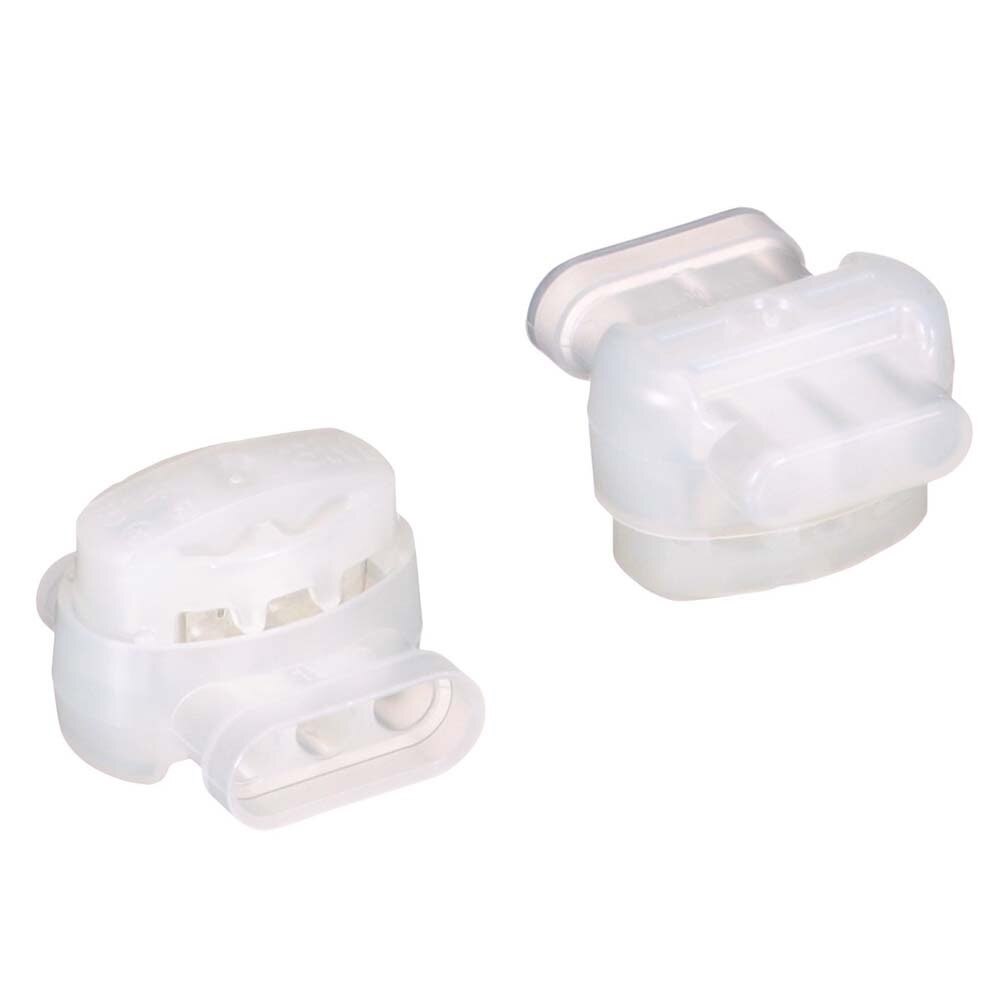

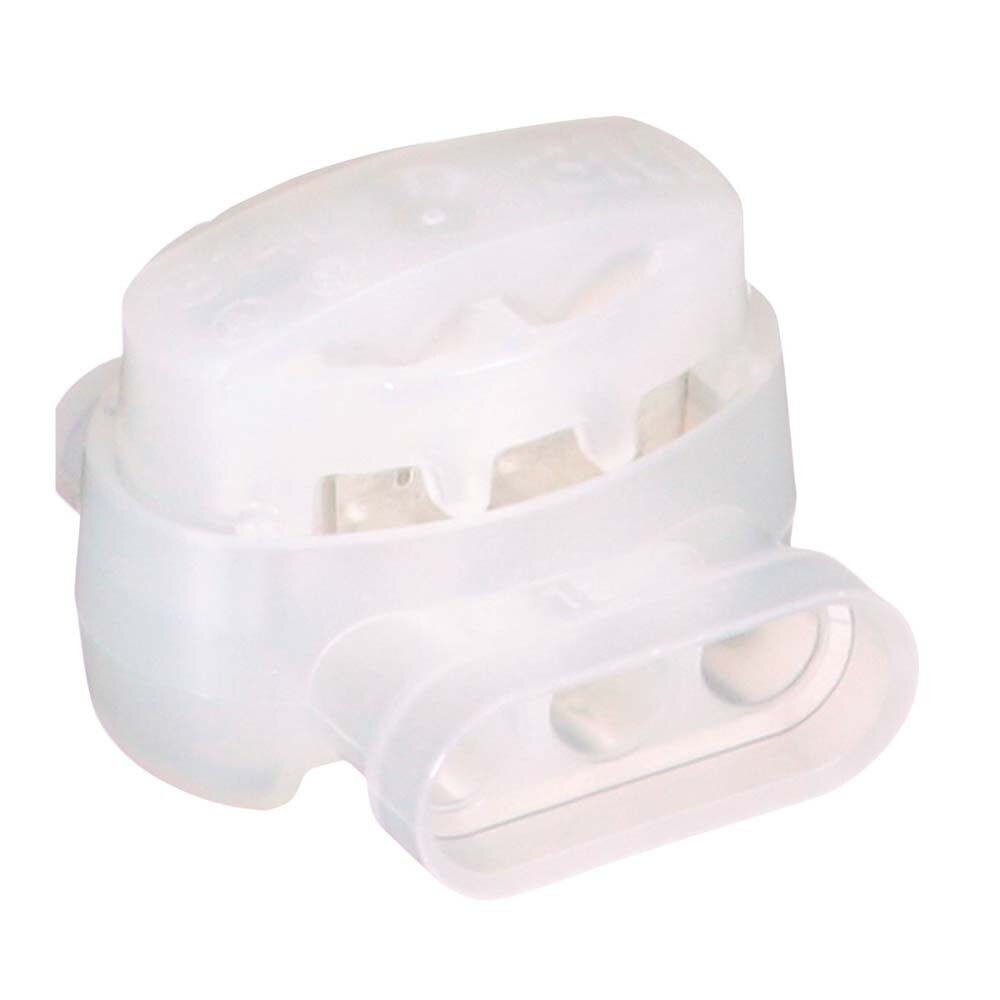

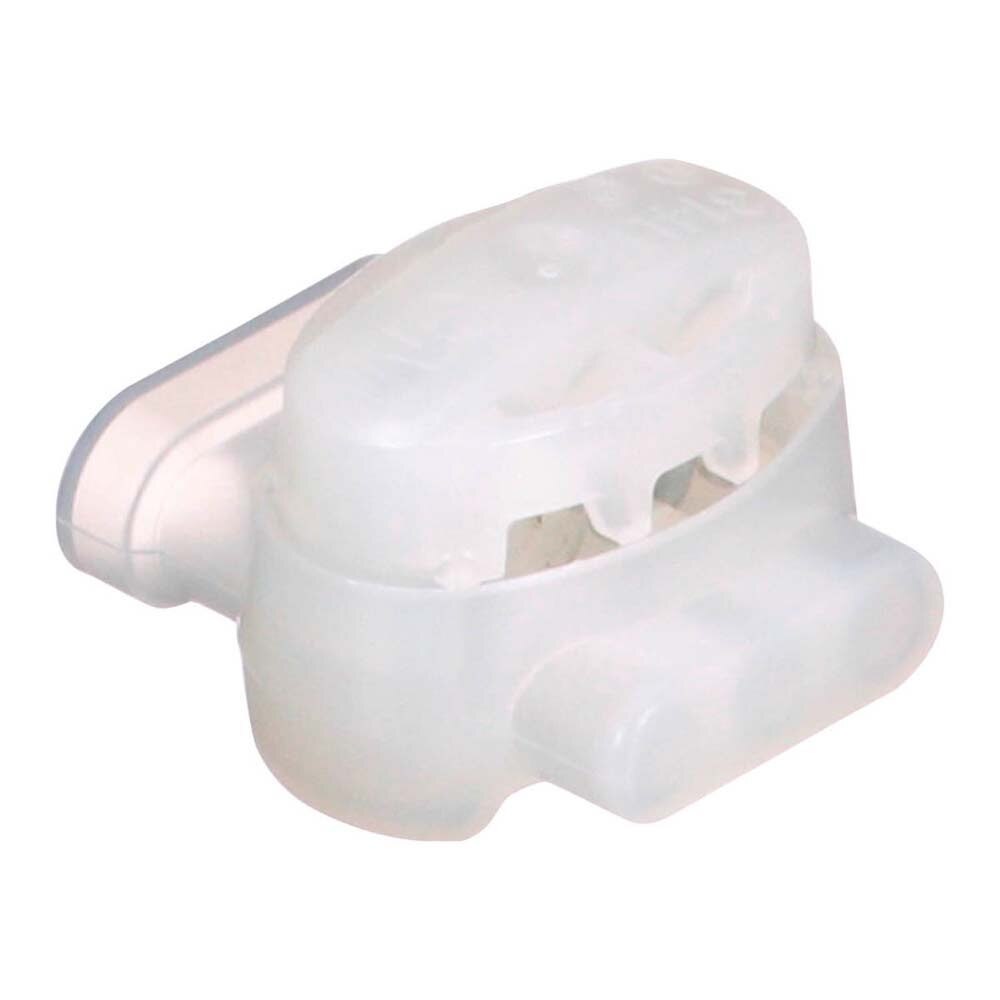

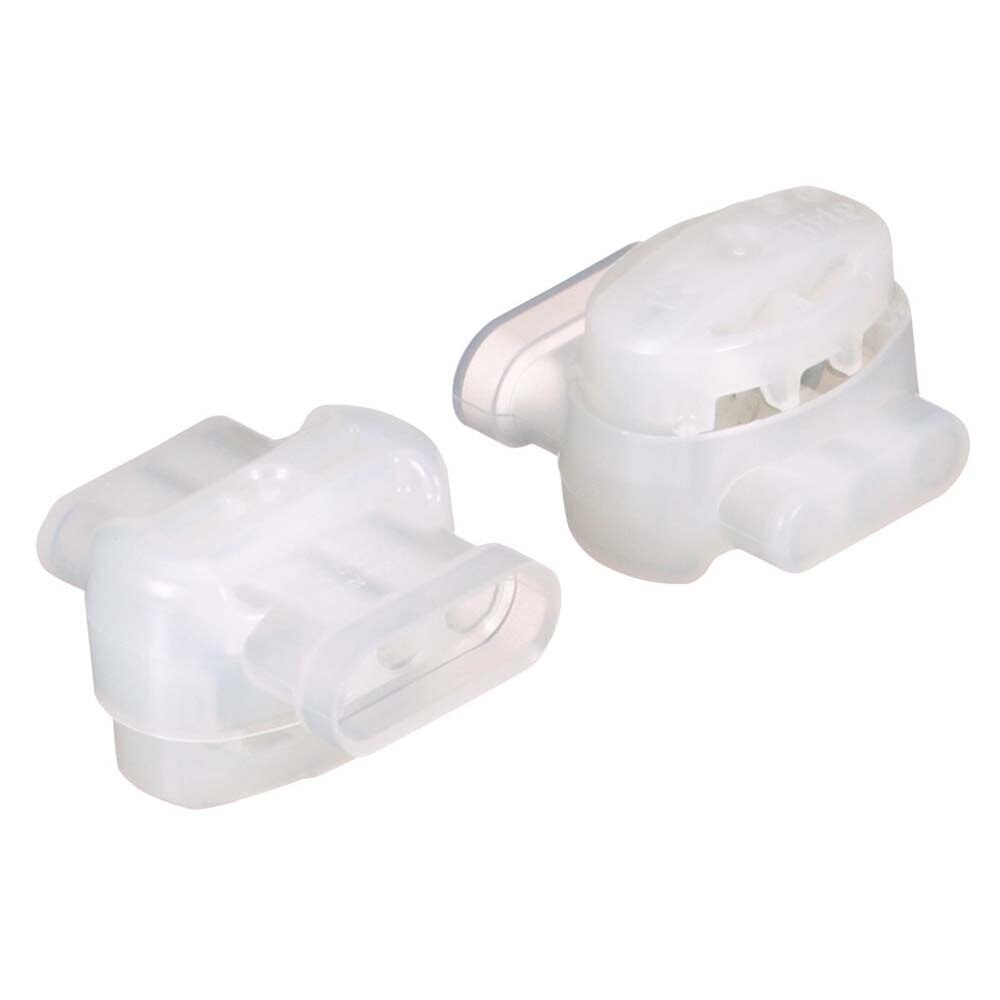

3M Scotchlok 314U-BIN IDC pigtail connectors provide reliable, flame-retardant, nylon-insulated connections for joining 2 or 3 wires from 22–14 AWG; rated 600V for building wire and 1000V for signs and fixtures.
3M 7000058006 Includes
- (1000) 314U-BIN IDC Pigtail Connectors
3M 7000058006 Features
- Connects 2 or 3 wires (22–14 AWG)

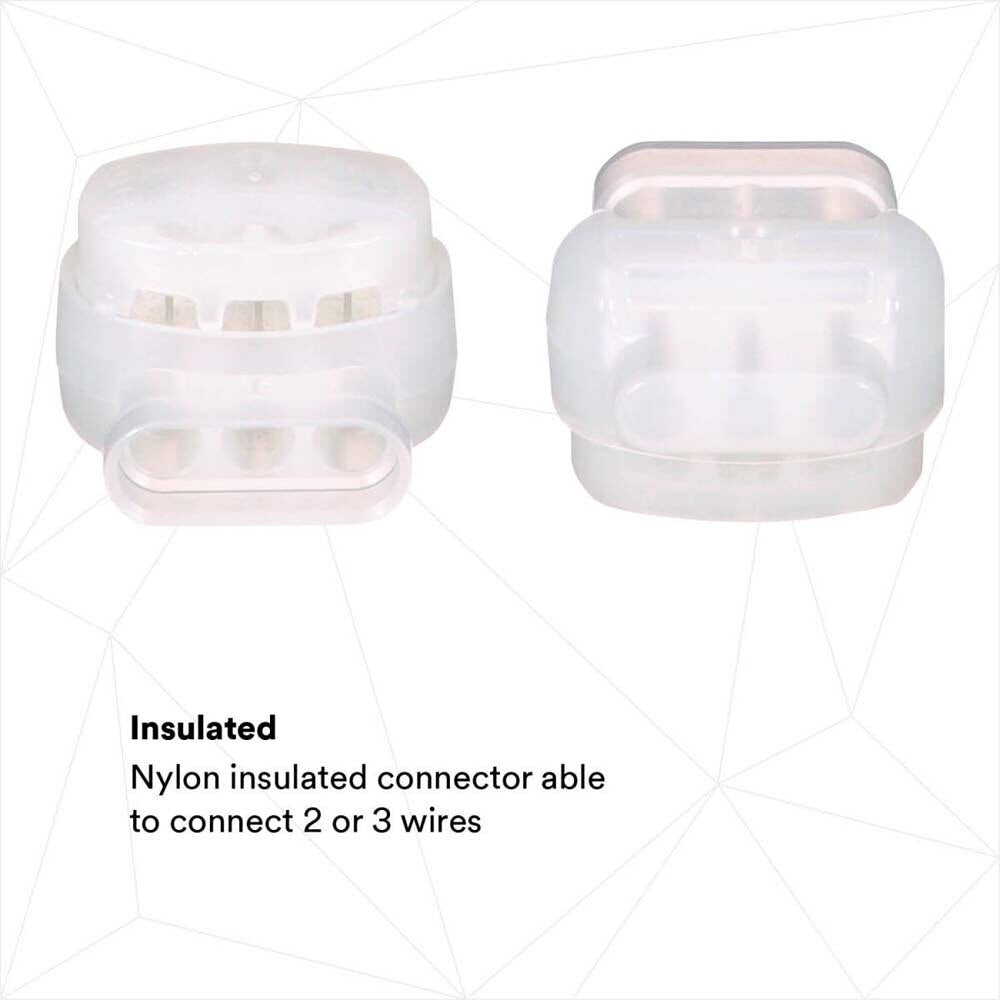

- Self-stripping, nylon-insulated design
- Flame retardant; moisture resistant for dry environments
- 600V rated for building wire; 1000V for signs/fixtures
- Tin-plated brass elements for dependable conductivity
- UL Listed (File E23438) and CSA certified
- White color for easy identification
- Supplied in 1000 per case
3M 7000058006 Specifications
| Connector Type | Insulation Displacement (IDC) Pigtail |
| Wire Size Range | 22–14 AWG |
| Insulation Material | Nylon, flame retardant |

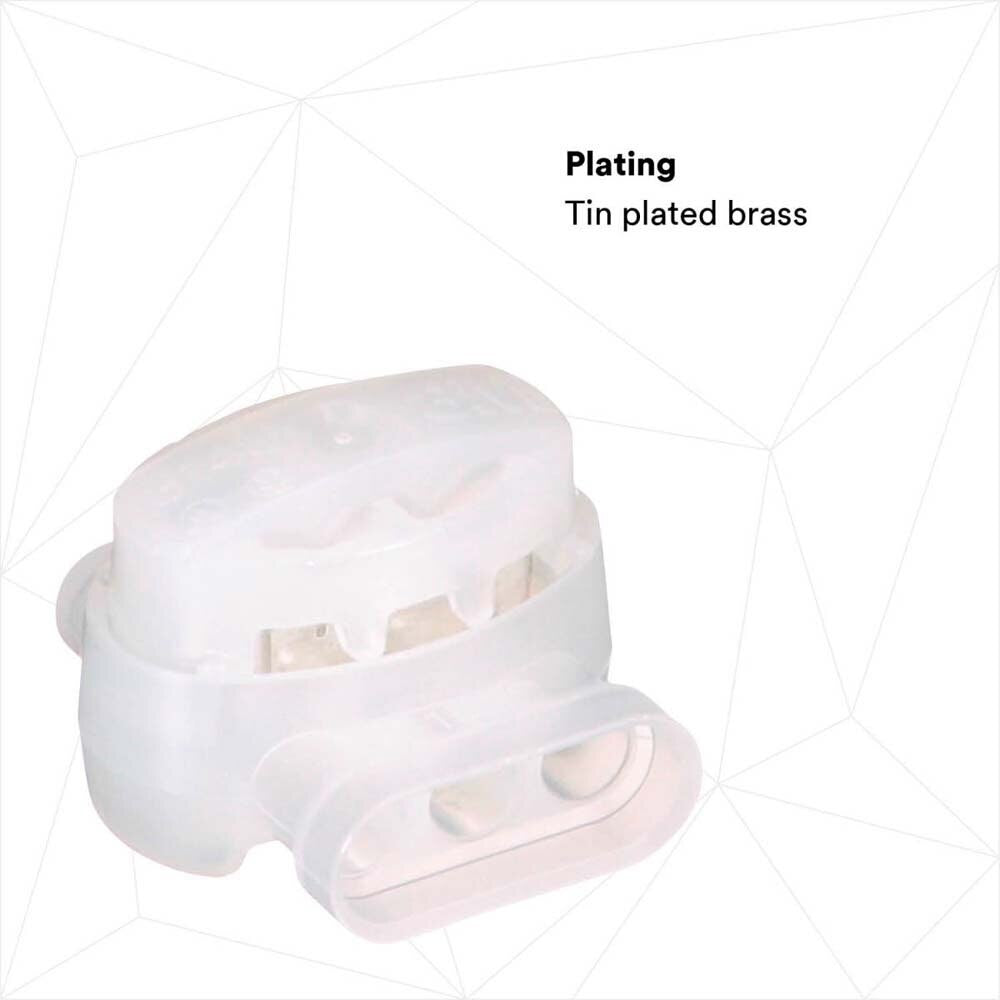

| Plating | Tin-plated brass |
| Color | White |
| Voltage Rating (Building Wire) | 600 V |
| Voltage Rating (Signs/Fixtures) | 1000 V |
| Max Operating Temperature | 221 Degree Fahrenheit (105 Degree Celsius) |

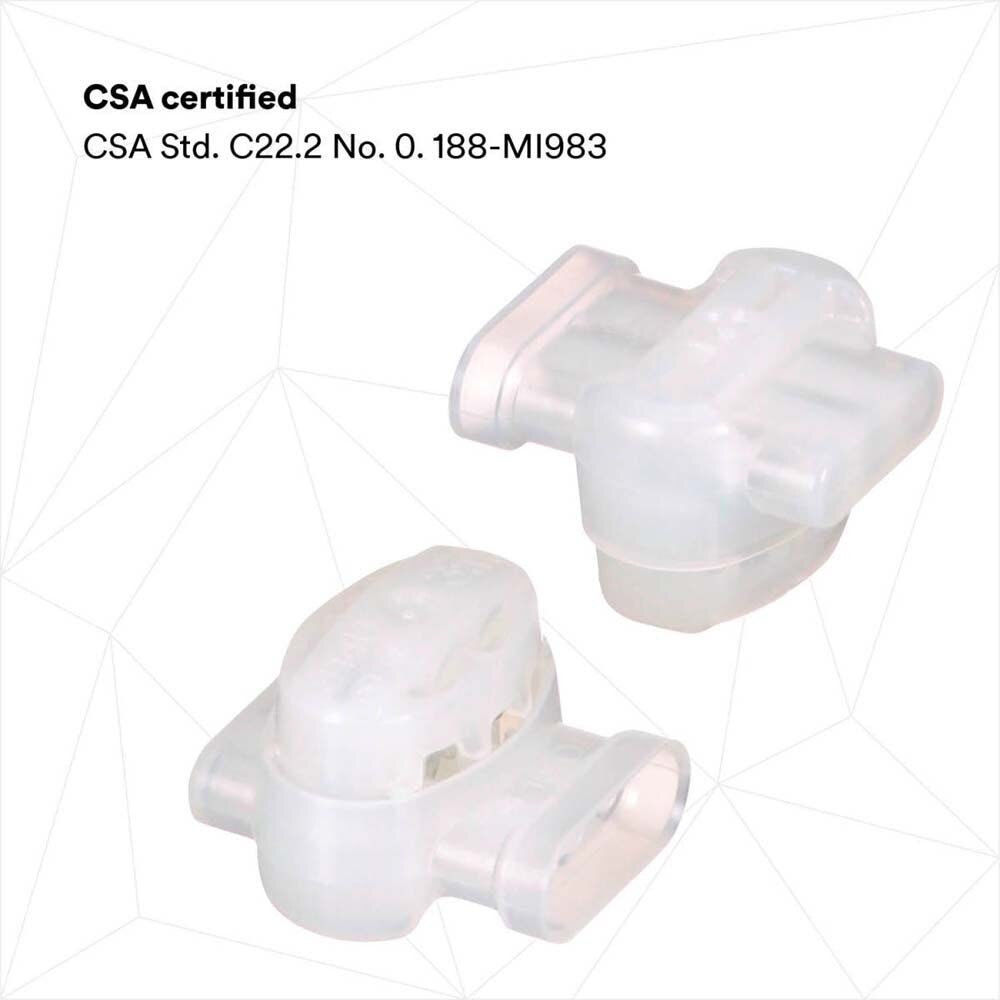

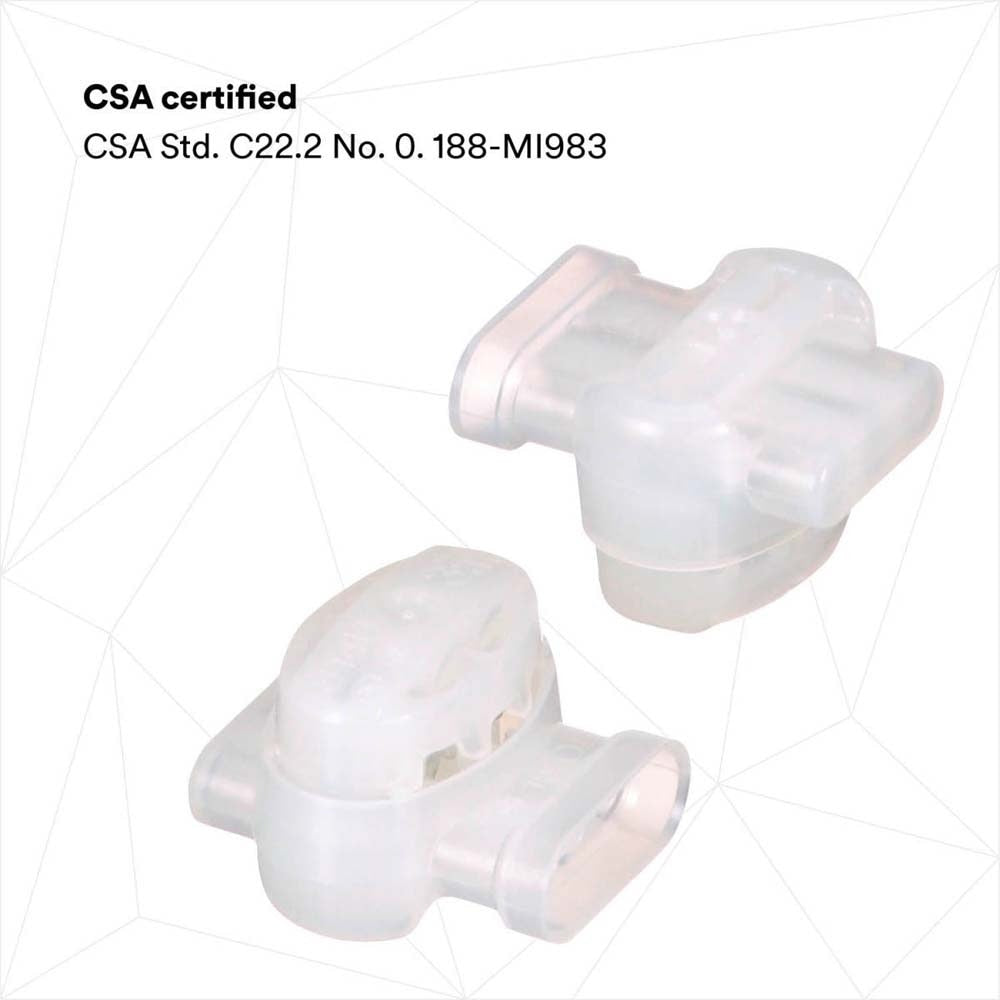

| Certifications | UL Listed (E23438), CSA Certified (LR15503) |
| Package Quantity | 1000 / Case |
| 3M ID | 7000058006 |
| Part Number | 314U-BIN |
Toolup Part # :
839628
