3M 7000058839 Description

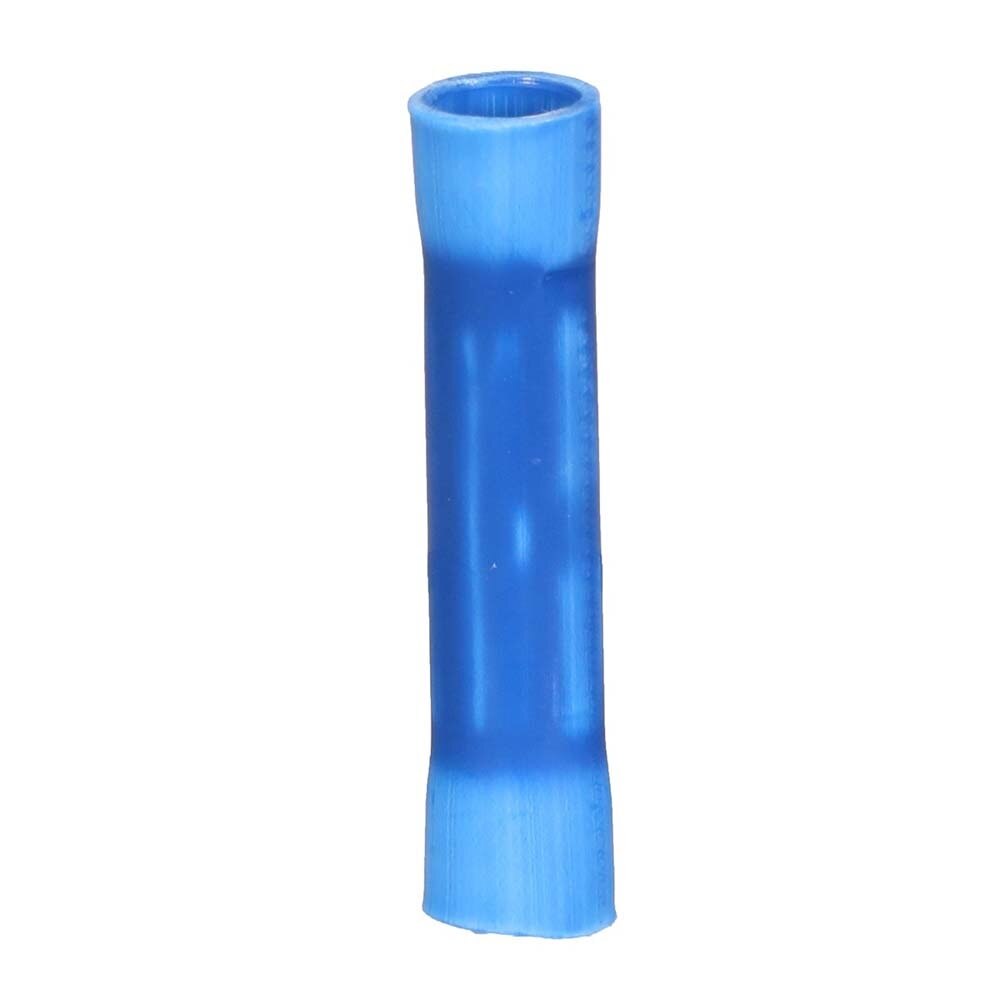

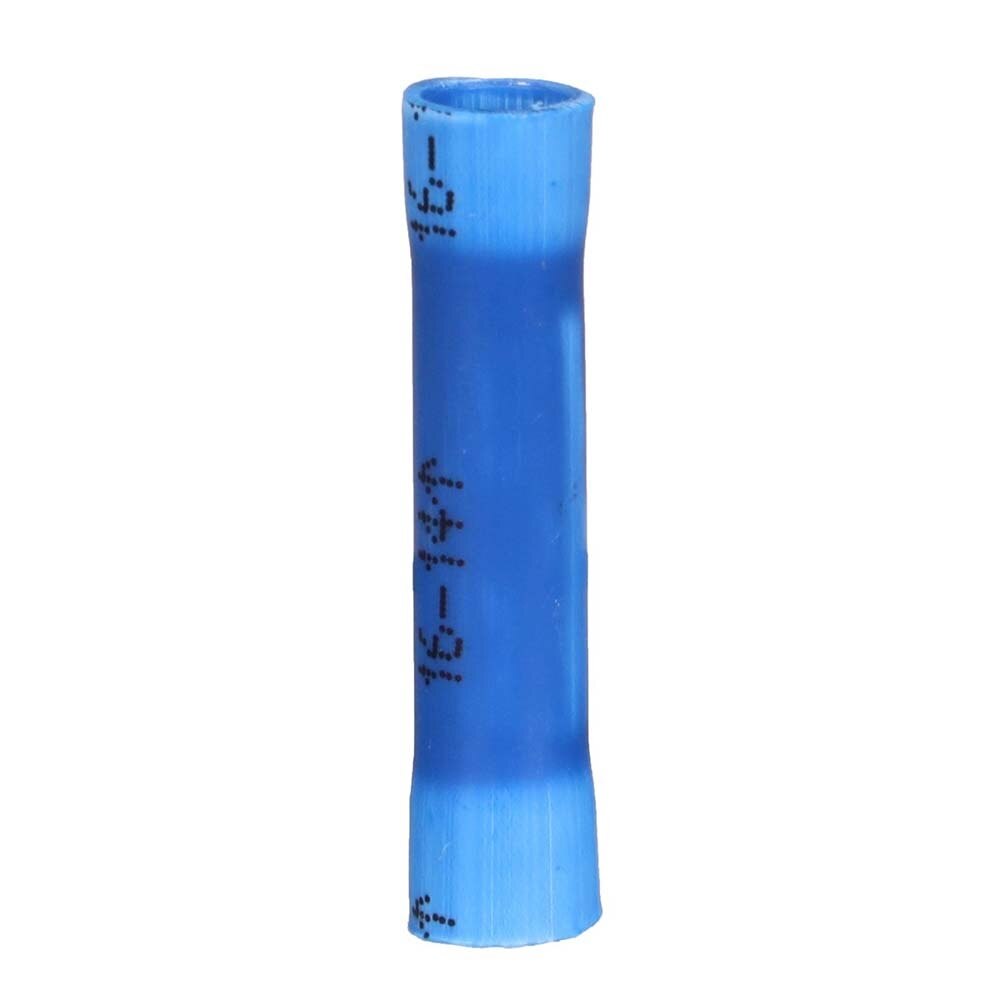

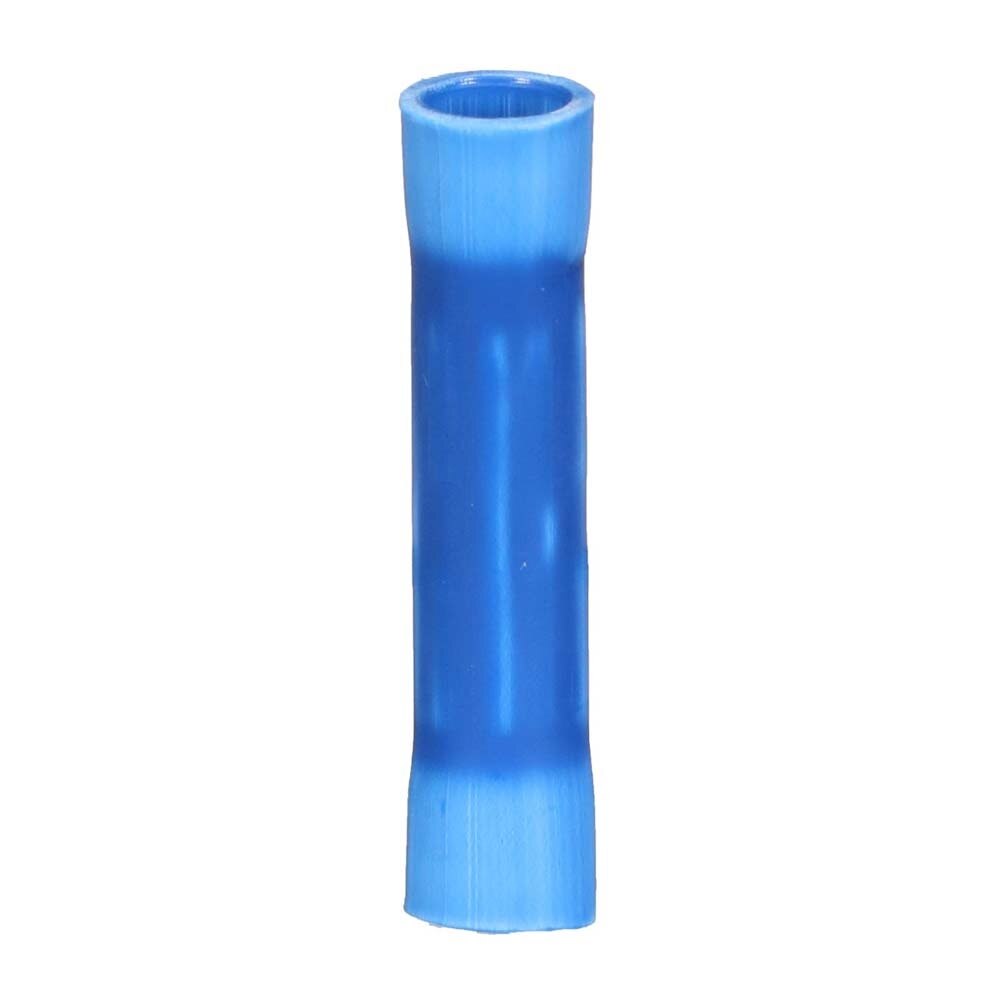

3M Scotchlok vinyl-insulated butted seam butt connectors provide secure, reliable splices for 16–14 AWG stranded copper wire. Blue color-coded sleeves with built-in wire stop aid correct positioning and easy crimping while tin-plated ETP copper ensures good conductivity and corrosion resistance.

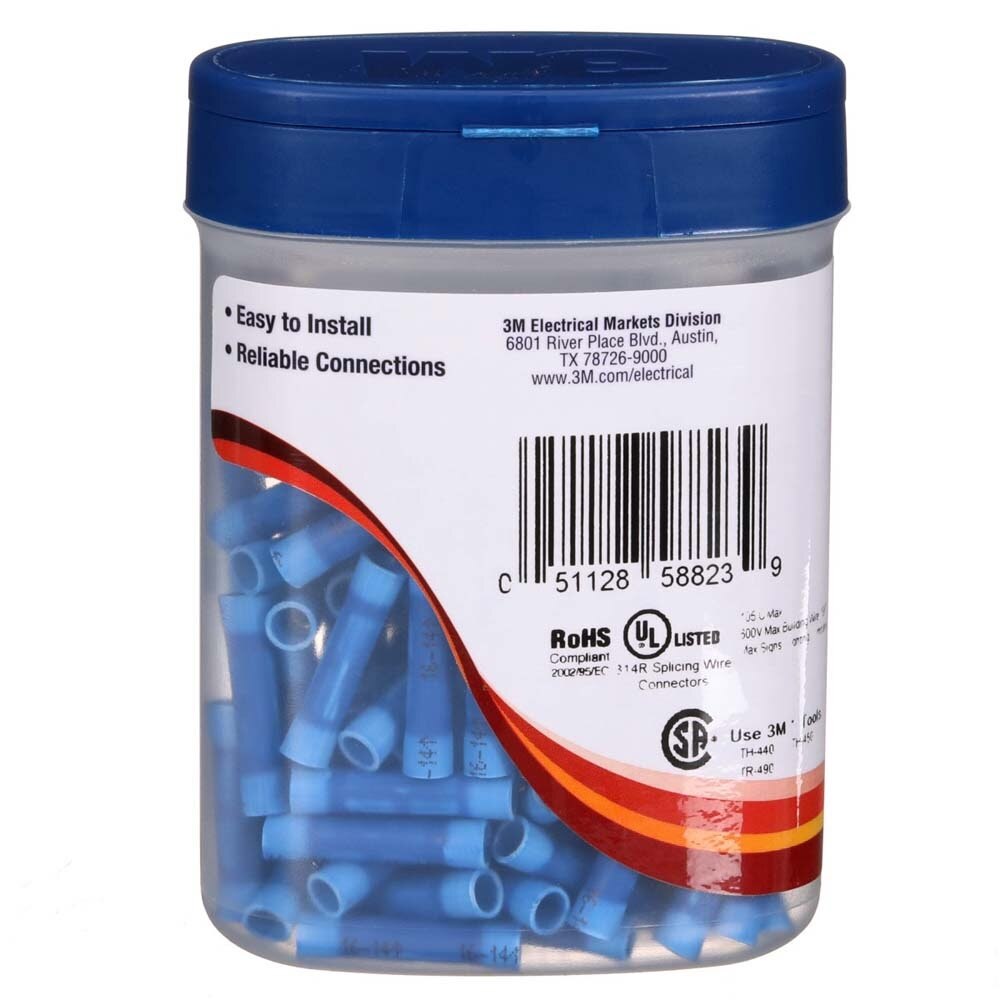

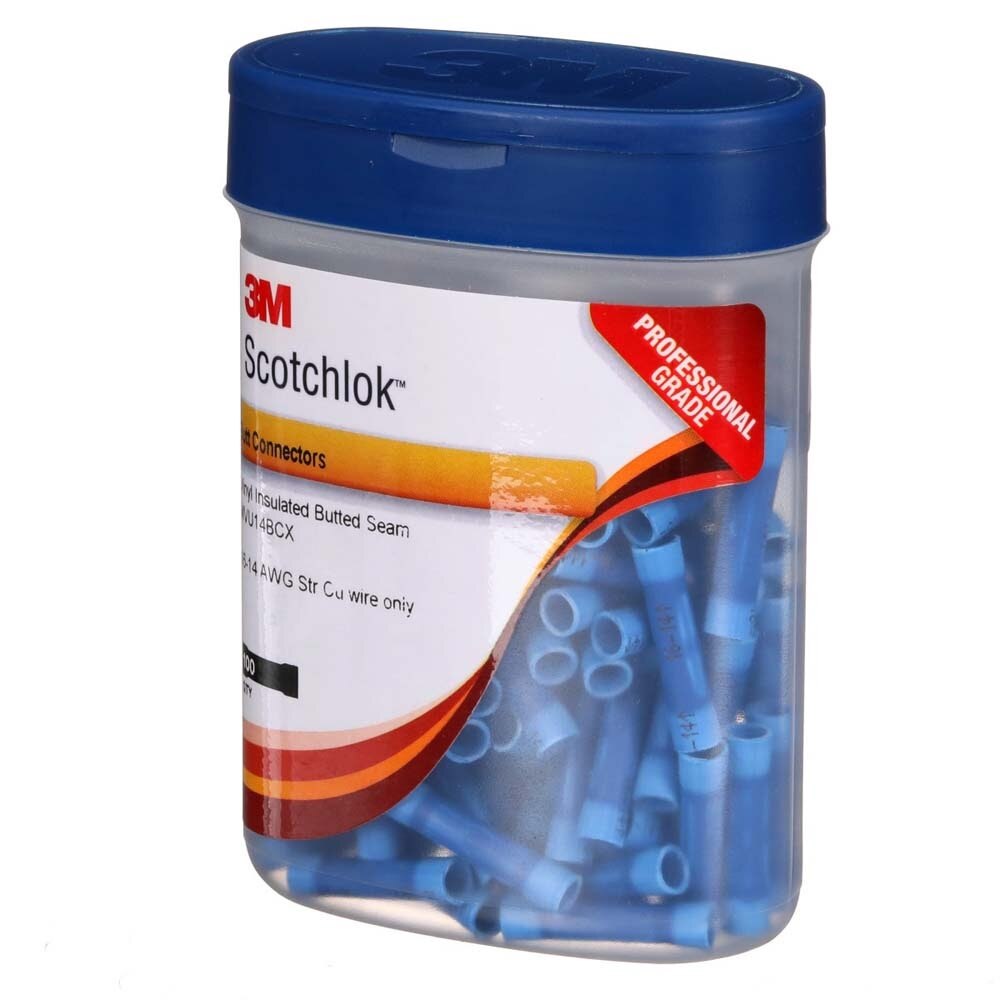

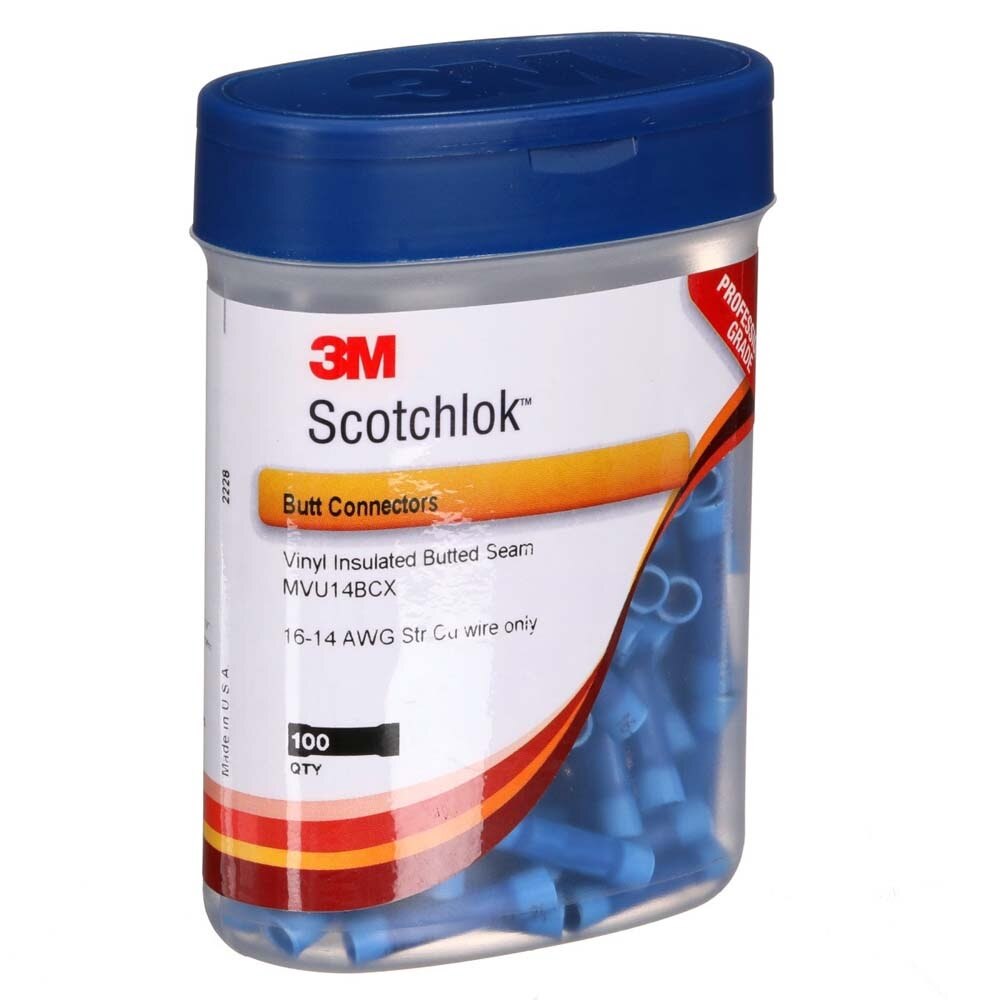

3M 7000058839 Includes

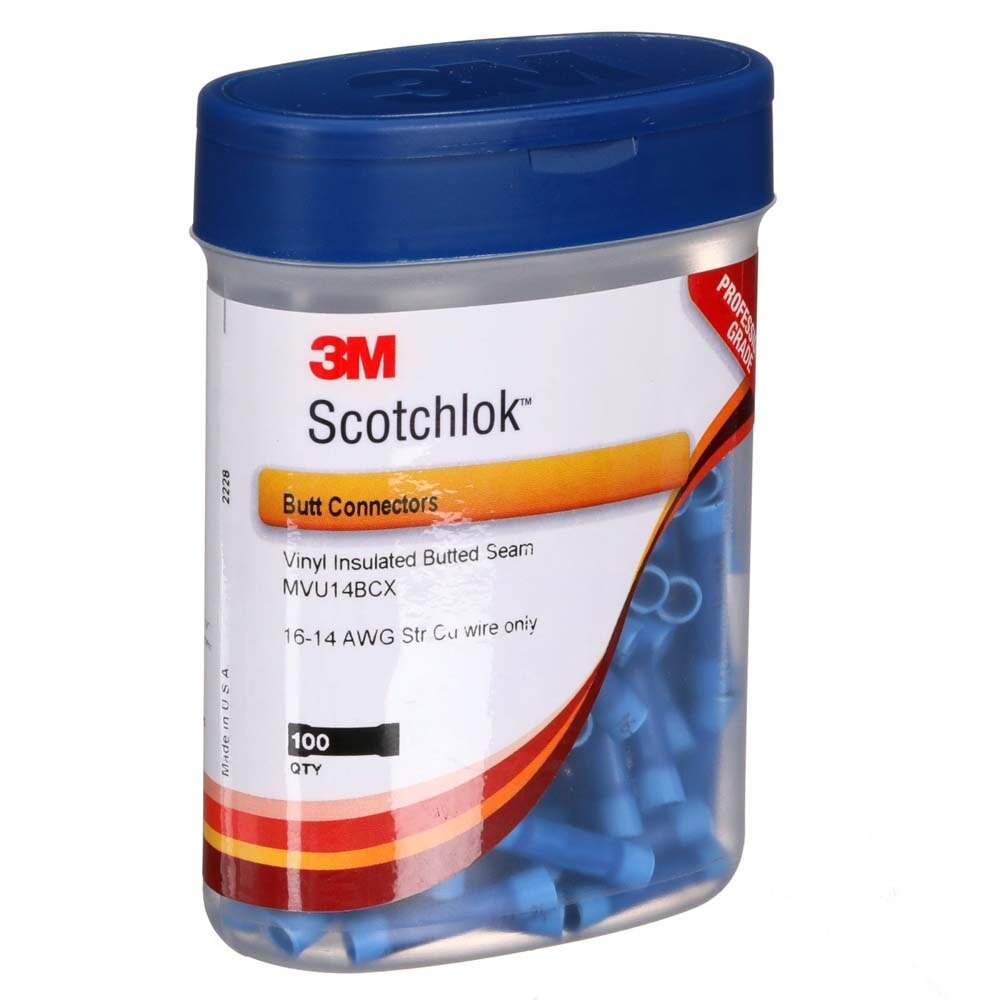

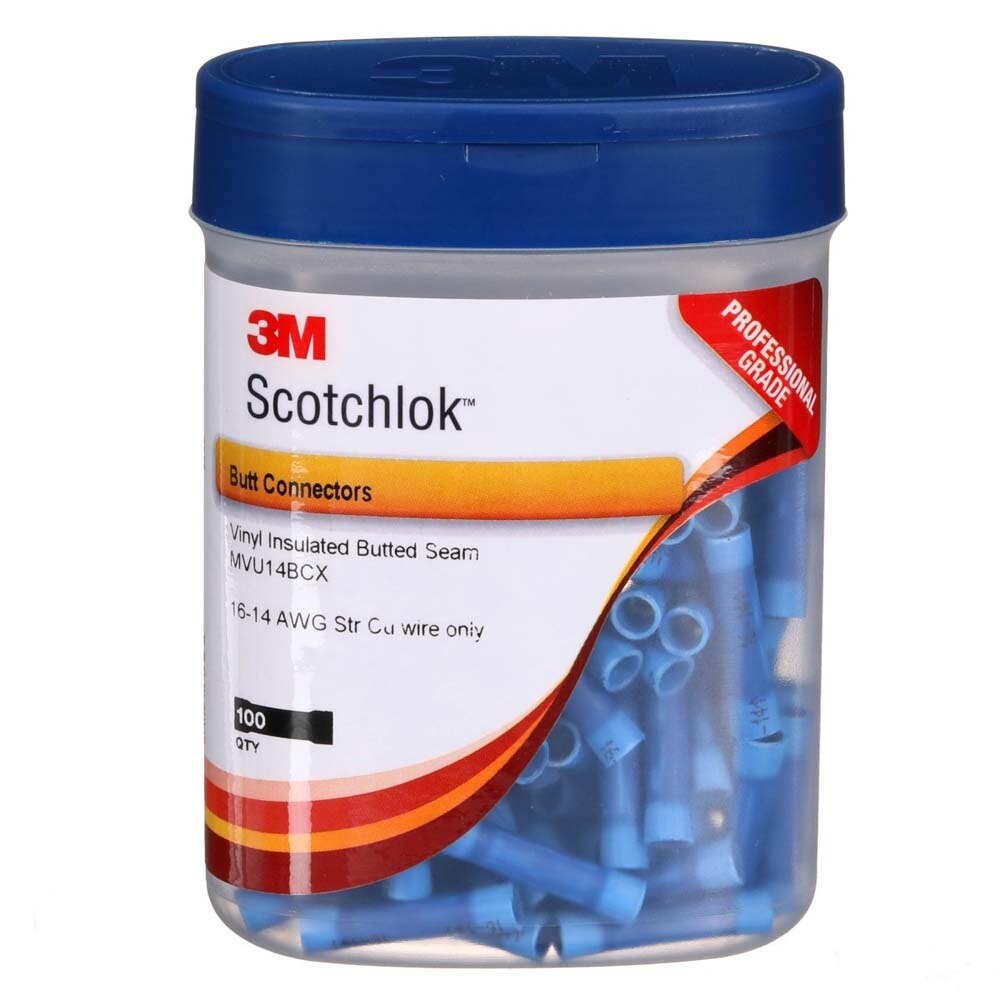

- (100) Butt Connectors
3M 7000058839 Features
- Vinyl-insulated, butted-seam barrel
- Built-in wire stop for correct positioning
- For 16–14 AWG stranded copper wire
- ETP copper with tin plating for conductivity and corrosion resistance
- Color-coded blue sleeve for quick identification
- UL Listed and CSA Certified
- Operating temperature -40 to 221 Degree Fahrenheit (-40 to 105 Degree Celsius)
- RoHS compliant
3M 7000058839 Specifications
| Connector Type | Butt |

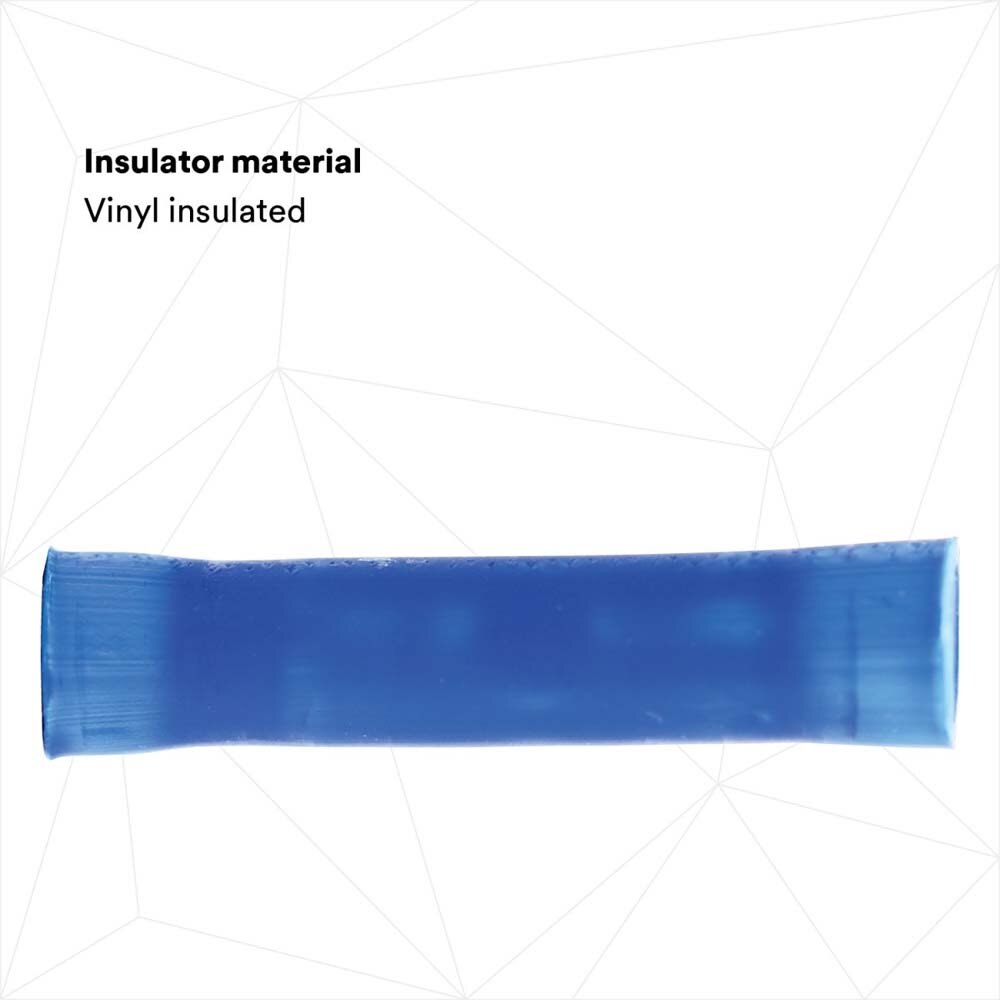

| Insulation Material | Vinyl |

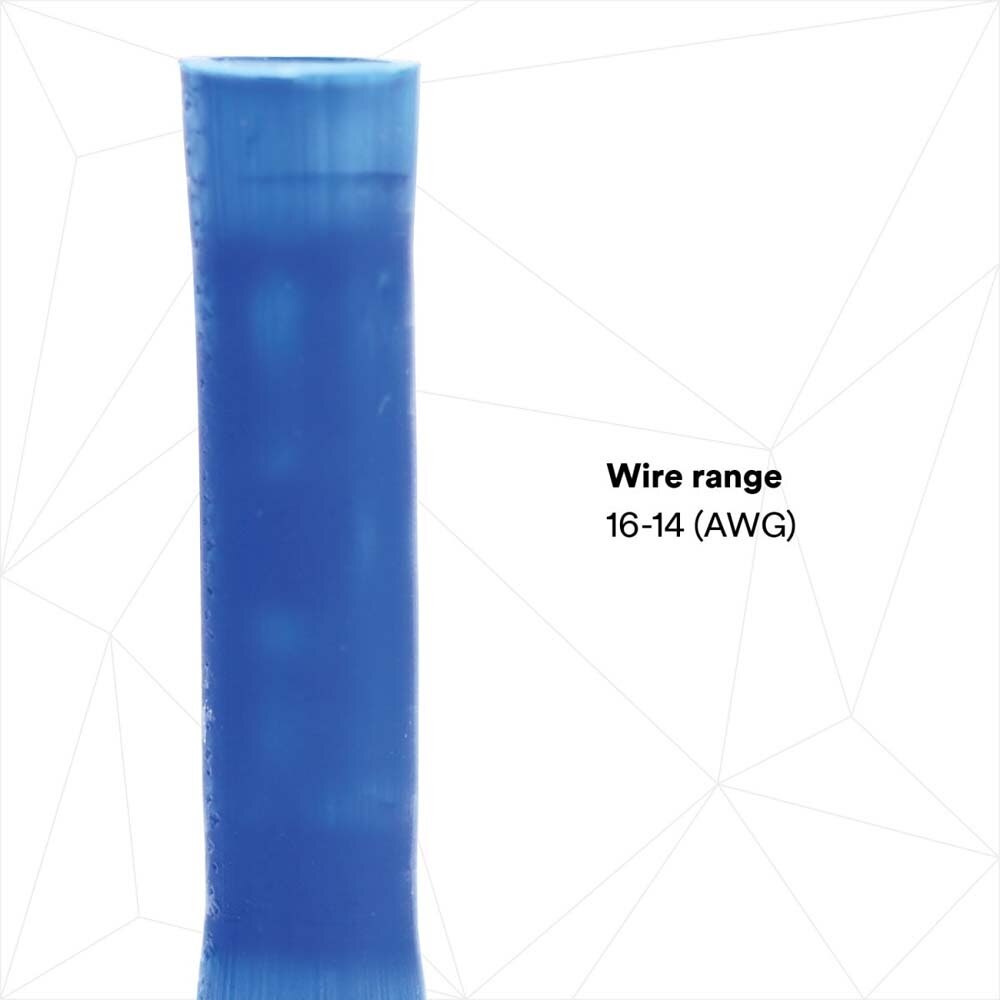

| Wire Range | 16–14 AWG |
| Barrel Style | Butted seam |
| Body Material | ETP Copper |
| Finish | Tin-plated |

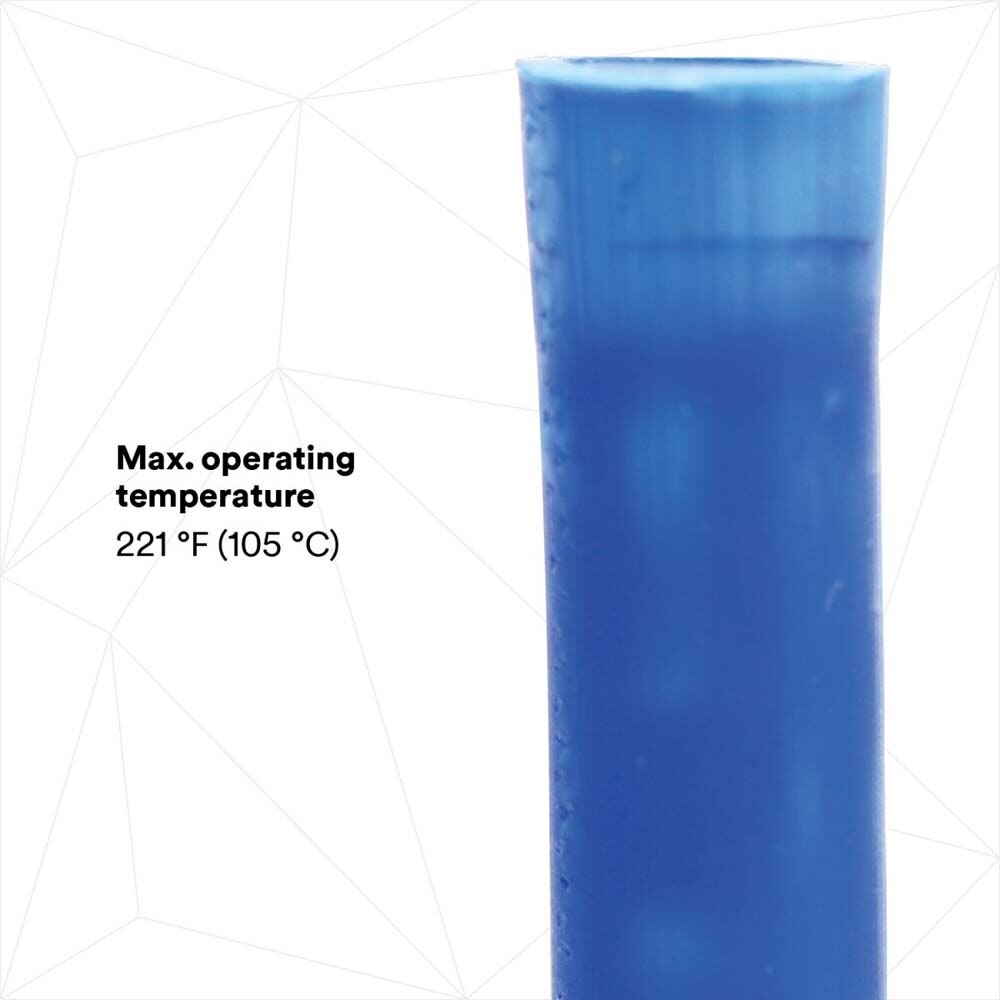

| Maximum Operating Temperature | 221 Degree Fahrenheit (105 Degree Celsius) |
| Minimum Operating Temperature | -40 Degree Fahrenheit (-40 Degree Celsius) |
| Overall Length | 1.0 in |
| Barrel Inside Diameter | 0.090 in |
| Barrel Length | 0.25 in |
| Insulation Color | Blue |
| Maximum Recommended Voltage Rating | 600 V |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
Toolup Part # :
839738
