At a Glance
Length
36 yd
Width
1 in
Thickness
7 mil
Adhesive Type
Silicone
Max Temperature
392�F
Tape Type
Electrical
Sub-Brand
Scotch
Material
Fiberglass Fabric
Description
Description
3M 7000132177 Description

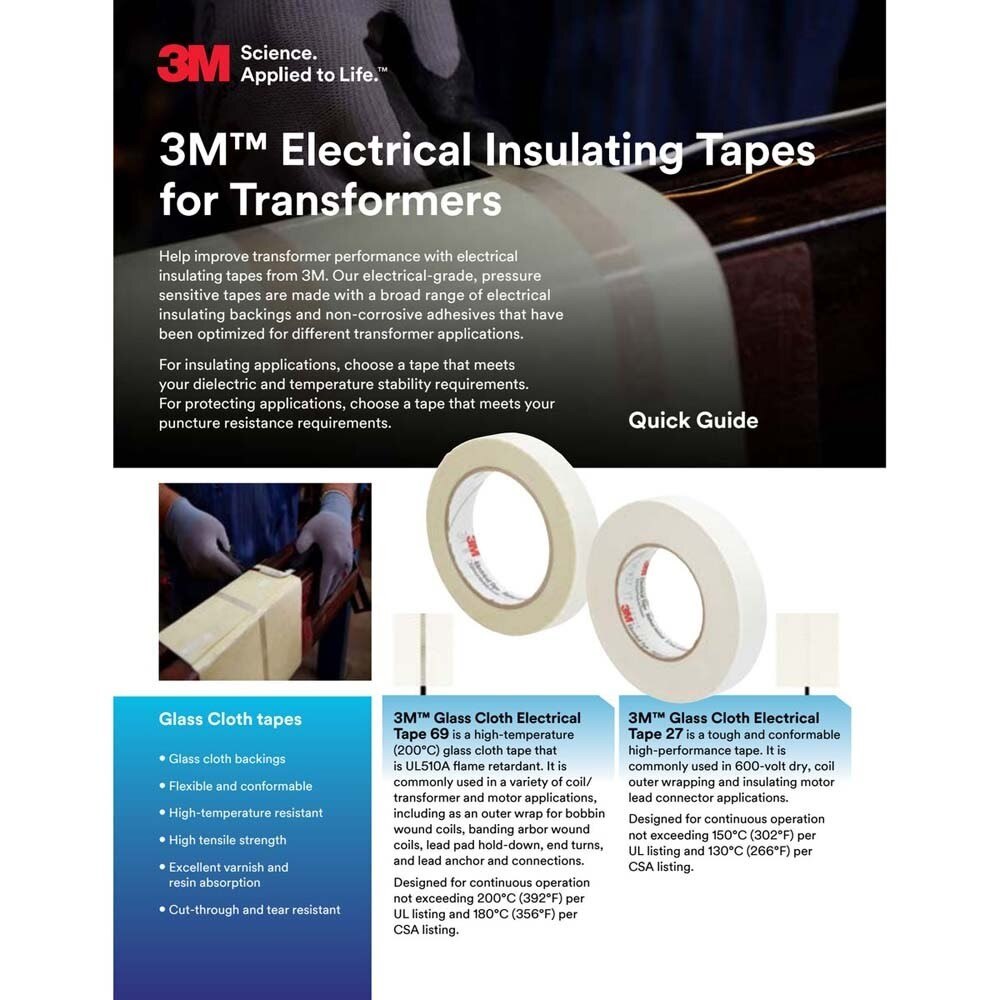

Scotch 69 is a premium-grade glass cloth electrical tape with a thermosetting silicone adhesive for high-temperature applications. Rated for 600 V dry applications, it offers flame retardance, excellent mechanical strength, and solvent-resistant insulation for coils, transformers, and motor leads.
3M 7000132177 Includes

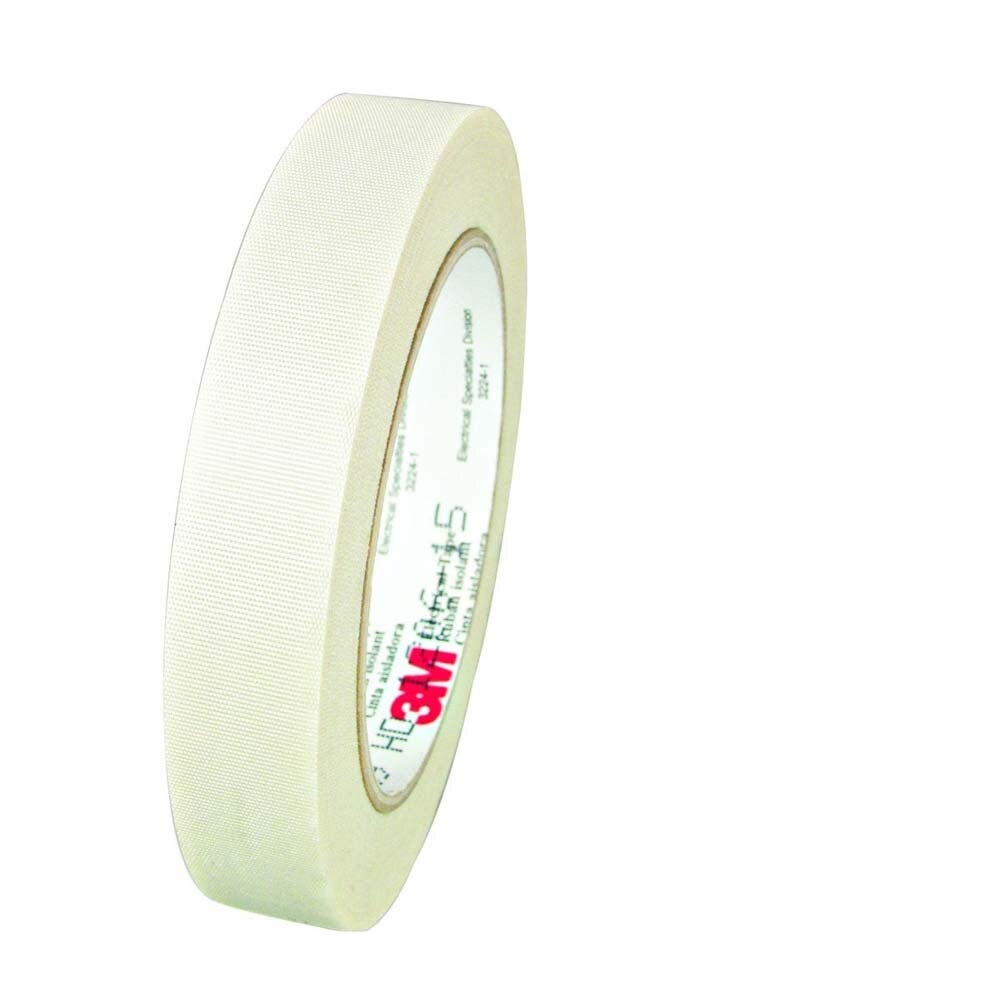

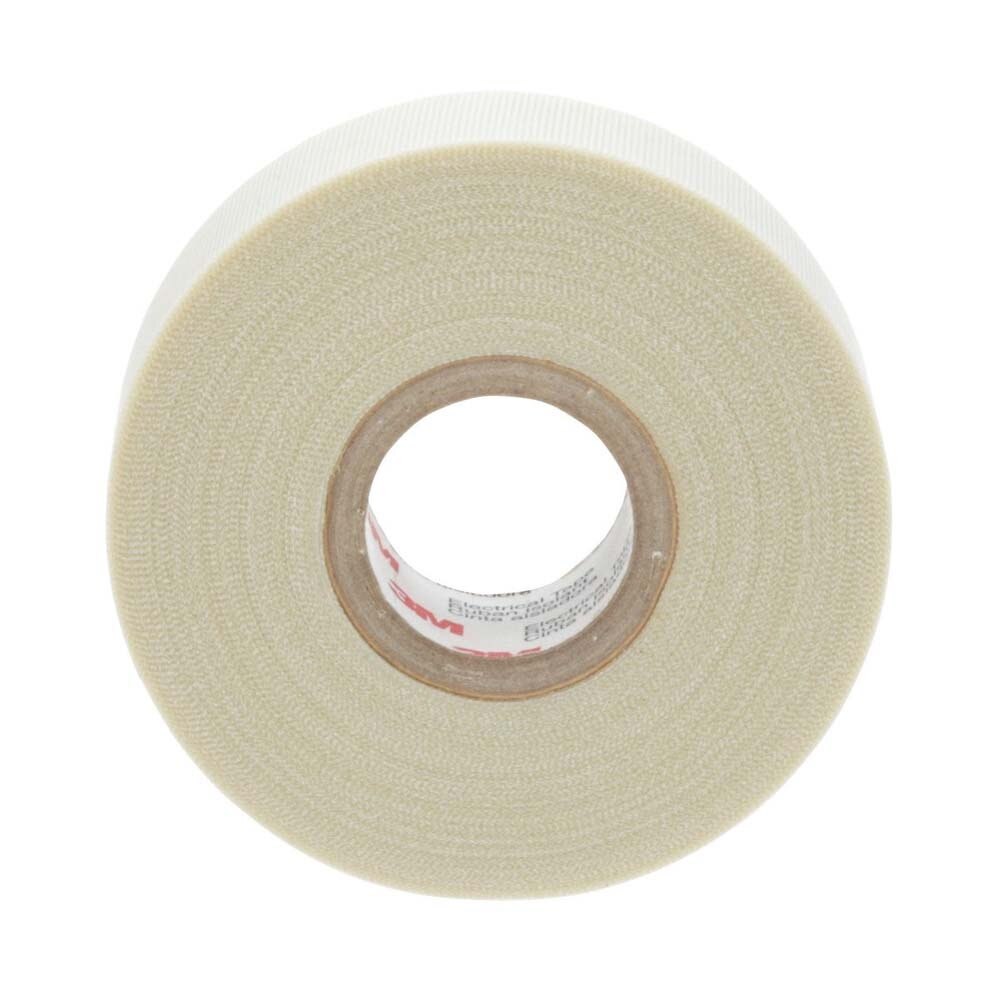

- (1) Scotch 69 Glass Cloth Electrical Tape, 1 in x 36 yd
3M 7000132177 Features
- High-temperature, thermosetting silicone adhesive
- Glass cloth backing for strength and conformability
- UL recognized; CSA certified
- Flame retardant (UL 510)
- Rated for 600 V dry applications
- Designed for continuous operation up to 200 DegreeC per UL, 180 DegreeC per CSA
- Excellent varnish and resin absorption
- Pressure-sensitive adhesive; no heat or moisture required

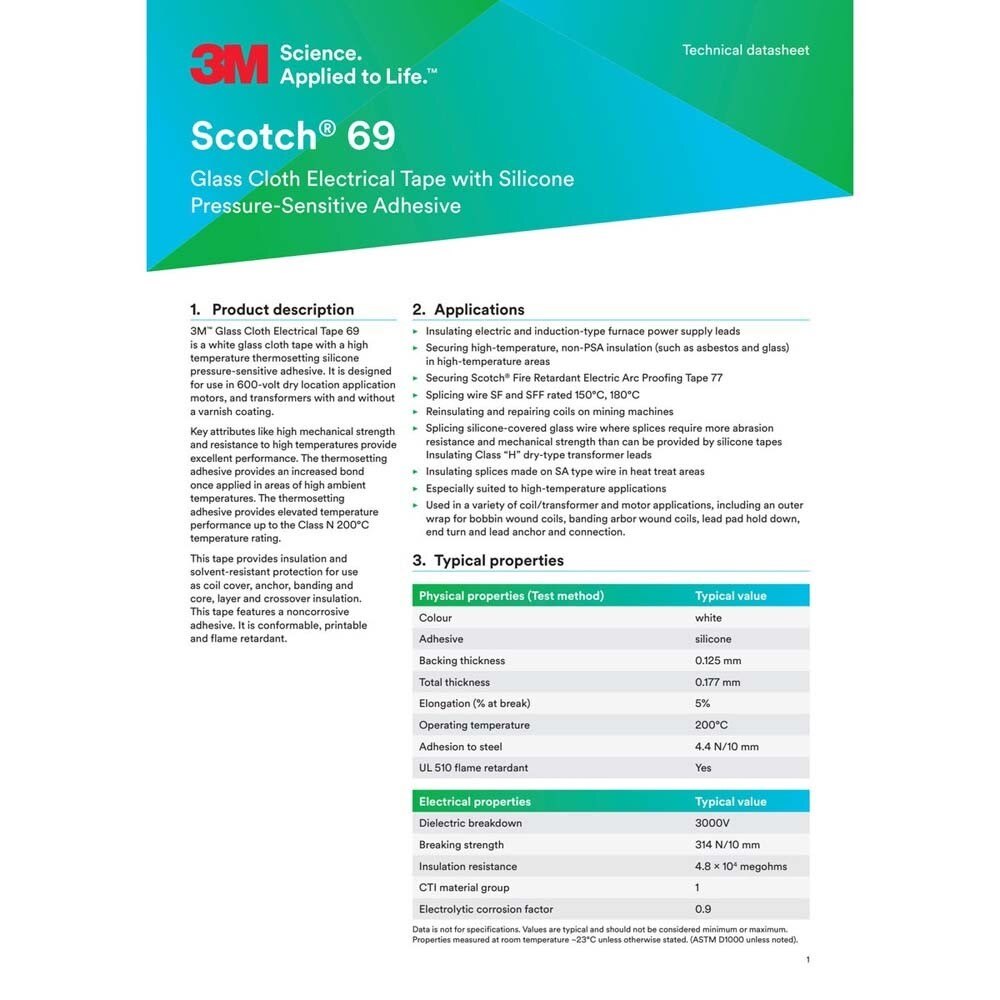

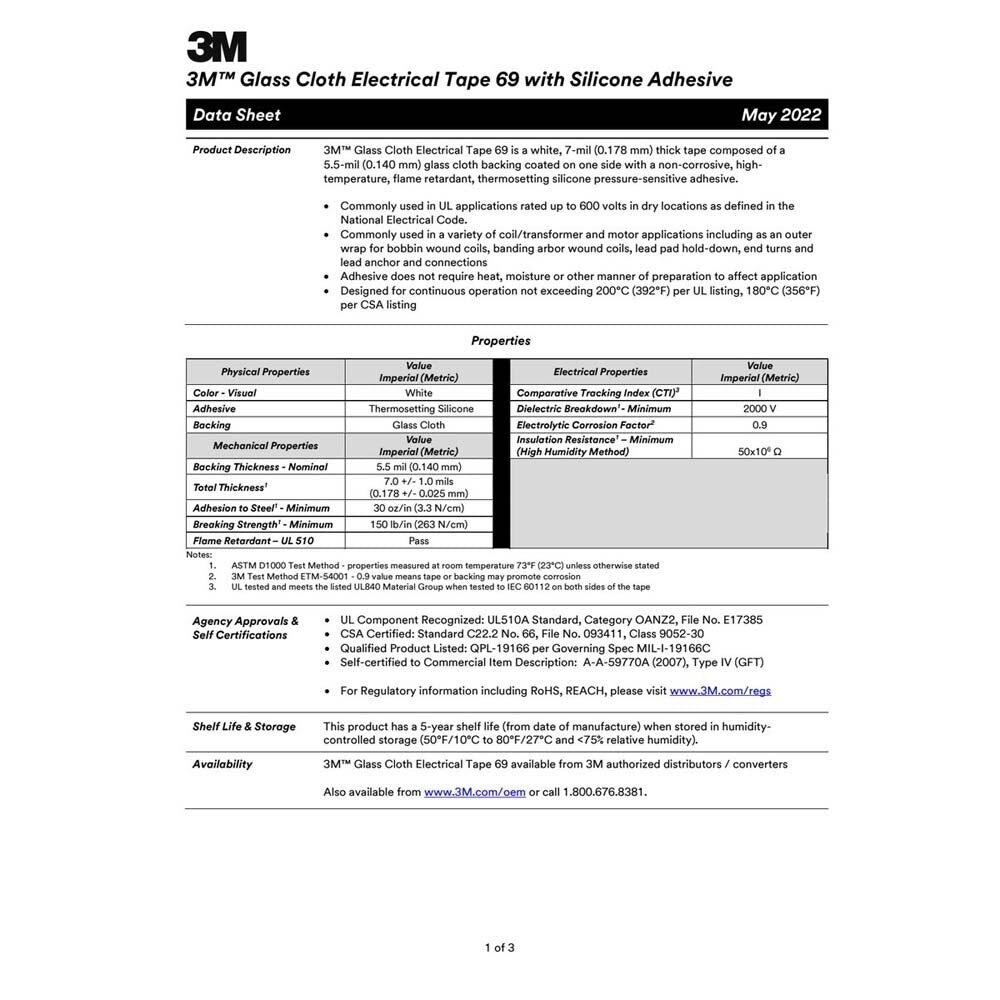

3M 7000132177 Specifications
| Tape Type: | Glass Cloth Electrical Tape |
| Adhesive Type: | Silicone (thermosetting, pressure-sensitive) |
| Color: | White |
| Overall Width: | 1 in |
| Overall Length: | 36 yd |
| Total Thickness: | 7 mil (0.178 mm) |
| Backing Thickness: | 5.5 mil (0.140 mm) |
| Dielectric Breakdown (Minimum): | 2000 V |
| UL Flame Retardant: | Pass (UL 510) |
| Operating Temperature (UL): | 200 DegreeC (392 DegreeF) |
| Operating Temperature (CSA): | 180 DegreeC (356 DegreeF) |
| Shelf Life: | 5 Years |
| Standards/Approvals: | UL, CSA, RoHS; QPL-19166 pre MIL-I-19166C |
Toolup Part # :
835592
