3M 7000132509 Description

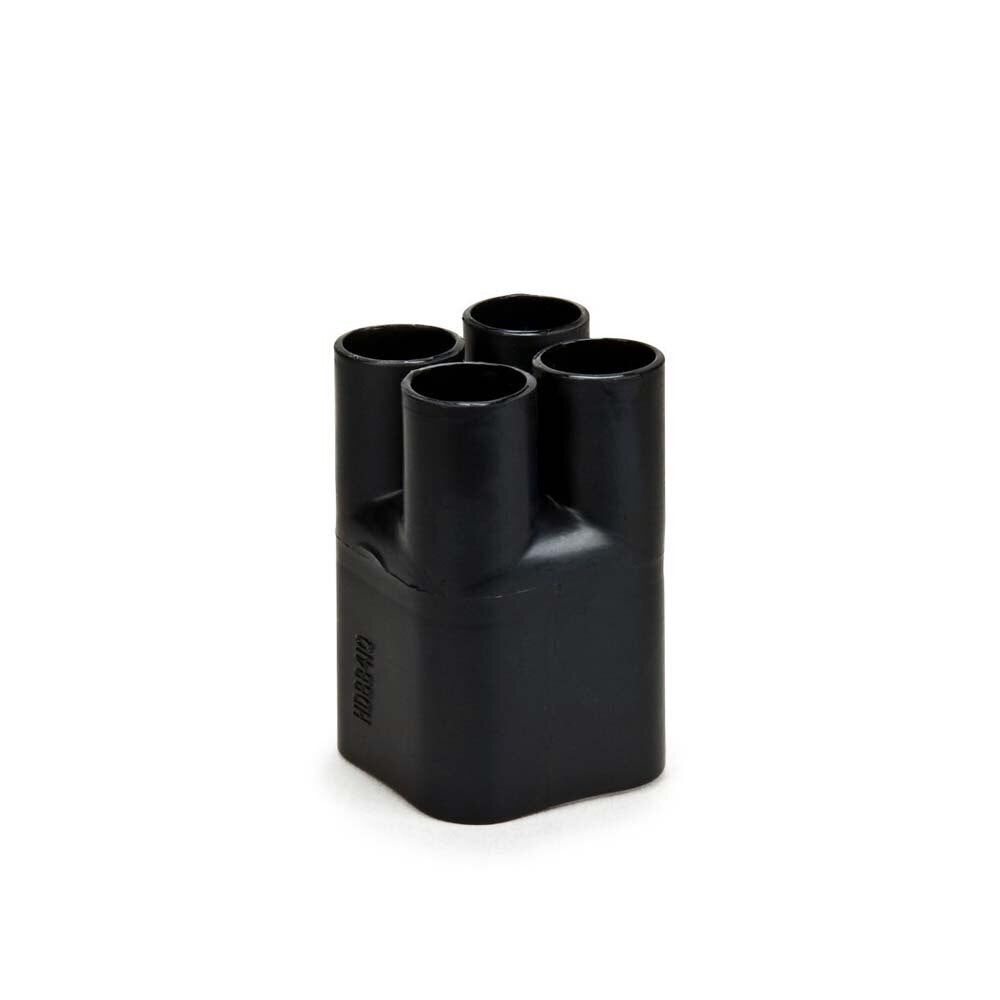

3M HDBB heat shrinkable cable breakout boot provides strain relief and environmental/mechanical protection for multi-conductor cable breakouts. The black, 4-way outlet boot is adhesive-lined for reliable, void-free sealing and is made of semi-rigid, flame-retardant polyolefin.
3M 7000132509 Includes
- (1) Heat Shrinkable Cable Breakout Boot (HDBB-430-1-250)
3M 7000132509 Features
- 4-way outlet for multi-conductor cable breakouts
- Adhesive-lined interior for reliable environmental seal
- Semi-rigid, flame-retardant polyolefin construction
- Provides strain relief and mechanical protection
- RoHS compliant
- Designed for indoor/outdoor use

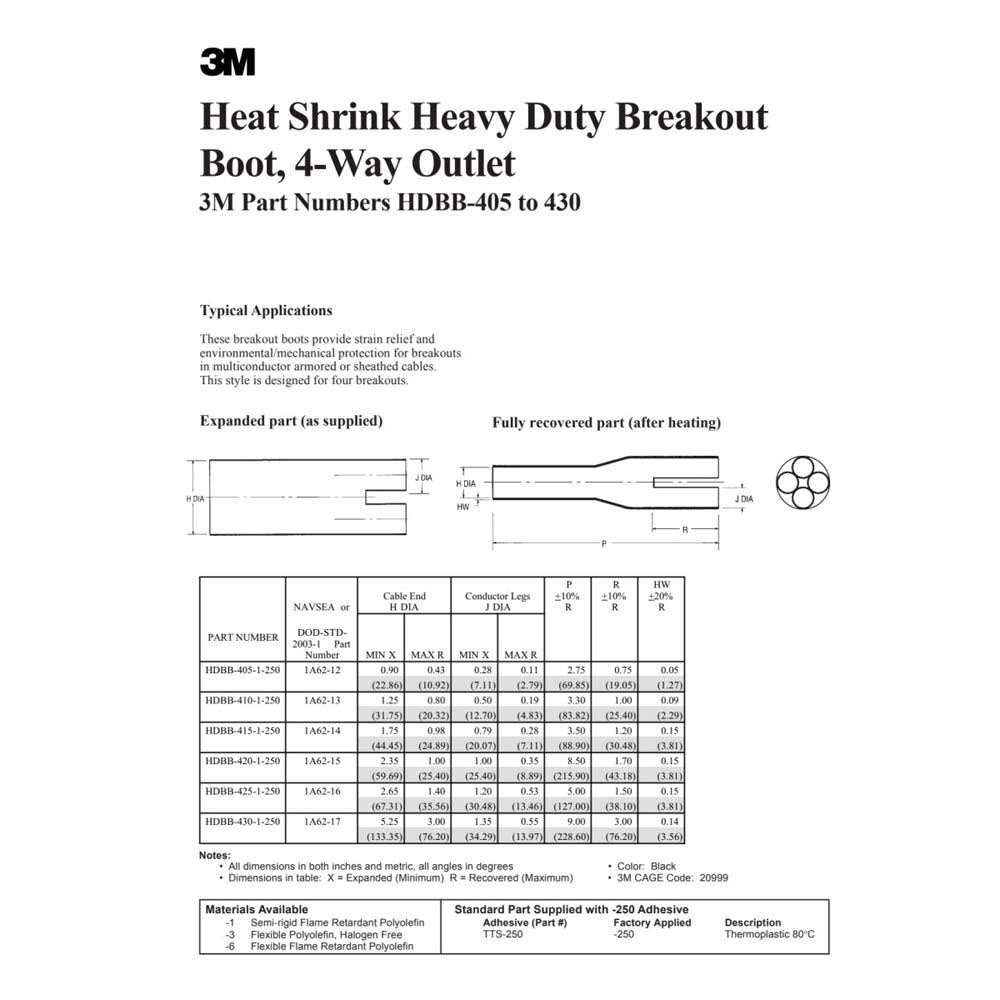

3M 7000132509 Specifications
| Color | Black |
| Number of Outlets | 4 |
| Material | Semi-rigid, Flame Retardant Polyolefin |
| Shrink Type | Heat Shrink Molded Shape |
| Transition Type | 1 - 4 Breakout |
| Cable End Diameter Before/After Shrink | 5.25 in / 3.0 in |
| Conductor Leg Diameter Before/After Shrink | 1.35 in / 0.55 in |
| Operating Temperature | -30 to +135 Degree Celsius |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| RoHS Compliance | RoHS 2011/65/EU compliant |
| Model/Series | HDBB-430 |
| Adhesive | Factory applied -250 adhesive (TTS-250) |
Toolup Part # :
839664
