3M 7000132582 Description

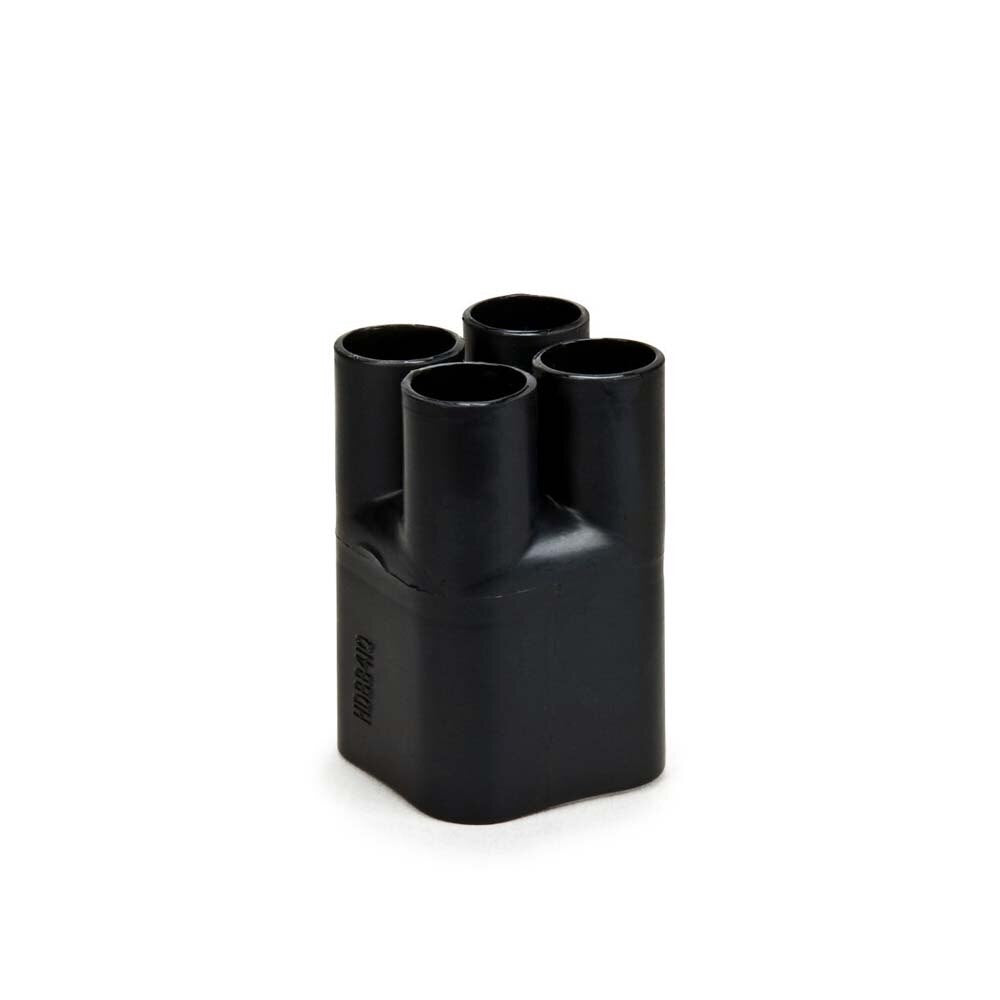

3M HDBB heat shrinkable cable breakout boot provides strain relief and environmental/mechanical protection for multicore cable breakouts. The heavy-duty, semi-rigid flame-retardant polyolefin construction with adhesive lining ensures reliable, void-free sealing; black, 4-way outlet design.
3M 7000132582 Includes
- (1) HDBB Heat Shrinkable Cable Breakout Boot (HDBB-420-1-250)
3M 7000132582 Features
- 4-way outlet for multicore cable breakouts
- Adhesive-lined interior for reliable environmental sealing
- Semi-rigid, flame-retardant polyolefin construction
- Heat shrink molded shape for durable protection
- UV resistant; suitable for indoor/outdoor use
- Operating temperature: -30 to 135 Degree Celsius
- RoHS 2011/65/EU compliant
3M 7000132582 Specifications
| Color | Black |
| Number of Outlets | 4 |
| Outlet Style | 4-Way |
| Material | Semi-rigid, Flame Retardant Polyolefin |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Transition Type | 1 - 4 Breakout |
| Indoor/Outdoor | Both |
| UV Resistant | Yes |
| Operating Temperature Range | -30 to +135 Degree Celsius |
| Cable End Diameter Before/After Shrink | 1.0 in / 0.35 in |
| Outer Diameter Before/After Shrink | 2.35 in / 1.0 in |
| Conductor Legs Diameter Before/After Shrink | 1.0 in / 0.35 in |
| Dielectric Strength | 10 kV/mm |
| Adhesive | Factory applied -250 (TTS-250) |
| Model/Series | HDBB-420-1-250 |
