3M 7000132649 Description

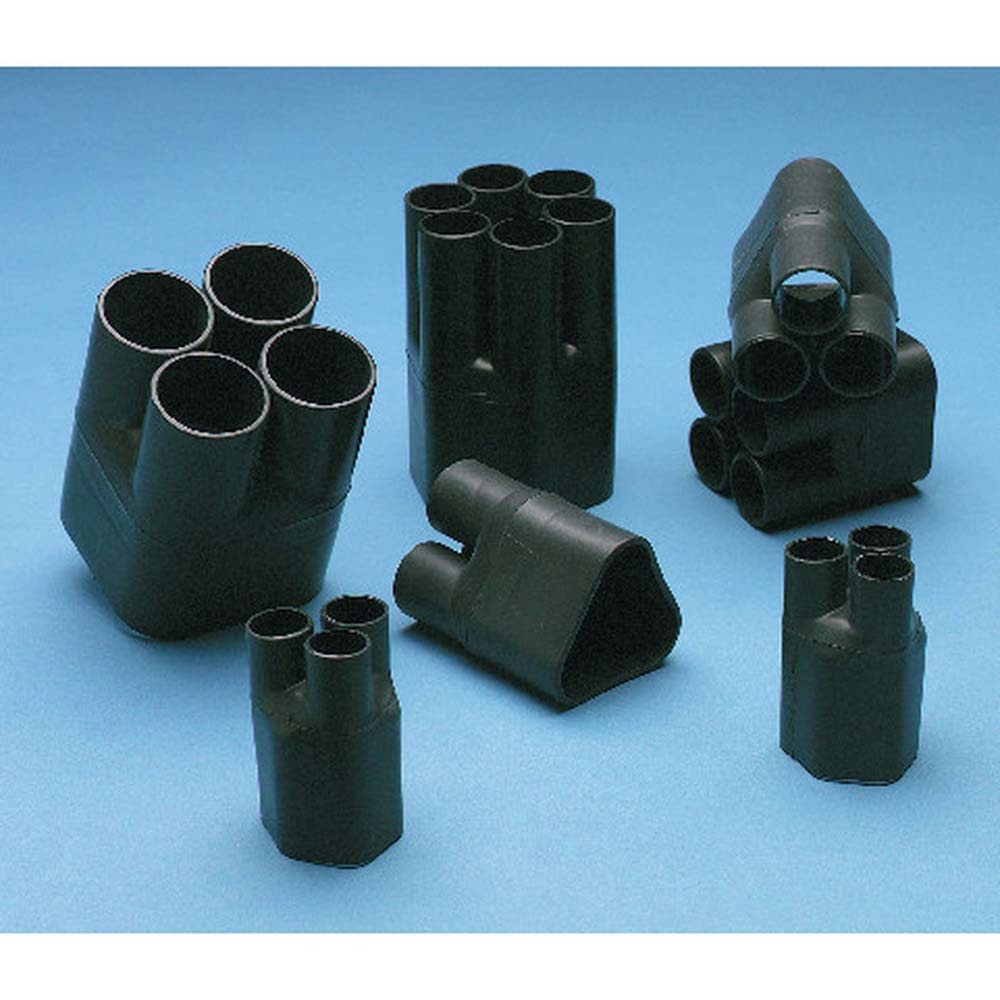

3M heat shrink heavy-duty breakout boot insulates and seals cable breakouts in multi-conductor armored or sheathed cables. The semi-rigid, flame-retardant polyolefin construction with factory-applied adhesive provides reliable environmental sealing. Black, 5-way outlet.
3M 7000132649 Includes
- (1) Heat Shrinkable Cable Breakout Boot HDBB-505-1-250
3M 7000132649 Features
- Insulates and seals multi-conductor cable breakouts
- Semi-rigid, flame-retardant polyolefin construction
- Factory-applied adhesive for environmental sealing
- Designed for five breakouts (5-way outlet)
- RoHS 2011/65/EU compliant
- UV resistant; suitable for indoor/outdoor use
- Heavy-duty mechanical and electrical protection

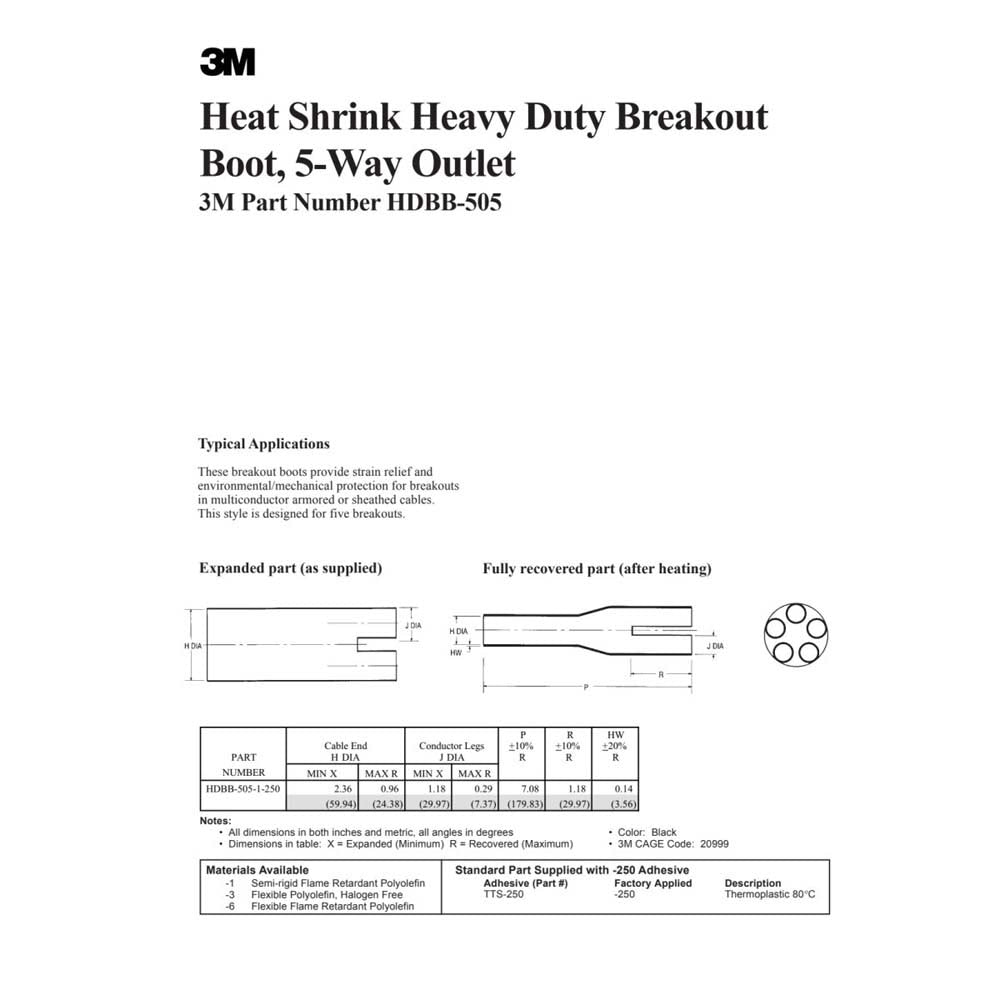

3M 7000132649 Specifications
| Color | Black |
| Outlet Style | 5-Way |
| Transition Type | 1-5 Breakout |
| Material | Semi-rigid, Flame Retardant Polyolefin |
| Cable End Expanded (MAX) | 2.36 in |
| Cable End Recovered (MIN) | 0.96 in |
| Conductor Legs Expanded (MAX) | 1.18 in |
| Conductor Legs Recovered (MIN) | 0.29 in |
| Outer Diameter Before Shrink | 2.36 in |
| Outer Diameter After Shrink | 0.96 in |
| Inner Diameter Before Shrink | 1.18 in |
| Inner Diameter After Shrink | 0.29 in |
| Operating Temperature | -30 up to +135 Degree Celsius |
| Dielectric Strength | 10 kV / mm |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| RoHS | 2011/65/EU compliant |
| Sales Unit | EA |
| Item Unit | Bag |
| Model/Part Family | HDBB-505 |
Toolup Part # :
839667
