3M 7000133349 Description

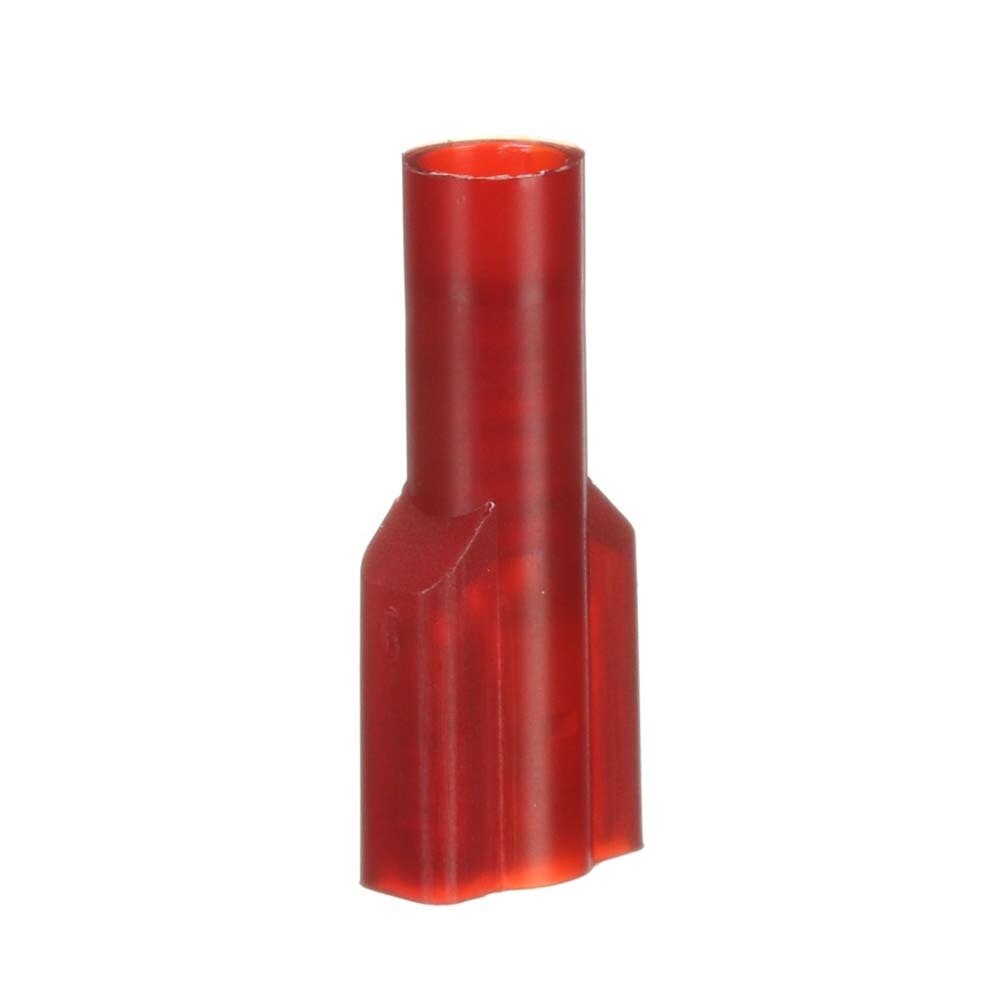

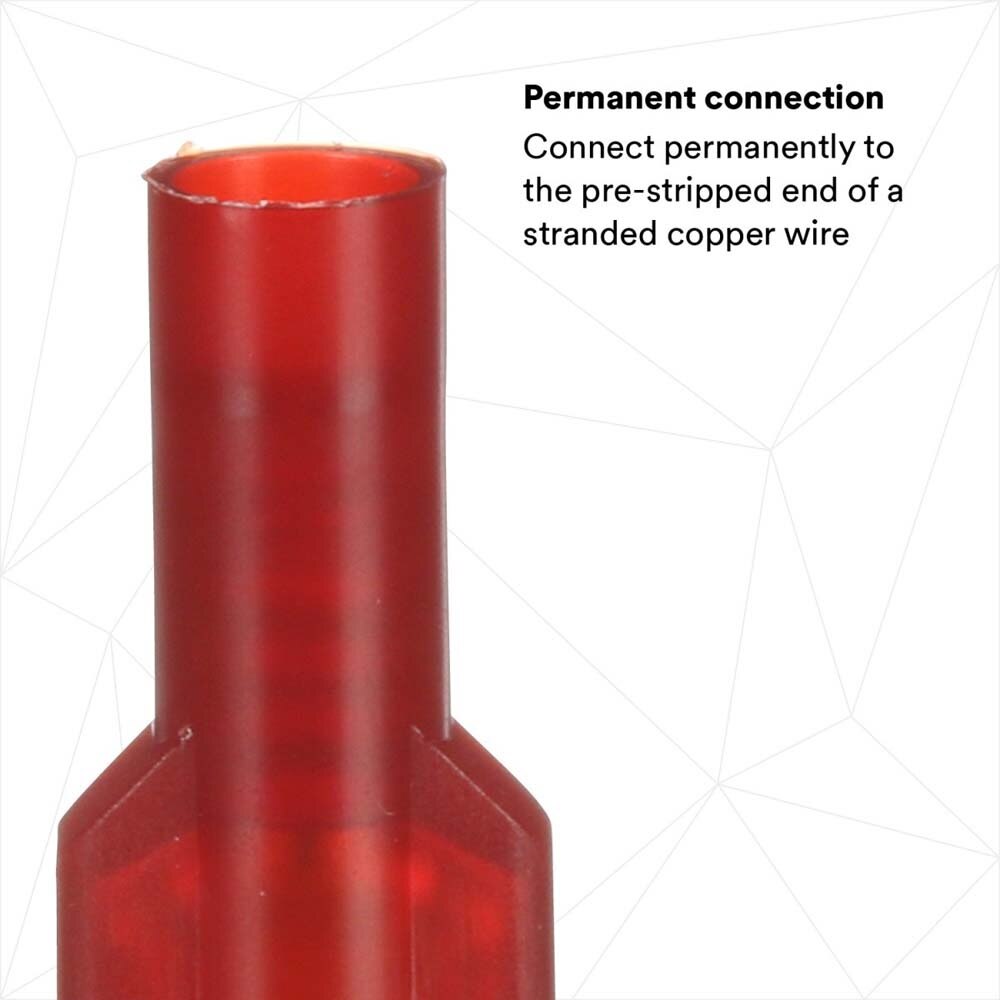

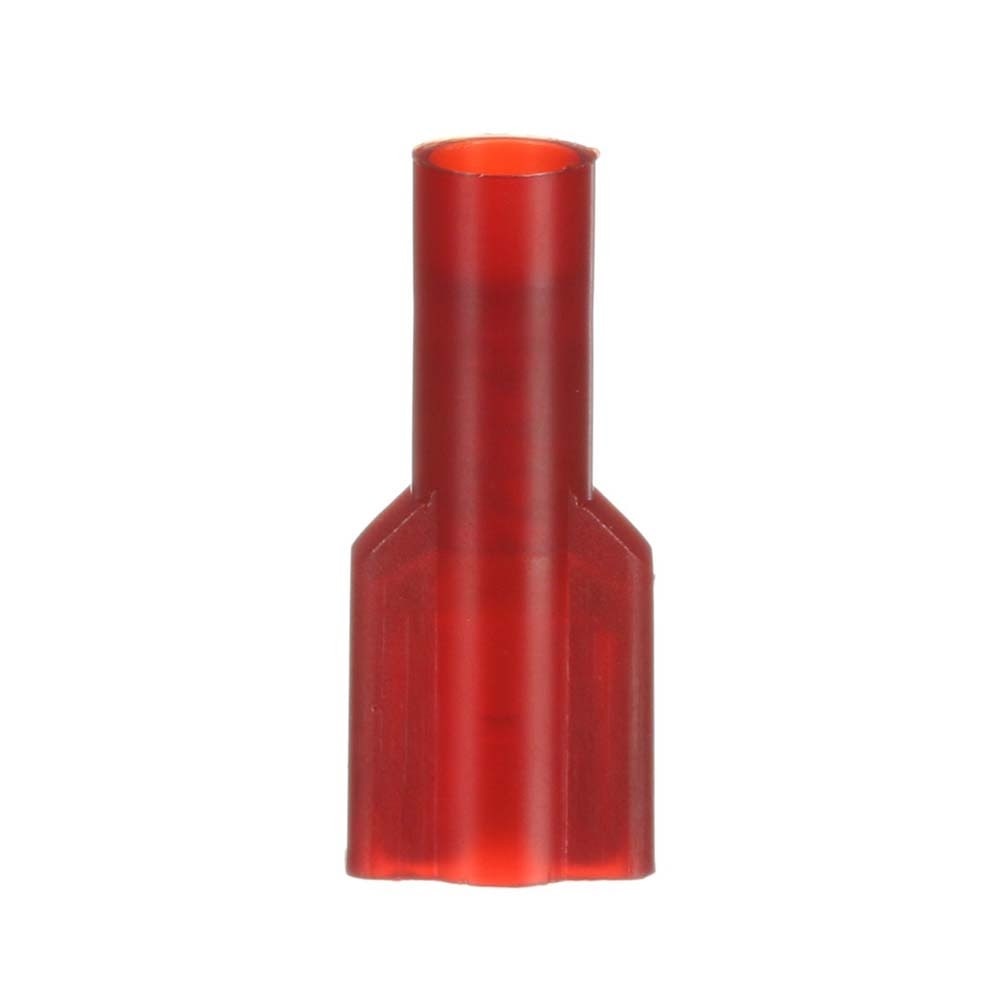

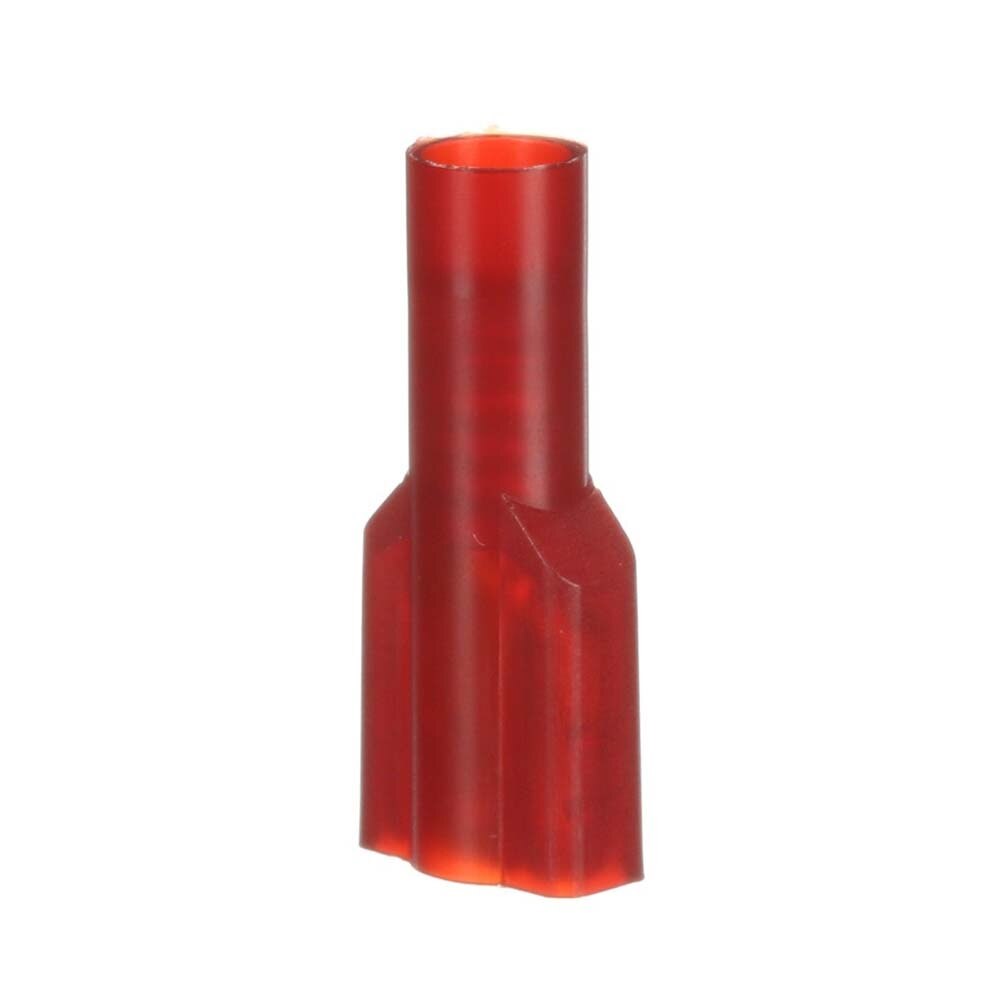

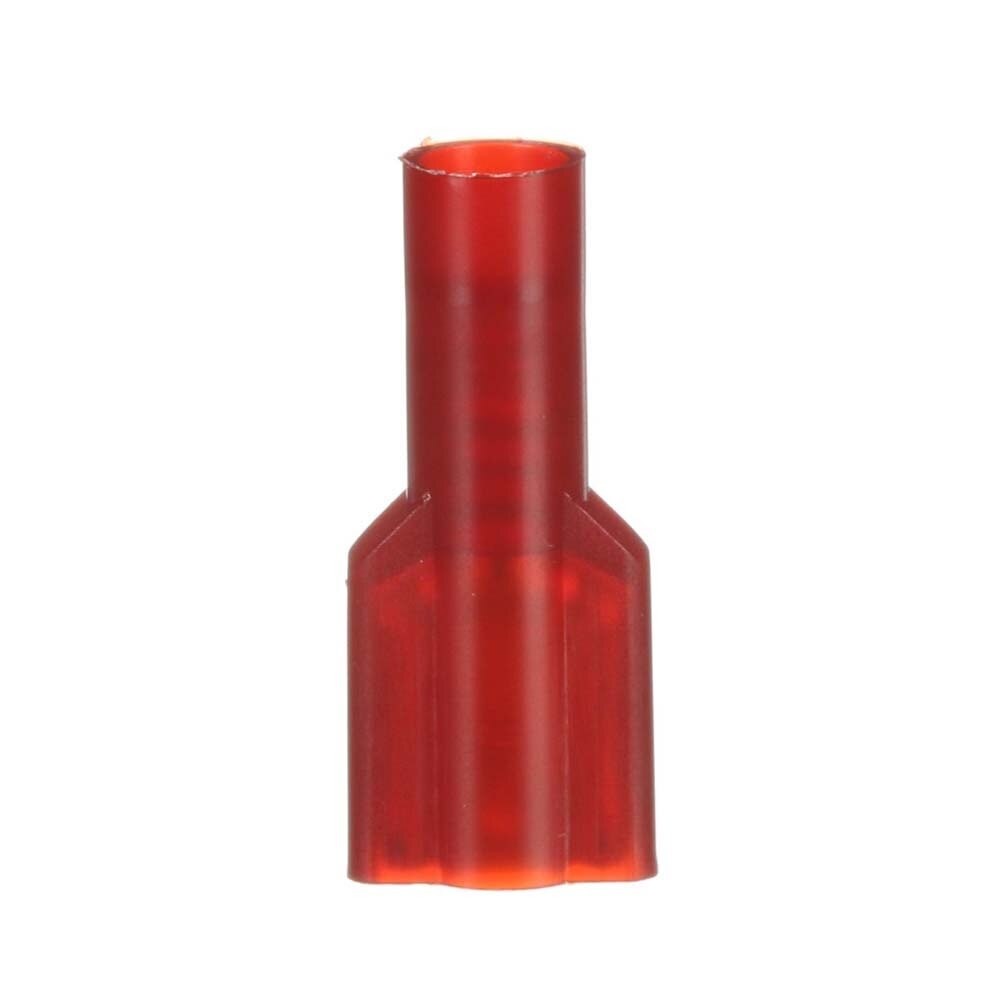

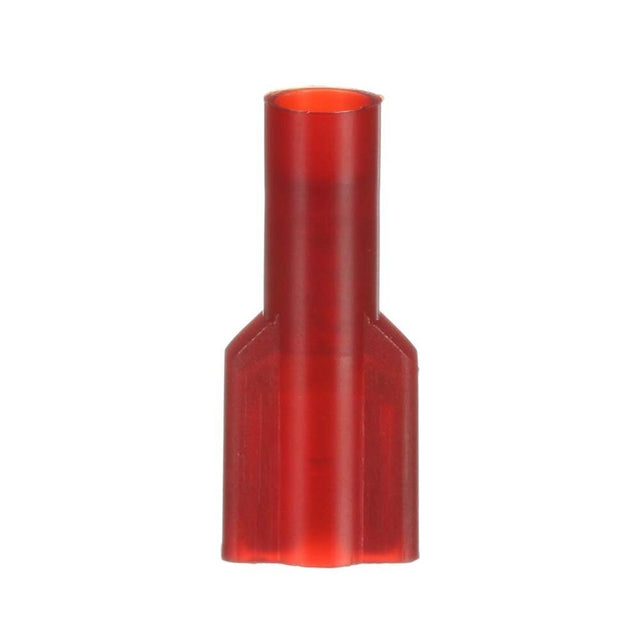

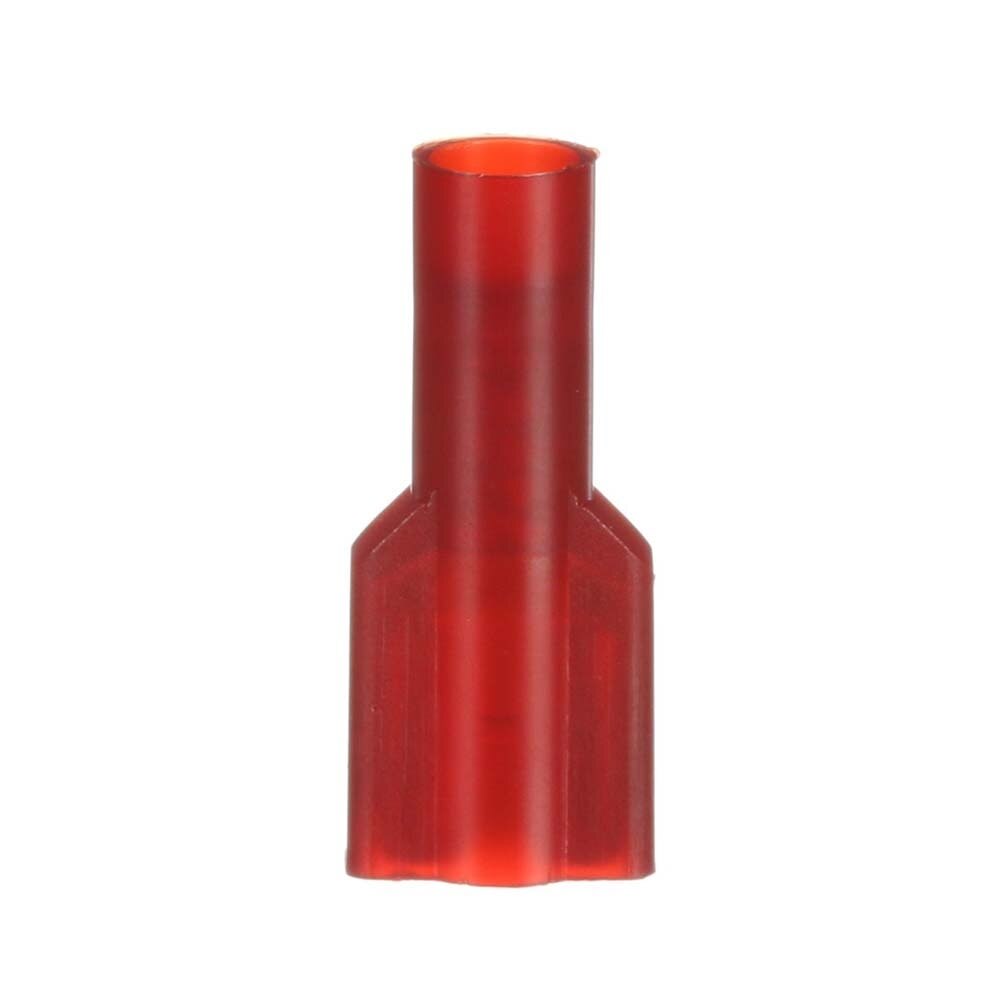

3M Scotchlok nylon fully insulated female disconnects provide a secure, quick-disconnect termination for 22–18 AWG stranded copper wire and 0.250 in male tabs, featuring a butted-seam barrel and red nylon insulation for reliable electrical and mechanical performance.
3M 7000133349 Includes

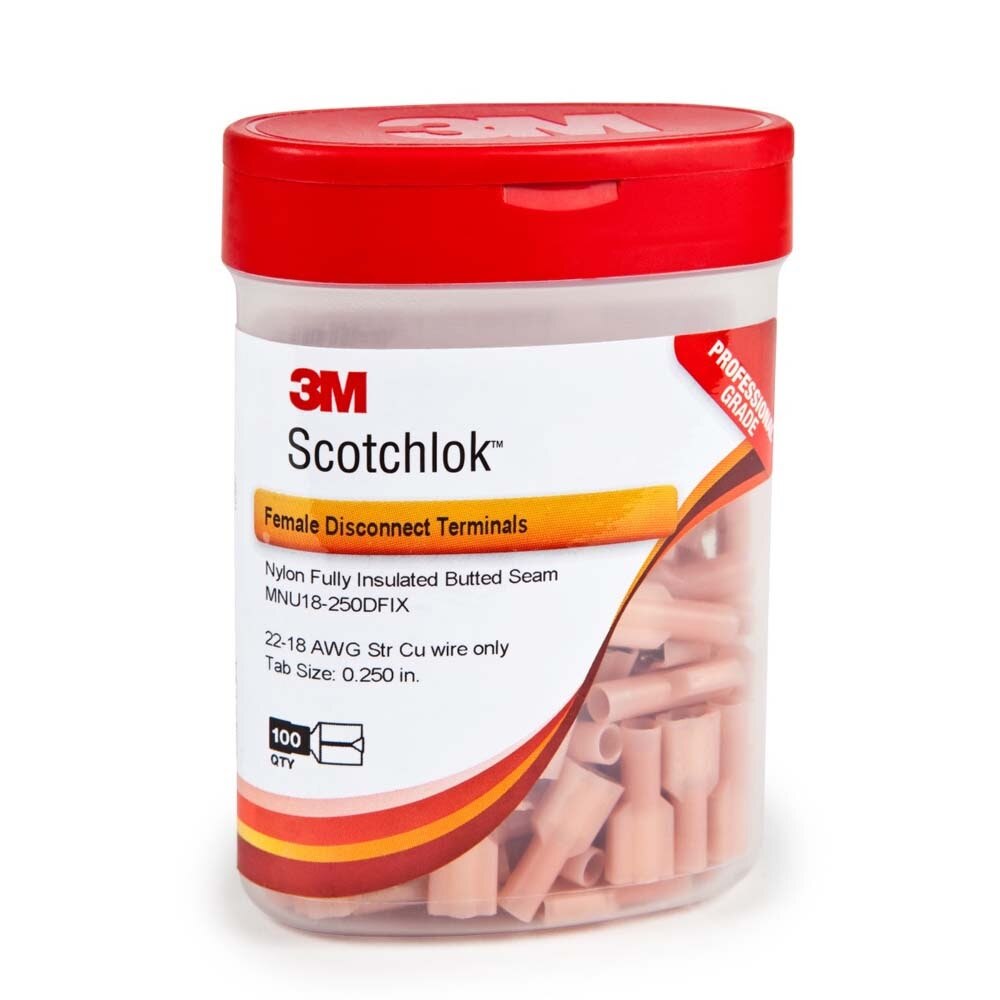

- (100) Scotchlok Female Disconnect Terminals
3M 7000133349 Features
- Nylon fully insulated, butted-seam barrel for easy wire insertion

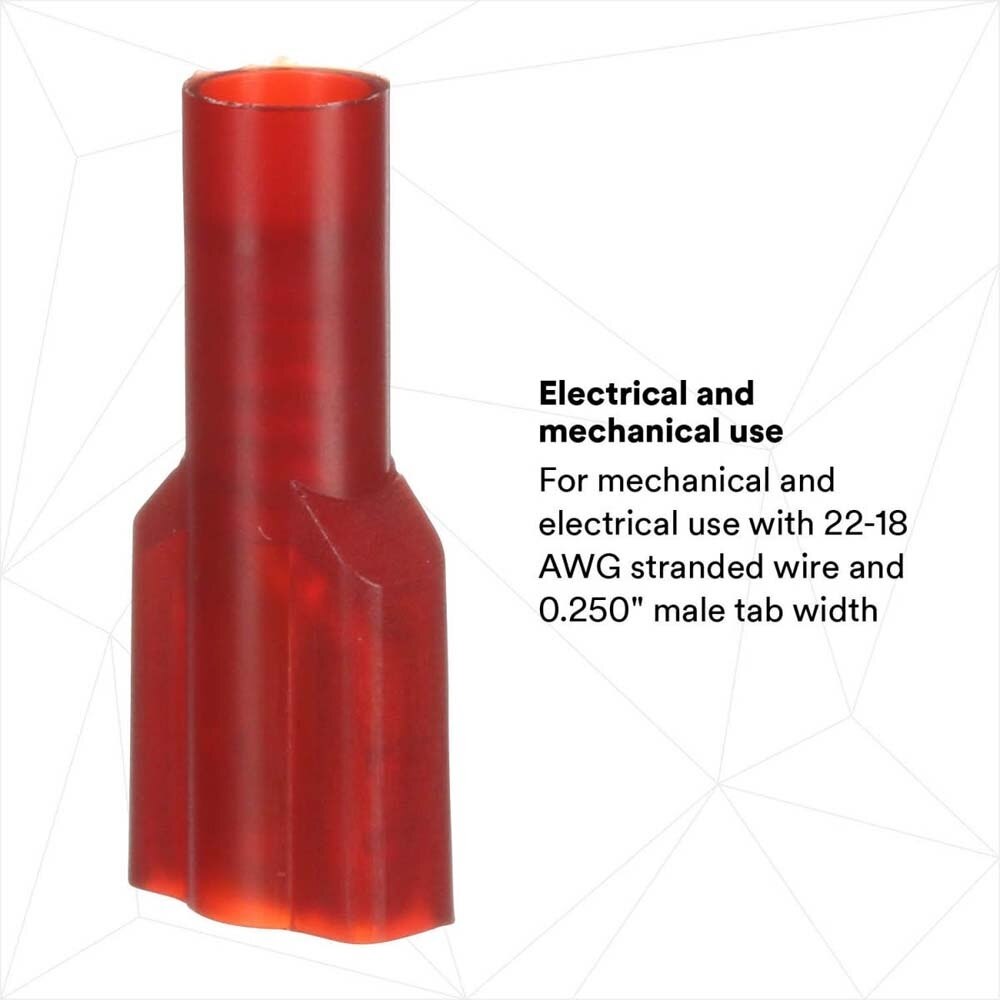

- Fits 22–18 AWG stranded copper wire
- For 0.250 in male tab width

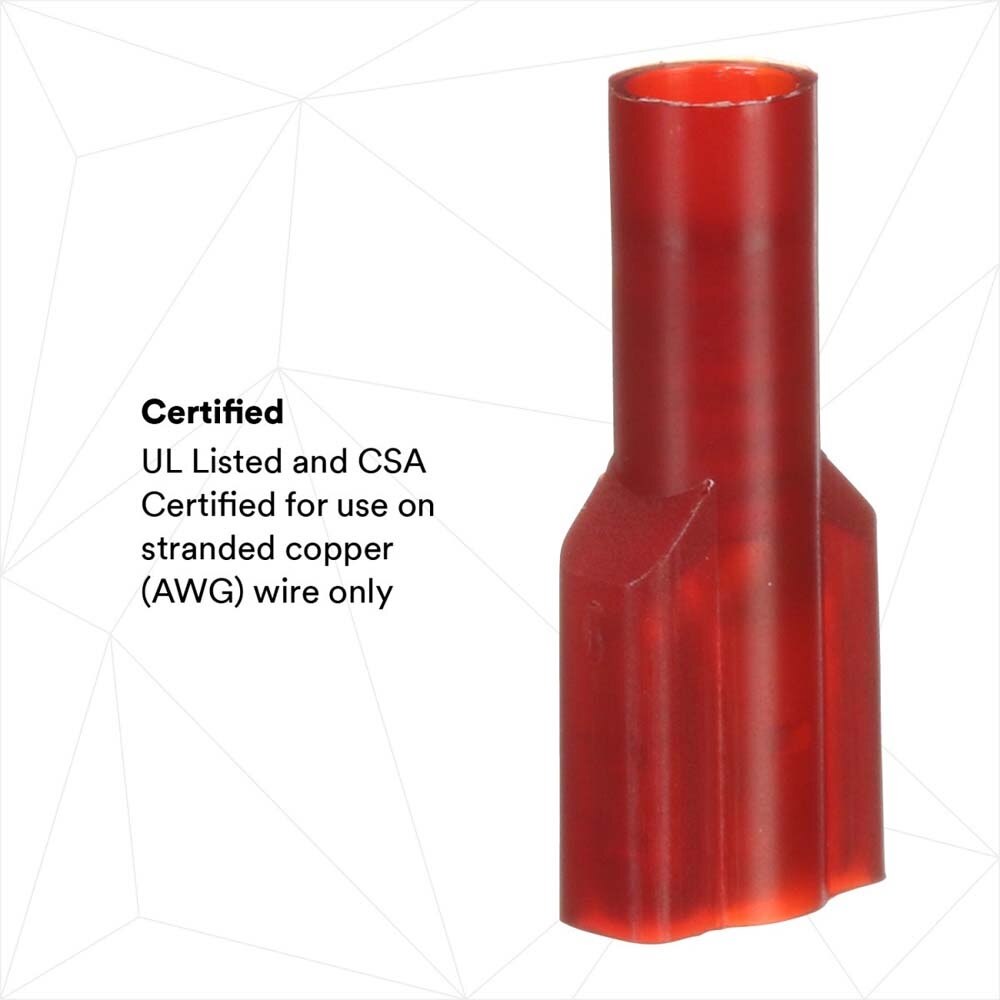

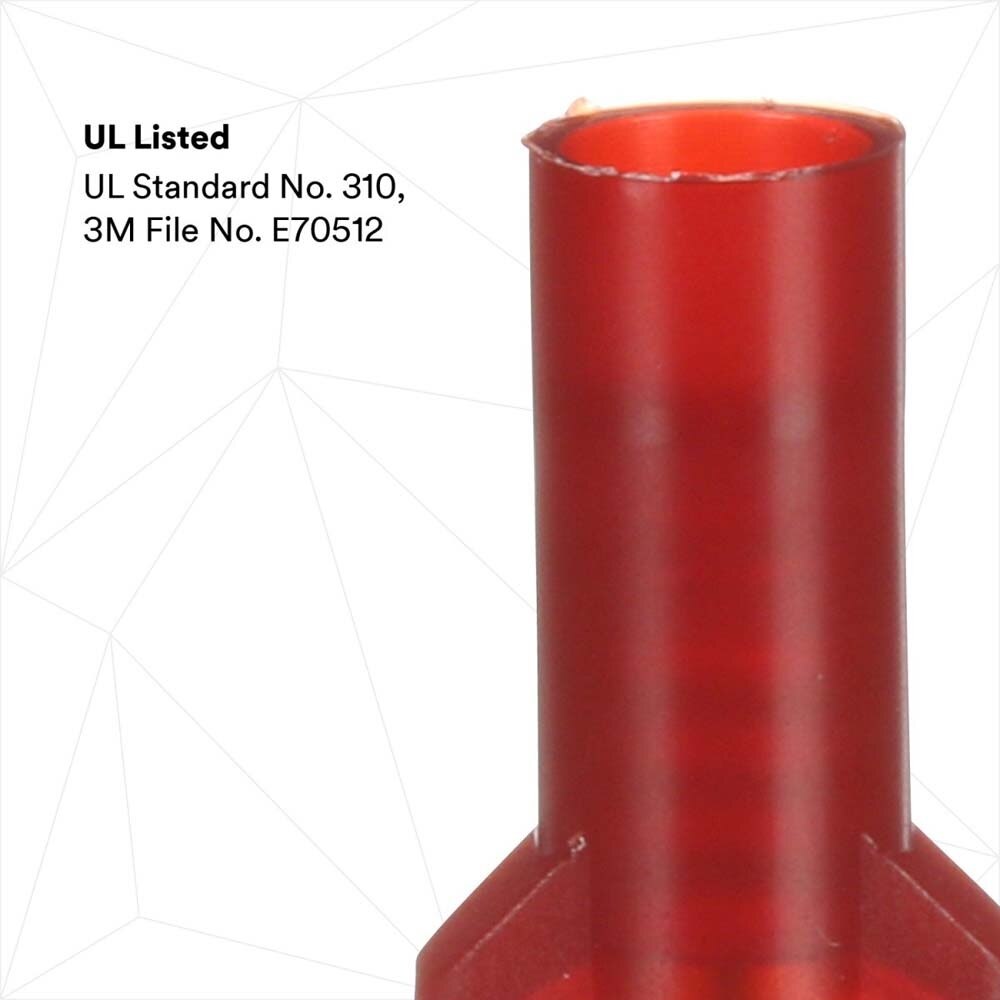

- UL Listed and CSA Certified
- Maximum voltage rating 600 V
- Operating temperature up to 221 Degree Fahrenheit (105 Degree Celsius)
- Color coded red for wire size identification
3M 7000133349 Specifications
| Terminal Type | Disconnect |
| Disconnect Type | Female |
| Wire Size | 22-18 AWG stranded copper |
| Tab Width | 0.250 in |
| Insulation Material | Nylon |
| Barrel Style | Butted seam |

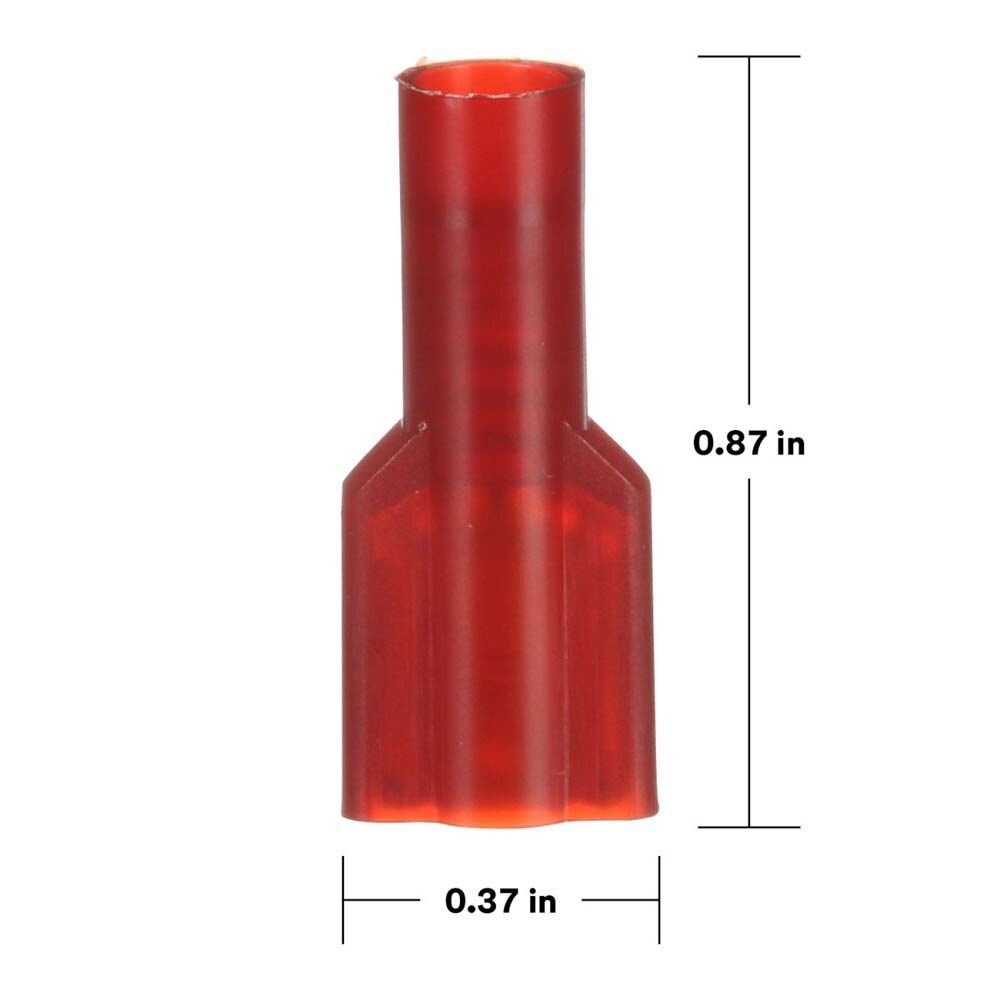

| Overall Length | 0.87 in |
| Overall Width | 0.37 in |
| Maximum Voltage Rating | 600 V |
| Operating Temperature (Max) | 221 Degree F (105 Degree C) |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| Color | Red |
Toolup Part # :
839701
