3M 7000133421 Description

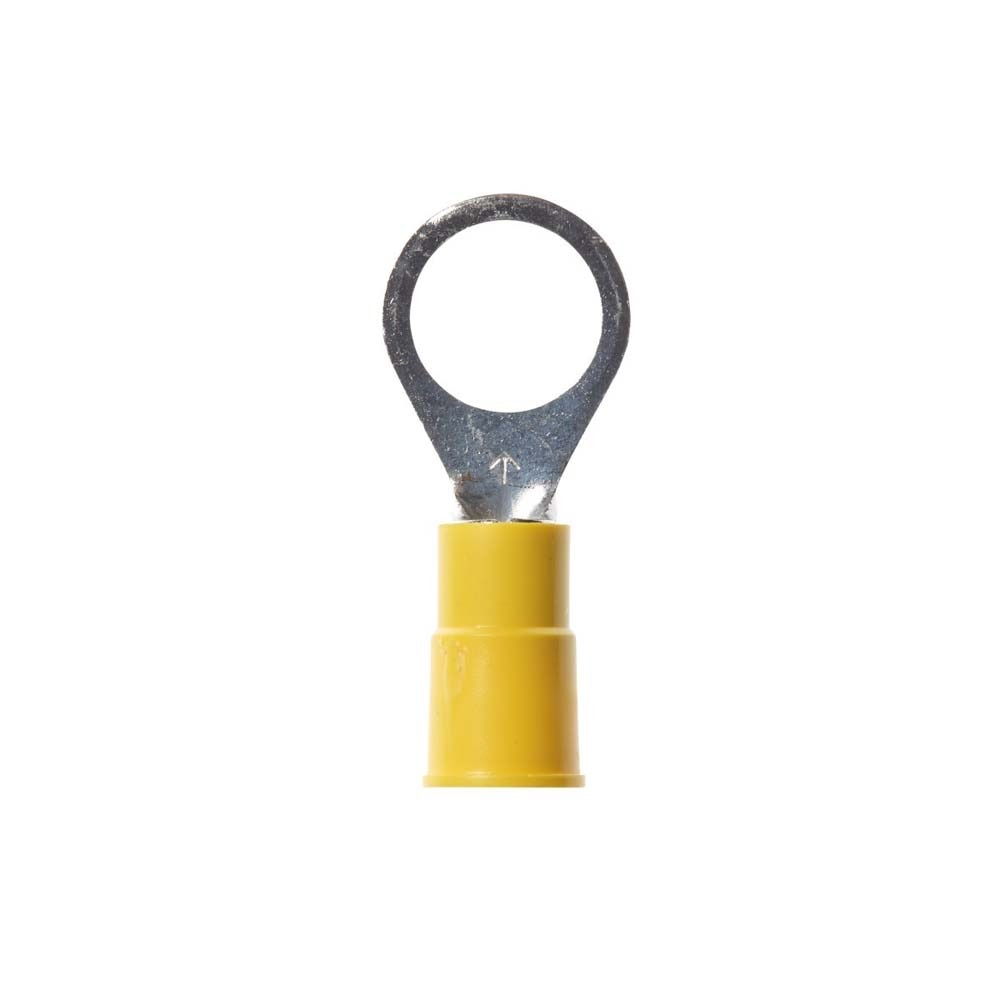

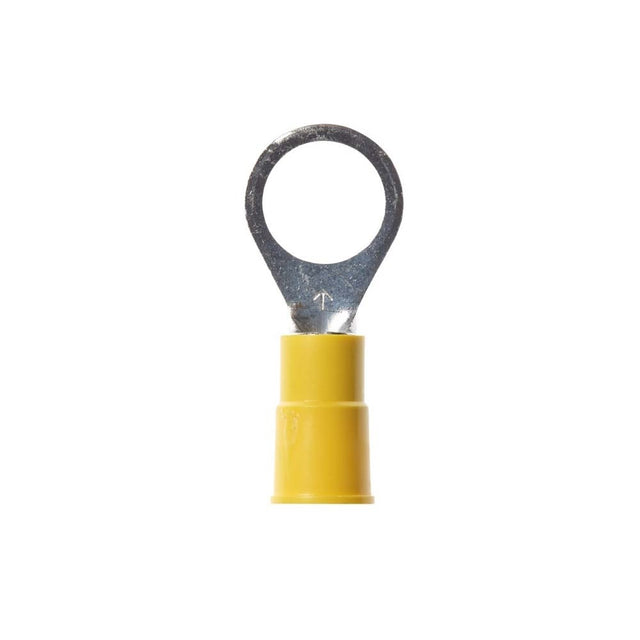

3M Scotchlok MV10-38R/SX is a yellow vinyl-insulated brazed-seam ring tongue terminal for 10 AWG wire with a 3/8 in stud size, providing durable, corrosion-resistant connections. Sold as a 50 pack.
3M 7000133421 Includes
- (50) Ring tongue vinyl insulated terminals (MV10-38R/SX)
3M 7000133421 Features
- Vinyl-insulated, brazed-seam barrel for secure crimping
- Ring tongue design for reliable stud-mounted connections
- Electrolytic copper construction with tin-plated finish resists corrosion
- For 10 AWG wire; 3/8 in stud size
- Yellow color coding for quick identification
- Temperature rated to 221 Degree F (105 Degree C)
- UL Listed and CSA Certified

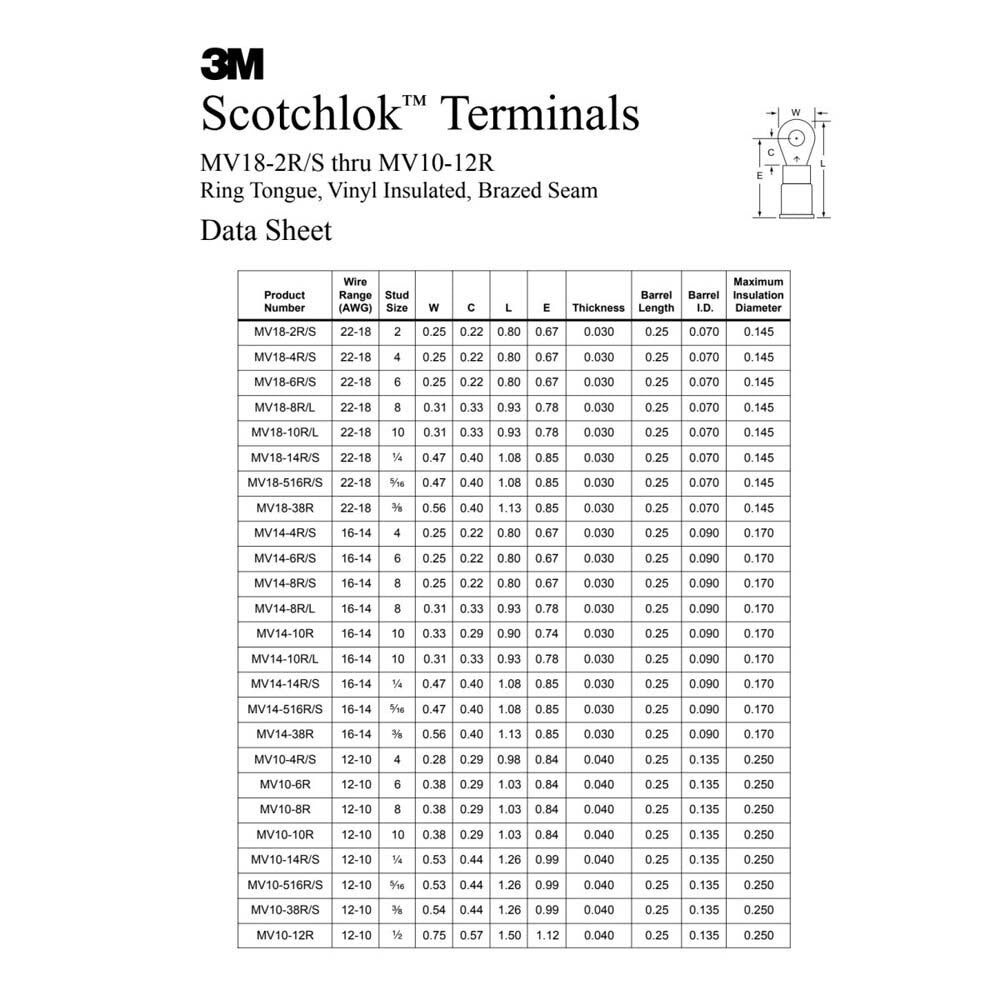

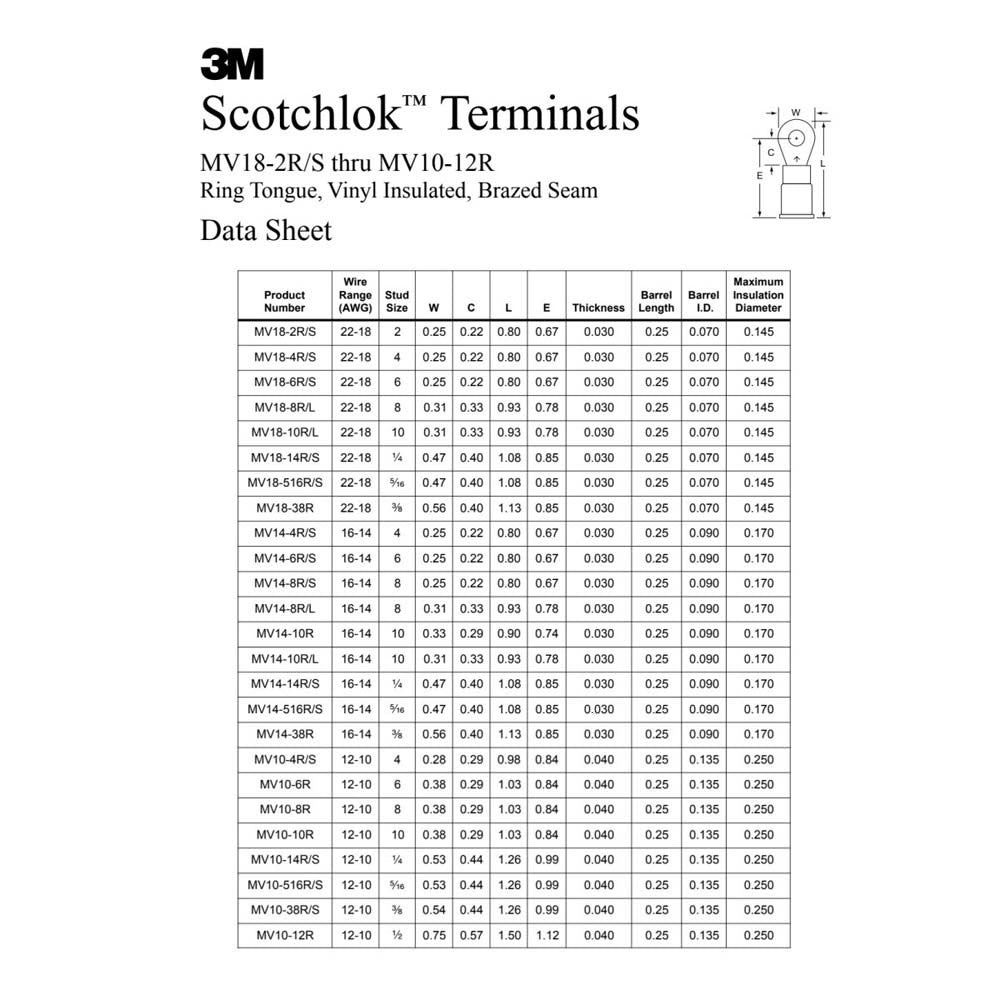

3M 7000133421 Specifications
| Terminal Type | Ring |
| Wire Size | 10 AWG |
| Stud Size | 3/8 in |
| Insulation | Vinyl |
| Color | Yellow |
| Overall Length | 1.26 in |
| Overall Width | 0.54 in |
| Connection Width | 0.375 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Material | Electrolytic copper, tin-plated |
