3M 7010320782 Description

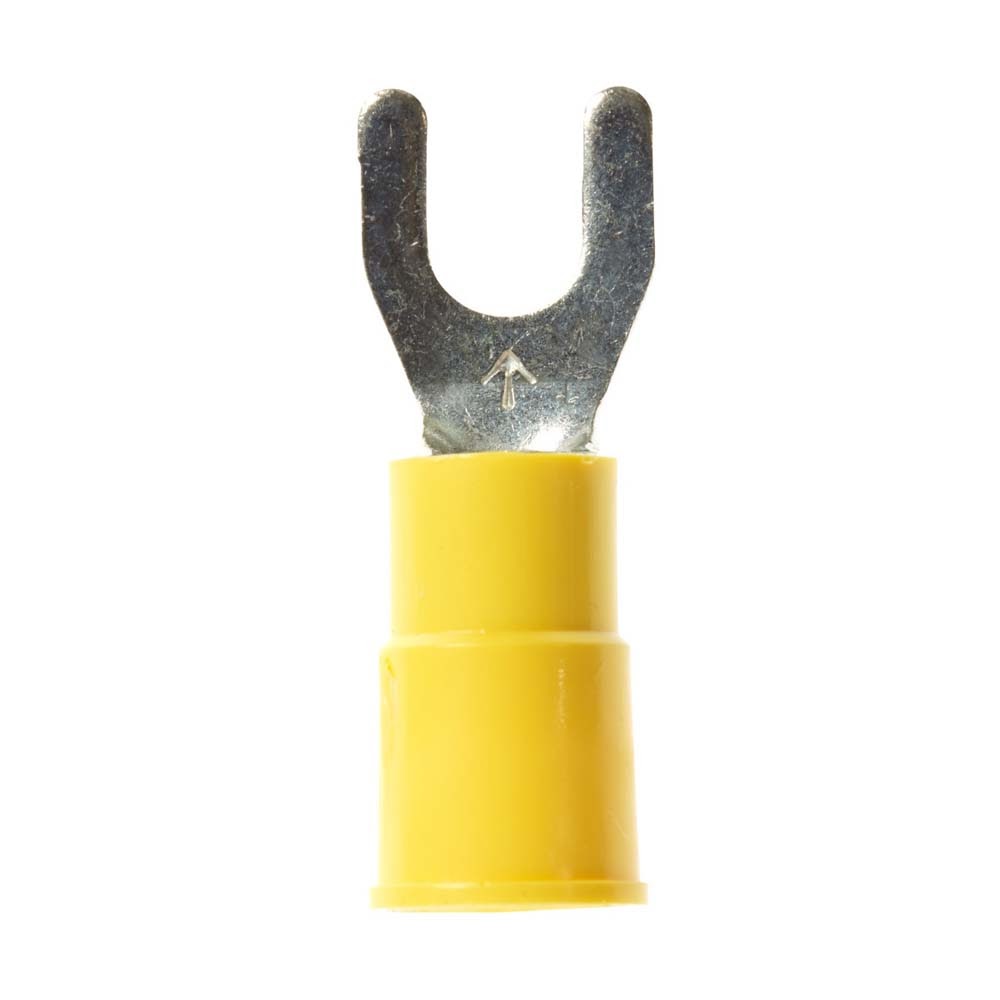

Vinyl-insulated Scotchlok fork terminal with wider-tongue design for secure connections on free-standing #10 studs; sized for 10–12 AWG conductors and built for reliable crimping performance.
3M 7010320782 Includes
- (50) Fork Vinyl Insulated Terminals
3M 7010320782 Features
- Wider-tongue fork design for free-standing studs
- Vinyl insulation for durability and electrical protection
- Fits #10 stud size
- For 10–12 AWG conductors
- Butted barrel style for secure crimping
- UL Listed and CSA Certified
3M 7010320782 Specifications
| Terminal Type | Fork |
| Stud Size | #10 |
| Stud Diameter (Imperial) | 0.19 in |
| Maximum Conductor Size (Imperial) | 10 AWG |
| Minimum Conductor Size (Imperial) | 12 AWG |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.135 in |
| Overall Length (Imperial) | 1.03 in |
| Overall Width (Imperial) | 0.38 in |
| Clearance (C) | 0.29 in |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
Toolup Part # :
839739
