3M | SKU:
7100017358

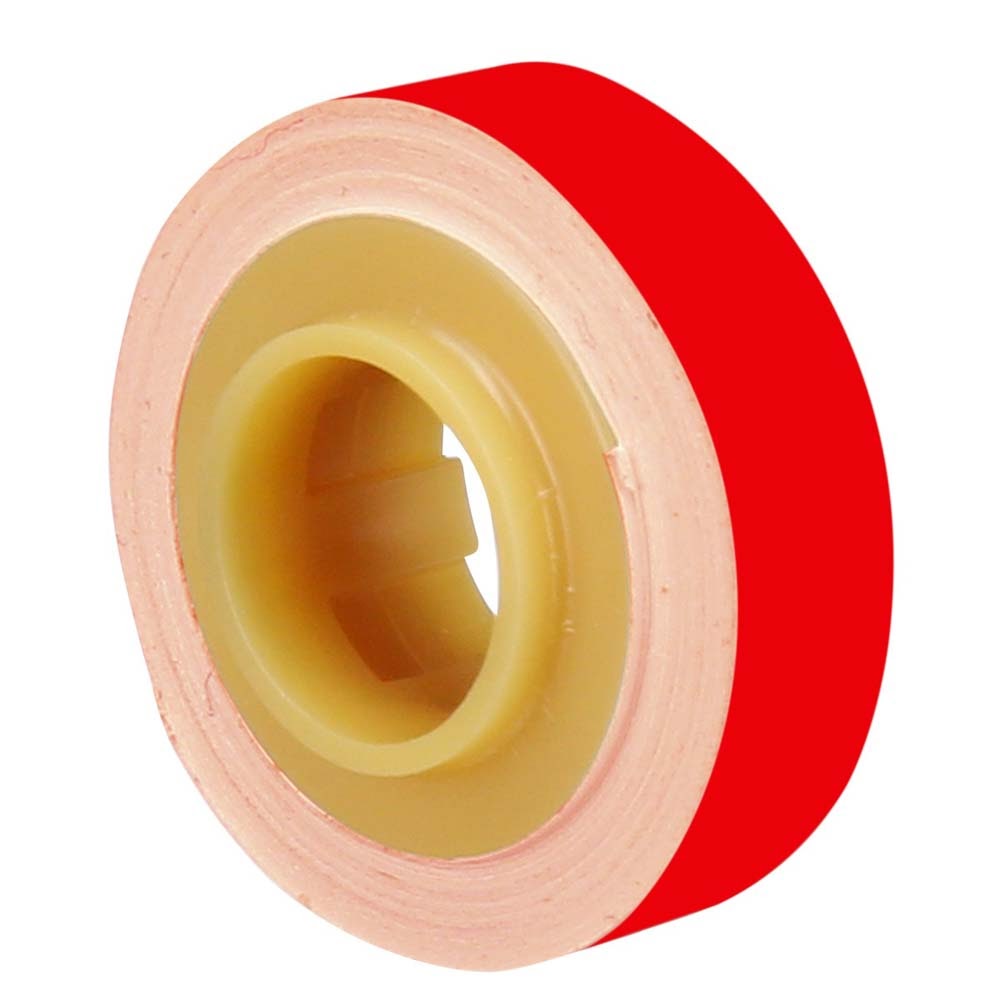

3M 7100017358 ScotchCode Wire Marker Tape Refill Roll SDR-RD, Red (10 Pack)
$49.84
$55.14
Unit price
/
Unavailable
Description
Description
3M 7100017358 Description
3M ScotchCode SDR-RD is a red wire marker tape refill roll designed for the ScotchCode tape dispenser, featuring a high-tack acrylic adhesive that resists solvents, oil, and water for durable wire and cable identification.
3M 7100017358 Includes
- (10) ScotchCode SDR-RD Red Wire Marker Tape Refill Rolls
3M 7100017358 Features
- High-tack acrylic adhesive resists solvents, oil, and water
- For marking wire and cable in electrical applications
- Operating temperature range -40 Degree F to 250 Degree F (-40 Degree C to 121 Degree C)
- Maximum recommended voltage rating 600 V
- Compatible with ScotchCode tape dispensers
- Pre-printed color identifier: Red

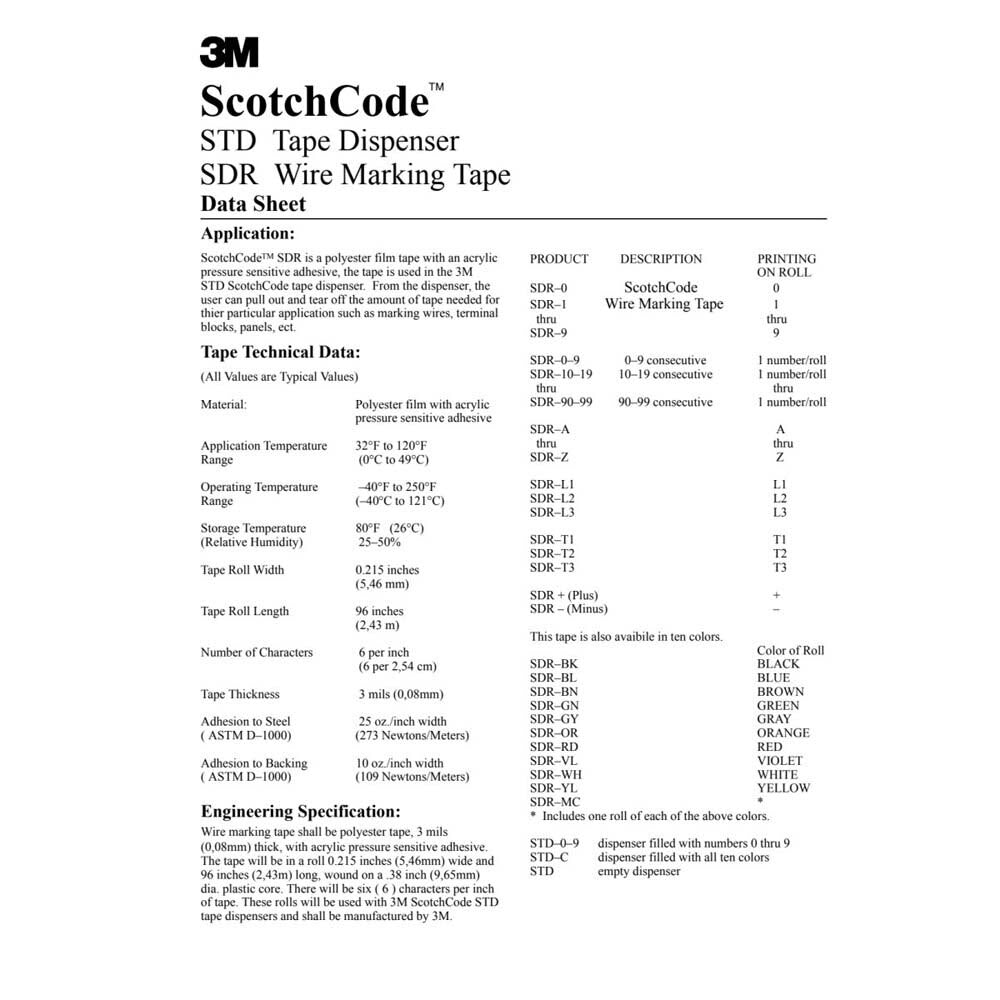

3M 7100017358 Specifications
| Adhesive Material | Acrylic |
| Tape Color | Red |
| Material | Plastic / Polyester film |
| Marker Type | Dispenser refill roll |
| Legend Color | Red |
| Marker ID Style | Pre-printed |
| Maximum Operating Temperature | 250 Degree F (121 Degree C) |
| Operating Temperature Range | -40 Degree F to 250 Degree F (-40 Degree C to 121 Degree C) |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Insulation Outside Diameter | 0.145 in |
| Tape Roll Width | 0.215 in |
| Tape Roll Length | 96 in |
| Tape Thickness | 3 mils |
| Adhesion to Steel | 25 oz/in width |
| Adhesion to Backing | 10 oz/in width |
| Characters per Inch | 6 |
