Description
Description

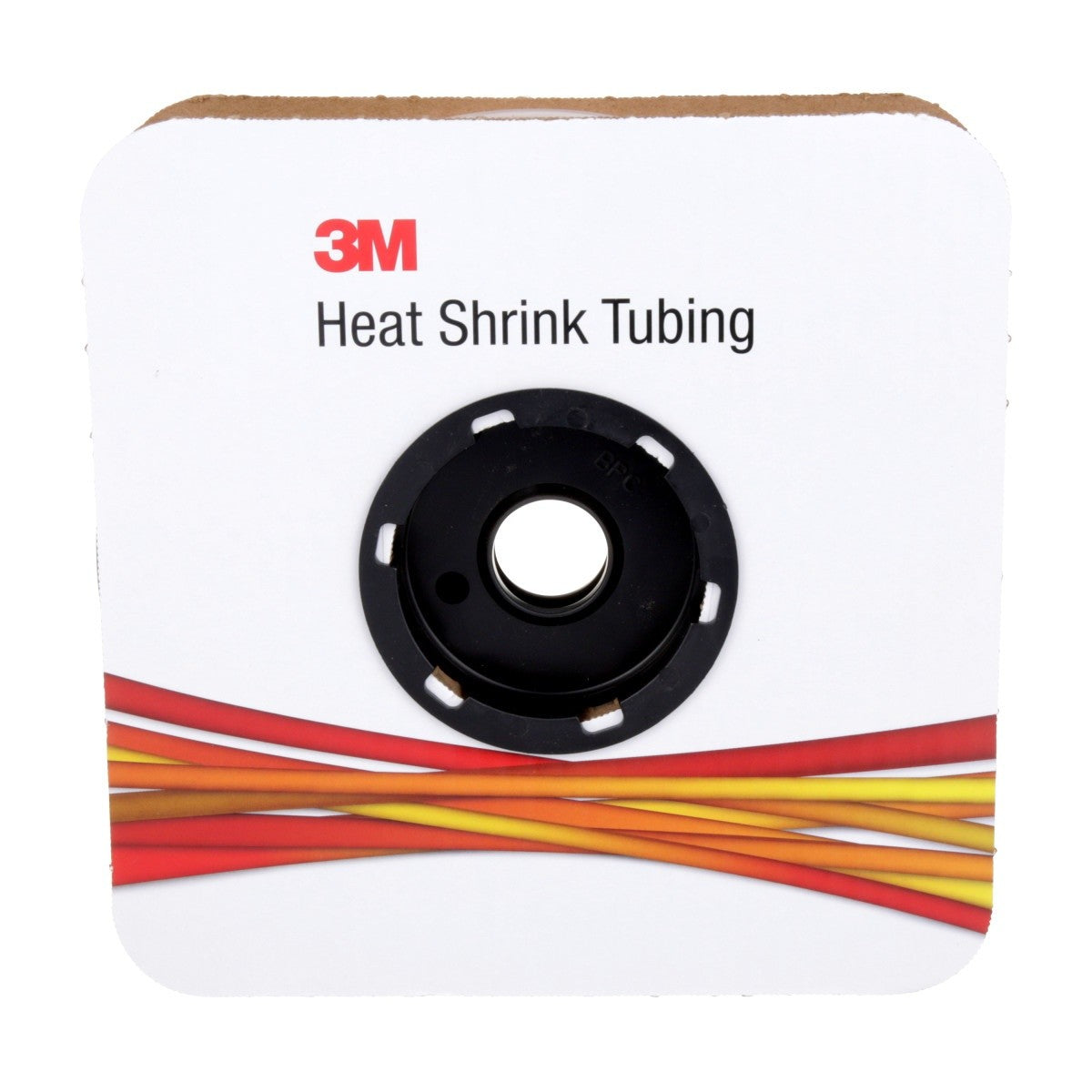

3M 7100027263 Description

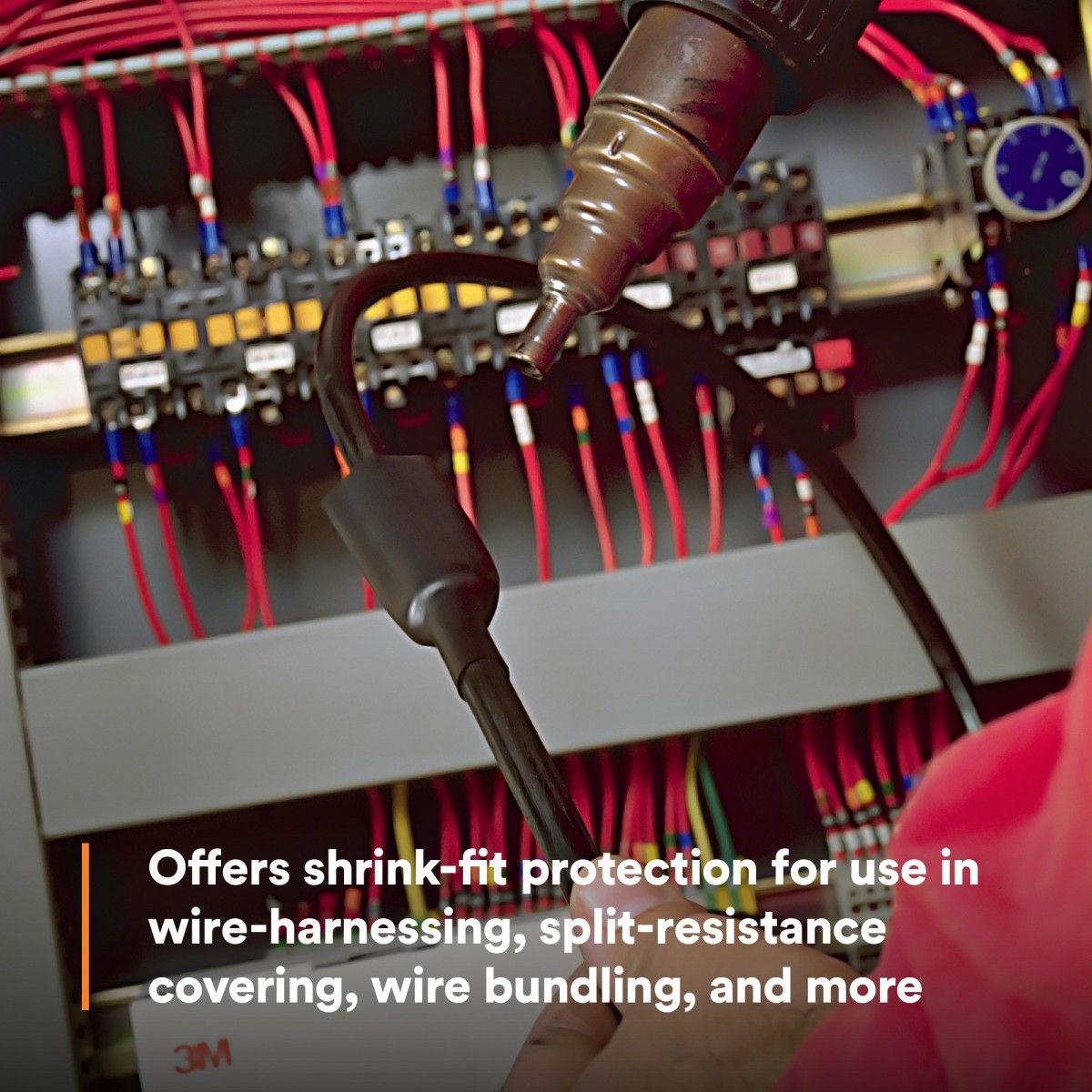

3M Heat Shrink Thin-Wall Tubing FP-301 is general purpose clear polyolefin heat shrink tubing for electrical insulation and protection of wires splices and terminations. This 1 in tubing on a 50 ft spool shrinks 2 to 1 to help provide a snug fit and moisture protection for industrial and military applications.
3M 7100027263 Includes

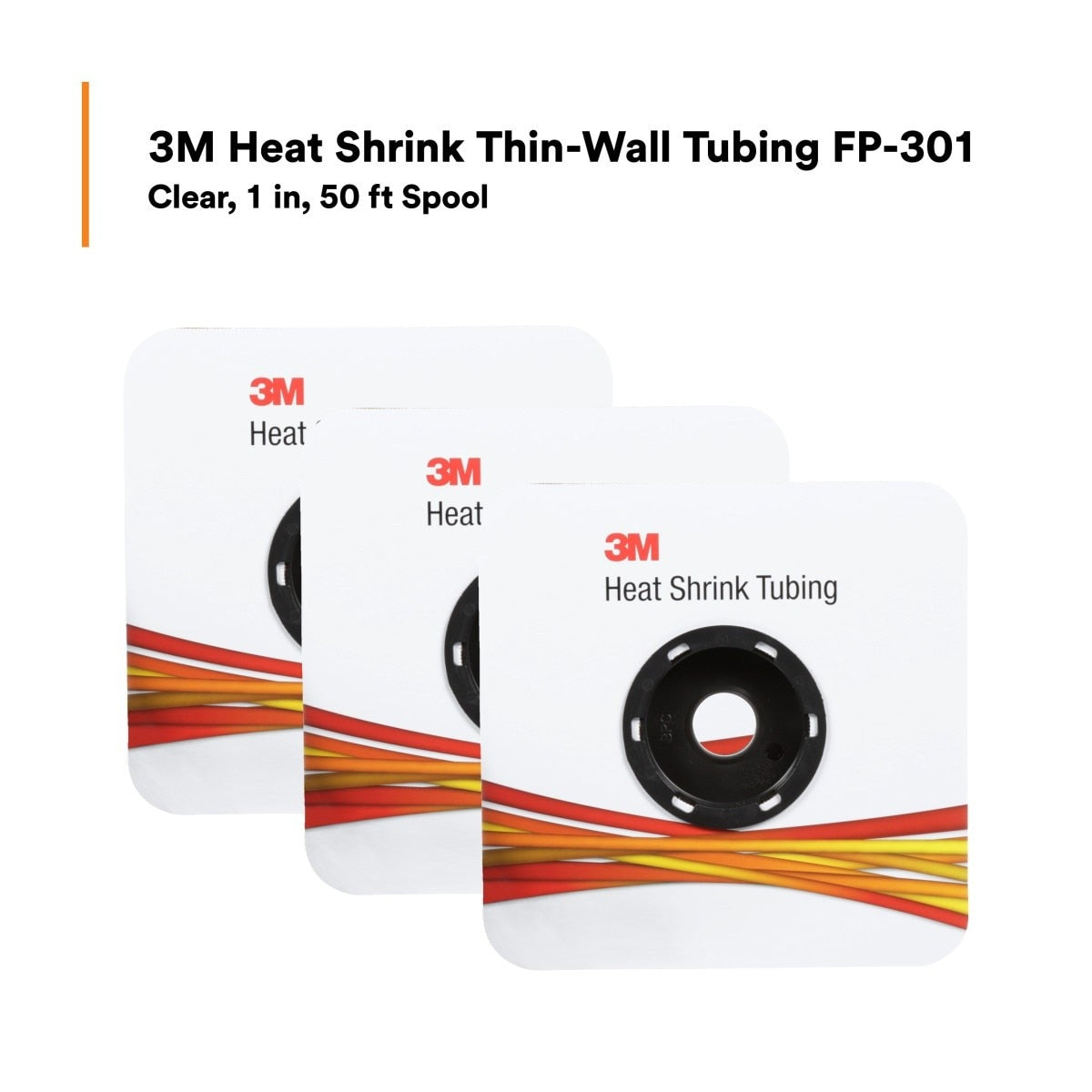

- (3) - 3M 7100027263 Heat Shrink Thin-Wall Tubing FP-301, Clear Color, 2 to 1 Shrink, High Strength Protection, Electrical Insulation, 1 in, 50 ft Spool, 1 Spool (FP1.000CR50'S)
3M 7100027263 Features
- 2 to 1 shrink ratio for shrink fit insulation and protection

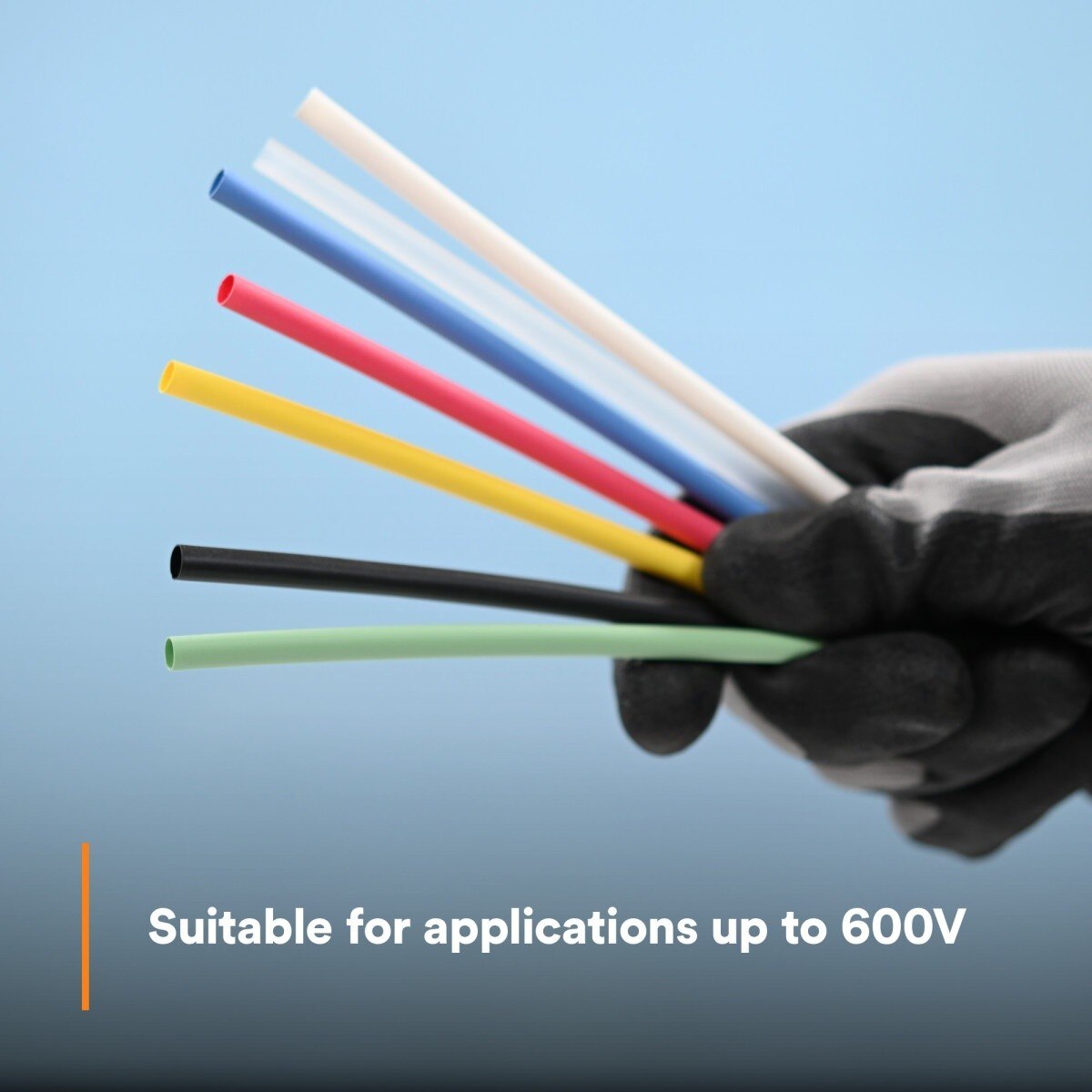

- Suitable for applications up to 600V
- Thin wall single wall polyolefin construction
- Moisture seal protection
- Operating temperature range 67 Degree F to 275 Degree F
- Mechanically tough and split resistant

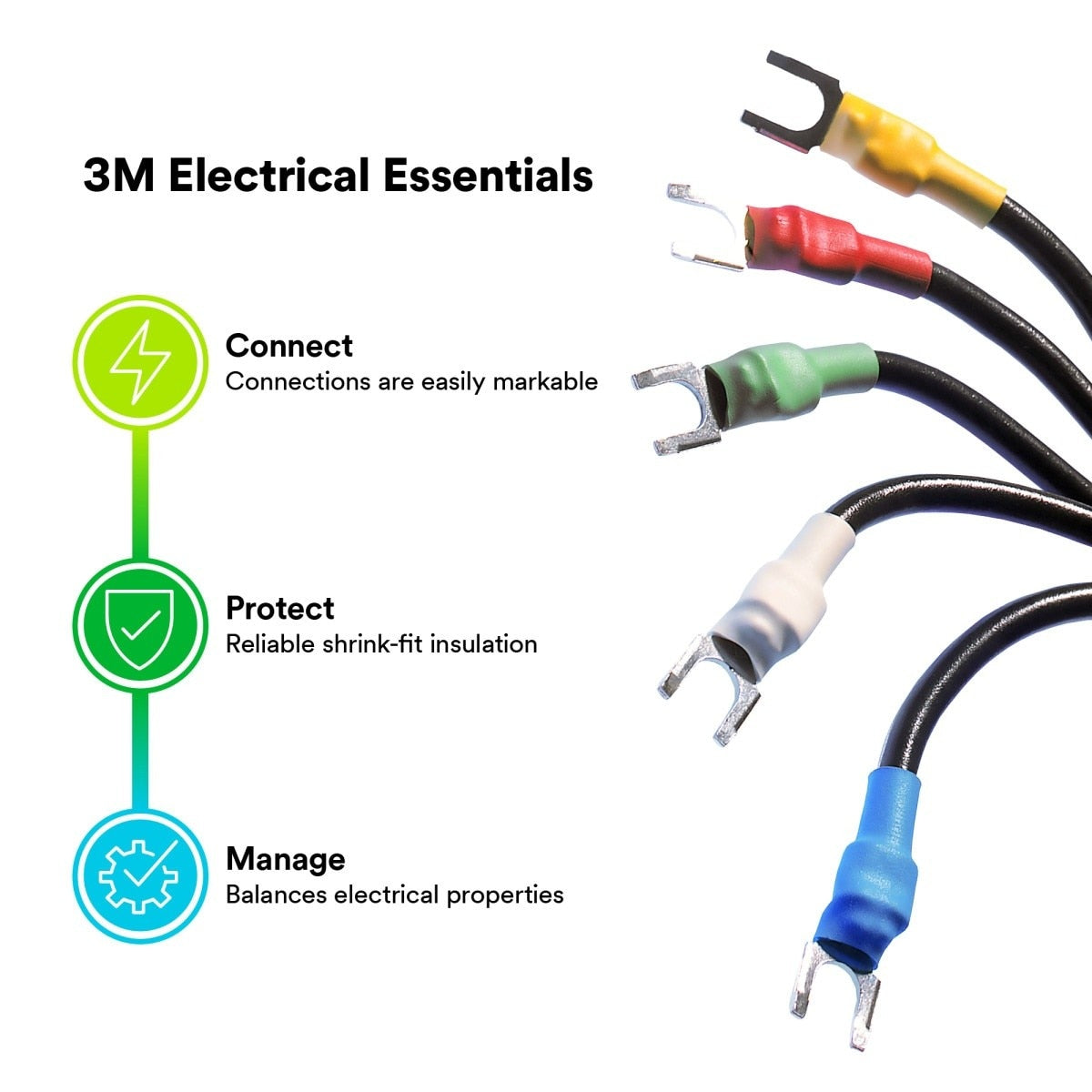

- Easily markable and resists cold flow

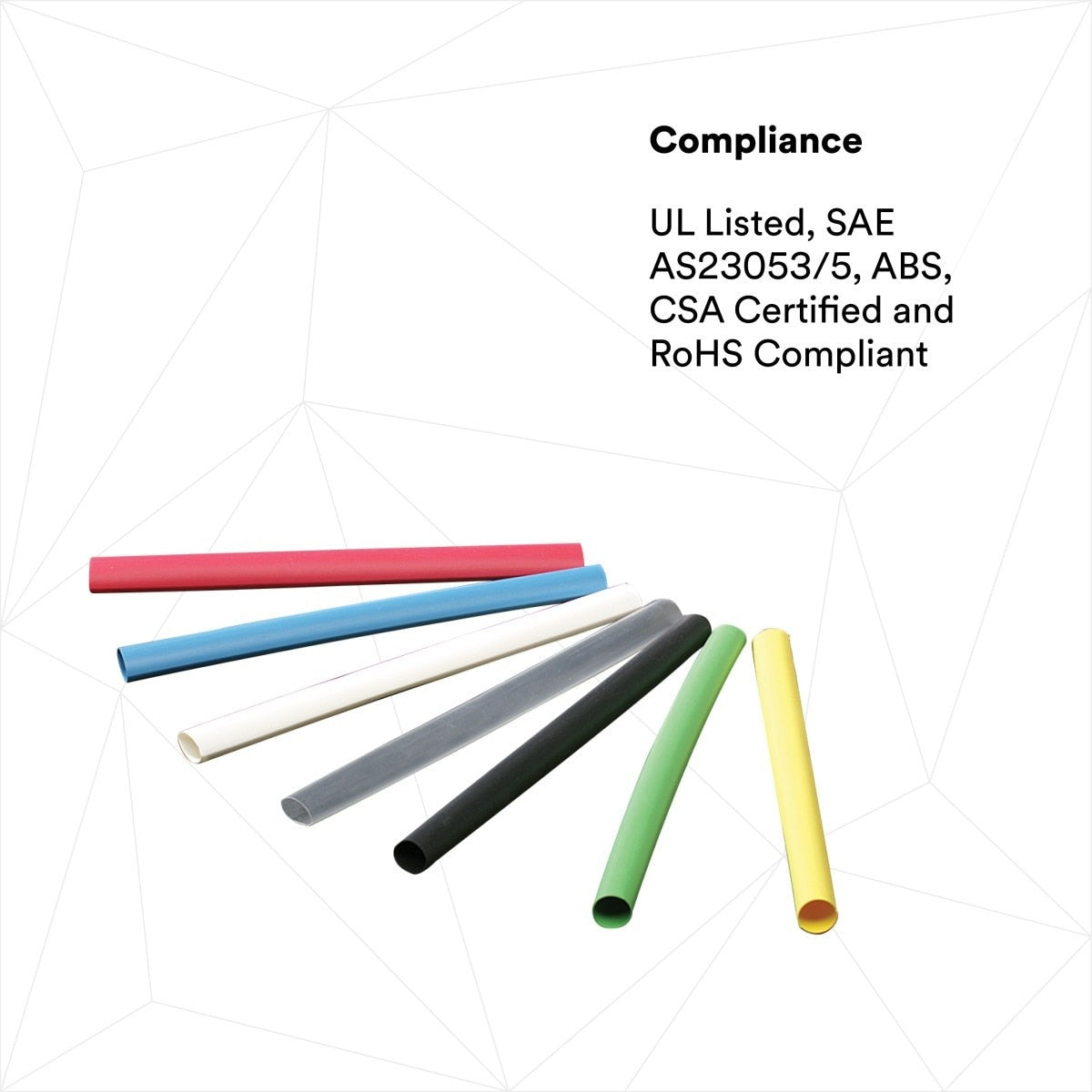

- UL Listed File E 39100 and CSA Certified
- RoHS 2011 65 EU compliant without exemption
3M 7100027263 Specifications
| Product Line | FP-301 |
| Product Type | Heat Shrink Thin-Wall Tubing |
| Tubing Type | Single Wall (Thin) |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Material | Flexible Polyolefin |
| Color | Transparent |

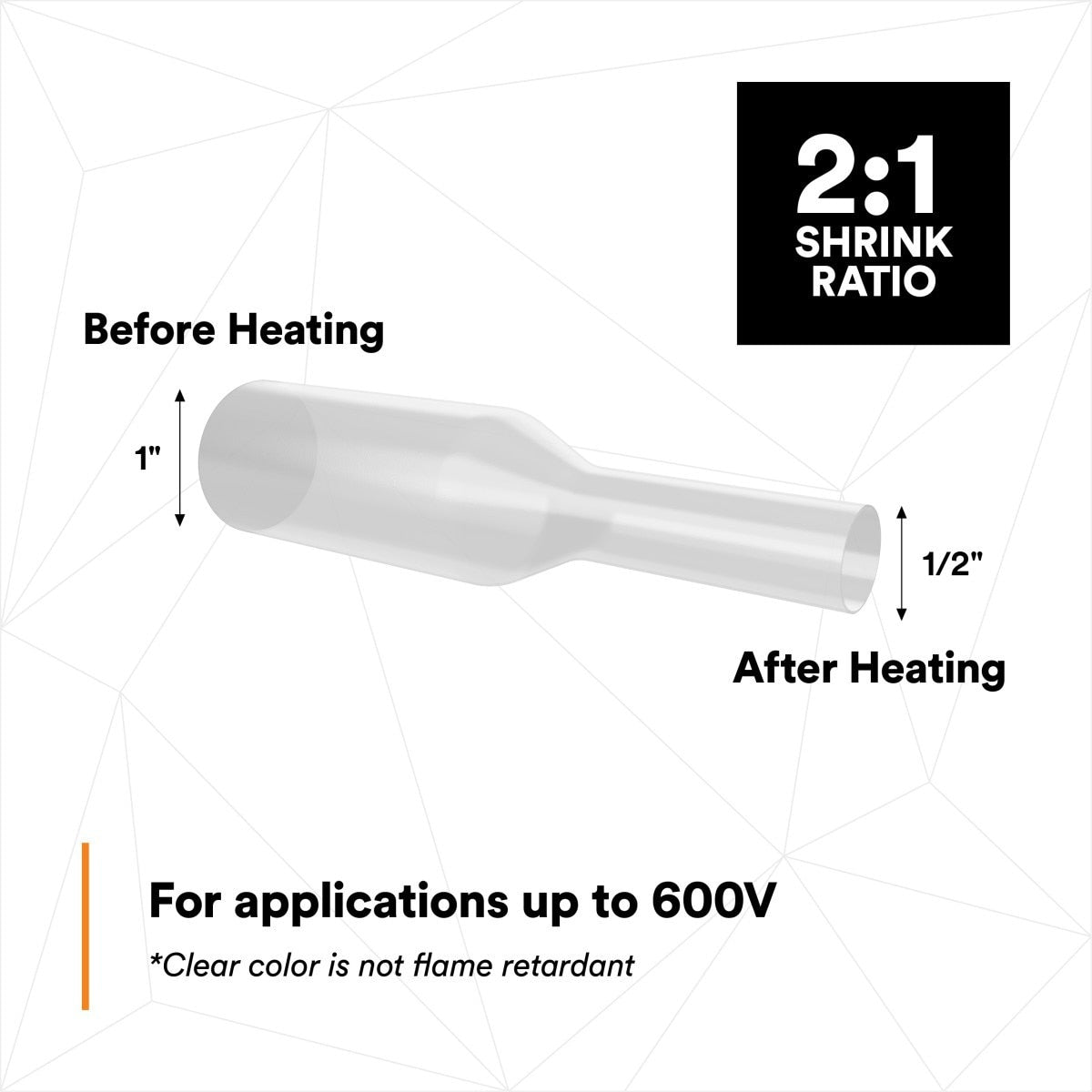

| Shrink Ratio | 2:1 |
| Expanded Inner Diameter | 1.0 in |
| Inner Diameter After Shrink | 0.5 in |
| Overall Length | 50 ft |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 Degree F to 275 Degree F |
| Flame Retardant | No |
| Voltage Rating | 600V |
| UL Approval | Yes |
| UL File Number | E-39100 |
| With Inner Glue | No |
| Mil Spec | SAE-AMS-DTL-23053/5, Class 2 |
| Tensile Strength | 2400 psi |
| Elongation | 400 % |
| Non-Corrosive | Yes |
Toolup Part # :
859479
