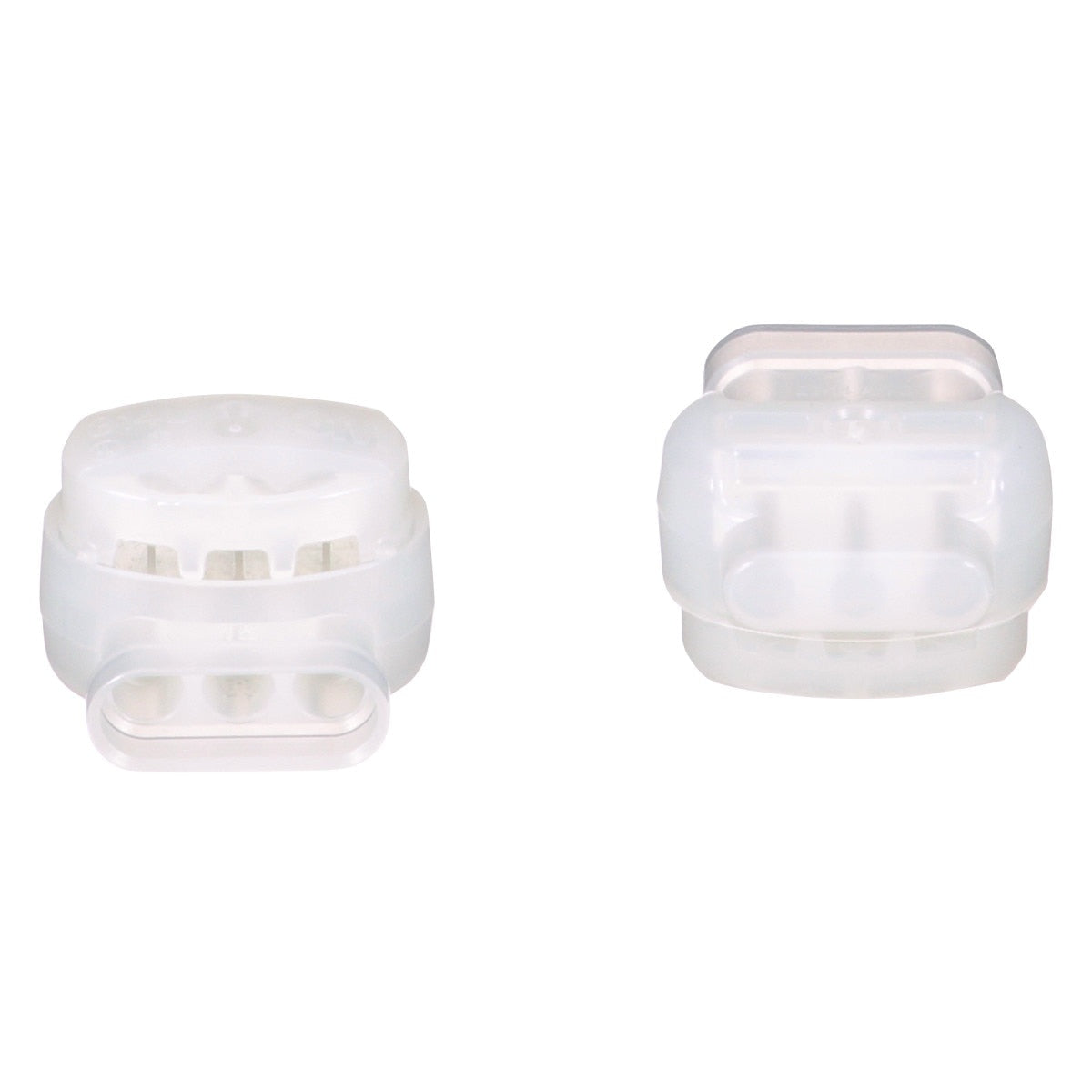

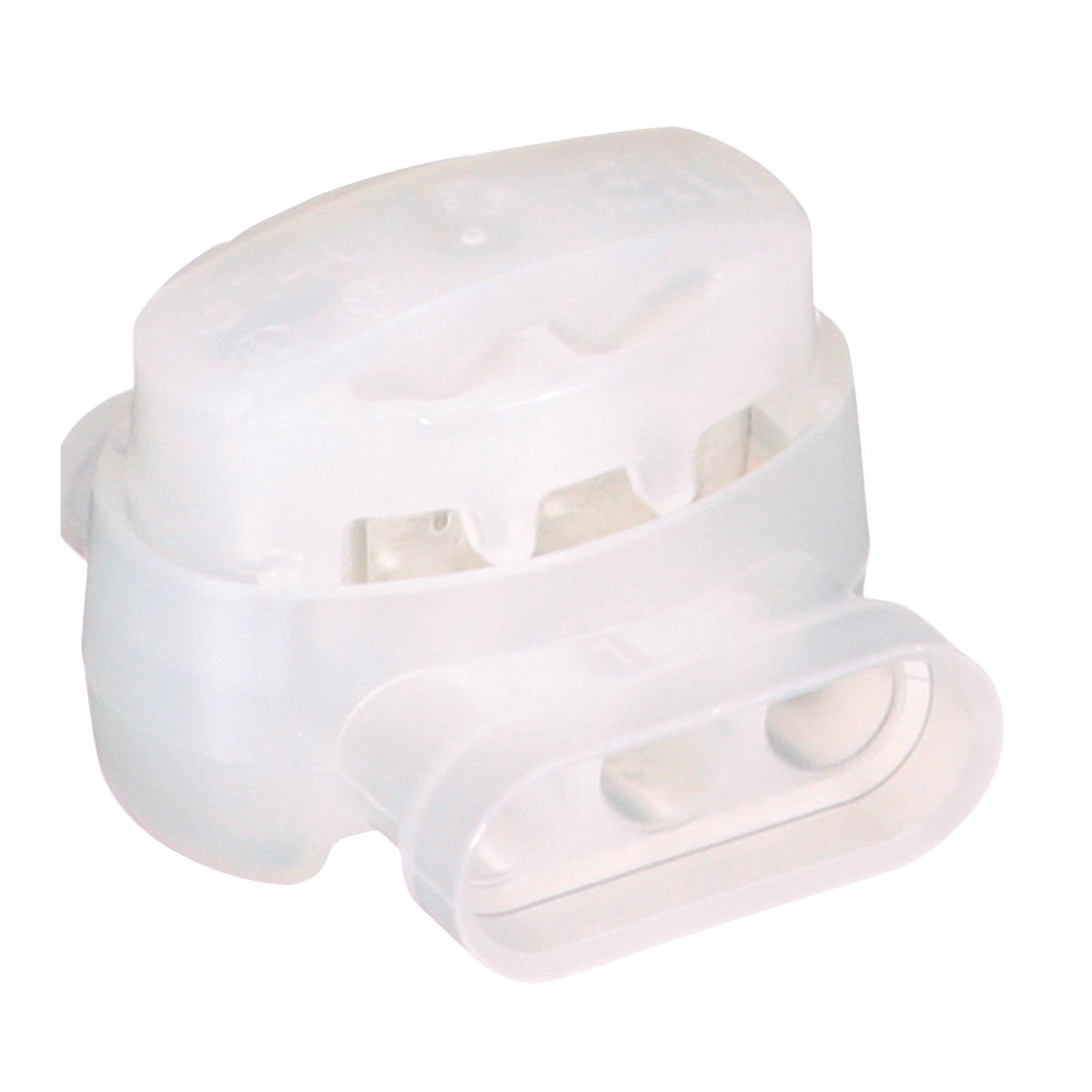

3M 7100175087 Description

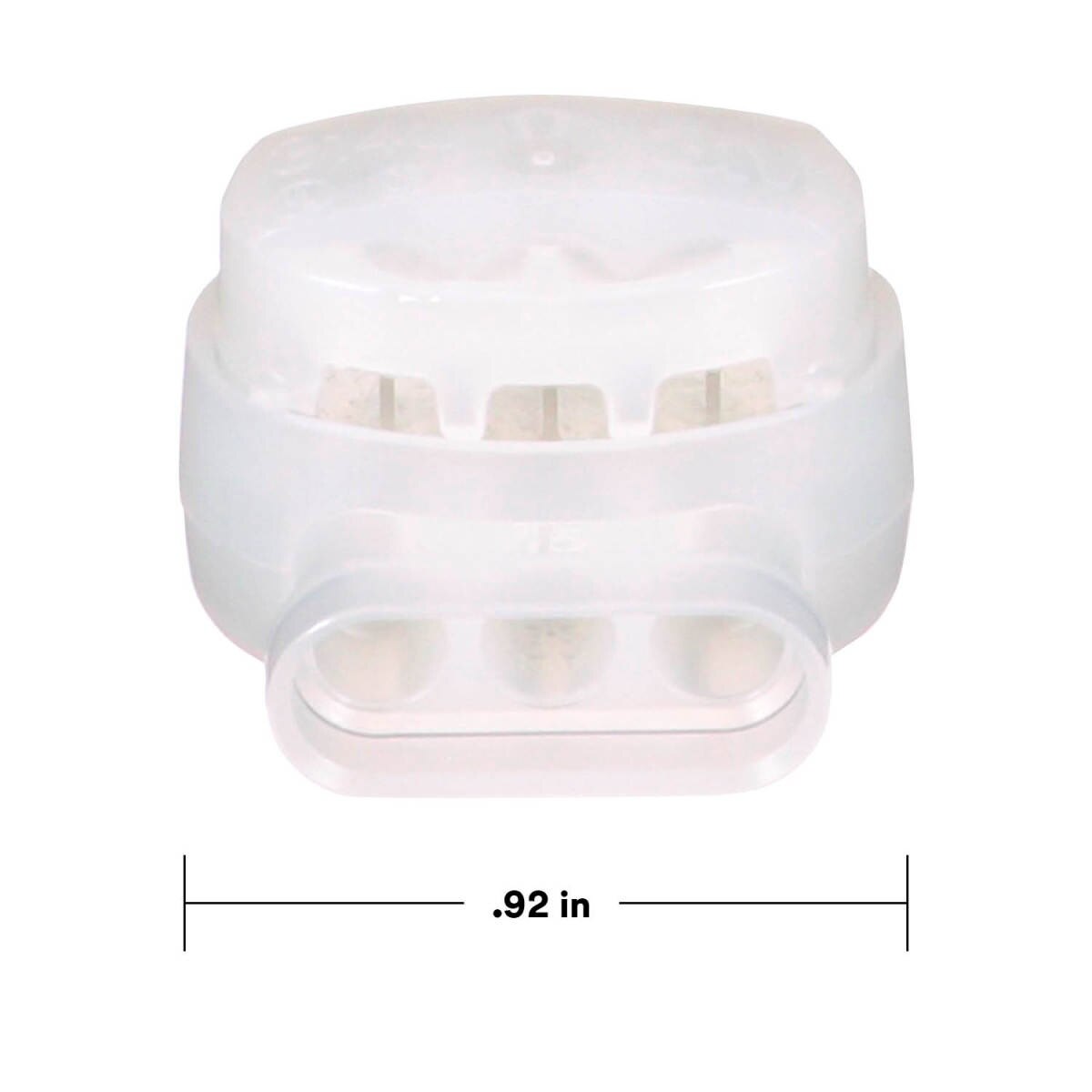

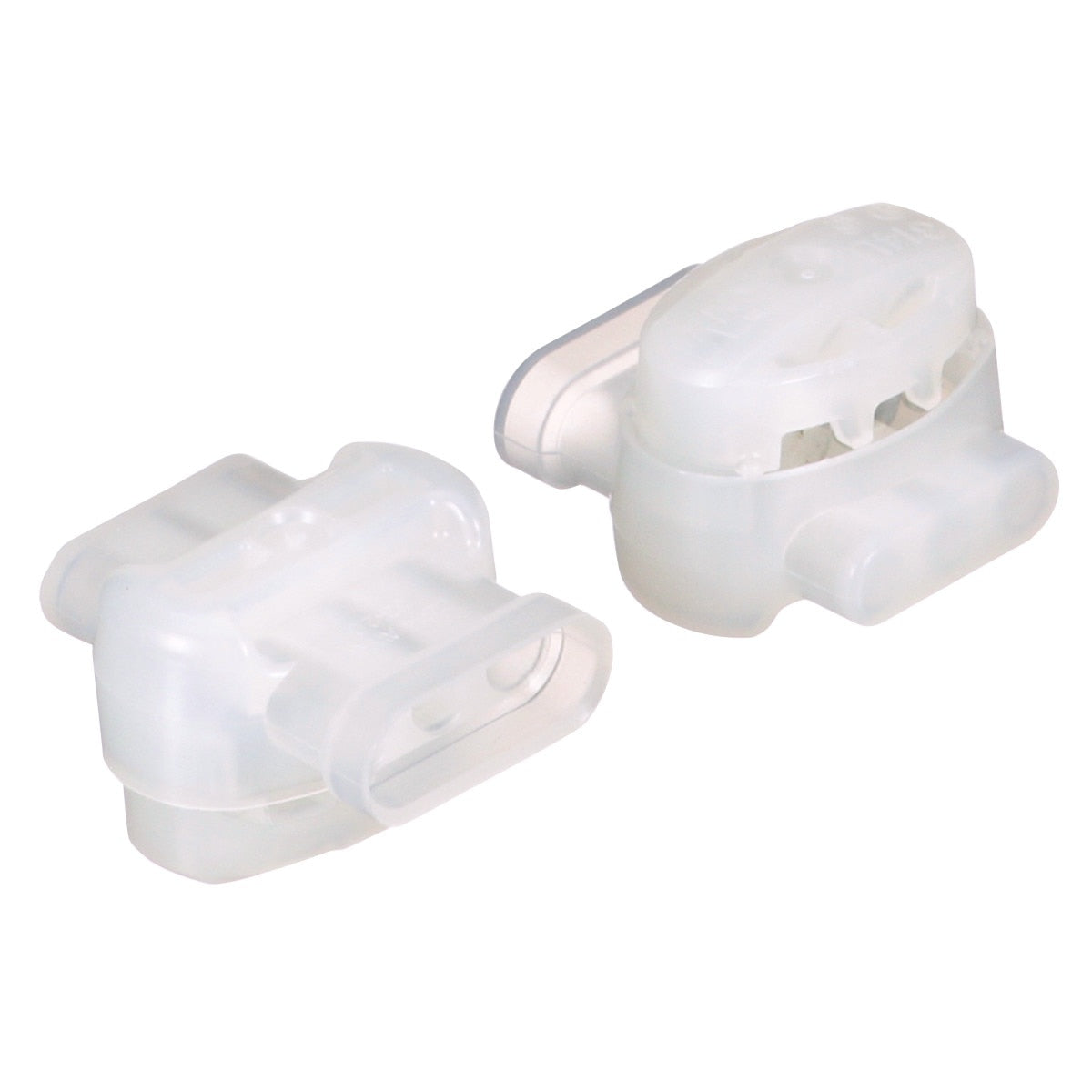

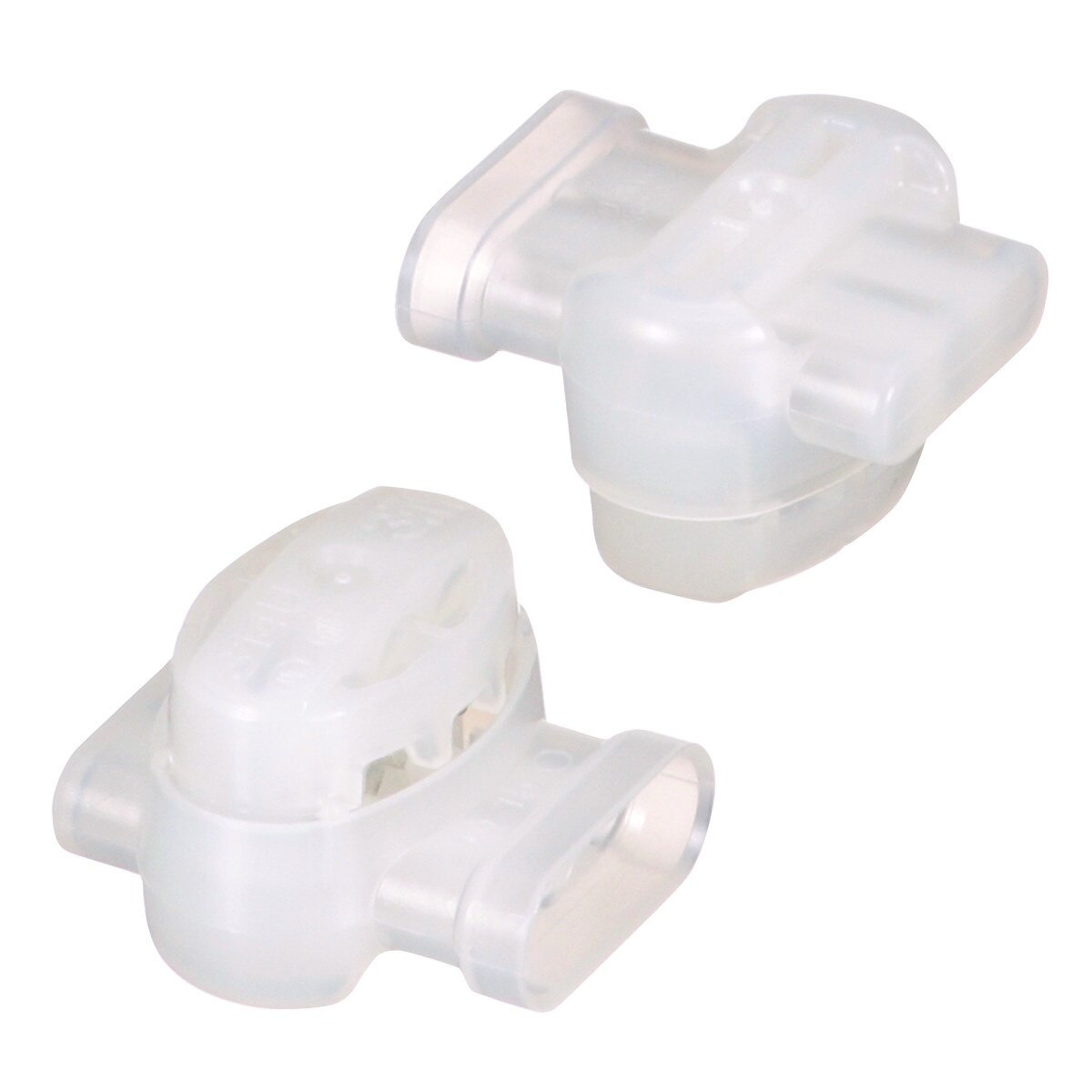

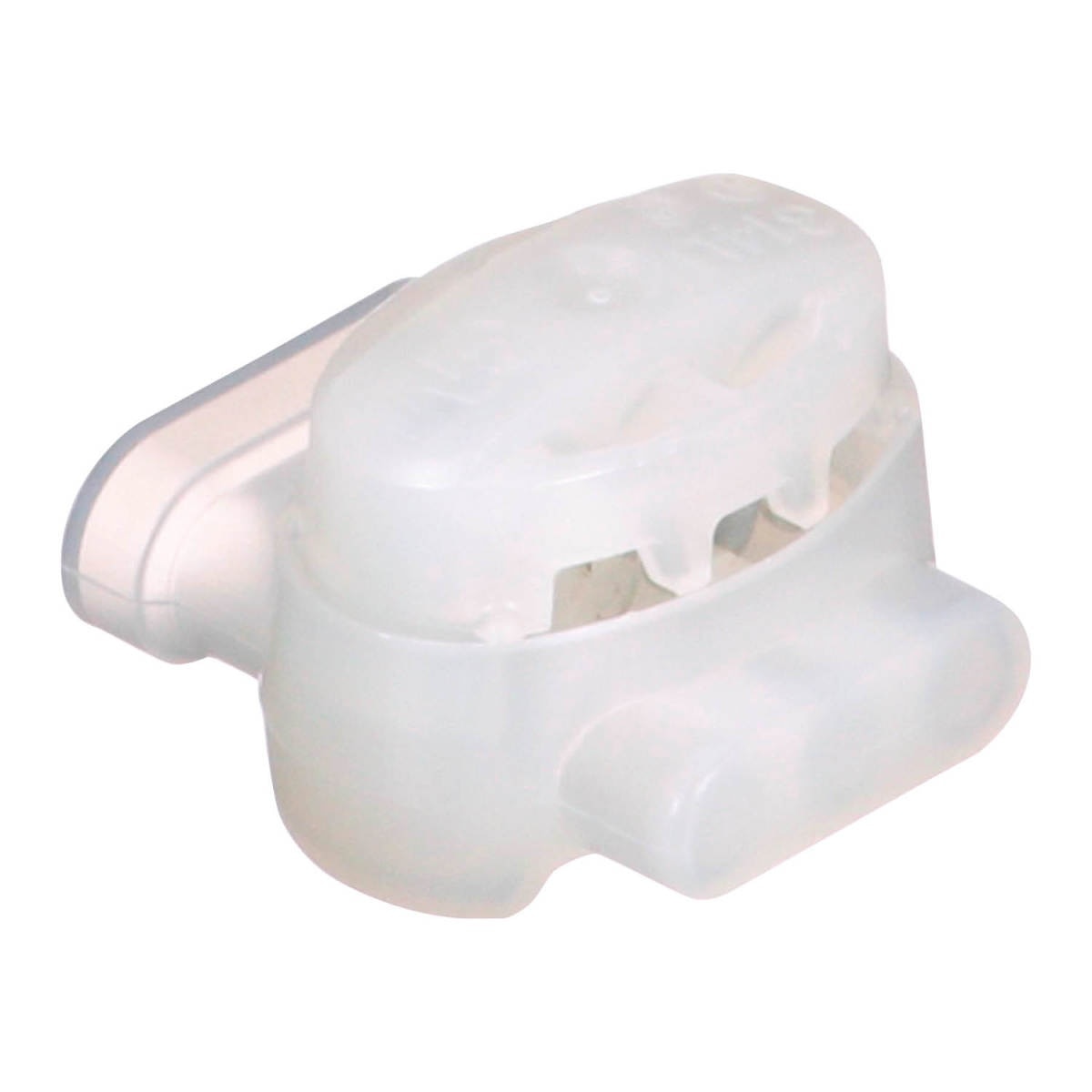

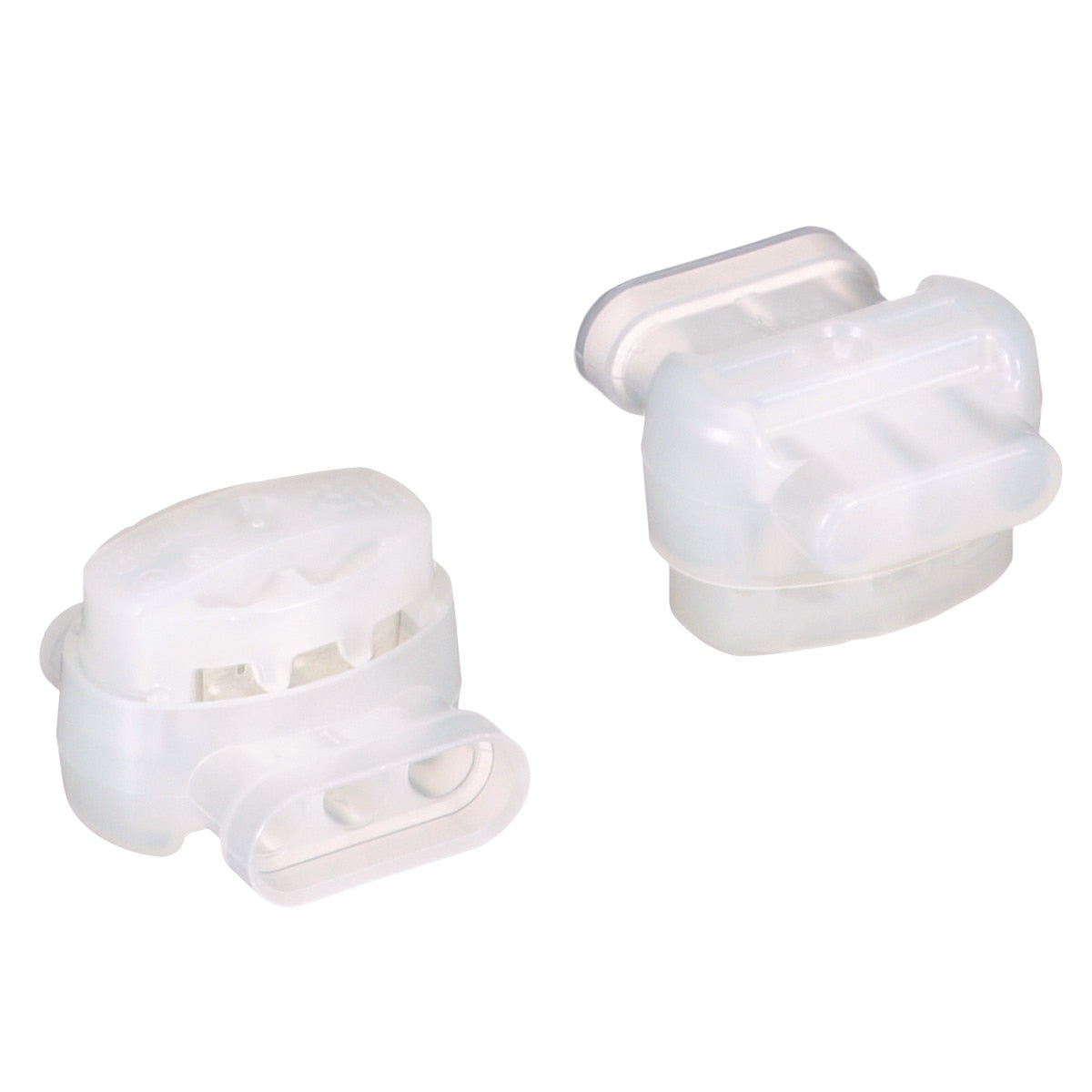

3M Scotchlok 314U insulation displacement connectors provide a self stripping pigtail connection for 22-14 AWG solid or stranded wires in dry environment applications. The nylon insulated flame retardant connector supports connecting 2 or 3 wires and is UL Listed and CSA Certified.
3M 7100175087 Includes
- (500) - 3M 7100175087 Scotchlok Electrical IDC Insulation Displacement Connector 314U-Box, Pigtail, Self-Stripping, White, 22-14 Awg,(314U-POUCH)
3M 7100175087 Features
- Self stripping insulation displacement connector for fast splices
- Pigtail connection type
- Connects 2 or 3 wires
- Fits 22-14 AWG solid or stranded conductors

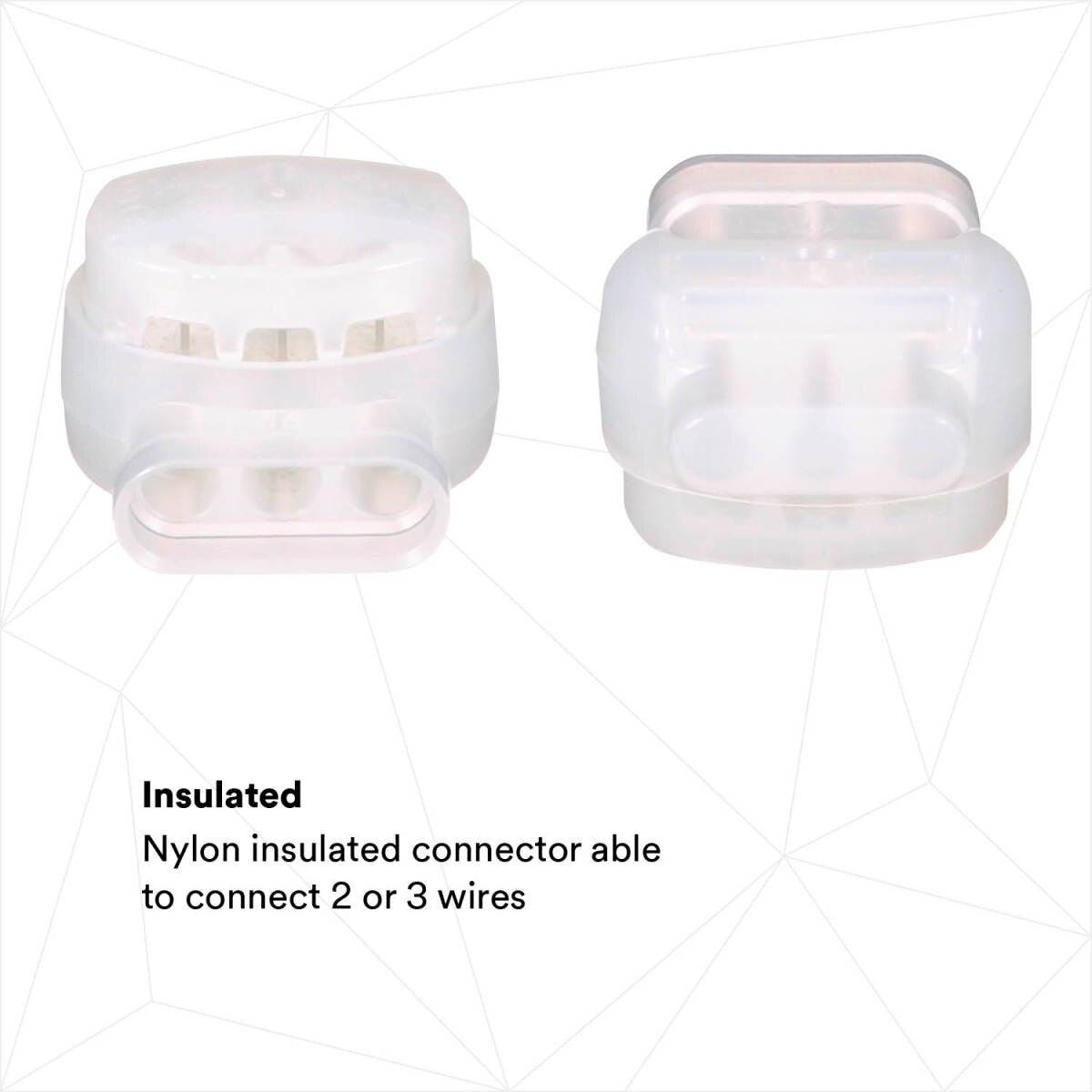

- Nylon insulated flame retardant construction
- 600 V rated for building wire and 1000 V rated for signs fixtures and luminaires
- Rated up to 221 Degree Fahrenheit 105 Degree Celsius

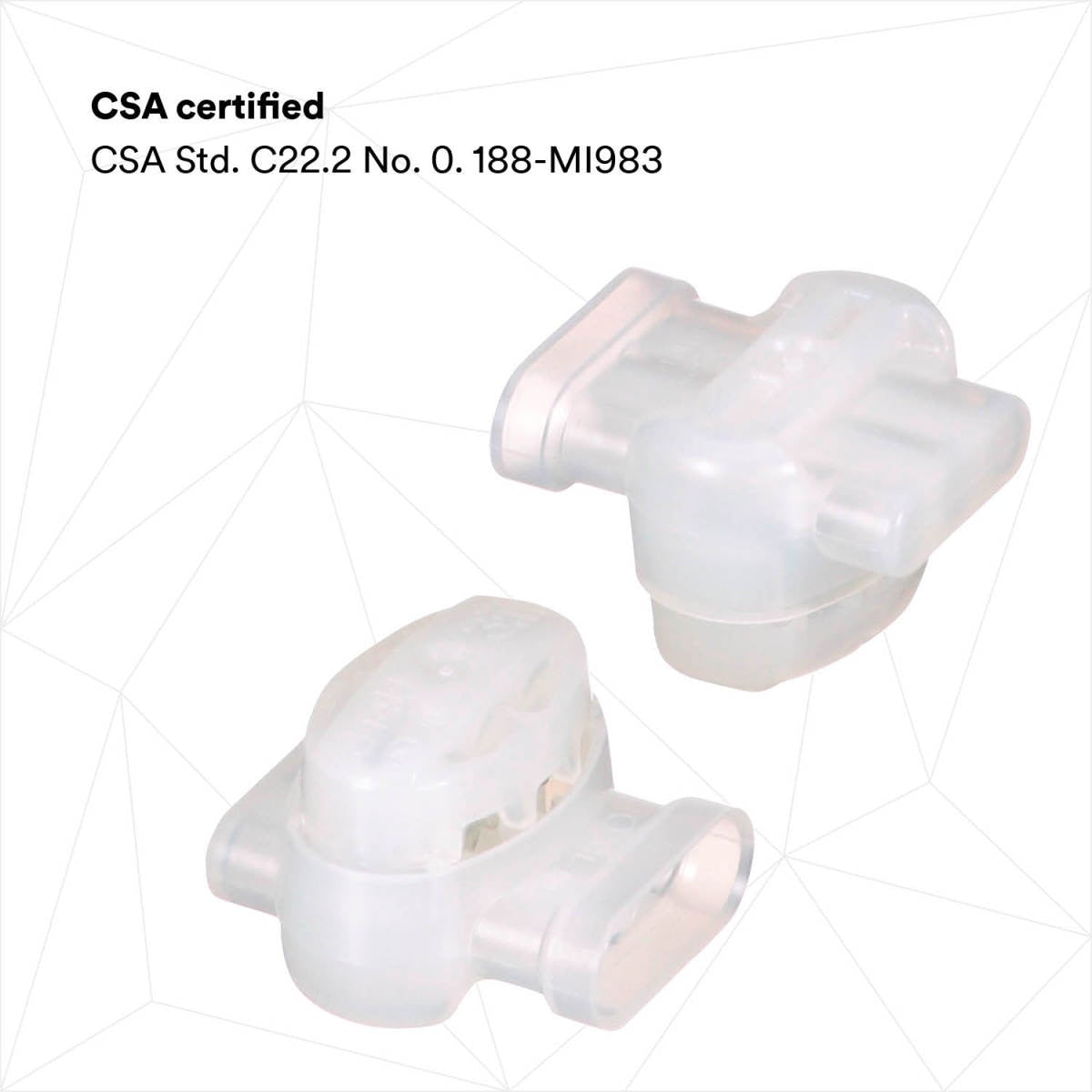

- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7100175087 Specifications
| Product Type | IDC Connector |
| Connector Style | Insulation Displacement |
| Connection Type | Pigtail |
| Wire Range | 22-14 AWG |
| Max Number of Wires | 3 |
| Color | White |
| Material | Plastic |
| Flame Retardant | Yes |
| Moisture Resistant | No |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Recommended Crimping Tool | E-9BM or 9 in Linemans Pliers |
| UL Listed | Yes |
| CSA Certified | Yes |
| RoHS Compliance | RoHS 2011/65/EU compliant without exemption |
| Secondary Part Number | 314U-POUCH |
