At a Glance
Form
Sheet
Length
36 in
Width
24 in
Thickness
6 mil
Adhesive Type
Acrylic
Max Temperature
400�F
Material
Polyester
Description
Description
3M 7000001570 Description

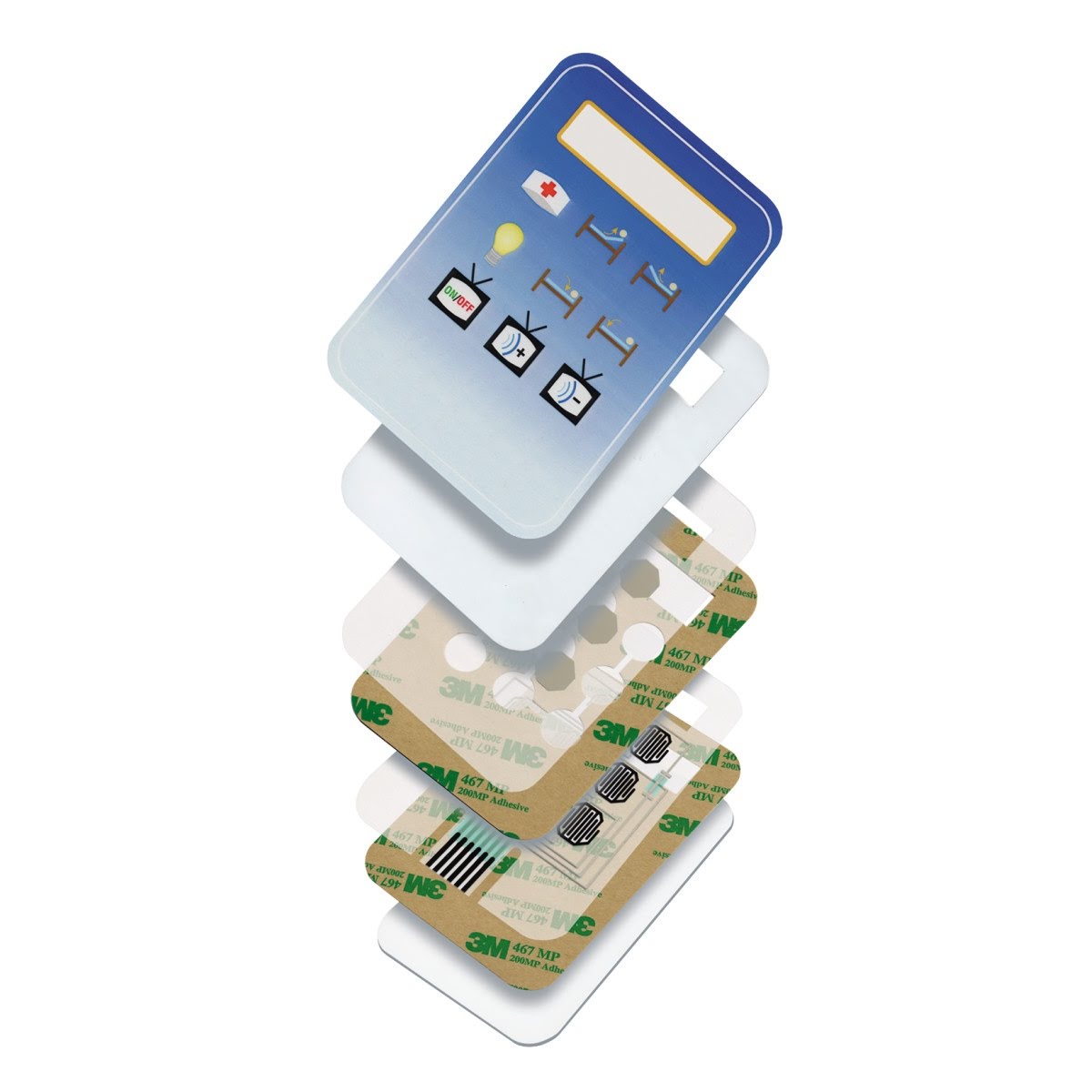

3M Membrane Switch Spacer 7956MP uses High Performance Acrylic Adhesive 200MP on a 2 mil PET polyester film carrier to deliver excellent shear strength for repeated switch actuation. Double PCK paper liners resist humidity, curling, tunneling and buckling to improve sheet processing and stability for slitting and die cutting.
3M 7000001570 Includes
- (100) Membrane Switch Spacer Sheets, Clear, 24 in x 36 in, 6 mil
3M 7000001570 Features
- High Performance Acrylic Adhesive 200MP provides excellent shear strength
- 2 mil acrylic adhesive coated on each side for a durable double coated spacer
- 2 mil polyester film carrier adds strength and dimensional stability
- Double PCK paper liners resist humidity, curling, tunneling and buckling
- Resists oozing at edges for cleaner slitting and die cutting
- Designed to withstand repeated stress of membrane switch actuation
- Temperature resistant up to 400 Degree Fahrenheit short term
- Resistant to solvents and UV exposure
3M 7000001570 Specifications
| Part Number | 7956MP |
| Product Type | Membrane Switch Spacer |
| Color | Transparent |
| Overall Width | 24 in |
| Overall Length | 36 in |
| Total Thickness Without Liner | 6 mil |
| Adhesive Type | High Performance Acrylic Adhesive 200MP |
| Carrier Material | Polyester Film |
| Carrier Thickness | 2.0 mil |
| Adhesive Thickness Each Side | 2.0 mil |
| Primary Liner | 58 lb Polycoated Kraft Paper |
| Maximum Operating Temperature | 400 Degree Fahrenheit |
| Minimum Operating Temperature | -40 Degree Fahrenheit |
| Shelf Life | 18 Month |
| Sheets per Case | 100 |
