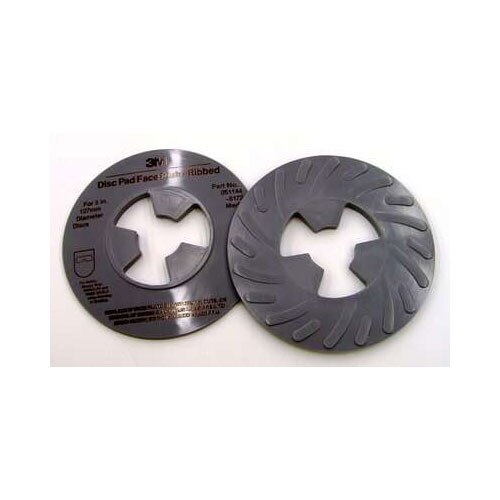

3M 7000120516 Description
3M™ Disc Pad Face Plate backs a same size fiber disc (sold separately) to provide firm support and the force required for grinding applications. It is used in conjunction with a disc pad hub (sold separately), which attaches to the power tool, and held into place along with the appropriate disc using a retainer nut (sold separately). This assembly allows 3M™ Disc Pad Face Plate to be easily changed without removing the disc pad hub, allowing the operator to use a single tool for multiple applications from heavy grinding to finishing a workpiece. Some face plates have ribbing on the bottom face. Ribbed face plates provide additional force when needed for optimal fracturing of the abrasive mineral. By reducing the area of contact, or pressure per square foot (PSI), ribbed face plates increase the grinding pressure of the abrasive with the same amount of operator effort, and extend disc life when dulling is a problem.
3M 7000120516 Includes
- (1) Disc pad face plate
3M 7000120516 Features
- Designed for use with a 3M™ Disc Pad Hub
- Various flexibilities support grinding applications ranging from lightweight to heavy-duty
- Plate accommodates a fiber disc of equal diameter
- Plate color indicates disc density for easy identification in the workroom
3M 7000120516 Specifications
| Application | Finishing, Grinding, Surface Preparation |
| Color | Gray, Medium Gray |
| Density Rating | Medium |
| Equipment - Machines | Disc Sanders, Right Angle Grinders |
| Form Type | Ribbed |
| Industries | Marine, Metalworking |
| Maximum Speed | 12000 mps |
| Max RPM | 12000 |
| Net Weight (Imperial) | 1.53 lb |
| Net Weight (Metric) | 694 g |
| Overall Diameter (Imperial) | 5 in |
| Overall Diameter (Metric) | 127 mm, 127 mm |
| Overall Length (Imperial) | 7.2 in |
| Overall Length (Metric) | 18.29 cm |
| Overall Width (Imperial) | 6.9 in |
| Overall Width (Metric) | 17.53 cm |
| Product Type | Back-up Pad |
| Sub Industries | Builders Hardware, Medical Instruments, Metal Fabrication, Metal Implants, Plating & Polishing, Plumbing Fixtures, Turbine Engines |
| Type Retainer | Nut |
