3M 7100123073 Description

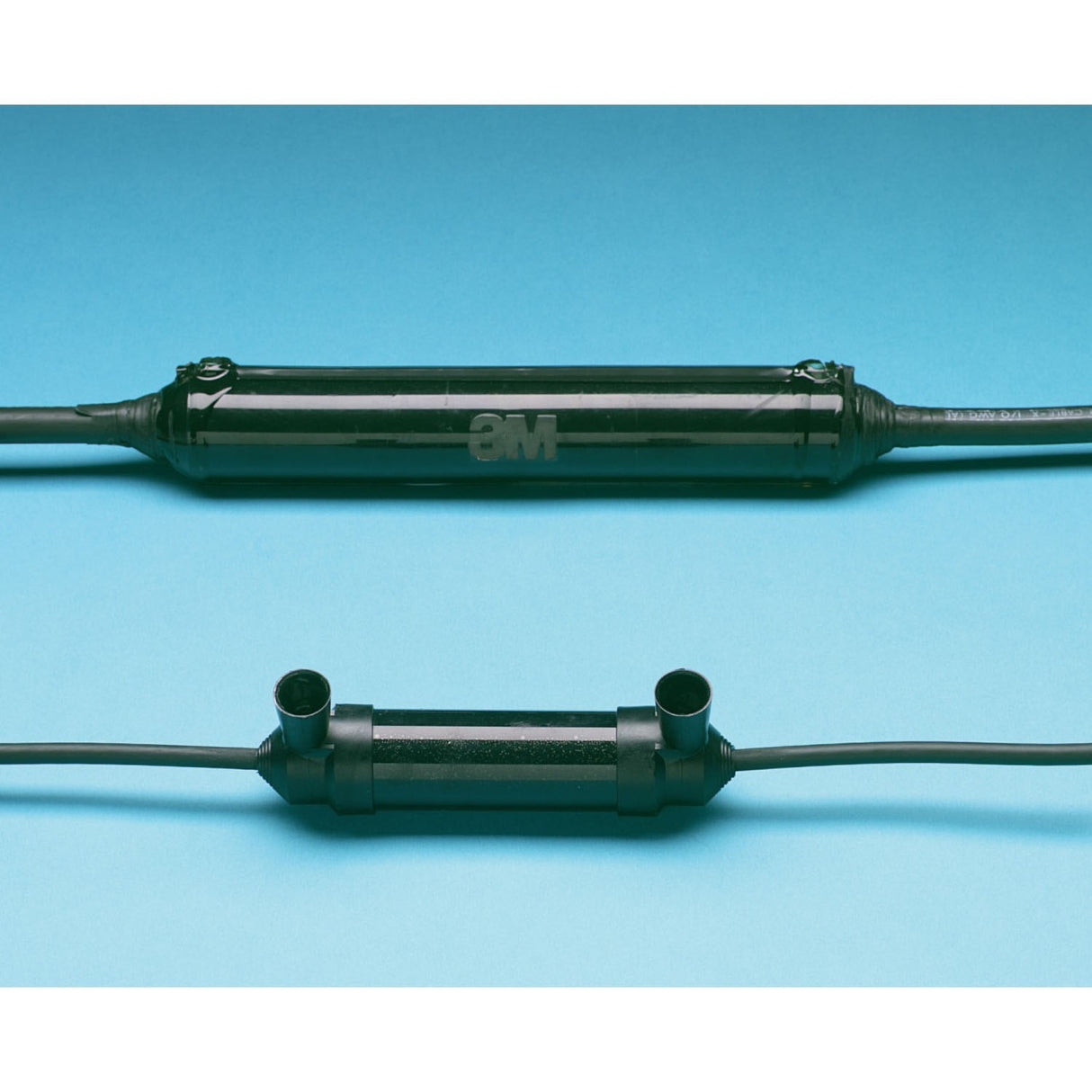

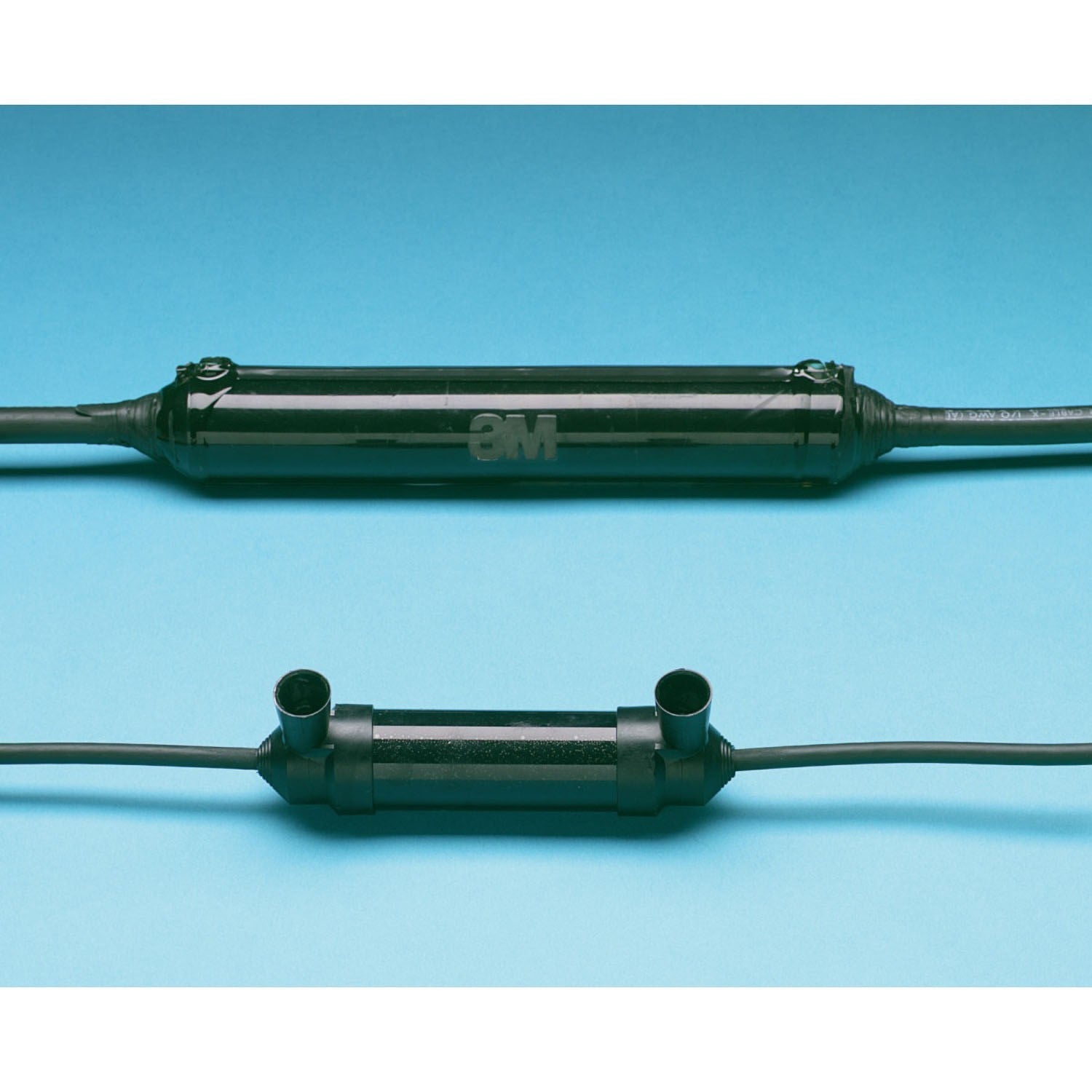

3M Scotchcast 82-A1N inline resin power cable splice kit designed to insulate and seal unshielded cables for weather-exposed or direct-burial installations, up to 2 AWG.

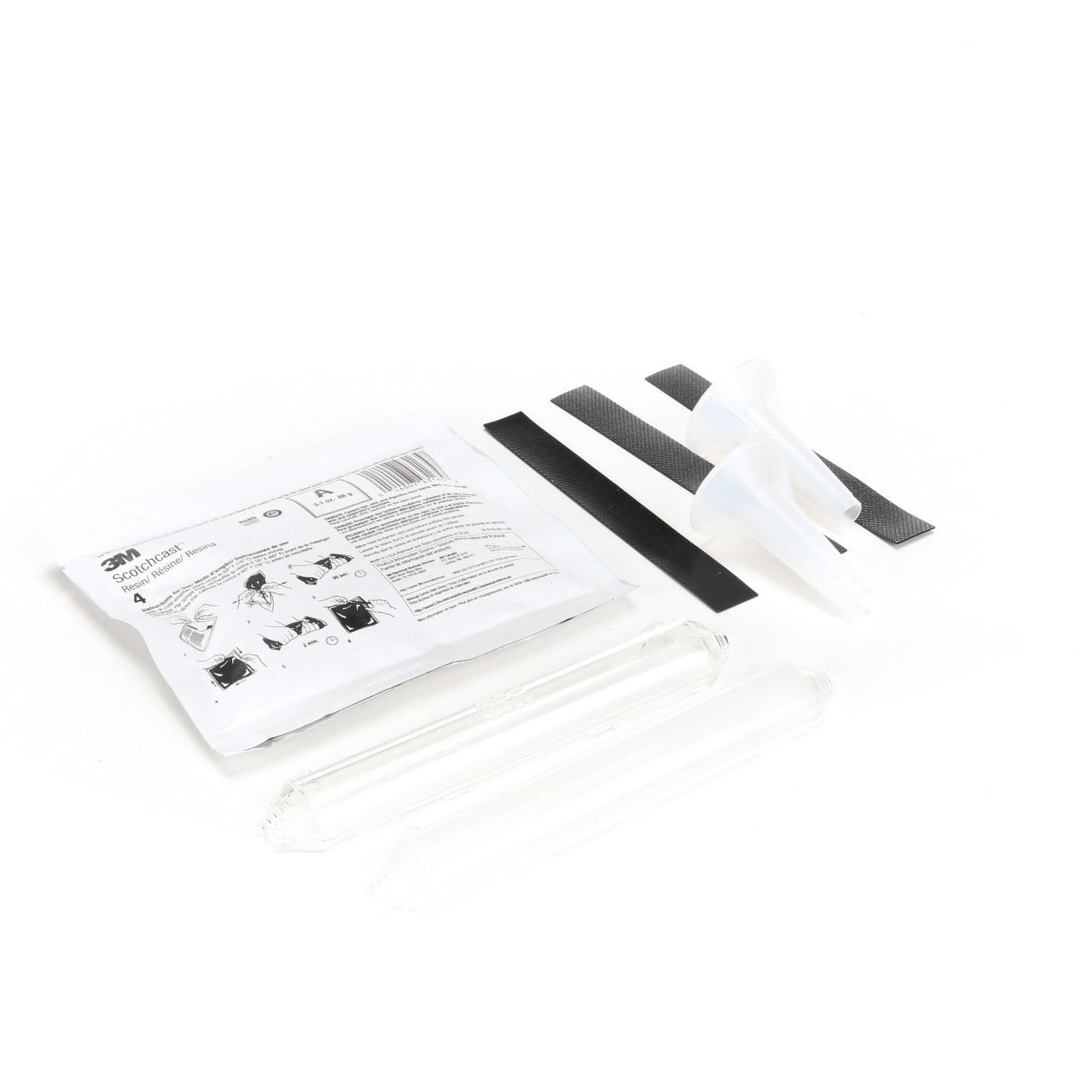

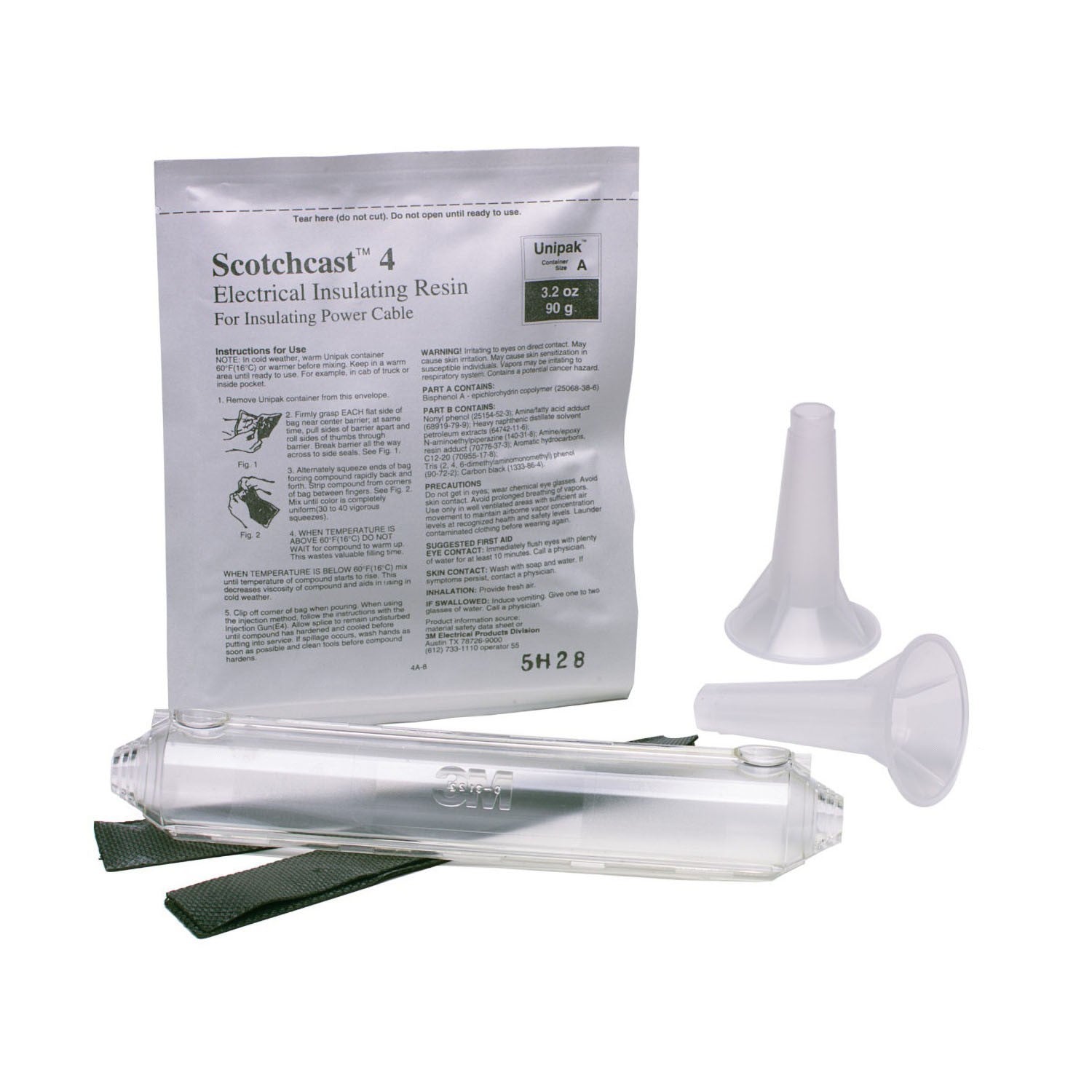

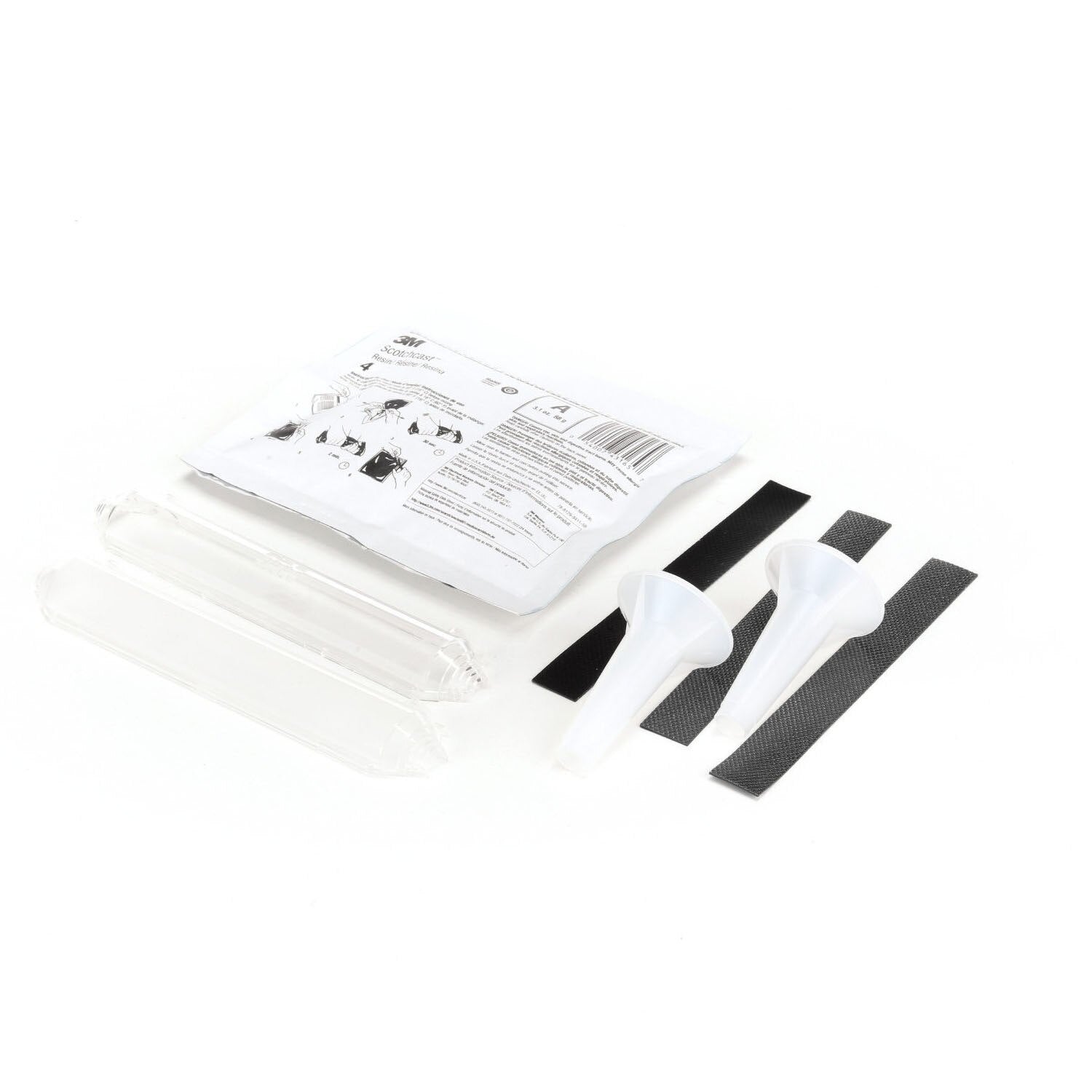

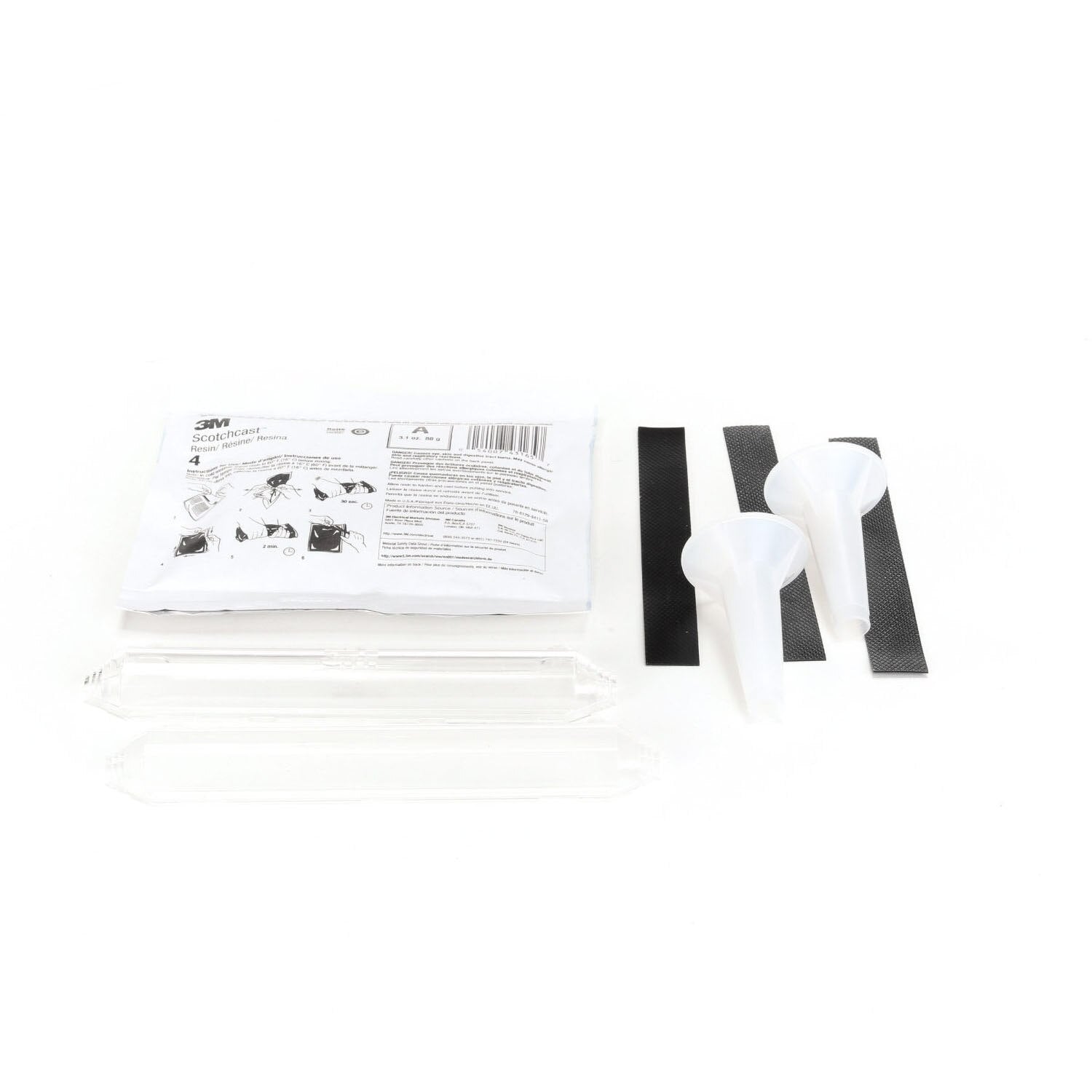

3M 7100123073 Includes
- (1) 3M Scotchcast Inline Resin Power Cable Splice Kit 82-A1N
- (1) Mold body
- (2) Pouring spouts
- (1) Scotch Rubber Splicing Tape 23
- (1) Scotchcast Electrical Insulating Resin 4N
3M 7100123073 Features

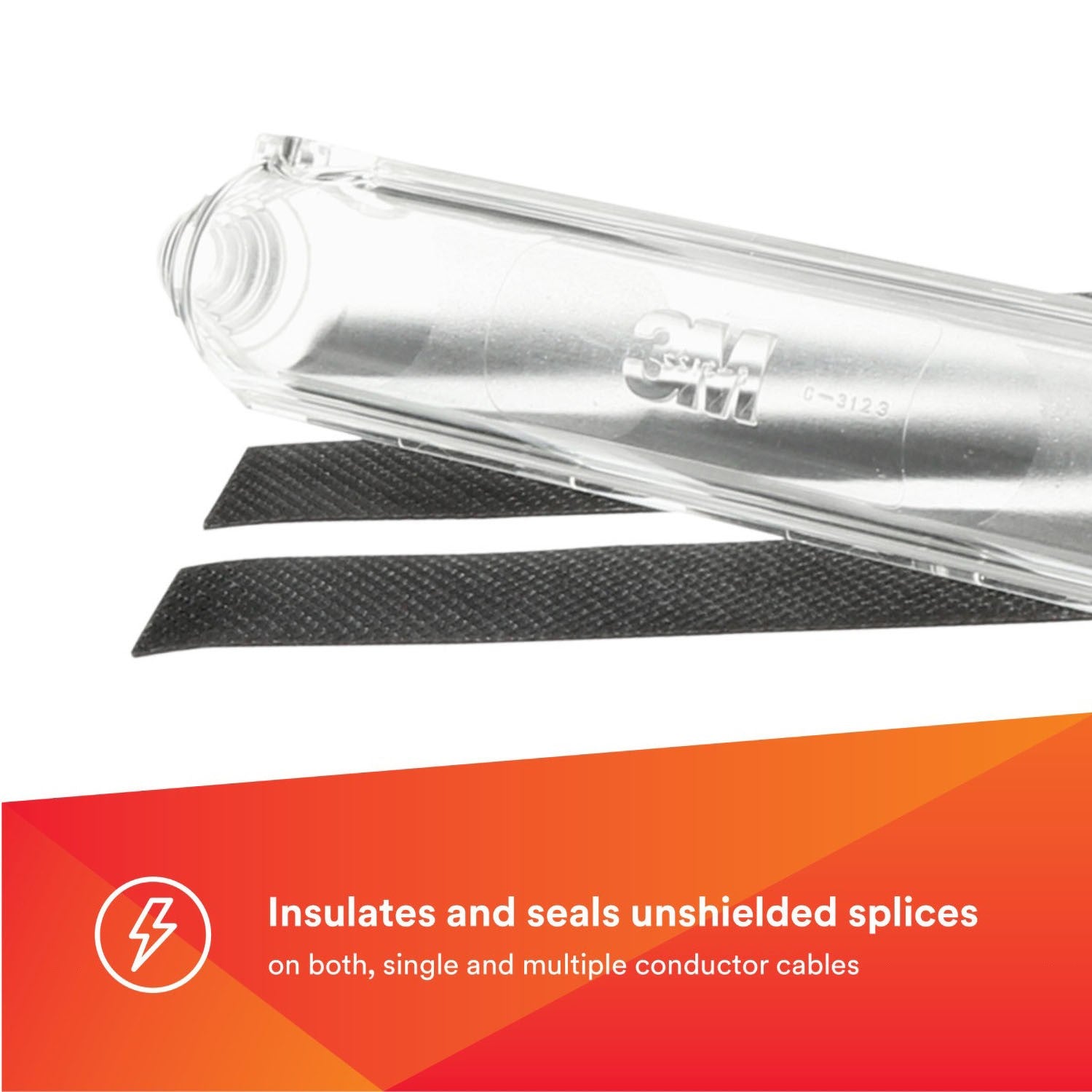

- Inline resin splice kit for sealing and electrical insulation

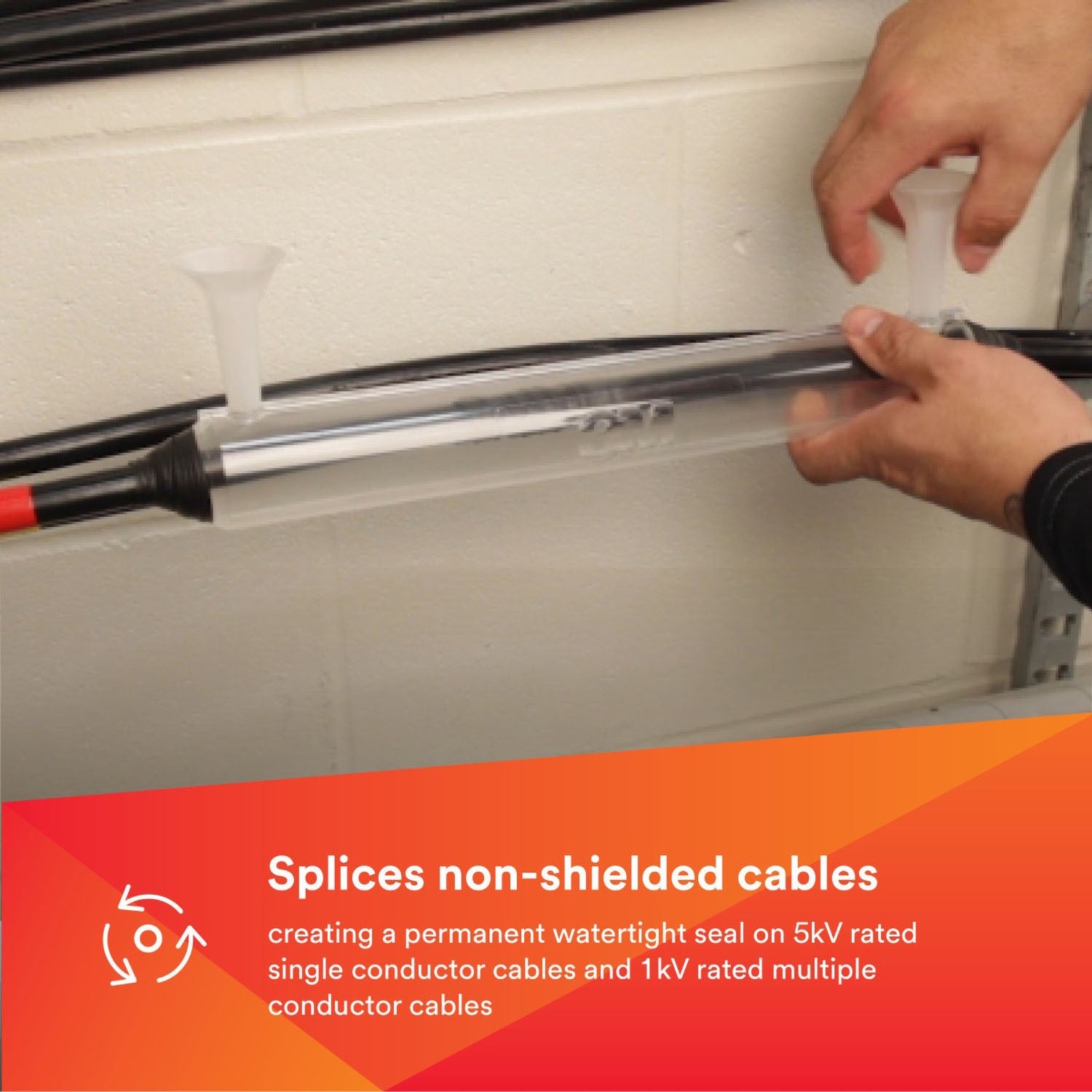

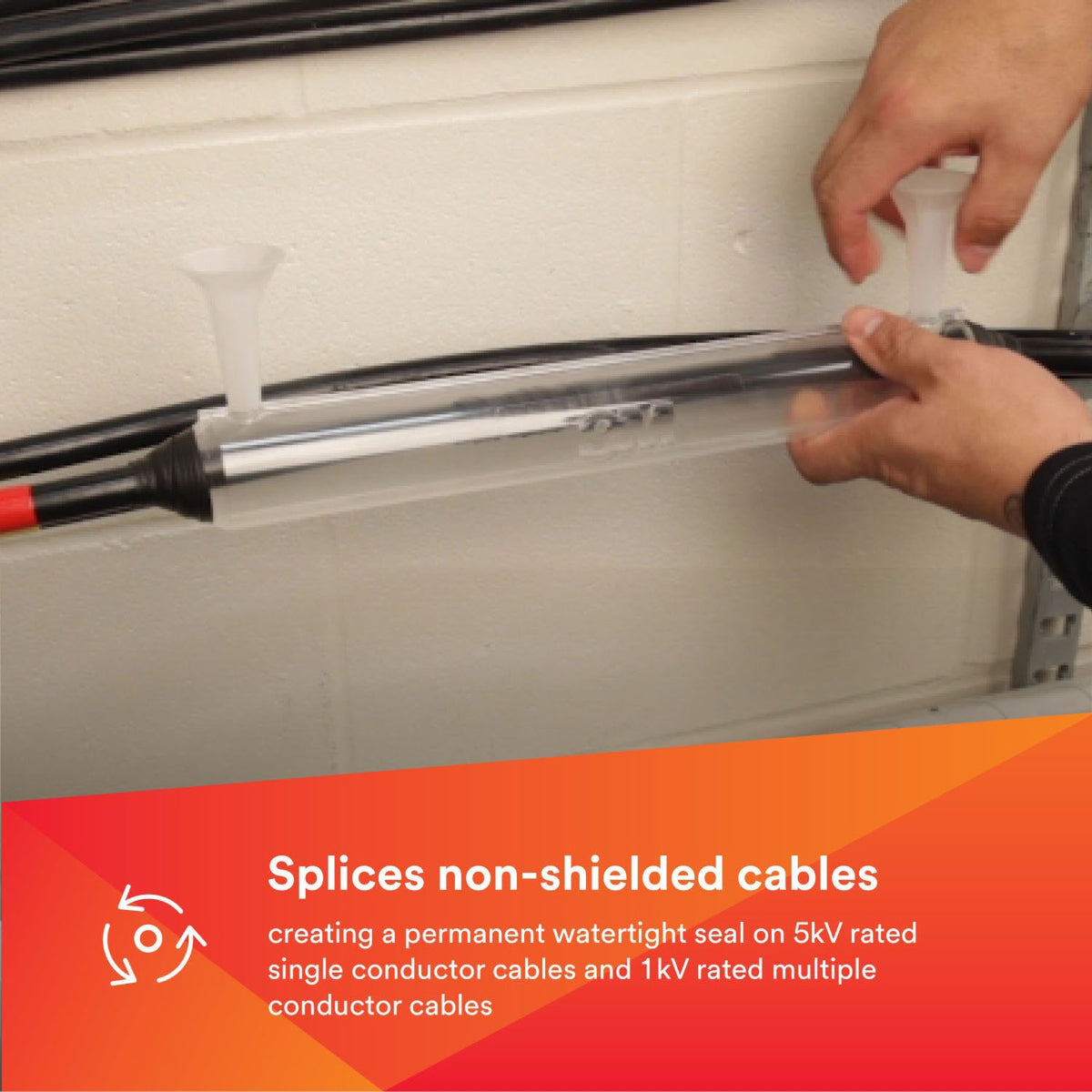

- Designed for unshielded single- and multiple-conductor cables

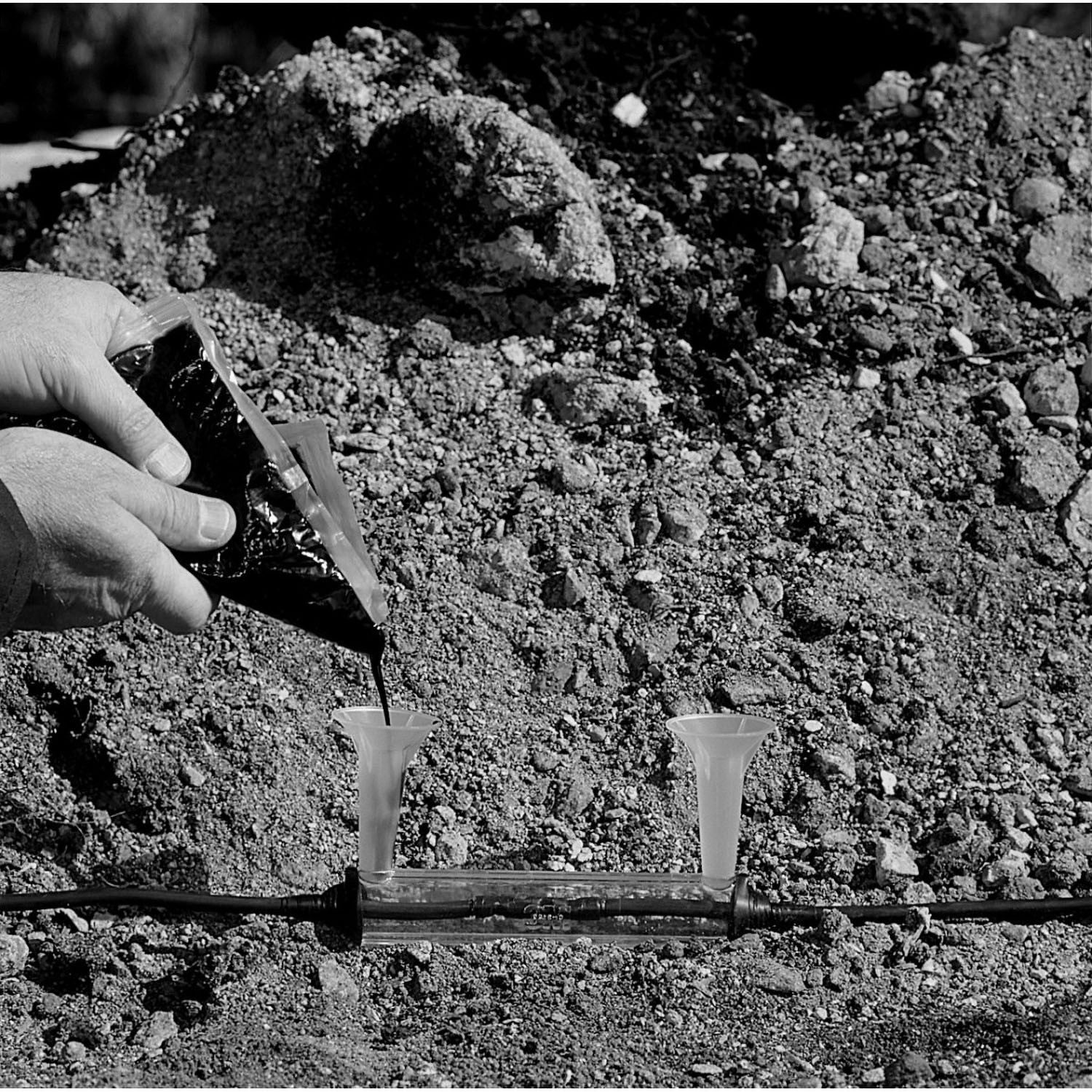

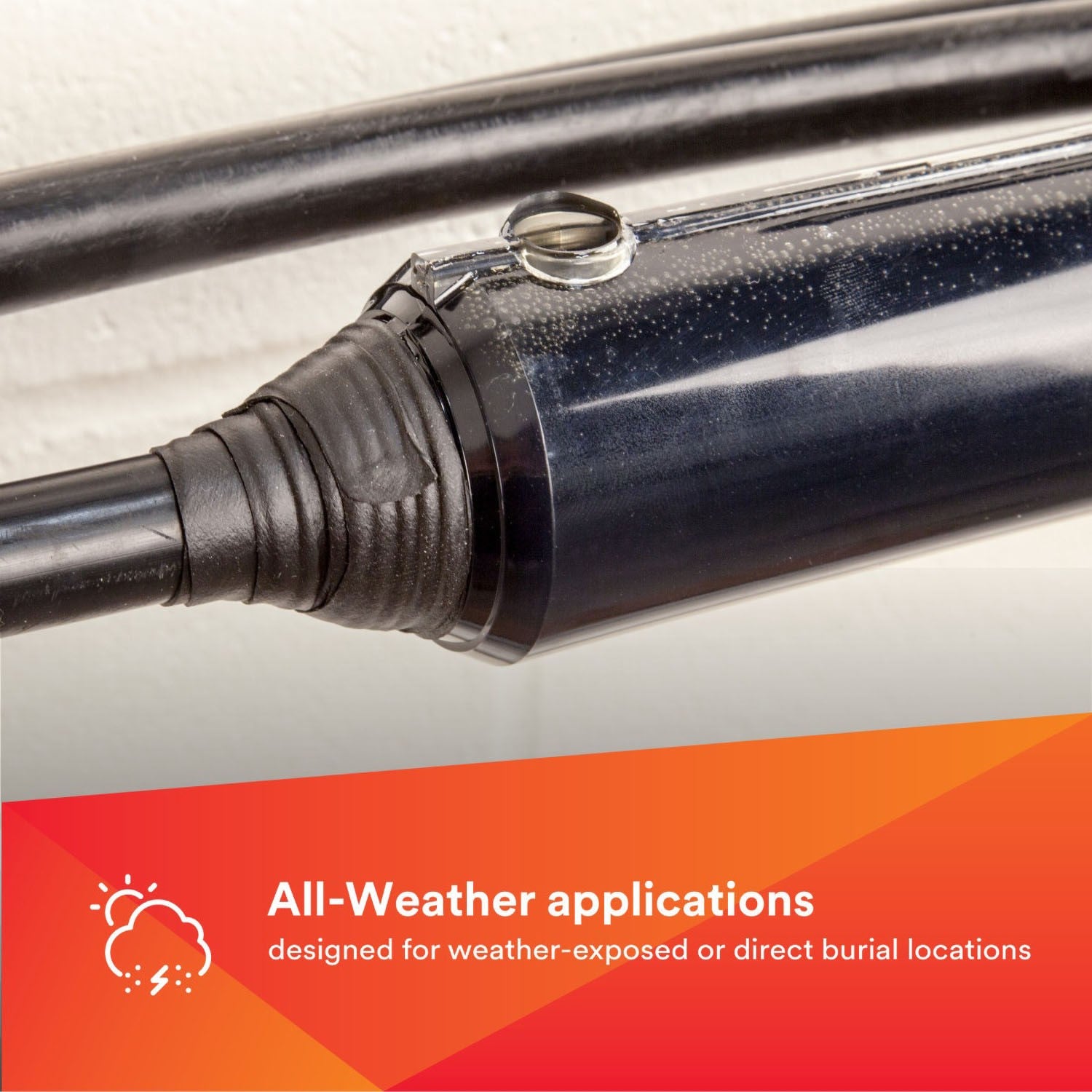

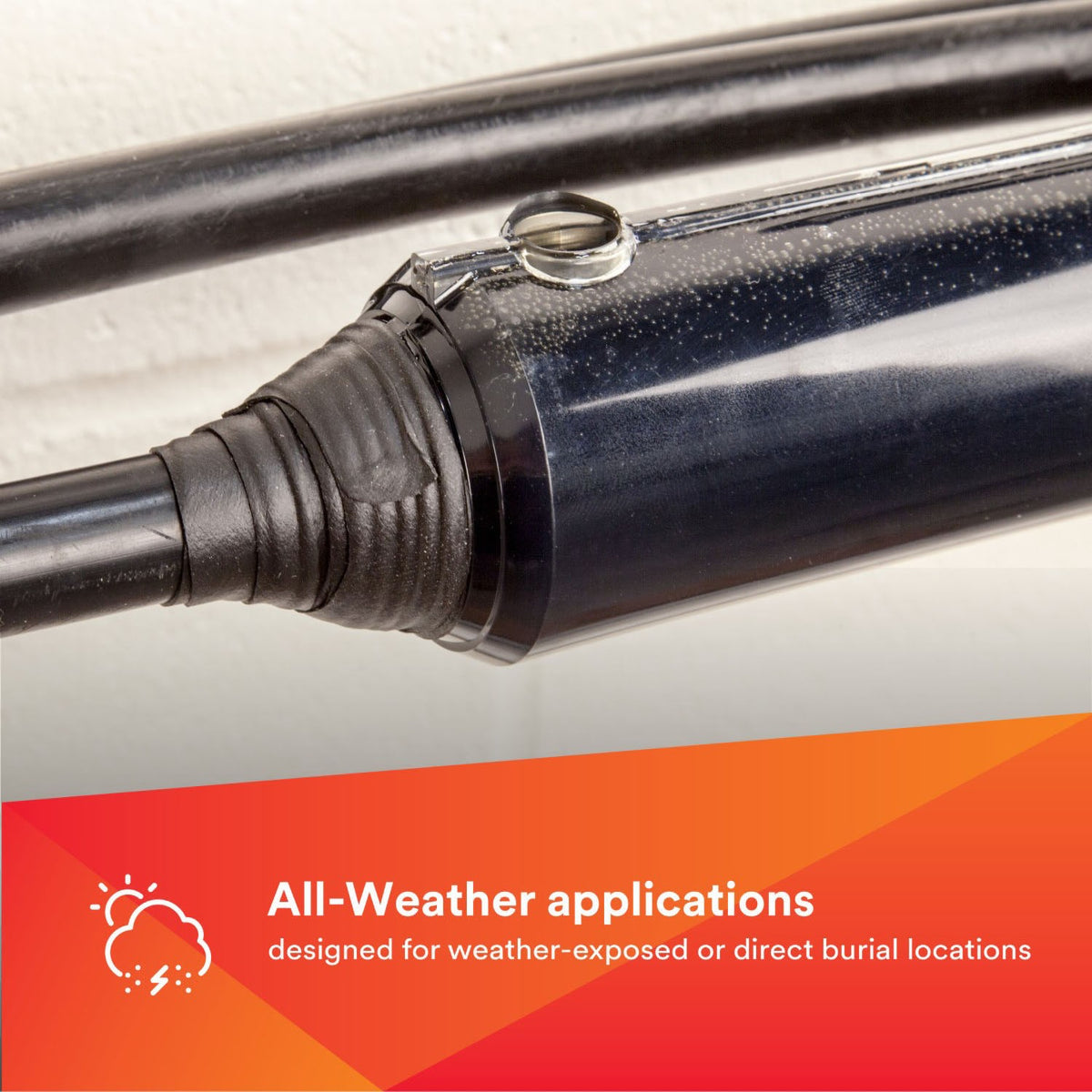

- Suitable for weather-exposed or direct burial locations
- UL listed for direct burial and submerged applications up to 600V and 90 Degree C
- Includes mold body, pouring spouts, splicing tape, and insulating resin
3M 7100123073 Specifications
| Brand | Scotchcast |
| Part Number | 82-A1N |
| Product Type | Splice |
| Splice Type | Inline |
| Product Technology | Resin |
| Material | Epoxy |
| Color | Black |
| Maximum Conductor Size | 2 AWG |
| Minimum Conductor Size | 8 AWG |
| Insulation O.D. Range | 0.406 - 0.625 Inch |
| Maximum Cable Outside Diameter | 0.60 in |
| Voltage | 5 kV |
| Application | Sealing, electrical insulation and mechanical protection |
Toolup Part # :
848191
