At a Glance
Length
8 in
Material
EPDM
For Use On
Metal
Application
Electrical
Description
Description
3M 7000031605 Description

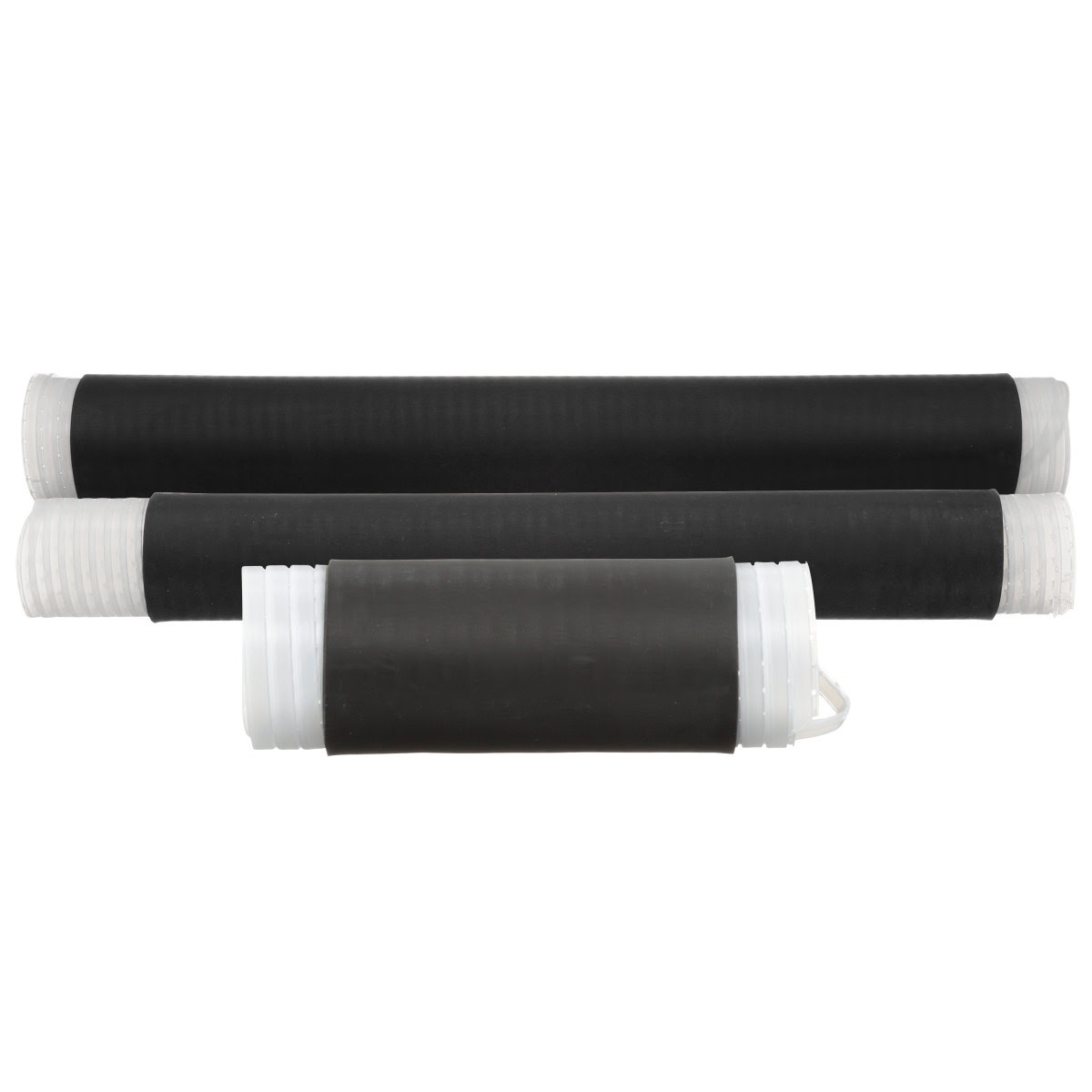

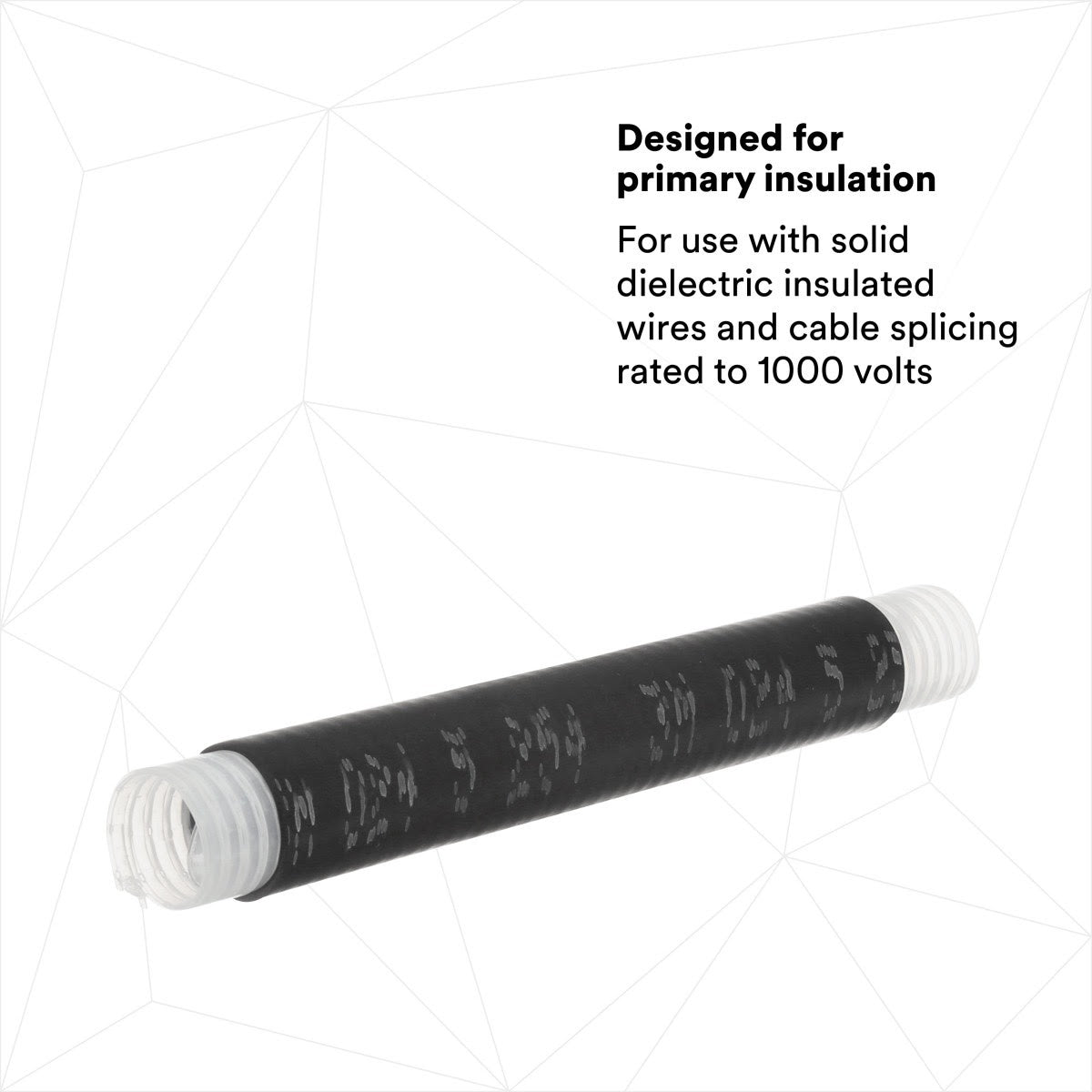

3M Cold Shrink Insulator 8425-8 is an EPDM rubber cold shrink tube that provides primary insulation and environmental sealing for solid dielectric insulated wires and cable splices rated up to 1000 volts. It installs by hand with no heat or tools and is designed for sealing terminal lug barrels, conduit couplings, and conduit-to-cable breakouts in indoor or outdoor applications.
3M 7000031605 Includes
- (10) - 3M 7000031605 Cold Shrink Insulator 8425-8, 2-1/0 AWG (35-50 mm²)
3M 7000031605 Features

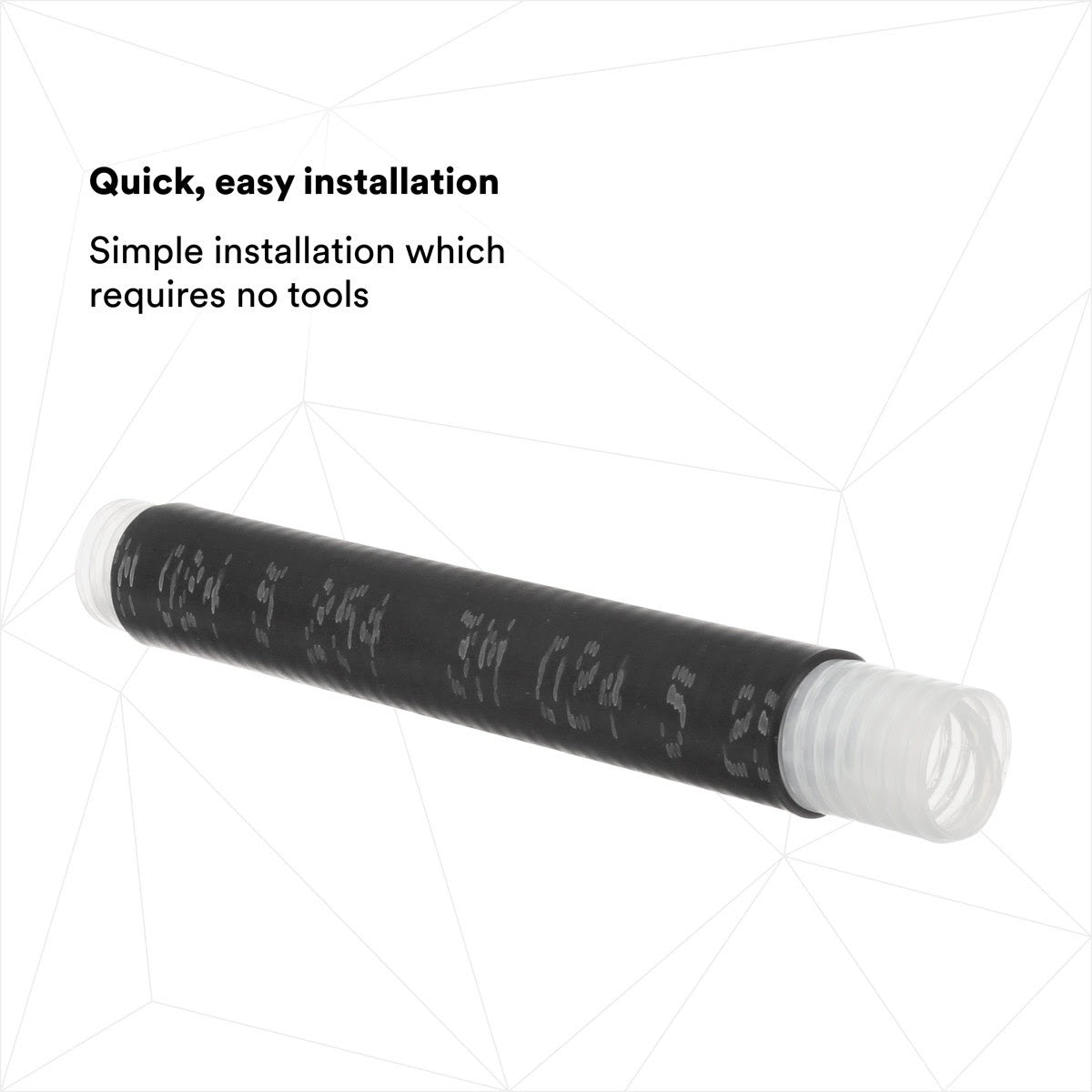

- Cold shrink design installs by hand with no tools or heat
- EPDM rubber construction for durable environmental sealing
- Rated up to 1 kV (1000 volts) for primary insulation applications

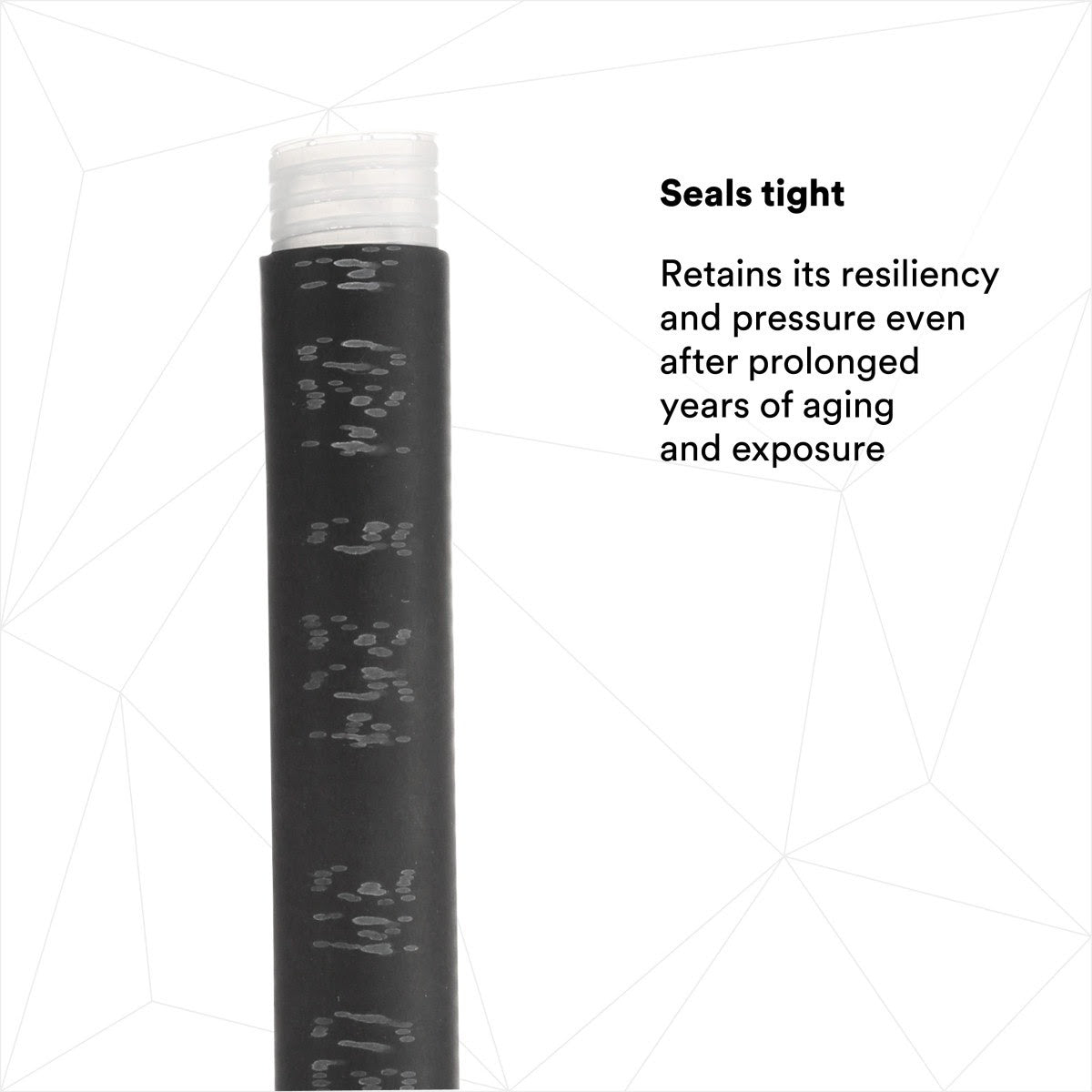

- Water-resistant seal meets ANSI C119.1 requirements

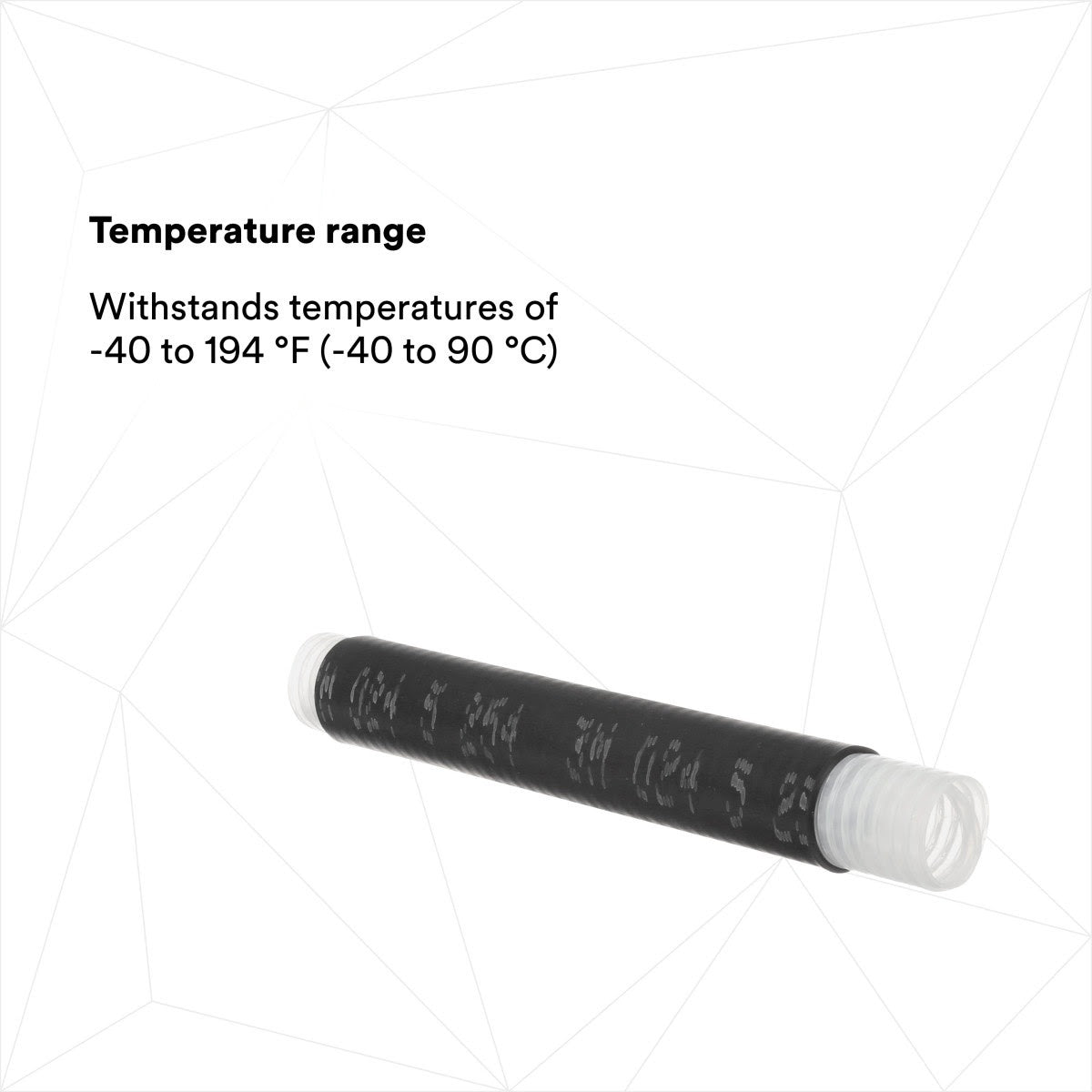

- Operating temperature range -40 Degree F to 194 Degree F (-40 Degree C to 90 Degree C)
- For sealing terminal lug barrels, conduit couplings, and conduit-to-cable breakouts

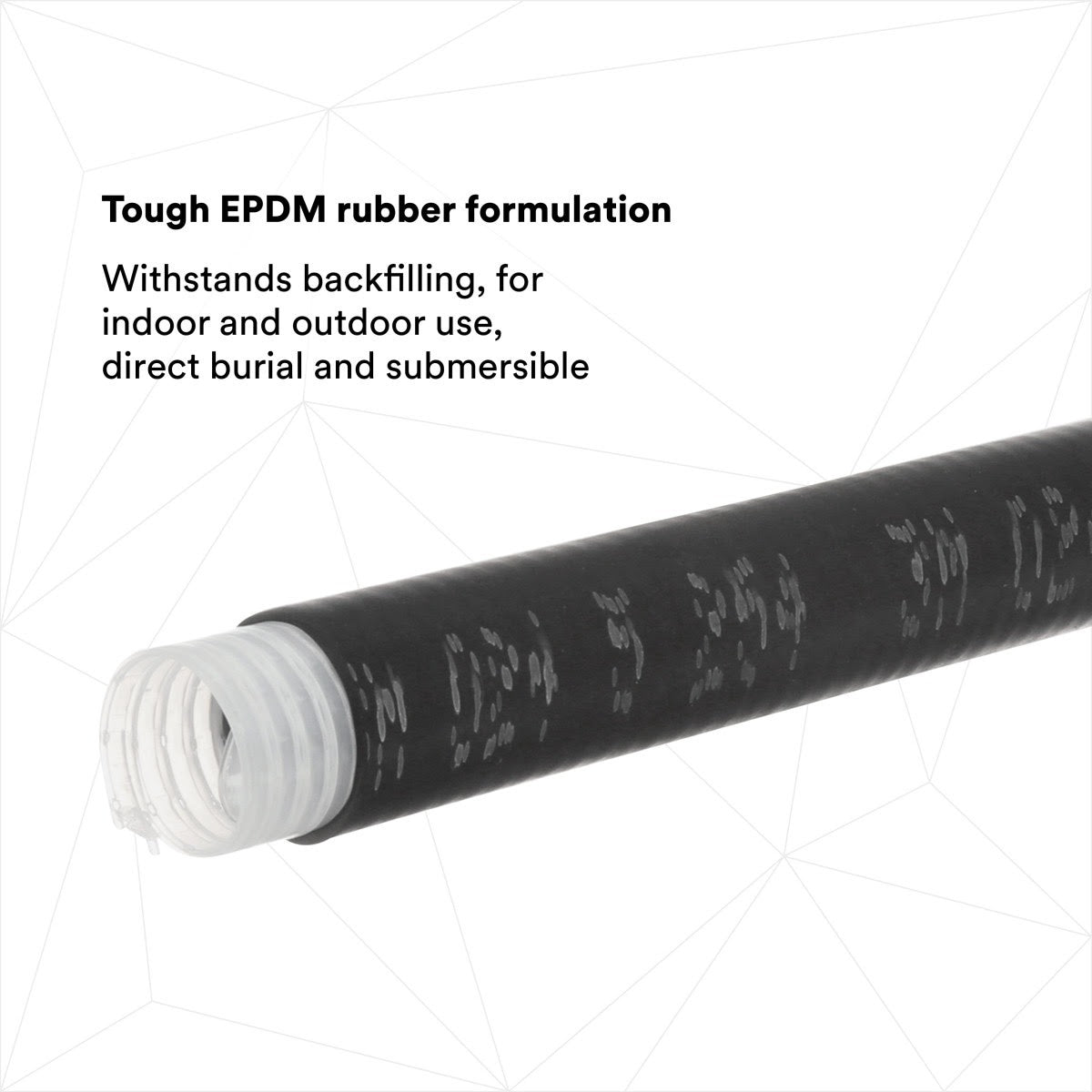

- Suitable for indoor and outdoor use, including direct burial or submersible applications
- Designed for 2-1/0 AWG (35-50 mm2) conductor sizes
- Black color for general electrical insulation applications
3M 7000031605 Specifications
| Part Number | 8425-8 |
| Product Type | Cold Shrink Insulator |
| Material | EPDM Rubber |
| Color | Black |
| Conductor Sizes | 2-1/0 AWG (35-50 mm2) |
| Voltage Rating | 1 kV |
| Shrink Ratio | 2:1 |
| Overall Length | 8.0 in |
| Inner Diameter Before Shrink | 0.941 in |
| Inner Diameter After Shrink | 0.24 in |
| Minimum Operating Temperature | -40 Degree F |
| Maximum Operating Temperature | 194 Degree F |
| Application | Insulation, mechanical protection, repair |
Toolup Part # :
858303
