3M 7000006132 Description
3M Cold Shrink Insulator 8426-9 is an EPDM rubber, factory-expanded cold shrink tube on a removable core that provides primary insulation and a water-resistant environmental seal for cable connections. It installs quickly by hand with no tools or heat, and is designed for sealing terminal lug barrels, conduit couplings, and conduit-to-cable breakouts on solid dielectric insulated wires and cable splices rated up to 1000 volts.
3M 7000006132 Includes

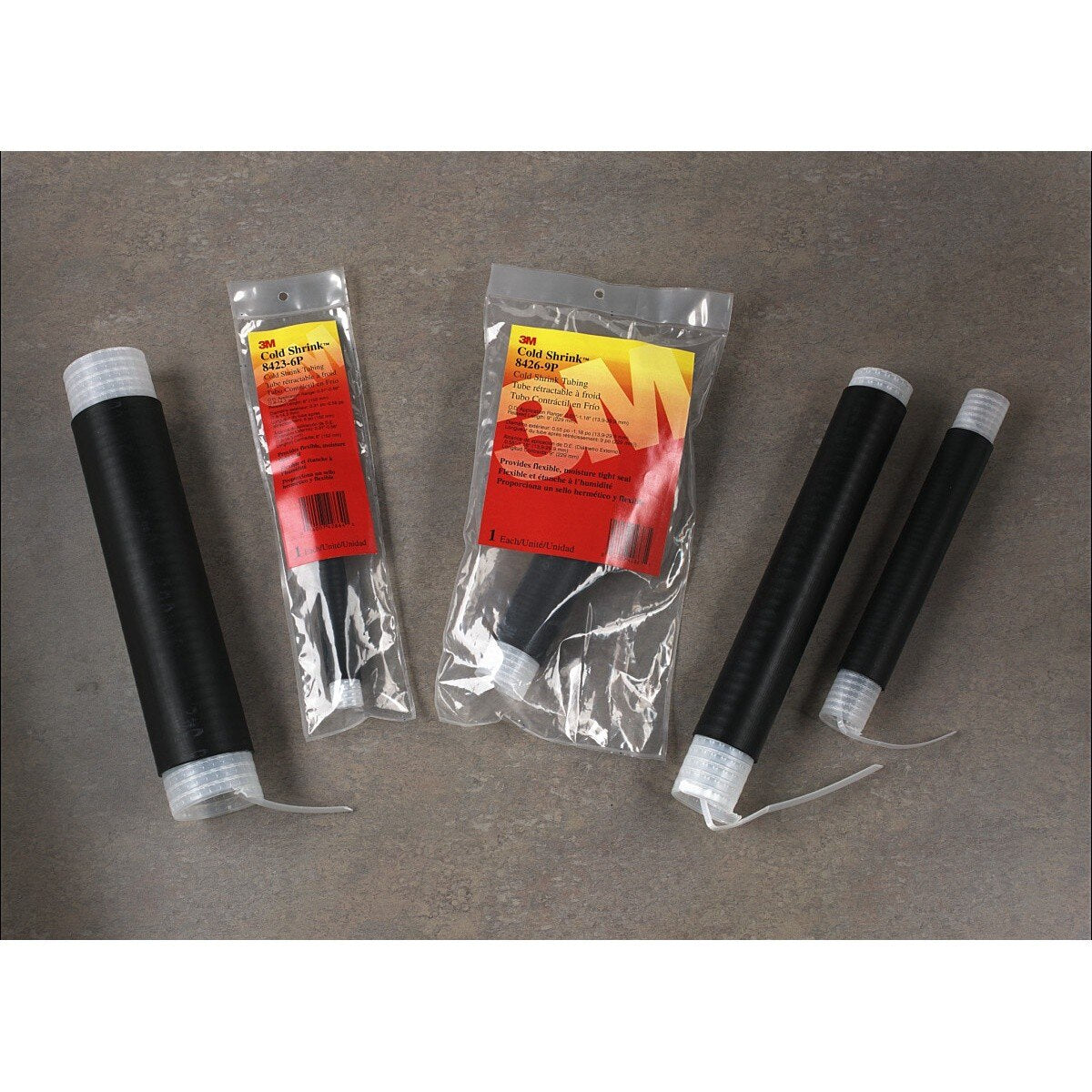

- (10) 3M Cold Shrink Insulator 8426-9
3M 7000006132 Features

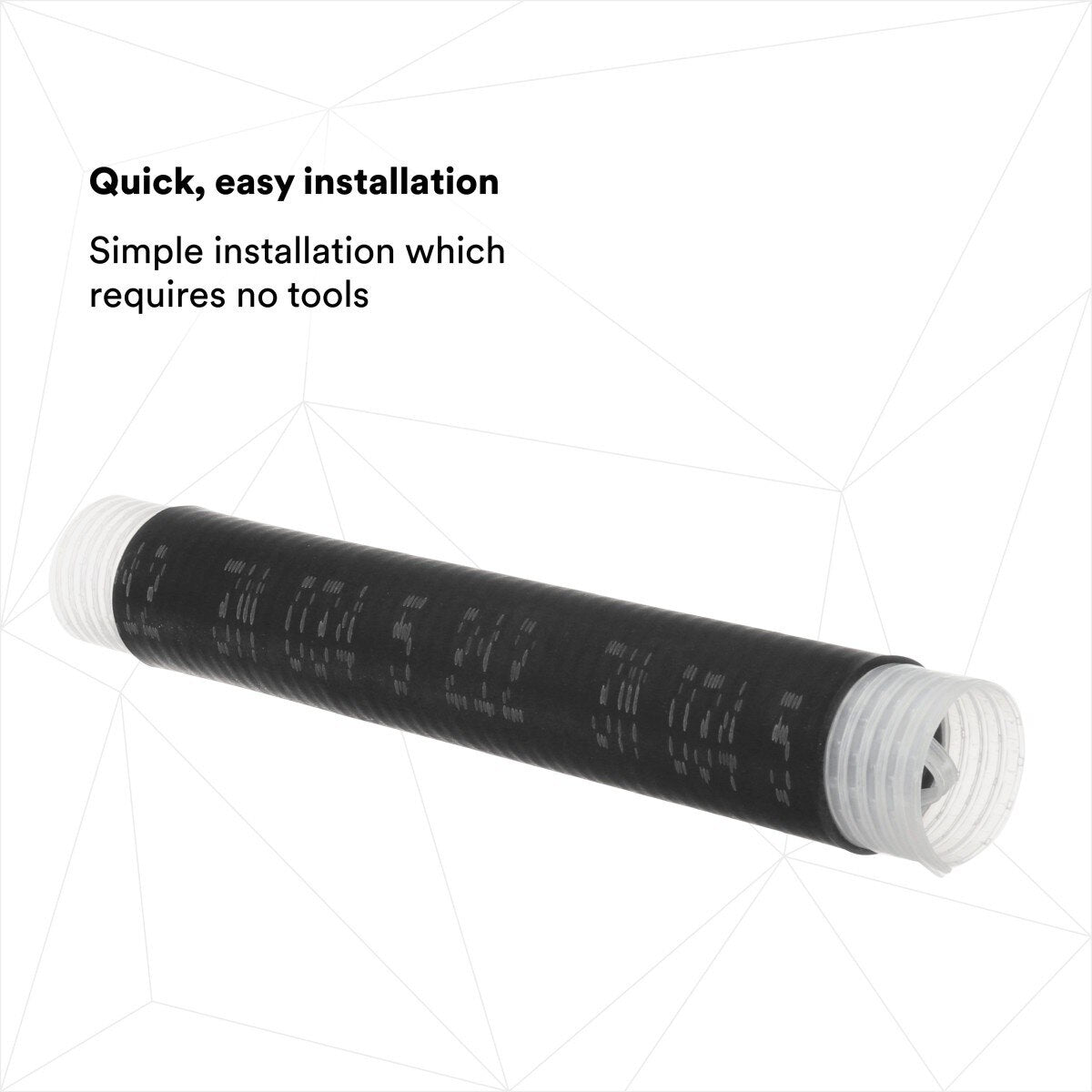

- Cold shrink design installs by hand with no tools or heat
- Factory-expanded EPDM rubber tube on a removable plastic core

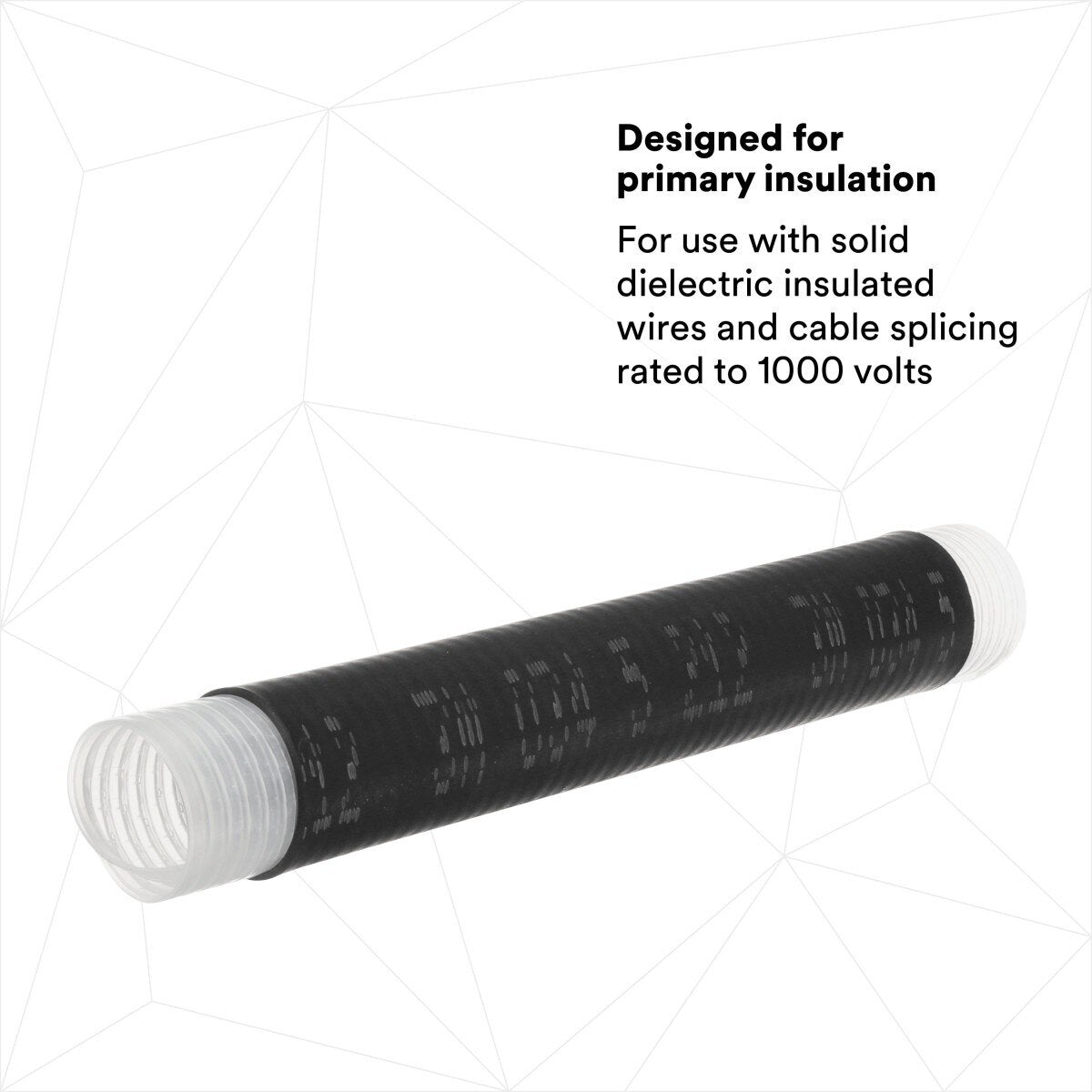

- Provides primary insulation for solid dielectric insulated wires and cable splices up to 1000 volts
- Forms a secure, moisture-tight, water-resistant seal
- Multipurpose environmental sealing for terminal lug barrels, conduit couplings, and conduit-to-cable breakouts

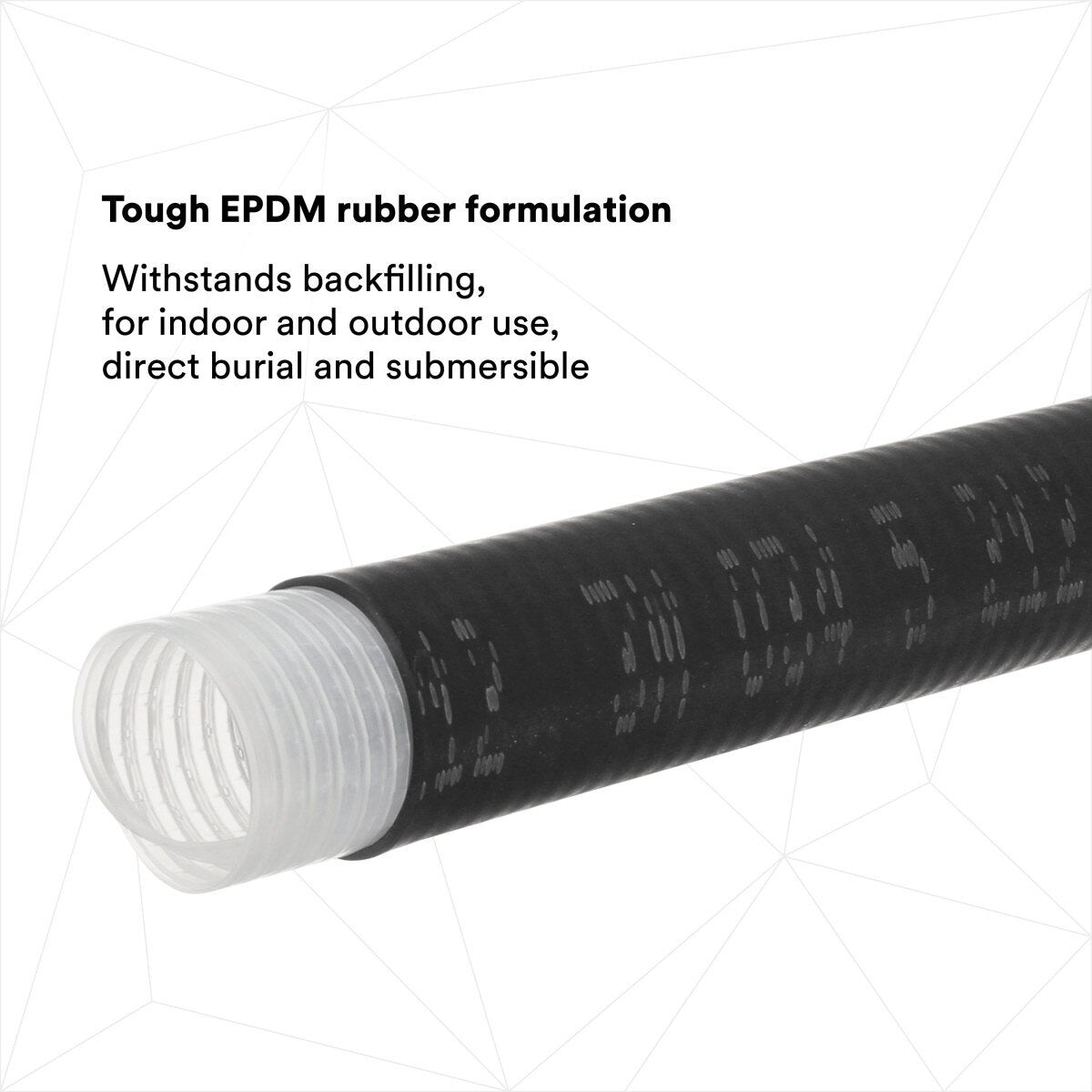

- Suitable for indoor and outdoor use, including direct burial or submersible applications
- Resists fluid splashes, acids, and alkalis

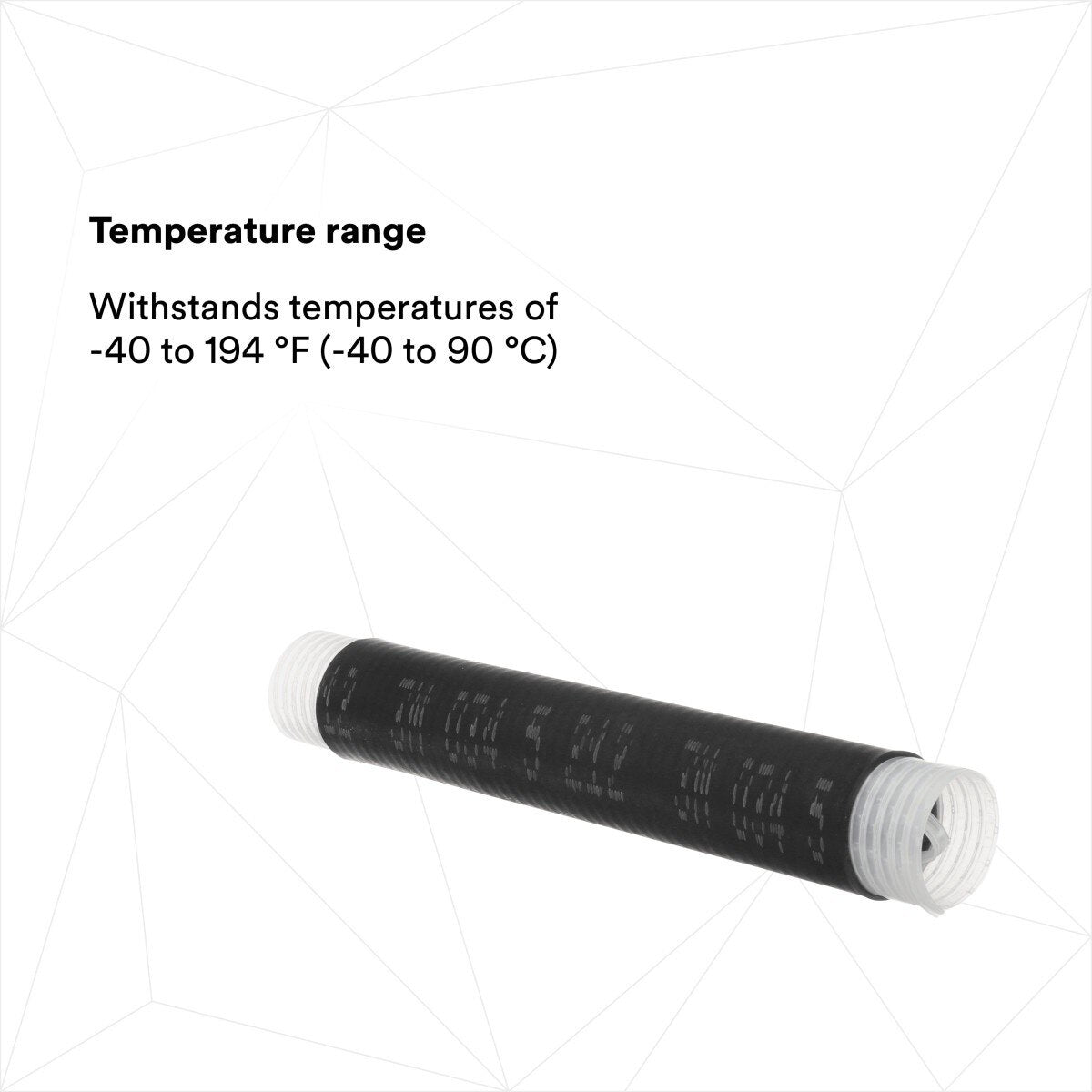

- Operating temperature range from -40 Degree F to 194 Degree F

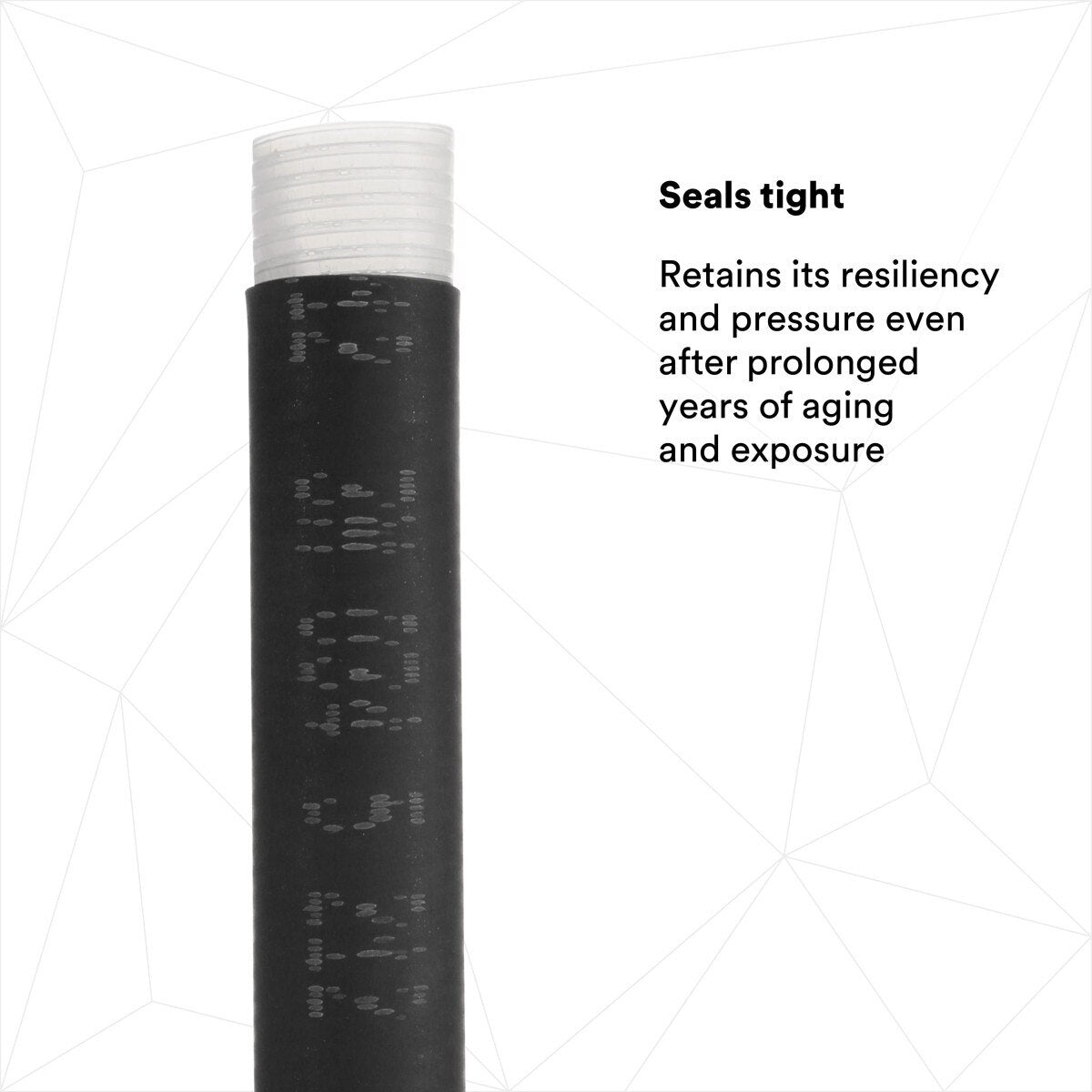

- Maintains long-term resiliency and sealing pressure
3M 7000006132 Specifications
| Part Number | 8426-9 |
| Product Type | Cold Shrink Insulator |
| Material | EPDM Rubber |
| Color | Black |
| Voltage Rating | 1 kV |
| Conductor Material | Aluminum, Copper |
| Conductor Sizes (Imperial) | 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG |
| Minimum Conductor Size (Metric) | 70 mm2 |
| Maximum Conductor Size (Metric) | 125 mm2 |
| Inner Diameter Before Shrink (Imperial) | 1.185 in |
| Inner Diameter After Shrink (Imperial) | 0.547 in |
| Overall Length (Imperial) | 9.0 in |
| Maximum Connector Length | 5.0 in |
| Minimum Operating Temperature (Fahrenheit) | -40 Degree Fahrenheit |
| Maximum Operating Temperature (Fahrenheit) | 194 Degree Fahrenheit |
| Meets | ANSI C119.1 water seal requirements |
| Package Quantity | 10 per case |
