3M 7000005950 Description

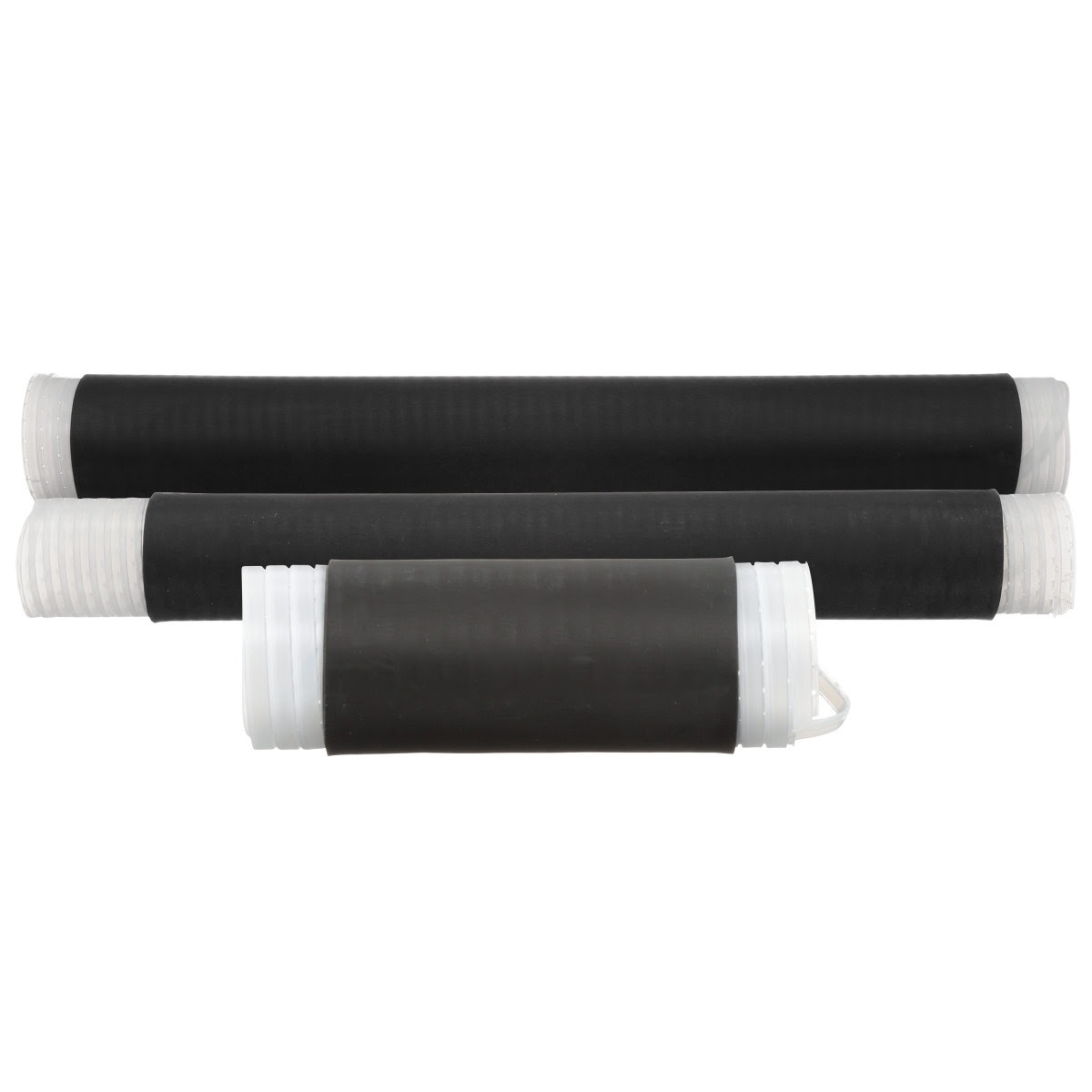

3M Cold Shrink Insulator 8428-12 is an EPDM rubber cold shrink tube designed to provide primary insulation and environmental sealing for solid dielectric insulated wires and cable splices rated up to 1 kV. It installs by hand with no tools or heat and delivers a durable, water resistant seal for indoor or outdoor applications.
3M 7000005950 Includes
- (10) - 3M 7000005950 Cold Shrink Insulator 8428-12, Tape/Wire/UniShield Shielding, 1 kV, Standard
3M 7000005950 Features

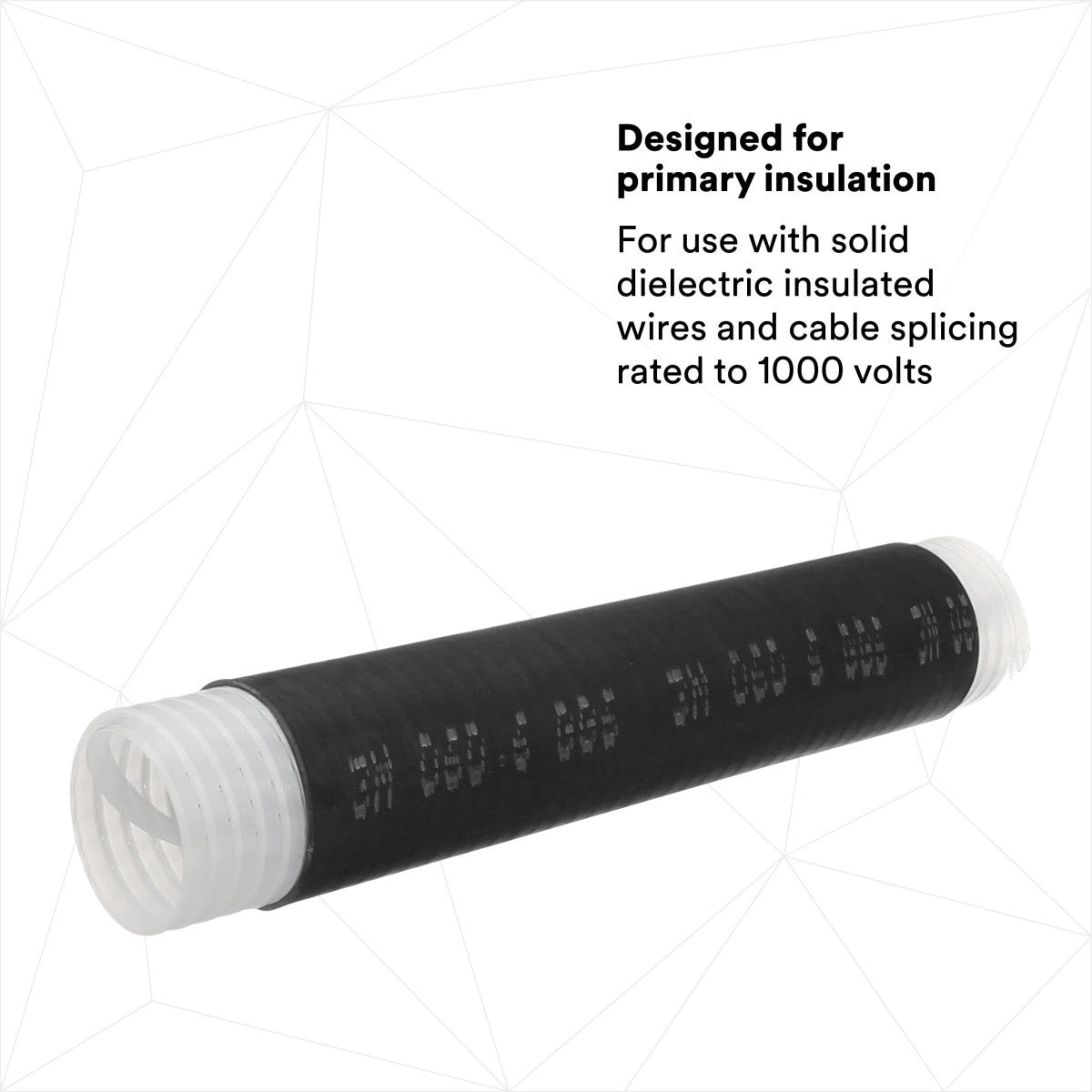

- Provides reliable primary insulation for wires and secondary splices rated up to 1000 volts

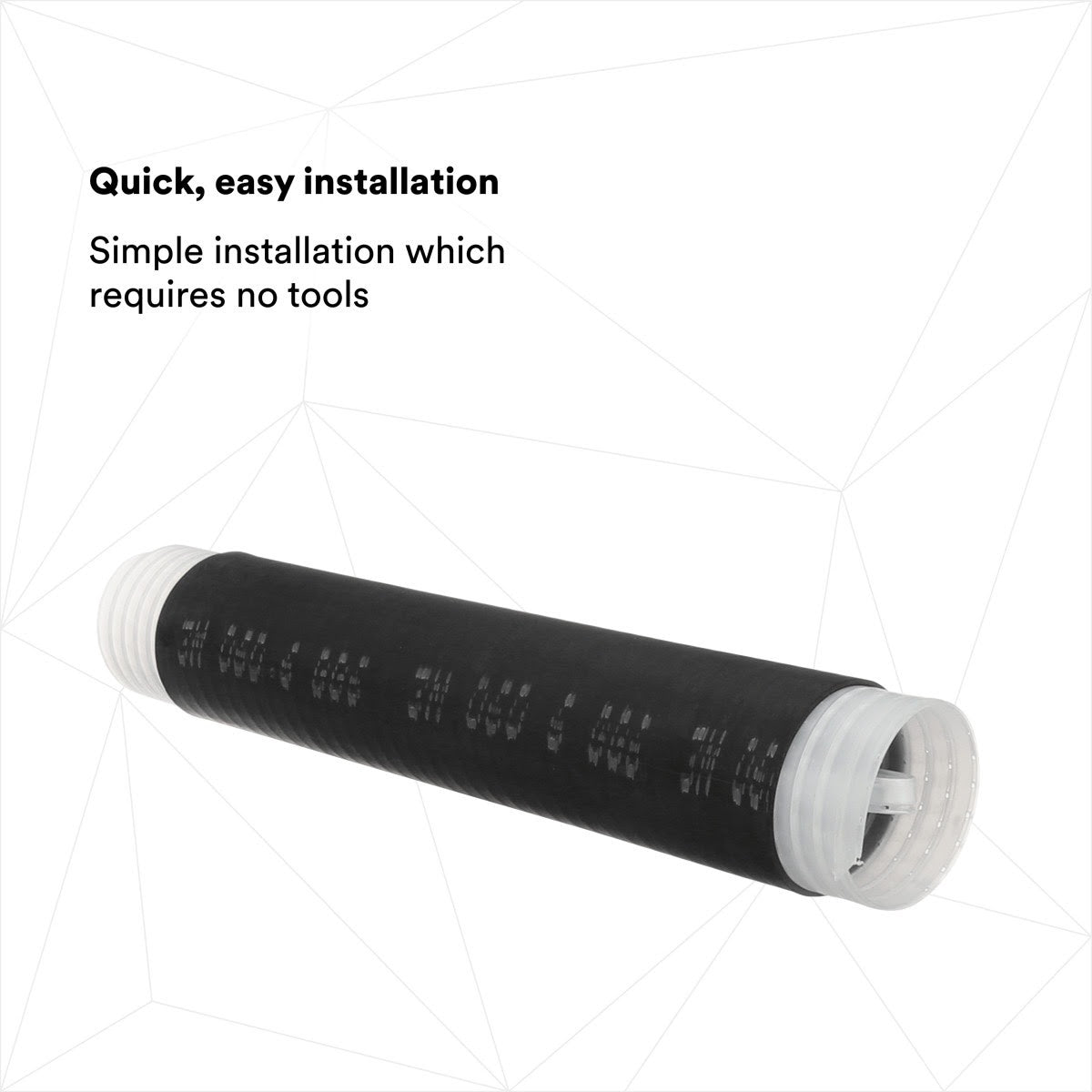

- Cold shrink installation requires no tools or heating sources

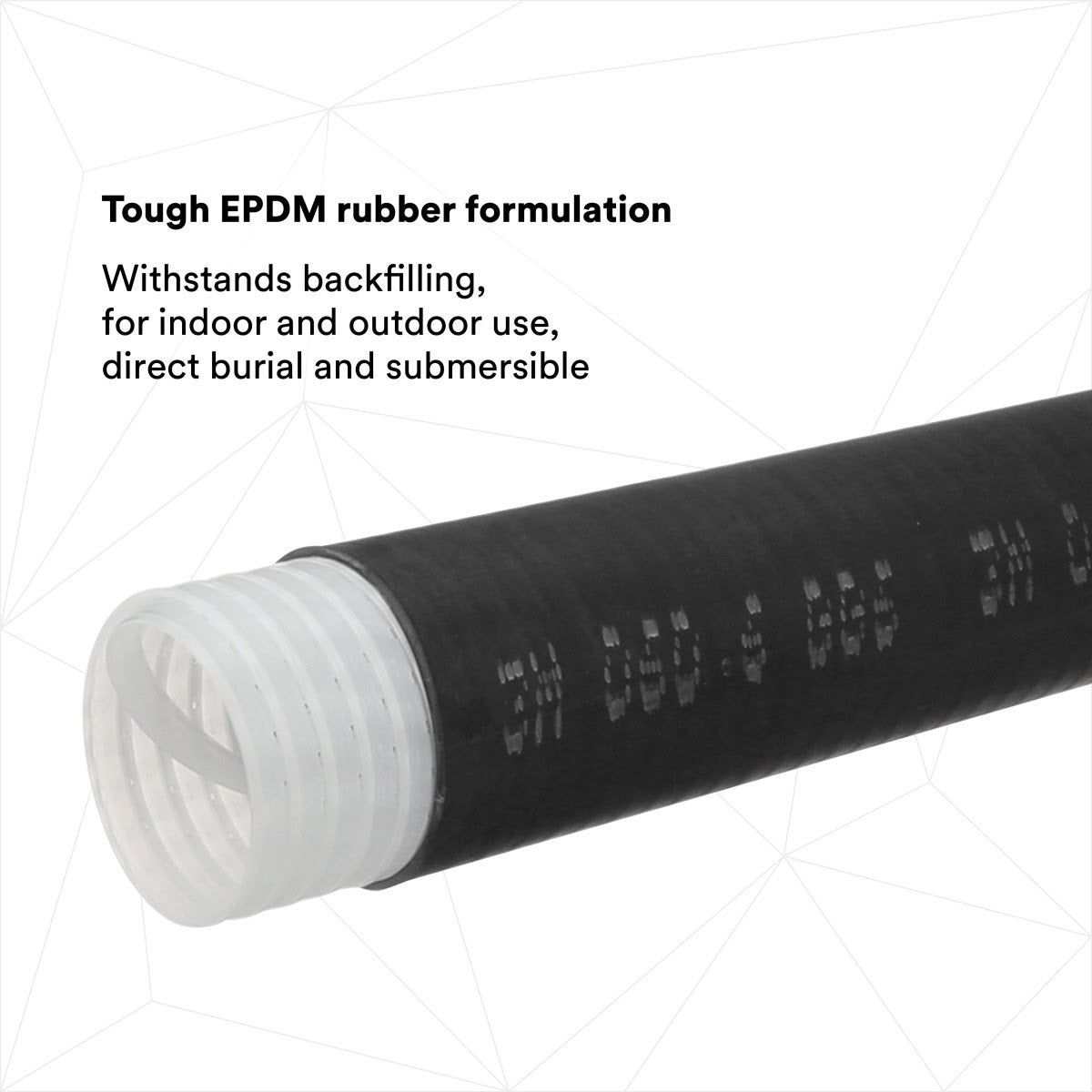

- EPDM rubber construction for durable environmental sealing

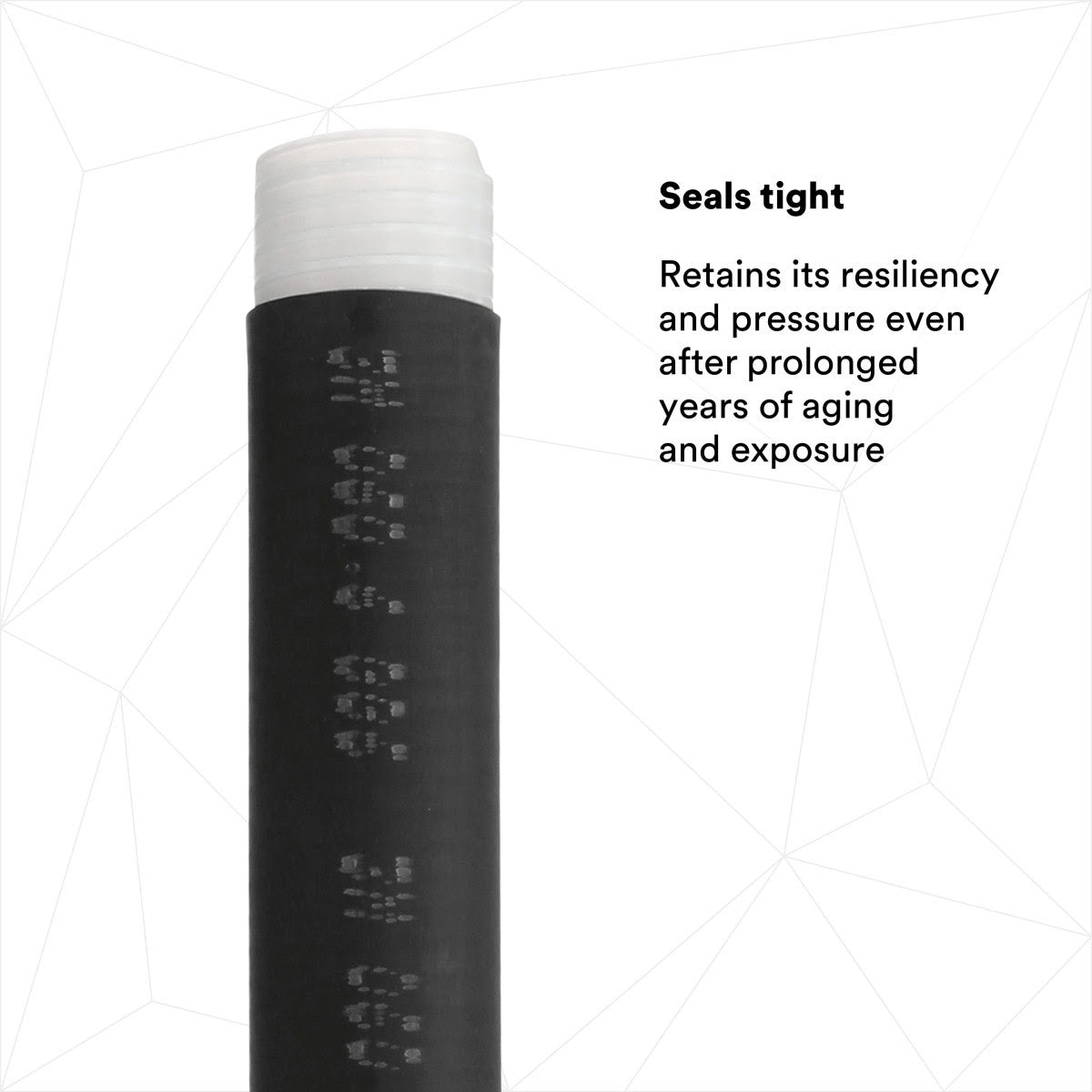

- Water resistant seal meets ANSI C119.1 water seal requirements
- Suitable for indoor and outdoor use including direct burial or submersible applications

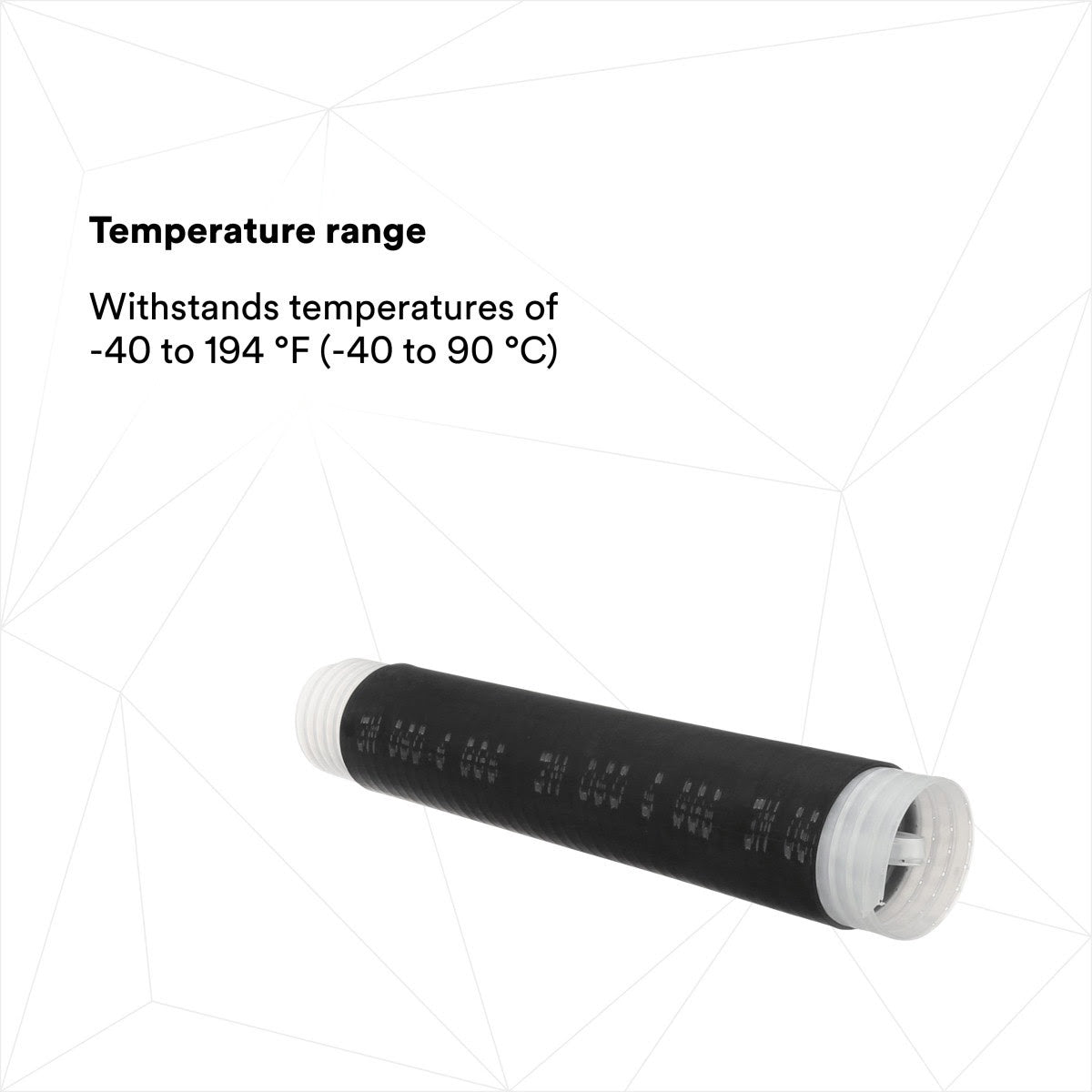

- Operating temperature range from -40 Degree F to 194 Degree F
- Accommodates a variety of cable sizes and helps protect terminal lugs and conduit connections
- Resists fluid splashes, acids, and alkalis
3M 7000005950 Specifications
| Part Number | 8428-12 |
| Voltage Rating | 1 kV |
| Material | EPDM Rubber |
| Color | Black |
| Overall Length | 12.0 in |
| Inner Diameter Before Shrink | 1.937 in |
| Inner Diameter After Shrink | 0.949 in |
| Maximum Operating Temperature | 90.0 Degree Celsius |
| Minimum Operating Temperature | -40.0 Degree Celsius |
| Conductor Material | Aluminum, Copper |
| Cable Type | Power Cable |
| Splice Type | Cold Shrink |
