Description
Description
3M 7000031604 Description

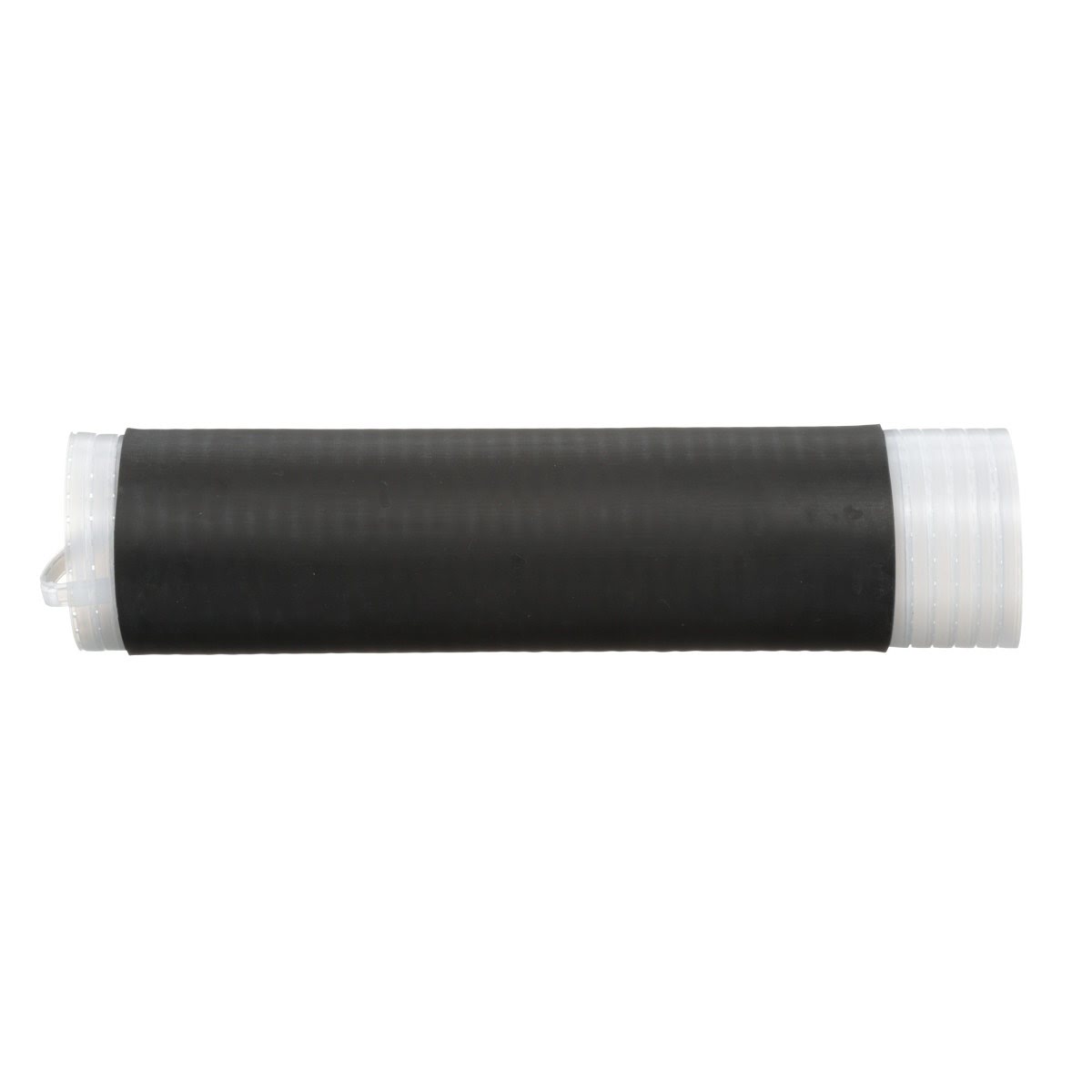

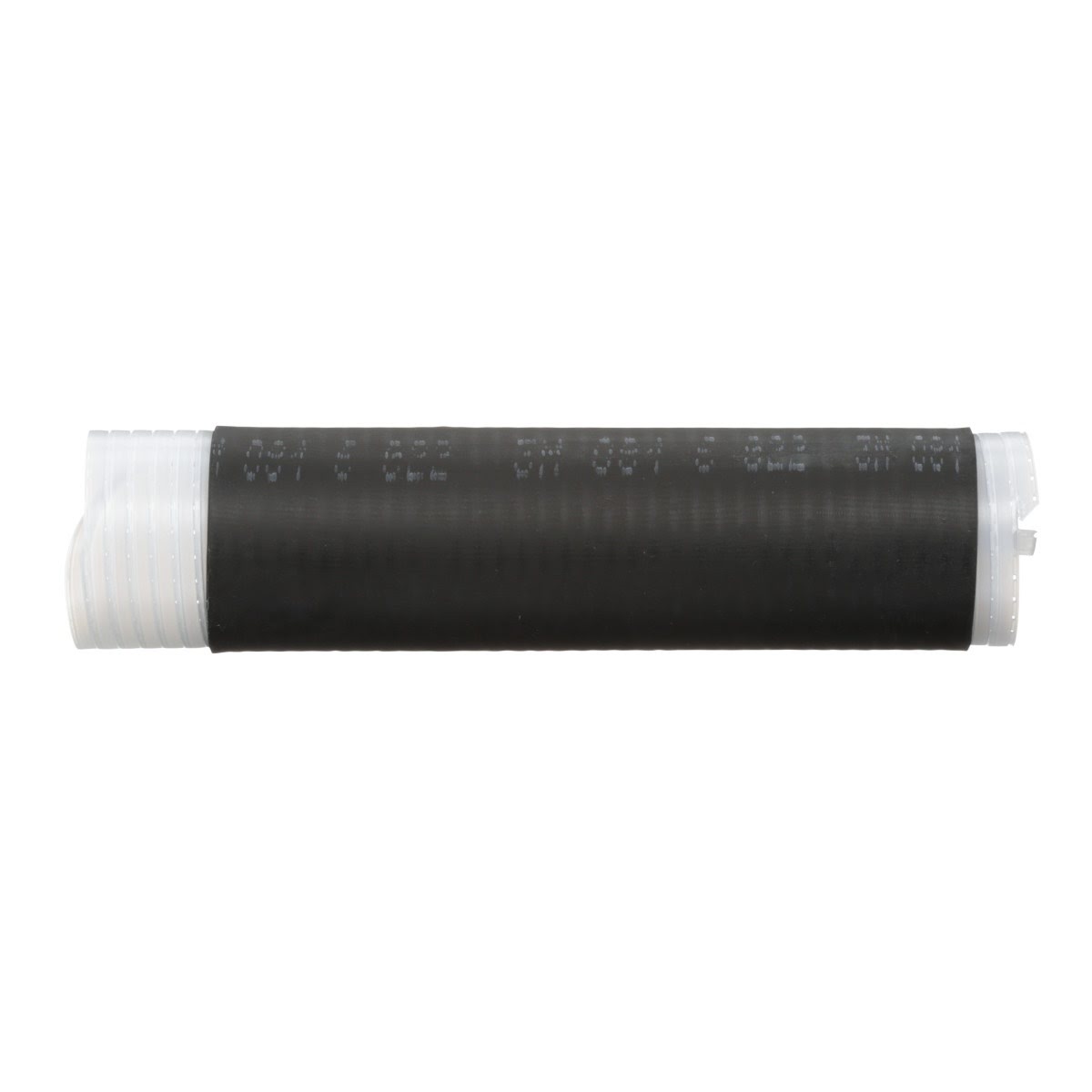

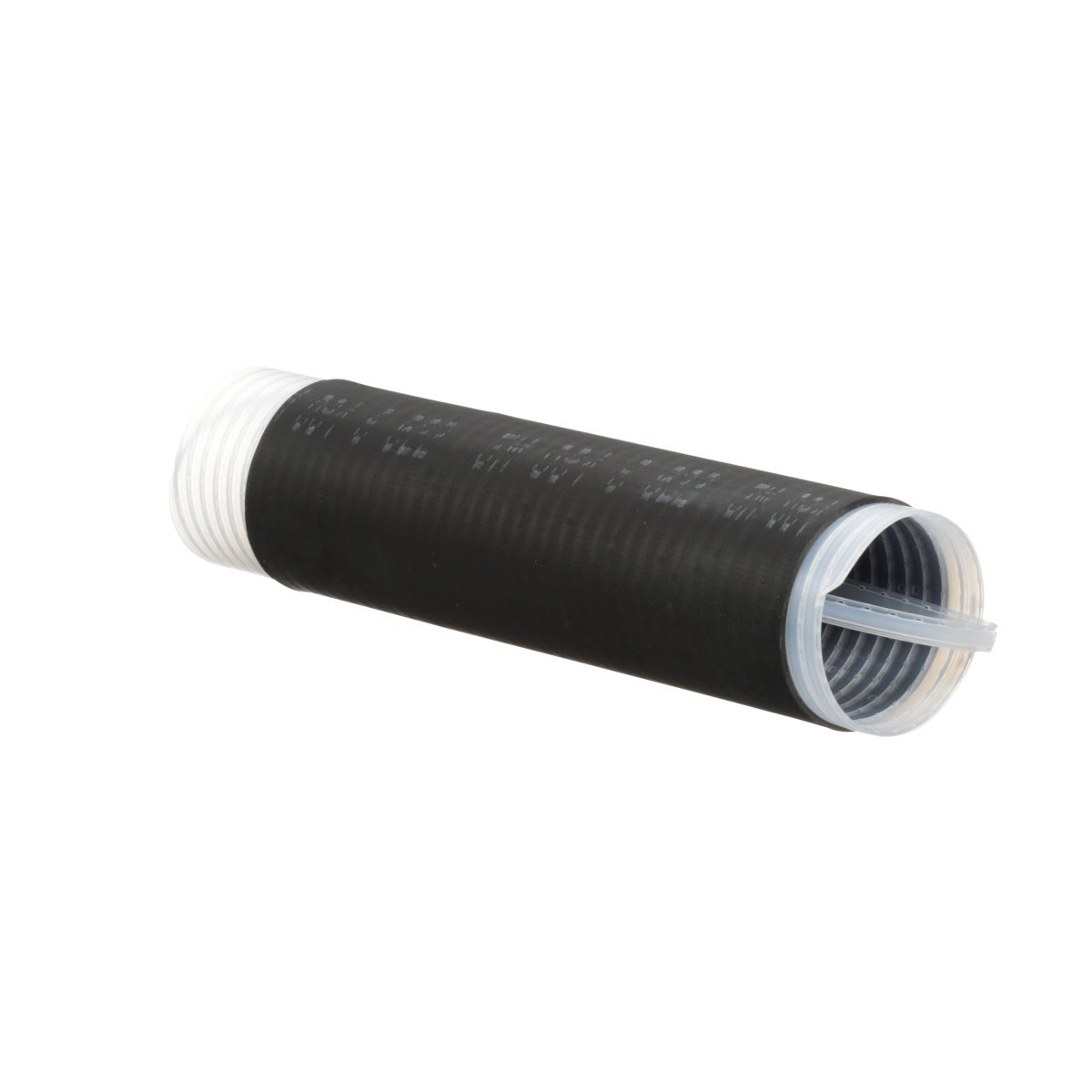

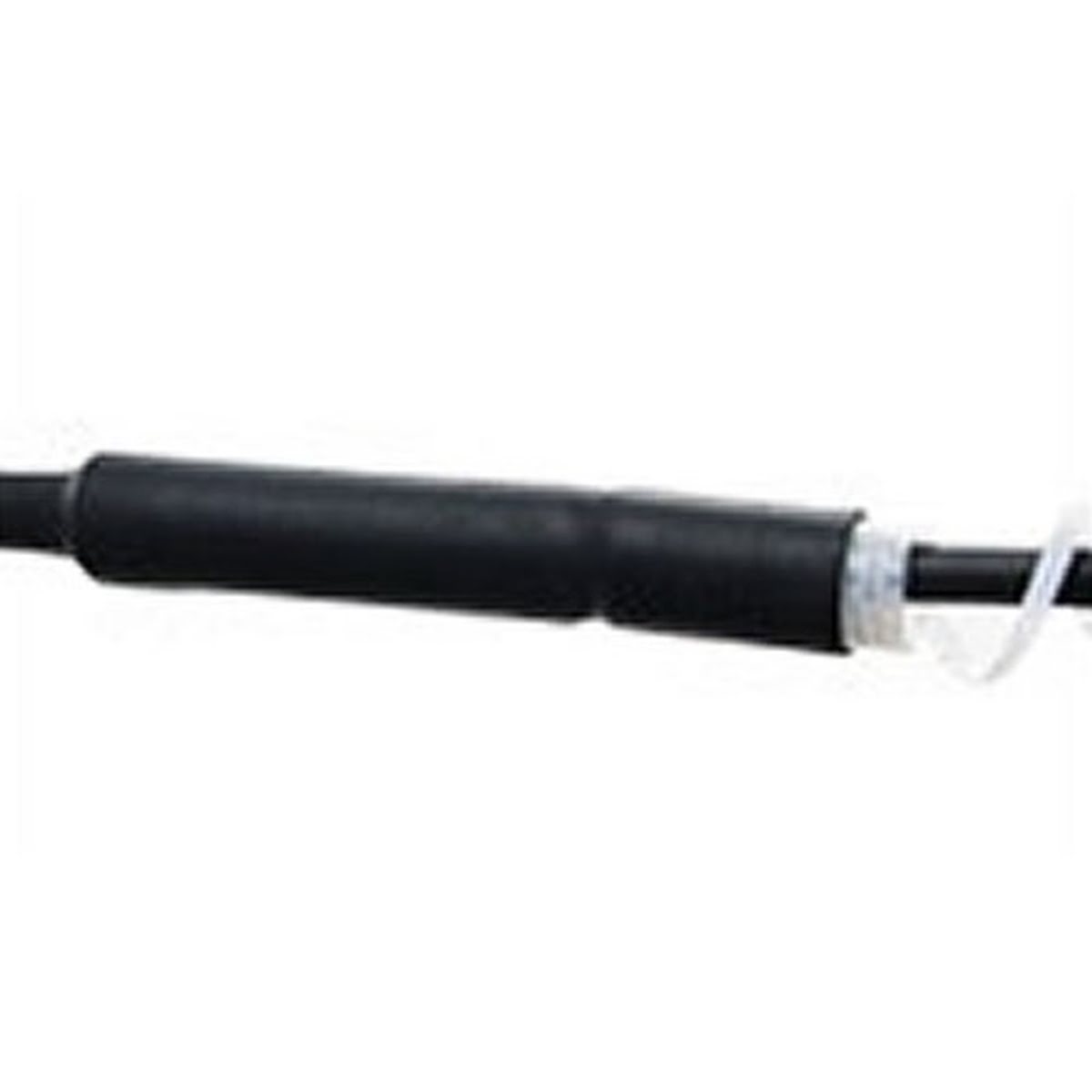

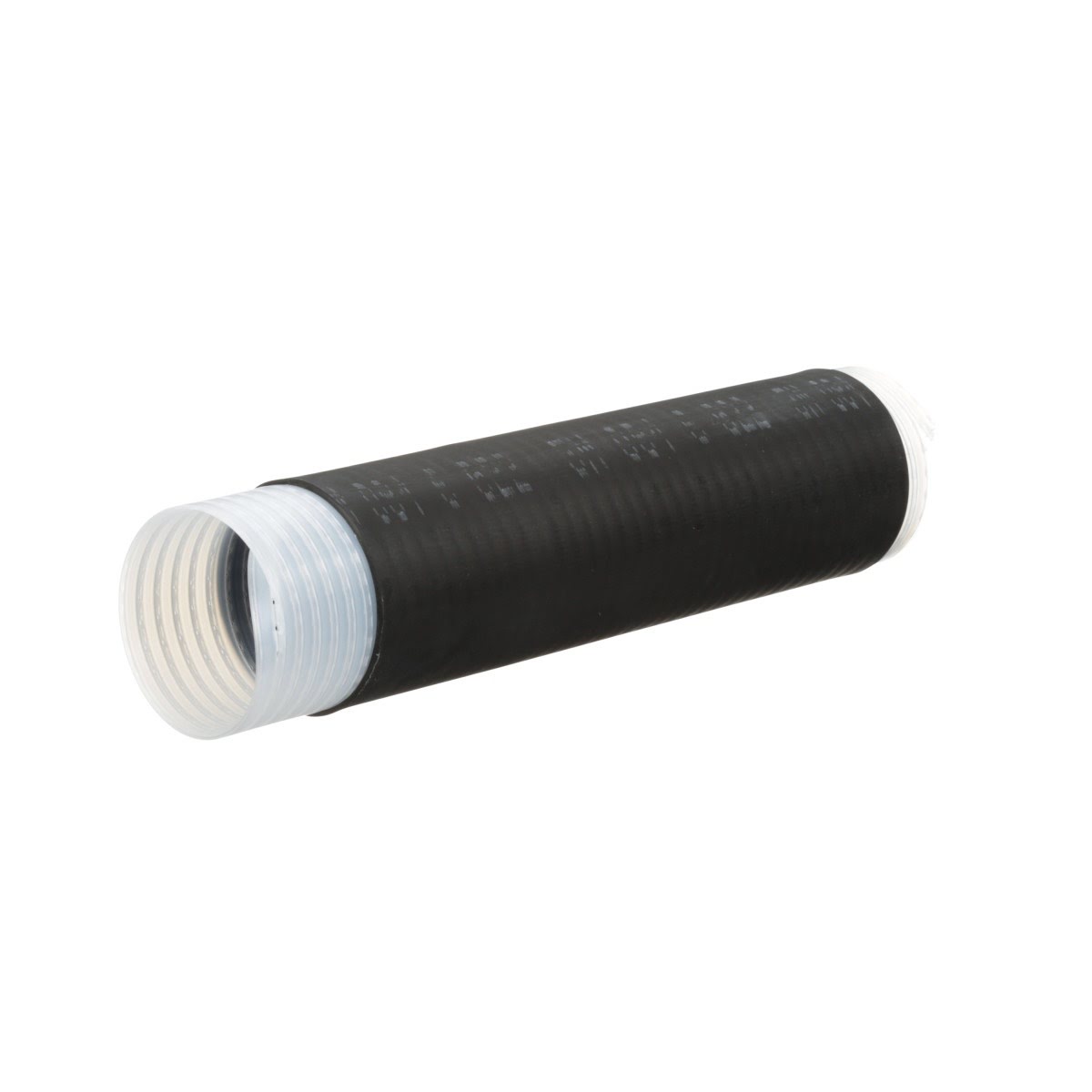

3M Cold Shrink Insulator 8429-12 is an EPDM rubber, factory-expanded cold shrink tube designed to provide primary insulation and a water-resistant seal for solid dielectric insulated wires and cable splices rated up to 1 kV. It installs by hand with no tools or heat and is suitable for indoor or outdoor use.
3M 7000031604 Includes
- (10) 3M Cold Shrink Insulator 8429-12
3M 7000031604 Features
- Cold shrink installation with no heat or special tools required
- Provides primary insulation for splices rated up to 1 kV
- EPDM rubber construction for durability and long lasting resiliency
- Water resistant seal designed for indoor and outdoor applications
- Suitable for direct burial or submersible applications
- Resists fluid splashes, acids, and alkalis
- Meets ANSI C119.1 water seal requirements
- Operating temperature range -40 Degree F to 194 Degree F
3M 7000031604 Specifications
| Part Number | 8429-12 |
| Product Type | Cold Shrink |
| Material | EPDM Rubber |
| Color | Black |
| Voltage Rating | 1 kV |
| Conductor Size Range | 900-1000 kcmil |
| Conductor Material | Aluminum, Copper |
| Relaxed Tube Length | 12.0 in |
| Inner Diameter Before Shrink | 2.85 in |
| Inner Diameter After Shrink | 0.839 in |
| Shrink Ratio | 2:1 |
| Maximum Connector Length | 8.0 in |
| Wall Thickness After Shrinking | 4.6 mm |
| Operating Temperature Range | -40 to 90 Degree Celsius |
| Number of Conductors | 1 |
| Halogen Free | No |
| With Inner Glue | No |
| RoHS | RoHS 2011/65/EU compliant without exemption |
