3M 7000058873 Description

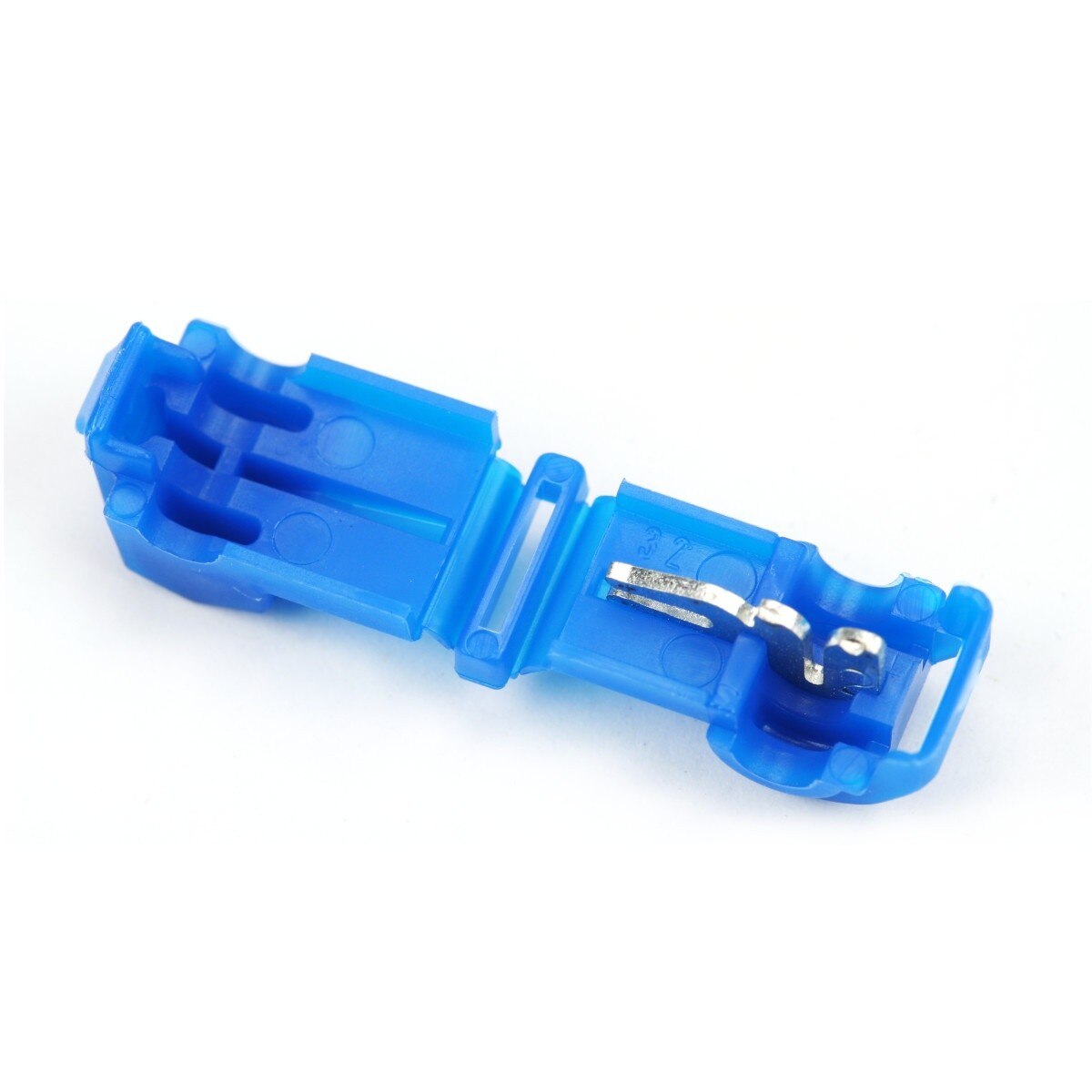

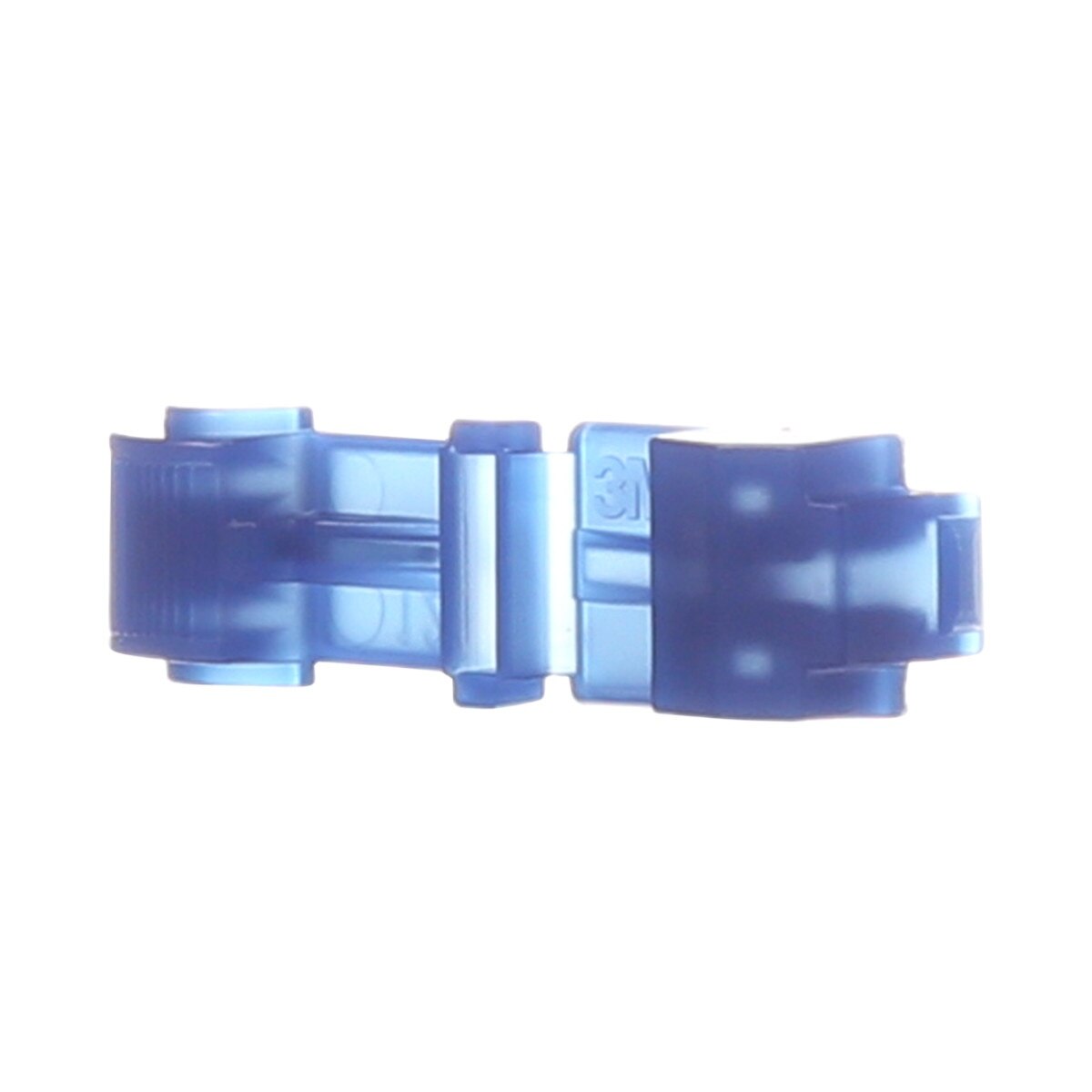

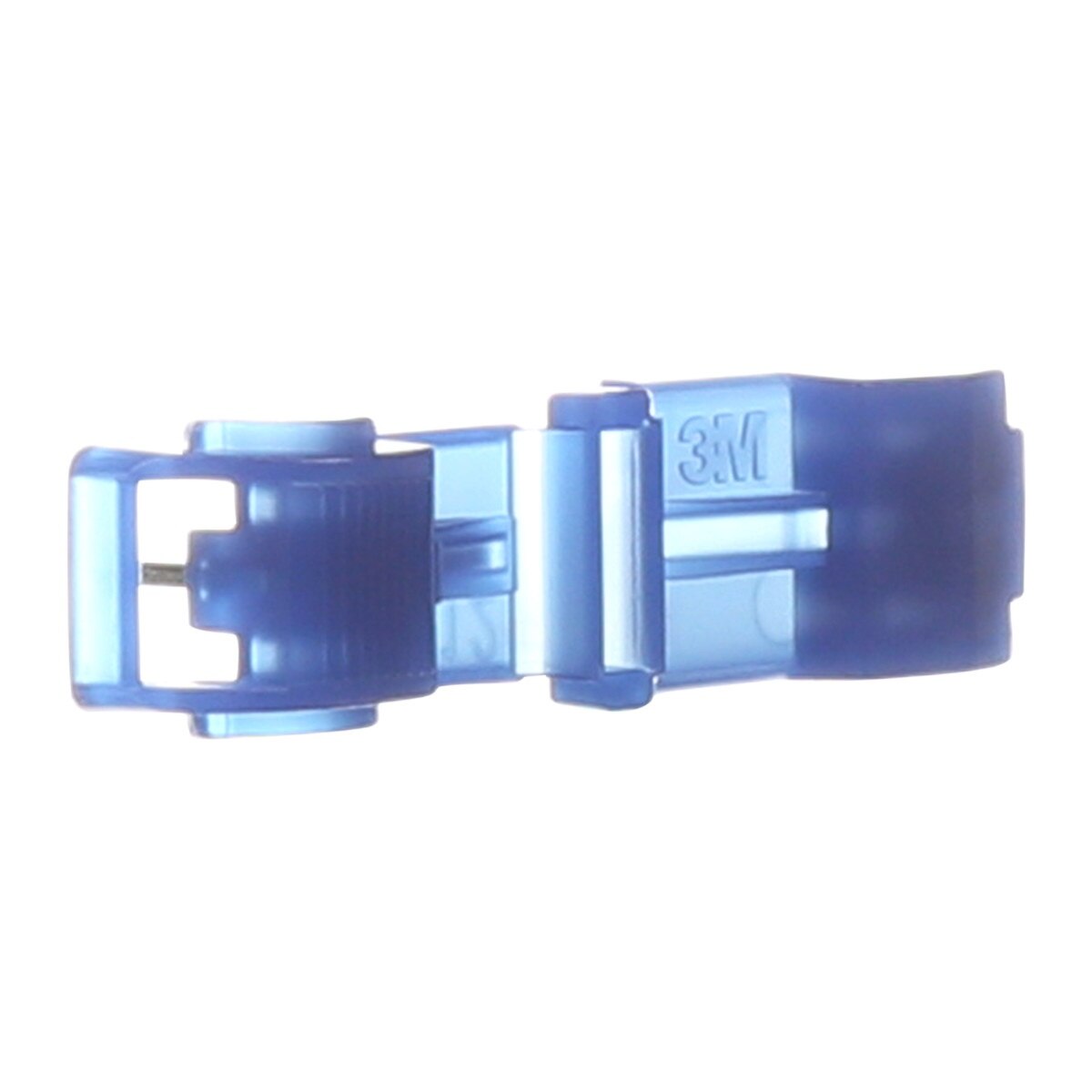

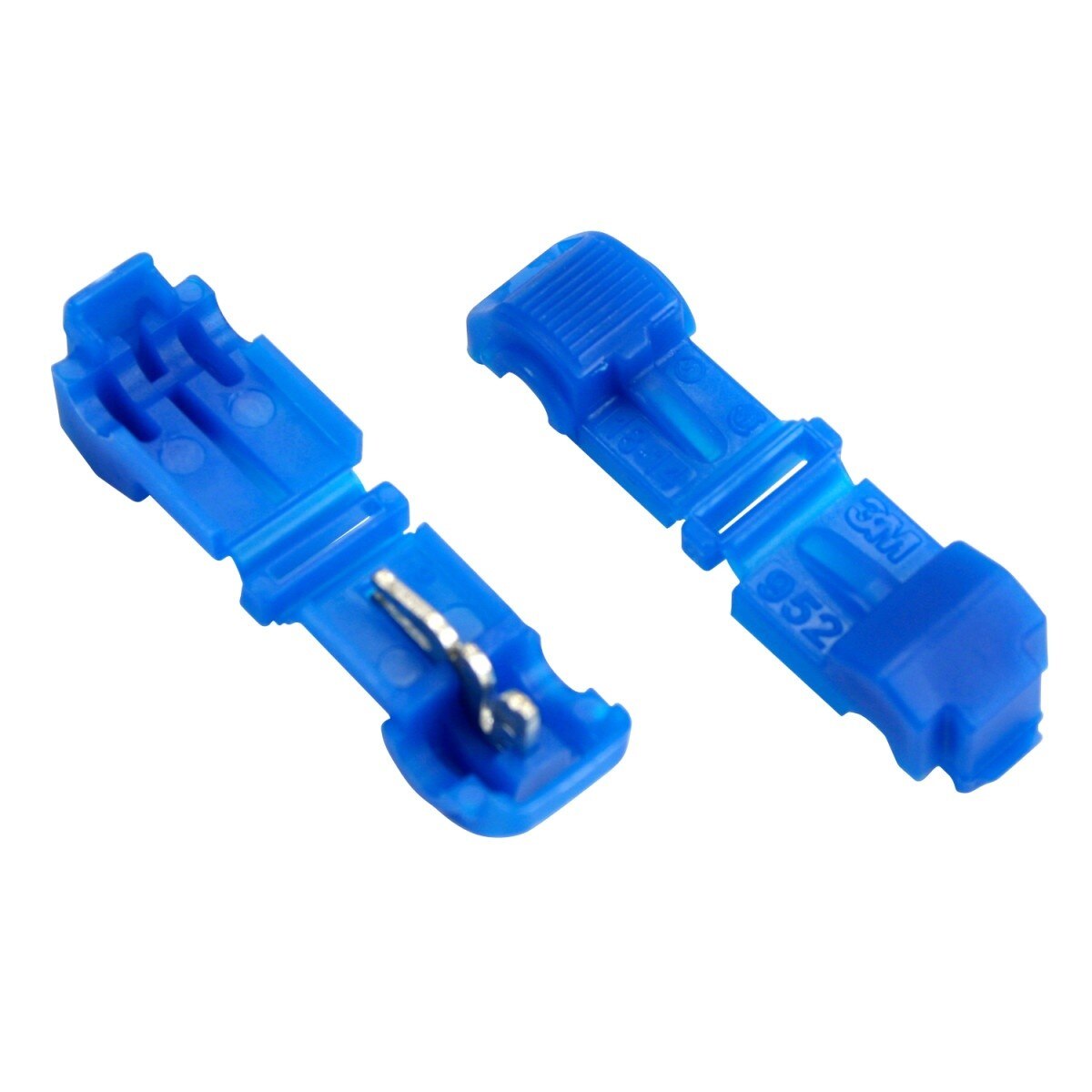

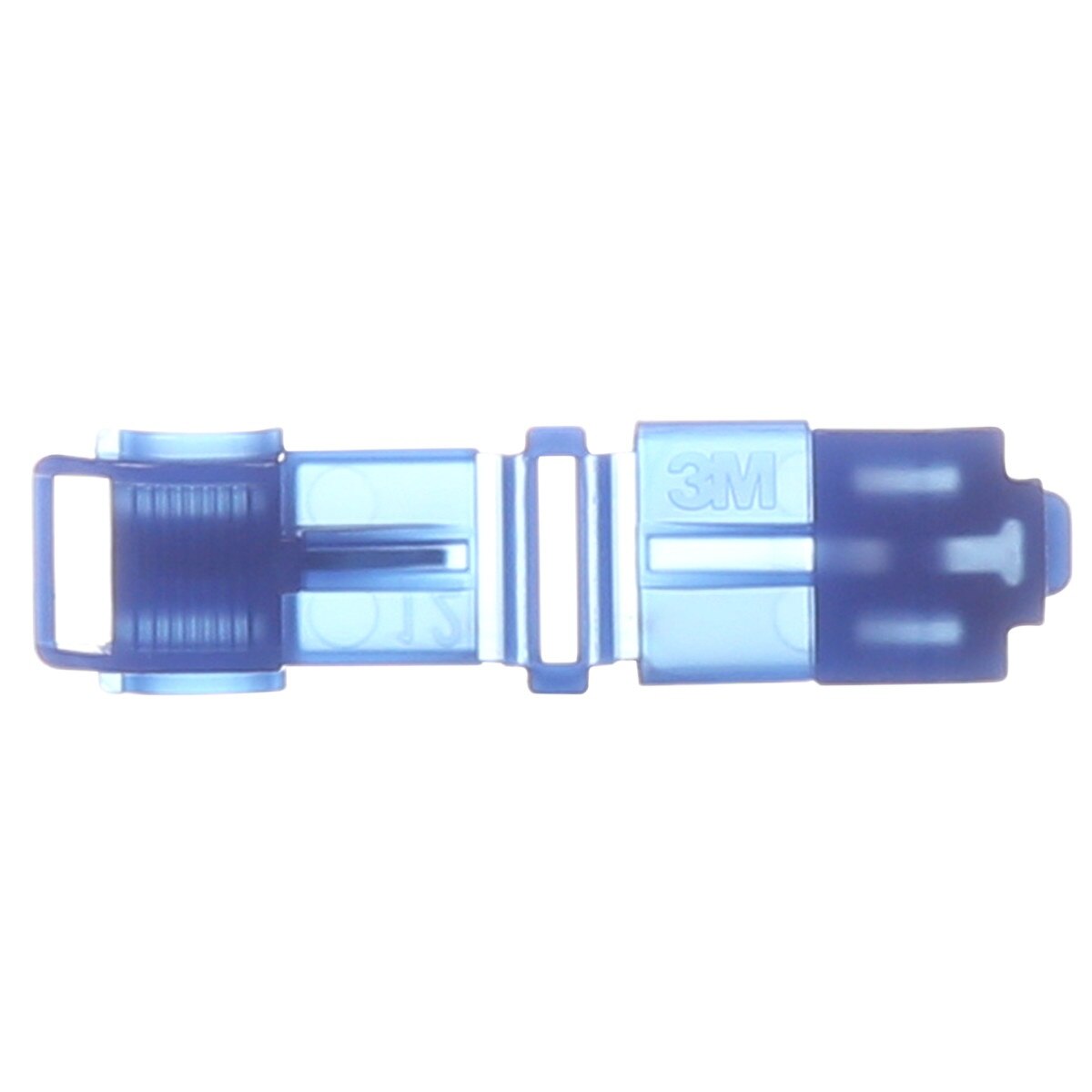

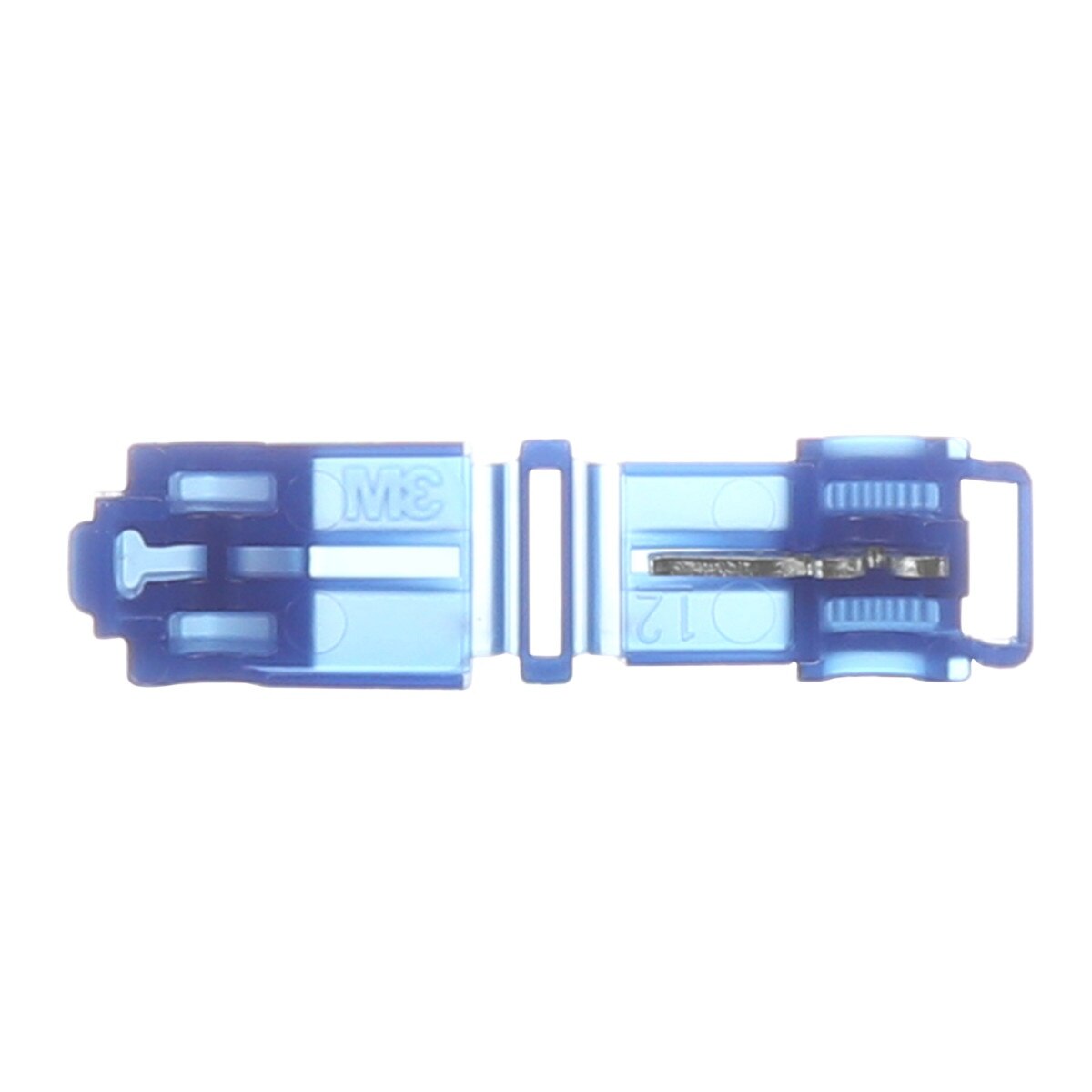

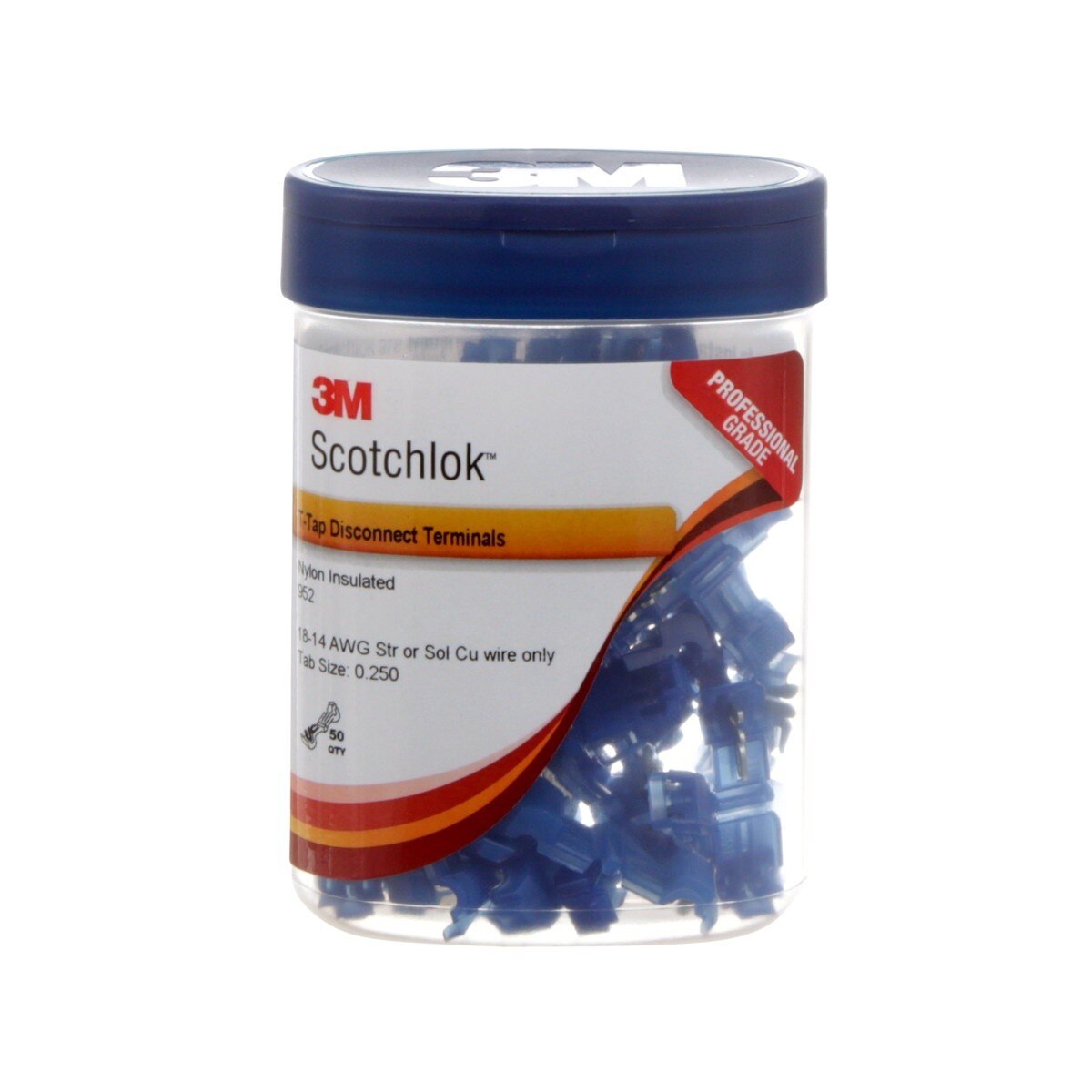

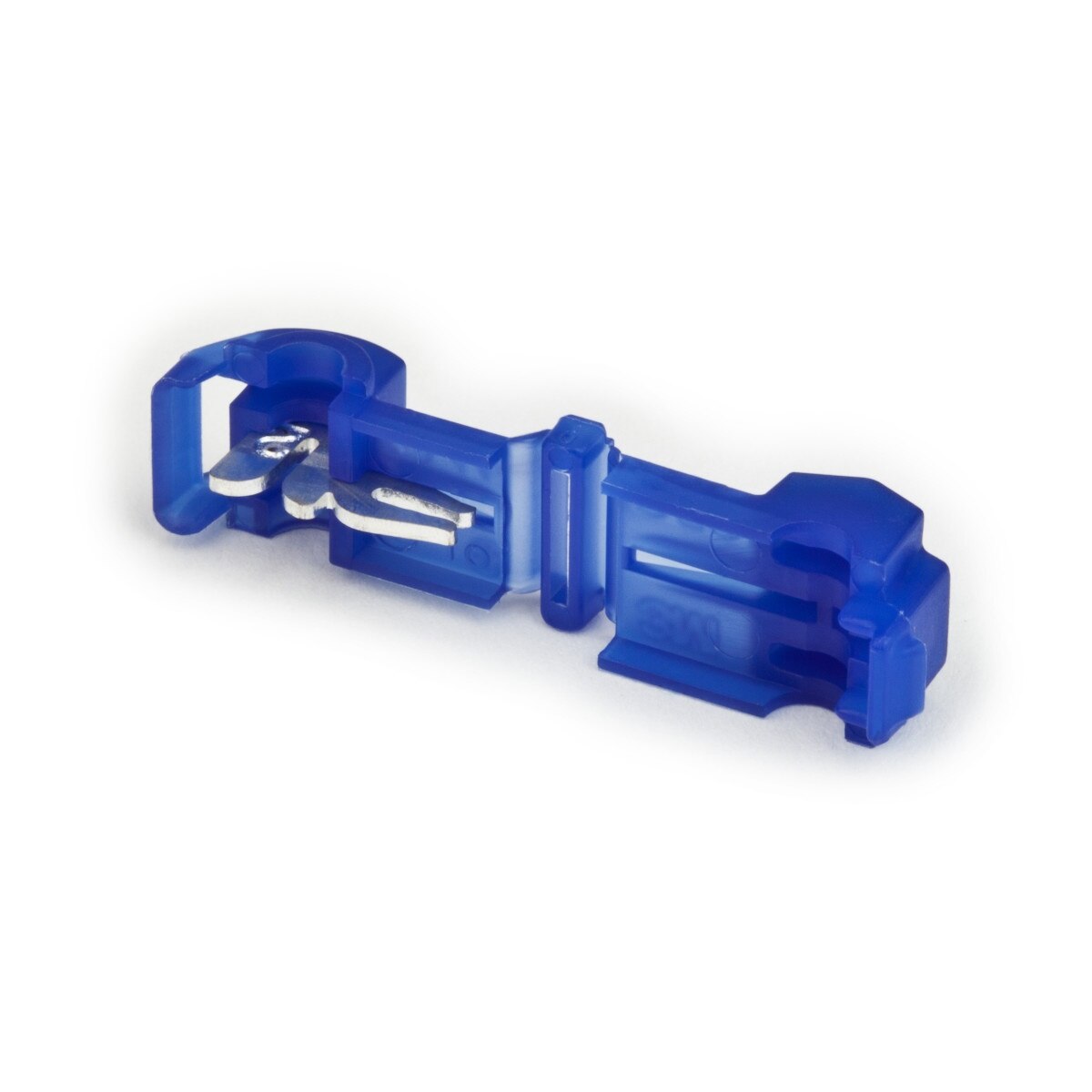

3M Scotchlok 952X Female QuickSlide T-Tap disconnects let you tap into a wire mid-span without cutting or stripping. The blue nylon insulated, self-stripping insulation displacement design is ideal for quick, reliable electrical OEM connections in fixtures and appliances. Supplied as a case containing 10 bottles of 50 connectors (500 total).
3M 7000058873 Includes

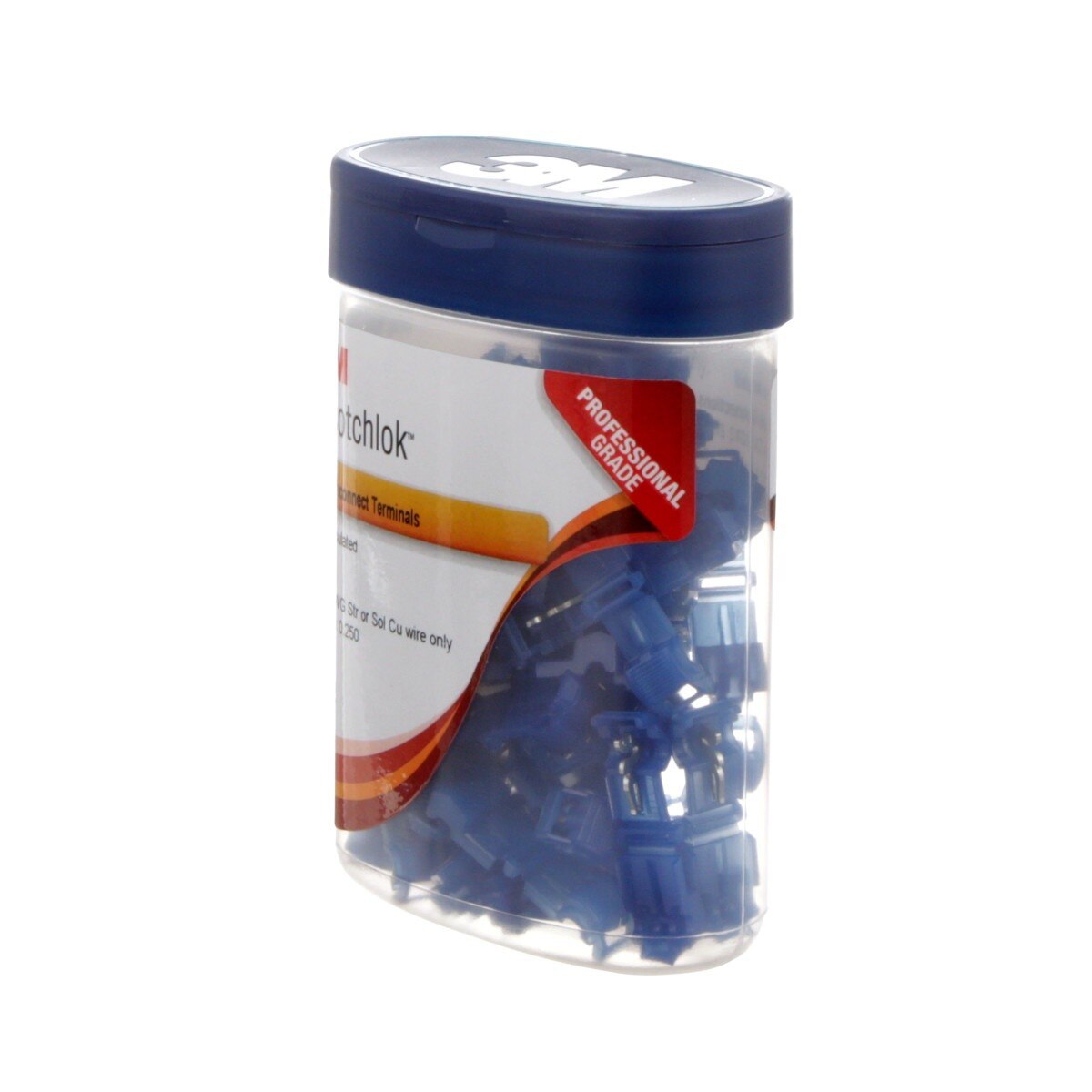

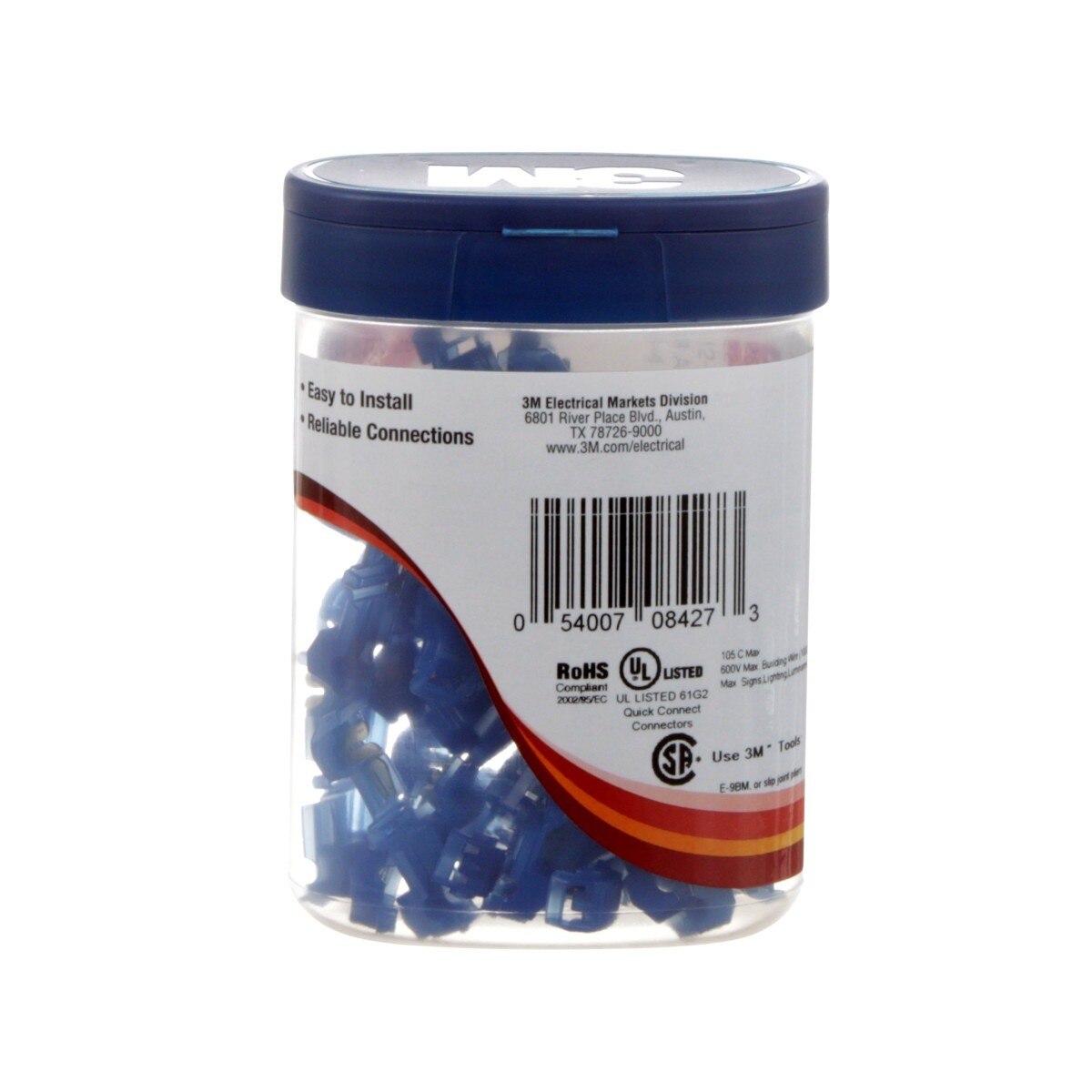

- (10) Bottles of 50 3M Scotchlok 952X-BOTTLE Female QuickSlide Disconnect connectors
3M 7000058873 Features
- QuickSlide T-tap disconnect for fast mid-span wire tapping without cutting
- Self-stripping insulation displacement connector design
- Blue nylon insulation
- Female disconnect type with 0.25 in tab size
- For 18-14 AWG copper wire
- Suitable for light fixtures, appliances, and other electrical OEM applications
- Rated up to 600V for building wire and 1000V for signs, fixtures, and luminaires
- Withstands temperatures up to 221 Degree F (105 Degree C)
- Flame retardant construction
- UL Listed and CSA Certified
- RoHS compliant
3M 7000058873 Specifications
| Brand | Scotchlok |
| Part Number | 952X-BOTTLE |
| Product Type | Connector |
| Disconnect Type | Female |
| Connection Type | T-tap |
| Connector Style | Insulation Displacement |
| Barrel Style | Insulated Self-Stripping |
| Color | Blue |
| Insulation Material | Nylon |
| Wire Range | 18-14 AWG |
| Connection Width | 0.25 in |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree F |
| Flame Retardant | Yes |
| Material | Insulator: FR Nylon, Element: Tin-plated Brass |
| Maximum Insulation Outside Diameter | 0.145 in |
| Recommended Crimping Tool | E-9BM Mechanics slip joint pliers |
| Certifications | UL Listed, CSA Certified |
| RoHS | RoHS 2011/65/EU compliant without exemption |
