3M 7000005802 Description

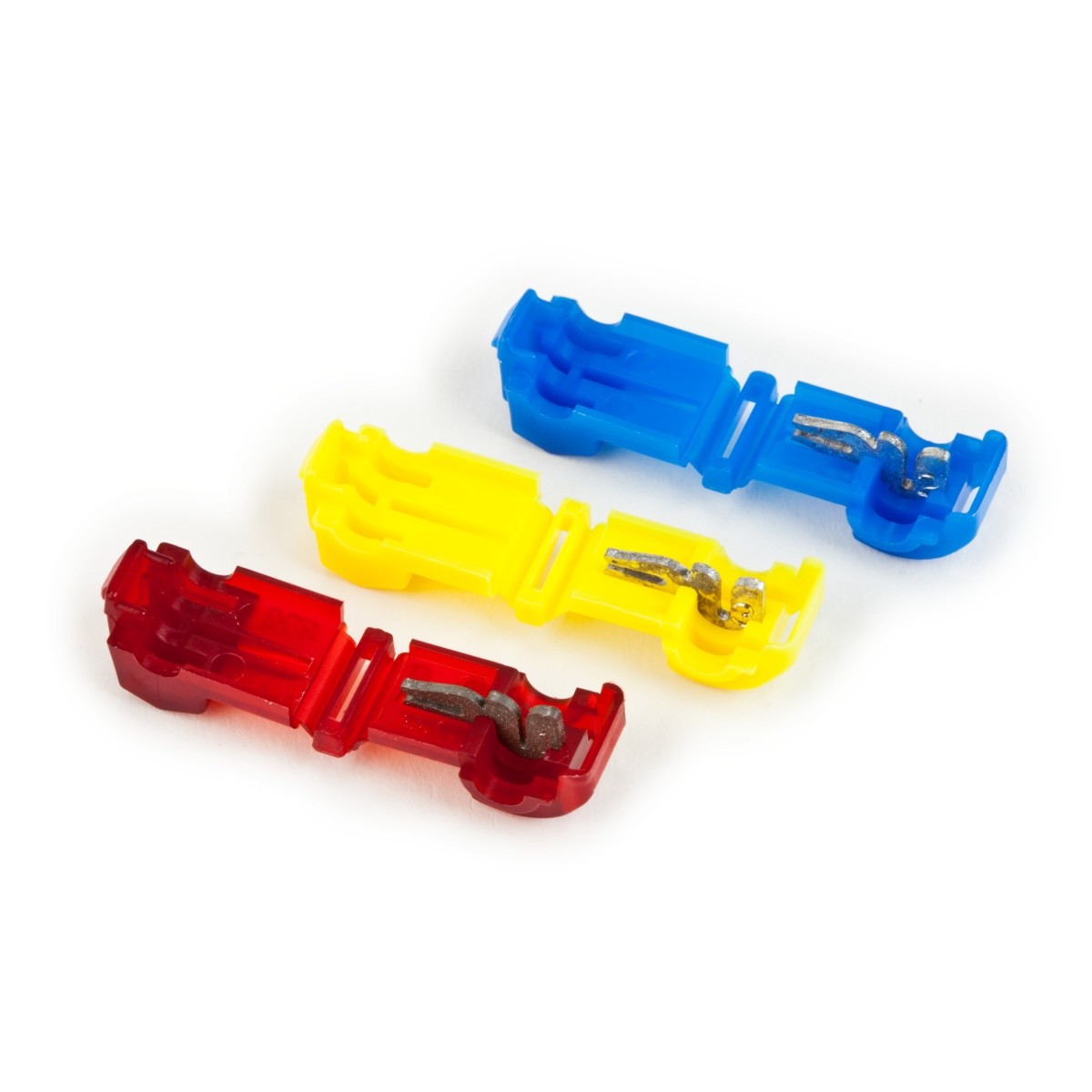

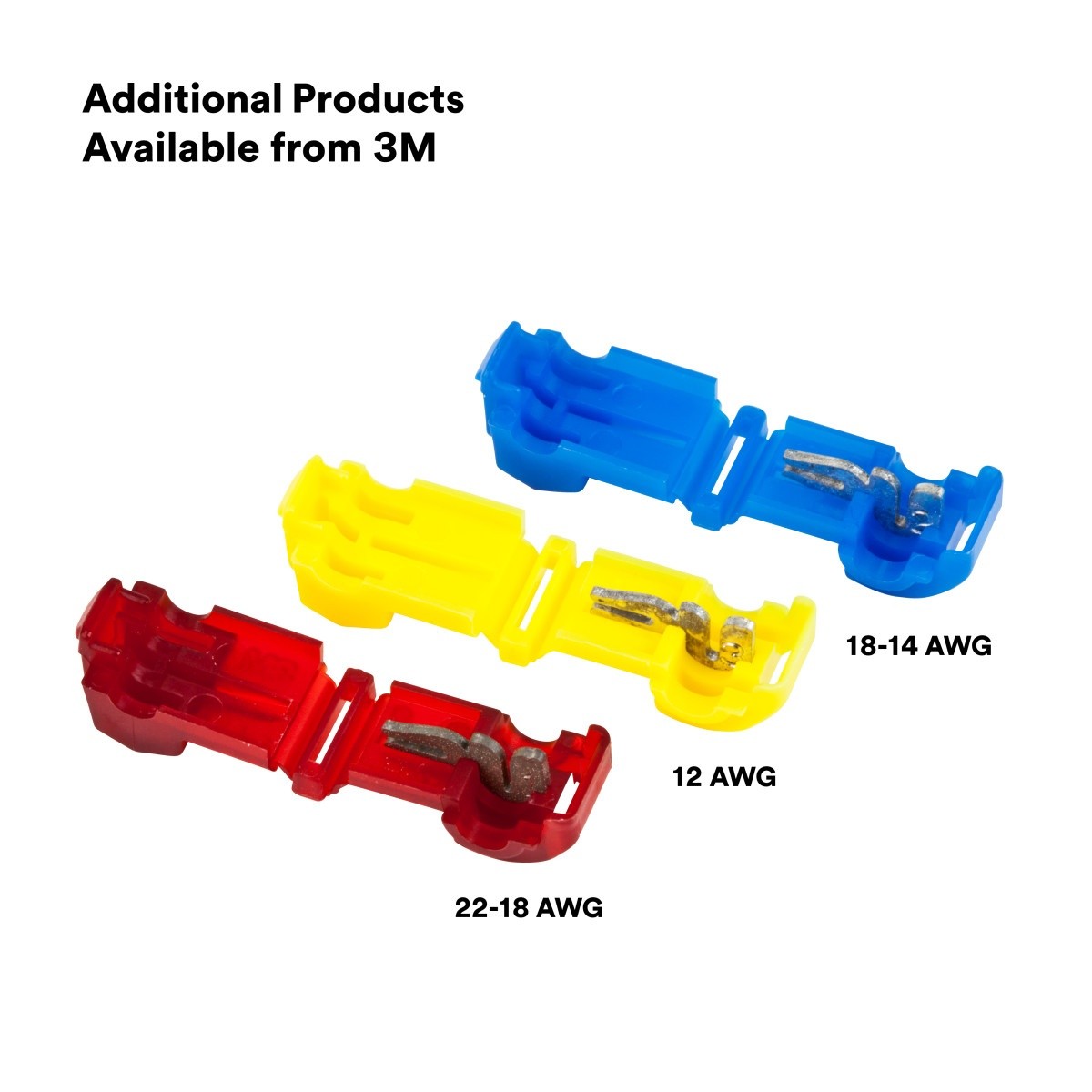

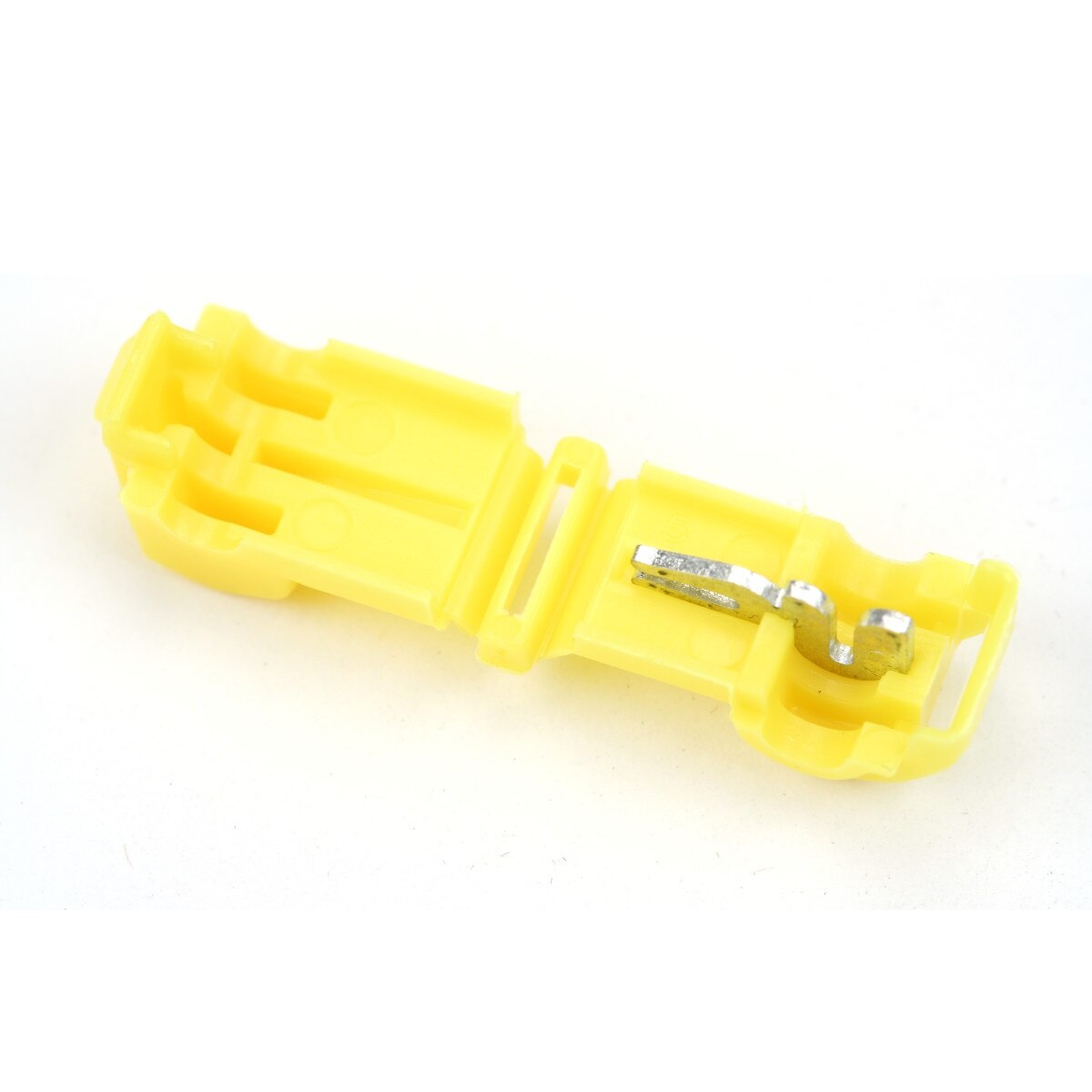

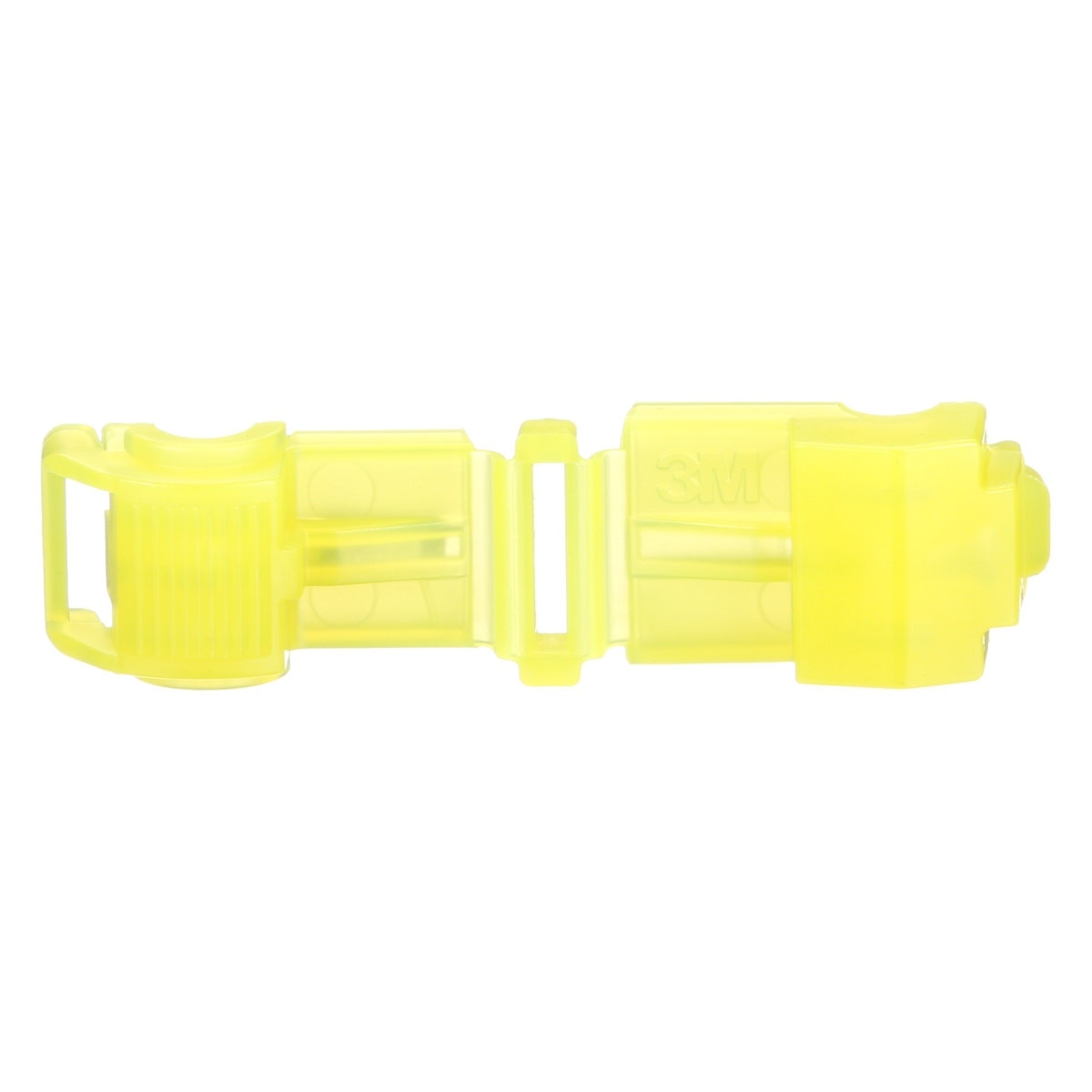

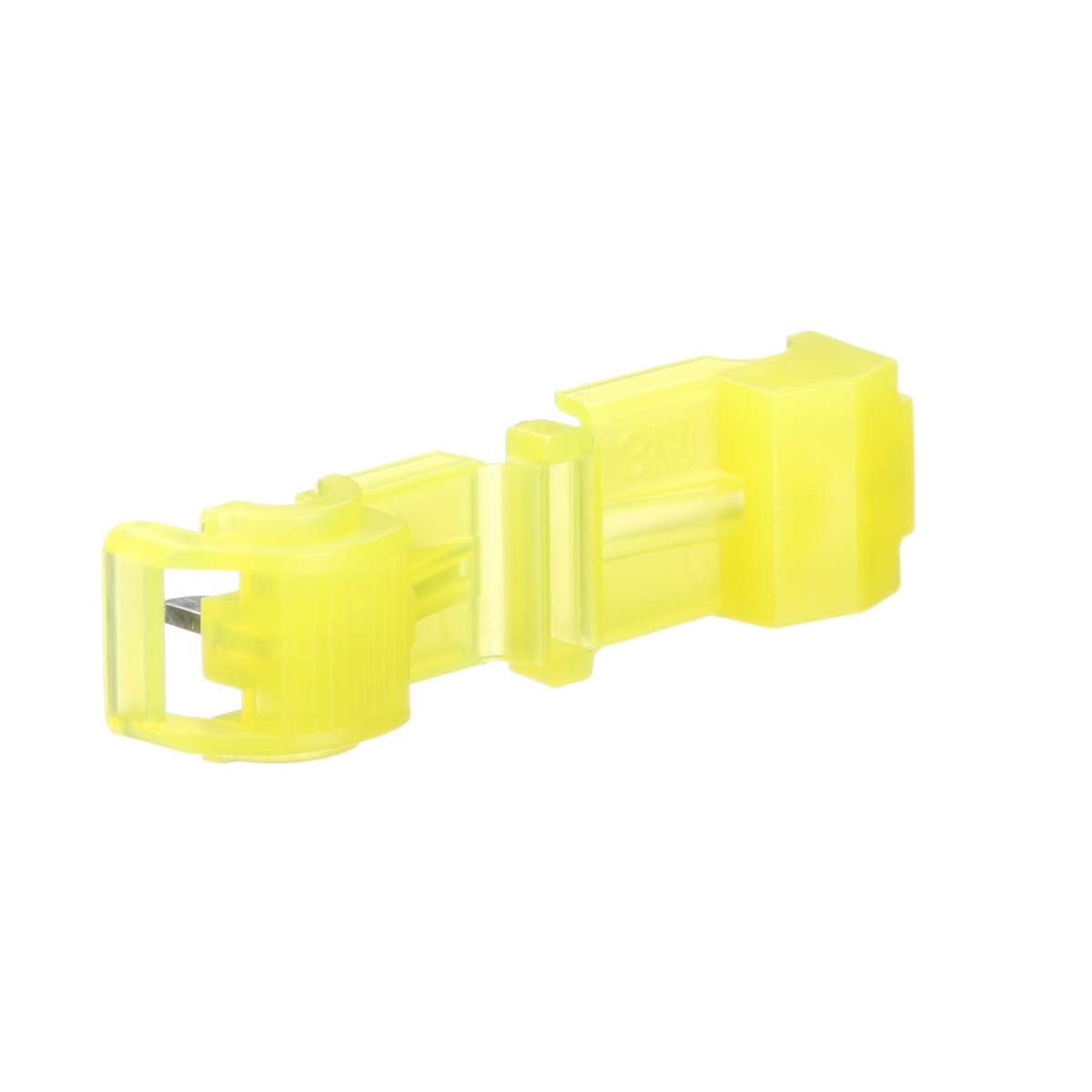

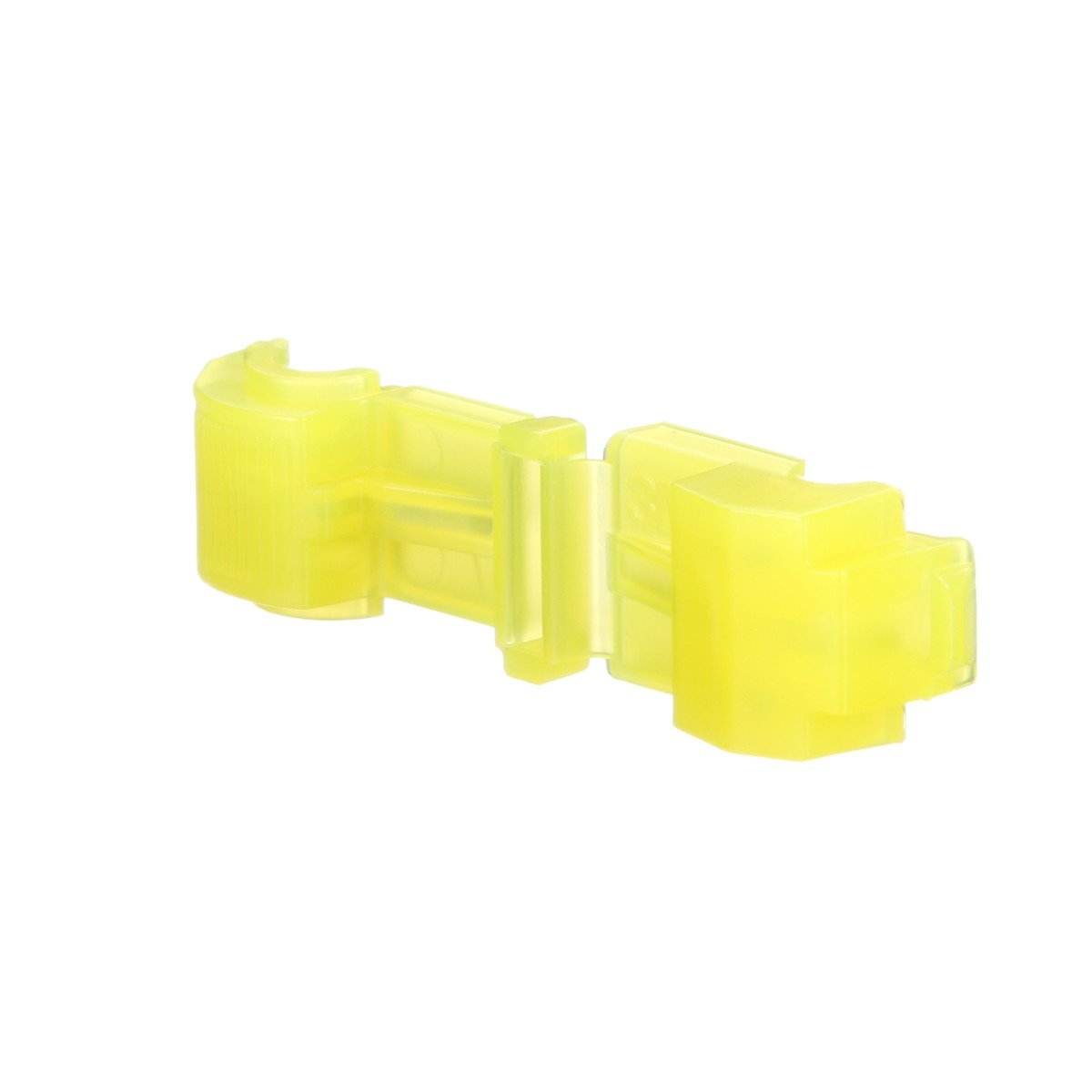

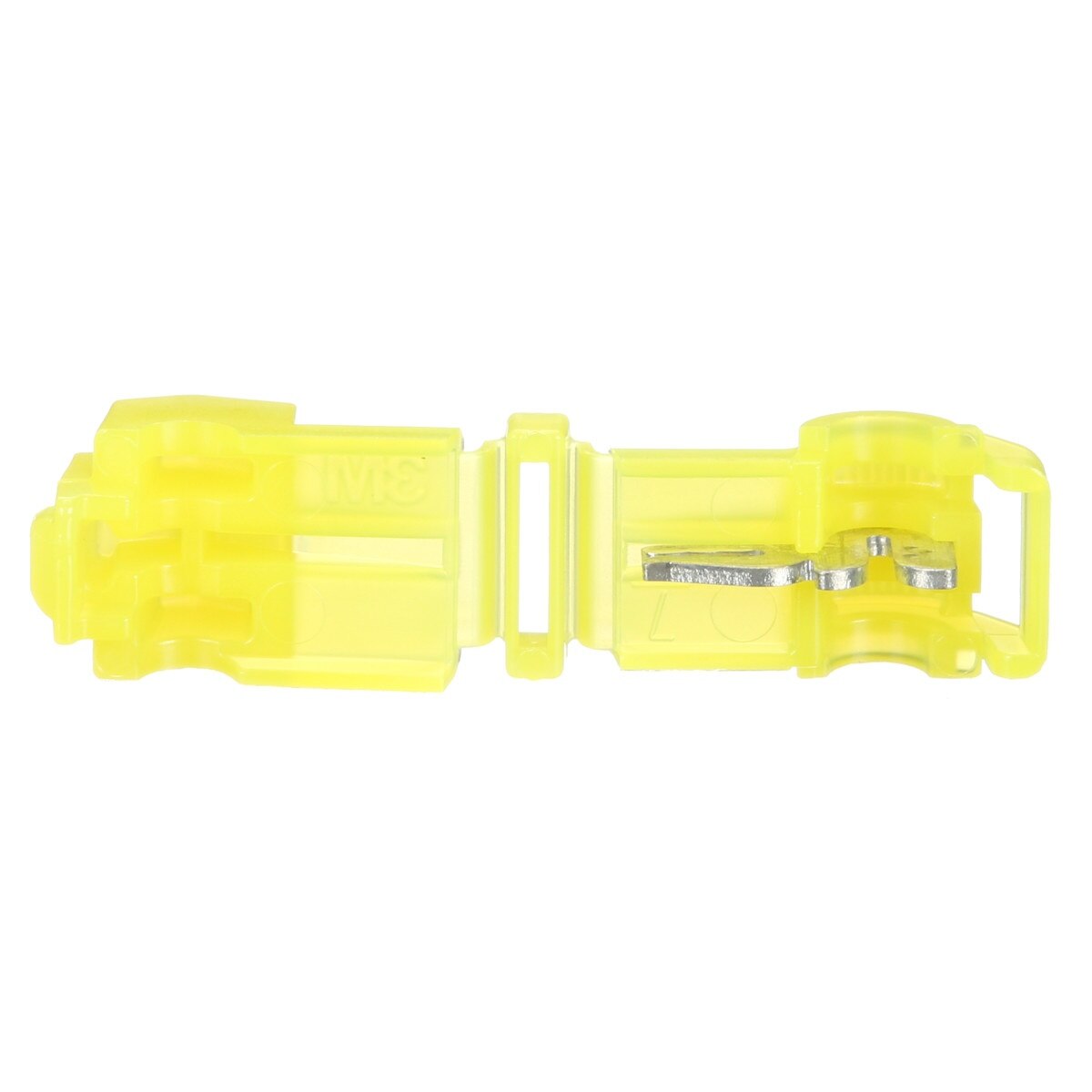

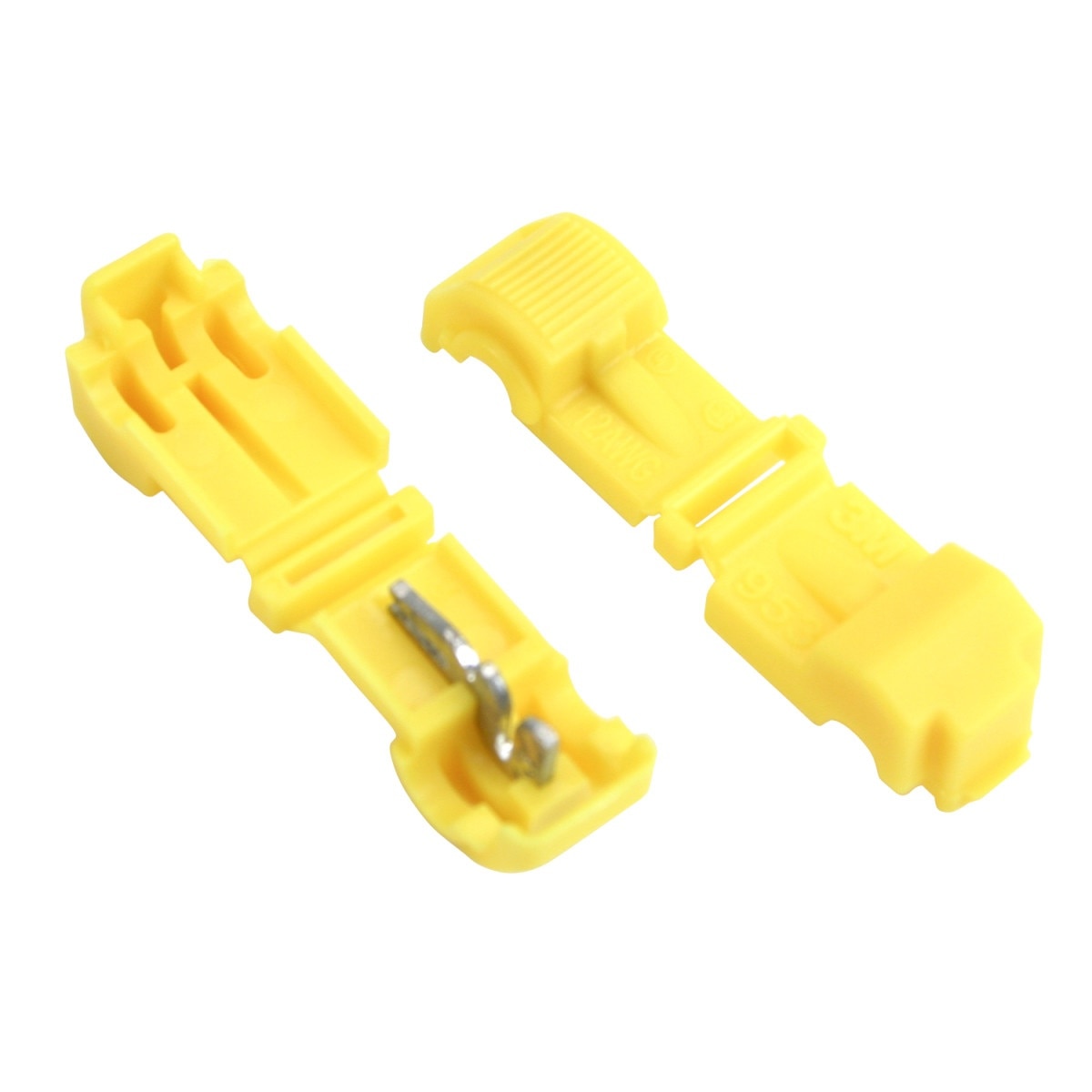

3M Female QuickSlide Disconnect 953K is a nylon insulated self stripping T Tap connector used to electrically tap into a wire mid span without cutting or stripping the wire. It is ideal for use in light fixtures, appliances, and other electrical OEM applications. It is rated 600 V for building wire and 1000 V for signs, fixtures and luminaires, and withstands temperatures up to 221 Degree F (105 Degree C).
3M 7000005802 Includes
- (1000) - 3M 7000005802 Female QuickSlide Disconnect, T-Tap Nylon Insulated Self-Stripping 953K, 12 AWG, Yellow (953K-BULK)
3M 7000005802 Features
- Electrically taps into a wire mid span without cutting or stripping
- Insulation displacement connector style for quick connections
- Nylon insulated self stripping design
- Female QuickSlide disconnect type
- T Tap connection type
- For 12 AWG (4 mm2) conductors
- 600 V rated for building wire applications
- 1000 V rated for signs, fixtures and luminaires
- Rated to 221 Degree F (105 Degree C) maximum operating temperature
- Flame retardant insulation
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7000005802 Specifications
| Product Type | Connector |
| Wire Connector Type | IDC Connectors |
| Disconnect Type | Female |
| Connection Type | T-tap |
| Barrel Style | Insulated Self-Stripping |
| Insulation Material | Nylon |
| Color | Yellow |
| Maximum Conductor Size | 12 AWG |
| Minimum Conductor Size | 12 AWG |
| Connection Width | 0.25 in |
| Insulation Outer Diameter | 0.15 in |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Material | Insulator: FR Nylon, Element: Tin-plated Brass |
| Flame Retardant | Yes |
| Recommended Crimping Tool | E-9BM Mechanics (slip joint) Pliers |
| UL File Number | E70512 |
| CSA File Number | LR15503, LR32411 |
Toolup Part # :
861205
