3M 7000058807 Description

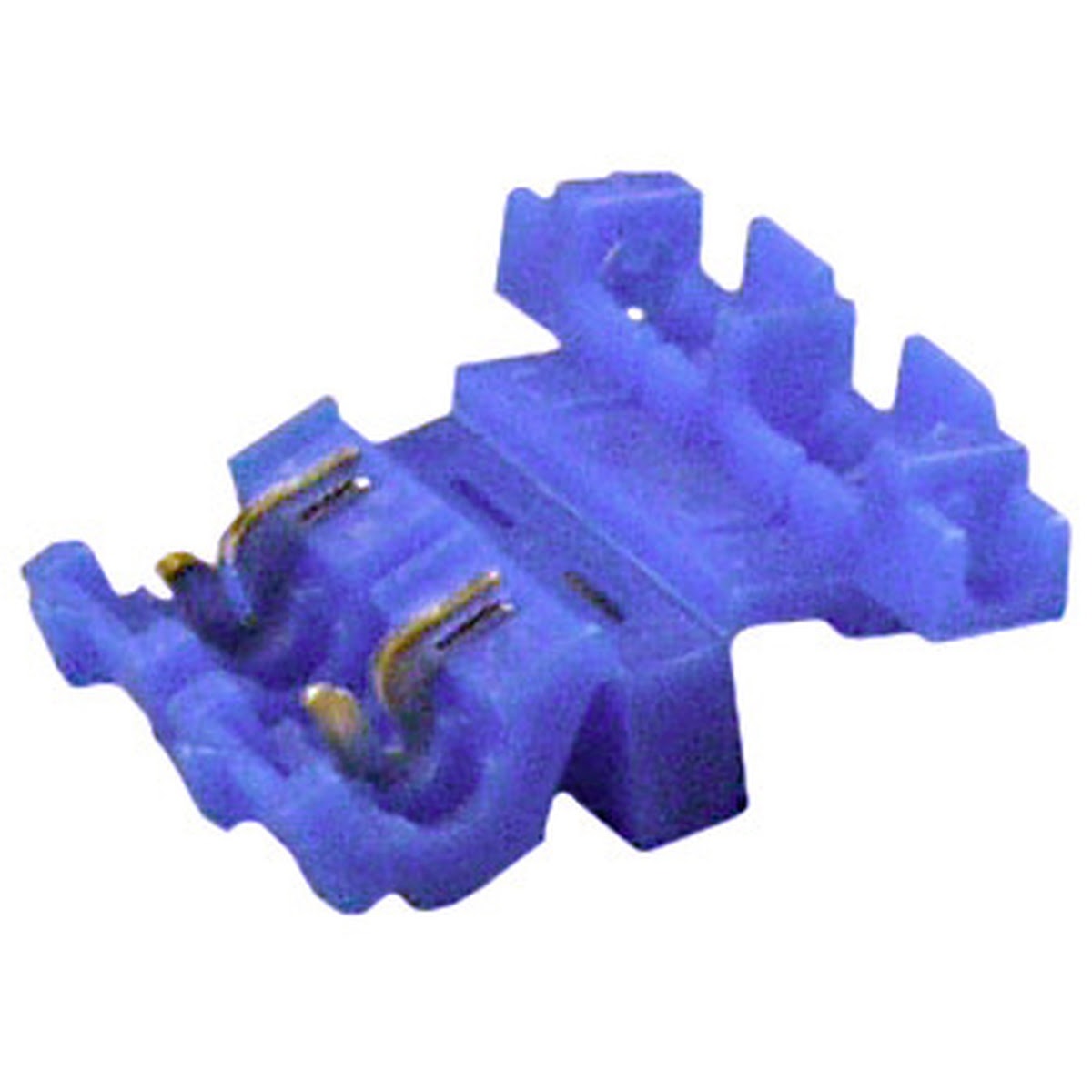

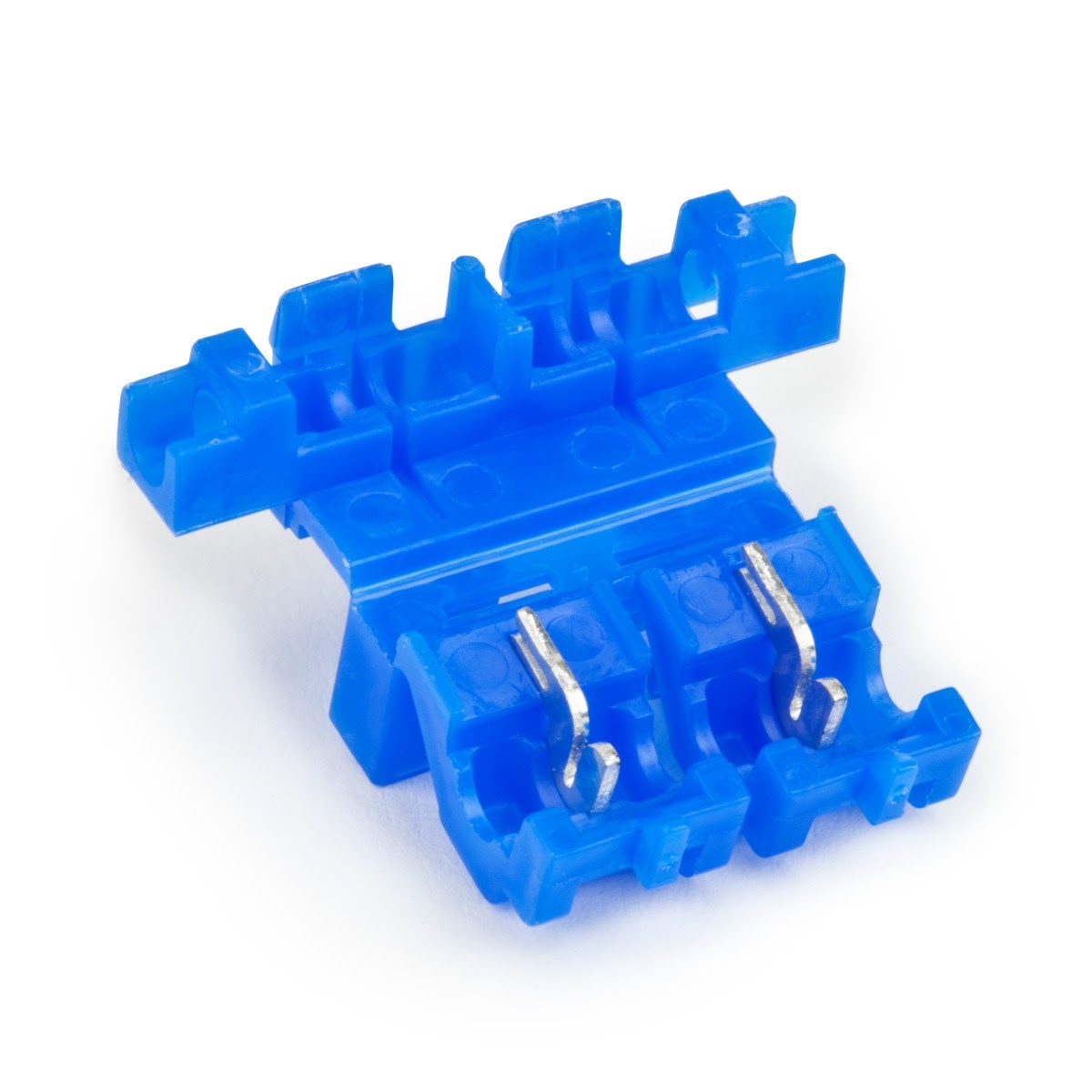

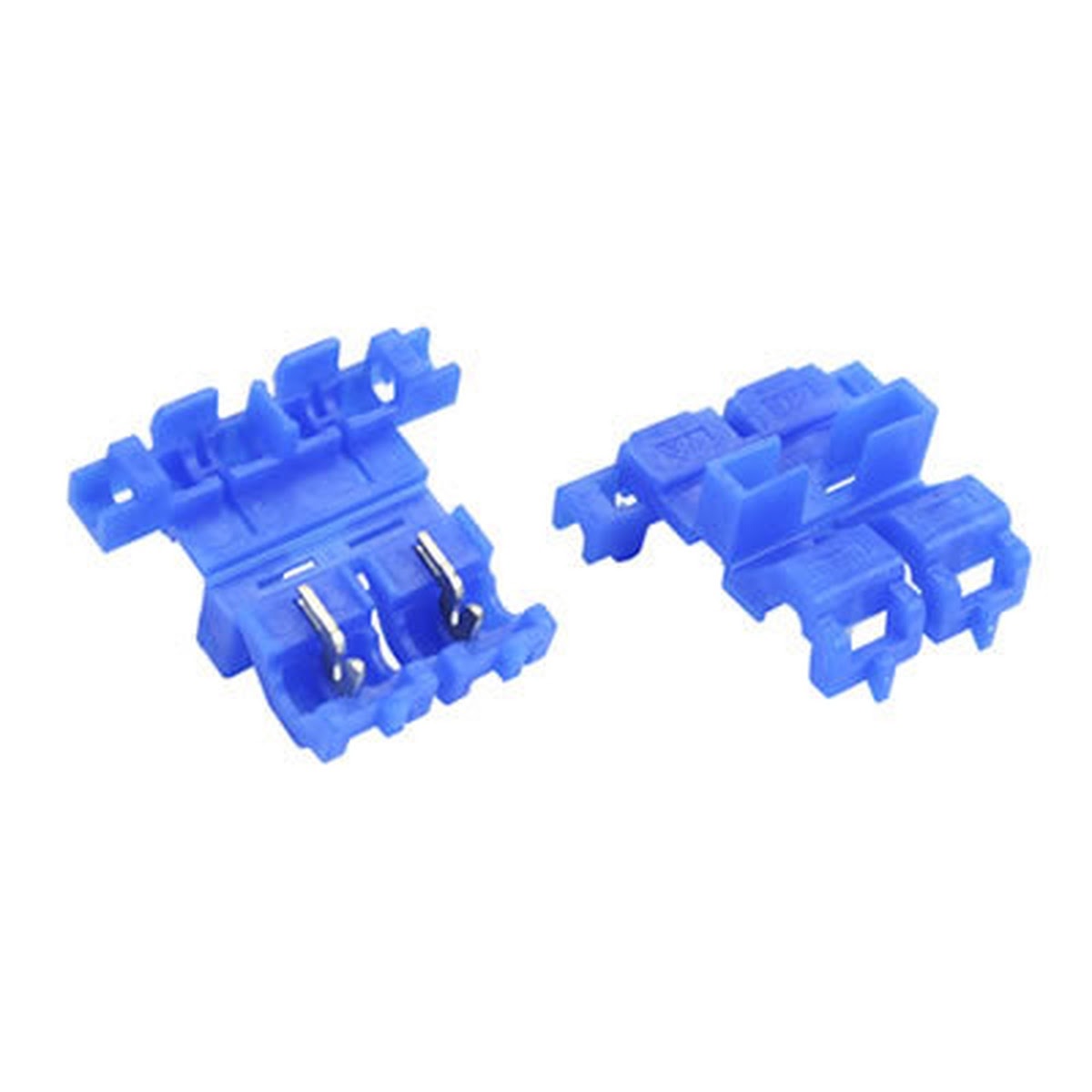

3M Scotchlok female disconnect fuse holder 972-A is designed to install a blade type automotive fuse between the power source and device. It features insulated, self-stripping polypropylene construction and supports 18-14 AWG wire.
3M 7000058807 Includes
- (250) - 3M 7000058807 Scotchlok Female Disconnect 972-A, Fuse Holder Polypropylene Insulated Self-Stripping, 18-14 AWG
3M 7000058807 Features
- Color coded for quick and easy identification of wire size
- Brass element construction for good conductivity
- Tin plating helps resist corrosion
- Withstands temperatures up to 221 Degree F 105 Degree C
- Insulated and self-stripping polypropylene design
3M 7000058807 Specifications
| Brand | 3M |
| Sub Brand | Scotchlok |
| Part Number | 972X-A BOX |
| Product Type | Connector |
| Terminal Type | Fuse |
| Wire Range | 18-14 AWG |
| Insulation Color | Blue |
| Insulation Material | Polypropylene |
| Connector Style | Insulation Displacement |
| Maximum Operating Temperature | 221 Degree F 105 Degree C |
| RoHS | RoHS 2011/65/EU compliant without exemption |
| Package Quantity | 25 |
| Product Length (in) | 2.9921259842519685 |
| Product Width (in) | 2.9921259842519685 |
| Product Height (in) | 2.9921259842519685 |
| Product Weight (lbs) | 0.07716179176470715 |
Toolup Part # :
858528
