3M 7000133653 Description

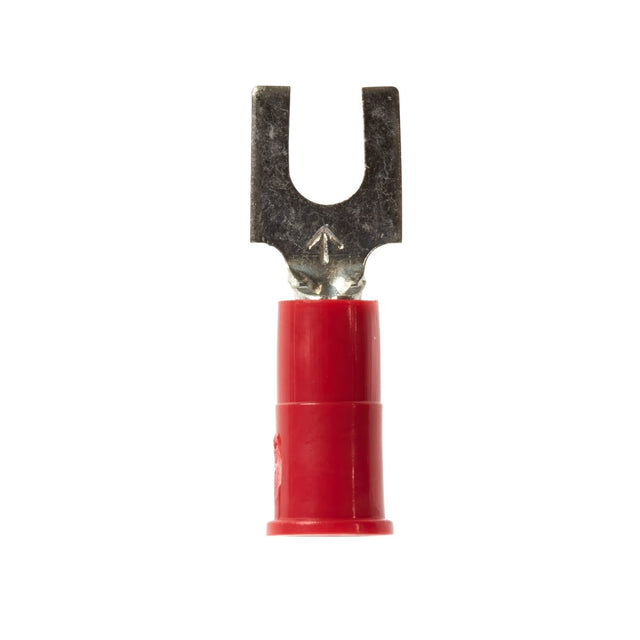

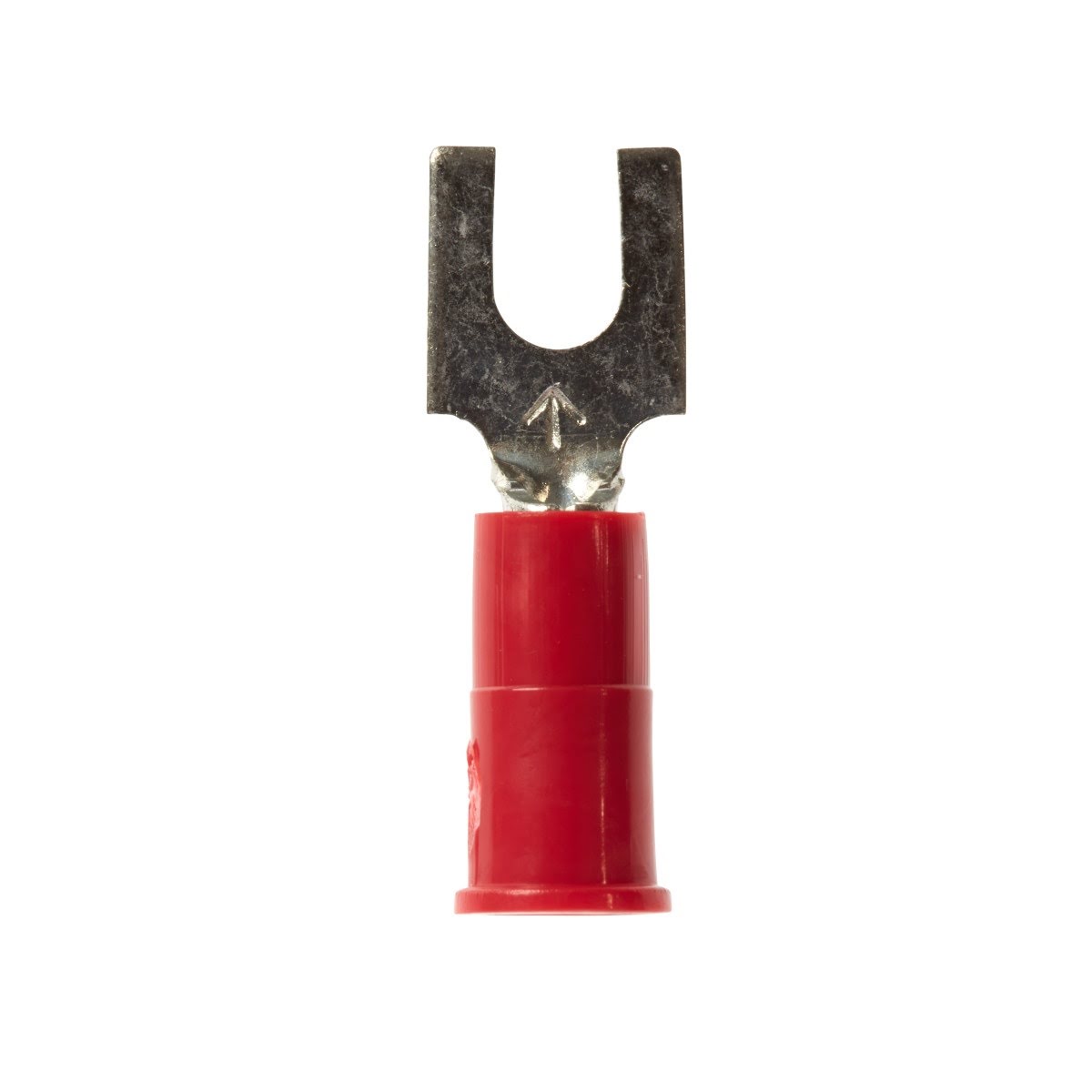

3M Highland BFV18-8Q vinyl-insulated block fork terminal provides a secure lug-style connection for 22-18 AWG wire on an 8 stud terminal block. The butted-seam barrel and rigid polyvinyl chloride sleeve help guide the wire for easy crimping, while electrolytic copper with a tin-plated finish supports good conductivity and corrosion resistance.
3M 7000133653 Includes
- (250) - 3M 7000133653 BFV18-8Q Vinyl-Insulated Butted Seam Block Fork Terminal, 8 Stud, 22-18 AWG, Red
3M 7000133653 Features
- Vinyl-insulated, butted-seam barrel for a secure crimp connection
- Funnel-designed polyvinyl chloride sleeve helps guide wire into position
- Designed for use in terminal blocks (block fork style)
- Electrolytic copper construction for good conductivity
- Tin-plated finish helps resist corrosion
- Color-coded insulation for quick wire size identification
- Rated for operating temperatures from -40 to 221 Degree F (-40 to 105 Degree C)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133653 Specifications
| Part Number | BFV18-8Q |
| Terminal Type | Fork |
| Terminal Style | Block |
| Stud Size | 8 |
| Wire Range | 22-18 AWG |
| Color | Red |
| Insulation Material | Vinyl |
| Connection Width | 0.164 in |
| Overall Length | 0.85 in |
| Overall Width | 0.3 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Material | Electrolytic Copper |
| Finish | Tin Plated |
| Certifications | UL Listed; CSA Certified |
| Compliance | RoHS 2011/65/EU Compliant |
| Package Quantity | 25 per bag |
Toolup Part # :
861113
