3M 7010400117 Description

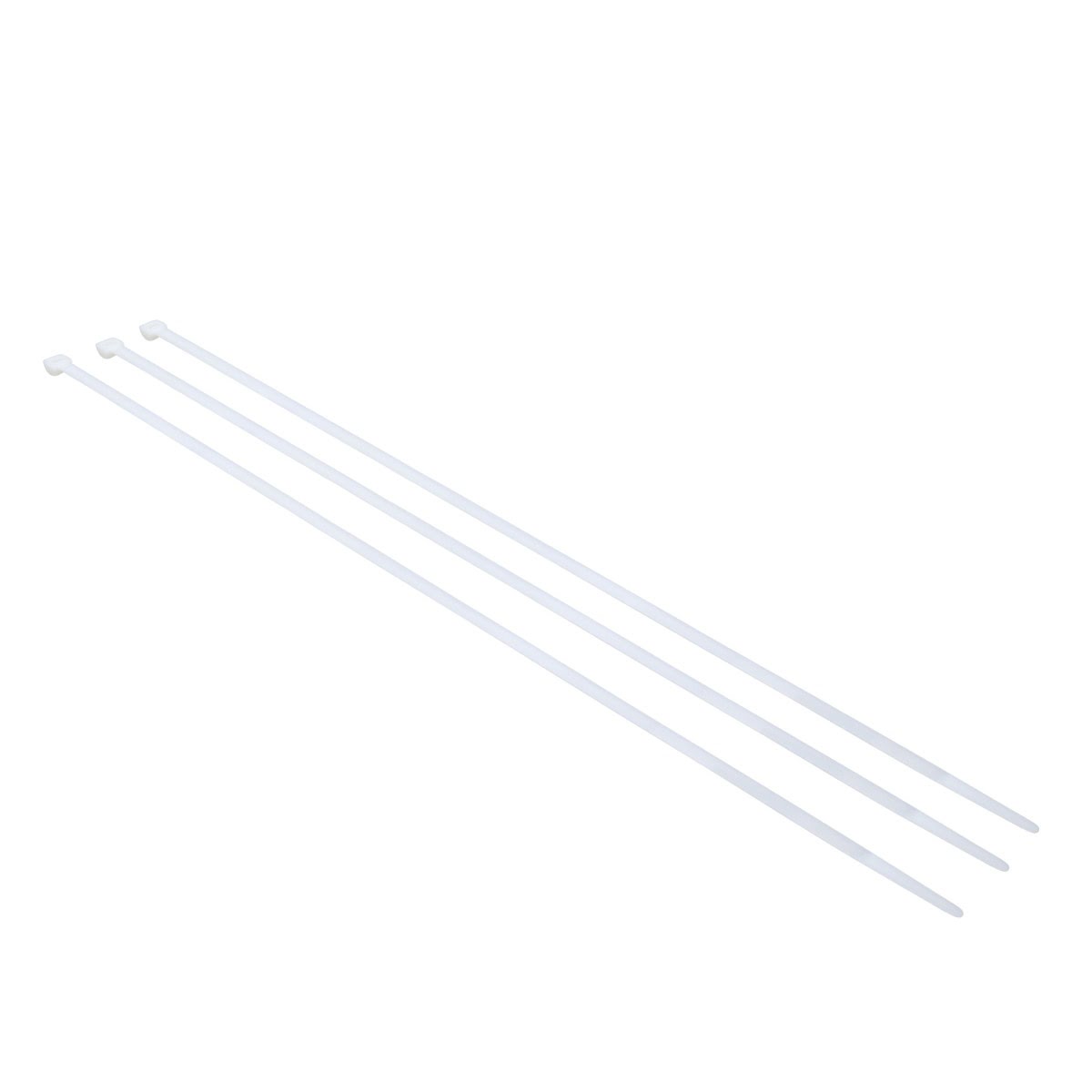

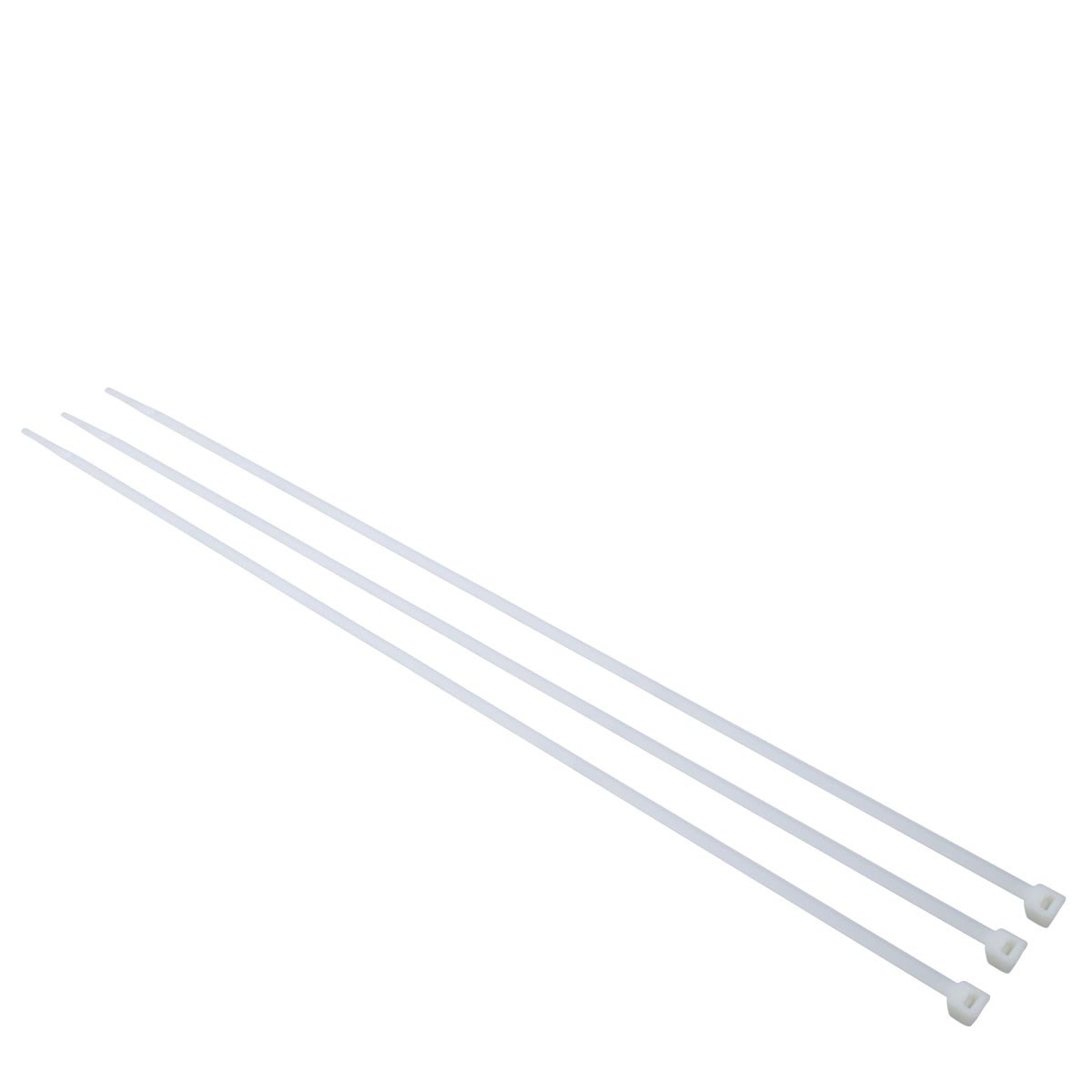

3M Standard Nylon Cable Tie CT24NT175-L is designed to secure wire bundles and harness components quickly without slipping. Made from high quality nylon 6/6, it features a self locking head and curved tip for faster threading. This clear 24 in cable tie provides 175 lb tensile strength and comes in a 50 count bag.
3M 7010400117 Includes
- (500) - 3M 7010400117 Cable Tie CT24NT175-L, 24 inches in Length, 175 lb Tensile Strength, Clear
3M 7010400117 Features
- Standard nylon 6/6 cable ties for securing wire bundles and harness components
- Curved tip for faster threading and installation
- Self locking head helps prevent slipping

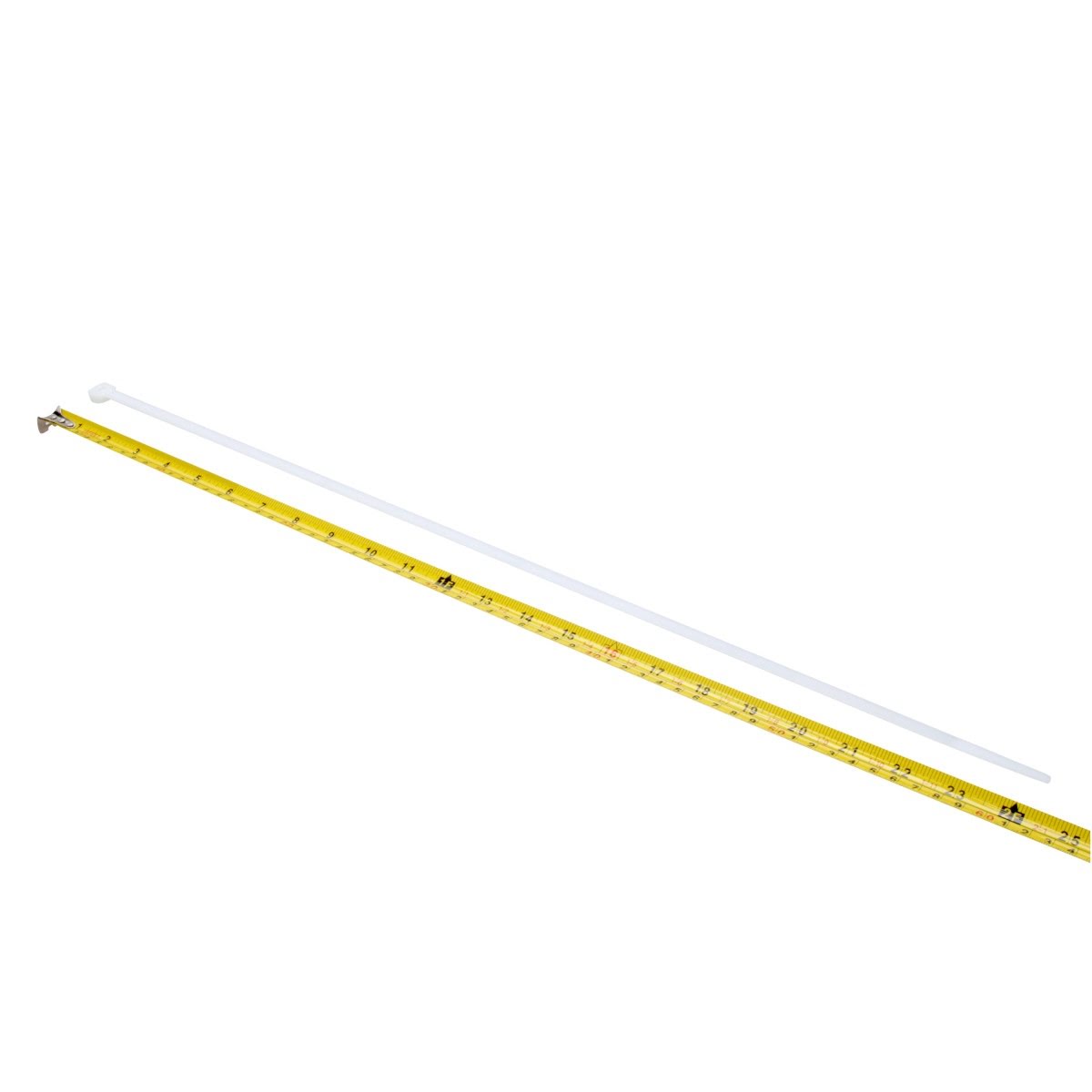

- 24 in overall length
- 175 lb tensile strength
- Plenum rated for use in air handling spaces
- UL Listed 62275 Type 21 or 21S
- Flammability rating UL 94 V-2
- Maximum bundle diameter 7.2 in
- Operating temperature range 32 Degree F to 185 Degree F
- RoHS 2011/65/EU compliant without exemption
3M 7010400117 Specifications
| Part Number | CT24NT175-L |
| Product Type | Cable Ties |
| Material | Nylon 6/6 |
| Color | Clear |
| Overall Length | 24.0 in |
| Overall Width | 0.335 in |
| Tensile Strength | 175 lbs |
| Package Quantity | 50 |
| Maximum Bundle Diameter | 7.2 in |
| Flammability Rating | UL 94 V-2 |
| UL Approval | Yes |
| Plenum Rated | Yes |
| UV Resistant | No |
| Maximum Recommended Voltage Rating | 600 V |
| Mil Spec | MS3367-8-9 |
| Operating Temperature Range | 32 Degree F to 185 Degree F |
Toolup Part # :
859534
