At a Glance
Diameter
3/16 in
Length
3 in
Max RPM
24000
Material
Steel
Compatible Equipment
Die Grinders
Mount Type
Shank
Description
Description
3M 7000148243 Description

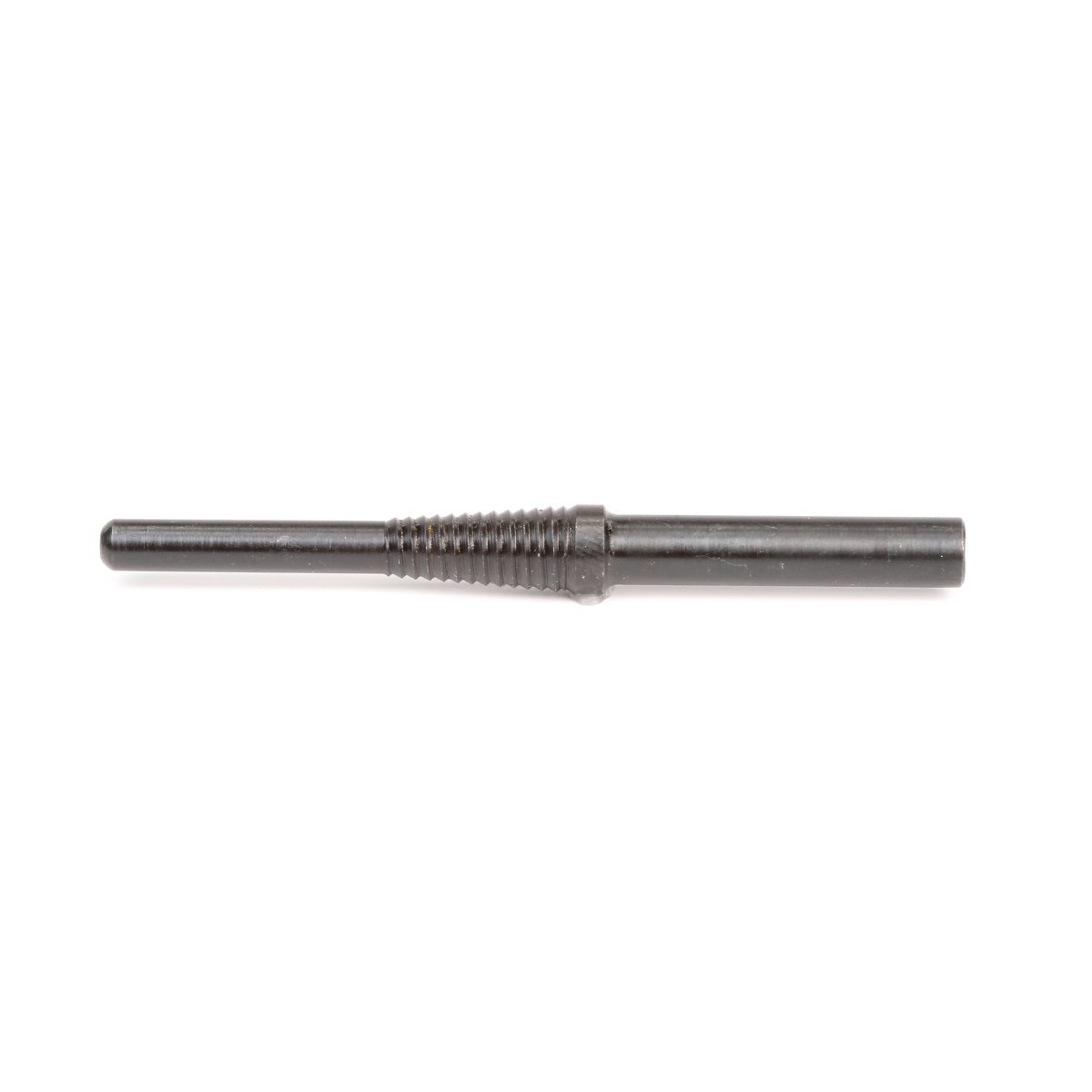

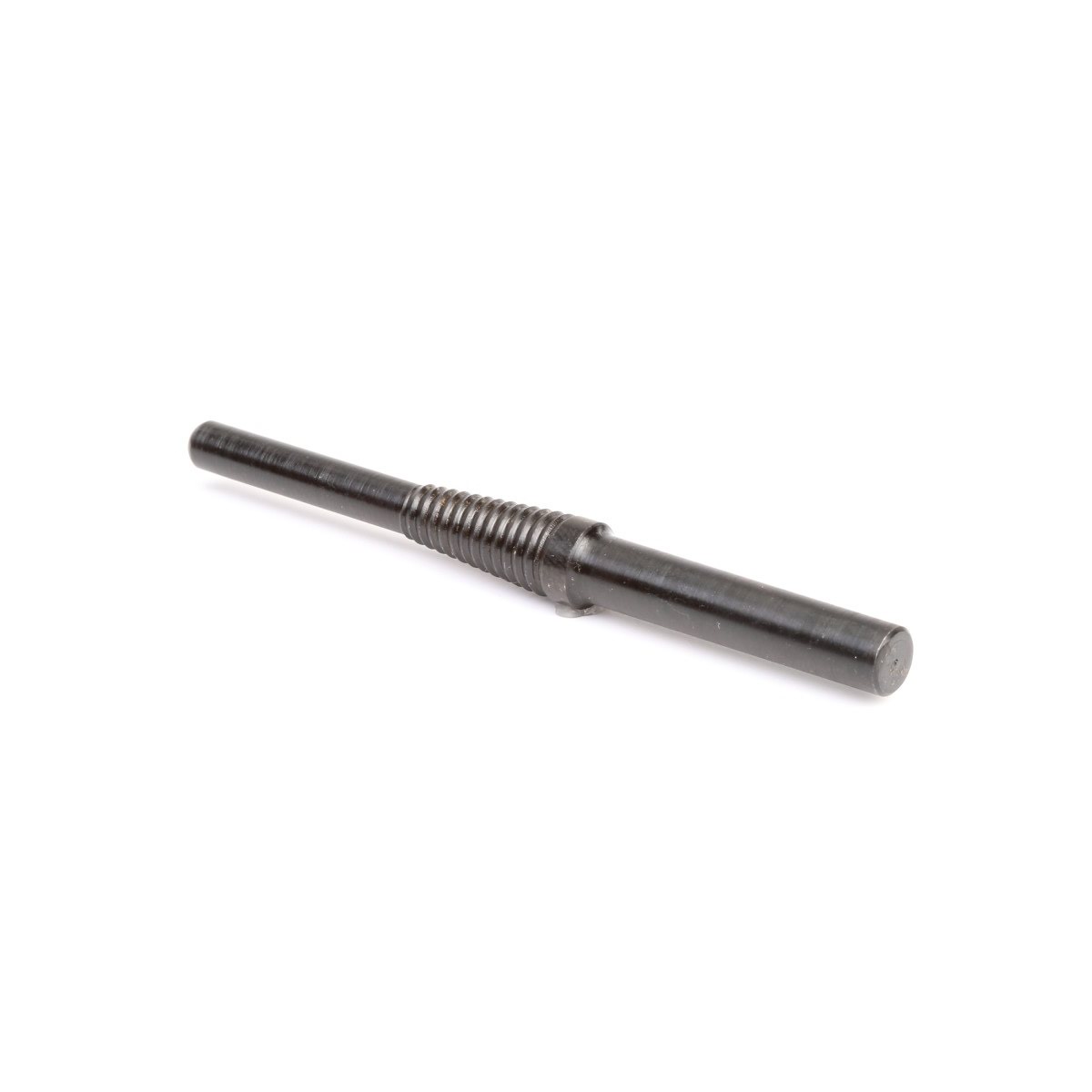

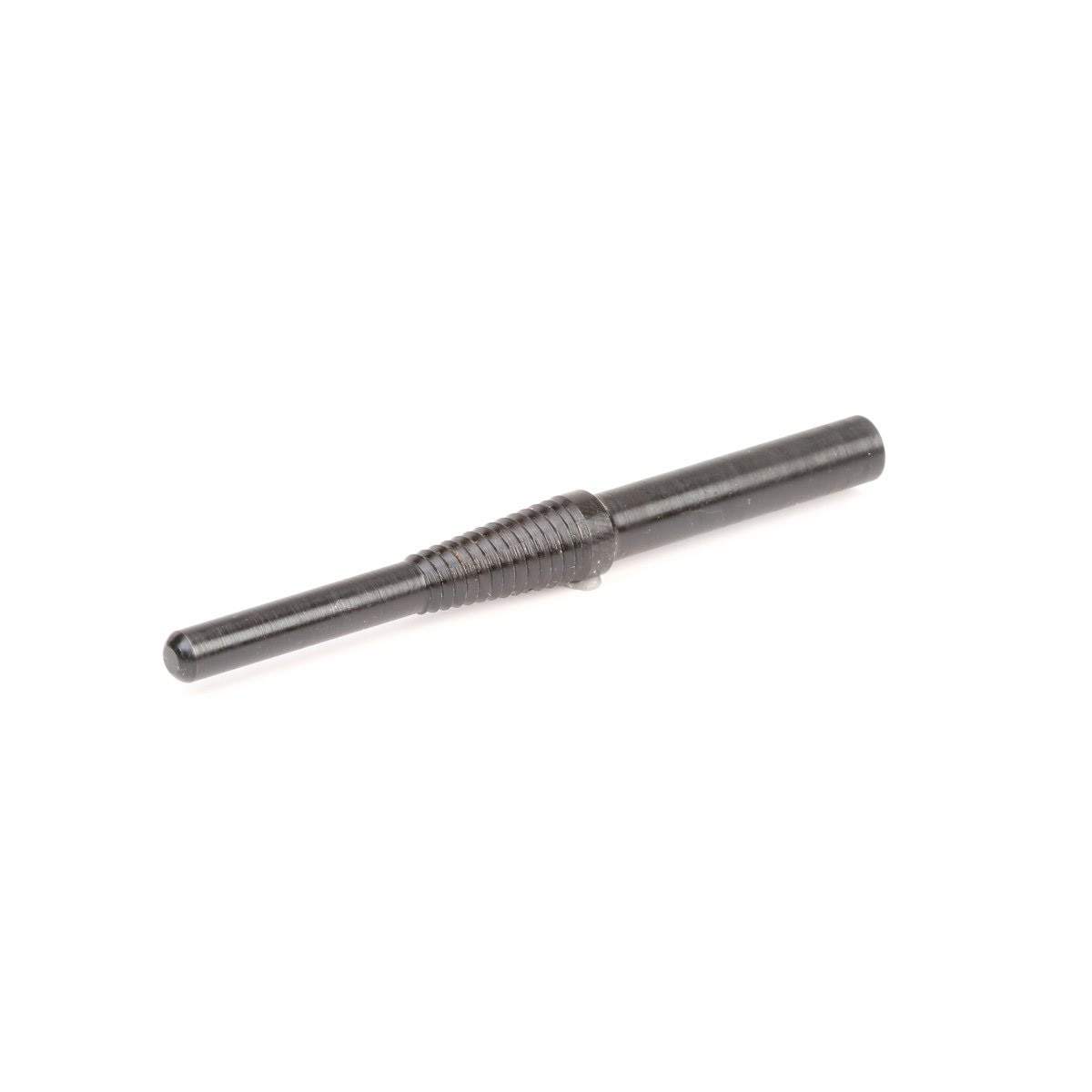

The 3M Cartridge Roll Mandrel 45117 is a steel mandrel accessory designed to hold an abrasive cartridge roll sold separately for grinding and finishing in tight areas such as angles and curves. It secures into a rotary tool collet or drill chuck for use with die grinders and similar tools.
3M 7000148243 Includes
- (25) - 3M 7000148243 Cartridge Roll Mandrel, 45117, 3/16 in x 1 in x 1/4 in
3M 7000148243 Features
- Holds an abrasive cartridge roll sold separately for grinding and finishing
- Shank secures into the collet assembly or drill chuck of a rotary power tool
- Helps reach tight spaces such as angles and curves

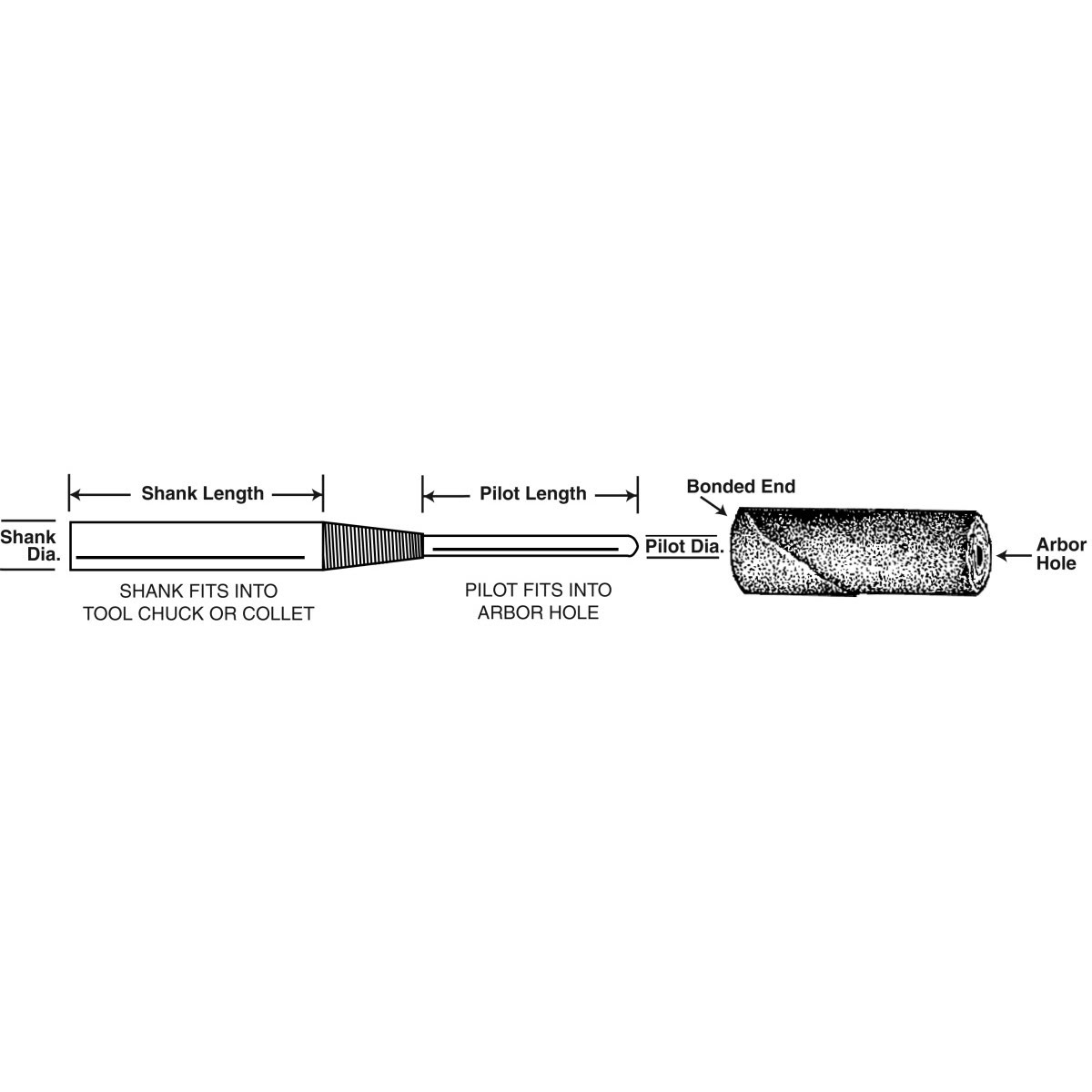

- Shank size must match the power tool collet or drill chuck
- Pilot diameter must match the cartridge roll arbor hole
- Steel construction
- Max speed 24000 RPM
3M 7000148243 Specifications
| Product Type | Mandrel |
| Part Number | 45117 |
| Form Type | Cartridge Roll |
| Material | Steel |
| Max RPM | 24000 |
| Overall Length | 3.0 in |
| Pilot Diameter | 0.18 in |
| Pilot Length | 1.0 in |
| Shank Size | 1/4 in |
| Attachment Type | Shaft |
| Equipment | Die Grinders |
| Type | Regular |
Toolup Part # :
859642
