3M 7100017443 Description

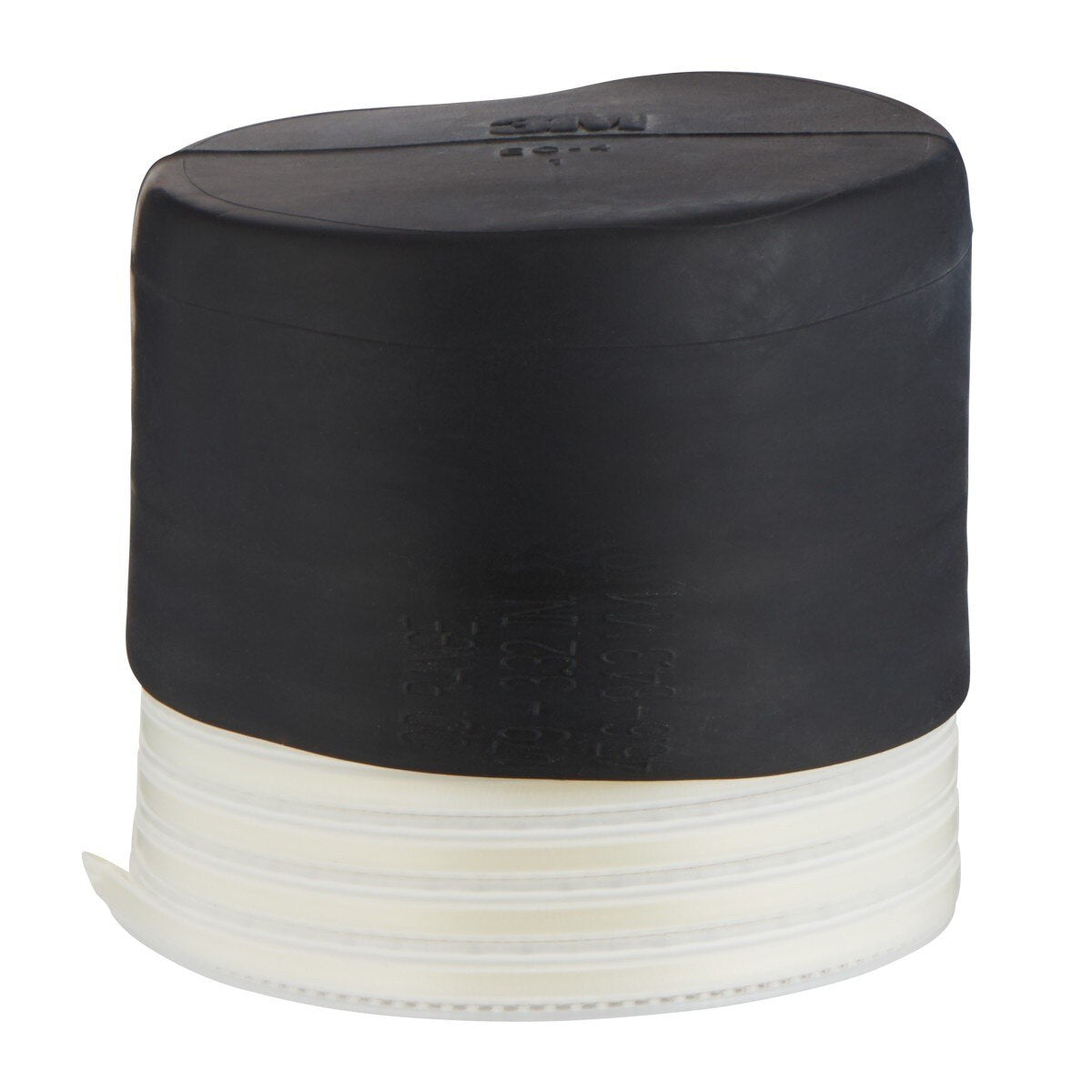

3M Cold Shrink End Cap EC-4 is a close ended EPDM rubber sleeve that cold shrinks onto cables, pipes, and other cylindrical objects to provide a reliable environmental seal. It installs quickly by removing the core and helps protect against water and abrasion across a 1.79 to 3.32 inch use range.
3M 7100017443 Includes
- (10) - 3M 7100017443 Cold Shrink End Cap EC-4, use range of 1.79-3.32 in (45.5-84.3 mm)
3M 7100017443 Features
- Close ended cold shrink end cap for sealing cable and pipe ends
- Factory expanded and loaded onto a removable core for fast installation
- Provides a water resistant environmental seal when core is removed
- EPDM rubber resists abrasion, water, acids, alkalis, and ozone
- Made with EPDM rubber containing no chlorides or sulfur
- No tools, tapes, or mastics required for installation
- RoHS 2011/65/EU compliant
- Use range 1.79 to 3.32 in
3M 7100017443 Specifications
| Part Number | EC-4 |
| End Cap Type | Cold Shrink |
| Product Type | Cold Shrink |
| Material | EPDM Rubber |
| Color | Black |
| Use Range | 1.79 - 3.32 in |
| Use Range Metric | 45.6-84.3 mm |
| Inner Diameter After Shrink | 1.79 in |
| Inner Diameter Before Shrink | 3.32 in |
| Shrink Ratio | 2:1 |
| Shrink Type | Cold Shrink |
| Adhesive Lined | No |
| With Inner Glue | No |
| Flame Retardant | No |
| RoHS | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
860183
