3M 7000006133 Description

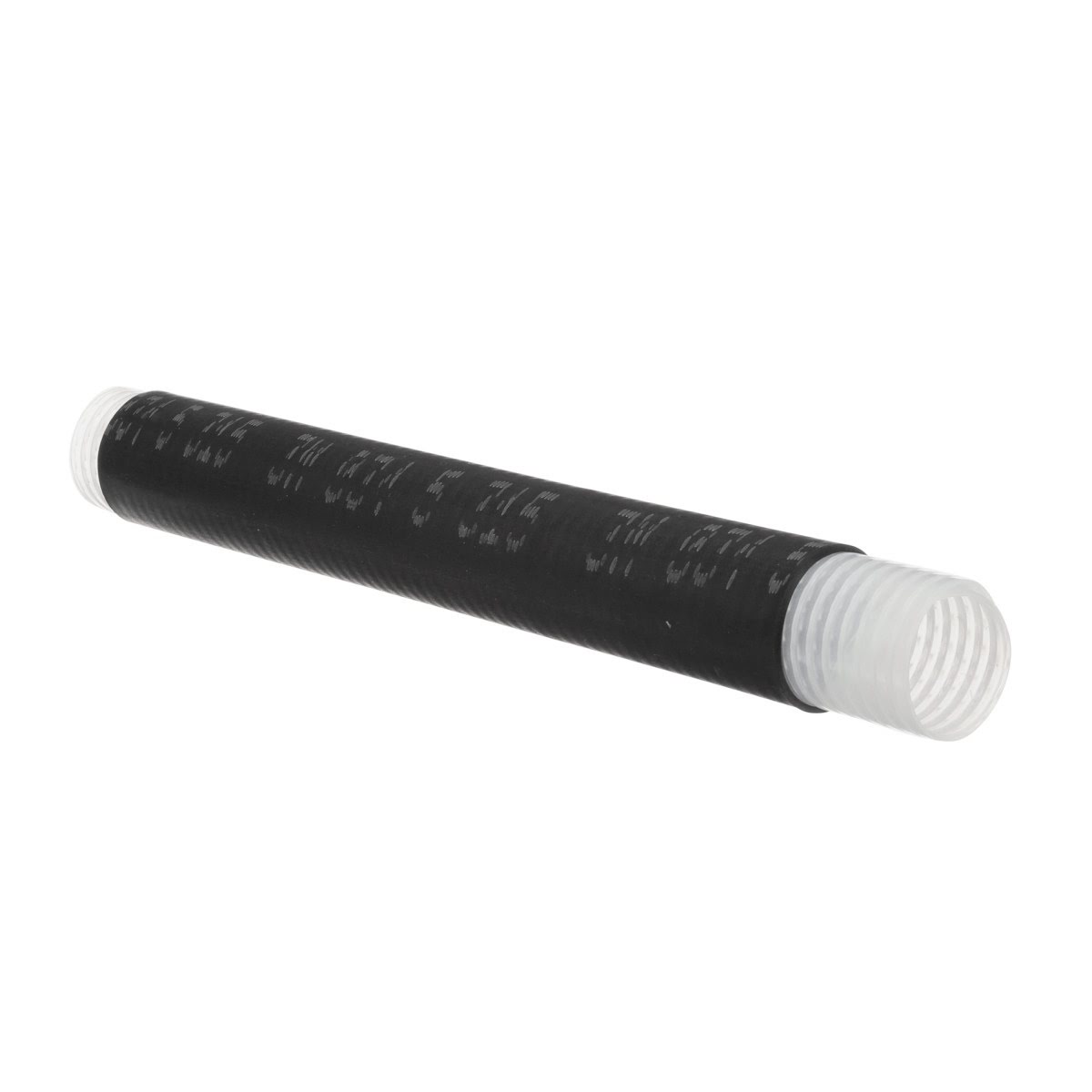

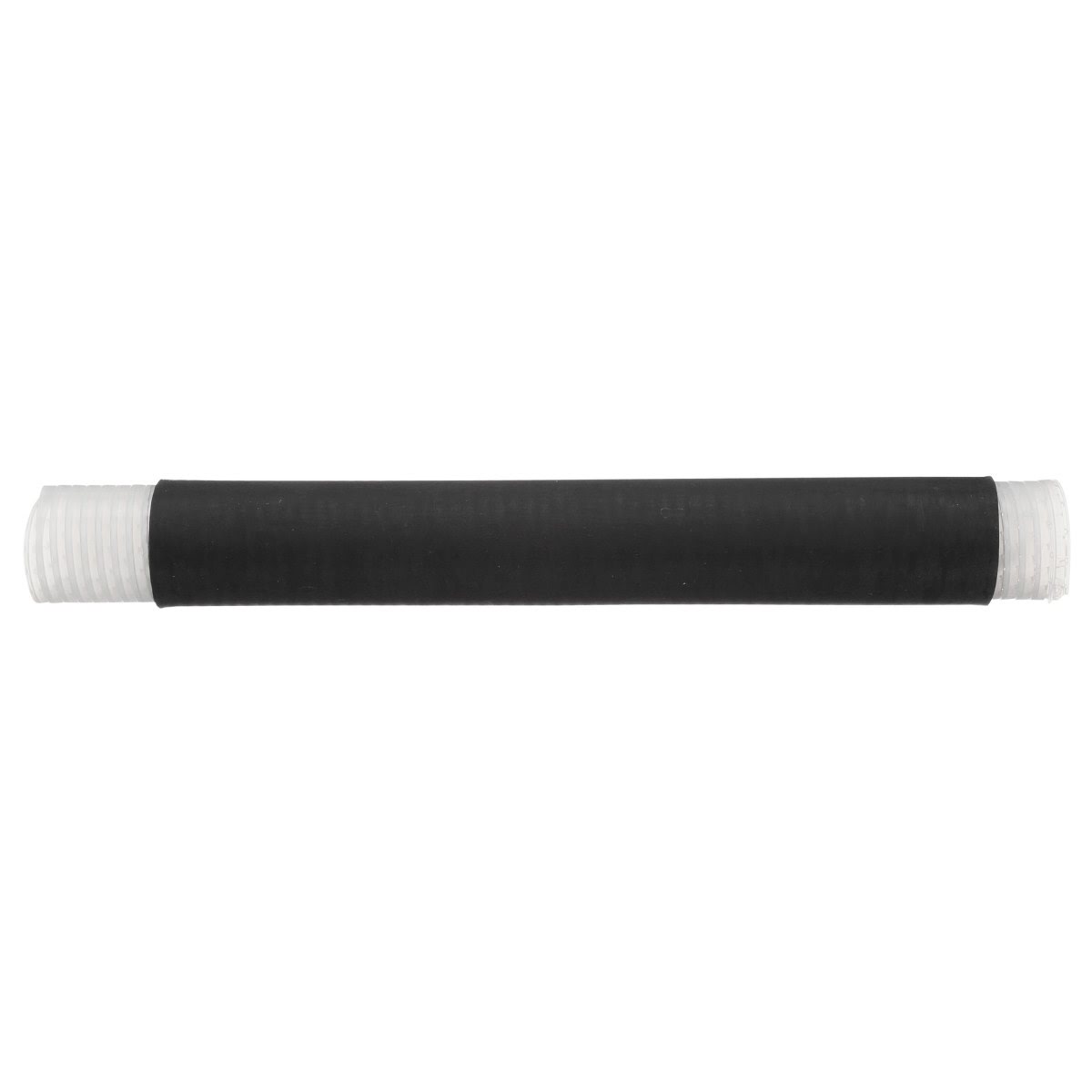

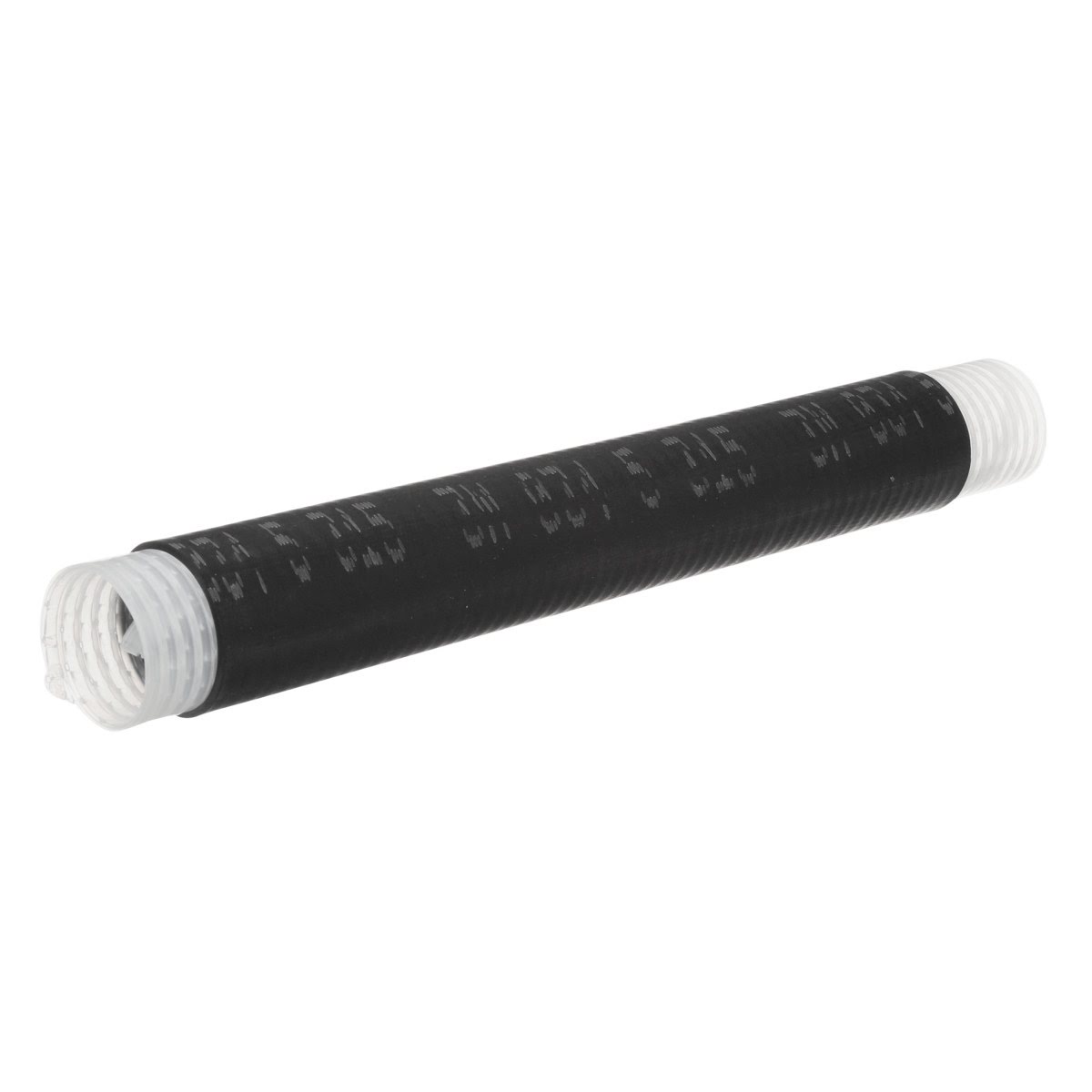

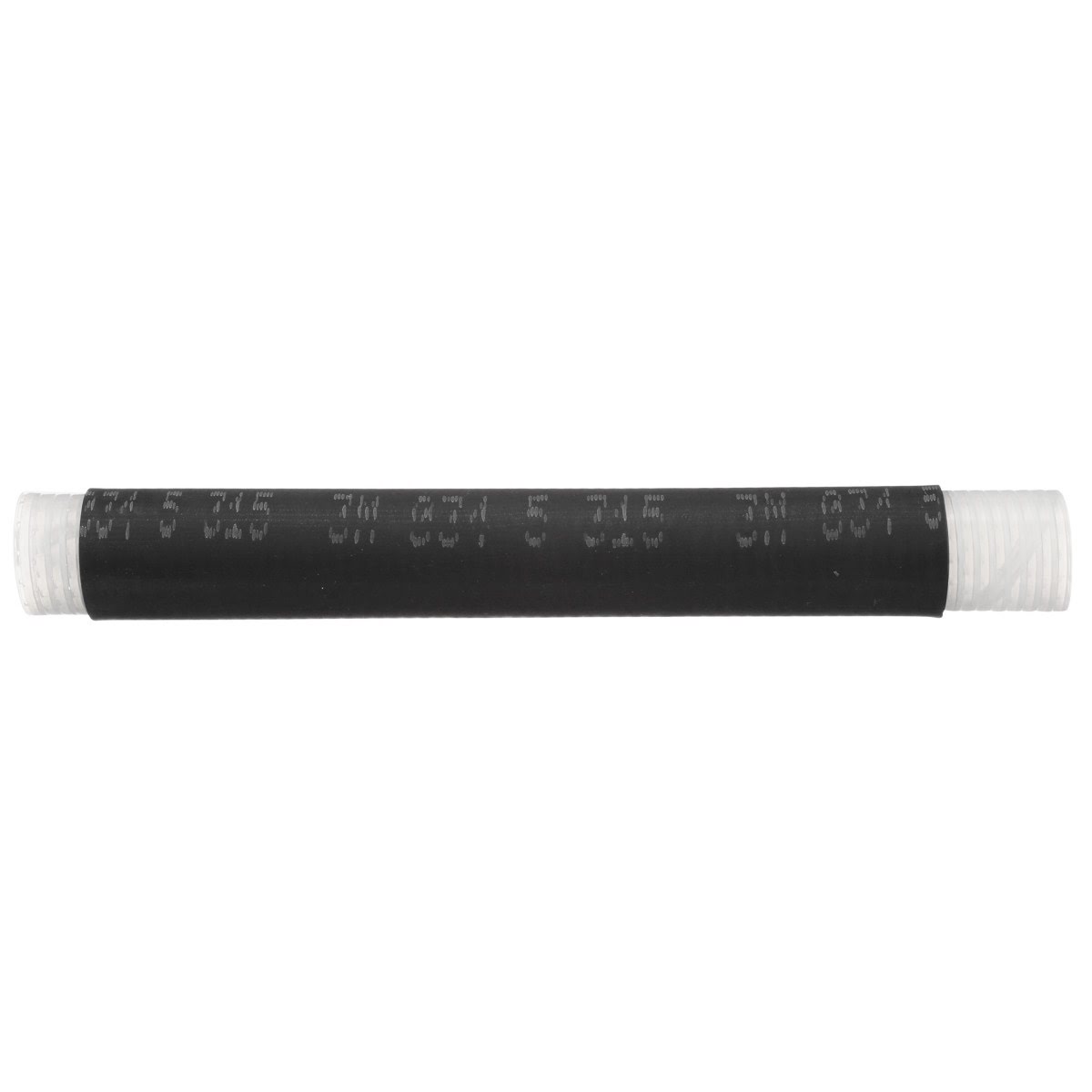

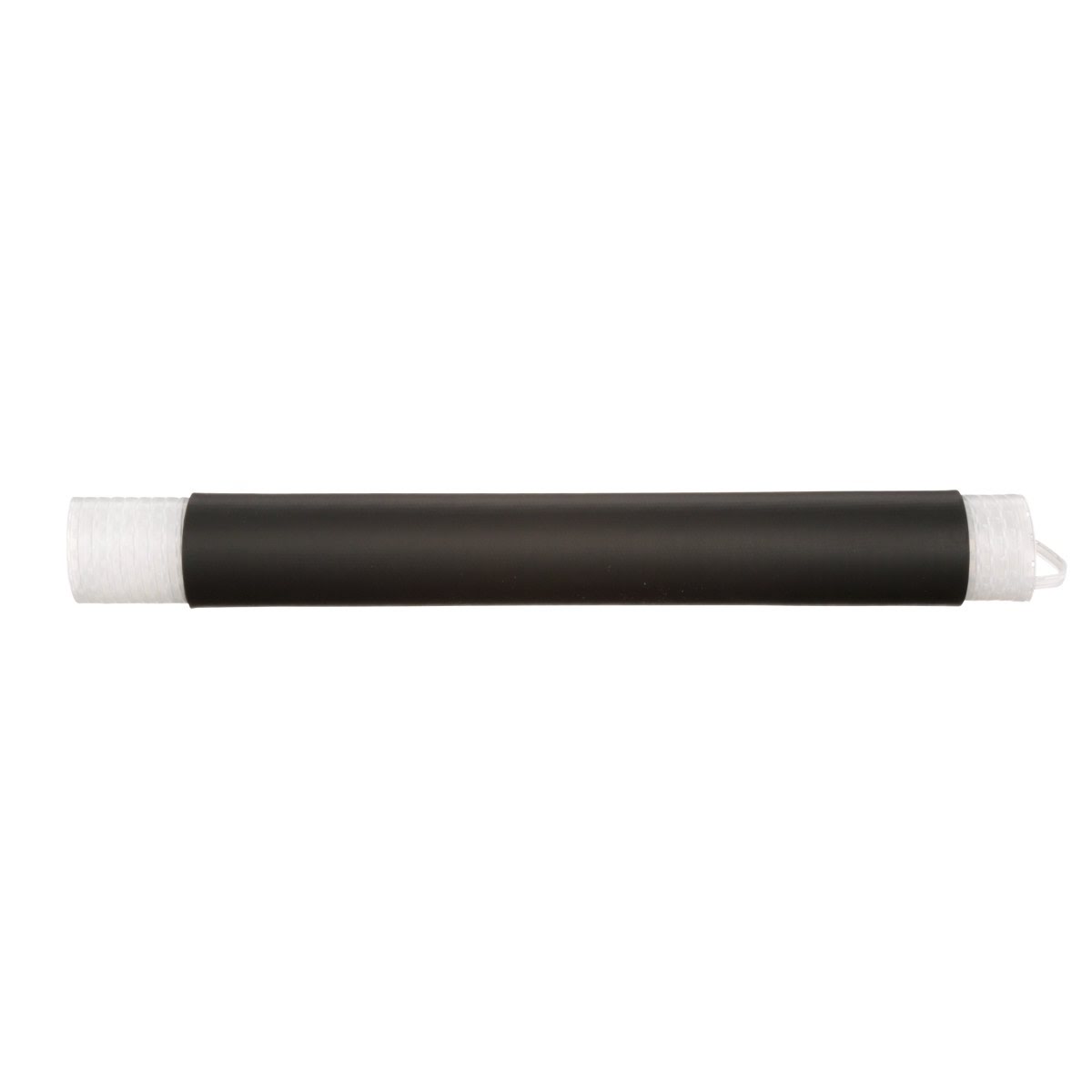

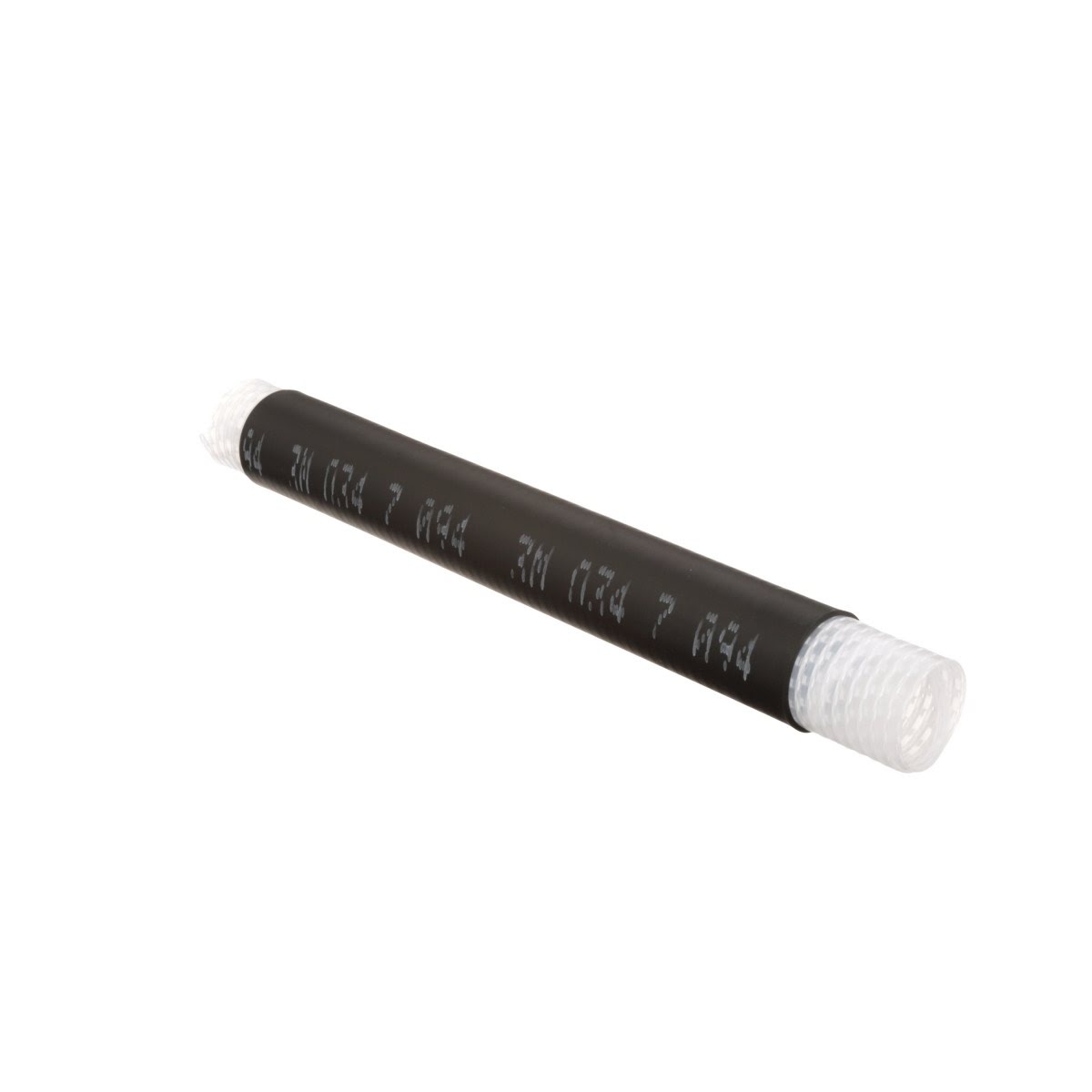

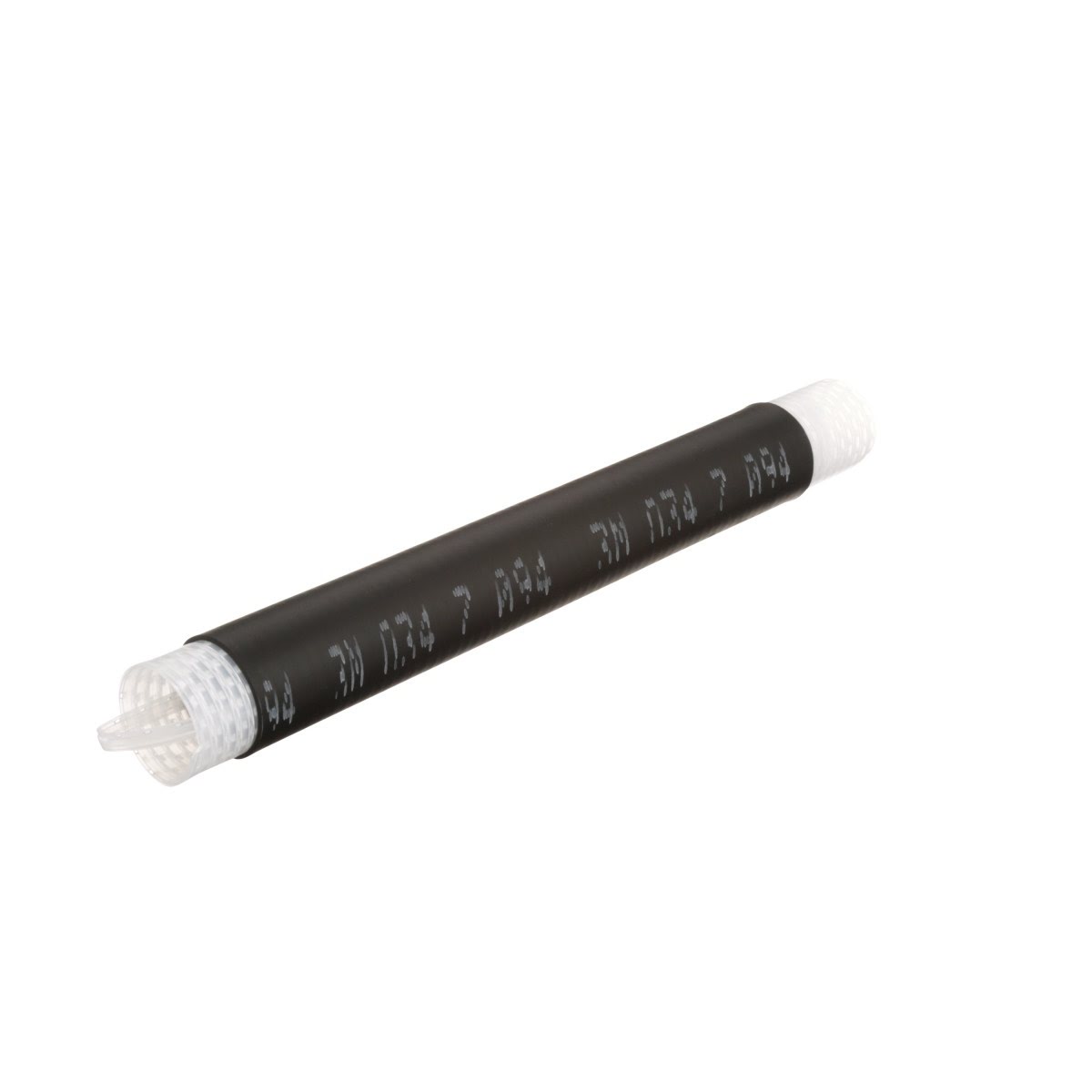

3M Cold Shrink Insulator 8426-11 is a factory expanded EPDM rubber cold shrink tube that provides primary insulation and environmental sealing for cable splices and connectors rated up to 1 kV. It installs by hand with no tools or heat and delivers a water resistant seal for indoor outdoor direct burial and submersible applications.
3M 7000006133 Includes
- (10) - 3M 7000006133 Cold Shrink Insulator 8426-11, 2/0 AWG-250 kcmil (70-125 mm)
3M 7000006133 Features
- Provides reliable primary insulation for solid dielectric wires and cable splices rated up to 1000 volts
- Cold shrink design installs by hand with no tools or heat source
- EPDM rubber construction provides durability and wet electrical performance
- Resists fluid splashes acids and alkalis
- Water resistant seal meets ANSI C119.1 requirements
- Suitable for indoor outdoor direct burial and submersible applications
- Accommodates a variety of cable sizes for copper and aluminum conductors
- Operating temperature range -40 Degree F to 194 Degree F
3M 7000006133 Specifications
| Part Number | 8426-11 |
| Material | EPDM Rubber |
| Color | Black |
| Voltage Rating | 1 kV |
| Overall Length (in) | 11.0 |
| Inner Diameter Before Shrink (in) | 1.185 |
| Inner Diameter After Shrink (in) | 0.547 |
| Conductor Sizes | 2/0 AWG to 250 kcmil |
| Minimum Operating Temperature | -40 Degree F |
| Maximum Operating Temperature | 194 Degree F |
| Product Length (in) | 20.0 |
| Product Width (in) | 5.0 |
| Product Height (in) | 1.5 |
| Shipping Weight (lb) | 0.266 |
