3M 7000006124 Description

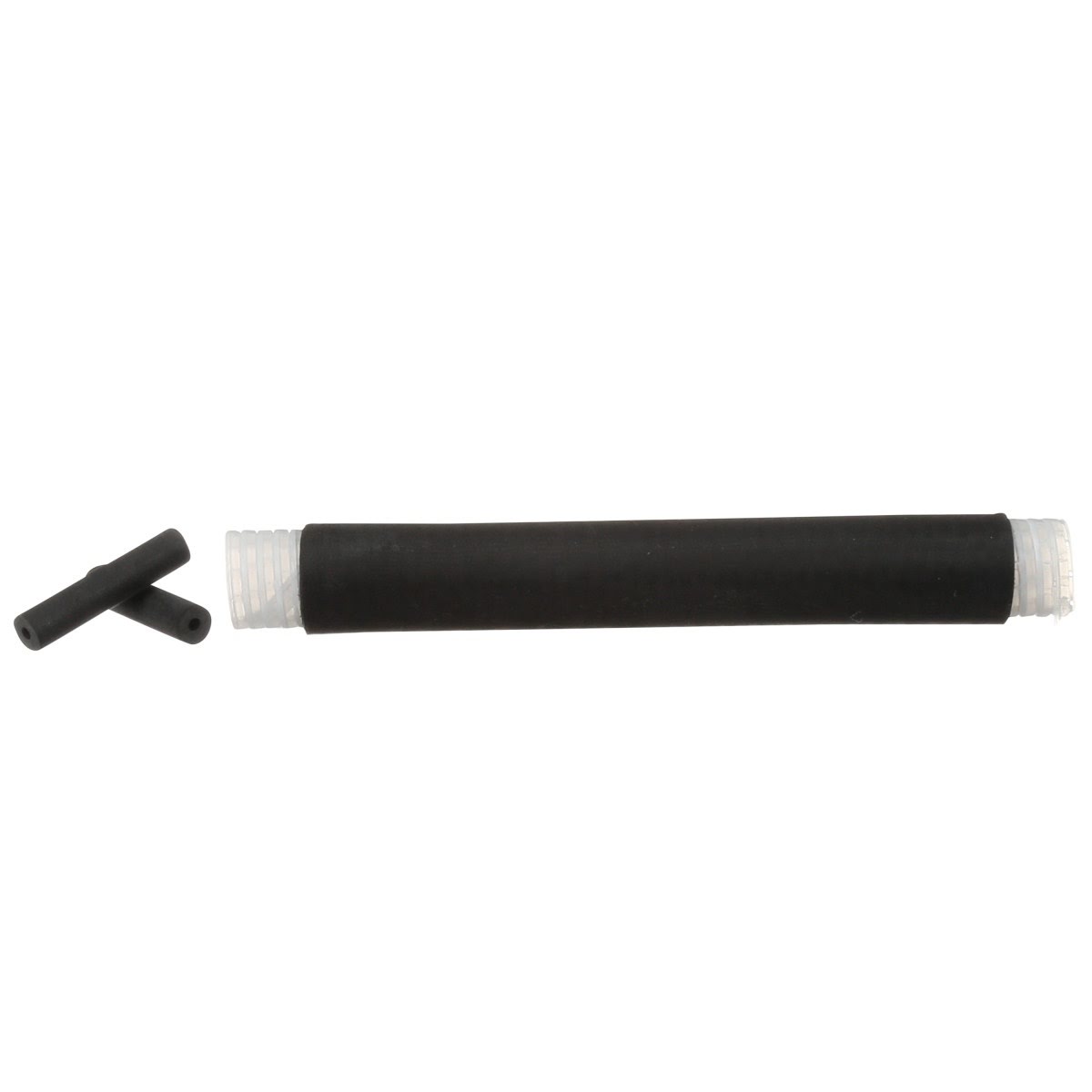

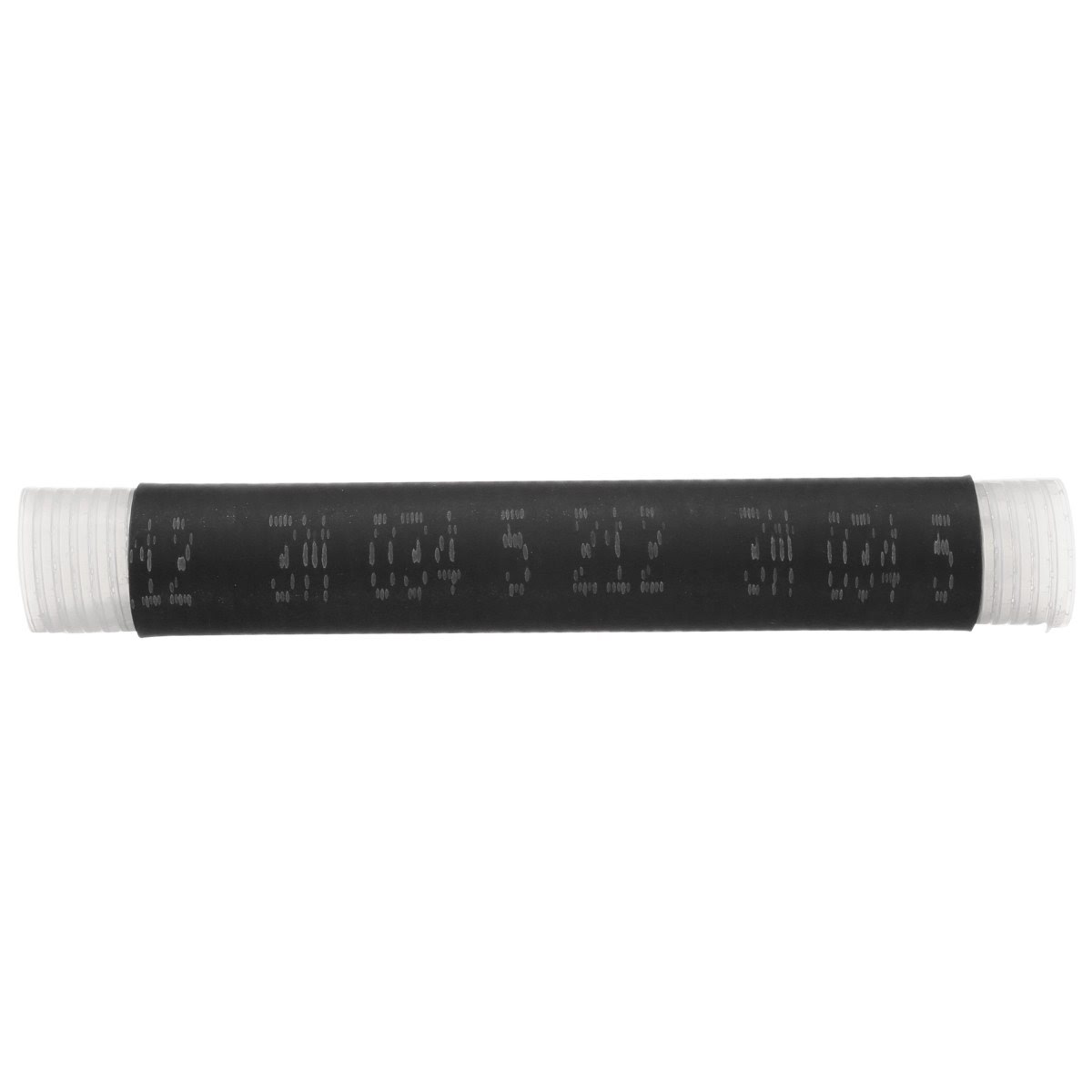

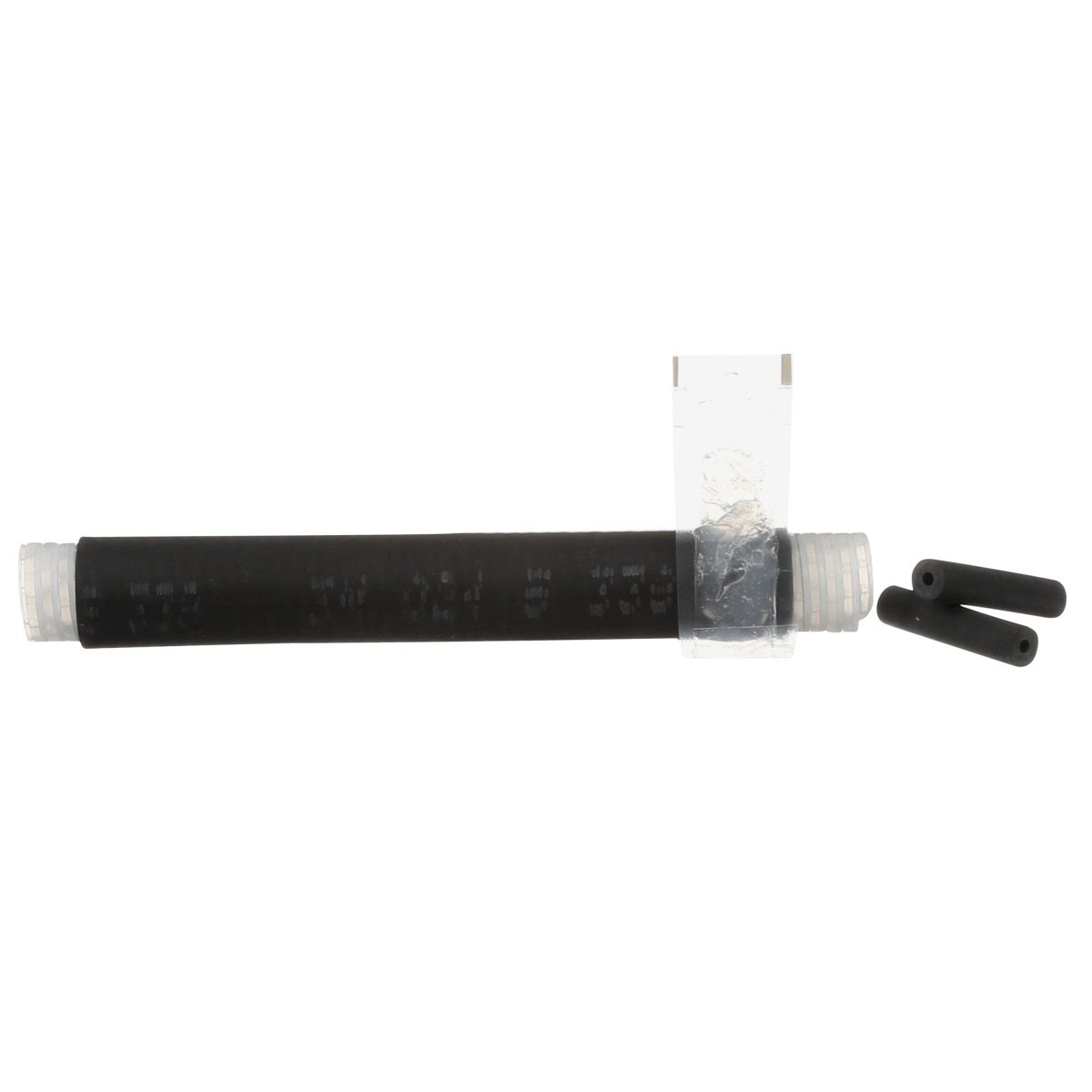

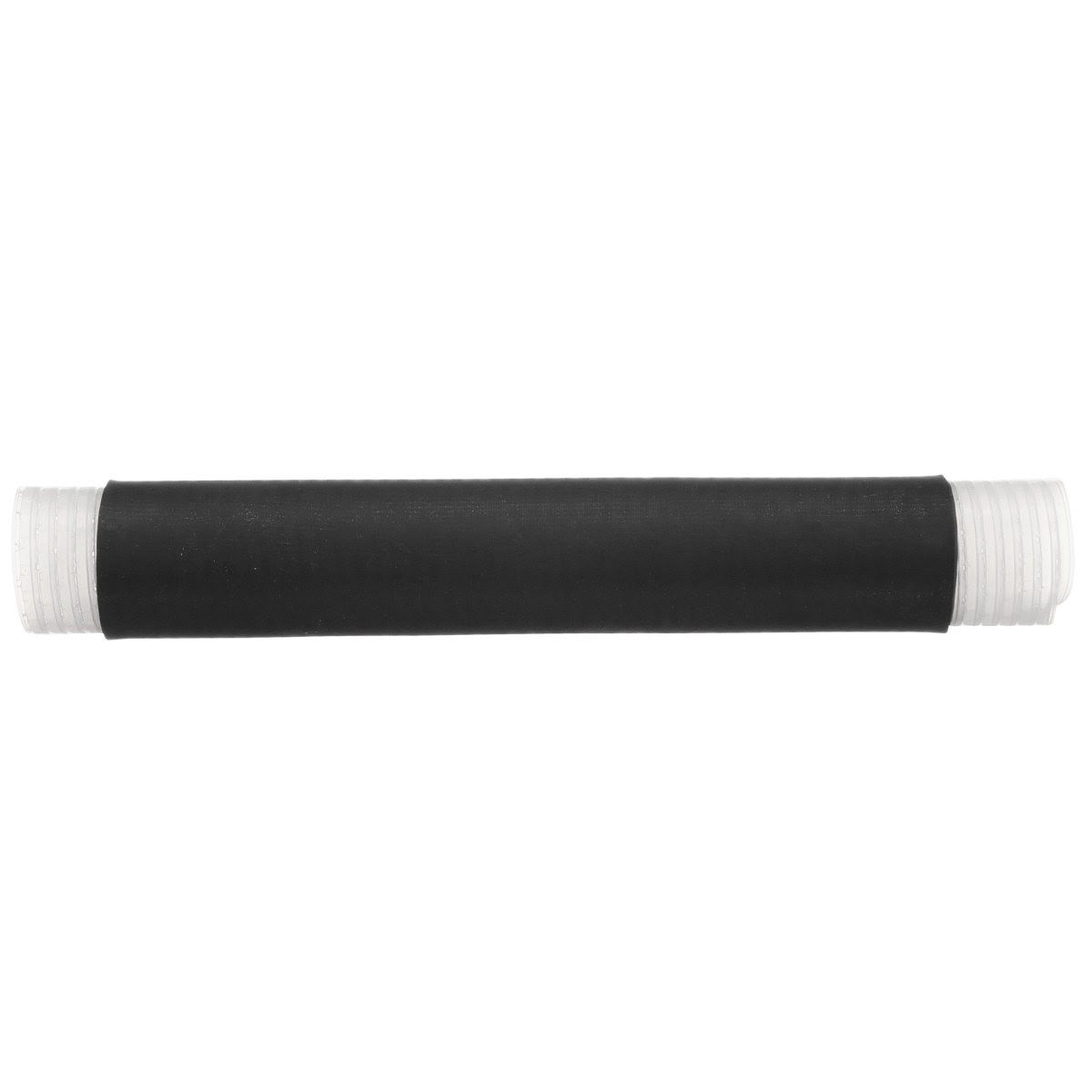

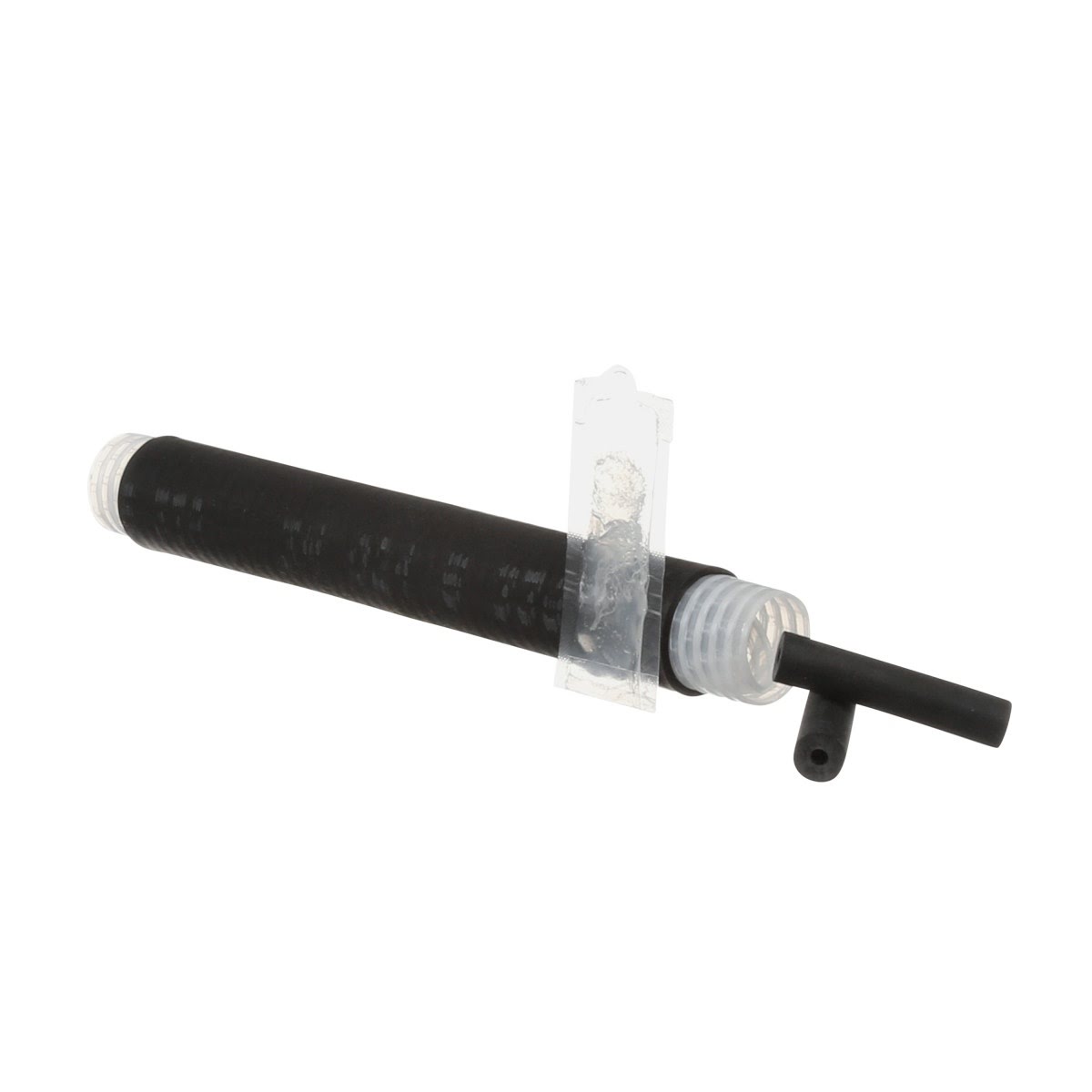

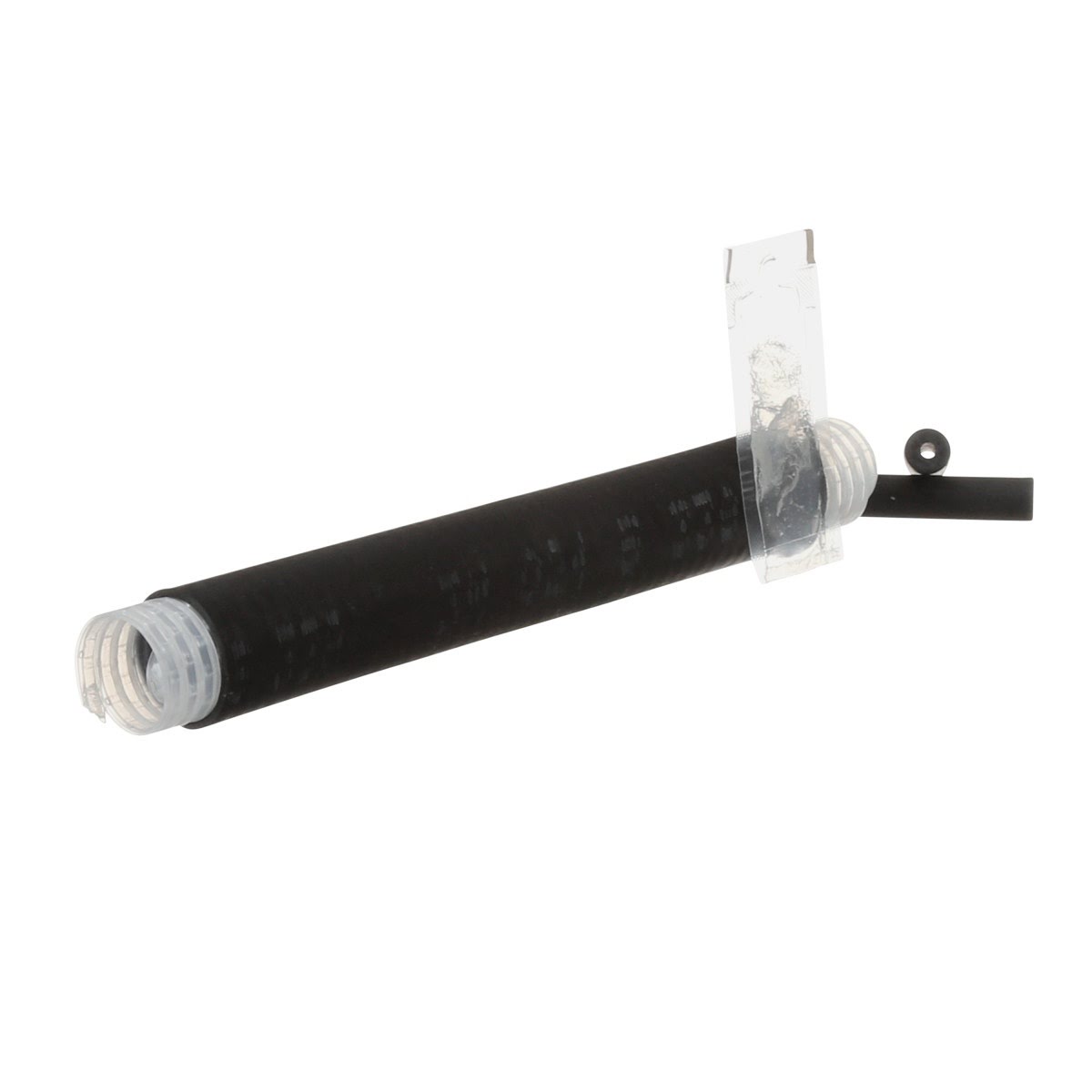

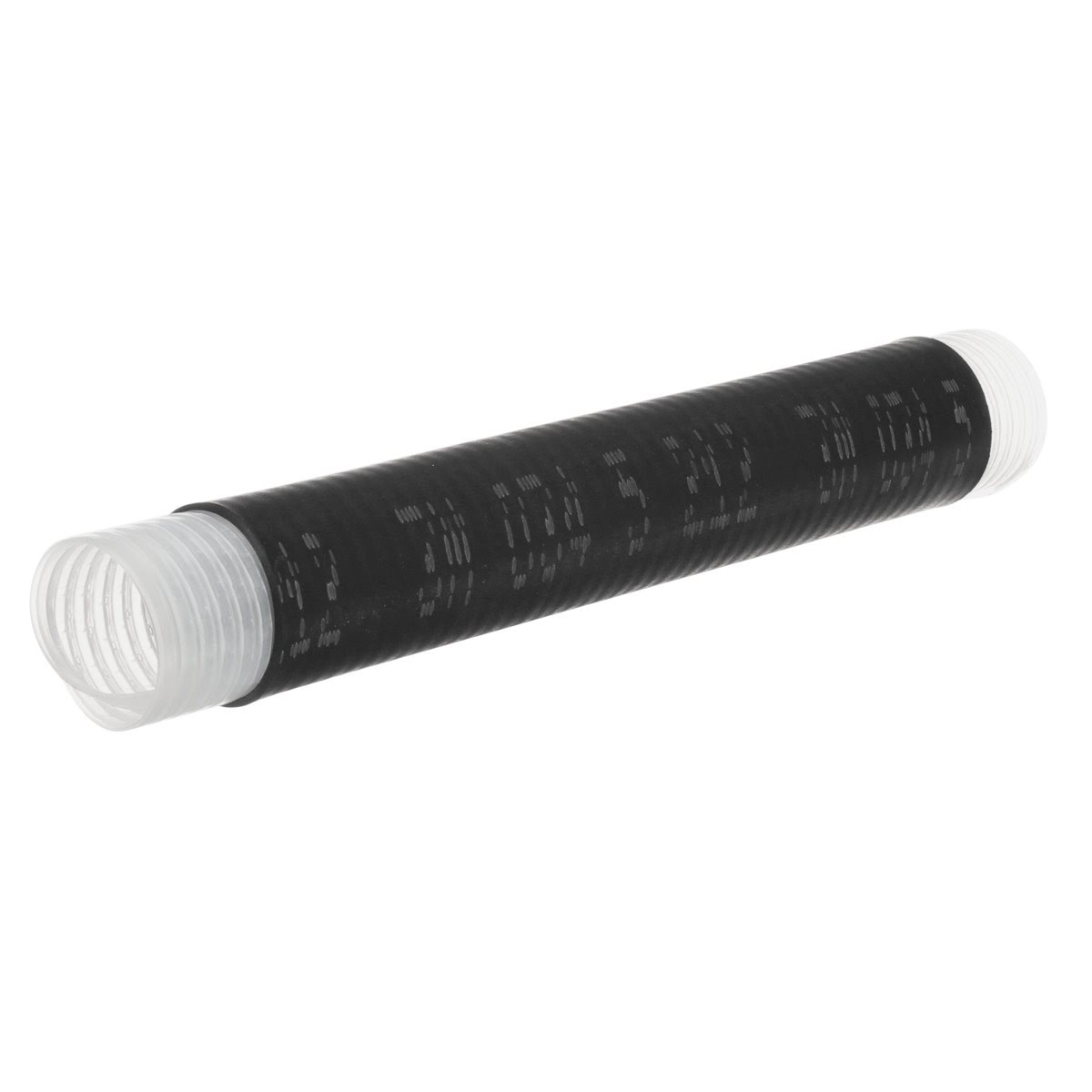

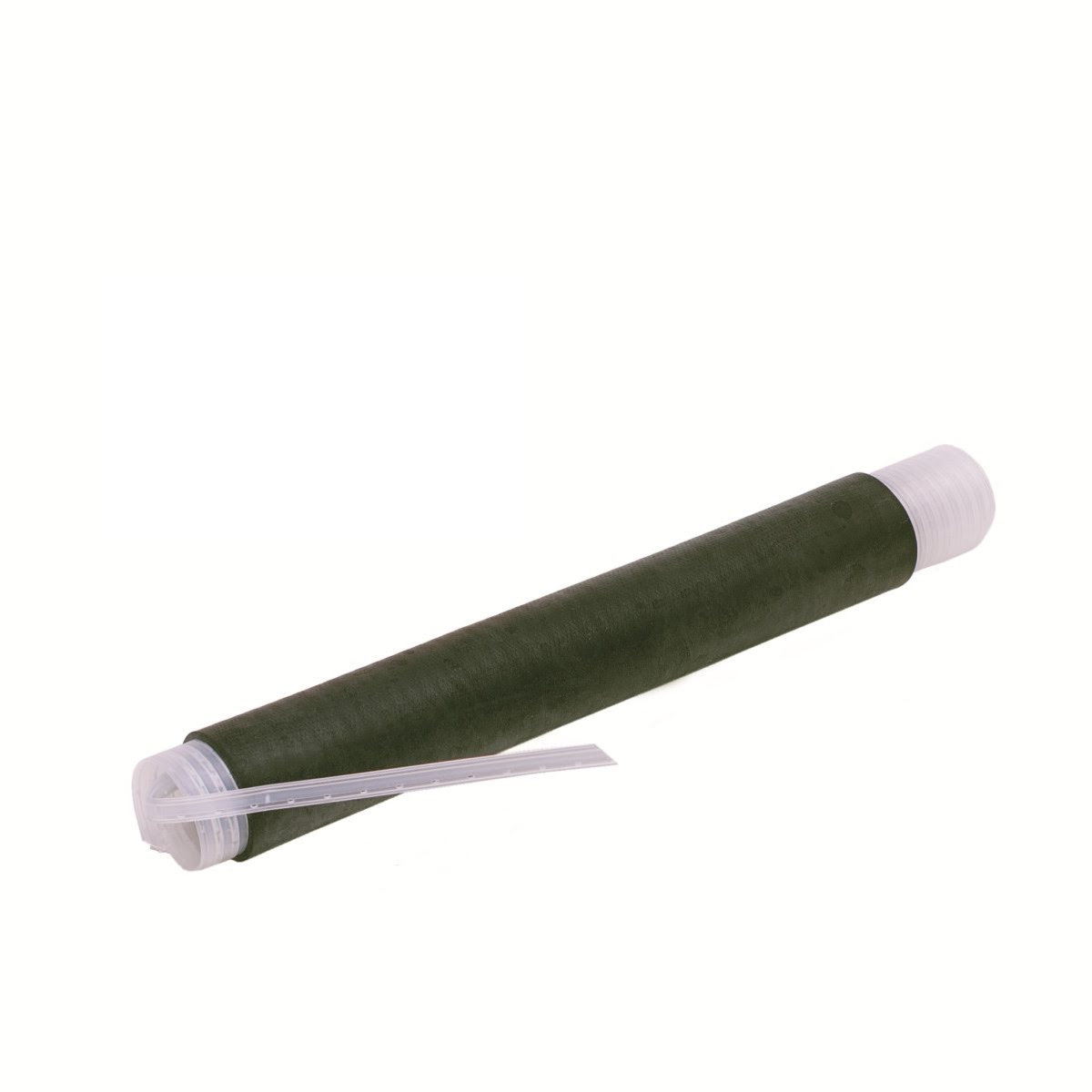

3M Cold Shrink Insulator 8424-8 is a factory-expanded EPDM rubber tube on a removable plastic core that provides primary insulation and a water-resistant environmental seal for cable connections and splices rated up to 1 kV. It installs by hand with no tools or heat and is suitable for indoor/outdoor, direct burial, and submersible applications.
3M 7000006124 Includes
- (10) - 3M 7000006124 8424-8 Cold Shrink Insulator, 10-1/0 AWG (6-16 mm)
3M 7000006124 Features
- Provides primary insulation for solid dielectric wires and secondary splices up to 1000 volts
- Cold shrink design installs by hand with no tools or heat
- EPDM rubber construction for durable environmental sealing
- Water-resistant seal meets ANSI C119.1 requirements
- Resists fluid splashes, acids, and alkalis
- Operating temperature range -40 Degree Fahrenheit to 194 Degree Fahrenheit
- Accommodates a variety of cable sizes for indoor, outdoor, direct burial, and submersible use
3M 7000006124 Specifications
| Part Number | 8424-8 |
| Product Type | Cold Shrink |
| Material | EPDM Rubber |
| Color | Black |
| Voltage Rating | 1 kV |
| Overall Length | 8.0 in |
| Inner Diameter Before Shrink | 0.823 in |
| Inner Diameter After Shrink | 0.098 in |
| Shrink Ratio | 2:1 |
| Minimum Operating Temperature | -40.0 Degree Fahrenheit |
| Maximum Operating Temperature | 194.0 Degree Fahrenheit |
| Conductor Material | Aluminum, Copper |
| Minimum Conductor Size | 10 AWG |
Toolup Part # :
860374
