3M 7000058805 Description

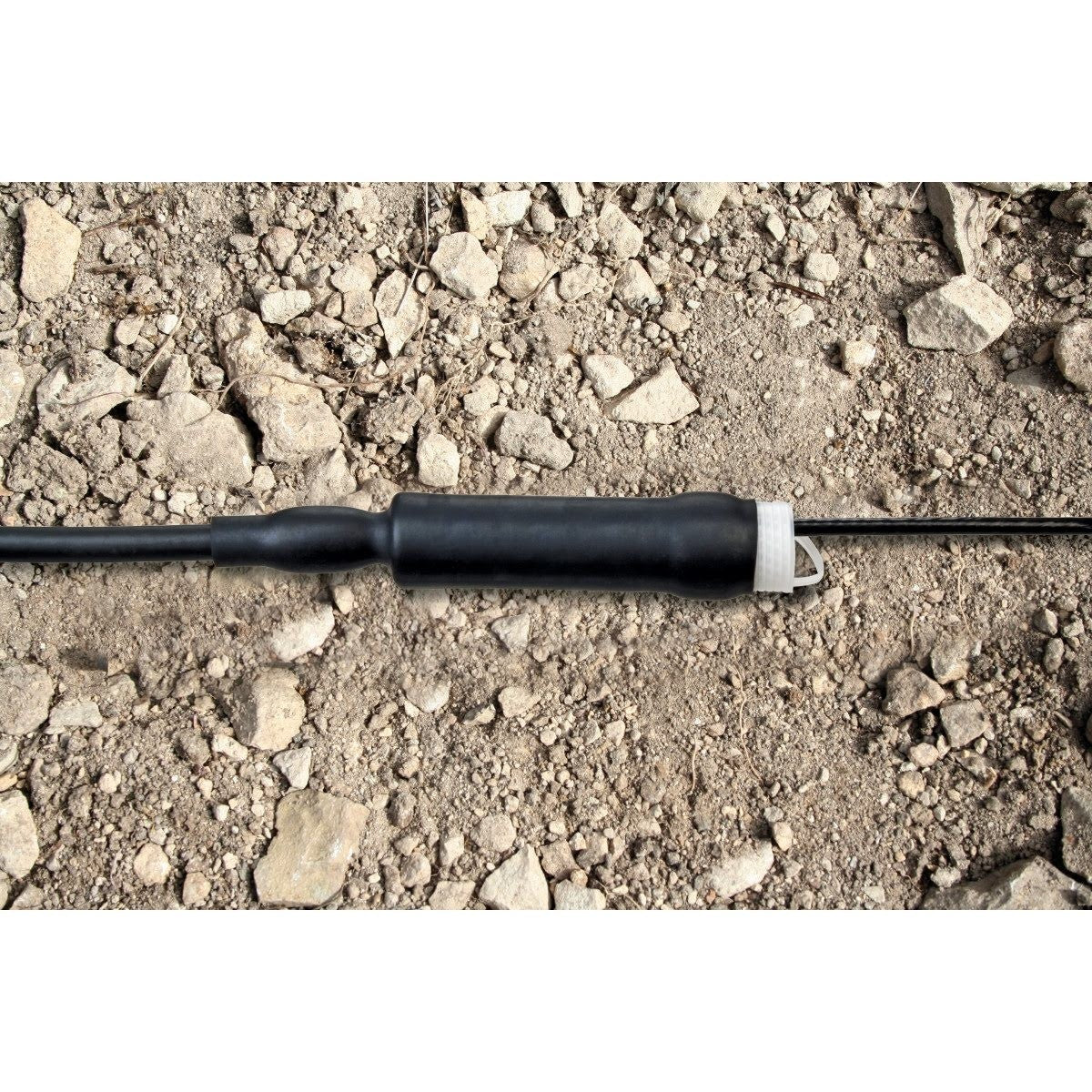

3M Cold Shrink Quick Splice Low Voltage QSLV-M is an open-ended EPDM rubber sleeve with sealing mastic designed for inline, non-shielded, low voltage power cable splices. The factory expanded cold shrink design installs without tools to provide a water-resistant seal and dependable electrical insulation in direct-bury and wet environments up to 1 kV.
3M 7000058805 Includes
- (10) - 3M 7000058805 Cold Shrink Quick Splice Low Voltage QSLV-M 2-500, Non-shielded, 1 kV (QSLV-M(2-500))
3M 7000058805 Features
- Cold shrink sleeve installs without tools
- EPDM rubber sleeve with sealing mastic provides a water-resistant seal
- For direct-bury secondary low voltage non-shielded cable splices
- Rated up to 1 kV applications
- Compatible with copper and aluminum conductors
- Resists water, acids, and alkalis with excellent wet electrical properties
- Operating temperature range -40 Degree C to 90 Degree C
3M 7000058805 Specifications
| Product type | Cold shrink splice |
| Splice type | Inline |
| Cable shielding | Non-shielded |
| Cable type | Power cable |
| Voltage rating | 1 kV |
| Color | Black |
| Conductor material | Aluminum, Copper |
| Insulation O.D. range | 0.40-1.60 in |
| Maximum connector length | 4.25 in |
| Minimum conductor size | 2 AWG |
| Maximum conductor size | 1000 kcmil Copper, 500 kcmil Aluminum |
Toolup Part # :
859924
