At a Glance
Length
1 in
Width
1 in
Material
ABS
Application
Electrical
Description
Description

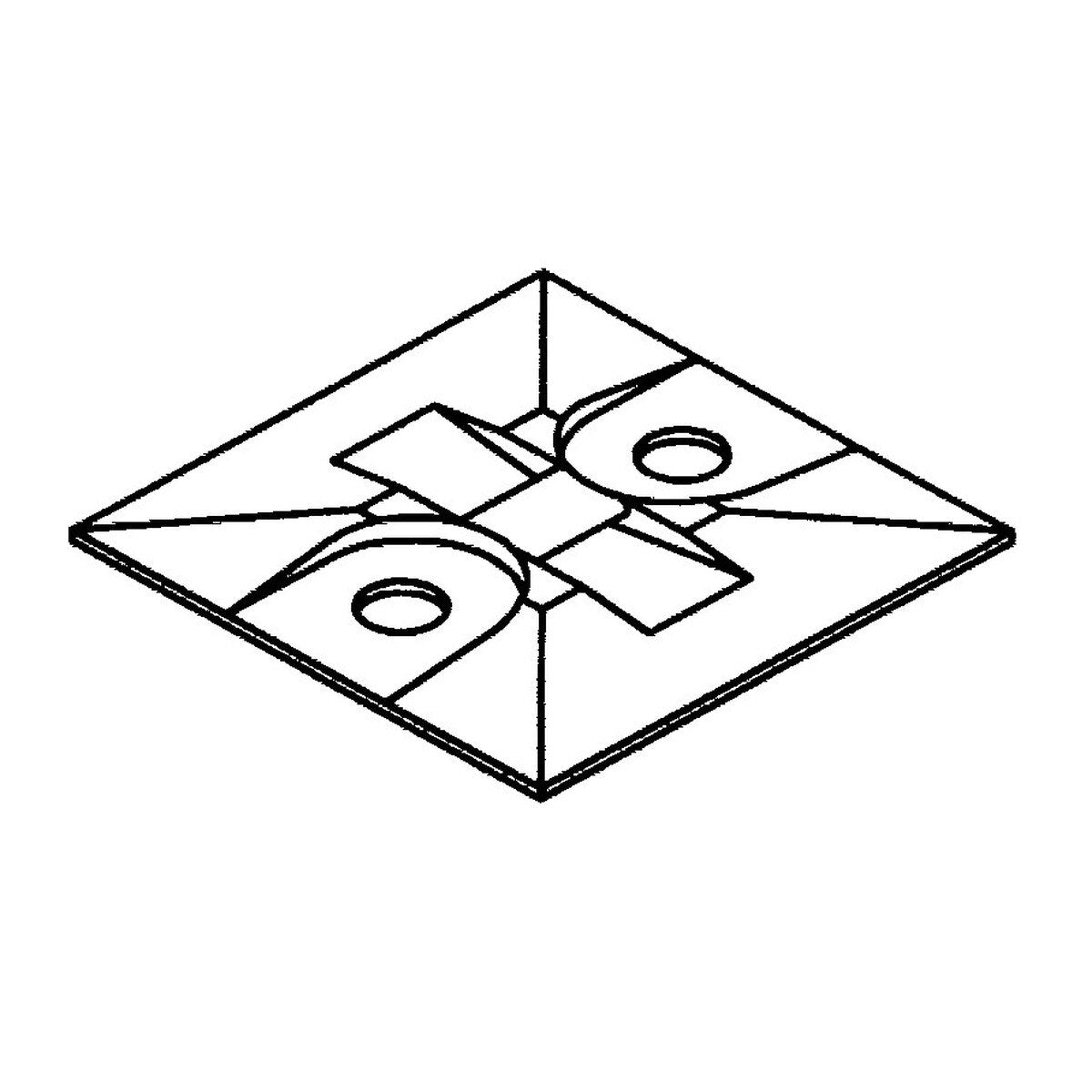

3M 7000132290 Description
This 3M cable tie mounting base provides a quick, secure way to mount wires and cables using a 2-way adhesive mount. Made from ABS and designed for use with miniature, intermediate, and standard cable ties.
3M 7000132290 Includes
- (500) Cable Tie Mounting Base CTB1X1BGA-C
3M 7000132290 Features
- Makes mounting wires and cables quick, easy and secure
- 2-way adhesive mount design
- For use with miniature, intermediate, and standard cable ties
- ABS construction
- Halogen free
- UL approved
- RoHS 2011/65/EU compliant
- Maximum operating temperature 85 Degree Celsius
3M 7000132290 Specifications
| Part Number | CTB1X1BGA-C |
| Mounting Option | 2-Way Adhesive Mount |
| Mount Type | Adhesive |
| Cable Tie Type | Base |
| Material | ABS |
| Color Family | Beige |
| For Use With | Miniature, Intermediate, & Standard Cable Ties |
| Halogen Free | Yes |
| UL Approval | Yes |
| Maximum Operating Temperature | 85 Degree Celsius |
| Overall Length | 1.0 in |
| Overall Width | 1.0 in |
| Cable Tie Base Height | 0.15 Inch |
| Cable Tie Base Length | 1.0 in |
| Cable Tie Base Width | 1.2 Inch |
| Slot Height | 0.06 in |
| Slot Width | 0.21 in |
| Case Quantity | 500 |
Toolup Part # :
849221
