3M 7000133582 Description

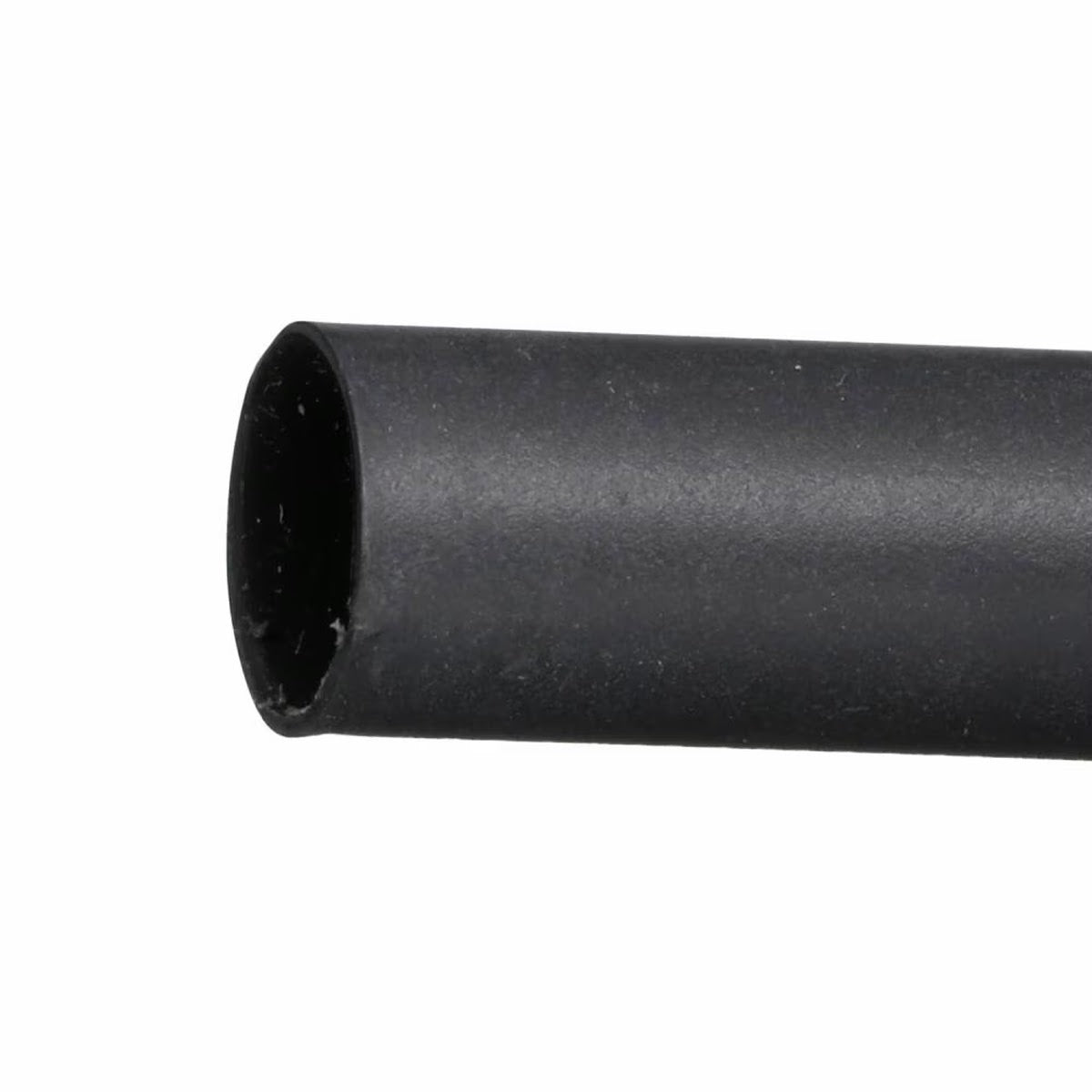

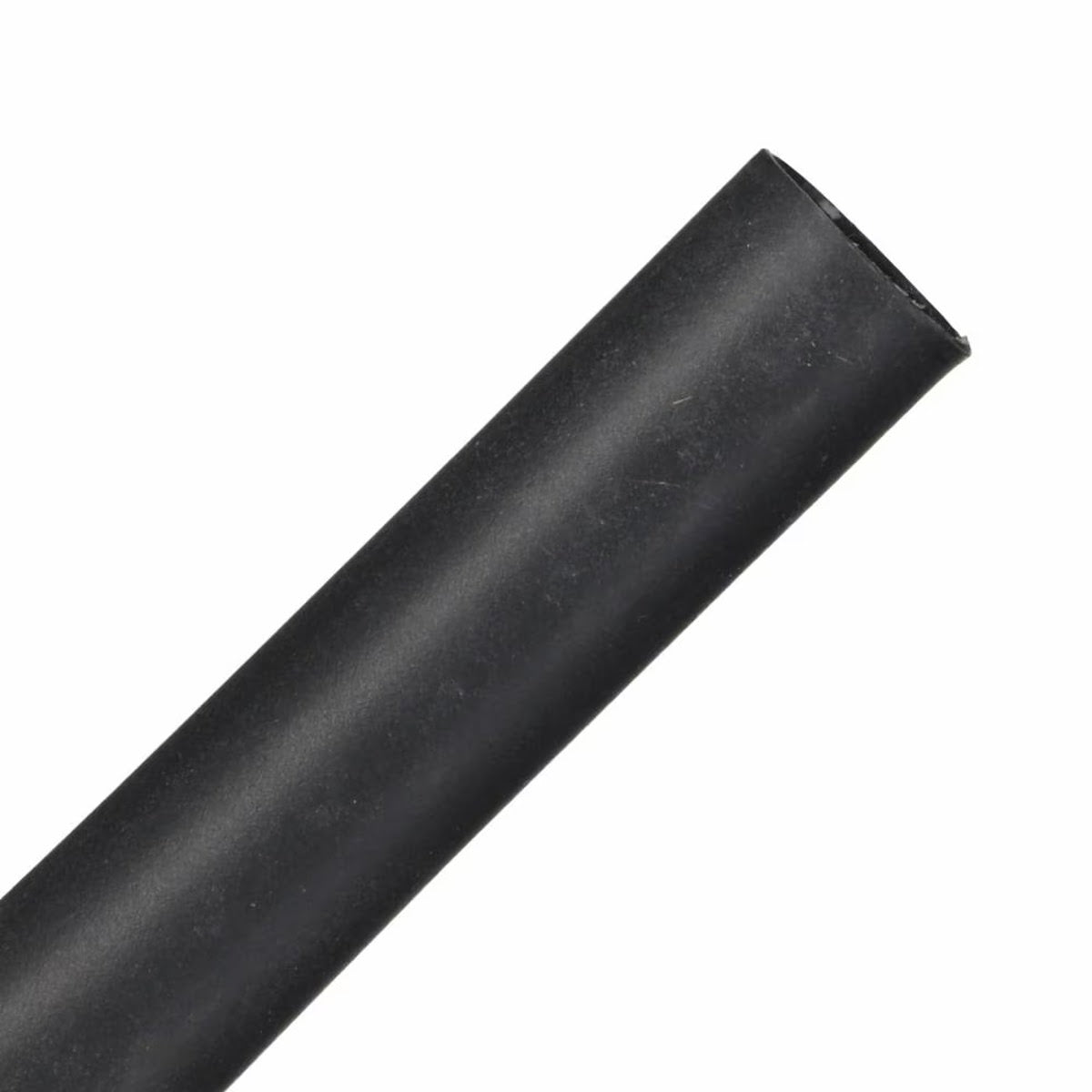

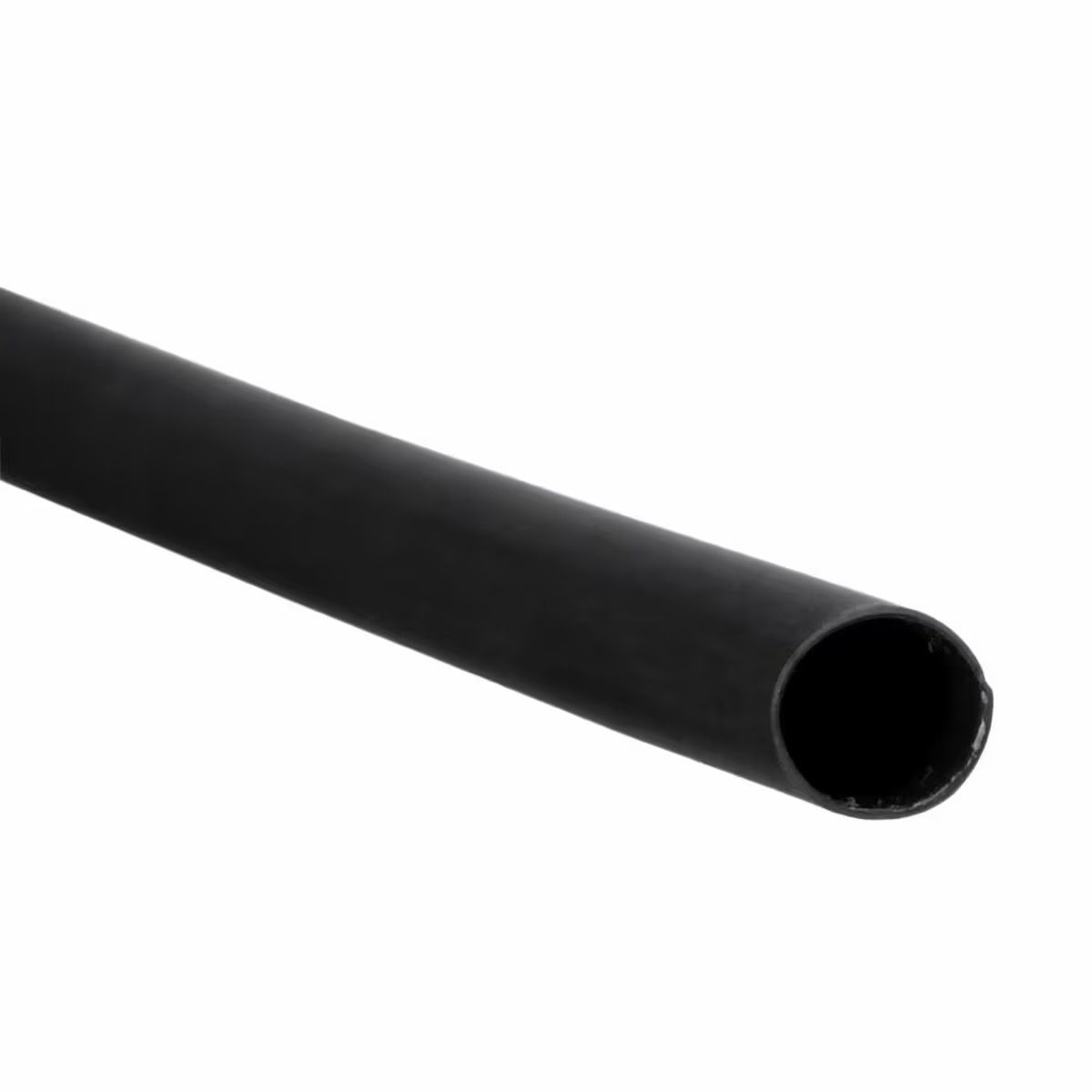

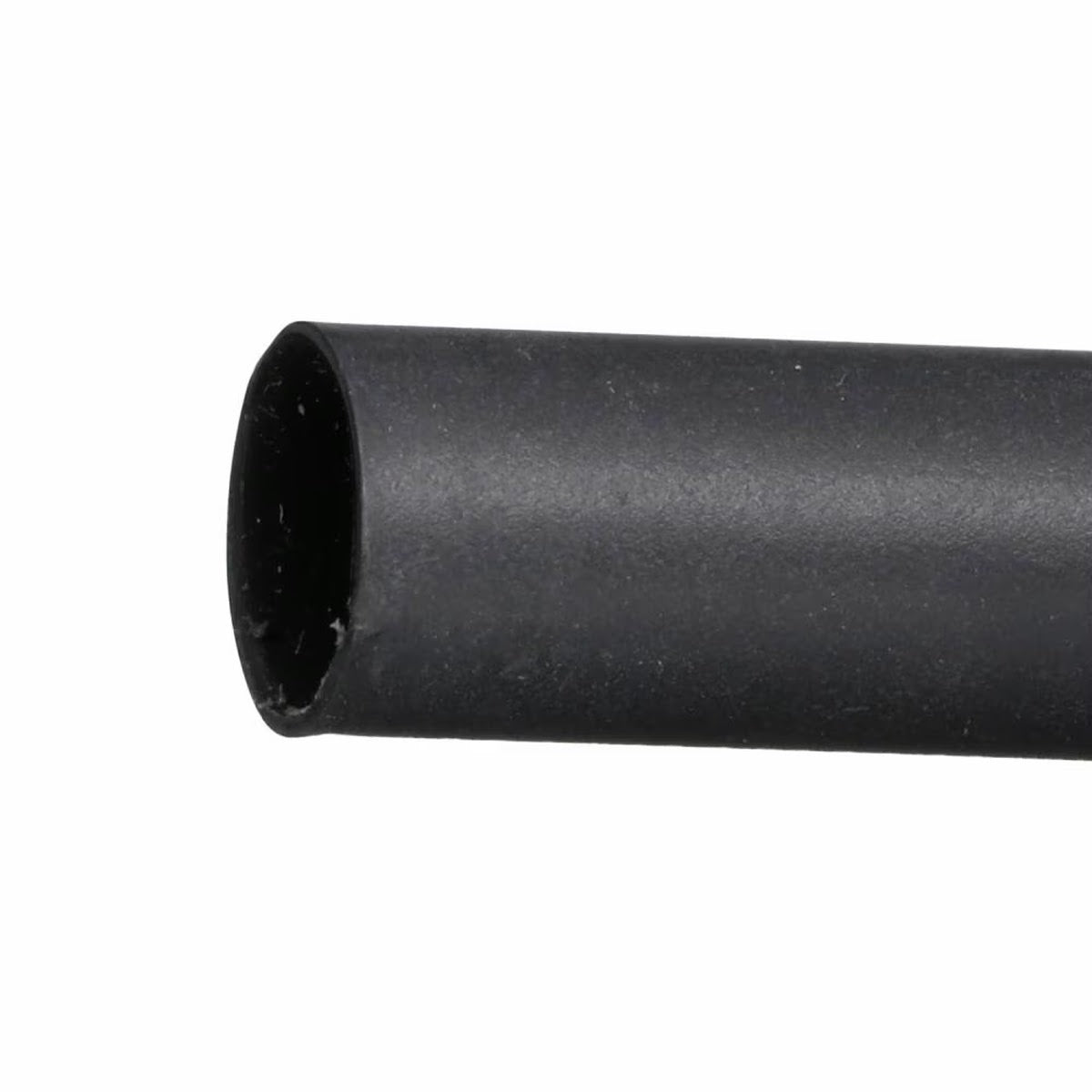

3M EPS-300 thin-wall heat shrink tubing is a dual-wall, adhesive-lined polyolefin tubing designed to provide abrasion resistance and a moisture-resistant seal for wire splices, bundles, and harness breakouts. With a 3:1 shrink ratio and flame-retardant construction, it is suitable for 600V rated electrical insulation in demanding automotive and marine applications.
3M 7000133582 Includes
- (1) 3M EPS-300 Thin-Wall Adhesive-Lined Heat Shrink Tubing Stick, 3/8 in x 48 in, Black
3M 7000133582 Features
- Dual-wall (adhesive-lined) construction helps provide moisture seal protection
- 3:1 shrink ratio for tight fit over irregular shapes and connectors
- Flame-retardant polyolefin tubing for electrical insulation
- Rated for 600V applications
- Abrasion-resistant outer wall with internal thermoplastic adhesive layer
- Operating temperature range: -67 to 230 Degree Fahrenheit (-55 to 110 Degree Celsius)
- UL Listed, CSA Certified, and RoHS 2011/65/EU compliant (per product data)
3M 7000133582 Specifications
| Product Type | Heat Shrink Tubing |
| Series | EPS-300 |
| Tubing Type | Dual Wall (Adhesive Lined) |
| Heat Shrink Type | Adhesive-Lined Polyolefin Heat Shrink Tubing |
| Color | Black |
| Overall Length | 48 in |
| Expanded Inner Diameter (Before Shrink) | 0.375 in |
| Recovered Inner Diameter (After Shrink) | 0.12 in |
| Shrink Ratio | 3:1 |
| Voltage Rating | 600V |
| Flame Retardant | Yes |
| Material | Polyolefin |
| Operating Temperature Range | -67 to 230 Degree Fahrenheit |
| Elongation | 450 % |
| Tensile Strength | 2100 psi |
| Part Number | E30.375BK48S |
Toolup Part # :
847691
