3M 7000133583 Description

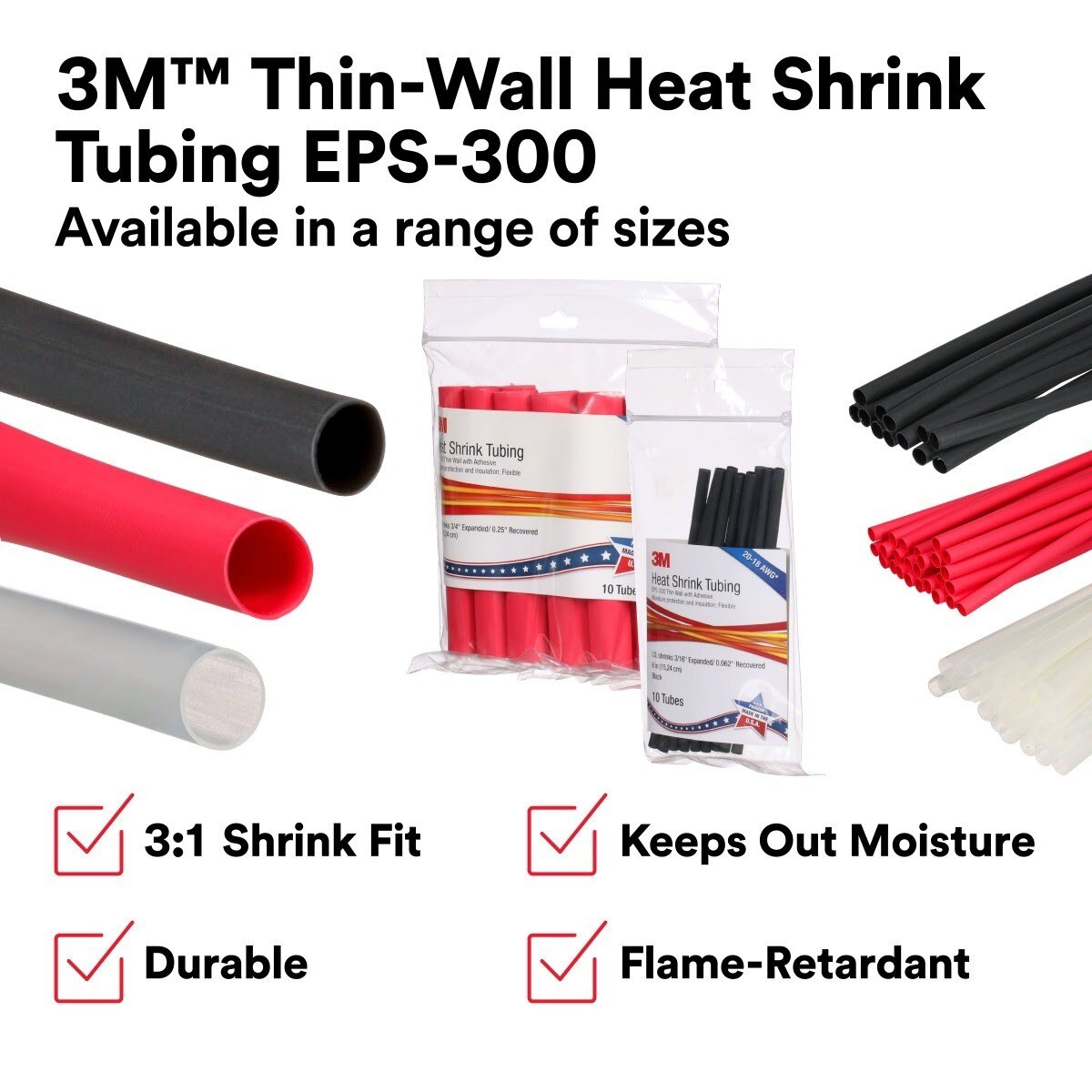

3M Thin-Wall Heat Shrink Tubing EPS-300 is a dual wall, adhesive-lined polyolefin tubing designed to provide insulation and moisture sealing for 600V applications. The 3:1 shrink ratio helps deliver a secure fit for wire splices, bundles, and harness breakouts in automotive, marine, and electronic uses.
3M 7000133583 Includes
- (12) 3M Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2 in x 48 in
3M 7000133583 Features

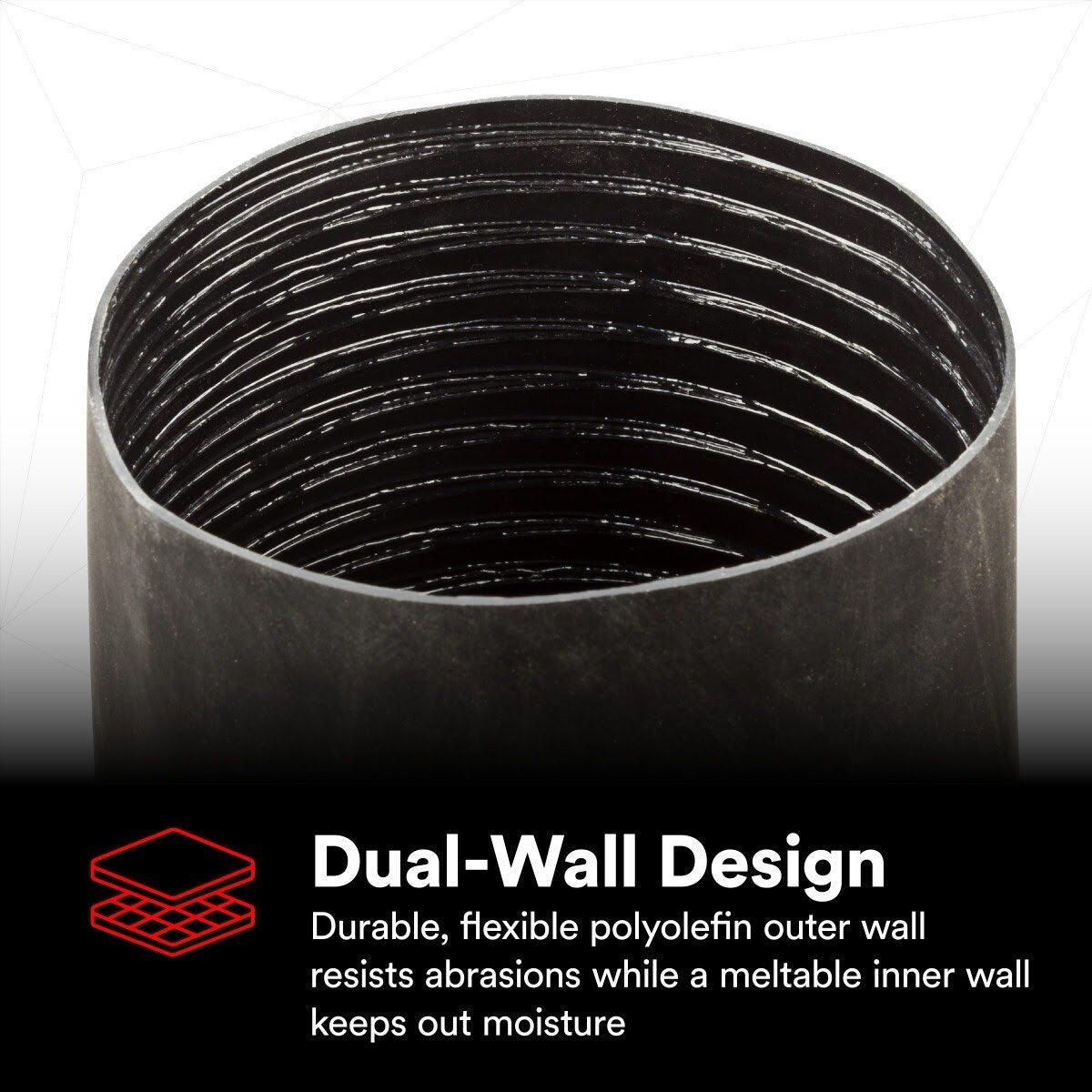

- Dual-wall adhesive-lined tubing helps provide moisture-seal protection

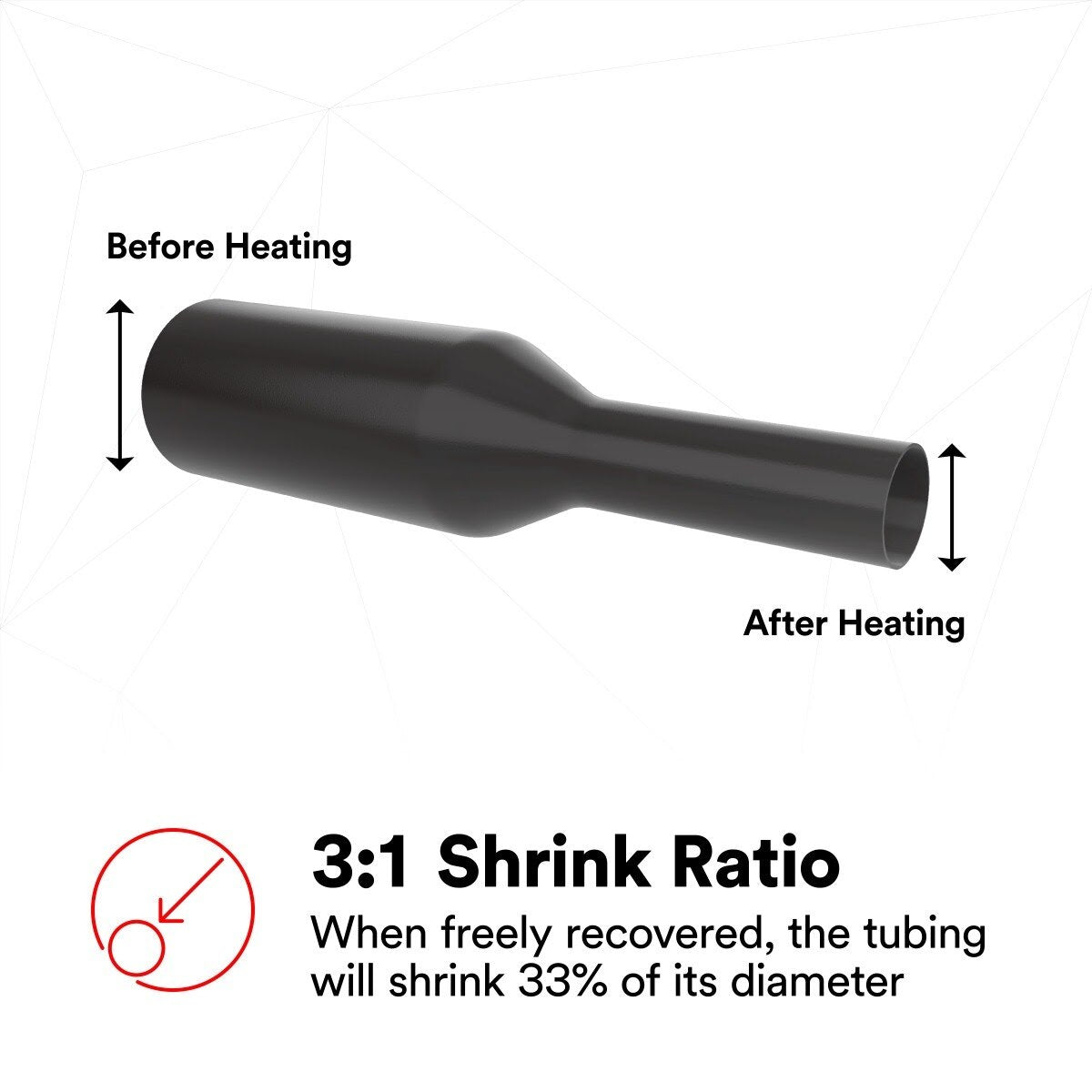

- 3:1 shrink ratio for a tight, secure fit

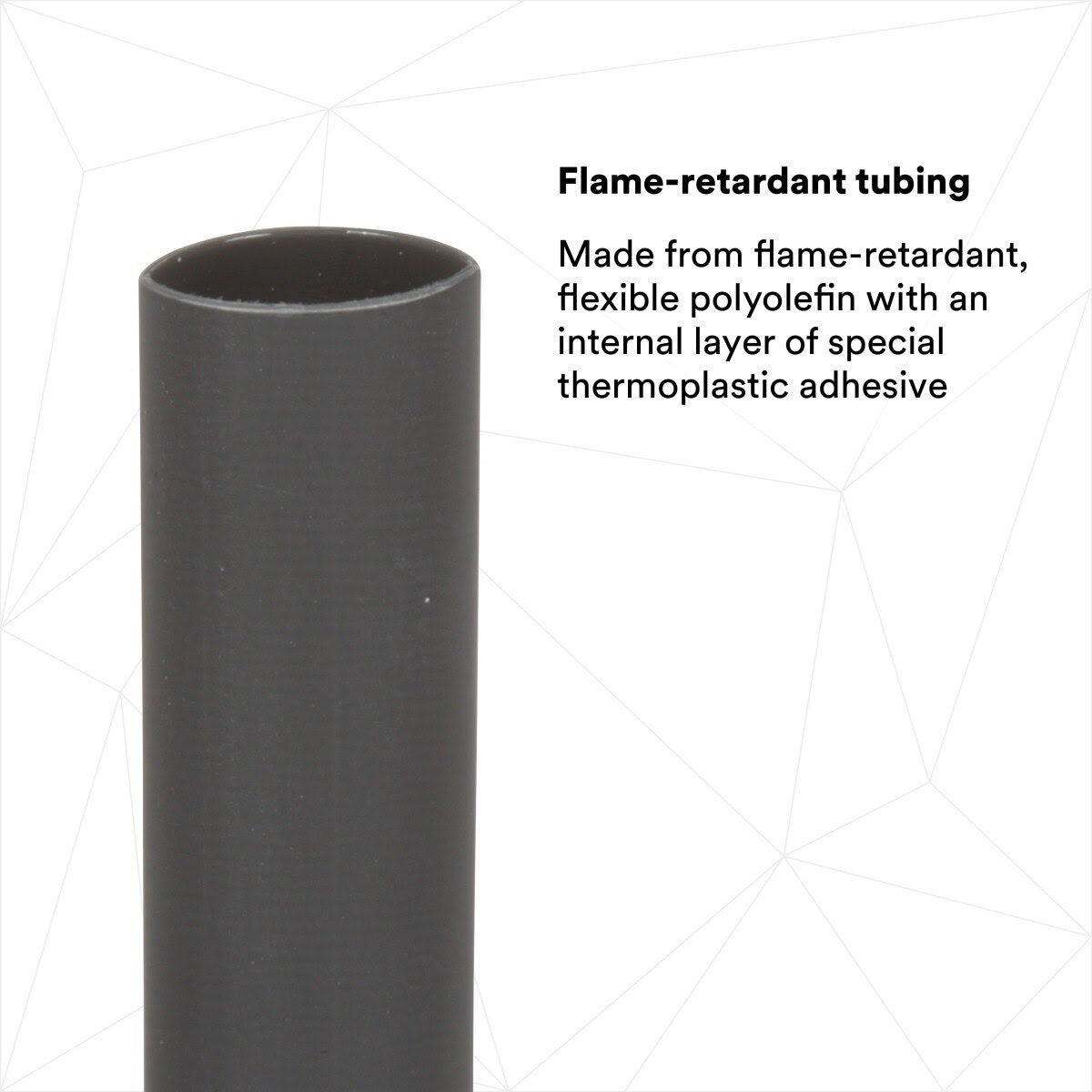

- Flame-retardant construction for added protection

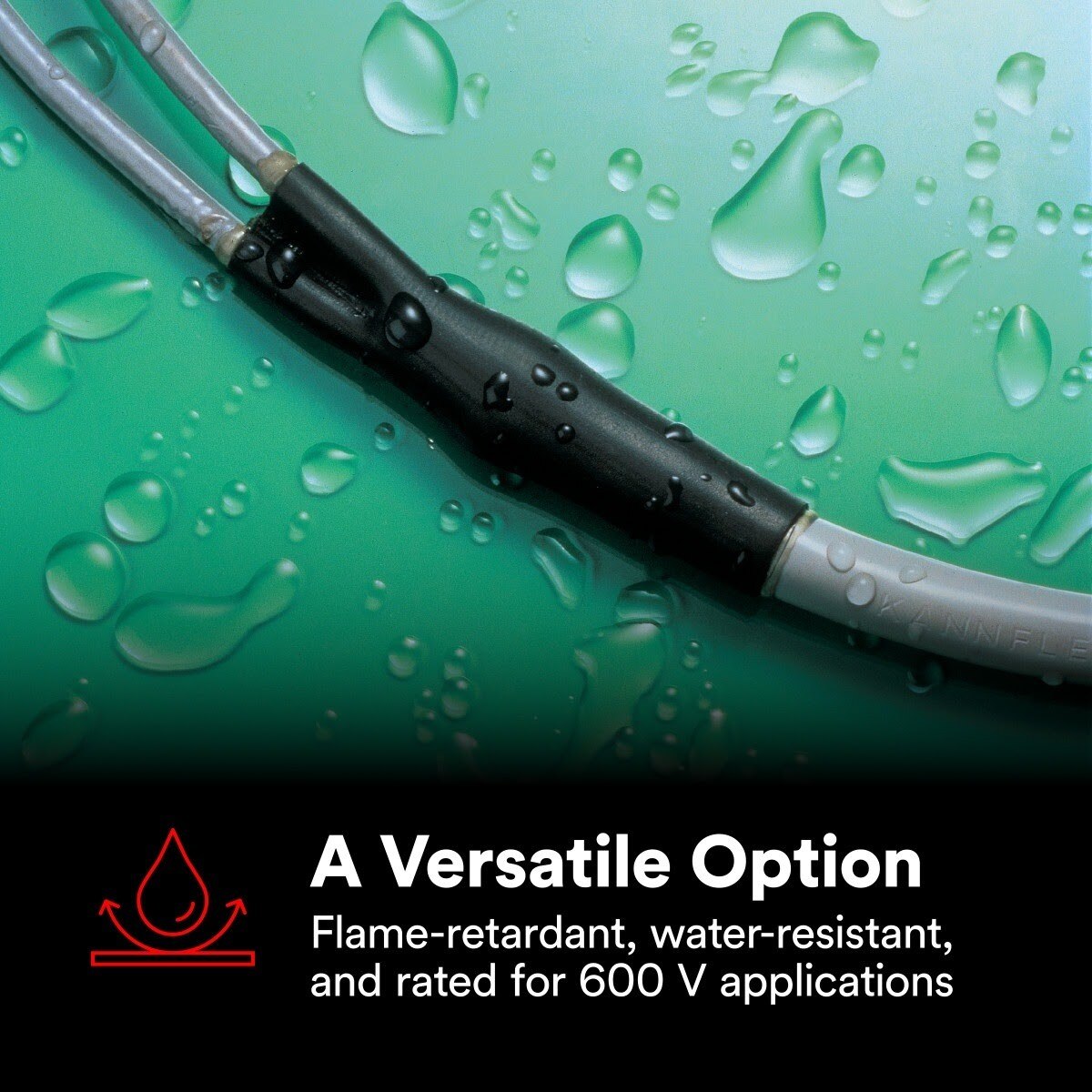

- Rated for 600V insulation applications
- Flexible polyolefin material
- Helps provide abrasion resistance and strain relief

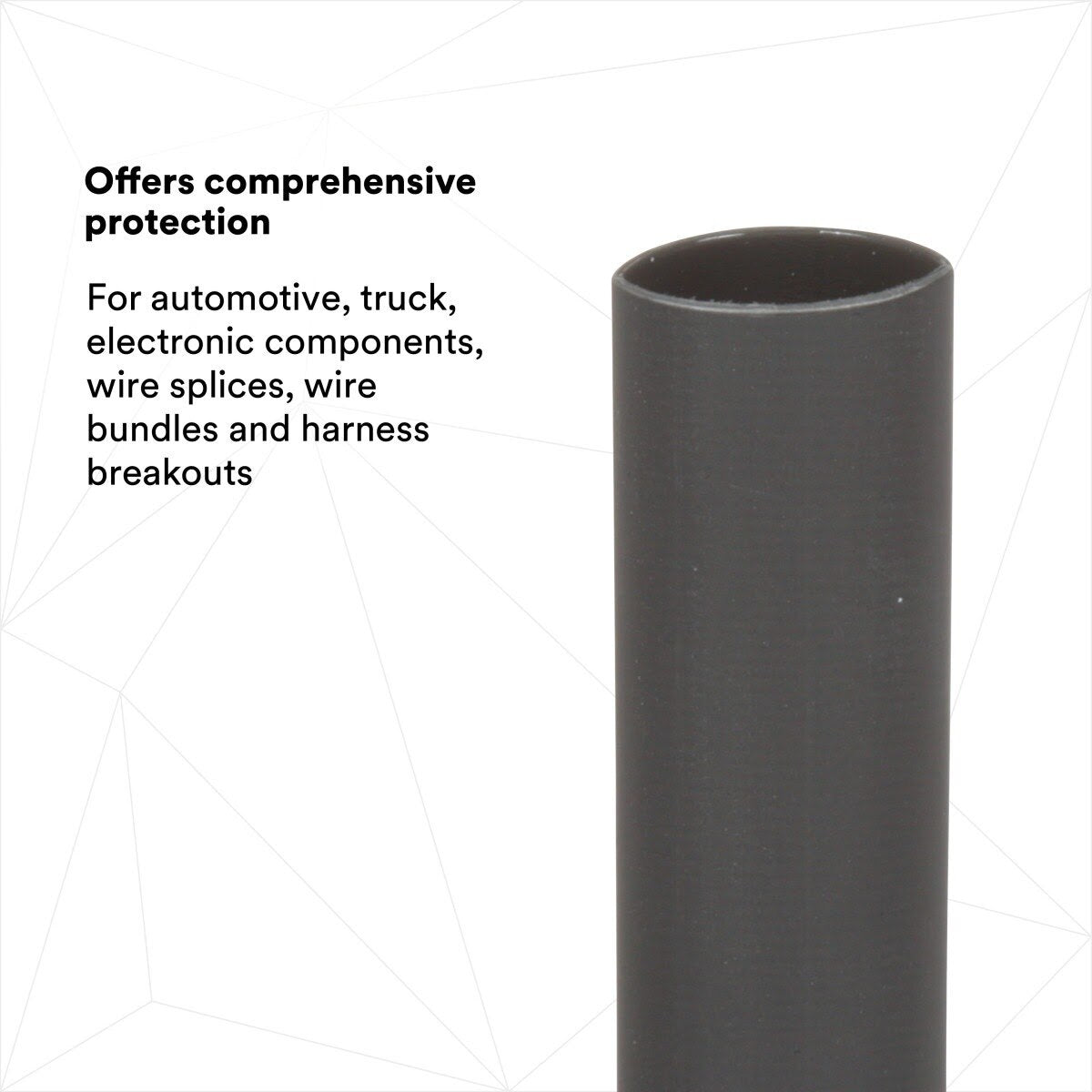

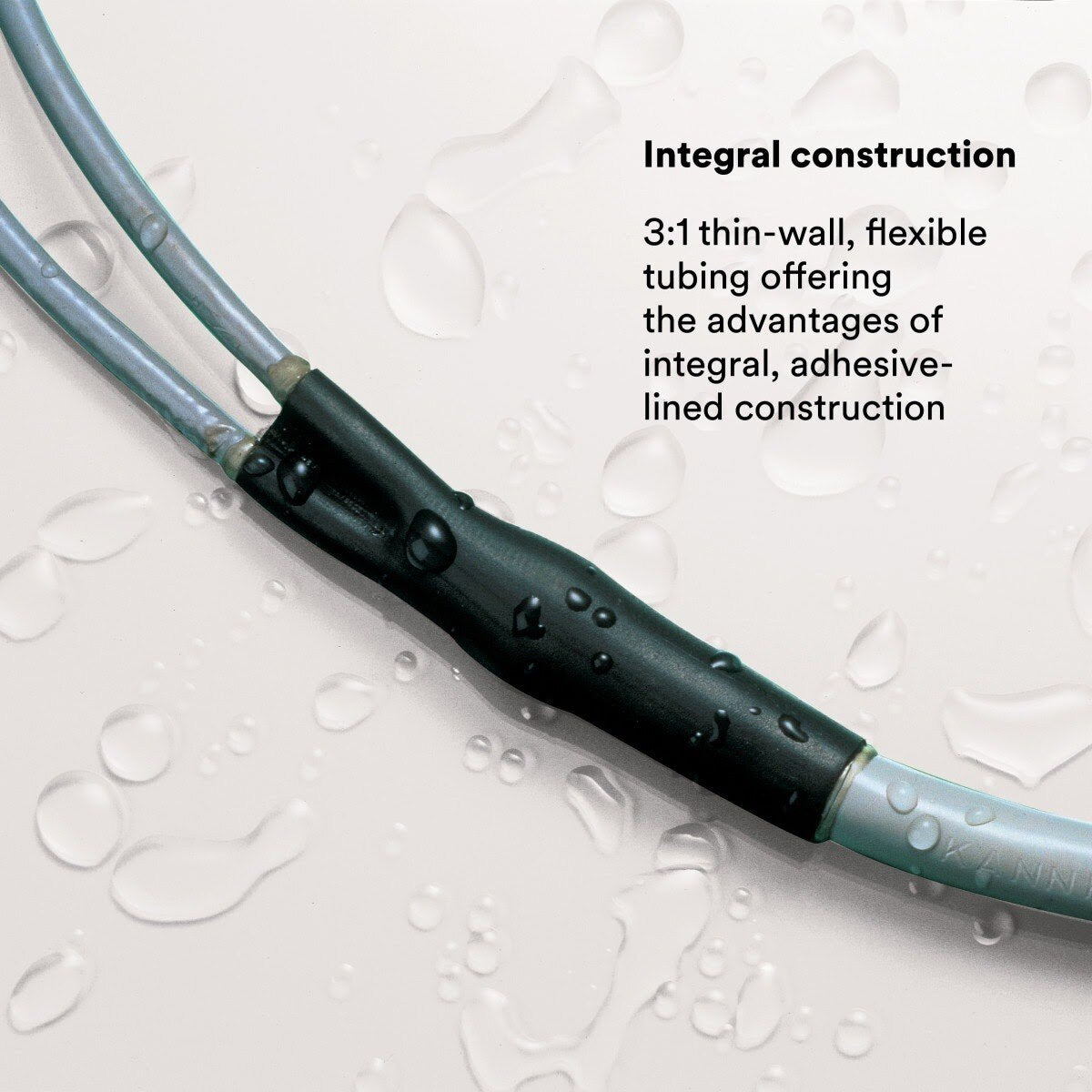

- Suitable for wire splices, bundles, and harness breakouts

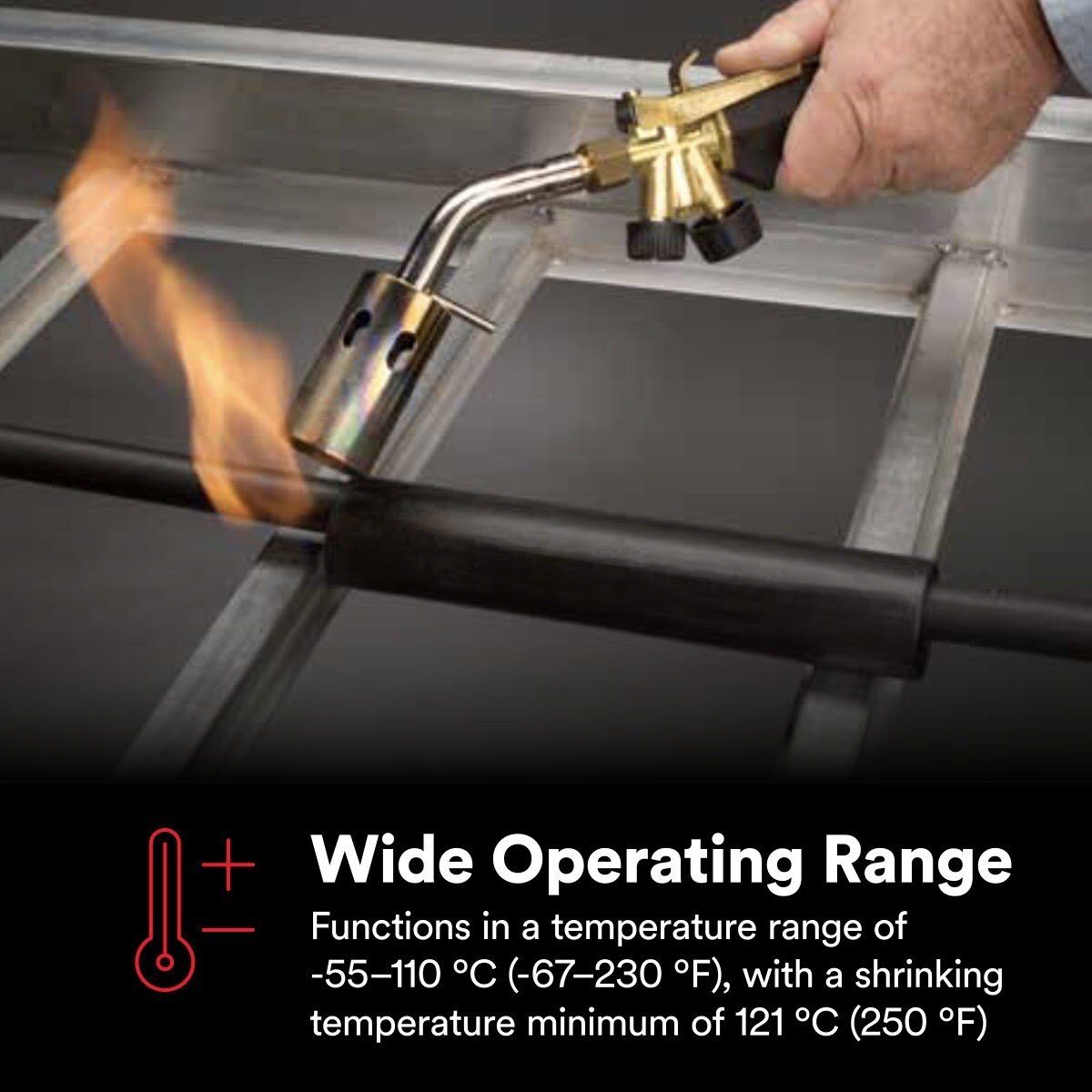

- Operating temperature range -67 to 230 Degree F (-55 Degree C to 110 Degree C)

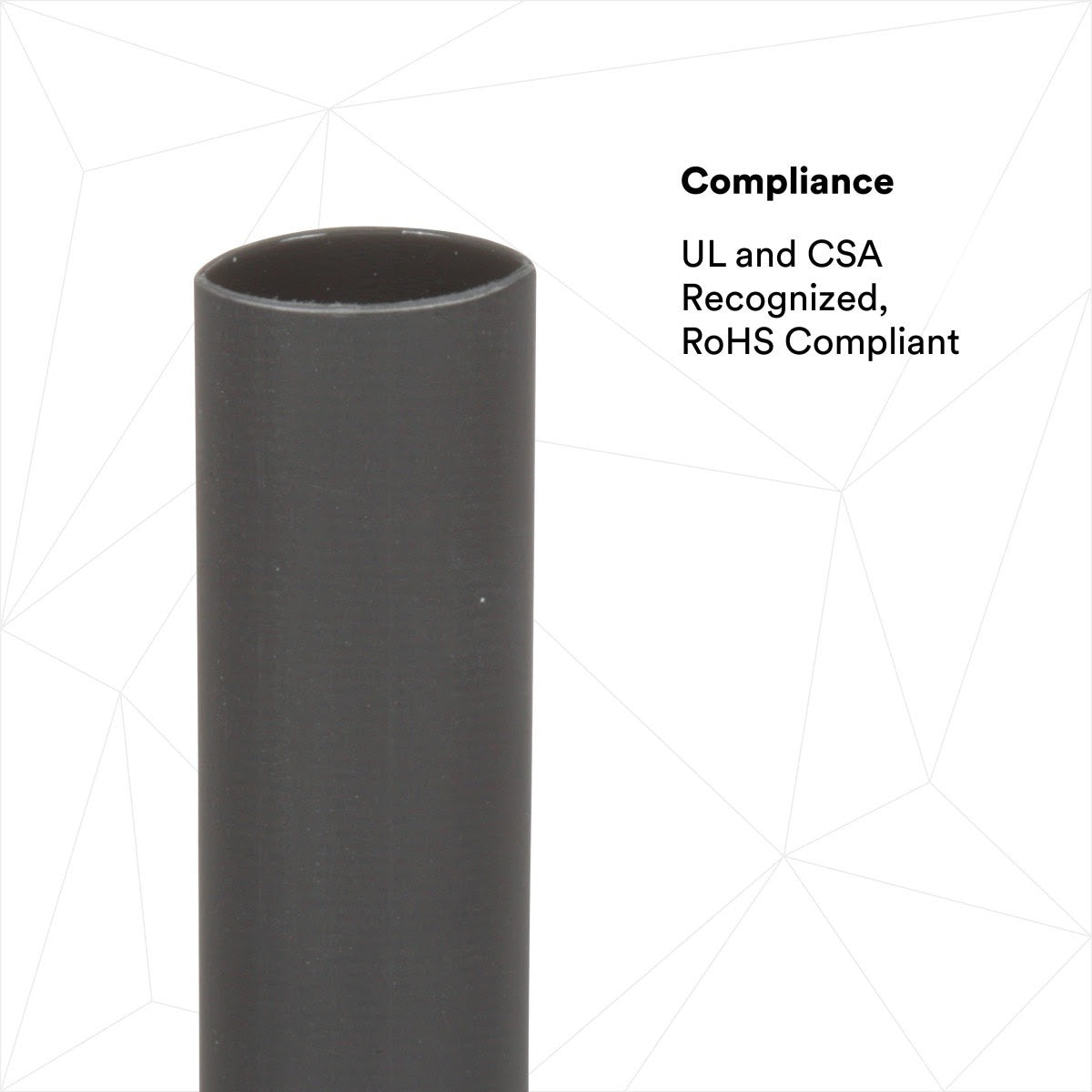

- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133583 Specifications
| Product Type | Heat Shrink Tubing |
| Series | EPS-300 |
| Tubing Type | Dual Wall (Adhesive Lined) |
| Heat Shrink Type | Adhesive-Lined Polyolefin Heat Shrink Tubing |
| Color | Black |
| Expanded Inner Diameter | 0.5 in |
| Recovered Inner Diameter | 0.16 in |
| Overall Length | 48 in |
| Shrink Ratio | 3:1 |
| Material | Polyolefin |
| Flame Retardant | Yes |
| Voltage Rating | 600V |
| Operating Temperature Range | -67 Degree F to 230 Degree F |
| Maximum Operating Temperature | 230 Degree Fahrenheit |
| Elongation | 450 percent |
| Tensile Strength | 2100 Pound-Force Per Square Inch |
| UL File Number | E-157227 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
