3M 7000133616 Description

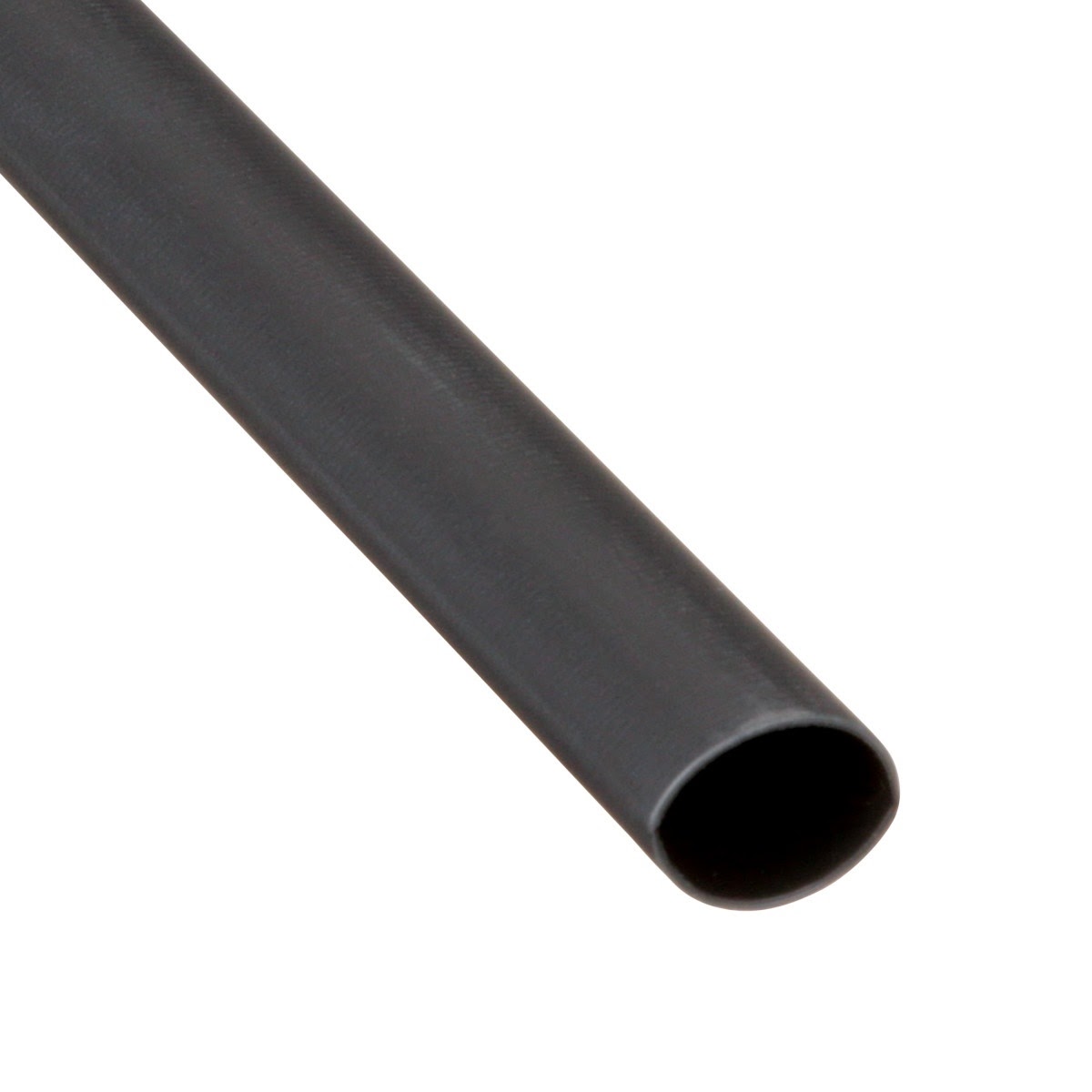

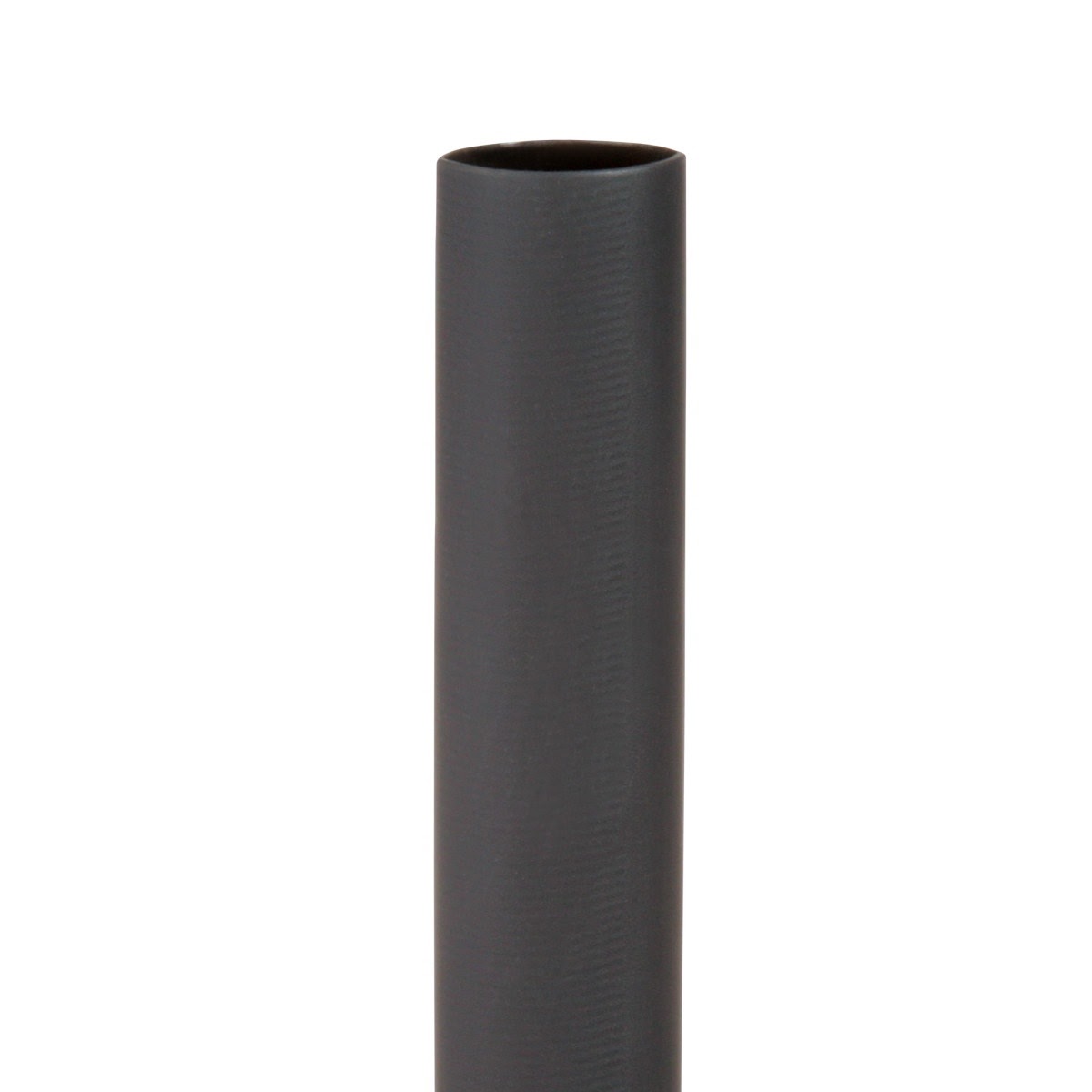

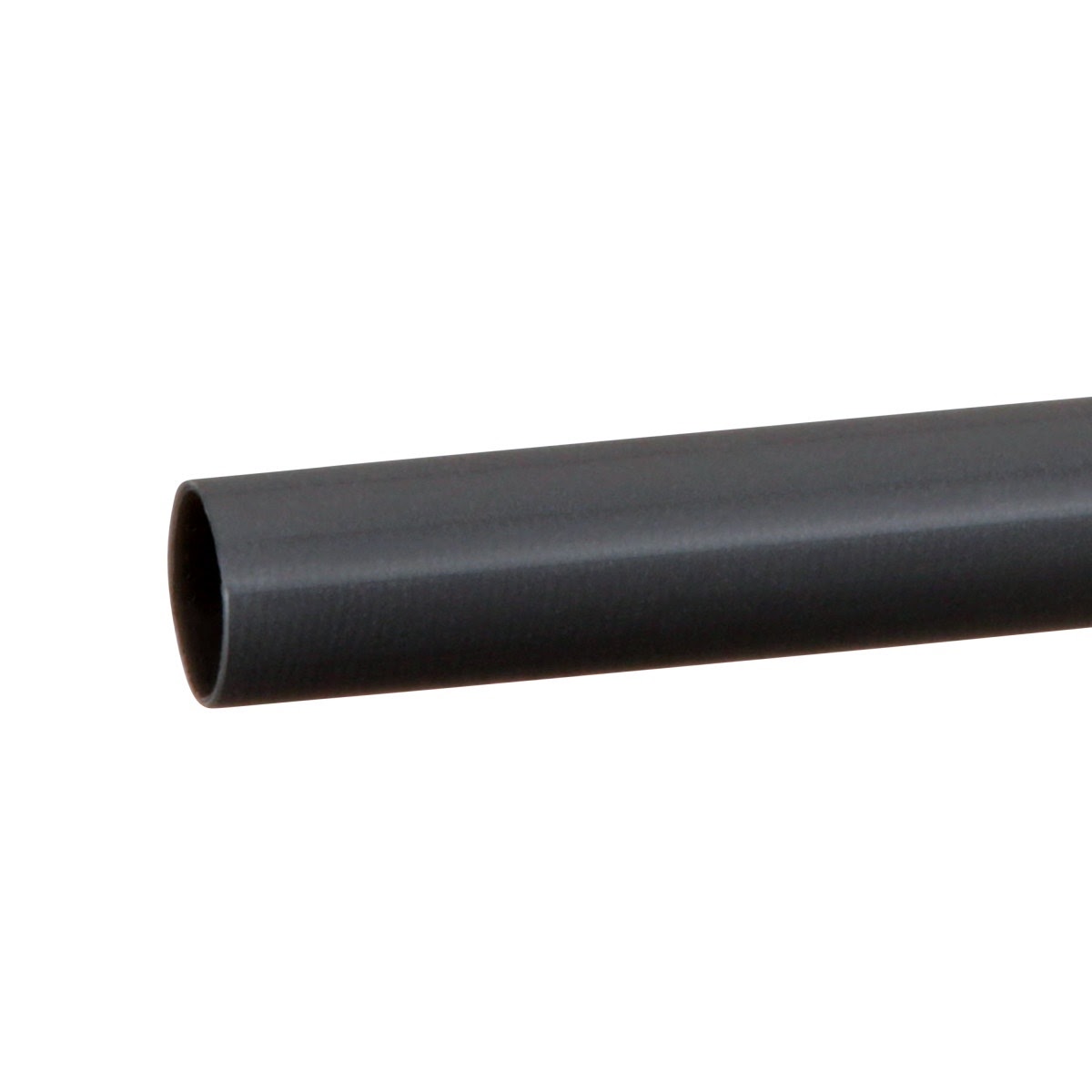

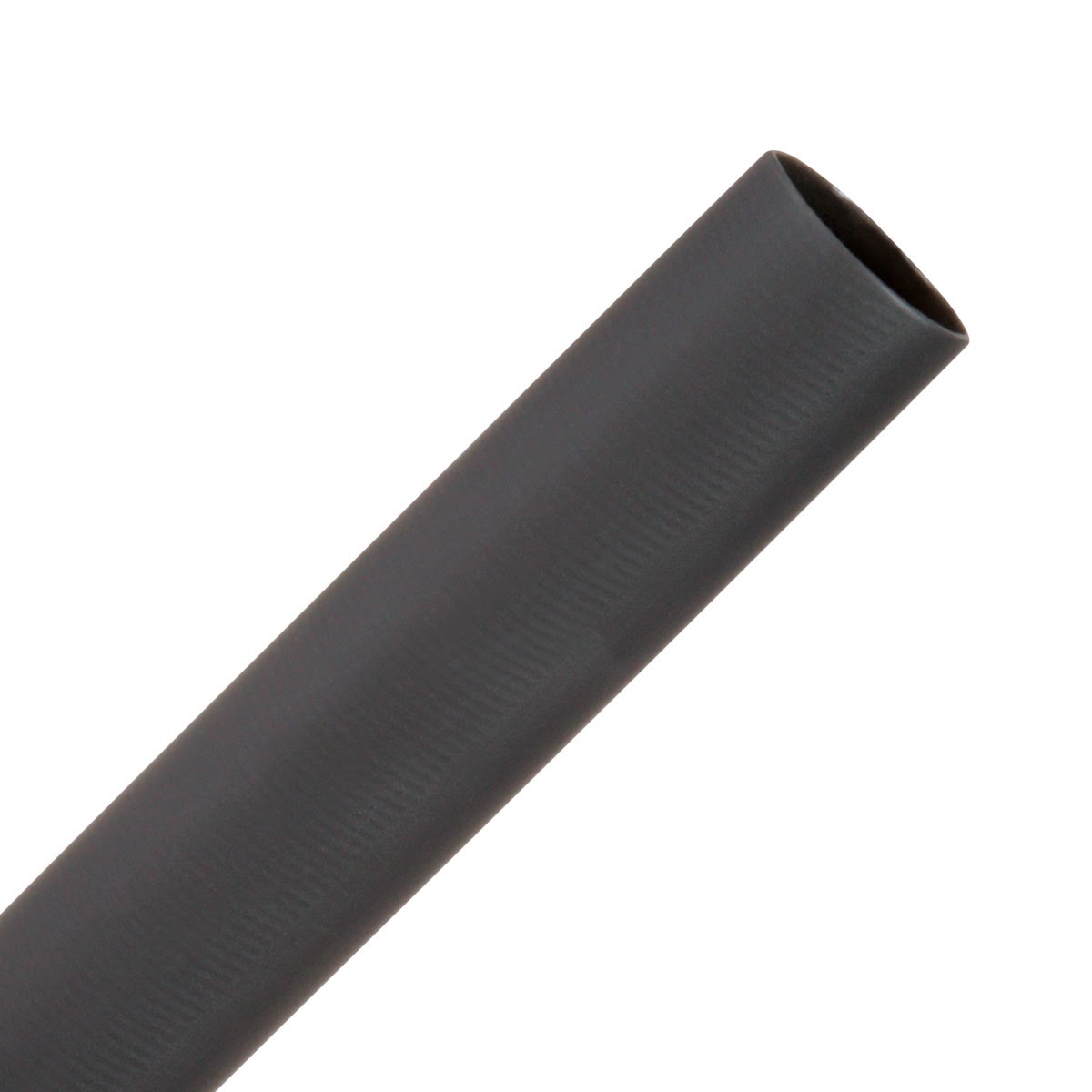

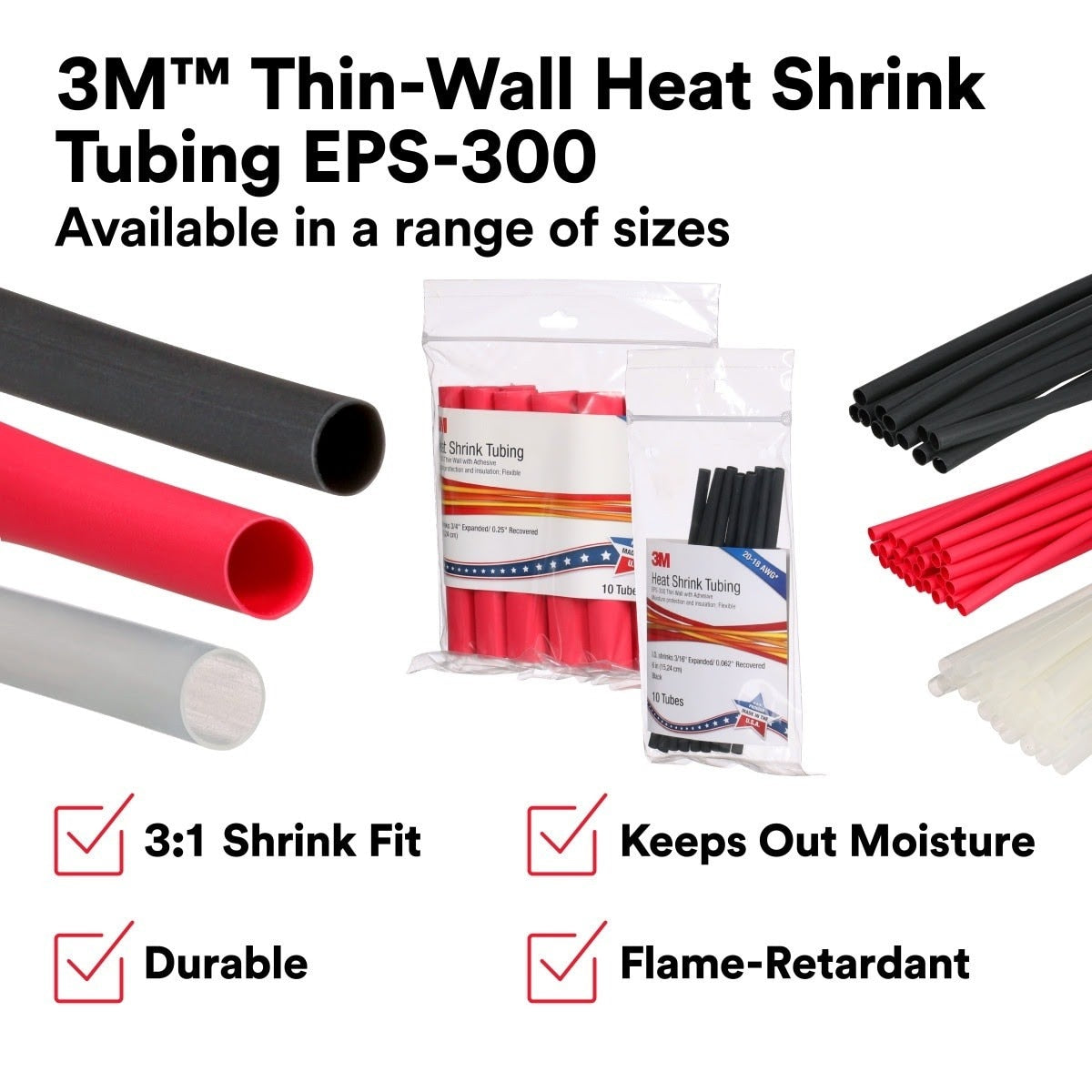

3M EPS-300 thin-wall heat shrink tubing is a dual-wall, adhesive-lined polyolefin tubing designed to insulate and seal wire splices and harness breakouts. It provides moisture resistance, abrasion protection, and a flame-retardant 3 to 1 shrink ratio for 600V rated applications.
3M 7000133616 Includes
- (75) - 3M 7000133616 Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2-Black-48"
3M 7000133616 Features

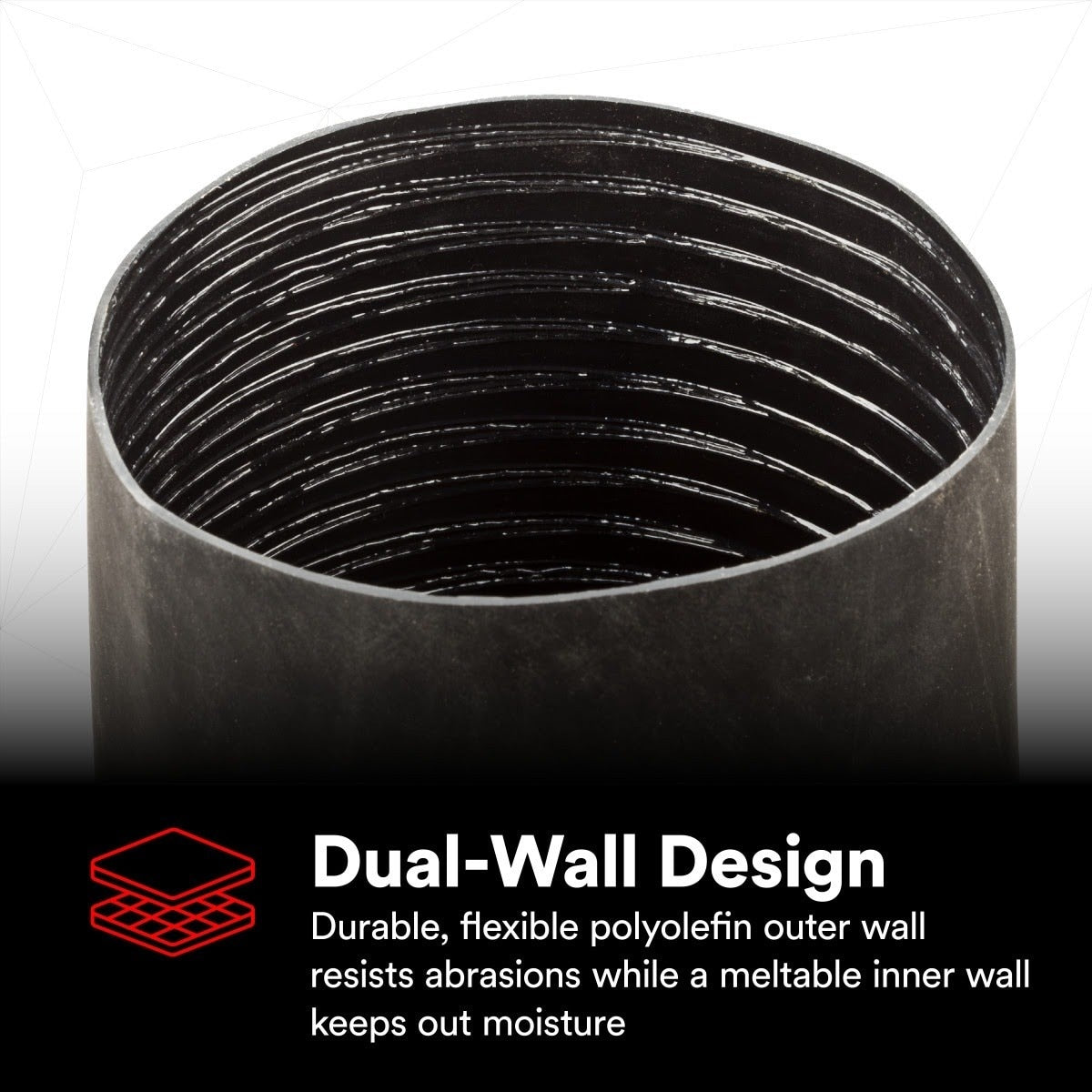

- Dual-wall adhesive-lined construction for moisture sealing
- Thin-wall flexible polyolefin tubing

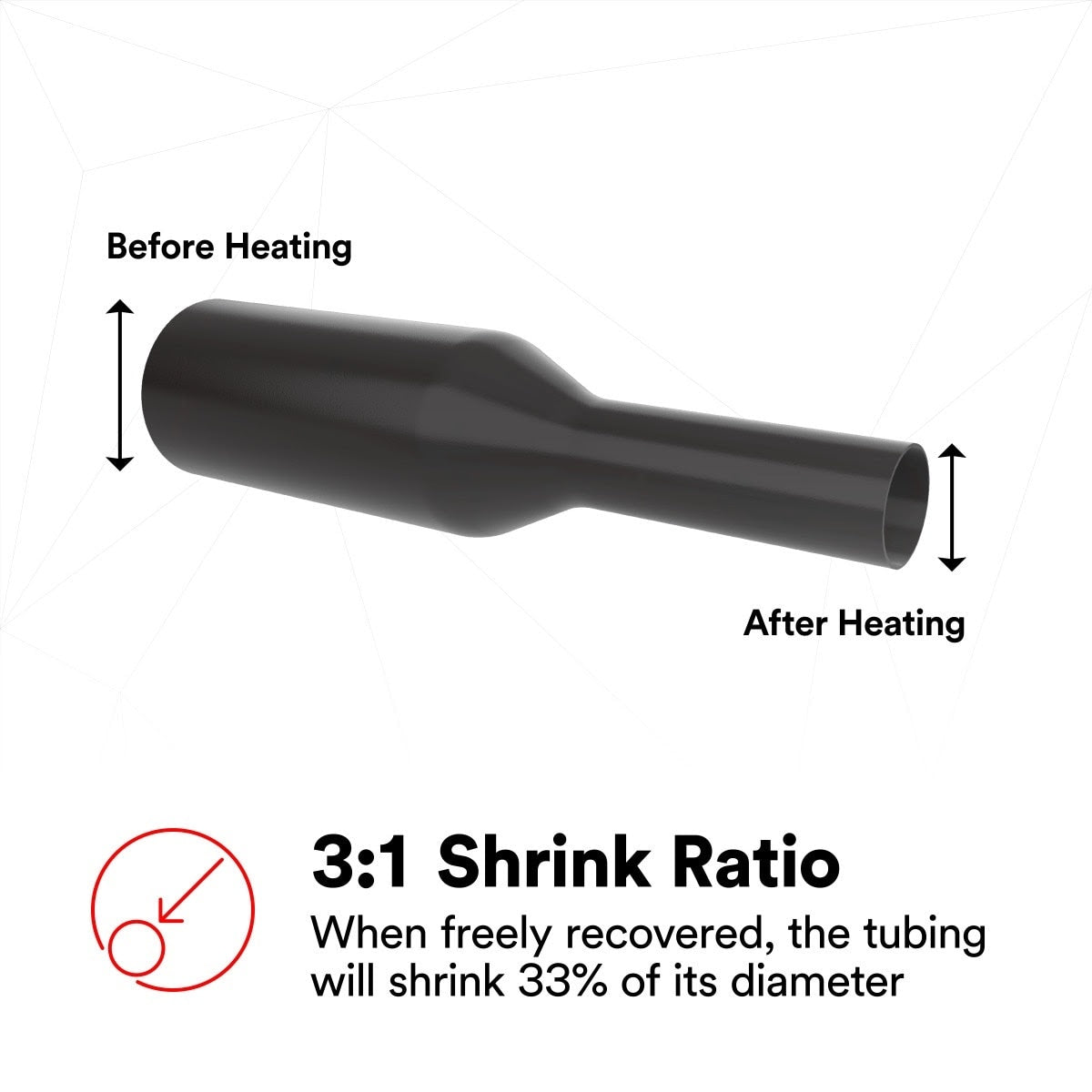

- 3 to 1 shrink ratio for tight, skintight fit
- Flame-retardant for 600V rated applications
- Abrasion-resistant outer wall

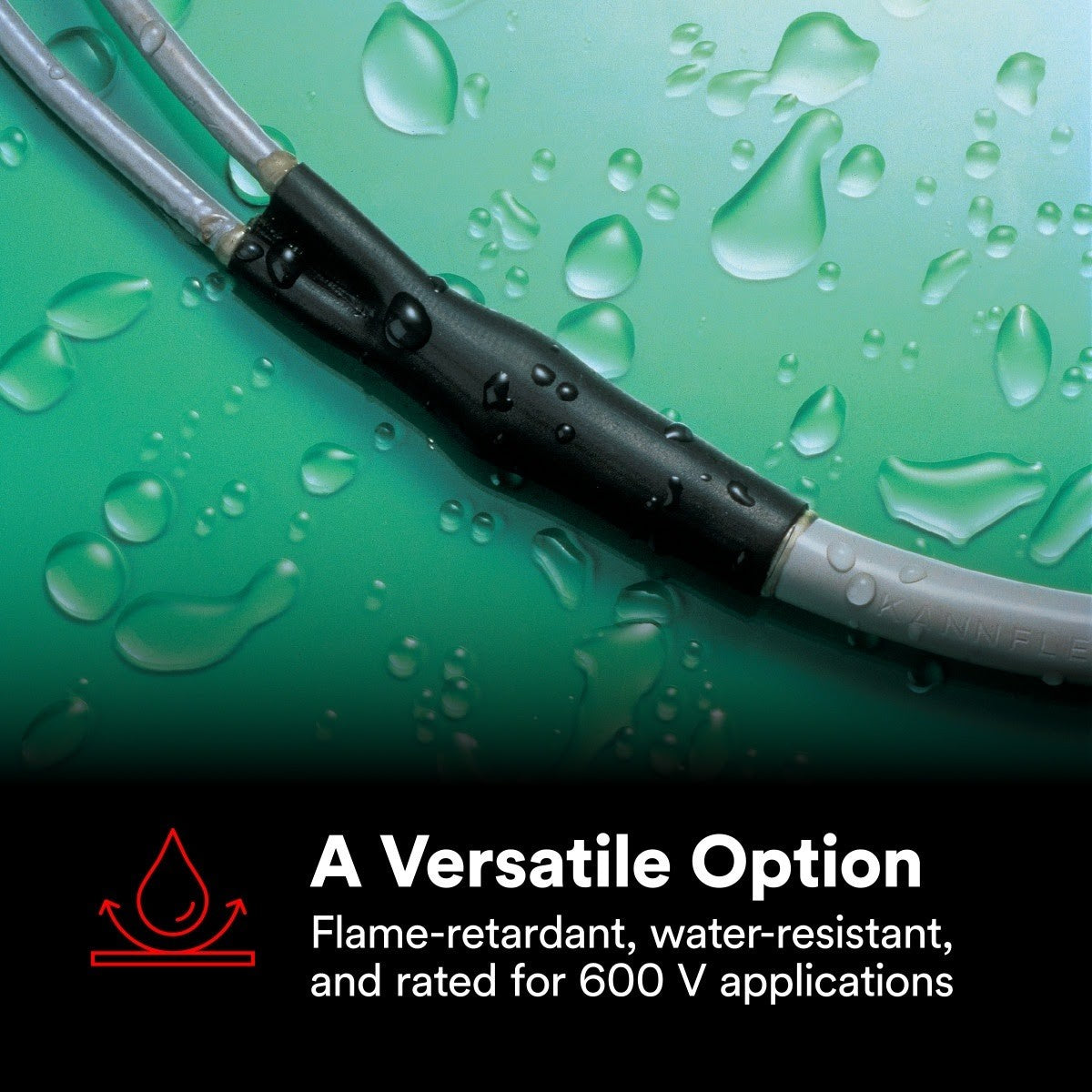

- Water-resistant barrier after recovery

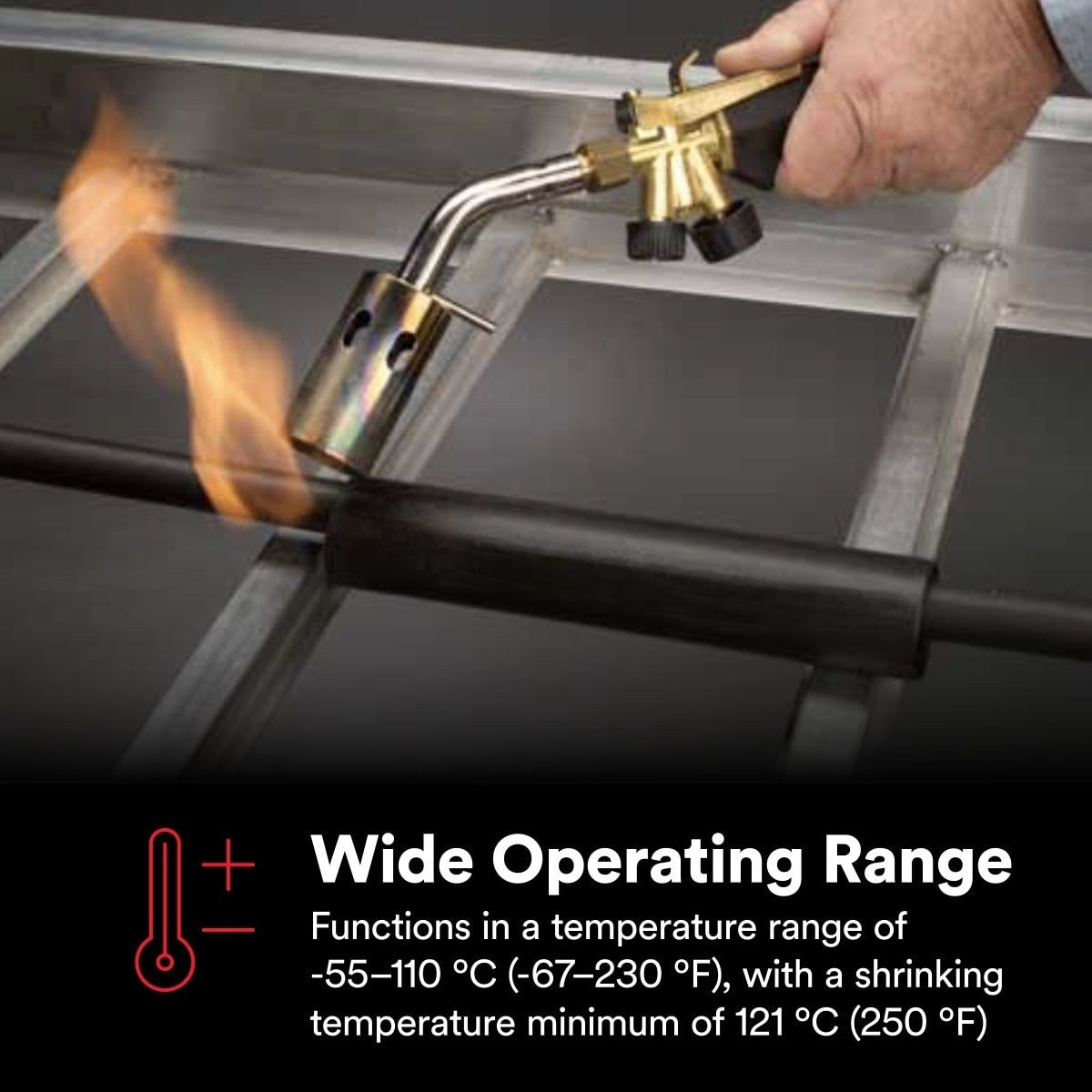

- Operating temperature range -67 Degree F to 230 Degree F (-55 Degree C to 110 Degree C)
- Suitable for wire splices, bundles, and harness breakouts
- Non-corrosive material

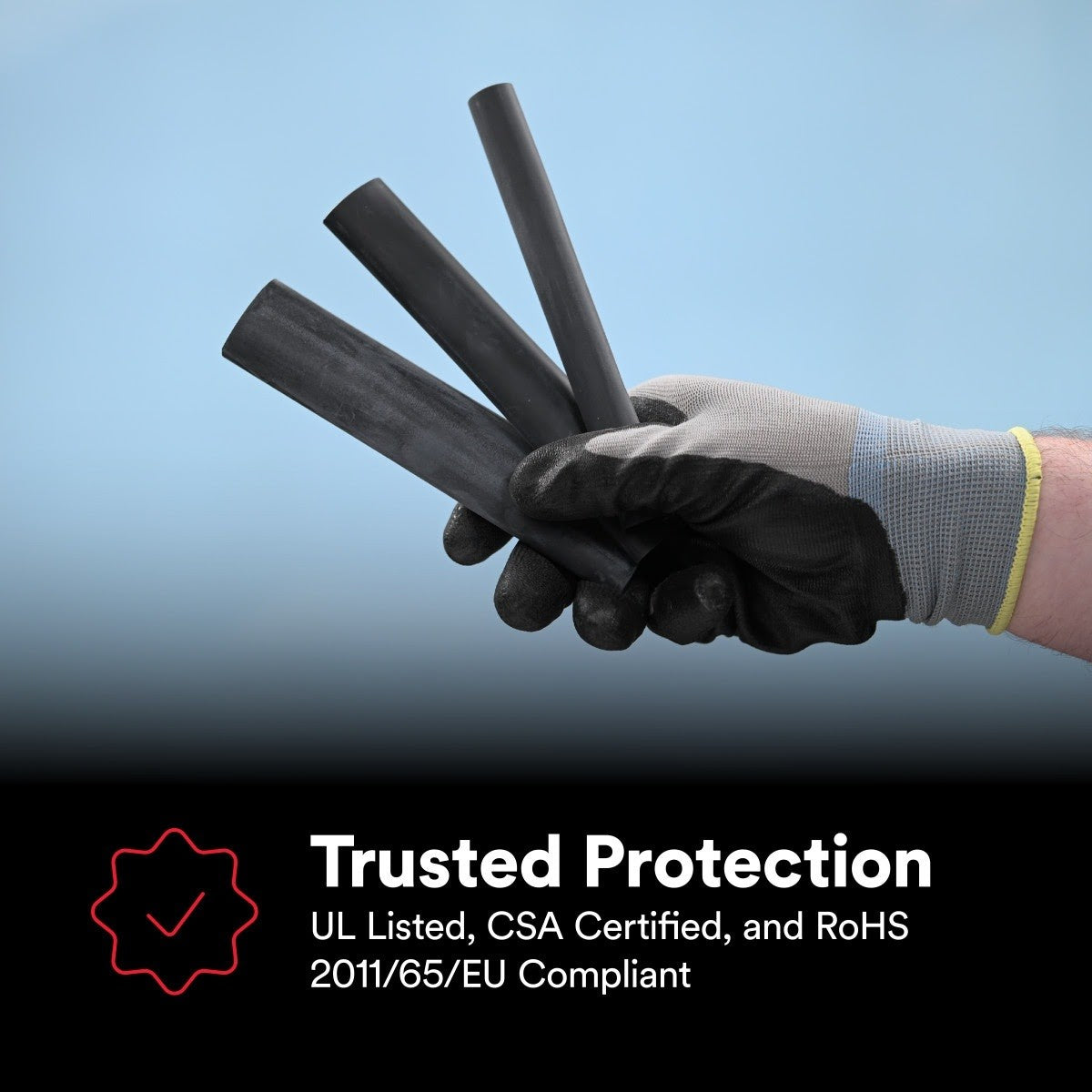

- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7000133616 Specifications
| Series | EPS-300 |
| Product Type | Heat Shrink Tubing |
| Heat Shrink Type | Adhesive-Lined Polyolefin Heat Shrink Tubing |
| Tubing Type | Dual Wall (Adhesive Lined) |
| Material | Polyolefin |
| Color | Black |
| Shrink Ratio | 3:1 |
| Inner Diameter Before Shrink | 0.5 in (12.7 mm) |
| Inner Diameter After Shrink | 0.16 in (4.06 mm) |
| Overall Length | 48 in |
| Voltage Rating | 600V |
| Flame Retardant | Yes |
| Operating Temperature Range (Fahrenheit) | -67 Degree F to 230 Degree F |
| Operating Temperature Range (Celsius) | -55 Degree C to 110 Degree C |
| Elongation | 450 Percent |
| Tensile Strength | 2100 psi |
| Flammability Rating | UL 224 All Tubing Flame Test jacket |
| UL File Number | E-157227 |
| Non-Corrosive | Yes |
Toolup Part # :
858562
