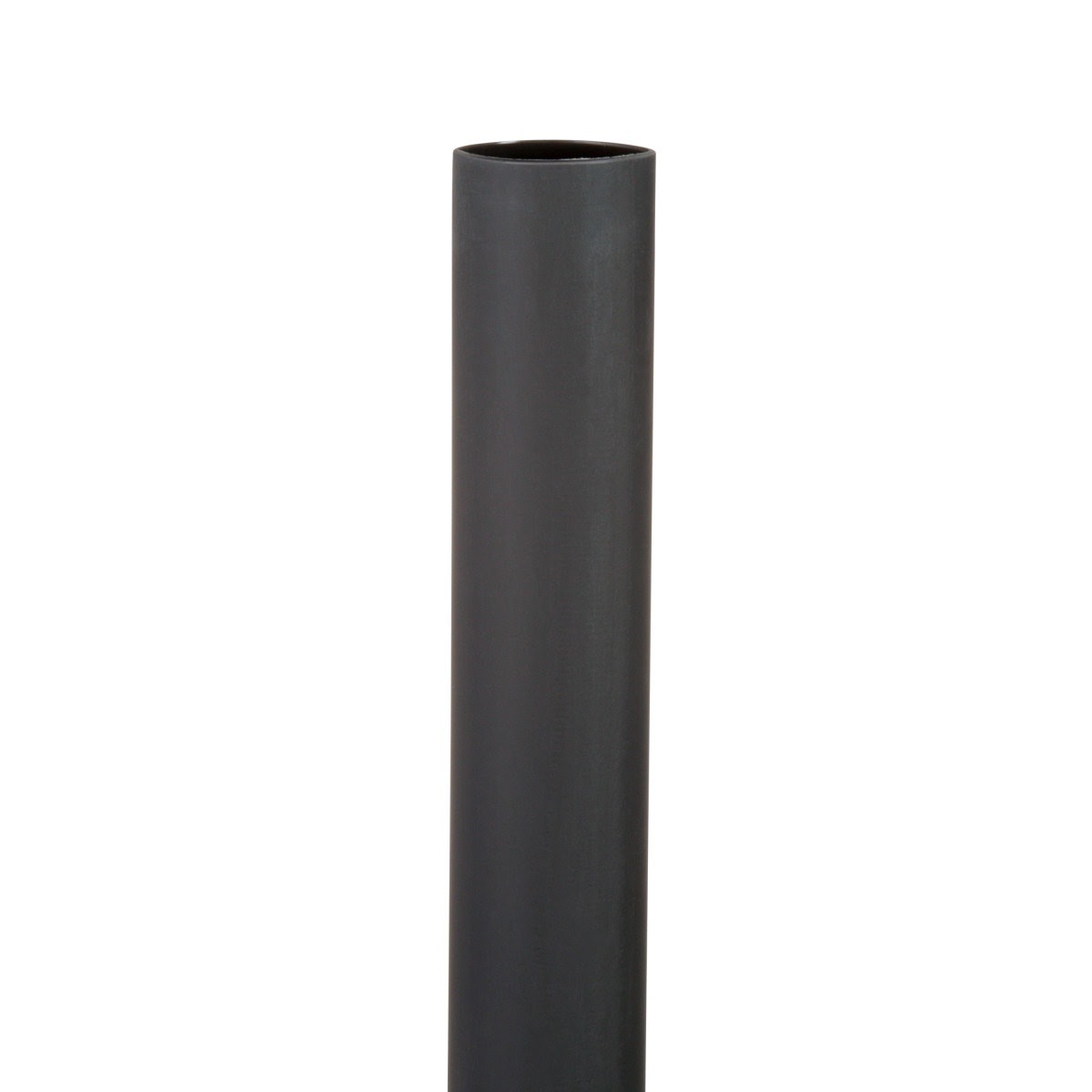

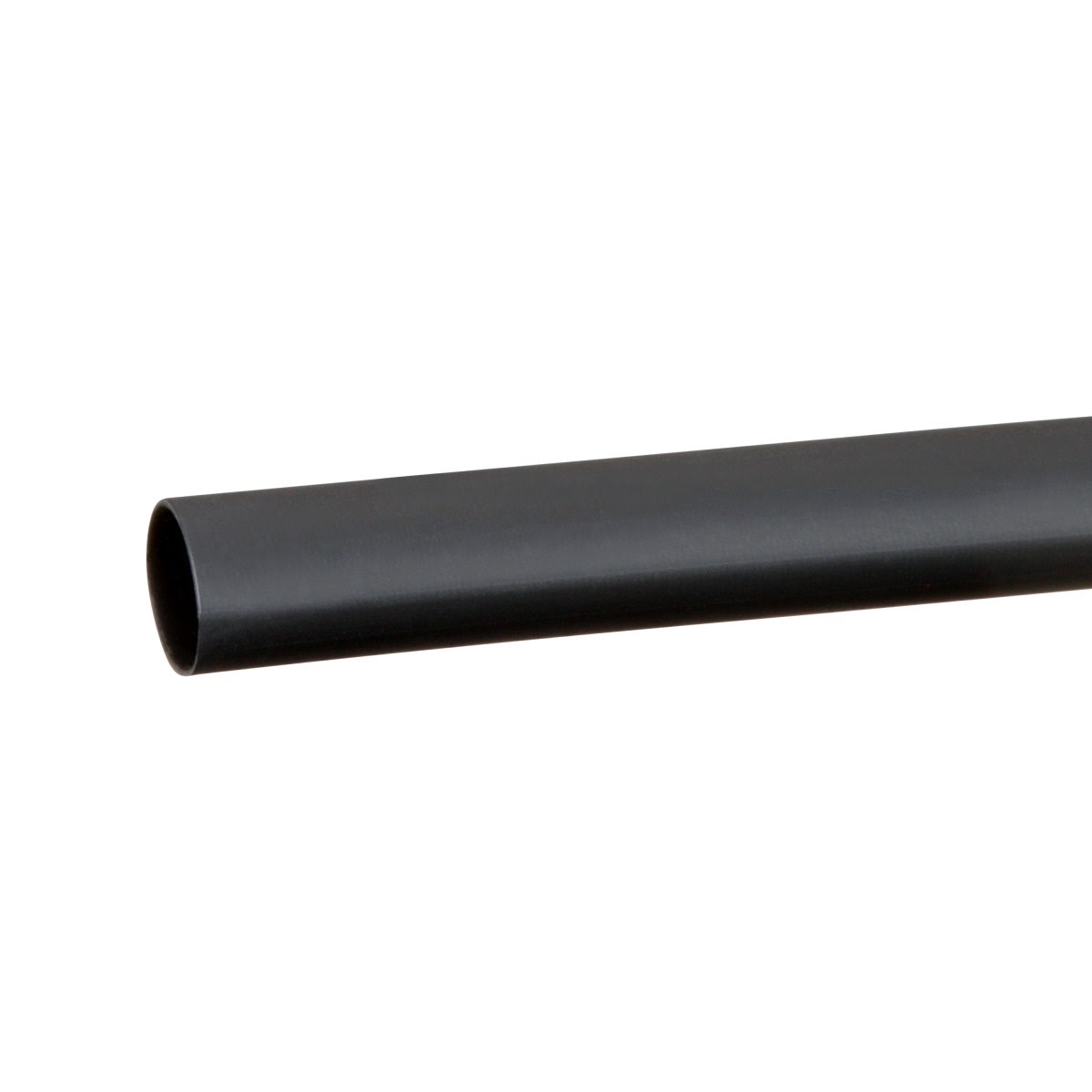

3M 7000133584 Description

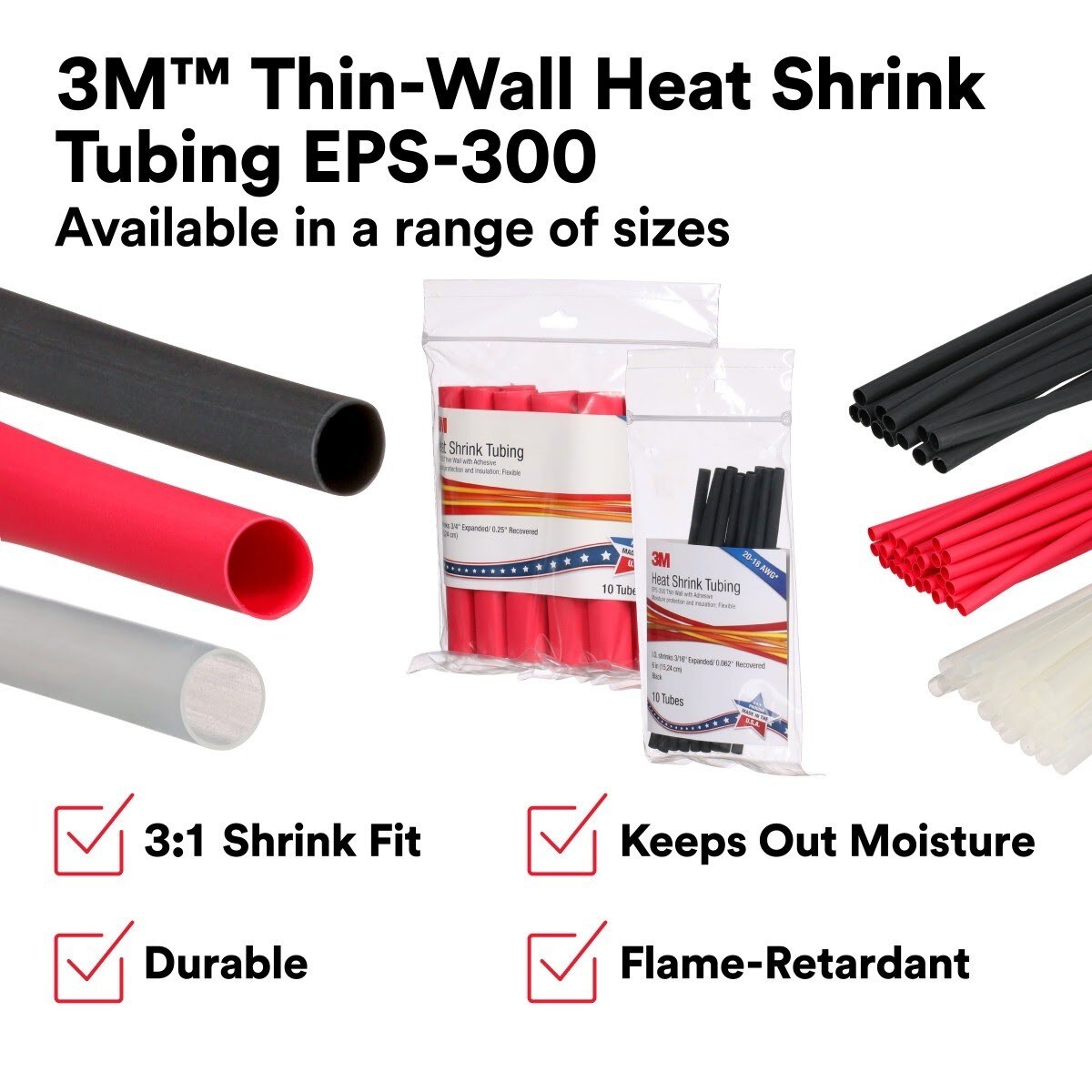

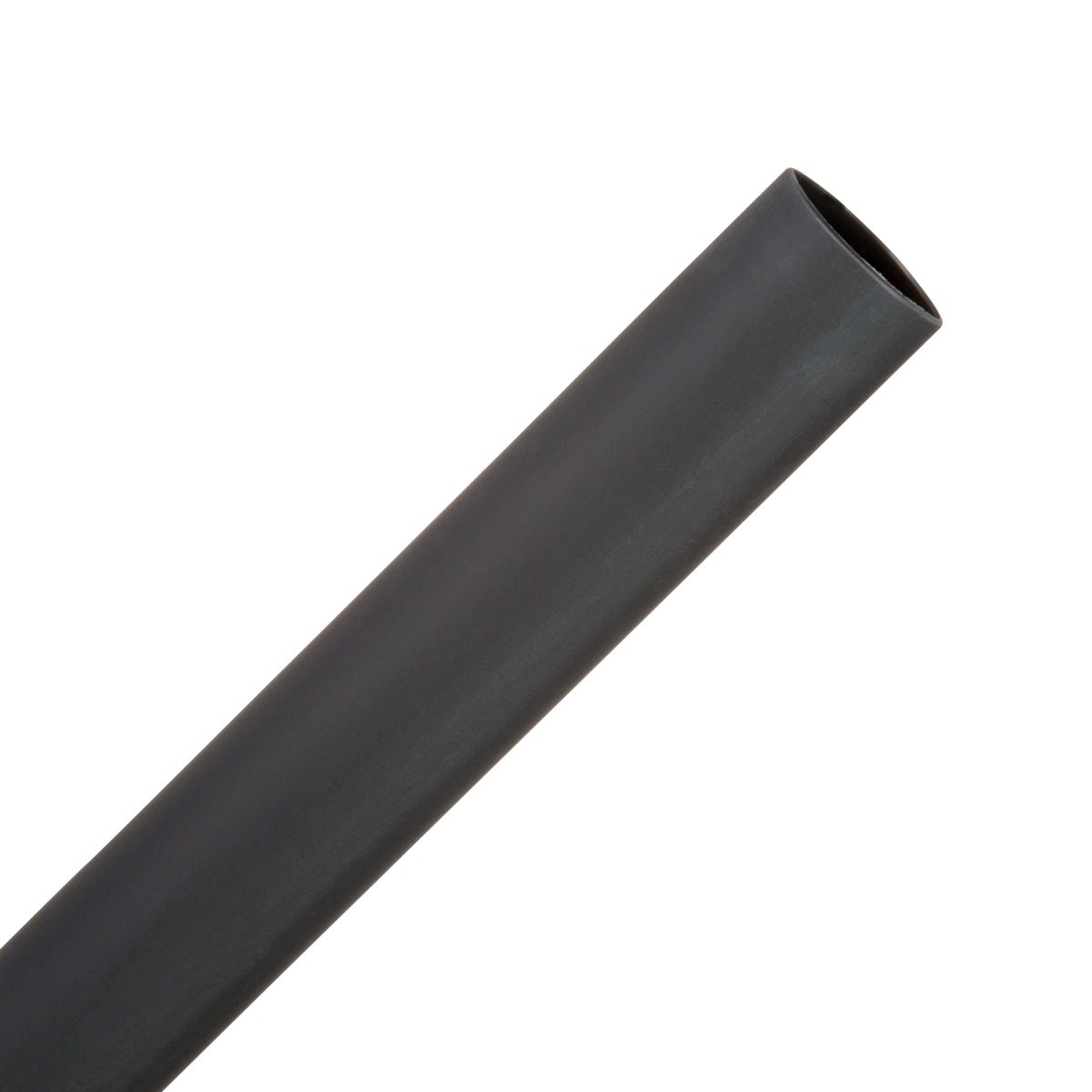

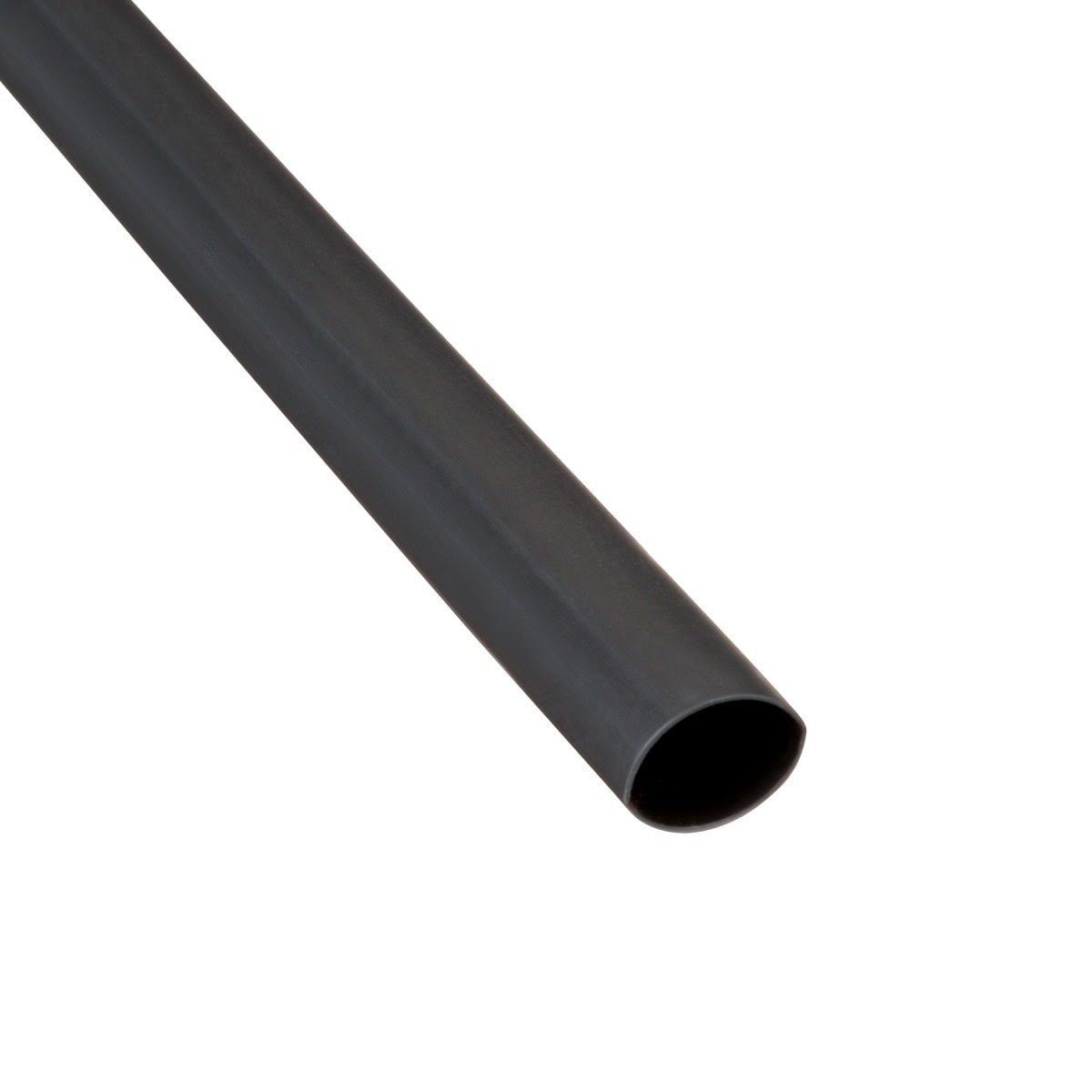

3M EPS-300 thin-wall heat shrink tubing is a dual wall adhesive lined polyolefin tubing designed to provide abrasion resistance electrical insulation and a moisture resistant seal for wire splices bundles and harness breakouts. It features a 3 to 1 shrink ratio is flame retardant and is rated for 600V applications.
3M 7000133584 Includes
- (5) 3M EPS-300 Thin-Wall Heat Shrink Tubing Sticks Adhesive-Lined 3/4 in x 48 in Black
3M 7000133584 Features

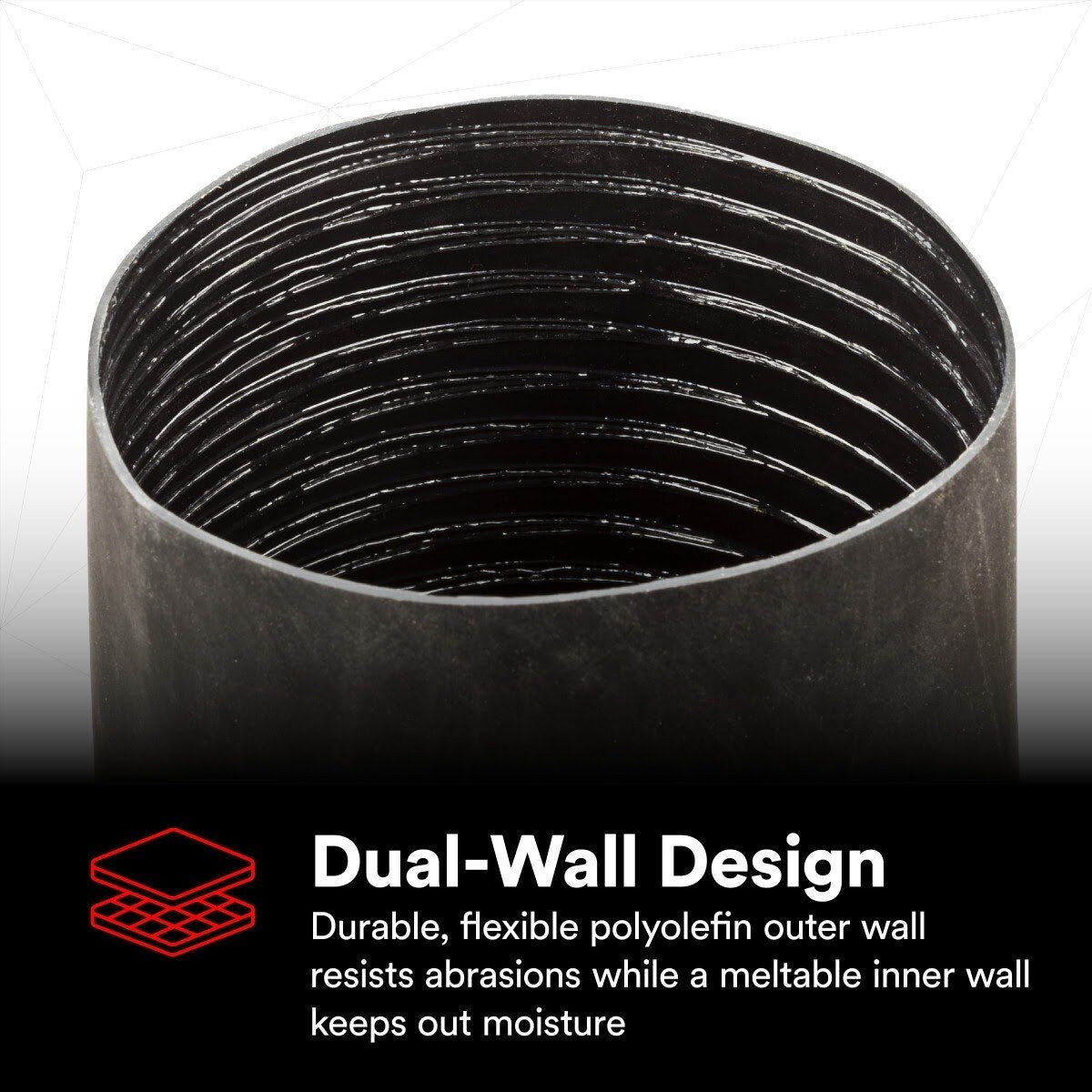

- Dual wall adhesive lined construction for abrasion resistance and moisture sealing

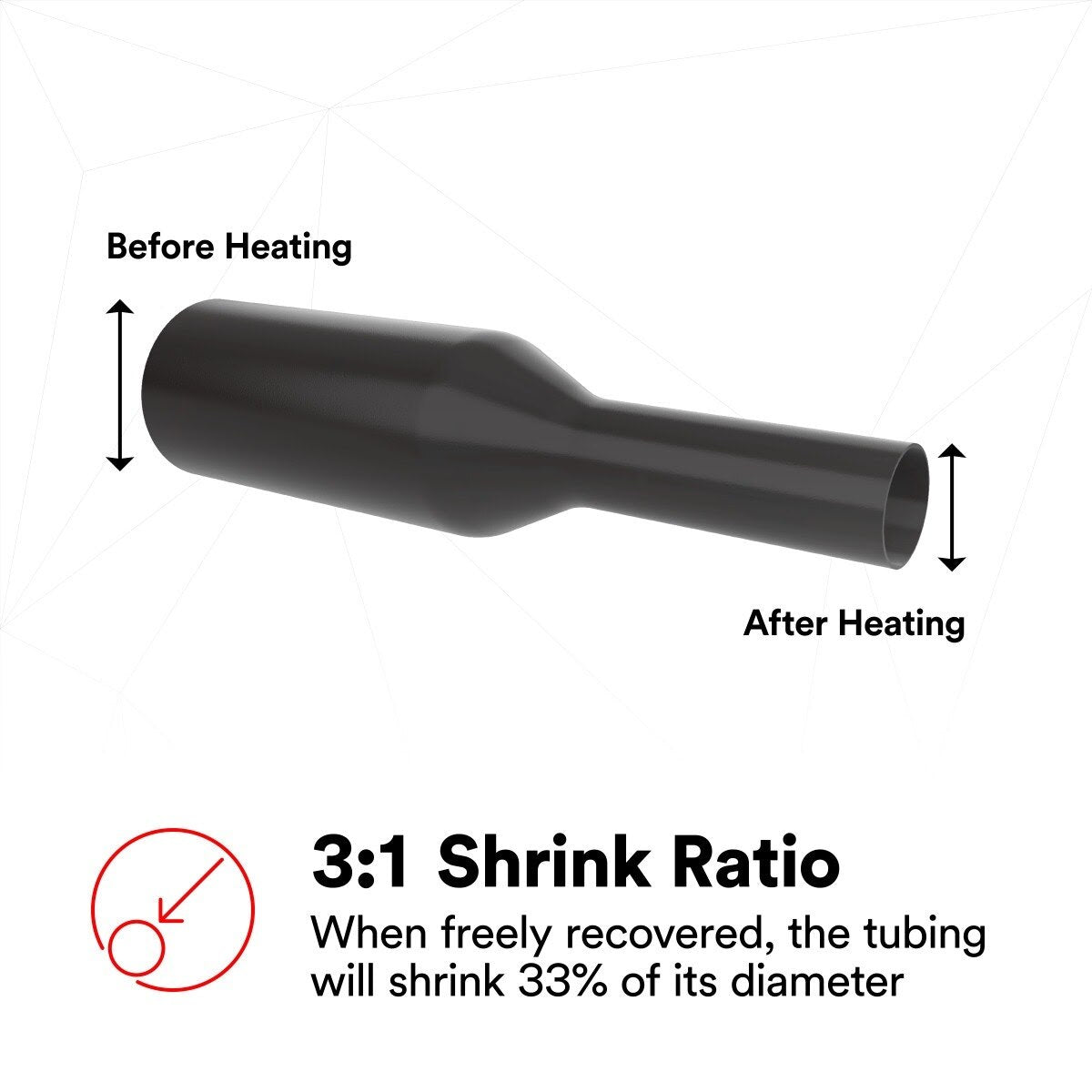

- 3 to 1 shrink ratio for a tight conforming fit

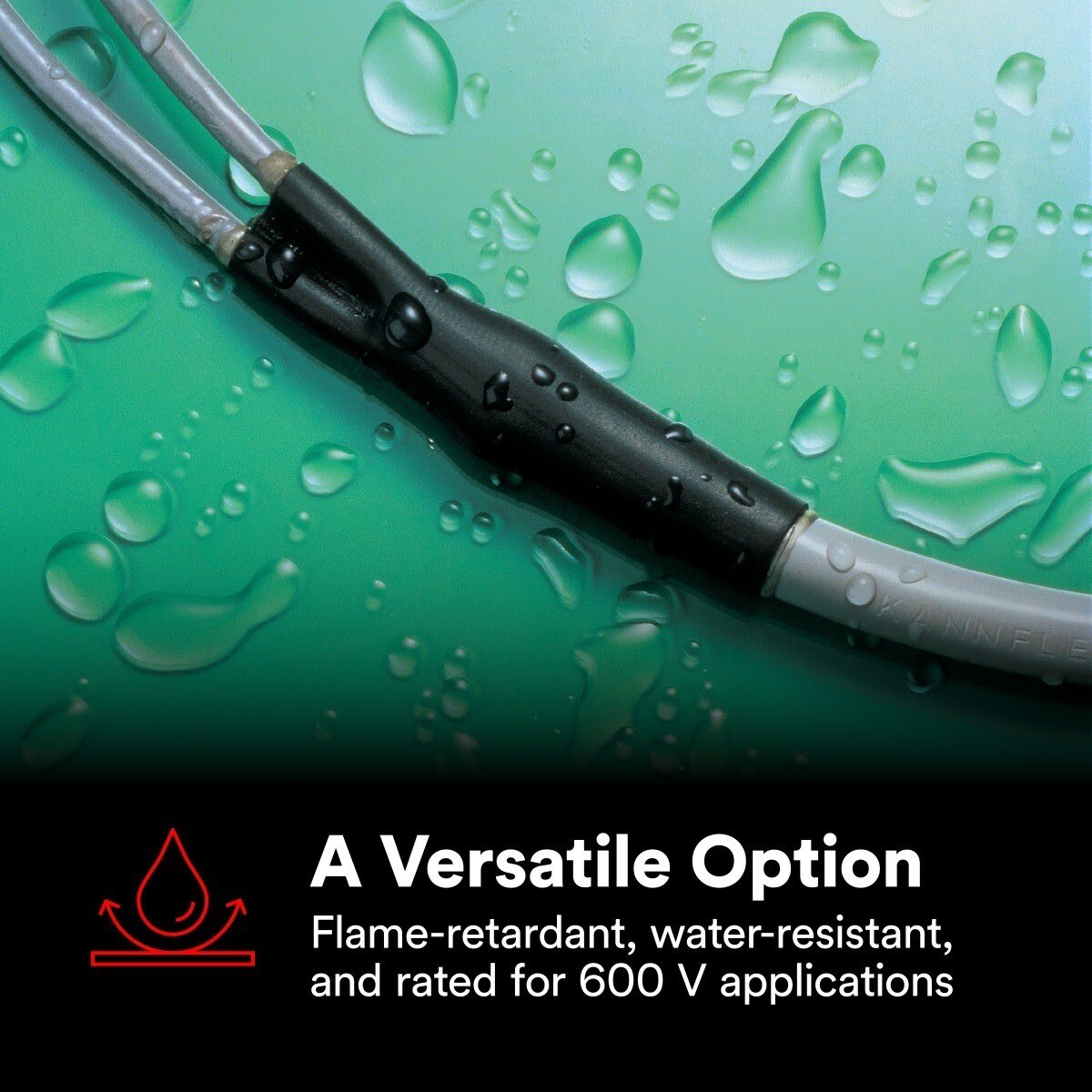

- Flame retardant tubing rated for 600V applications
- Flexible polyolefin material

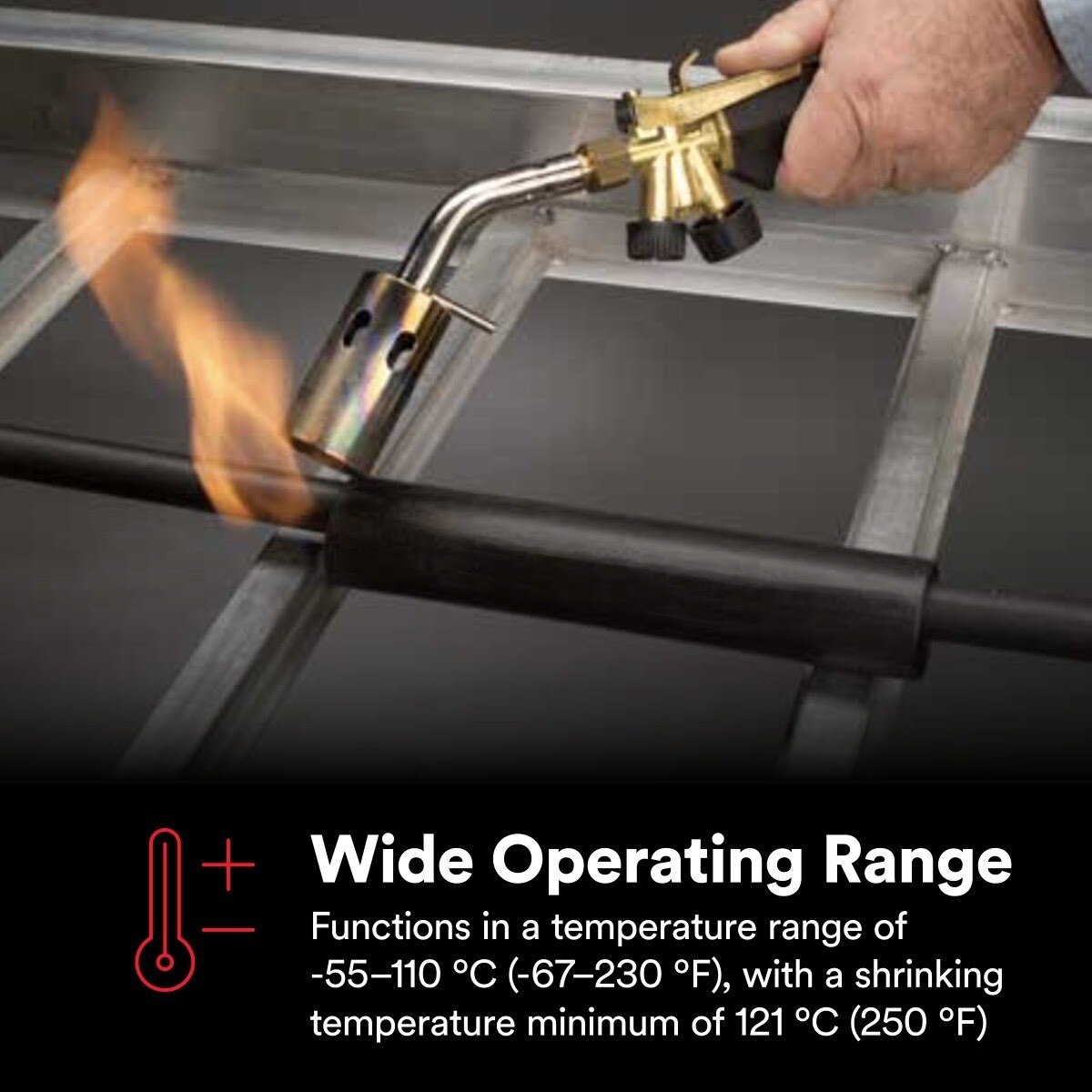

- Operating temperature range -67 Degree F to 230 Degree F -55 Degree C to 110 Degree C

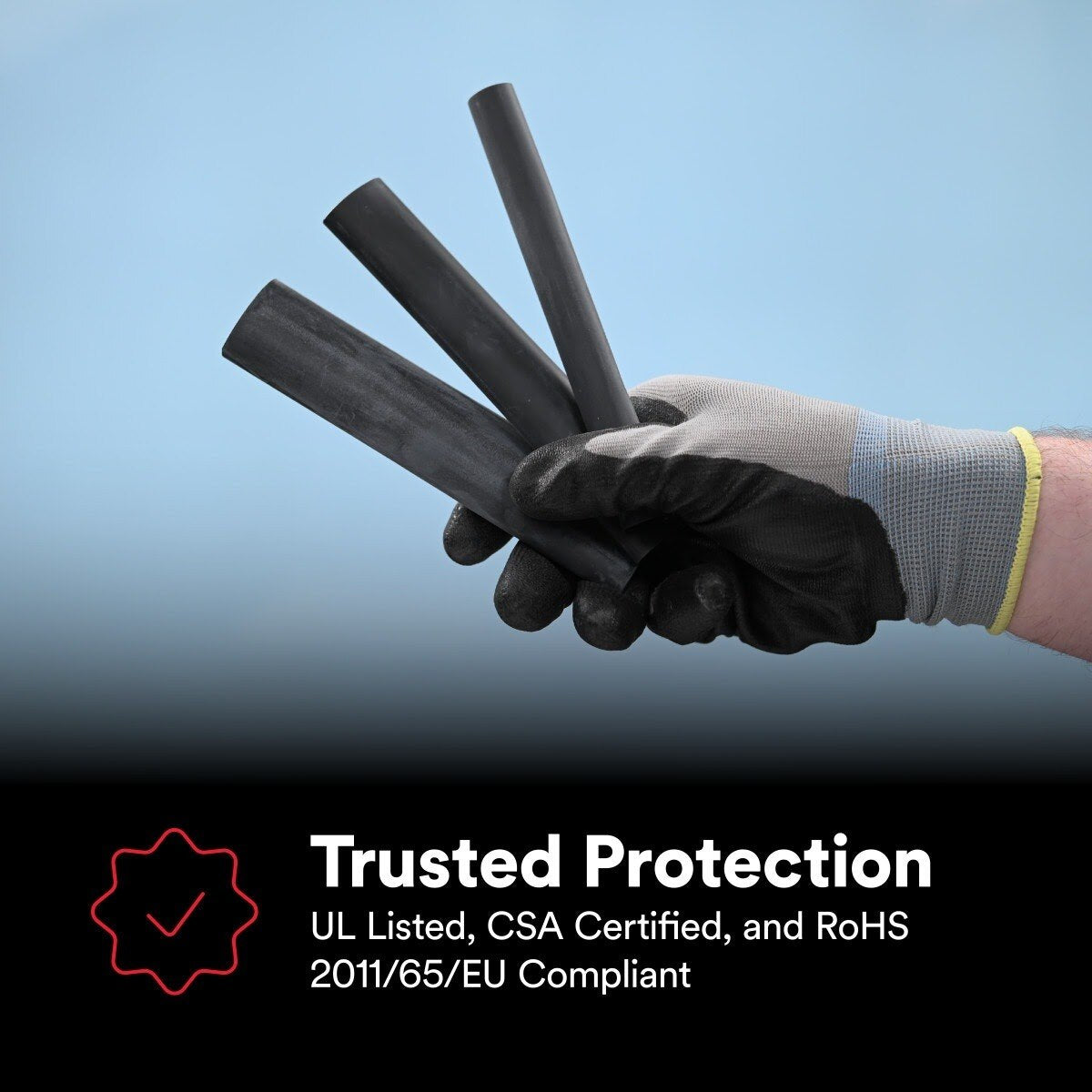

- UL listed CSA certified and RoHS 2011 65 EU compliant
3M 7000133584 Specifications
| Product Type | Heat Shrink Tubing |
| Series | EPS-300 |
| Tubing Type | Dual Wall Adhesive Lined |
| Material | Polyolefin |
| Color | Black |
| Shrink Ratio | 3:1 |
| Inner Diameter Before Shrink | 0.75 in |
| Inner Diameter After Shrink | 0.25 in |
| Overall Length | 48 in |
| Voltage Rating | 600V |
| Operating Temperature Range | -67 Degree F to 230 Degree F |
| Case Quantity | 5 |
Toolup Part # :
854430
