3M 7000133661 Description

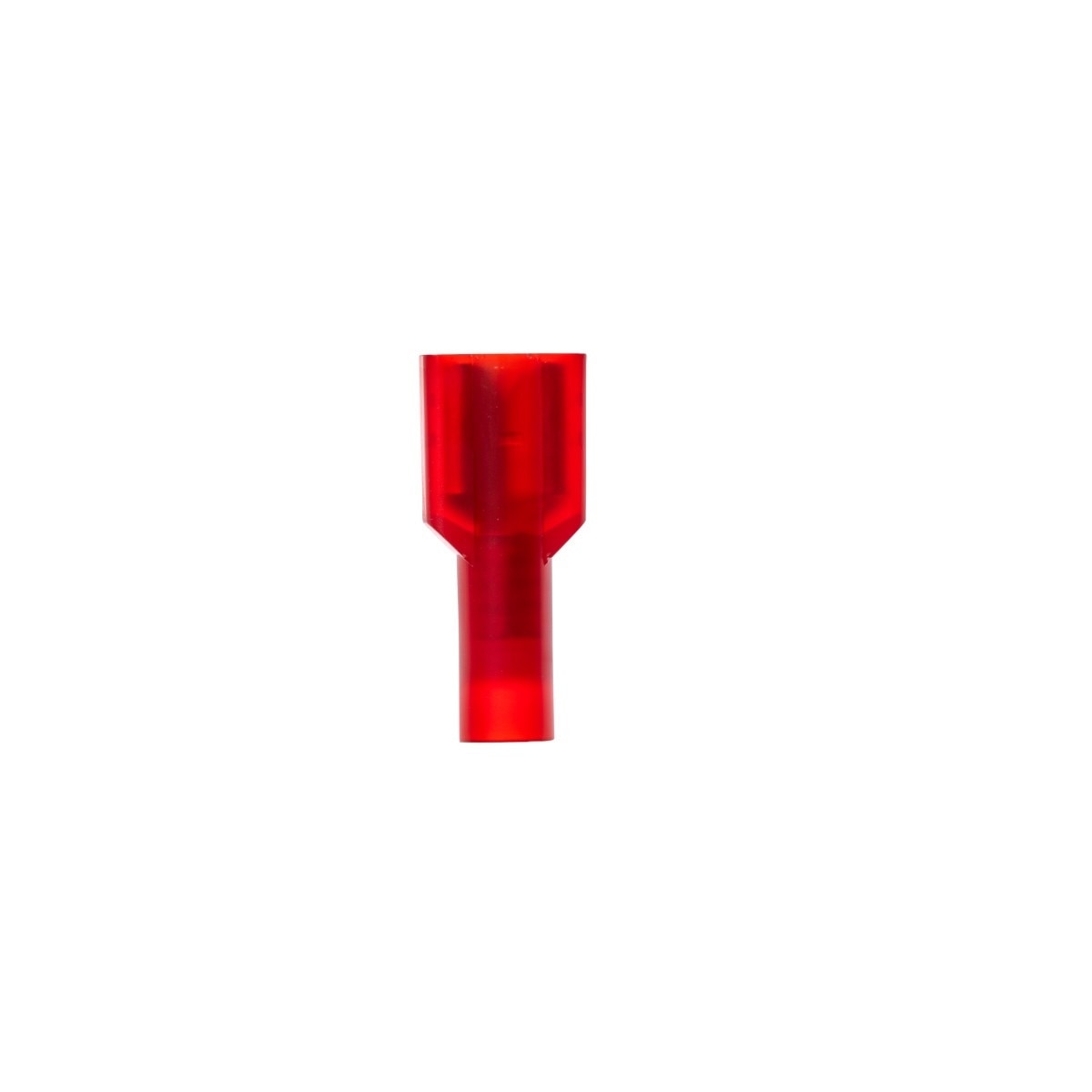

Vinyl insulated female disconnect terminal designed for quick and easy wire disconnects, featuring a butted seam barrel and durable brass construction with a tin plated finish for corrosion resistance. Fits 12 to 10 AWG conductors and a 0.25 inch male tab connection.
3M 7000133661 Includes
- (10) - 3M 7000133661 Highland Vinyl Insulated Female Disconnect Terminal FDV10-250Q, AWG 12-10
3M 7000133661 Features
- Vinyl insulated butted seam barrel with funnel designed sleeve helps guide wire insertion
- Dents and rolled edges provide superior holding force
- Quick disconnect design for fast service and maintenance
- Brass construction provides good conductivity
- Tin plated finish helps resist corrosion
- Abrasion resistant flared sleeve supports easy crimping
- UL Listed and CSA Certified
- RoHS compliant
3M 7000133661 Specifications
| Brand | Highland |
| Part Number | FDV10-250Q |
| Disconnect Type | Female |
| Wire Range | 12 to 10 AWG |
| Tab Width | 0.25 in |
| Connection Width | 0.25 in |
| Barrel Style | Butted |
| Insulation Material | Vinyl |
| Overall Length | 0.95 in |
| Maximum Recommended Voltage Rating | 600 V |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
861127
