3M 7000133630 Description

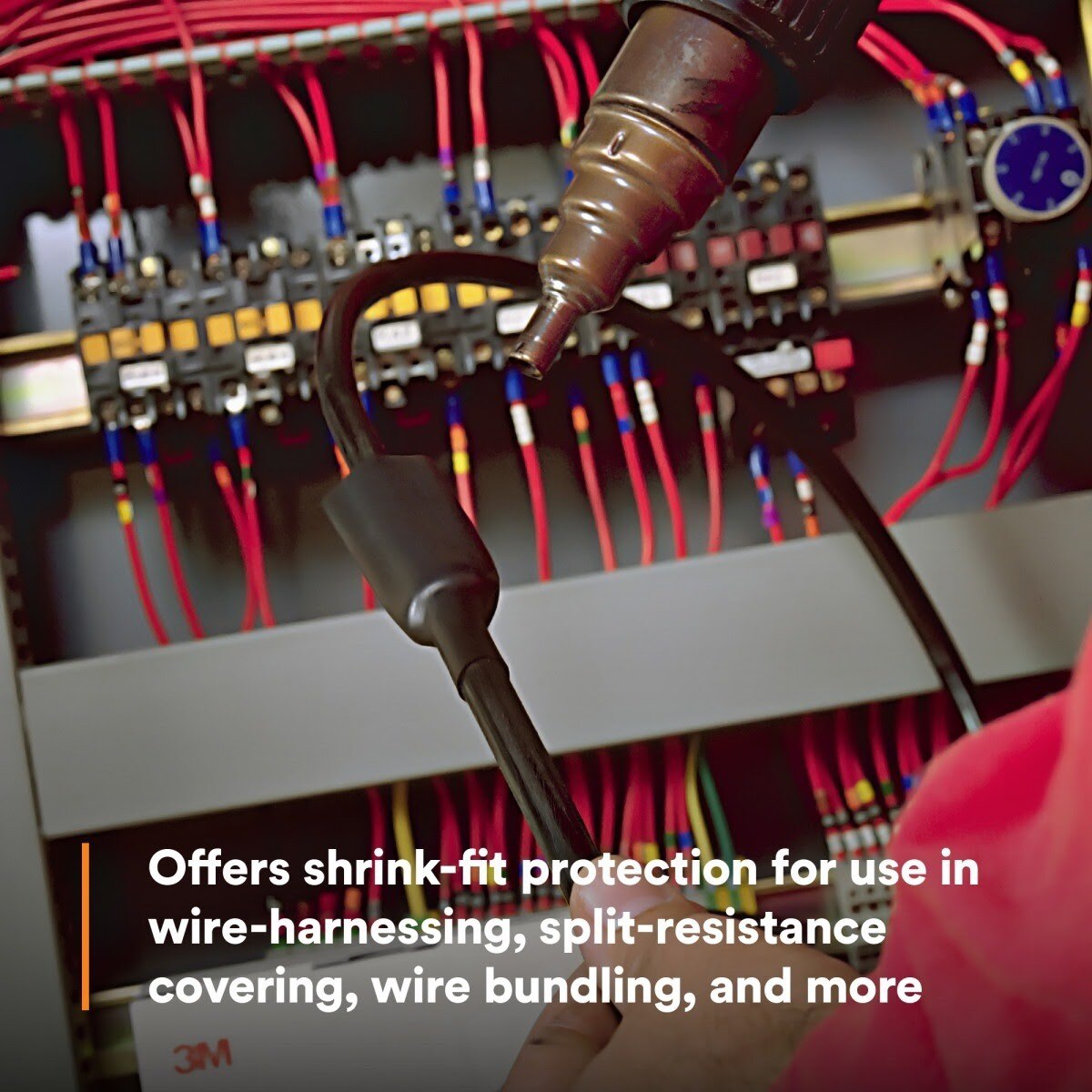

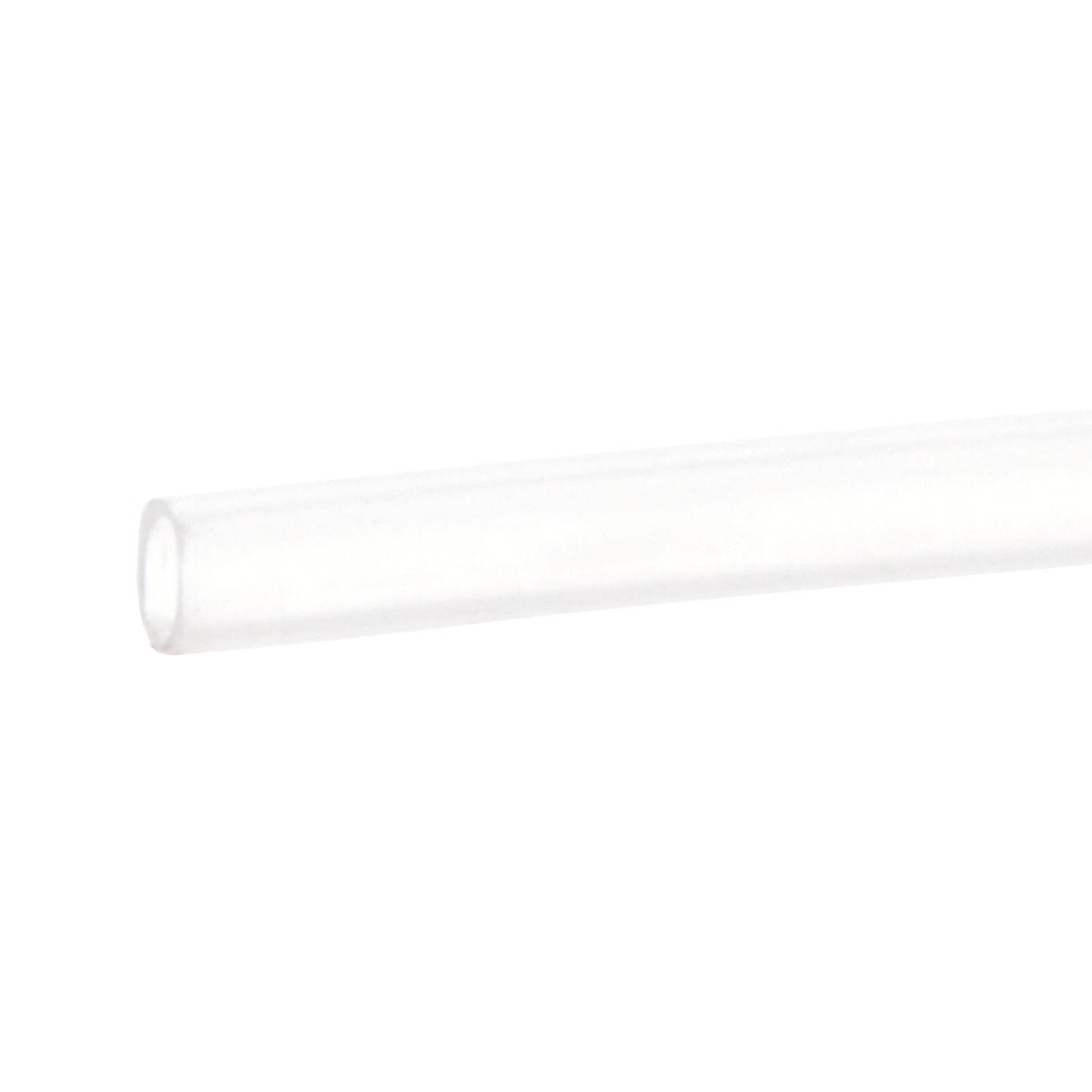

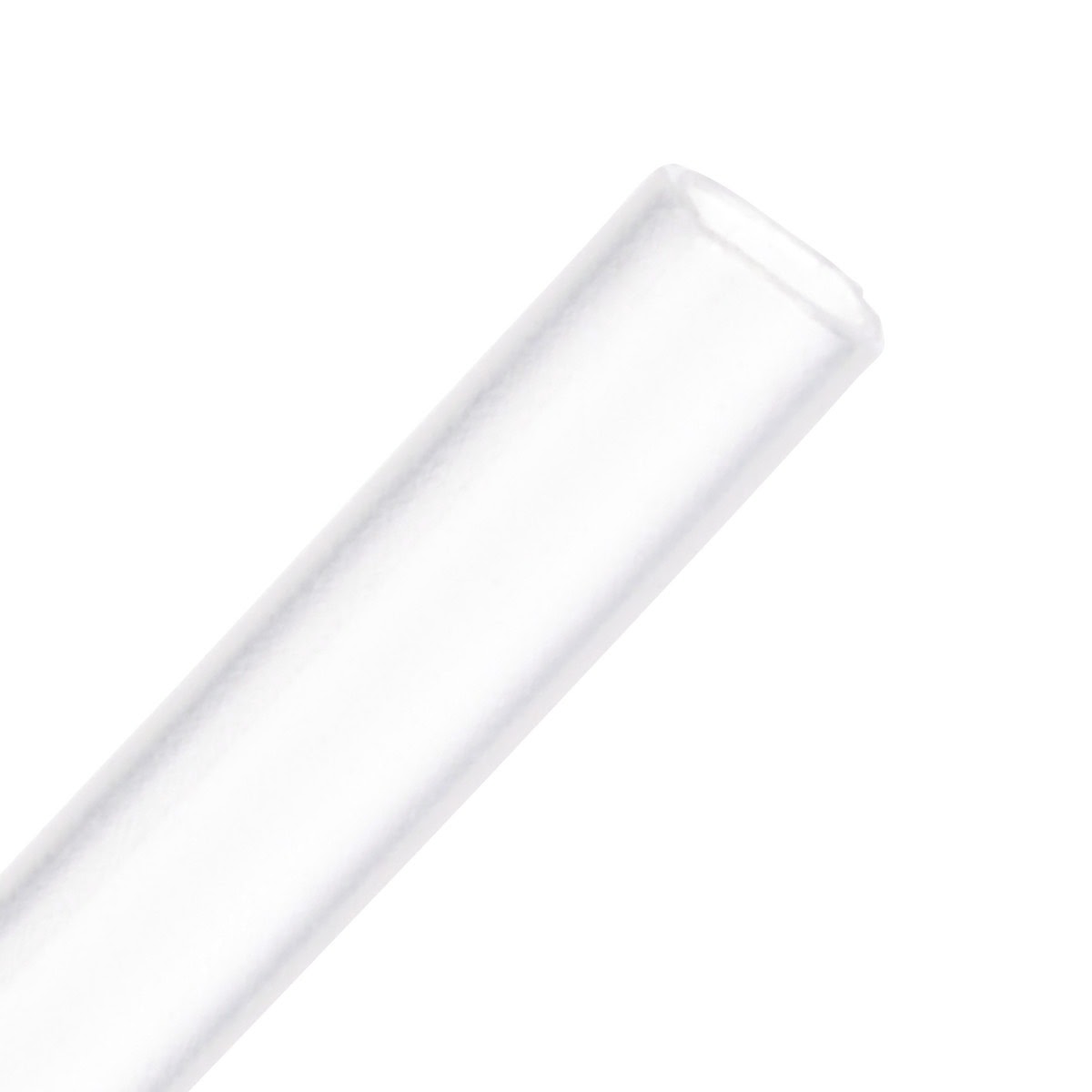

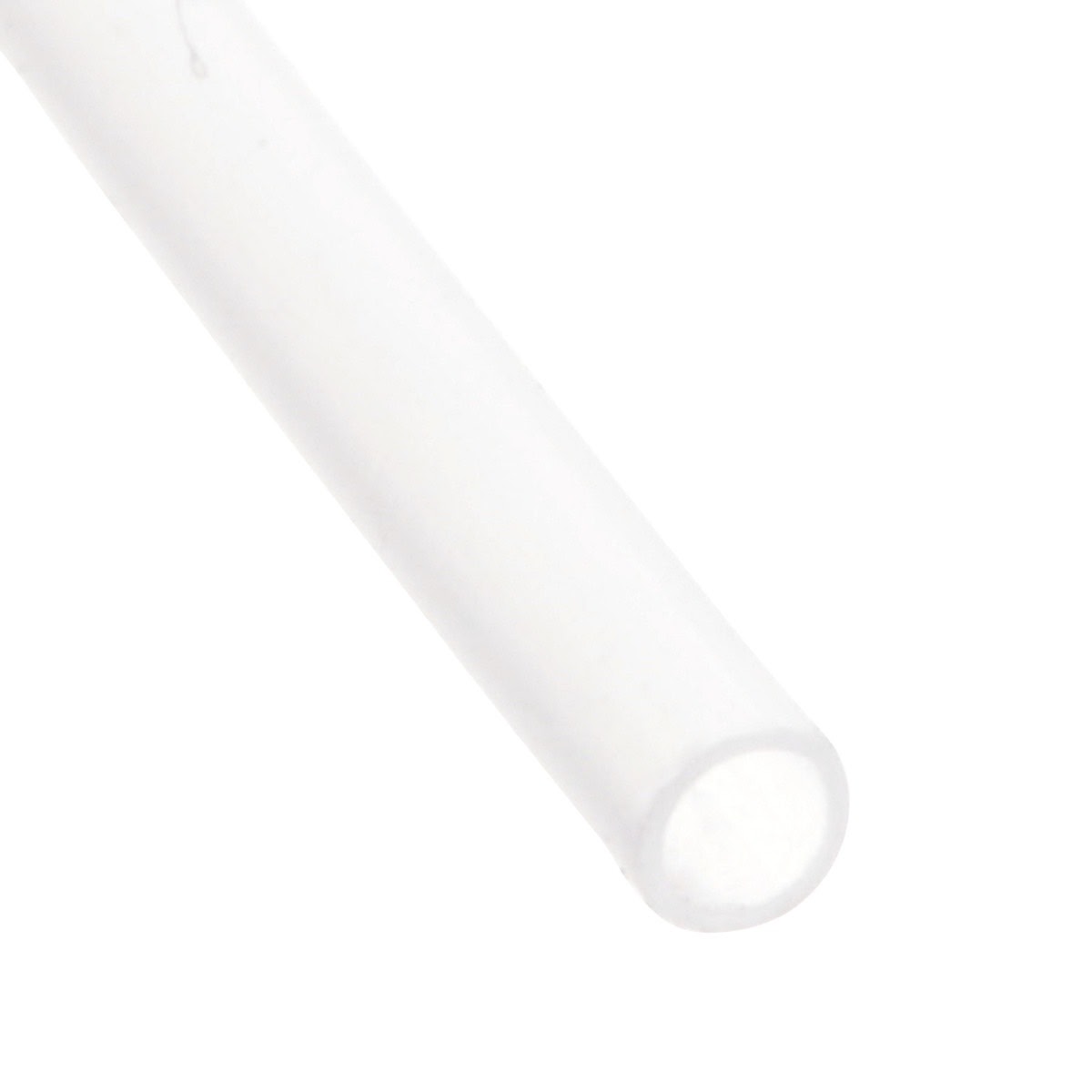

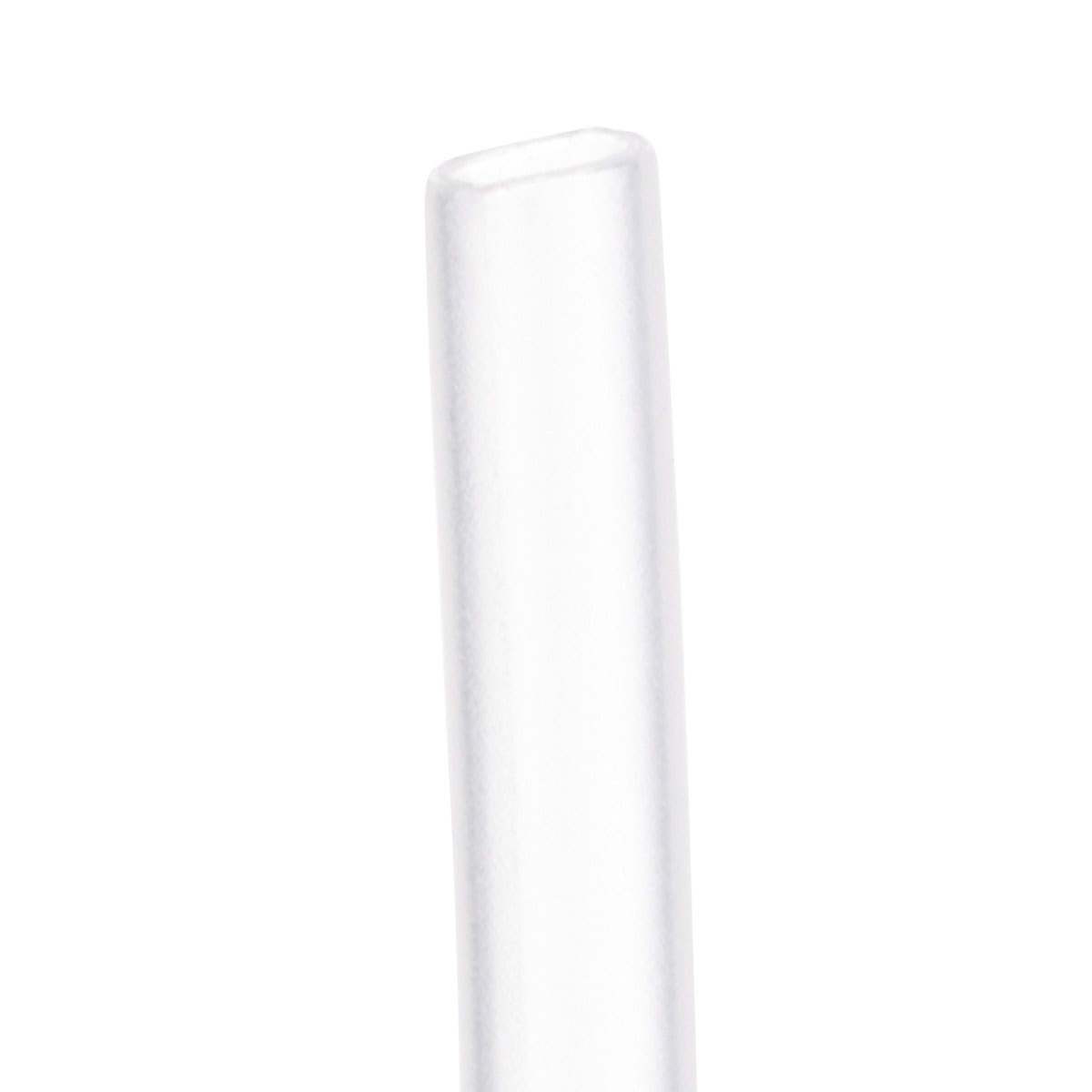

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing designed to provide a balance of electrical physical and chemical properties for demanding industrial and military applications. The clear tubing provides a 2 to 1 shrink ratio for shrink fit electrical insulation over cable splices and terminations and helps provide moisture seal protection. It is suitable for applications up to 600V and performs at operating temperatures up to 275 Degree F.
3M 7000133630 Includes

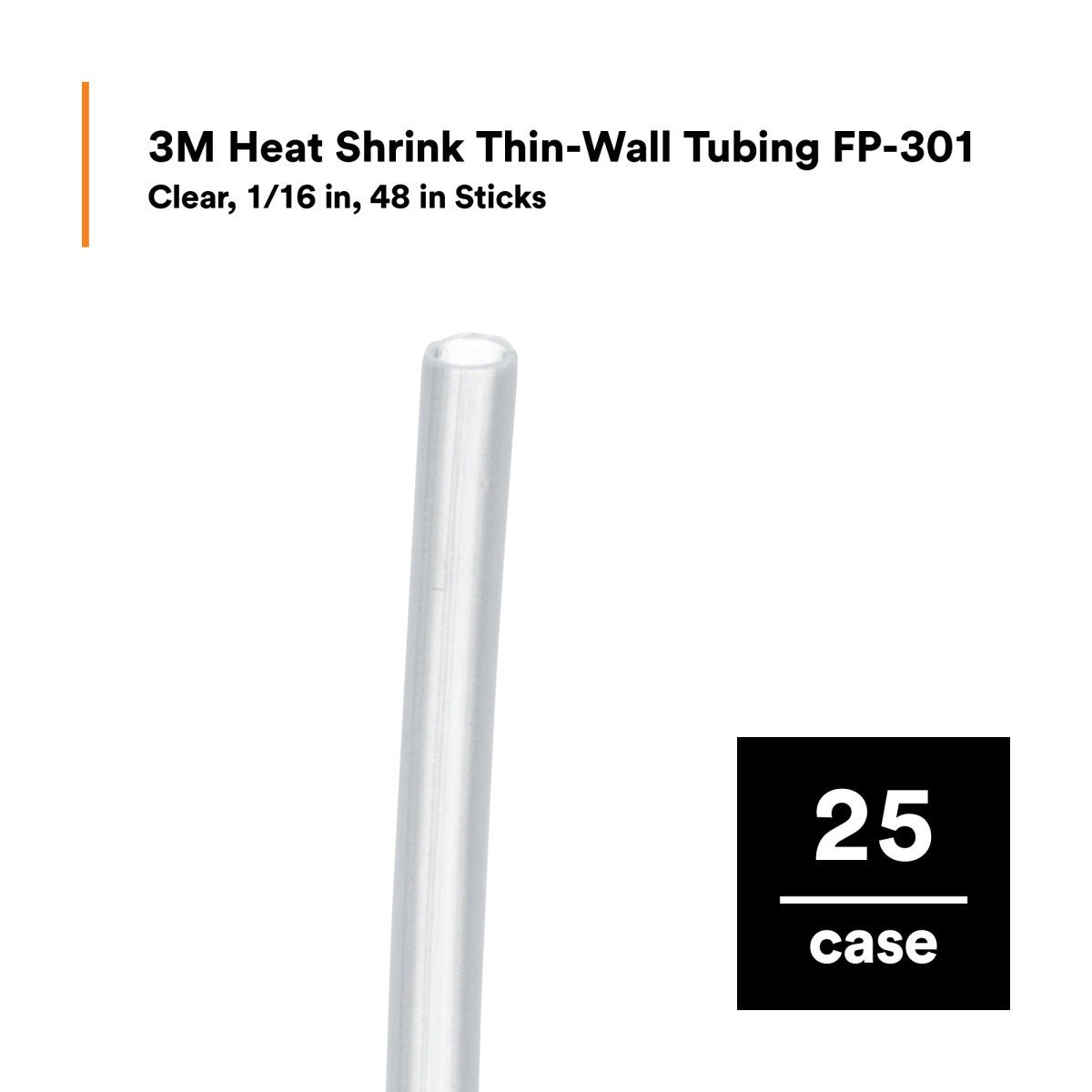

- (25) Heat Shrink Thin-Wall Tubing FP-301 Sticks Clear 1/16 in x 48 in
3M 7000133630 Features
- General purpose thin wall heat shrink tubing for electrical insulation and protection
- 2 to 1 shrink ratio for a secure shrink fit
- Clear polyolefin construction for easy visual inspection

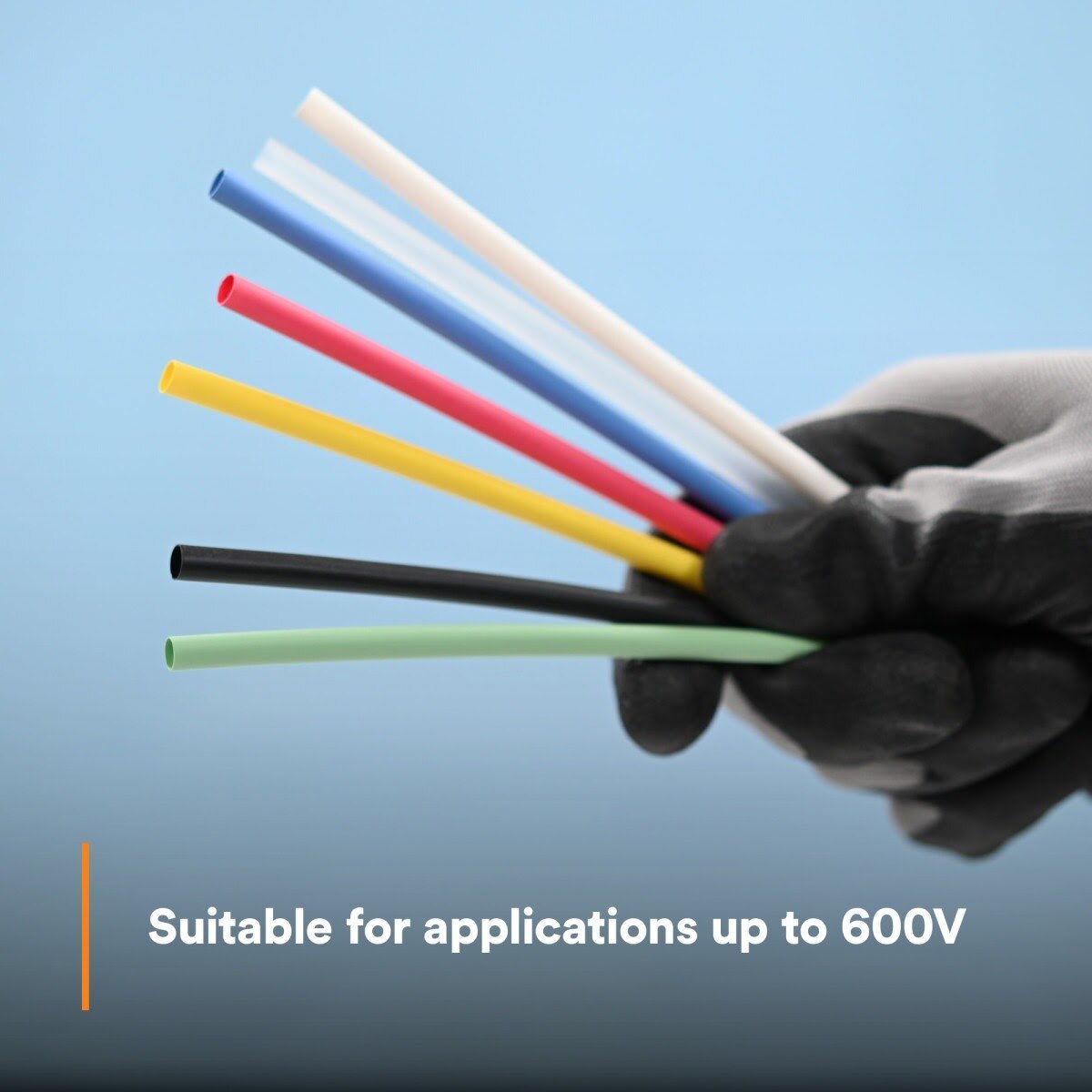

- 600V rated for electrical applications
- Helps provide moisture seal protection

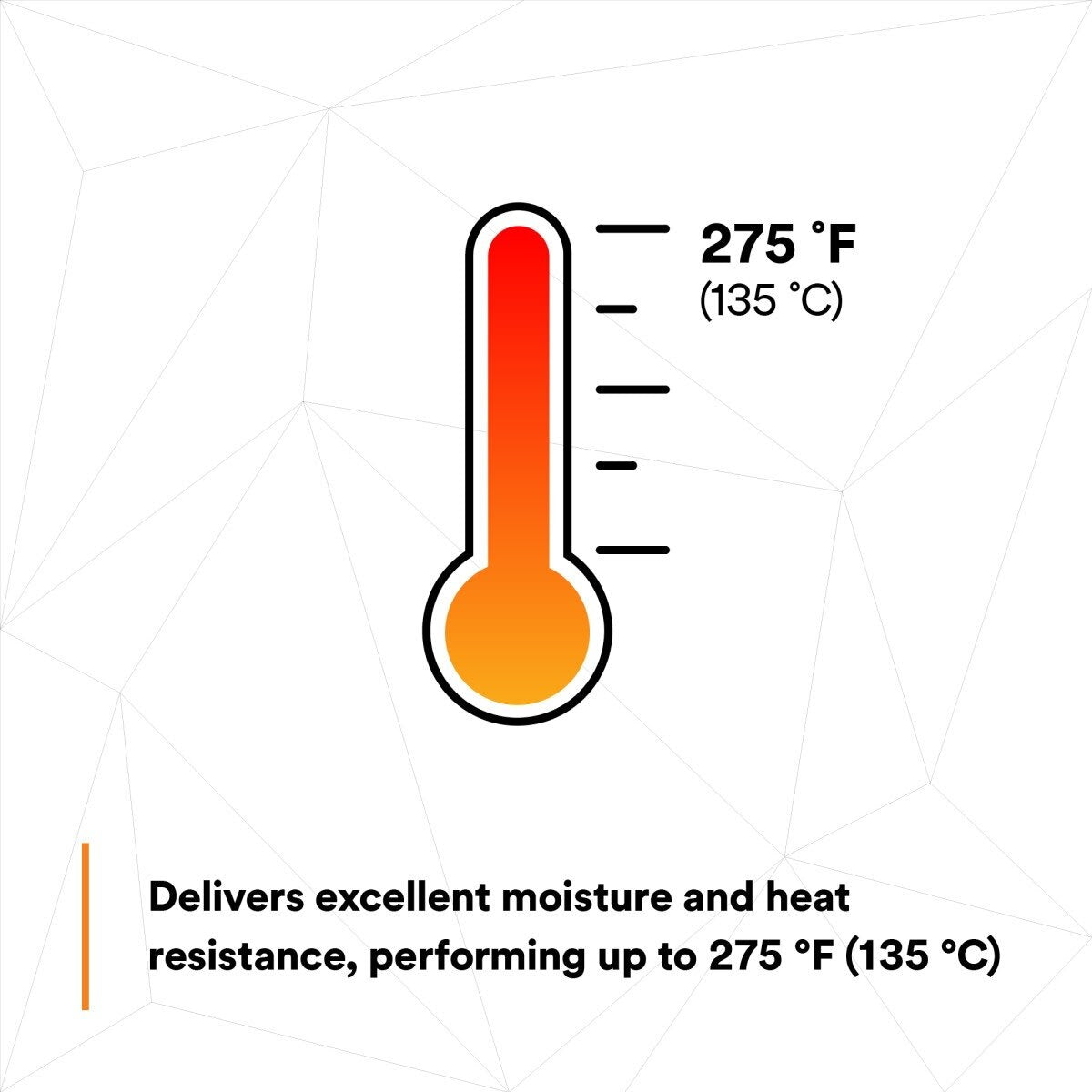

- Operating temperature range from -67 Degree F to 275 Degree F

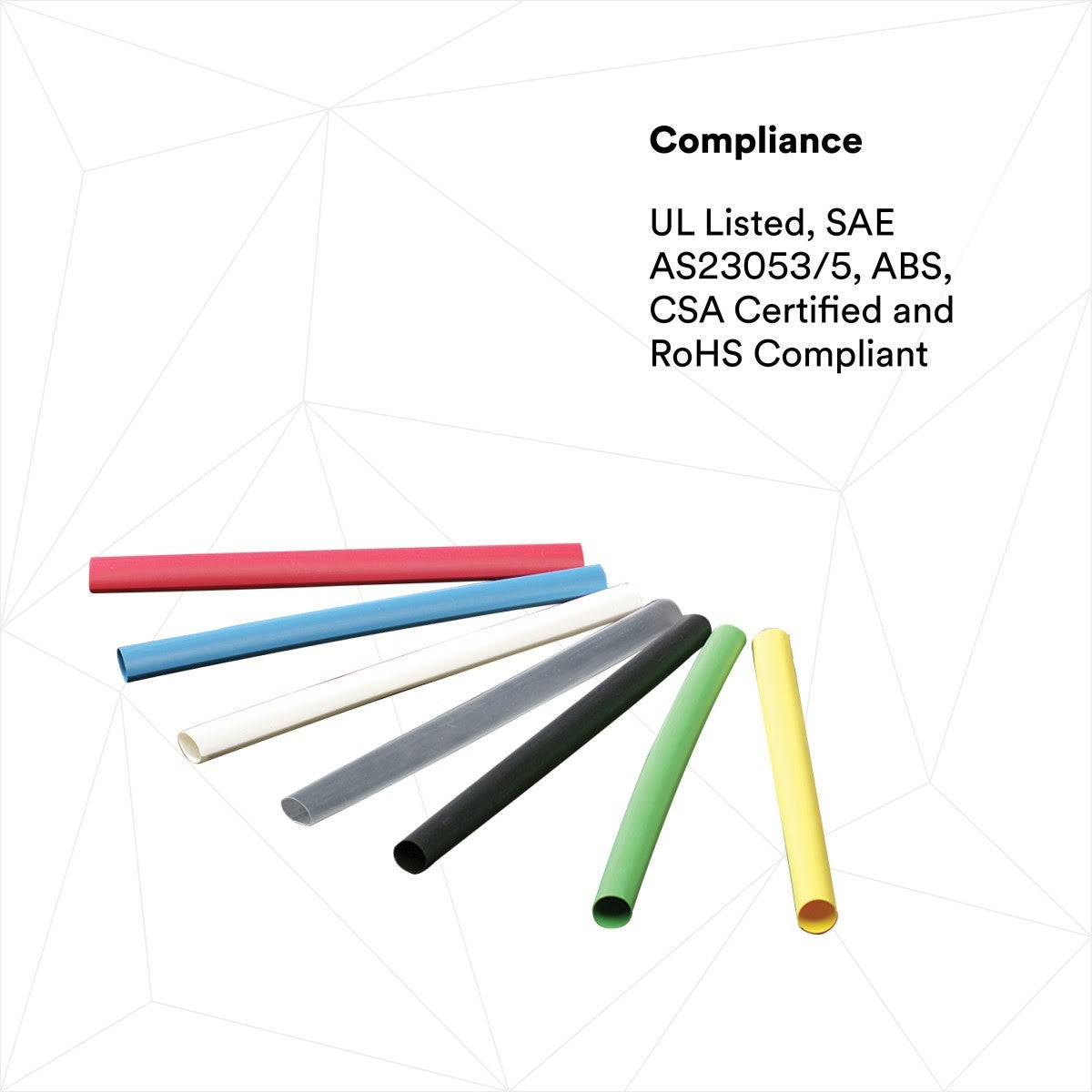

- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133630 Specifications
| Series | FP-301 |
| Color | Transparent |
| Material | Polyolefin |
| Tubing Type | Single Wall Thin |

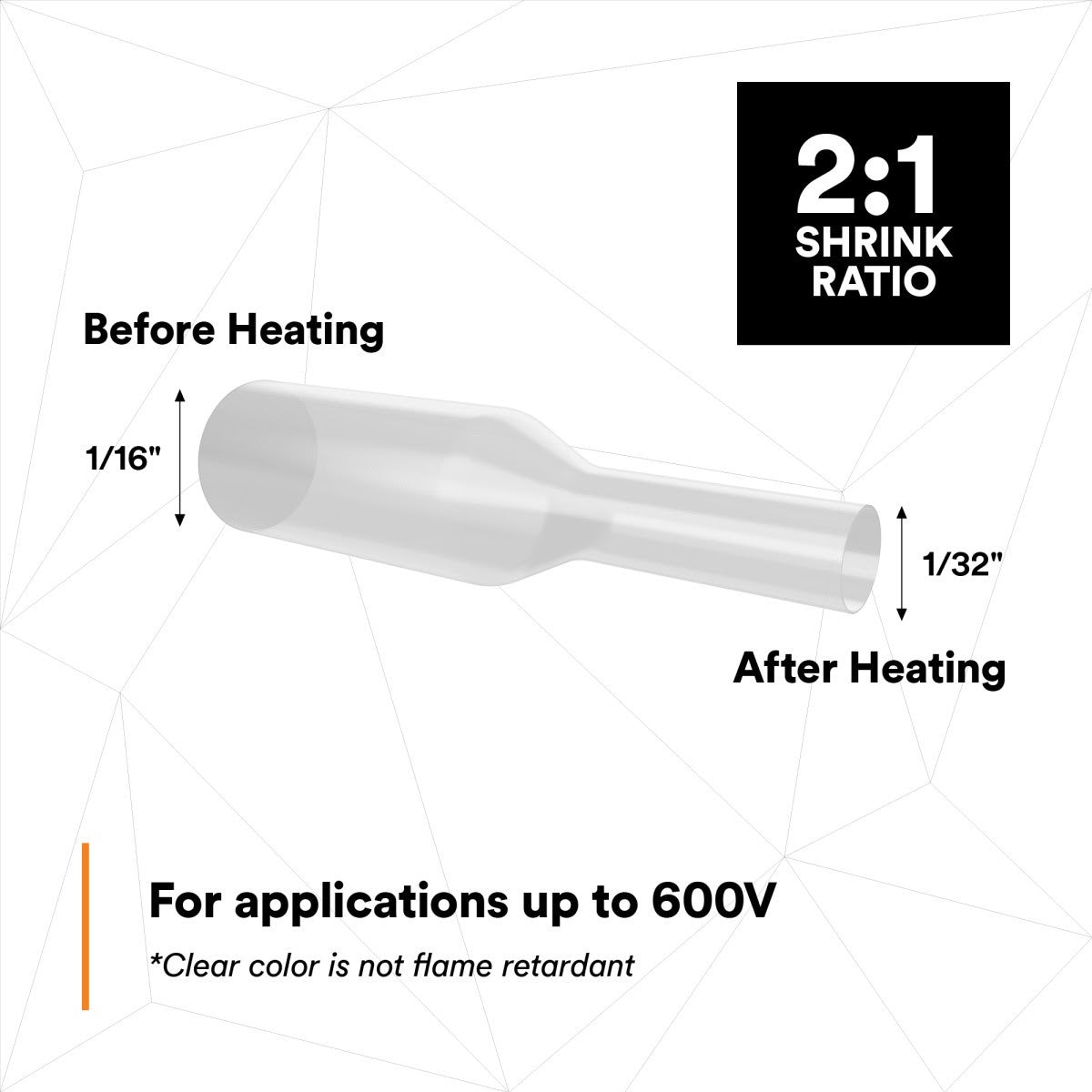

| Shrink Ratio | 2:1 |
| Inner Diameter Before Shrink | 0.063 in |
| Inner Diameter After Shrink | 0.031 in |
| Overall Length | 48 in |
| Voltage Rating | 600 Volt |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
