3M 7010398999 Description

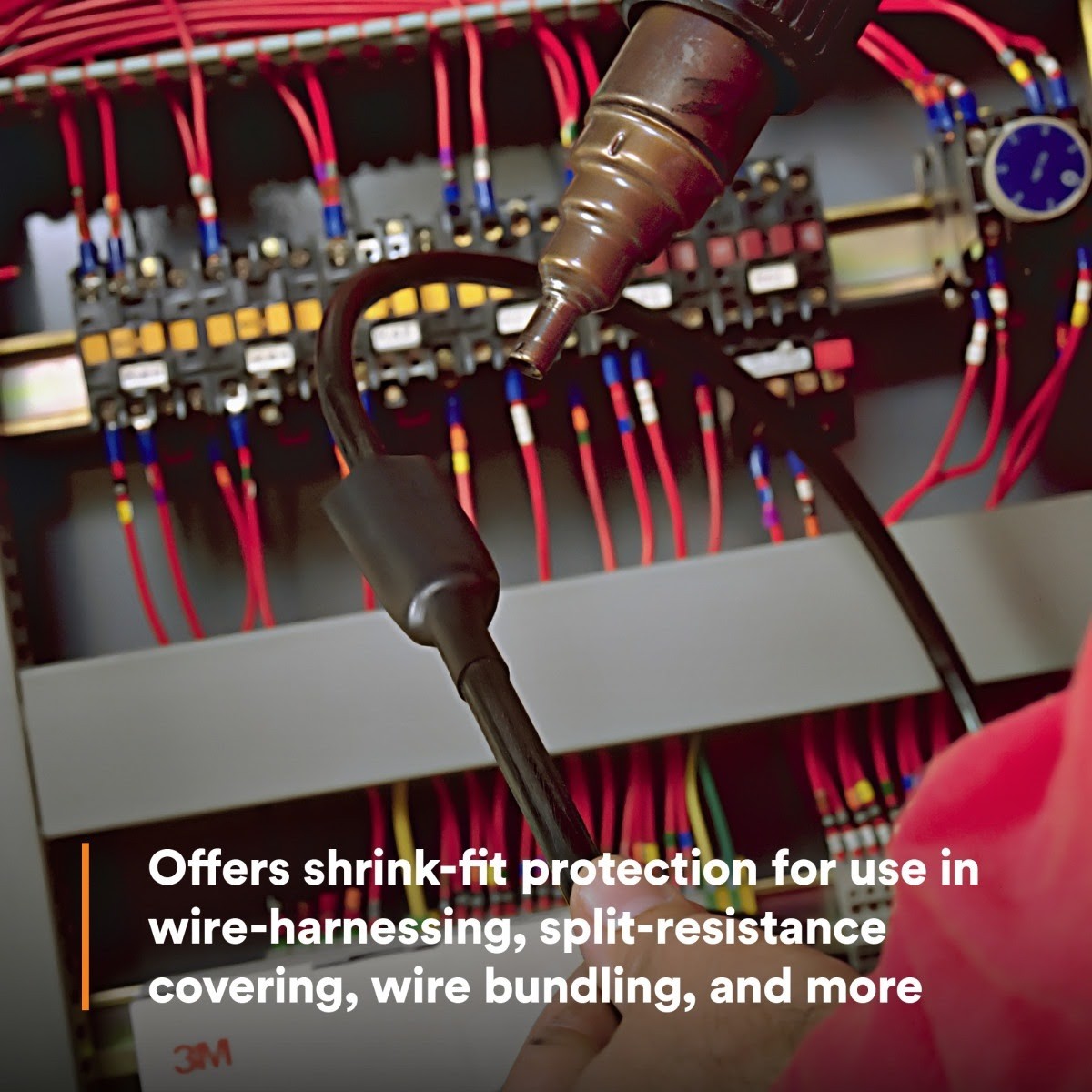

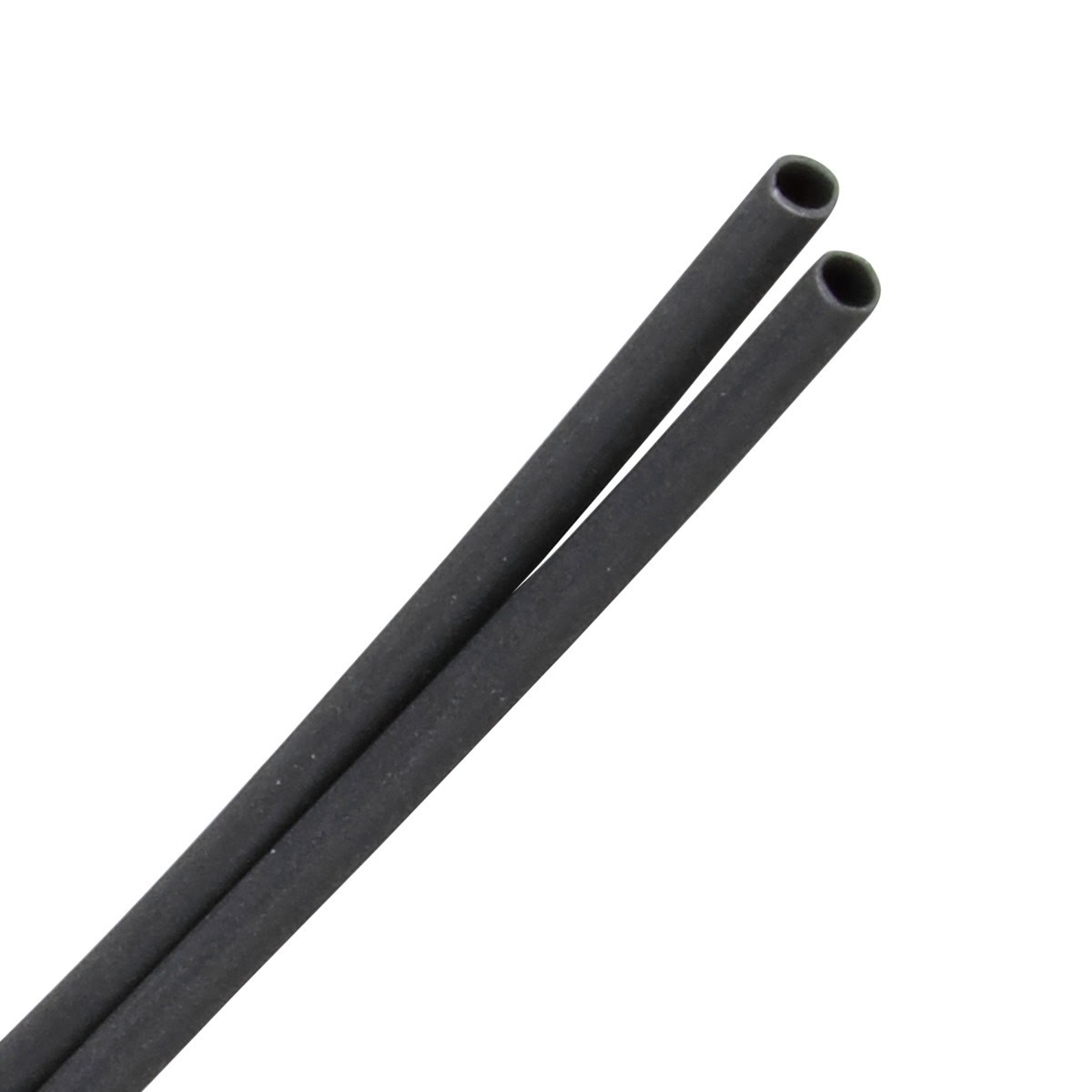

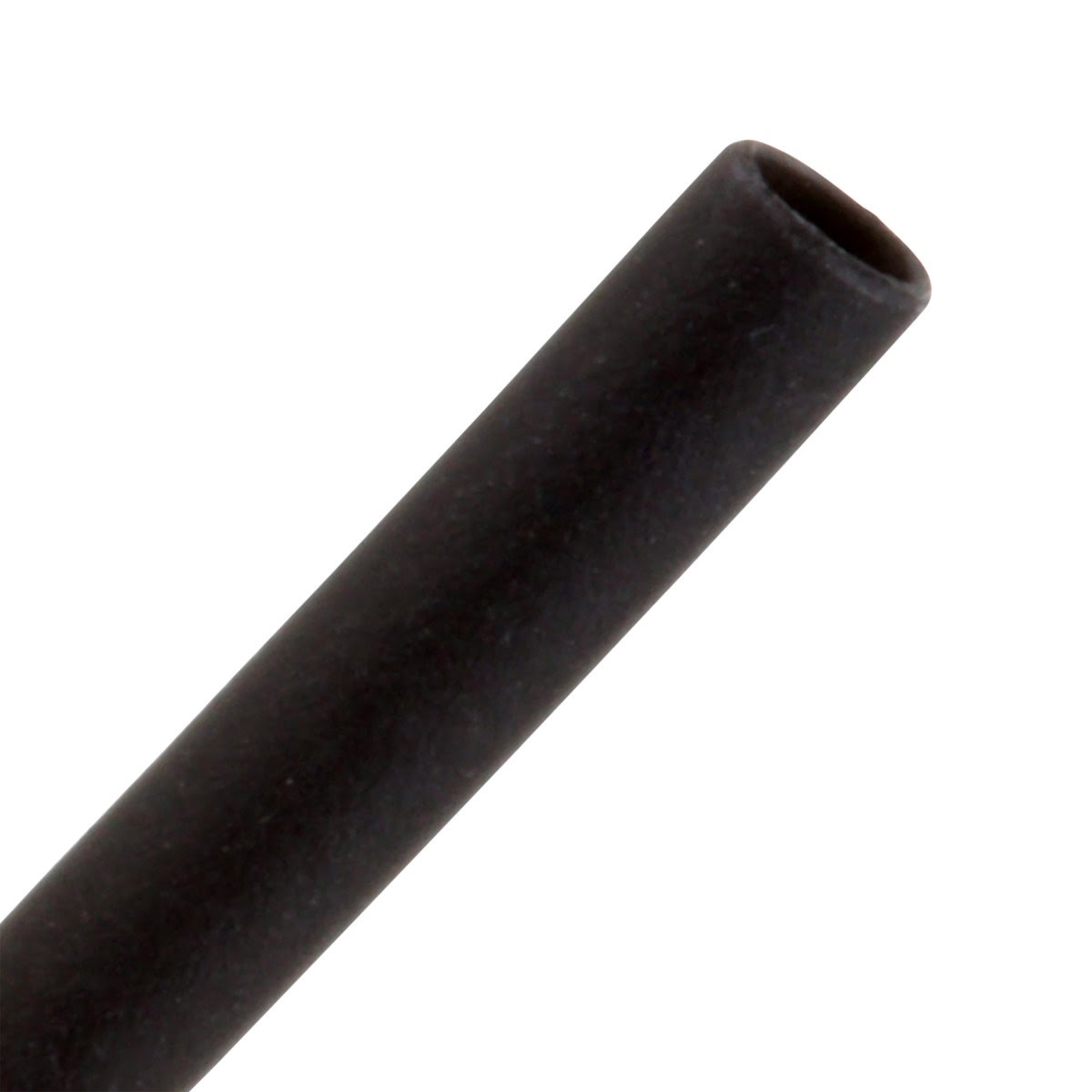

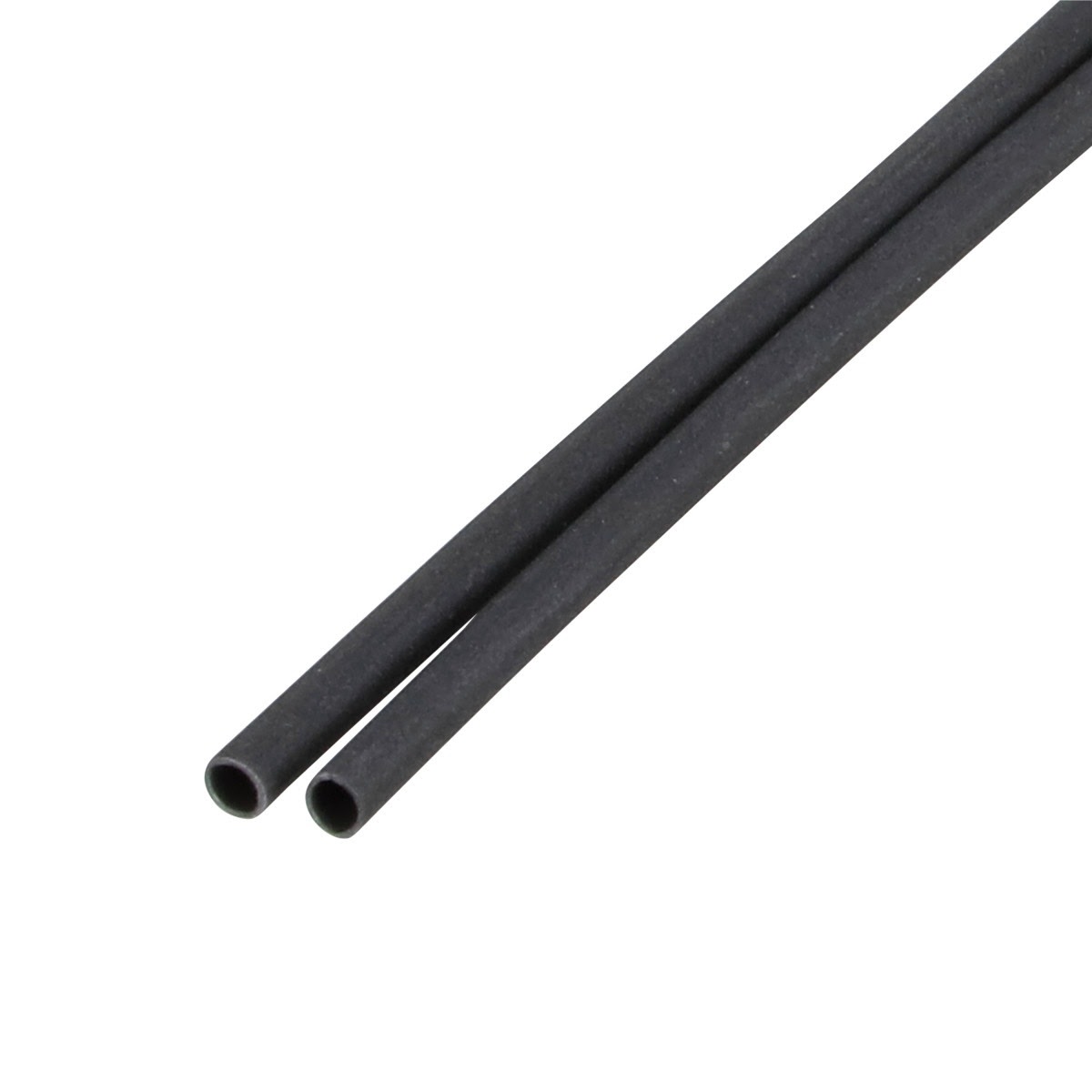

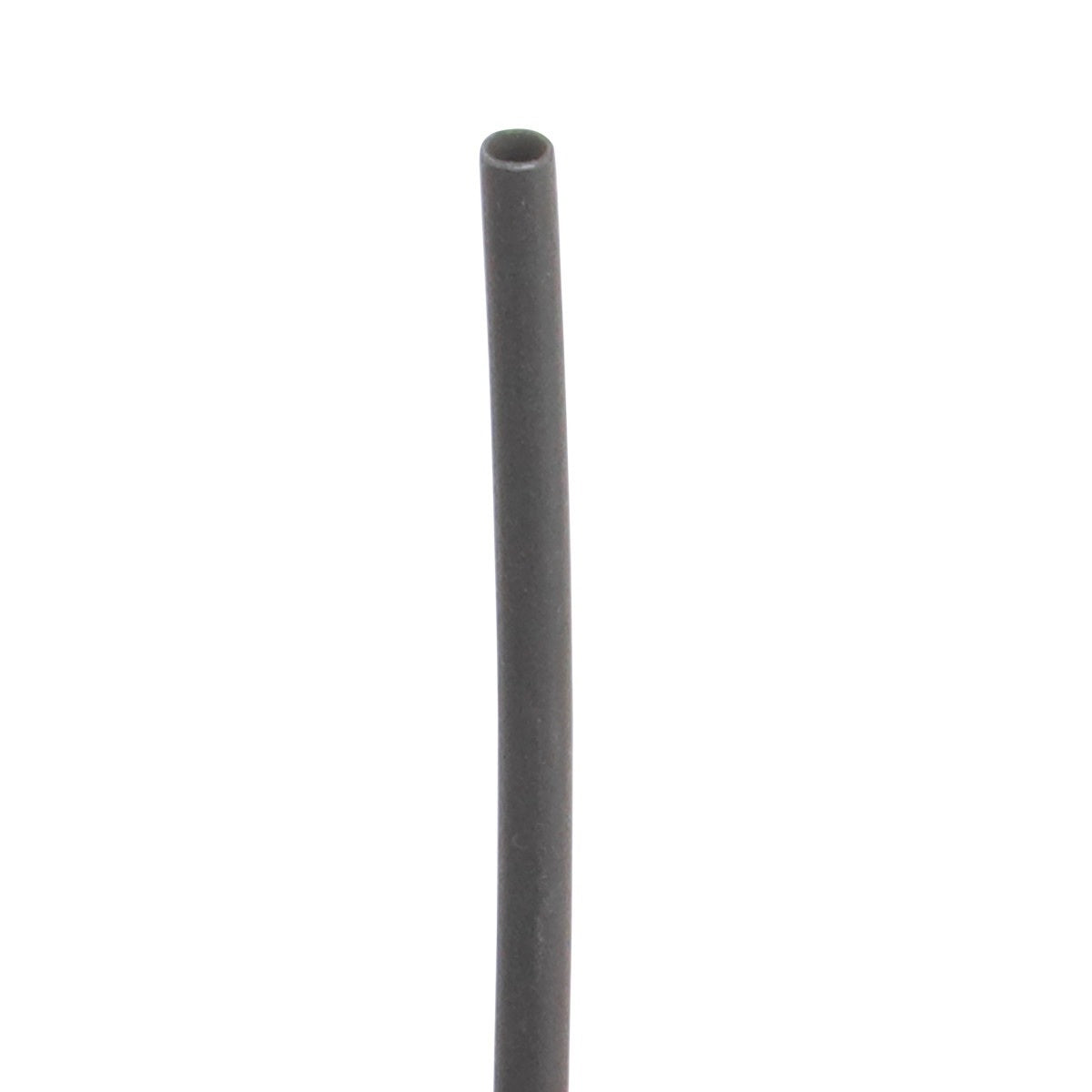

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing designed to provide flame retardant electrical insulation and moisture seal protection for wire splices, terminations, and cable repair. This black tubing features a 2 to 1 shrink ratio and is rated for applications up to 600 volts.
3M 7010398999 Includes

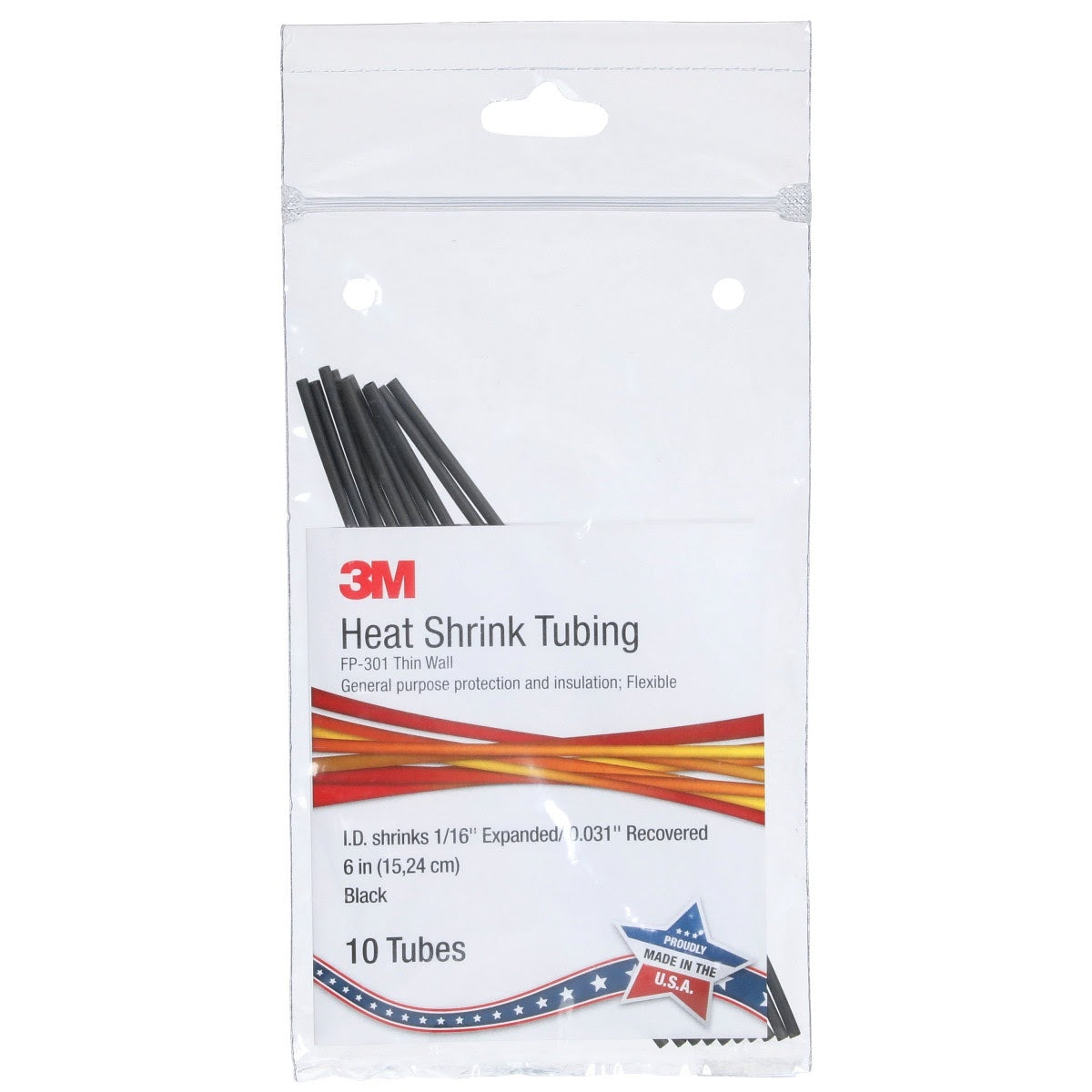

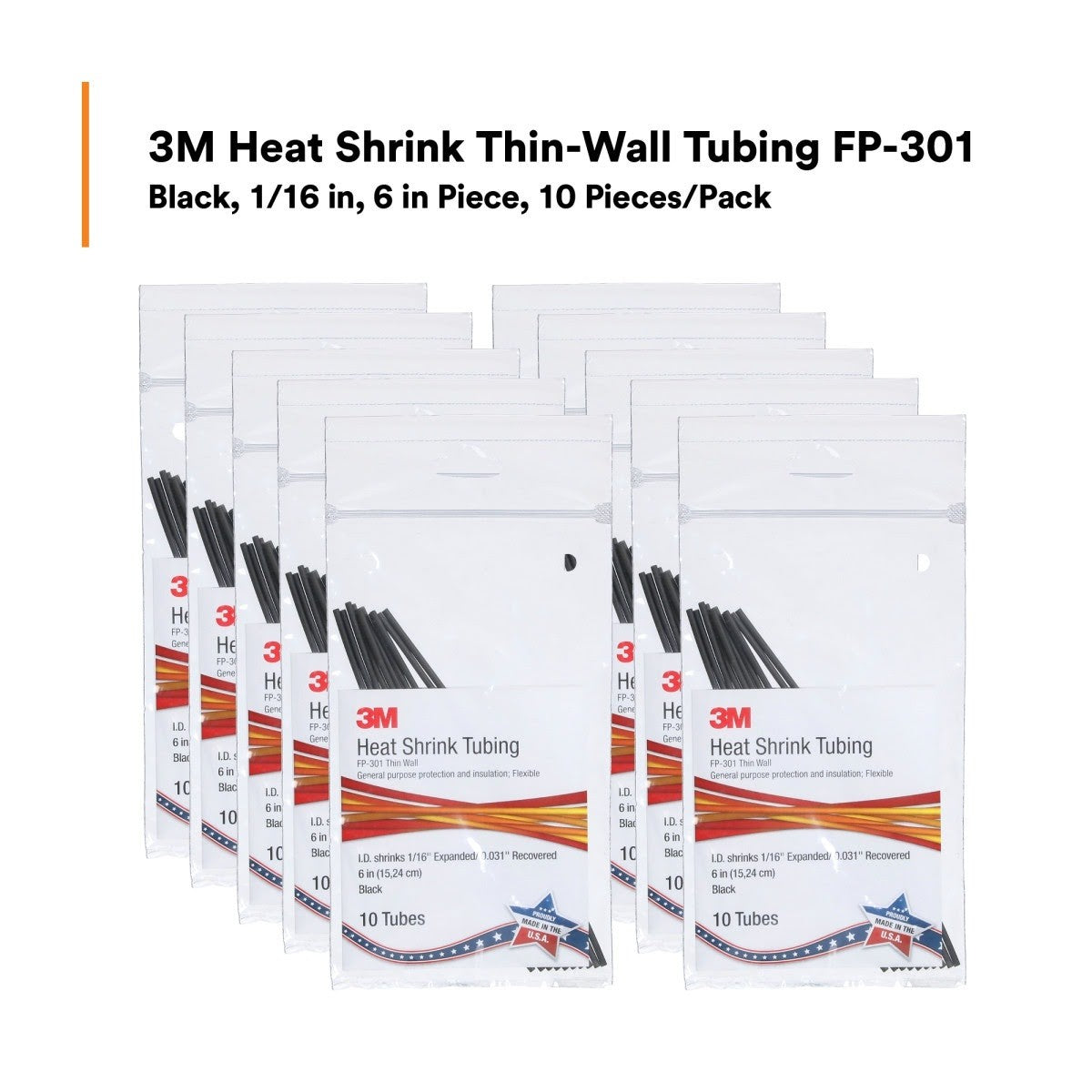

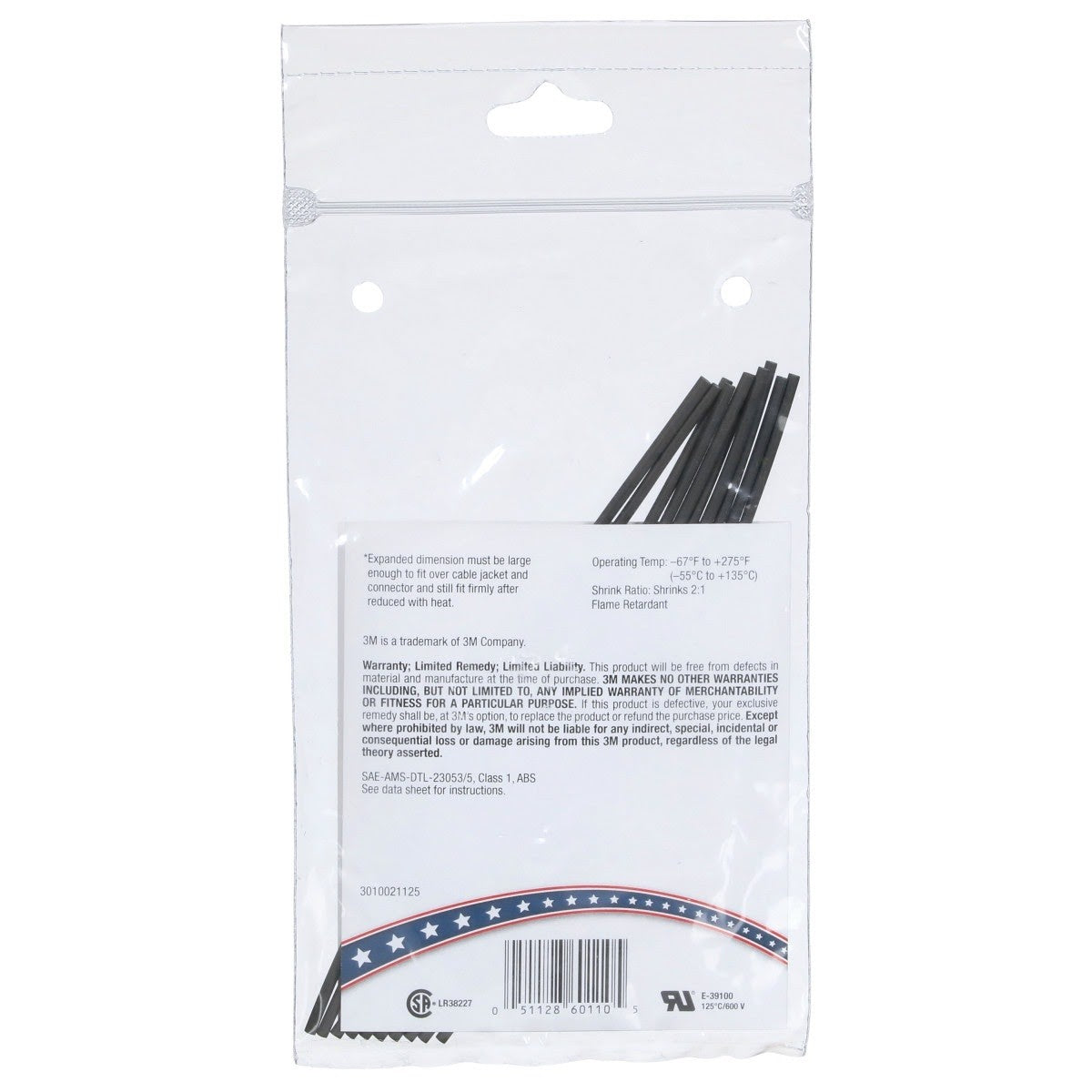

- (100) - 3M 7010398999 Heat Shrink Thin-Wall Tubing FP-301-1/16-6"-Black, 6 in Length
3M 7010398999 Features

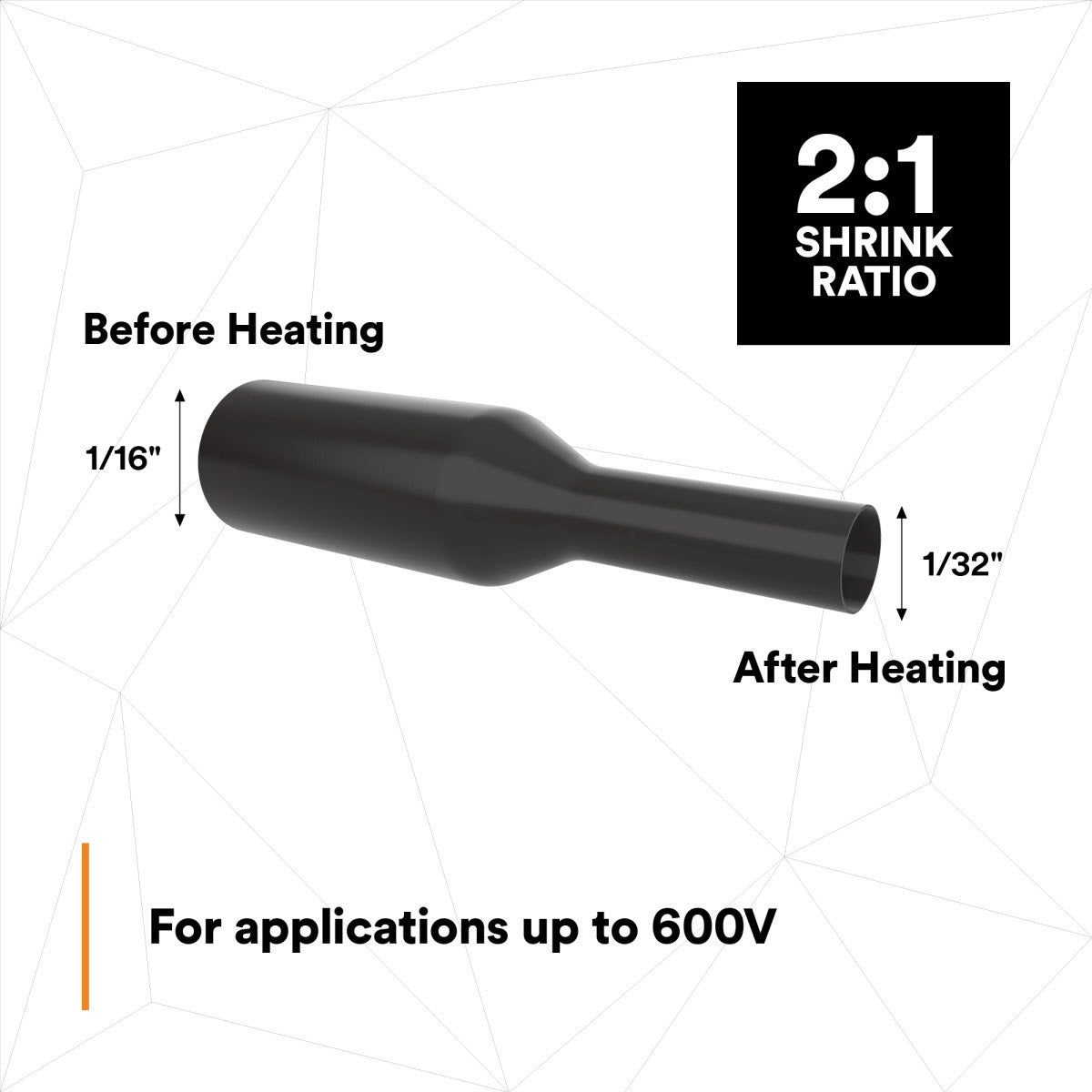

- 2 to 1 shrink ratio for a secure fit
- Flame retardant insulation for applications up to 600 volts
- Thin wall polyolefin construction balances electrical, physical, and chemical properties
- Helps provide moisture seal protection for cable splices and terminations
- Operating temperature range -67 to 275 Degree F
- UL Listed and CSA Certified
- SAE AS23053 5 Class 1 specification
3M 7010398999 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Series | FP-301 |
| Color | Black |
| Material | Polyolefin |
| Shrink Ratio | 2:1 |
| Overall Length | 6 in |
| Inner Diameter Before Shrink | 0.063 in |
| Inner Diameter After Shrink | 0.031 in |
| Flame Retardant | Yes |
| Voltage Rating | 600 Volt |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 to 275 Degree Fahrenheit |
| Elongation | 400 % |
| Mil Spec | AMS-DTL-23053/5 Class 1 |
Toolup Part # :
858389
