At a Glance
Diameter
1/2 in
Length
67 yd
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description
3M 7100024898 Description

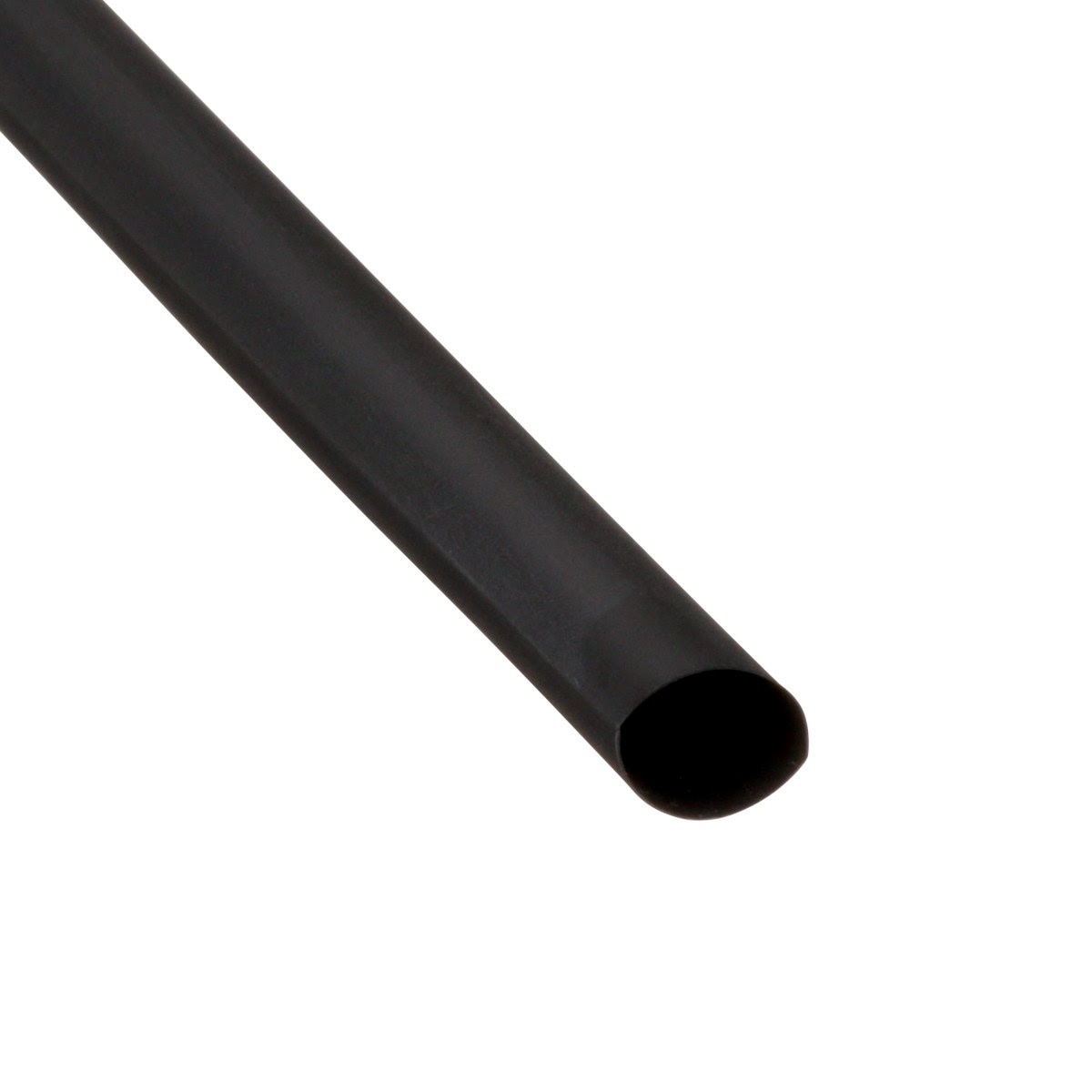

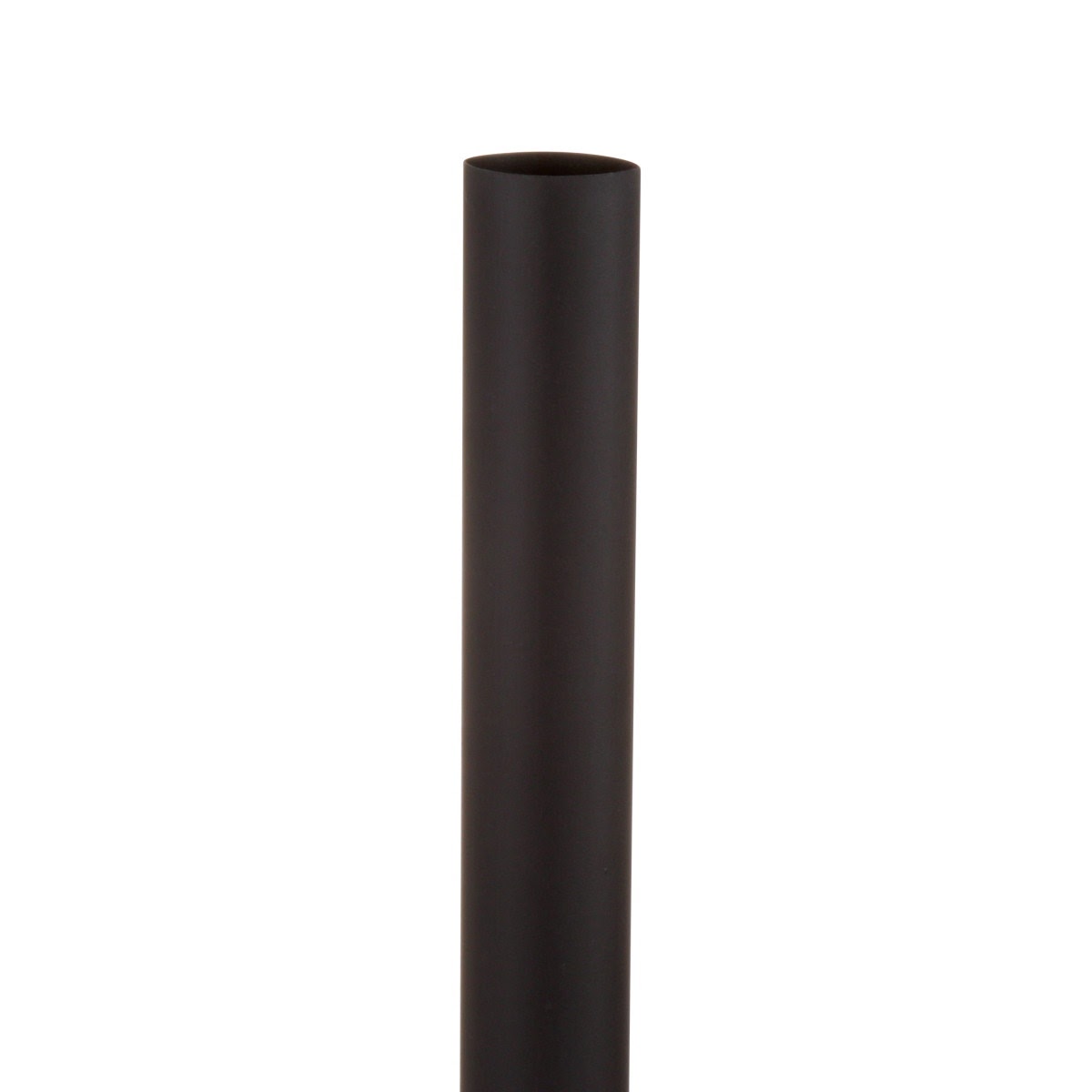

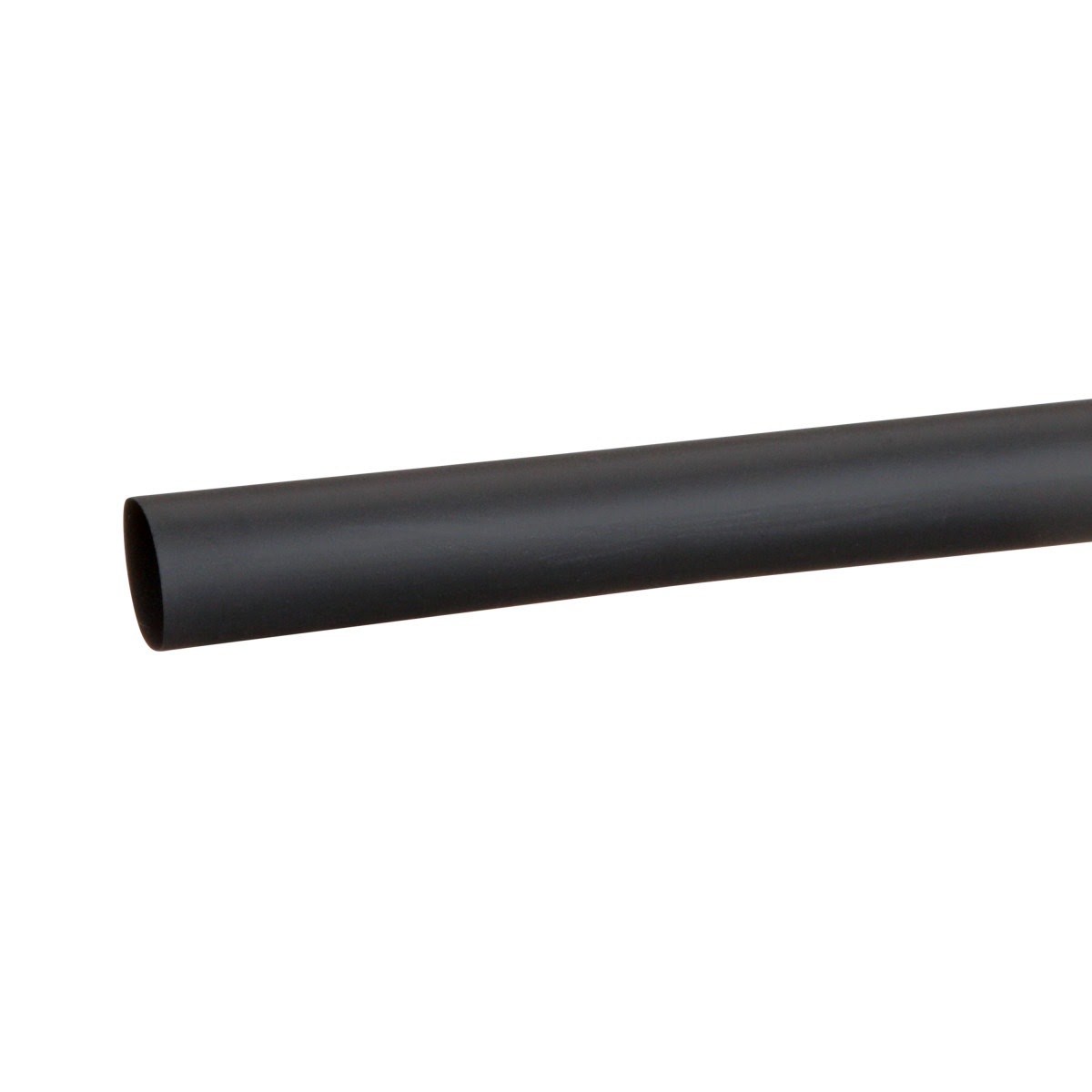

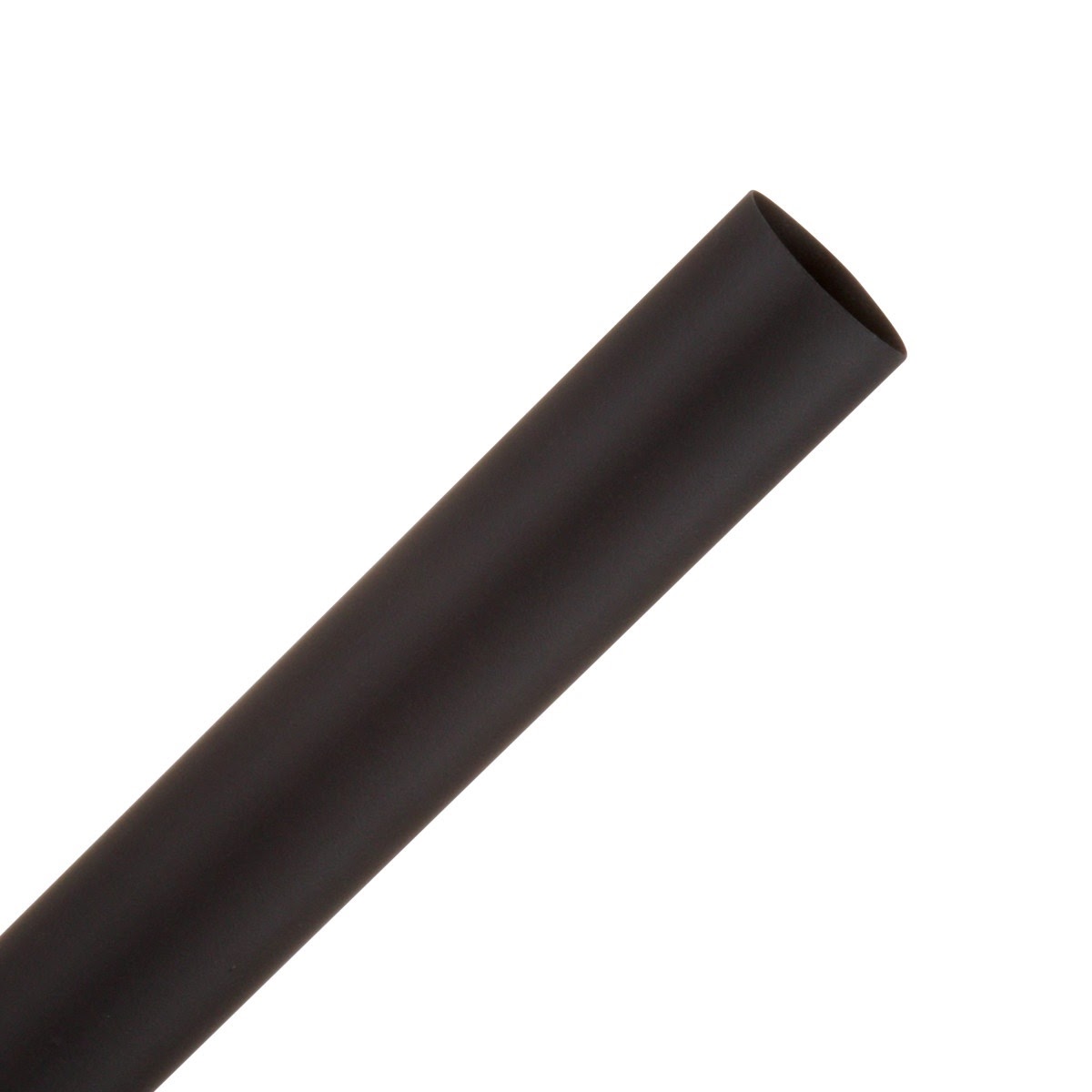

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing designed to provide electrical insulation and high strength protection for cable splices and terminations. It features a 2 to 1 shrink ratio, flame retardant performance for 600V applications, and moisture seal protection in demanding environments.
3M 7100024898 Includes

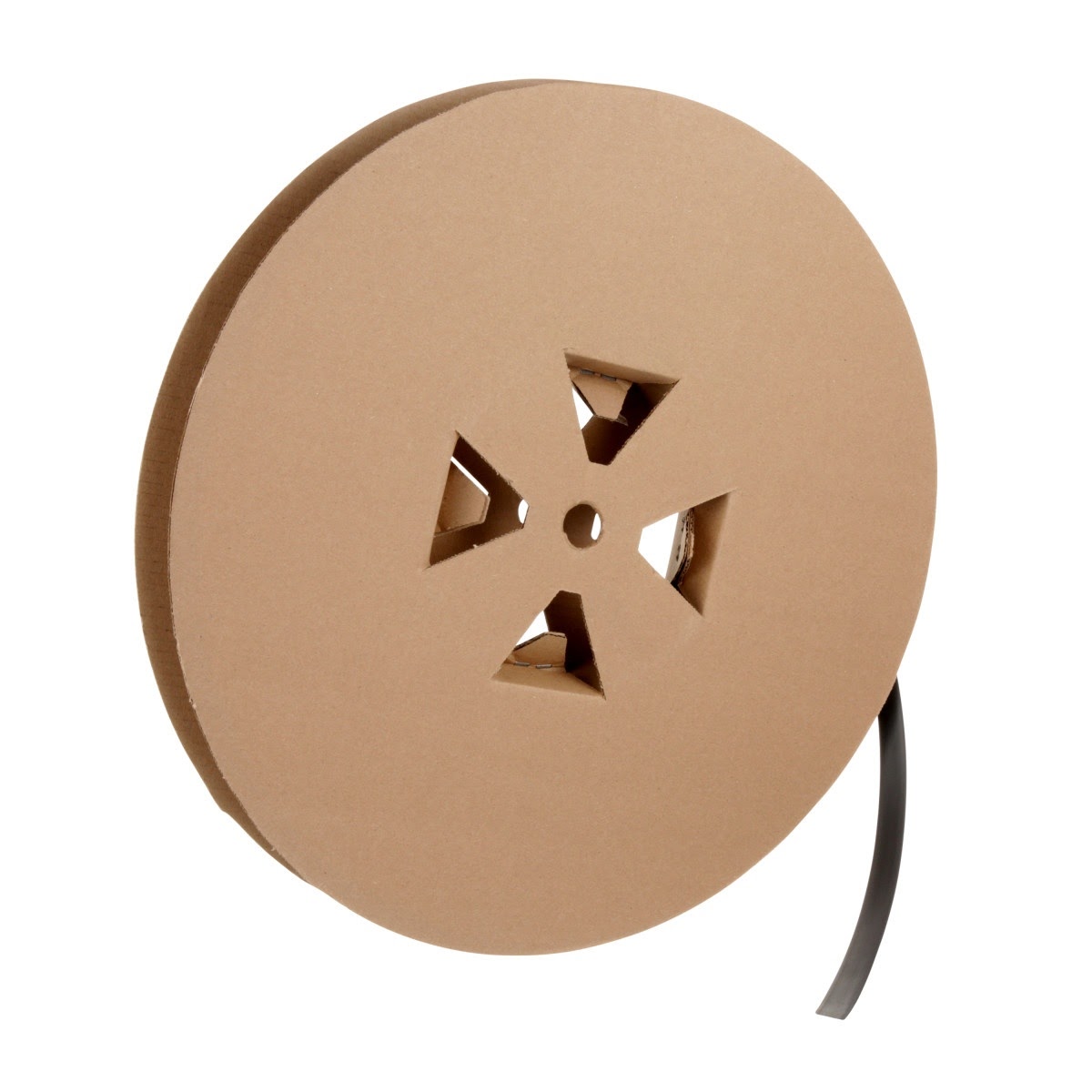

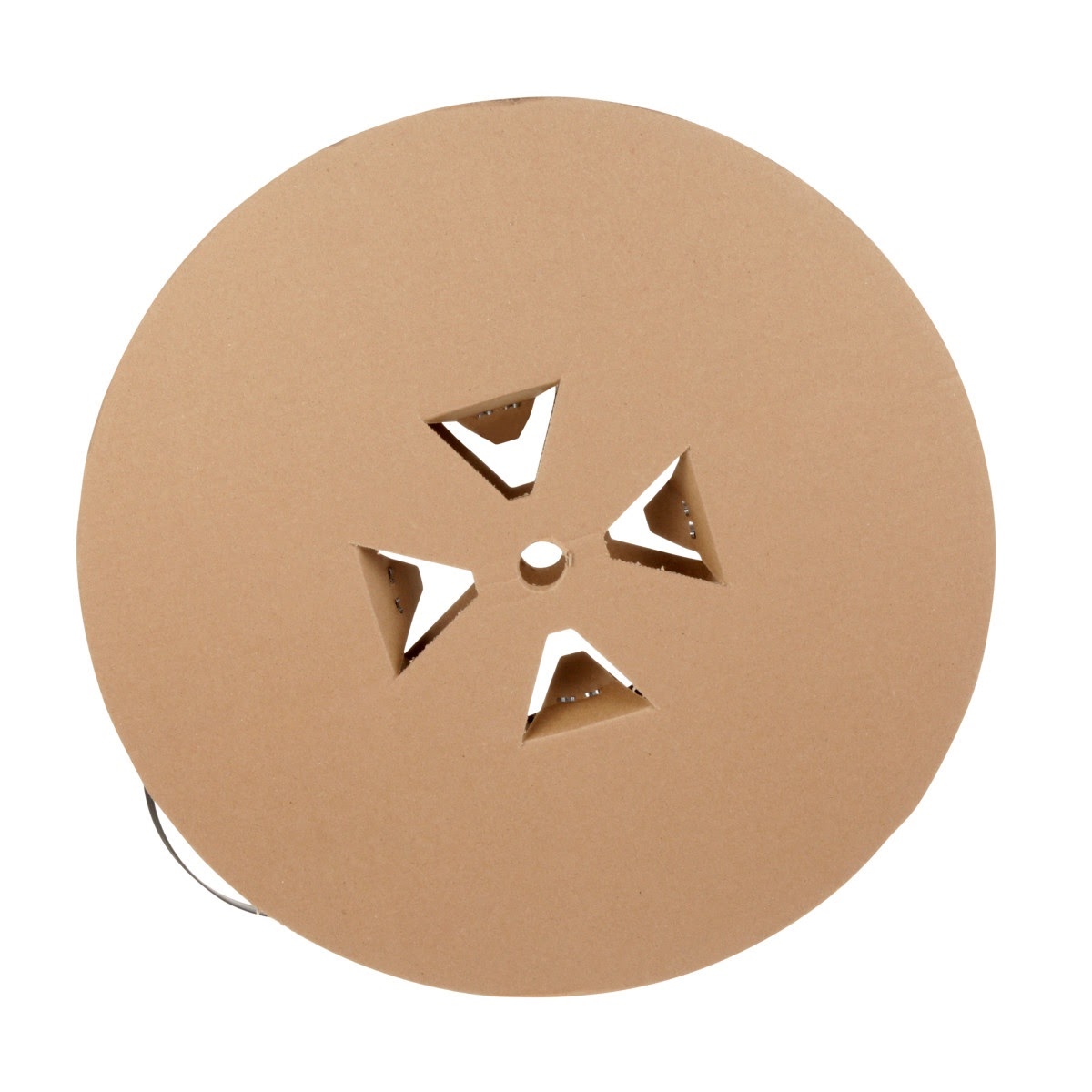

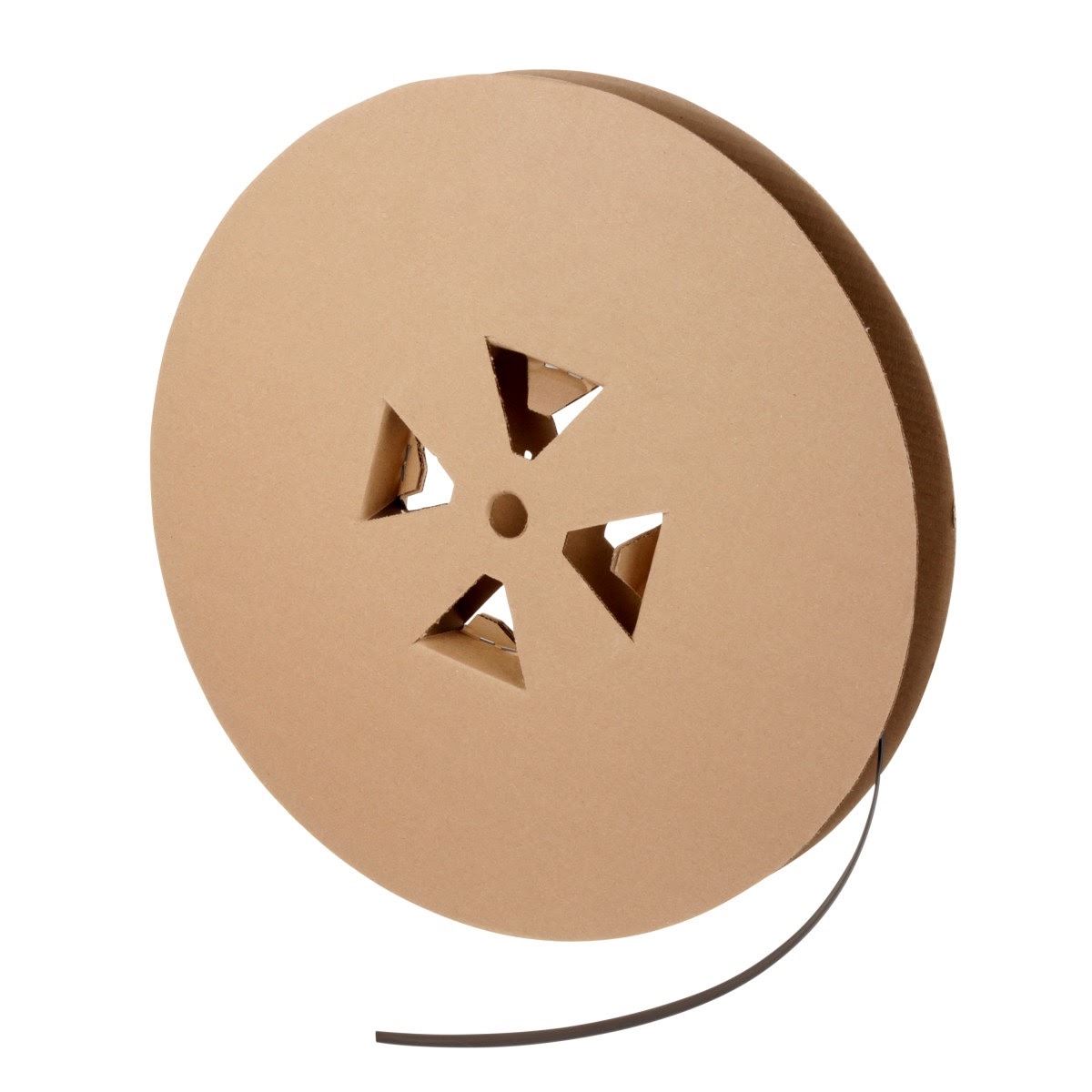

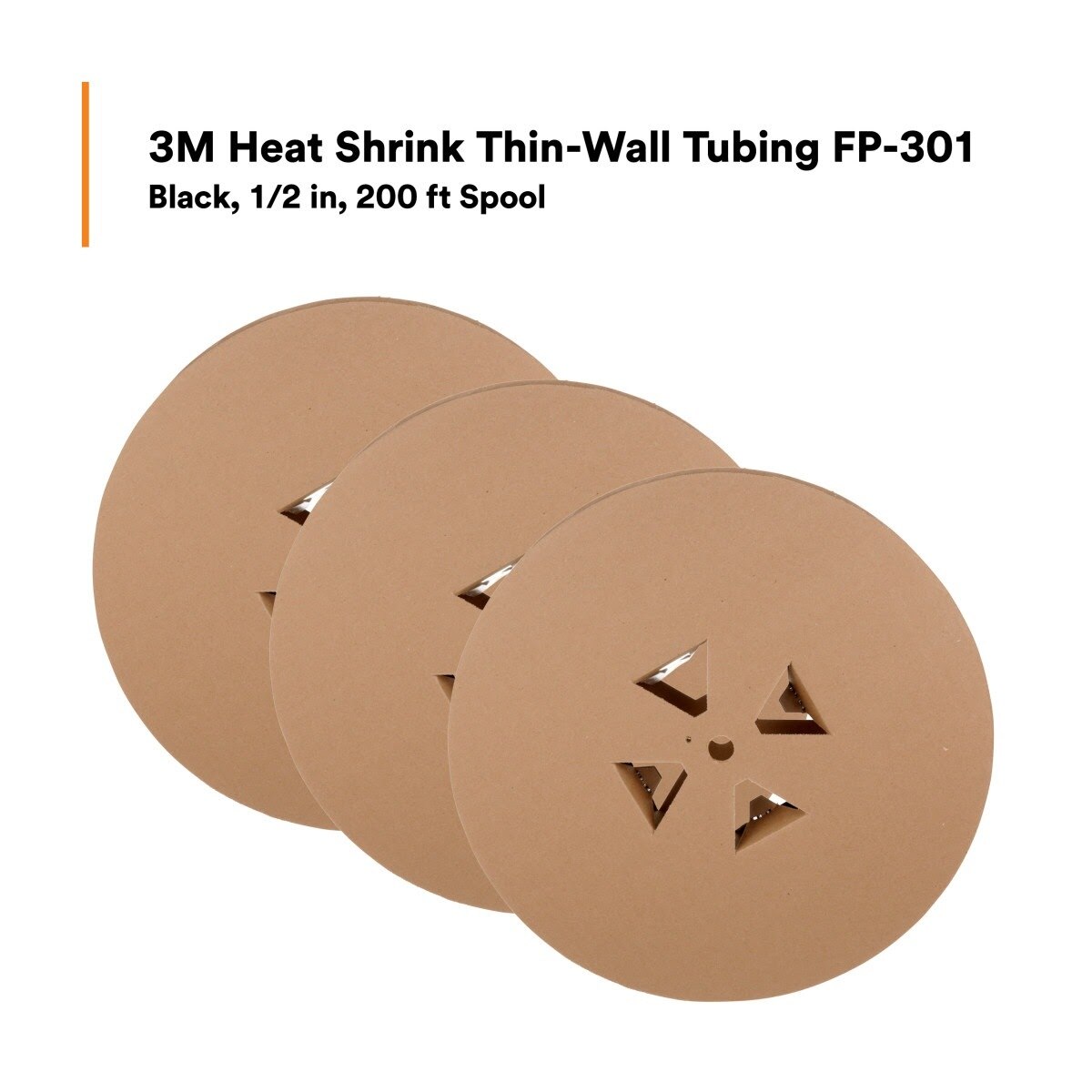

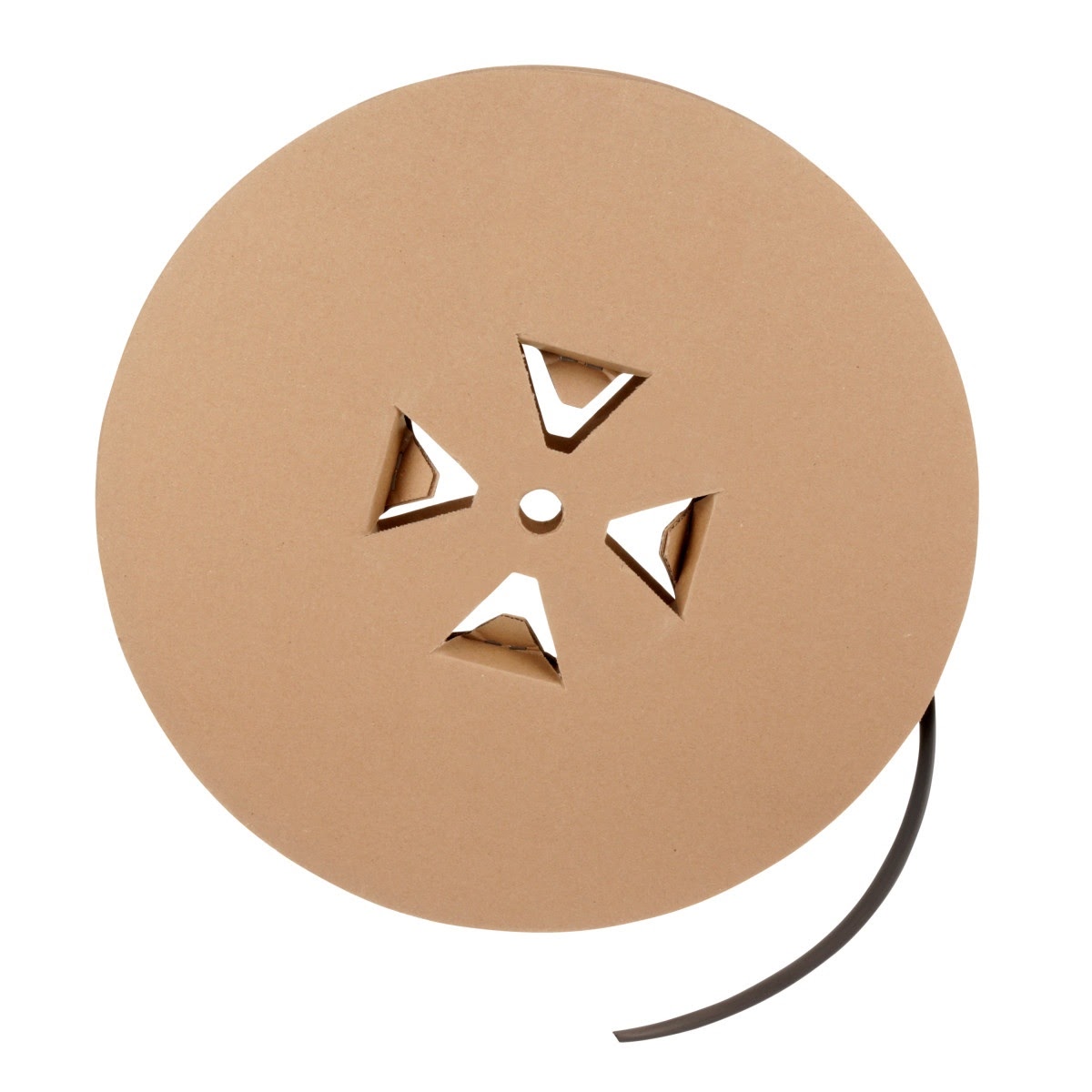

- (3) - 3M 7100024898 Heat Shrink Thin-Wall Tubing FP-301-1/2-Black-200', 200 ft Length
3M 7100024898 Features
- 2 to 1 shrink ratio for secure shrink fit protection
- Flame retardant tubing for applications up to 600V
- Flexible polyolefin construction helps provide moisture seal protection
- Resists cold flow and is split resistant for durable wire harness covering
- Performs in operating temperatures from minus 67 Degree Fahrenheit to 275 Degree Fahrenheit
- UL listed and CSA certified
- RoHS 2011/65/EU compliant
3M 7100024898 Specifications
| Product Type | Heat Shrink Thin Wall Tubing |
| Series | FP-301 |
| Color | Black |
| Shrink Ratio | 2:1 |

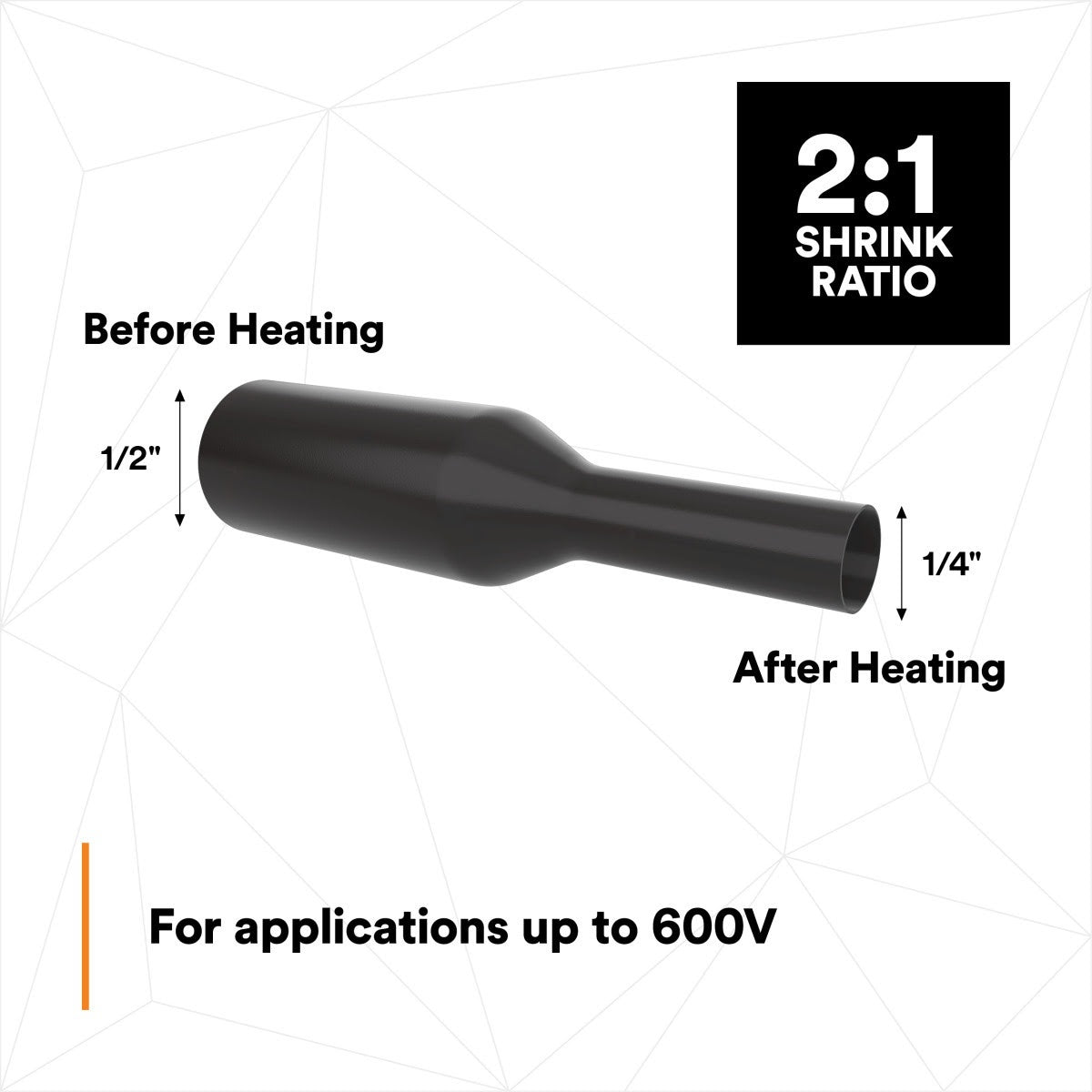

| Inner Diameter Before Shrink | 0.5 in |
| Inner Diameter After Shrink | 0.25 in |
| Overall Length | 200 ft |
| Material | Flexible Polyolefin |
| Flame Retardant | Yes |
| Voltage Rating | 600V |
| Operating Temperature Range | minus 67 Degree Fahrenheit to 275 Degree Fahrenheit |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5 Class 1 |
| Secondary Part Number | FP0.500BK200L |
Toolup Part # :
860825
