3M 7100022513 Description

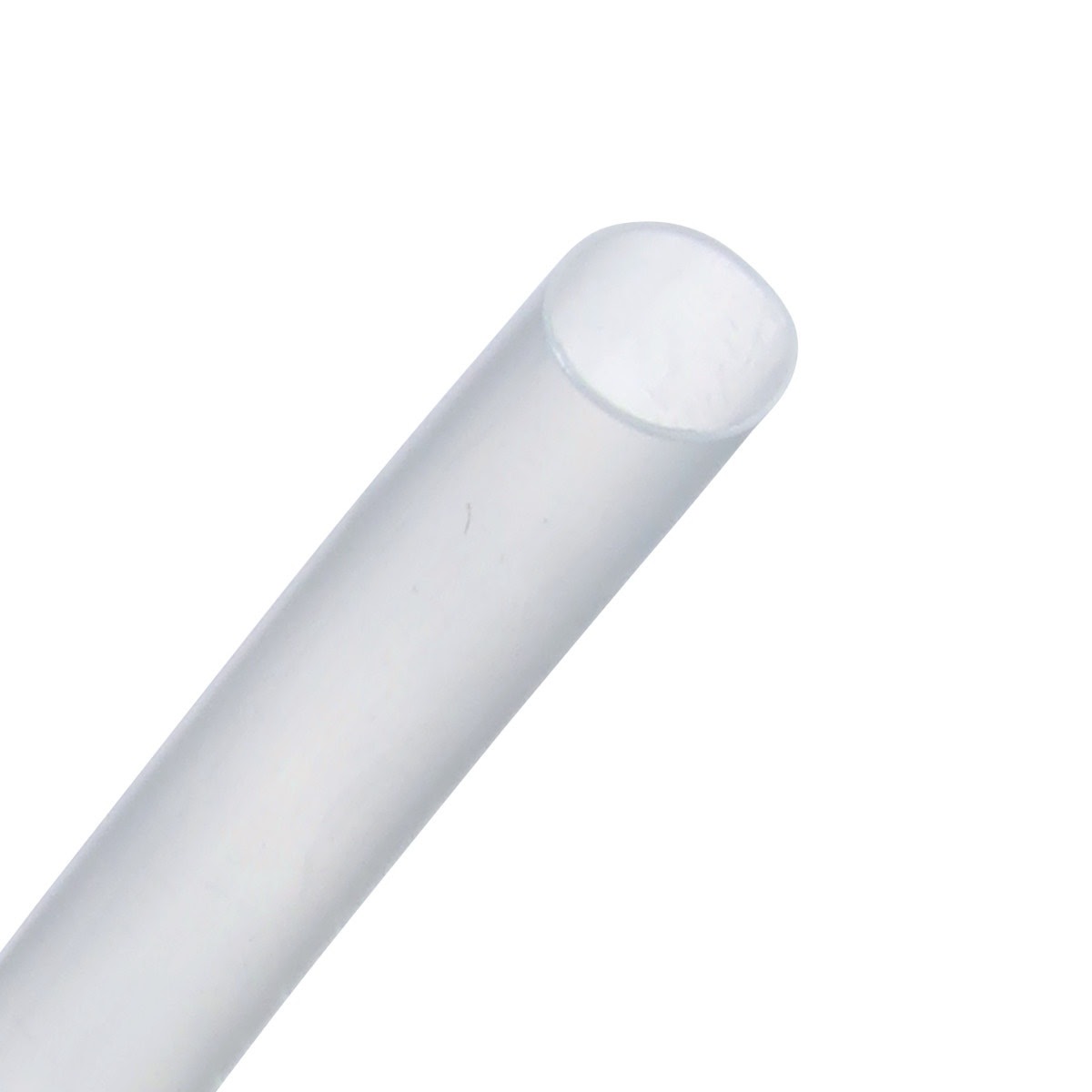

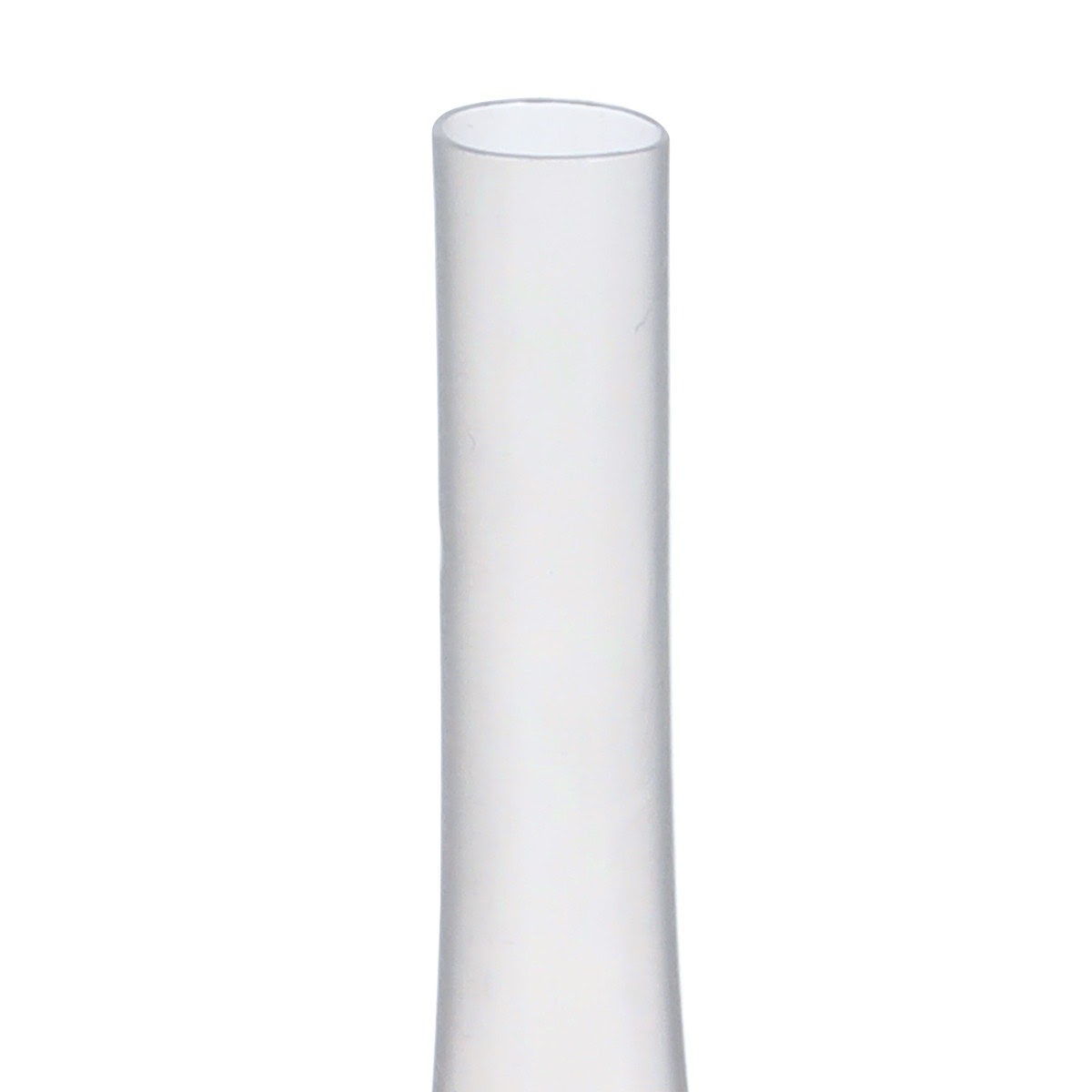

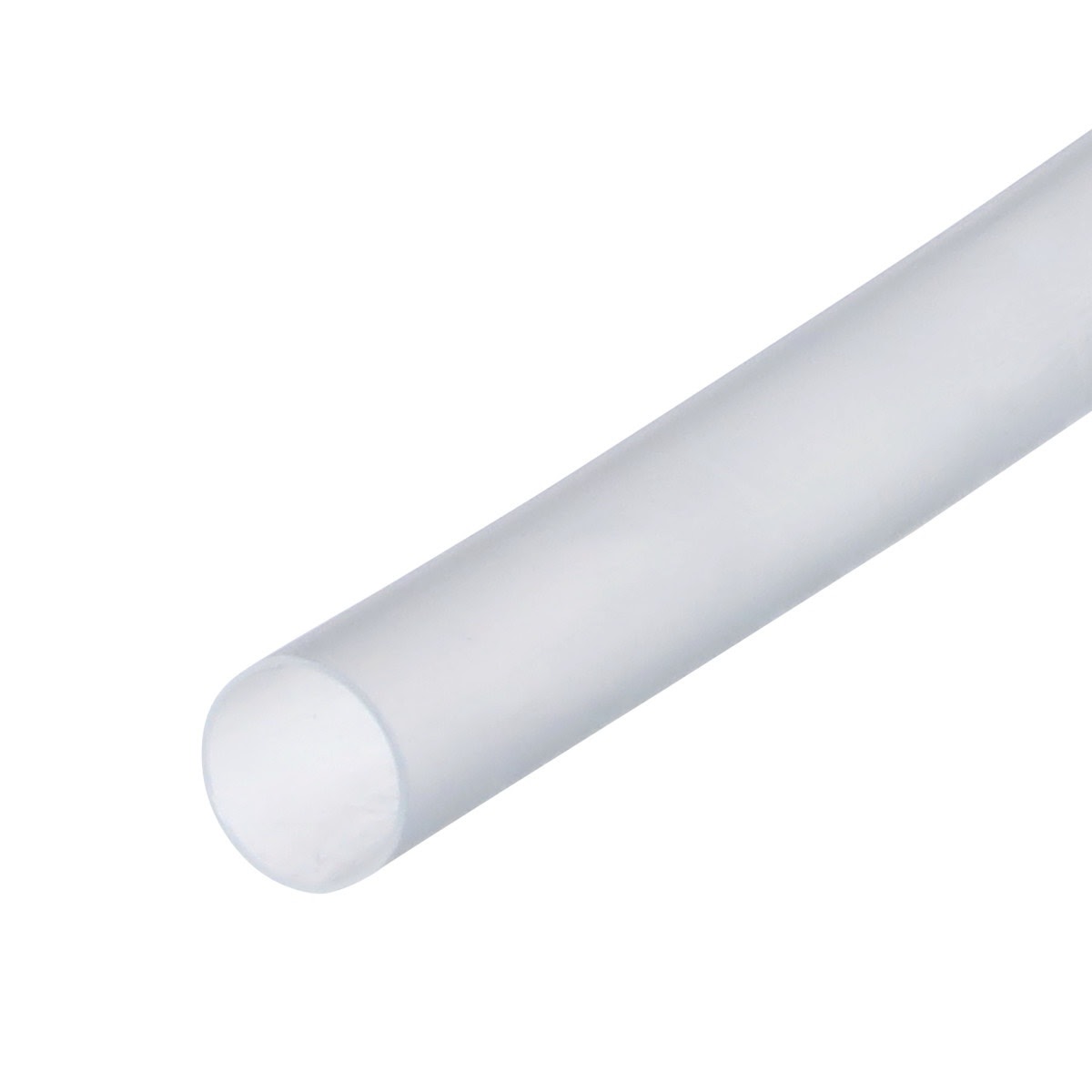

3M FP-301 heat shrink thin-wall tubing is a general purpose, single-wall polyolefin tubing designed to provide durable electrical insulation and mechanical protection for wire and cable splices, terminations, and harnessing. This clear tubing features a 2:1 shrink ratio, is UL listed, and supports applications up to 600V.
3M 7100022513 Includes

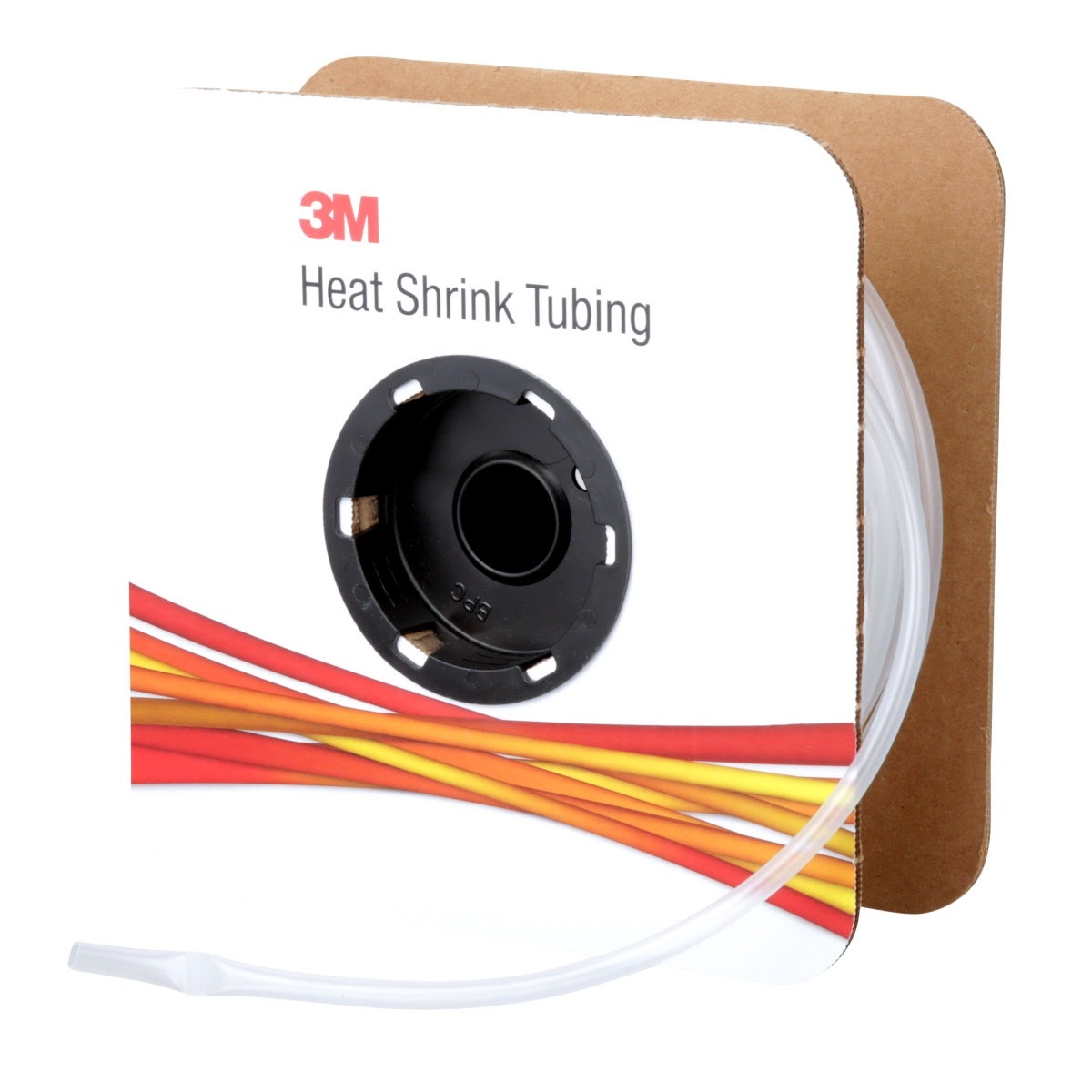

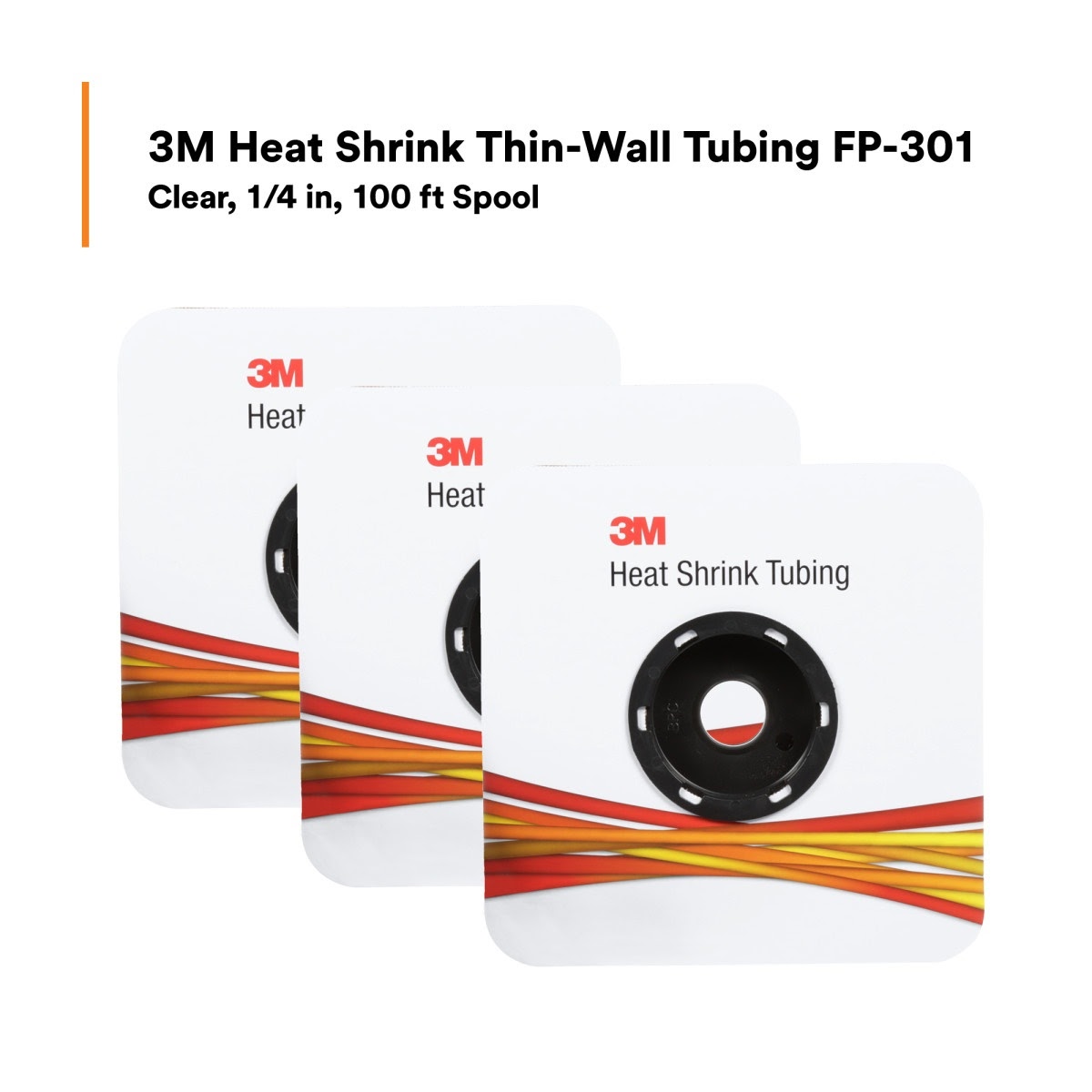

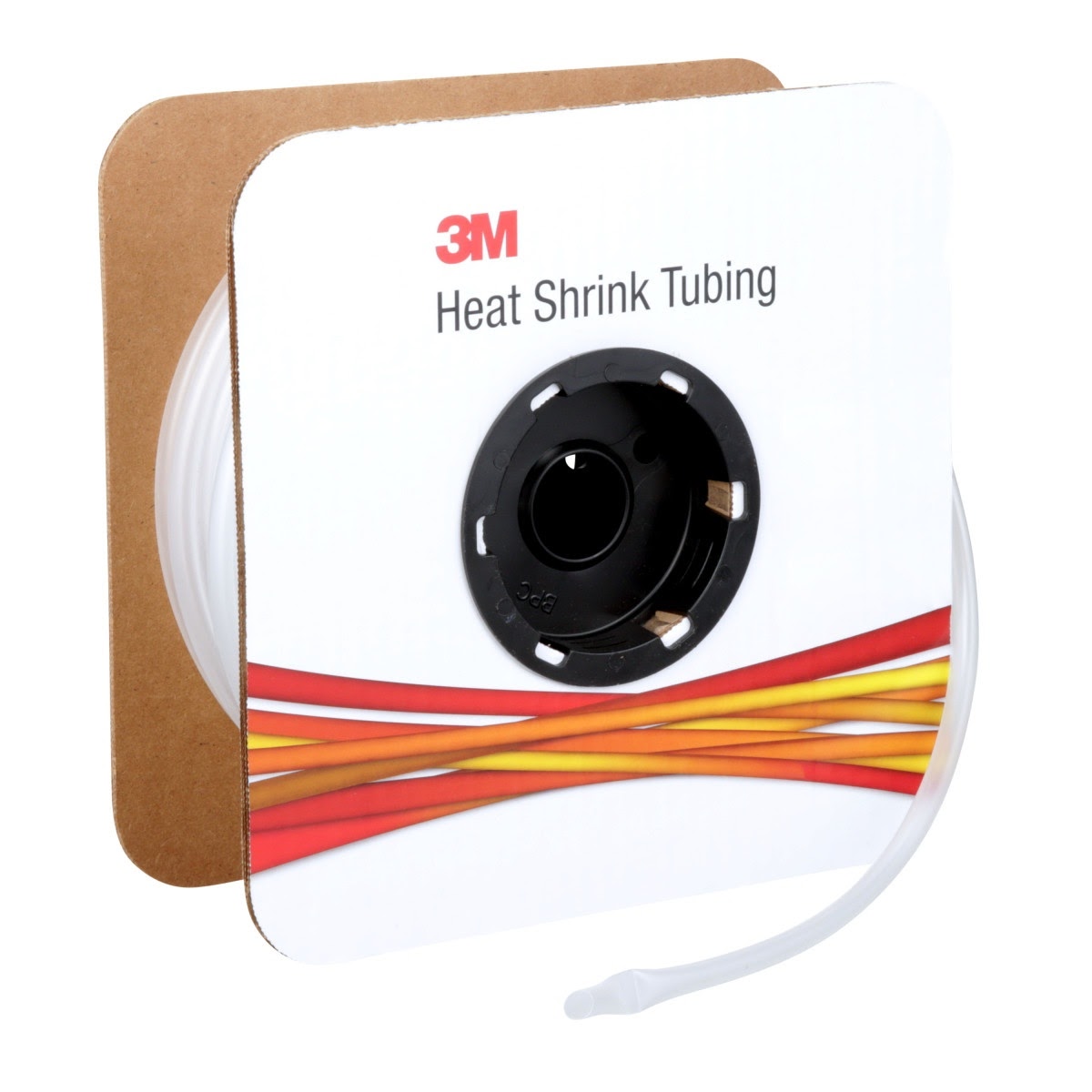

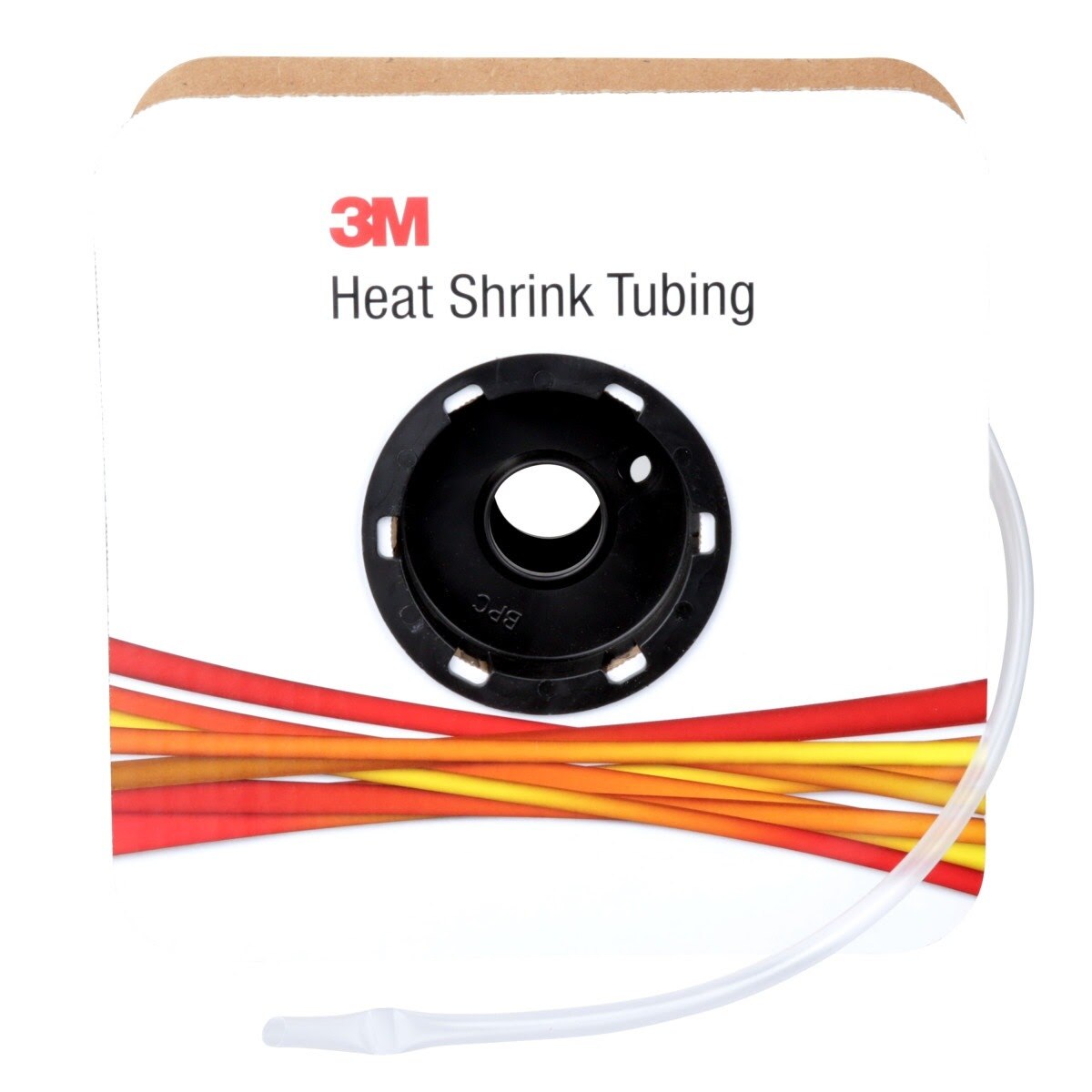

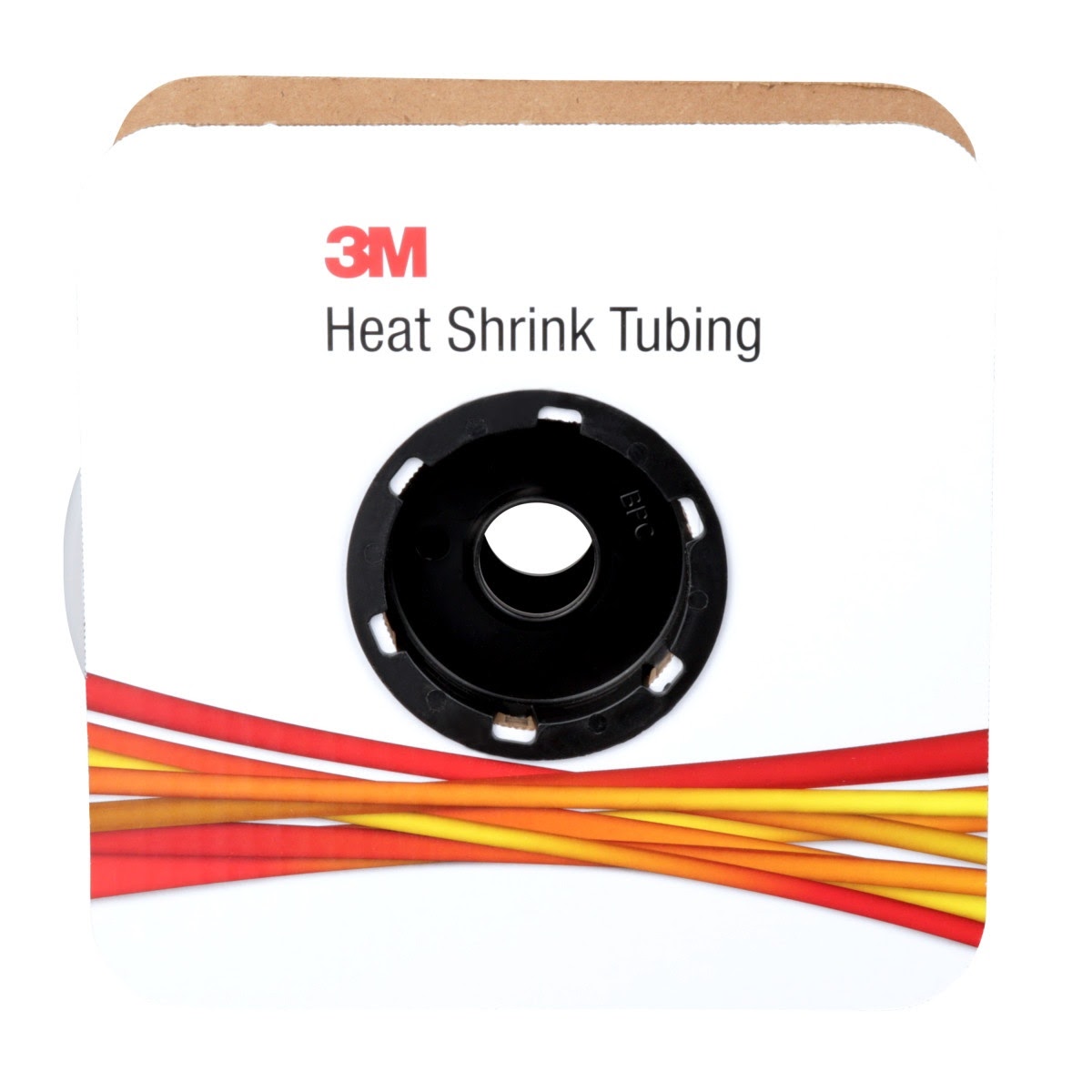

- (3) - 3M 7100022513 Heat Shrink Thin-Wall Tubing FP-301-1/4-100'-Clear-Spool
3M 7100022513 Features
- General purpose thin-wall heat shrink tubing for electrical insulation and protection

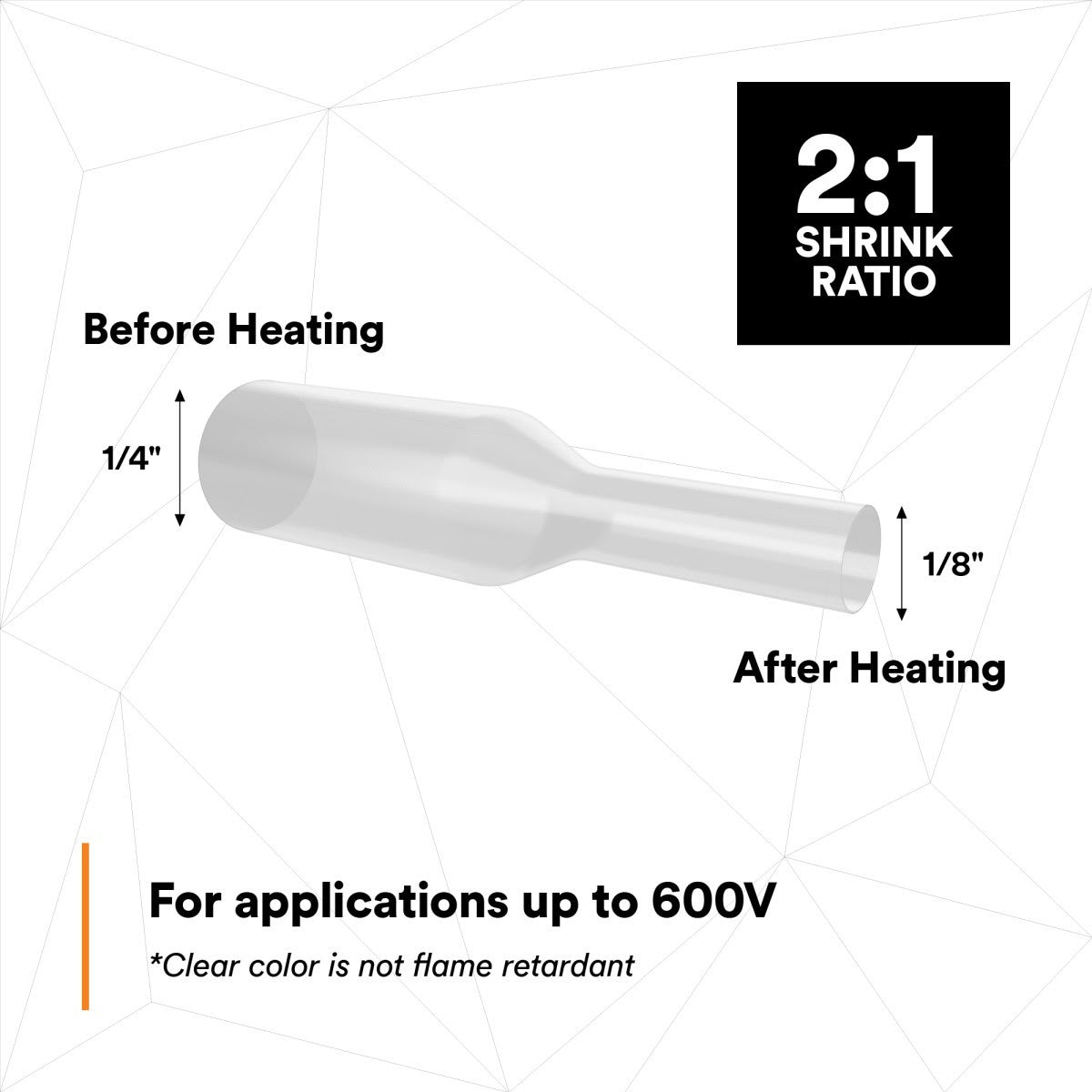

- 2:1 shrink ratio for secure shrink-fit coverage
- Single-wall flexible polyolefin construction
- Suitable for applications up to 600V
- Operating temperature range -67 Degree F to 275 Degree F (-55 Degree C to 135 Degree C)
- UL listed and CSA certified
- Non-corrosive material
- Resists cold flow and is easily markable
- RoHS 2011/65/EU compliant without exemption
- No inner adhesive (no inner glue)
3M 7100022513 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Series | FP-301 |
| Tubing Type | Single Wall (Thin) |
| Material | Flexible Polyolefin |
| Color | Transparent (Clear) |
| Expanded Inner Diameter | 0.25 in |
| Recovered Inner Diameter | 0.125 in |
| Shrink Ratio | 2:1 |
| Overall Length | 100 ft |
| Maximum Operating Temperature | 275 Degree Fahrenheit (135 Degree Celsius) |
| Operating Temperature Range | -67 Degree F to 275 Degree F |
| Flame Retardant | No |
| Voltage Rating | 600V |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Non-Corrosive | Yes |
| With Inner Glue | No |
Toolup Part # :
858990
