3M 7000133692 Description

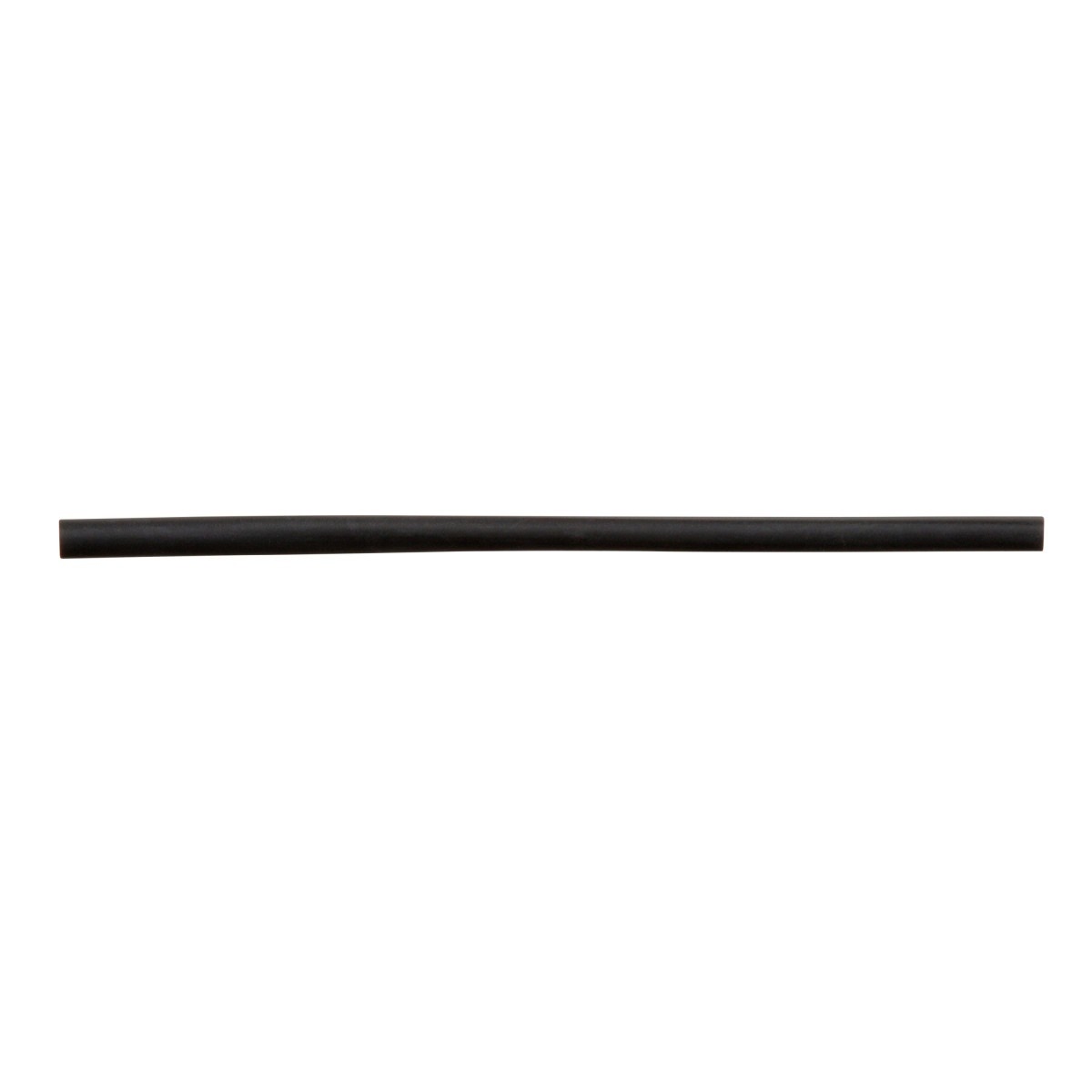

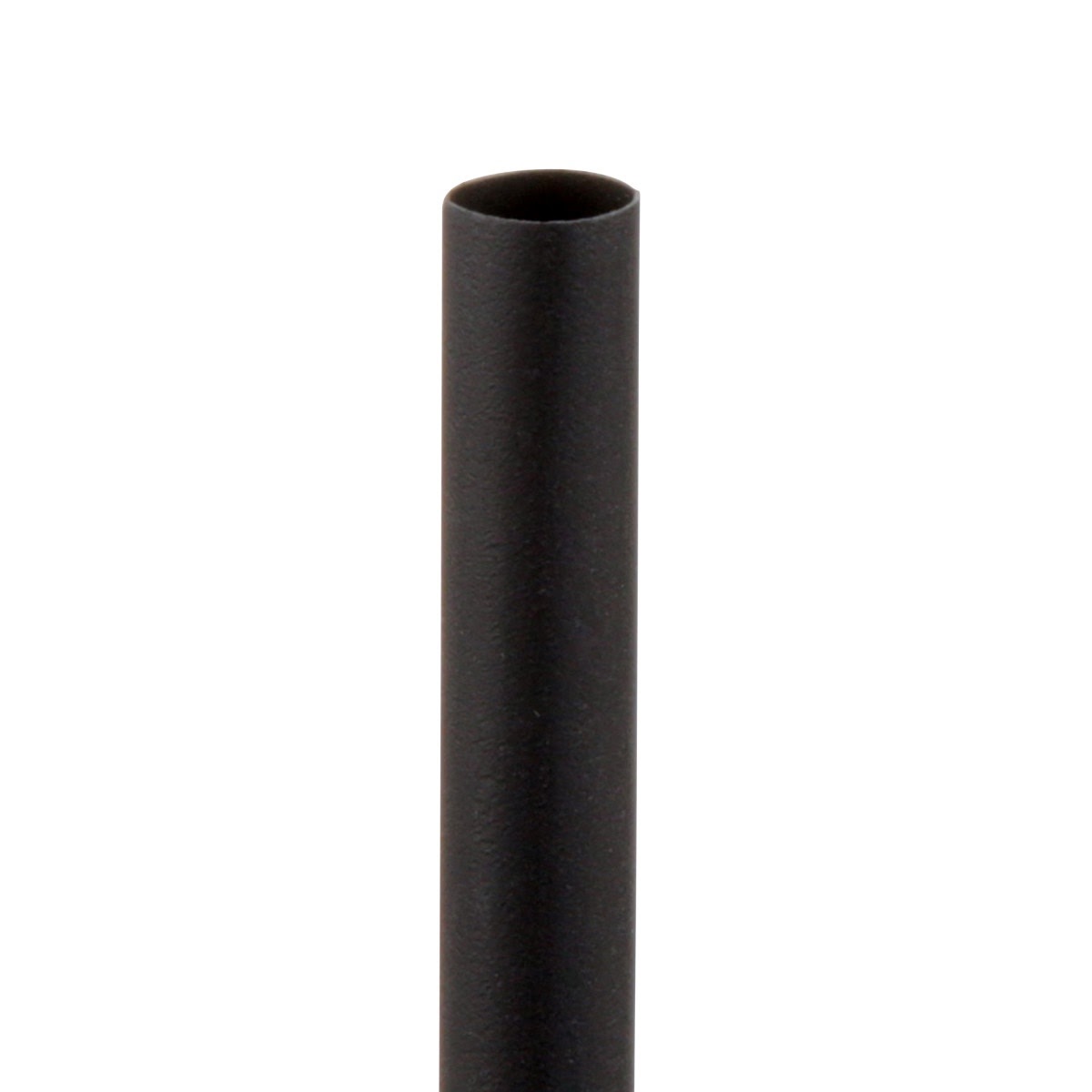

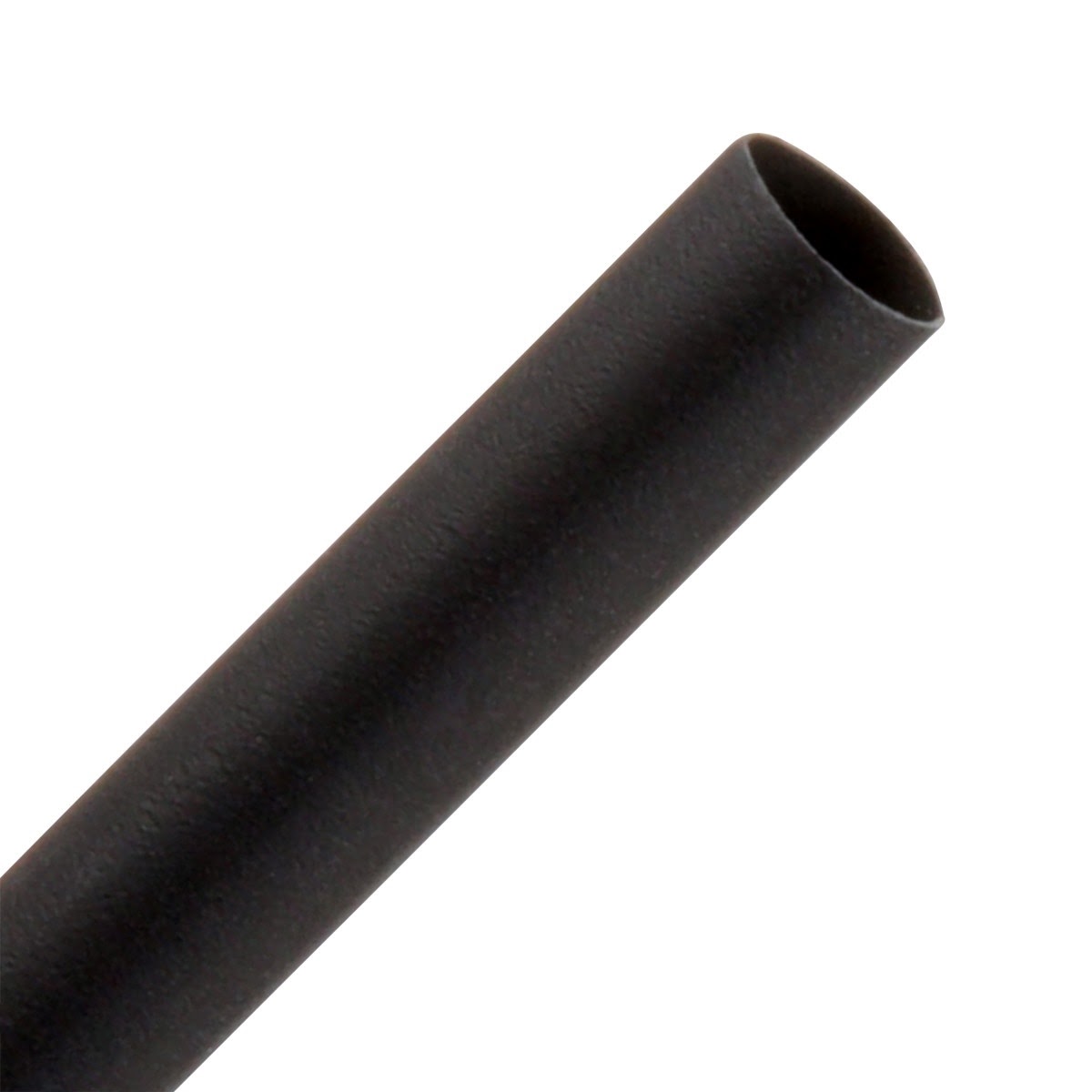

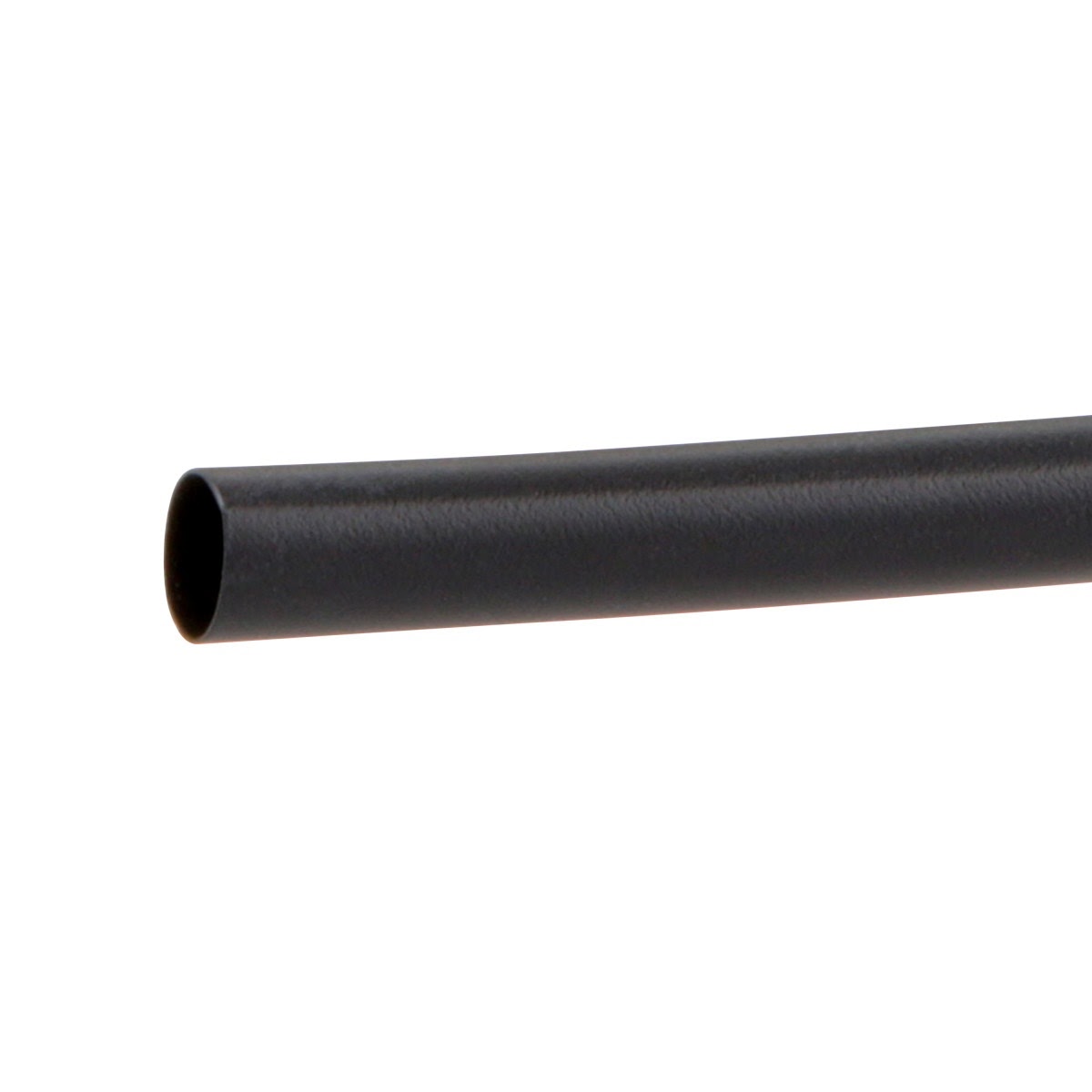

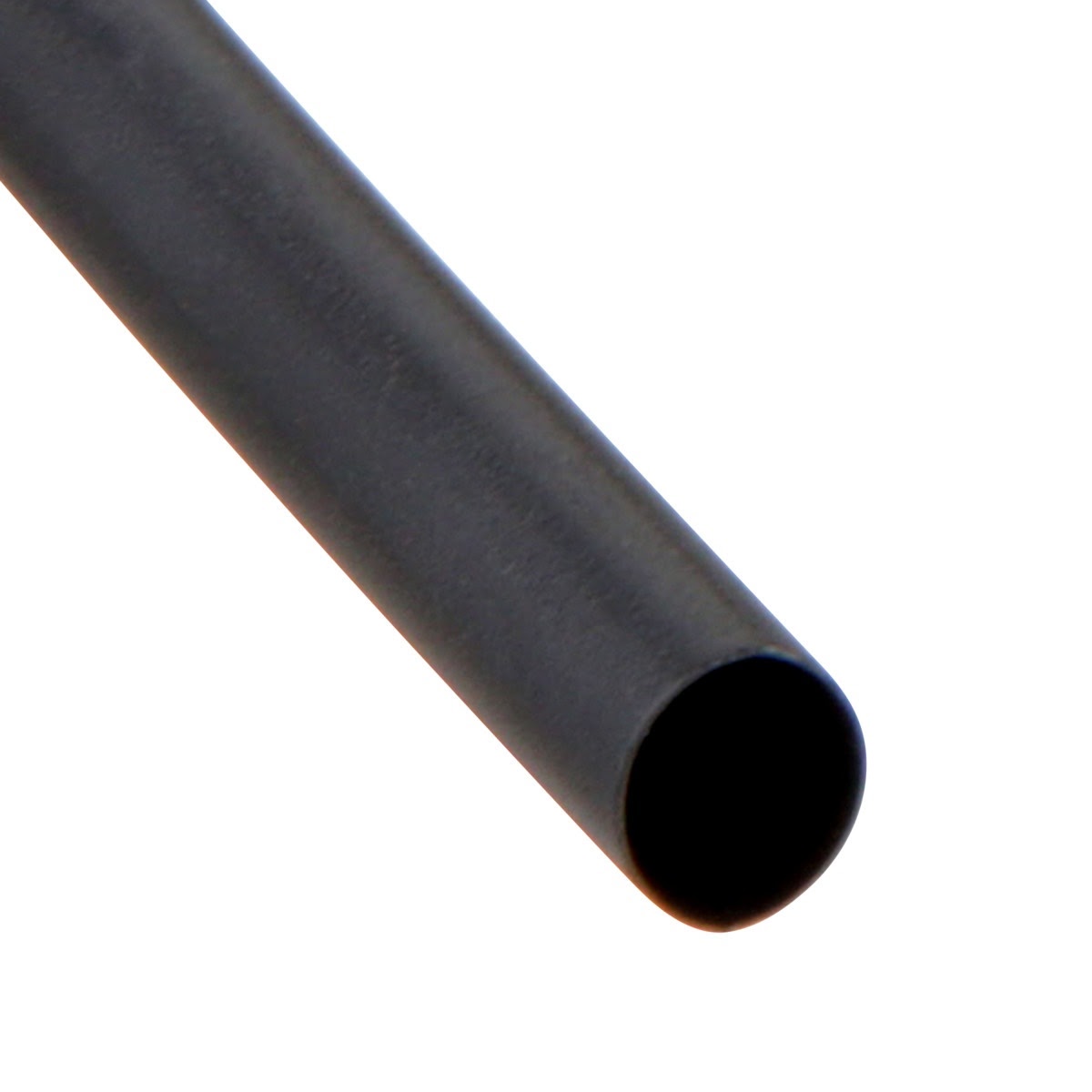

3M FP-301 heat shrink thin wall tubing provides general purpose electrical insulation and protection for wires, splices, and terminations. This black polyolefin tubing offers a 2:1 shrink ratio, flame retardant performance, and a 600V rating for demanding electrical applications.
3M 7000133692 Includes

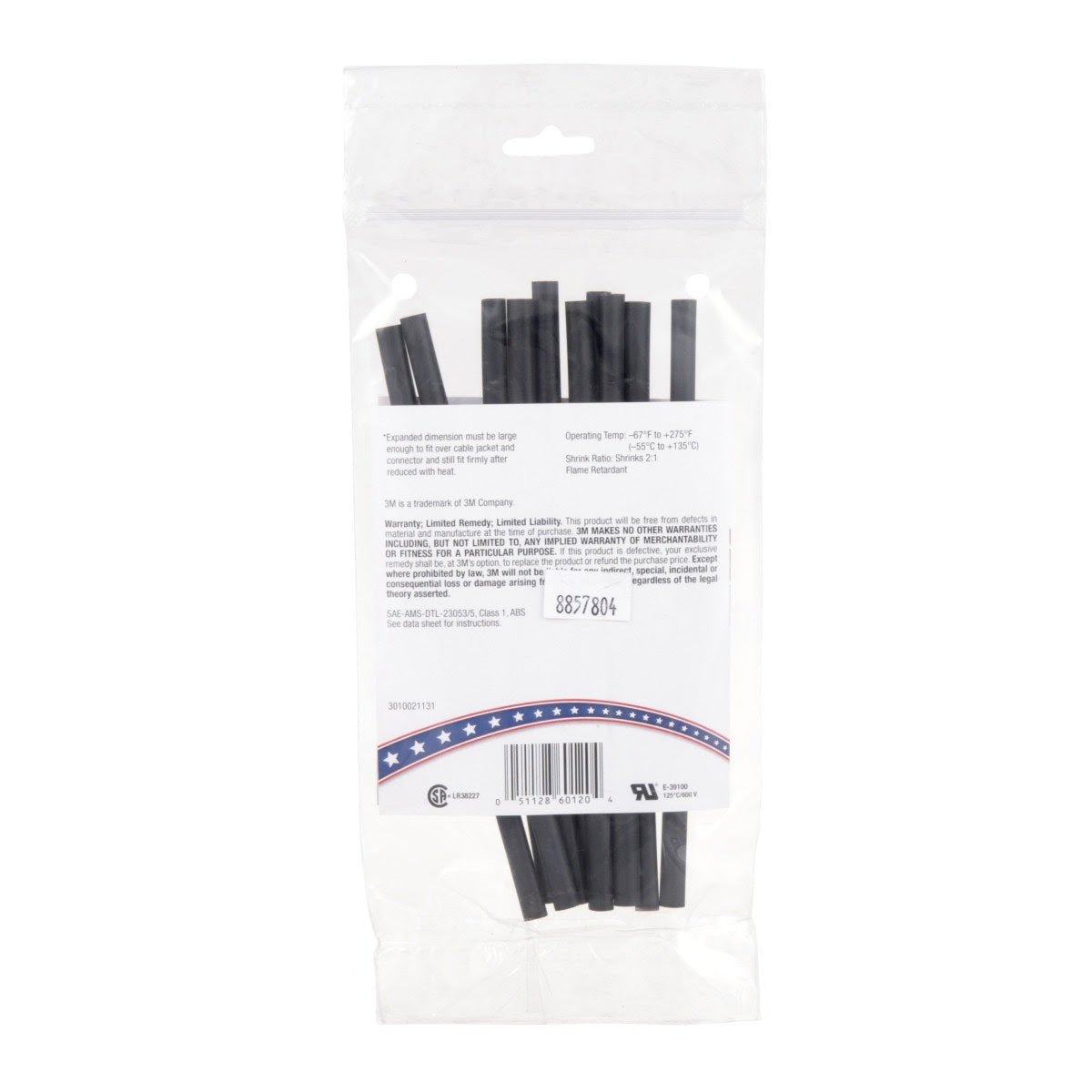

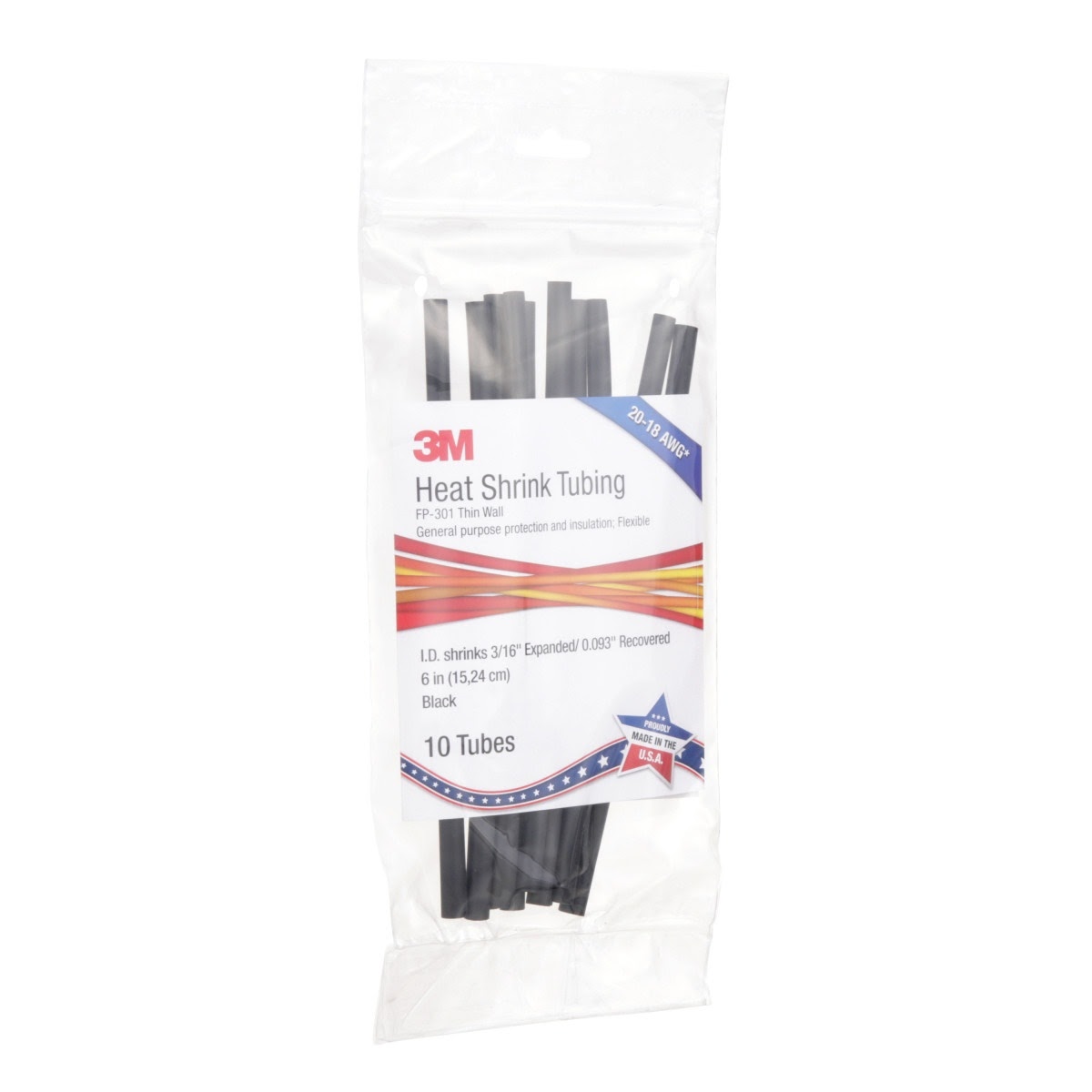

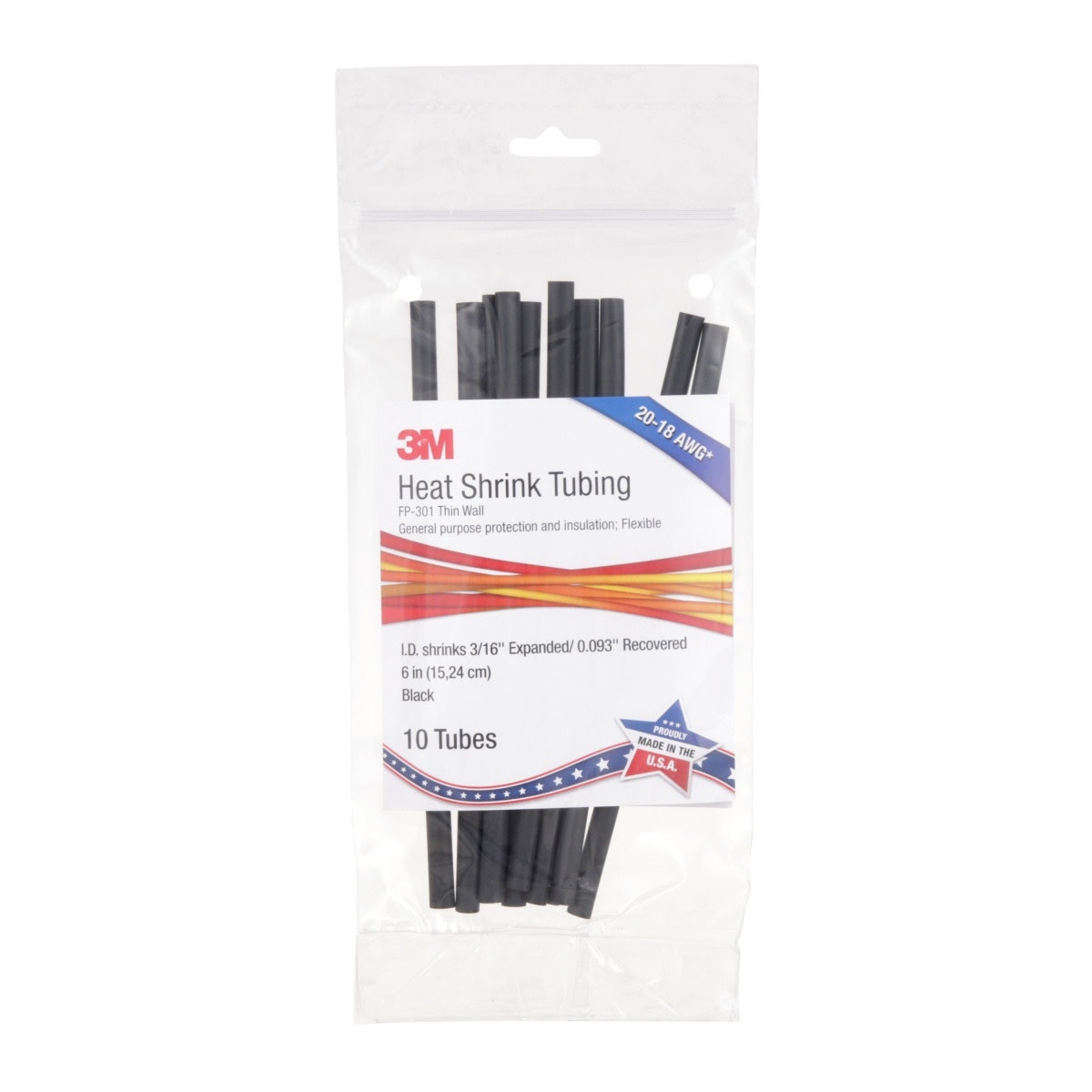

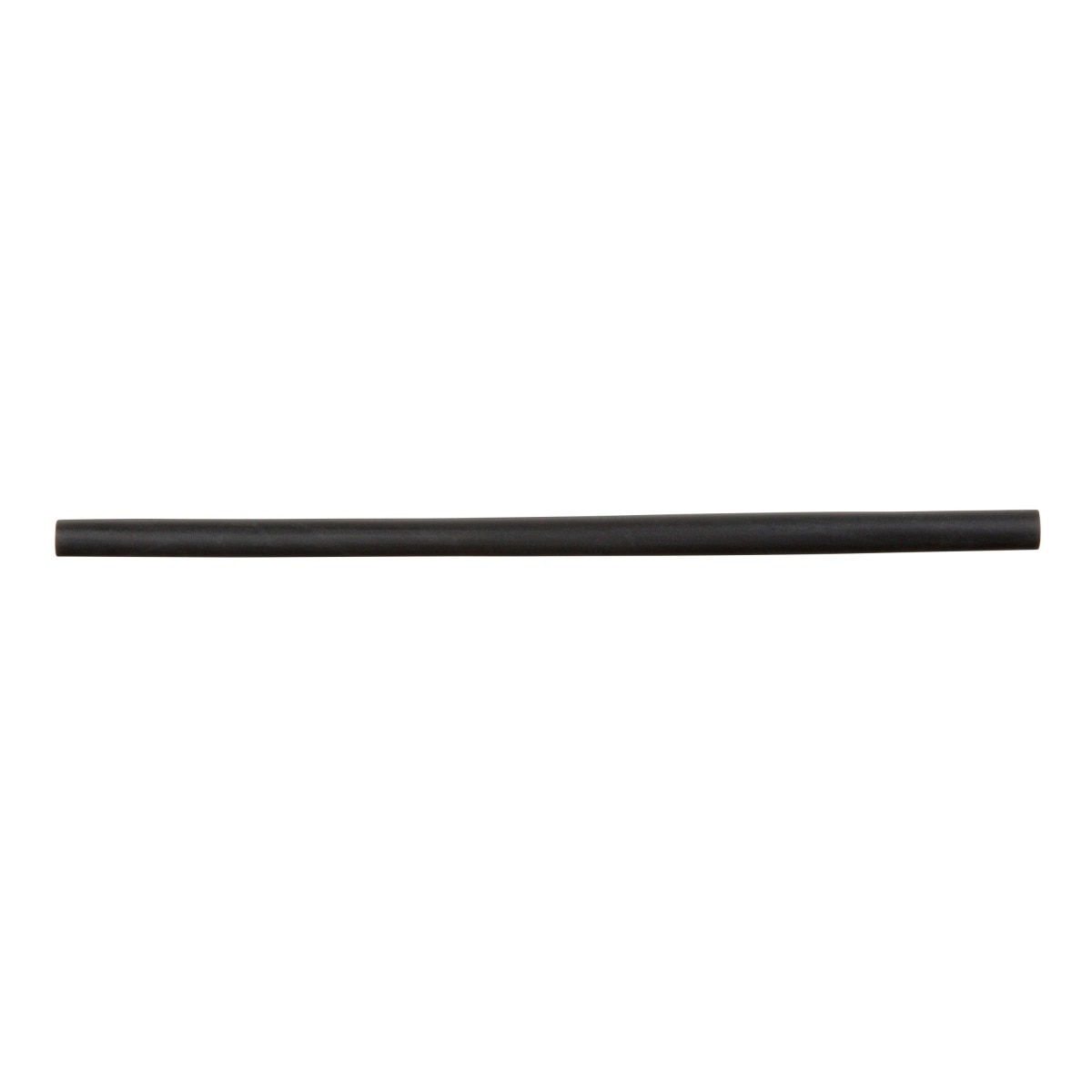

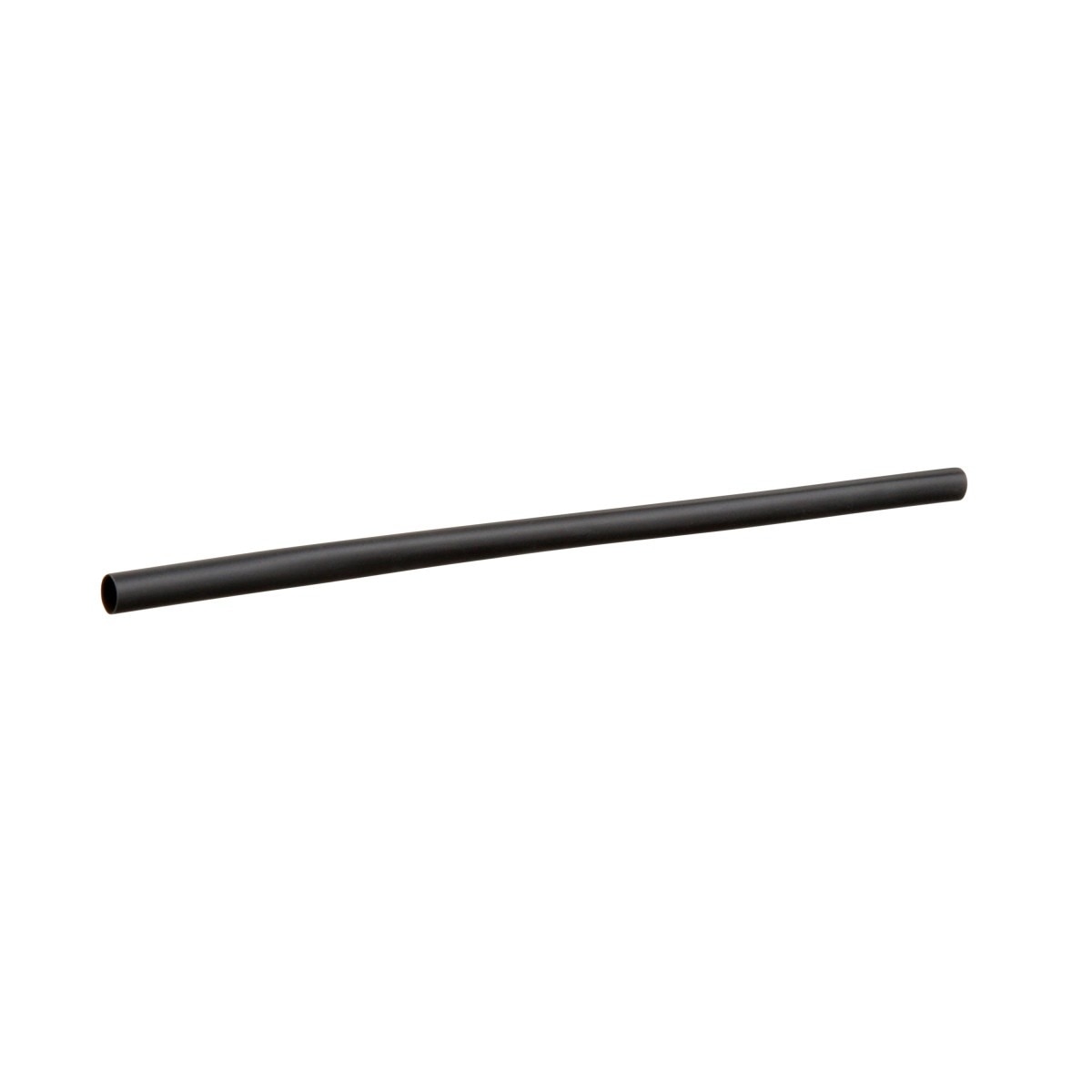

- (100) - 3M 7000133692 Heat Shrink Thin-Wall Tubing FP-301-3/16-6"-Black, 6 in Length
3M 7000133692 Features
- 2:1 shrink ratio for secure, shrink fit insulation
- Flame retardant tubing for 600V rated electrical applications
- Thin wall single wall polyolefin construction
- Helps provide moisture seal protection
- Operating temperature range -67 Degree F to 275 Degree F
- Mechanically tough and split resistant
- UL Listed (File E-39100) and CSA Certified
- RoHS 2011/65/EU compliant without exemption
- SAE AS23053/5 Class 1 compliant
3M 7000133692 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Series | FP-301 |
| Color | Black |
| Material | Polyolefin |
| Shrink Ratio | 2:1 |
| Inner Diameter Before Shrink | 0.187 in |
| Inner Diameter After Shrink | 0.093 in |
| Overall Length | 6.0 in |
| Flame Retardant | Yes |
| Voltage Rating | 600 Volt |
| Operating Temperature Range | -67 Degree F to 275 Degree F |
| UL File Number | E-39100 |
| Mil Spec | SAE-AMS-DTL-23053/5 Class 1 |
| Pack Content | 10 pieces per pack |
Toolup Part # :
858369
