Description
Description
3M 7010305772 Description

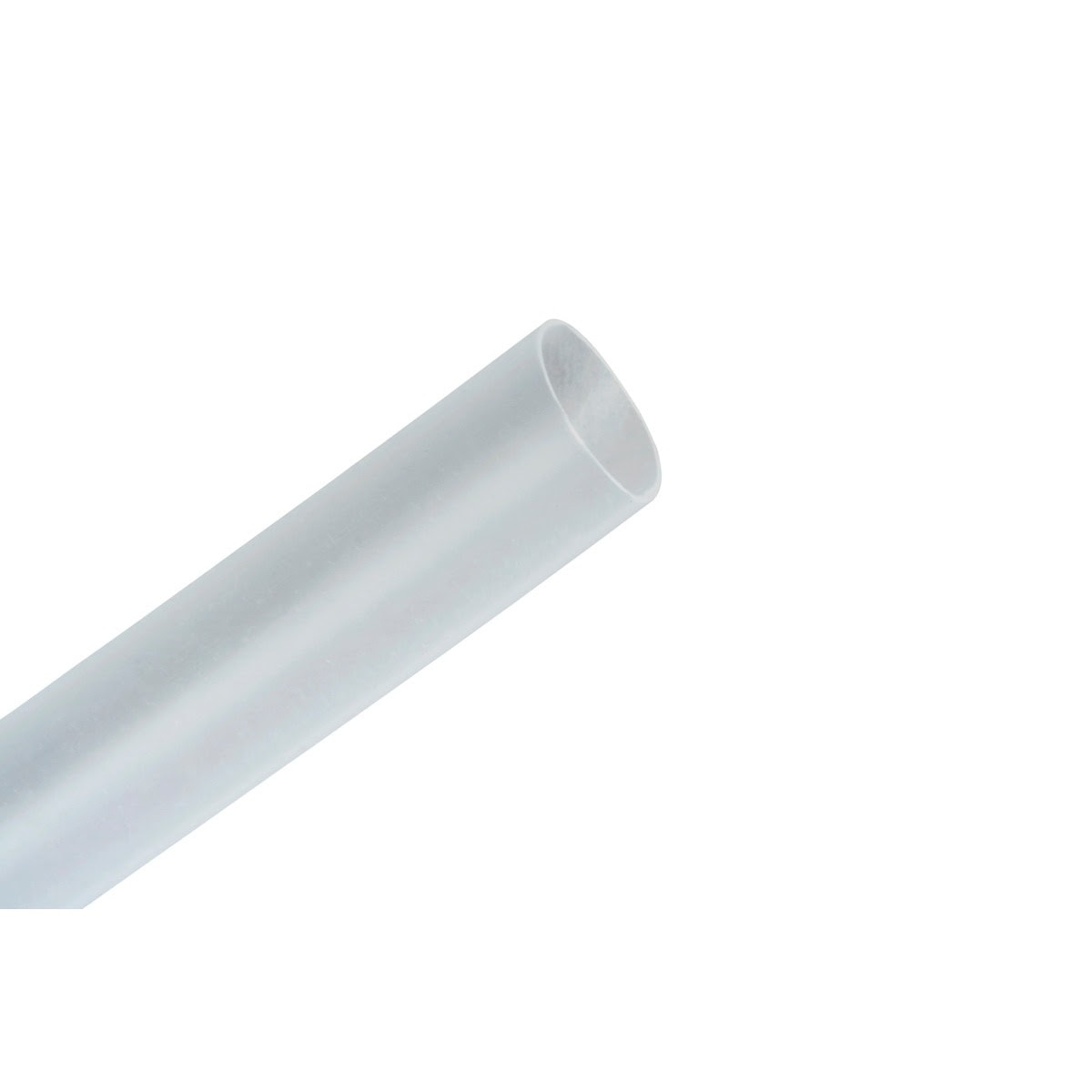

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing designed to provide shrink fit electrical insulation and moisture seal protection for cable splices, terminations, and wire harnessing. This clear tubing features a 2:1 shrink ratio and is suitable for applications up to 600V.
3M 7010305772 Includes
- (10) - 3M 7010305772 Heat Shrink Thin-Wall Tubing FP-301-3/32-6"-Clear, 6 in Length
3M 7010305772 Features
- General purpose thin wall heat shrink tubing for electrical insulation and protection
- 2:1 shrink ratio for shrink fit coverage
- Clear transparent polyolefin construction

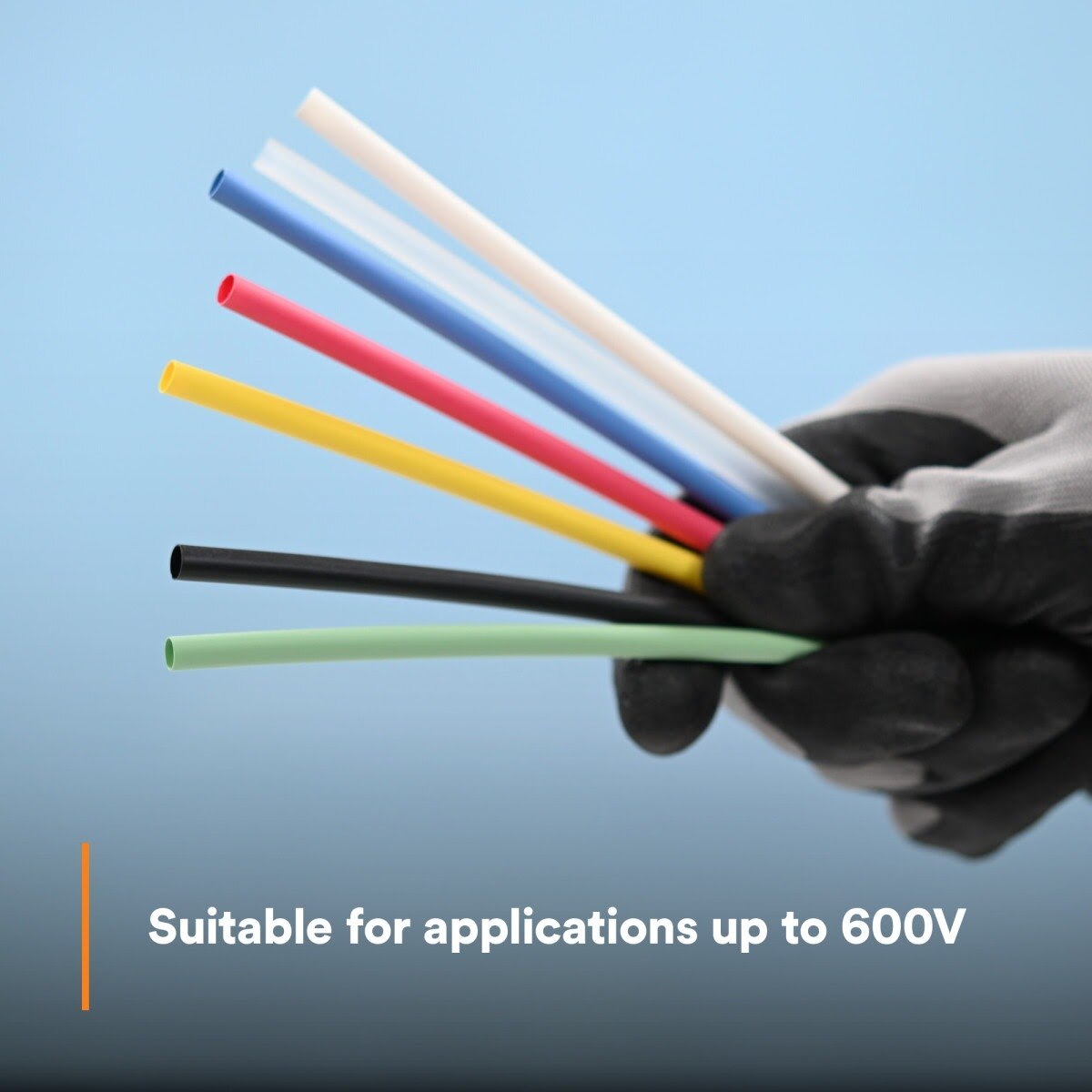

- Suitable for applications up to 600V
- Operating temperature range from minus 67 Degree F to 275 Degree F
- Provides moisture seal protection
- Mechanically tough and split resistant

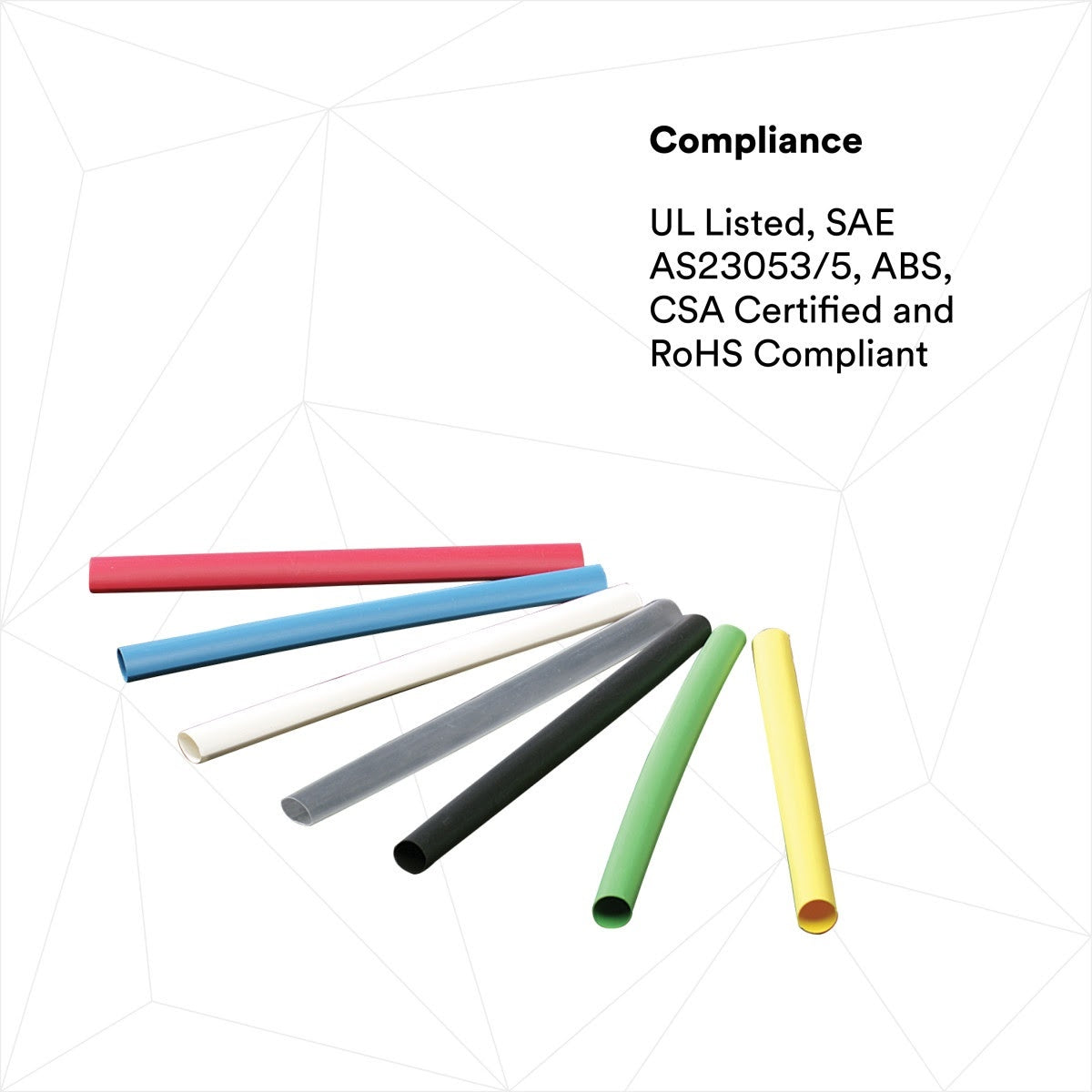

- UL Listed and CSA Certified
- SAE AS23053 5 compliant
- RoHS 2011 65 EU compliant
3M 7010305772 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Tubing Type | Single (Thin) Wall |
| Material | Polyolefin |
| Color | Transparent |
| Shrink Ratio | 2:1 |
| Overall Length | 6.0 in |
| Expanded Inner Diameter | 0.093 in |
| Recovered Inner Diameter | 0.046 in |
| Flame Retardant | No |
| UL Bug Voltage | 600 Volt |
| Operating Temperature (Fahrenheit) | minus 67 Degree F to 275 Degree F |
| Maximum Operating Temperature (Celsius) | 135 Degree Celsius |
| Elongation | 400 % |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| Certifications | UL Listed; CSA Certified; RoHS 2011/65/EU Compliant; SAE AS23053/5 |
Toolup Part # :
858373
