3M 7100086437 Description

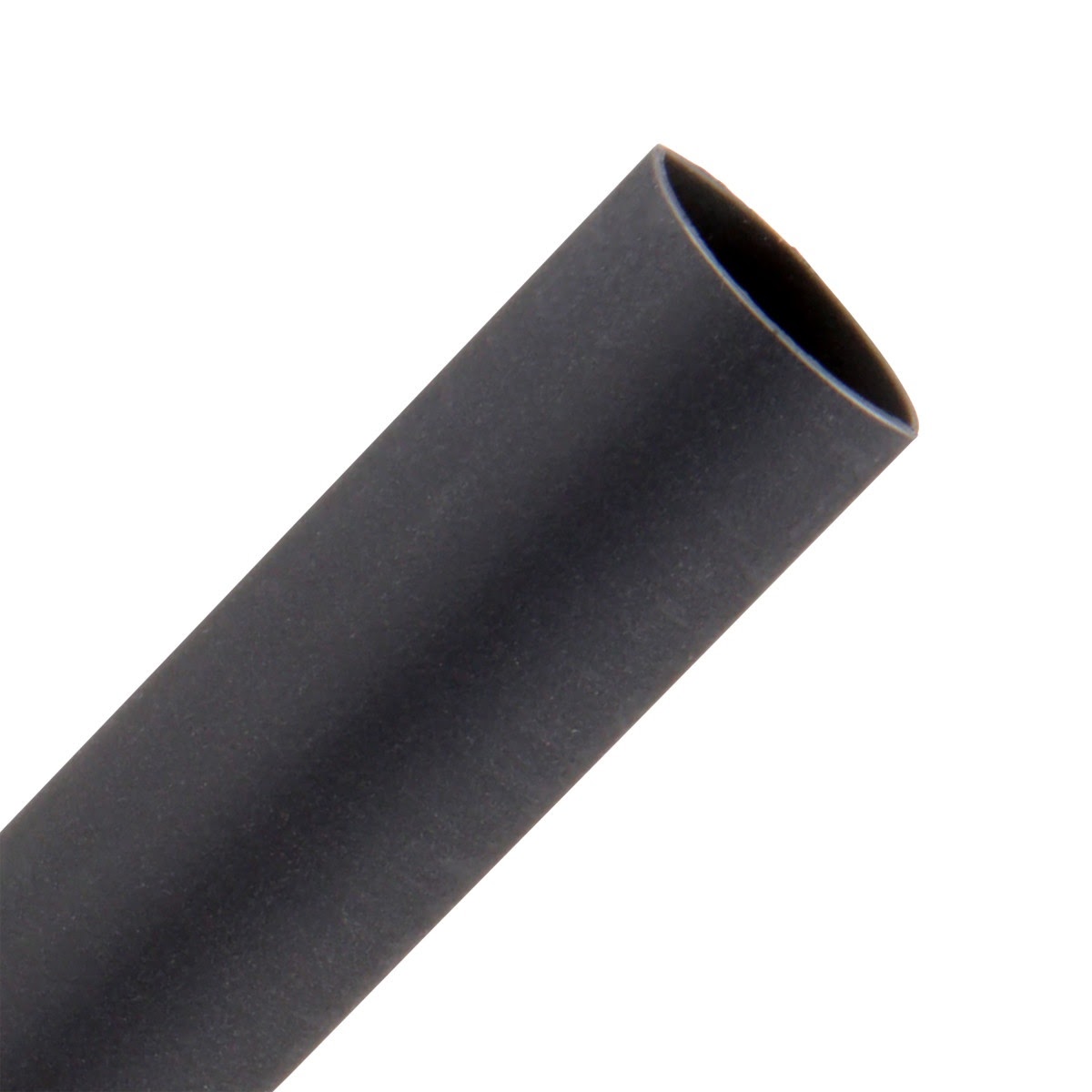

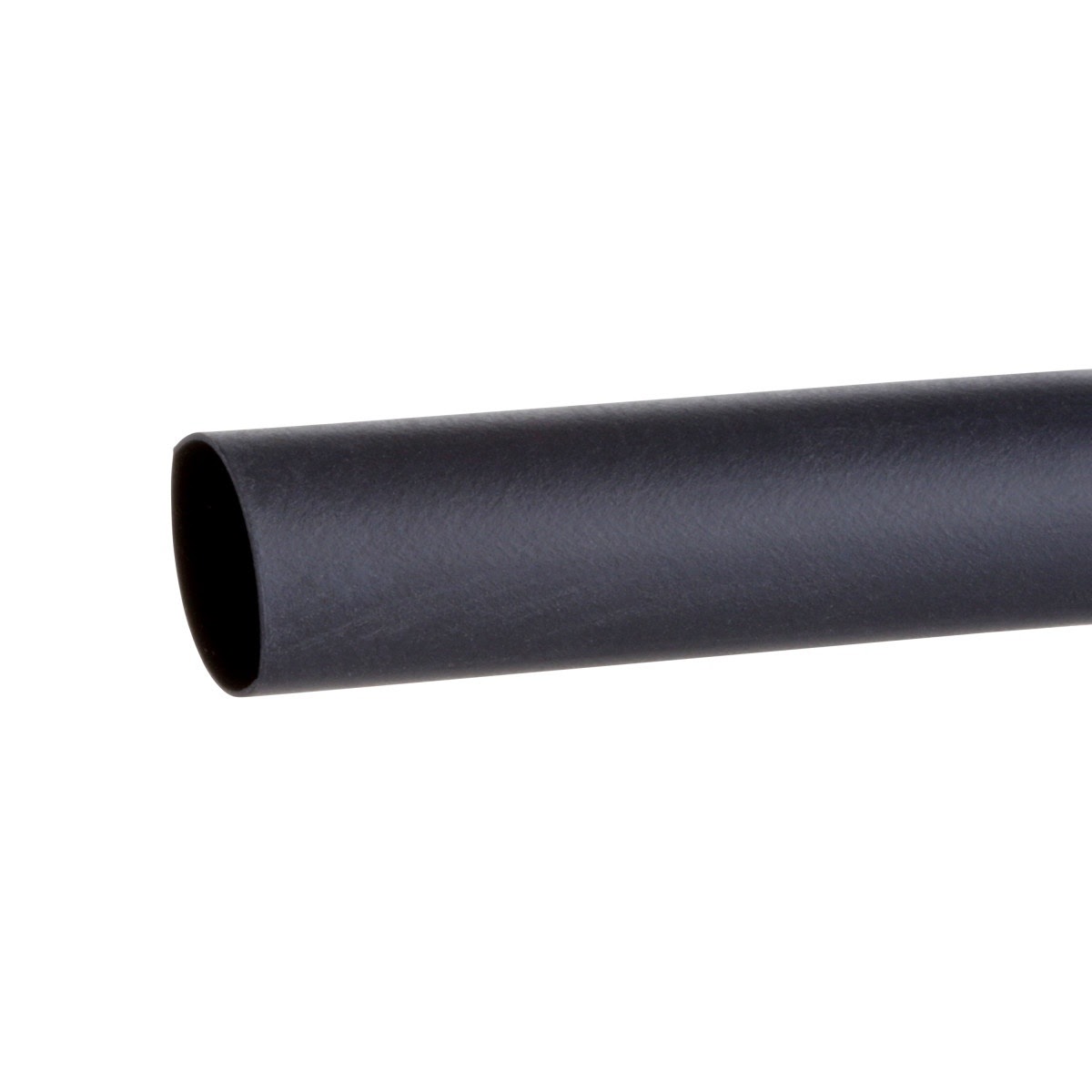

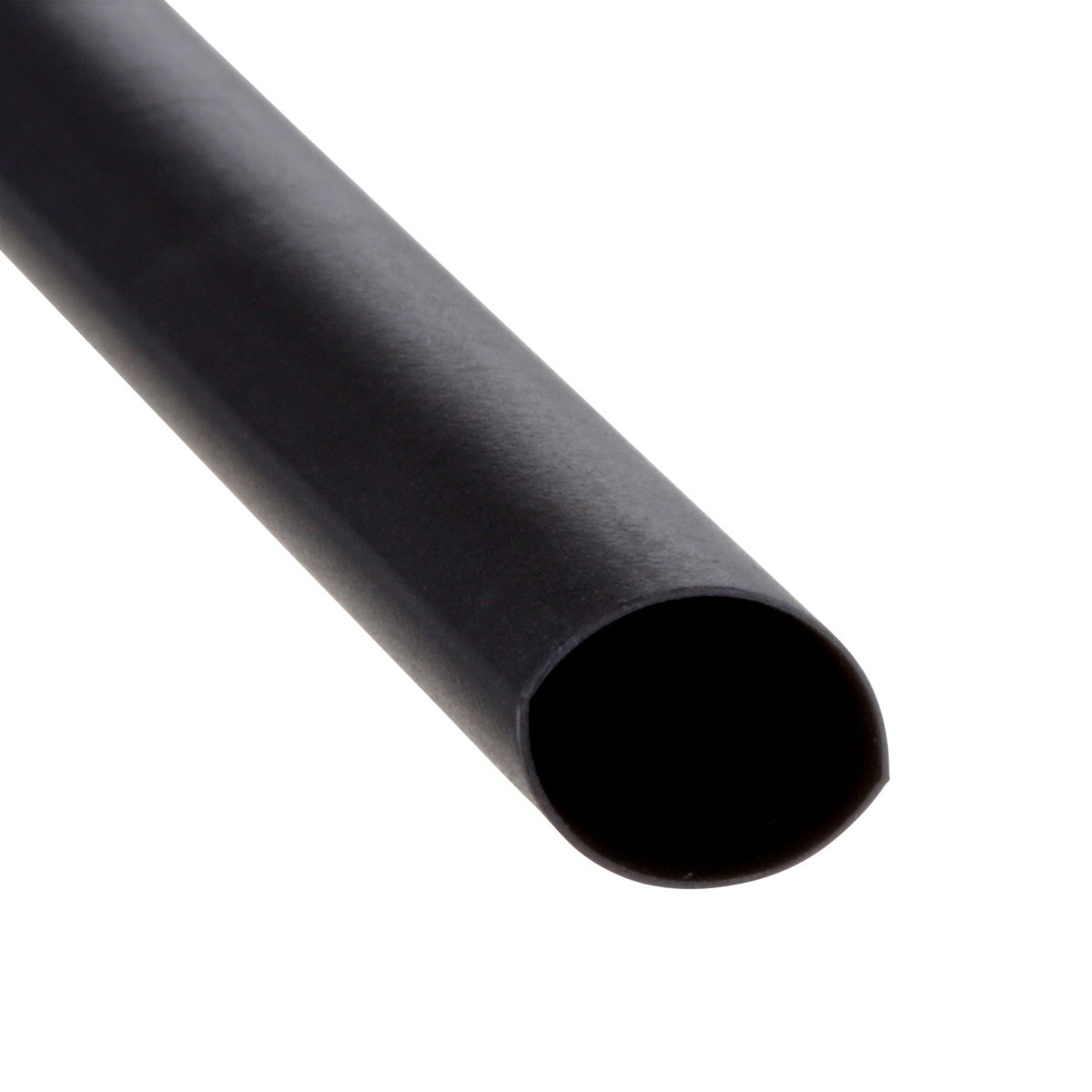

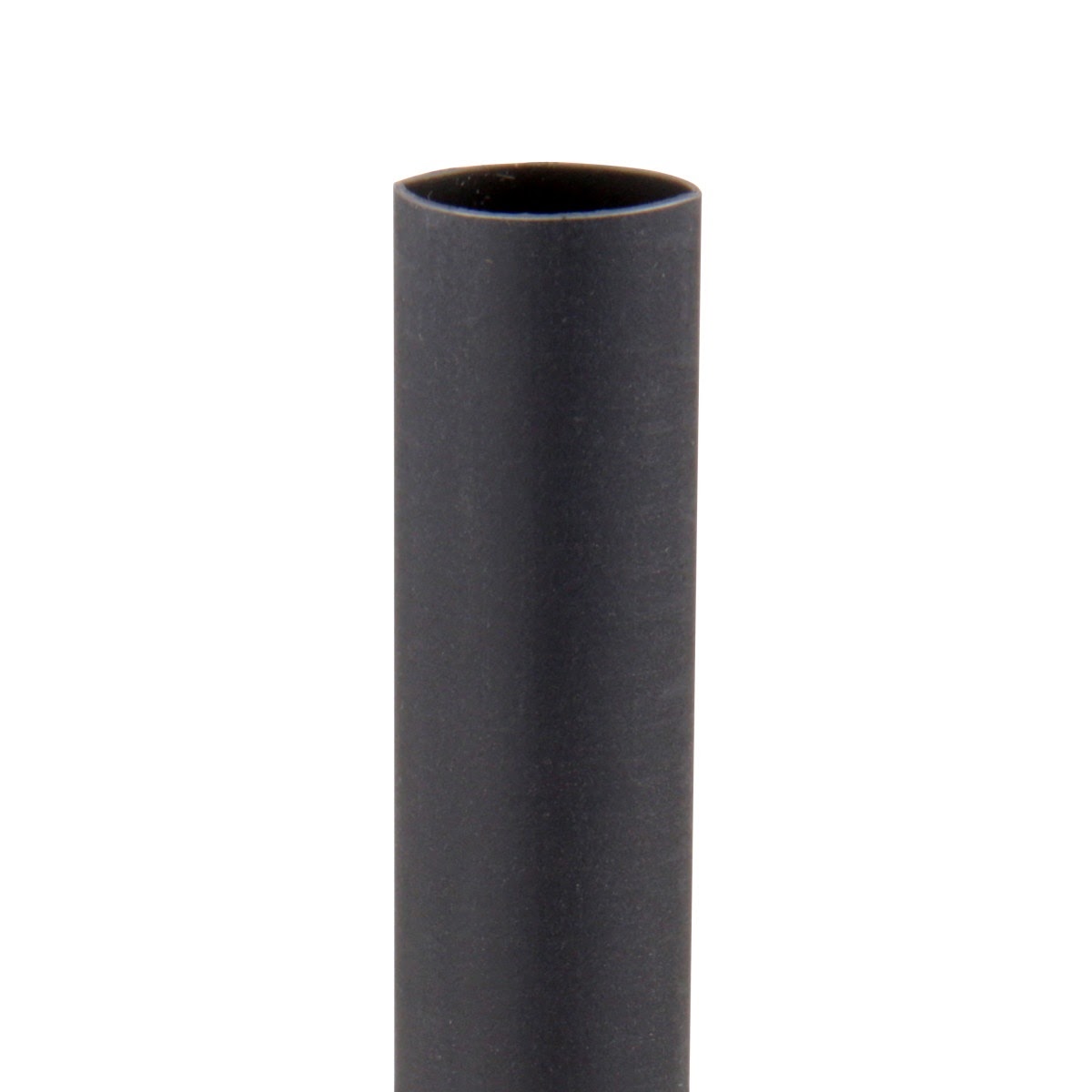

3M Heat Shrink Thin Wall Tubing FP-301 is a general purpose single wall polyolefin heat shrink tubing designed to provide flame retardant electrical insulation and protection for wire splices, terminations, and harnessing. This black tubing features a 2 to 1 shrink ratio and is rated for applications up to 600V.
3M 7100086437 Includes

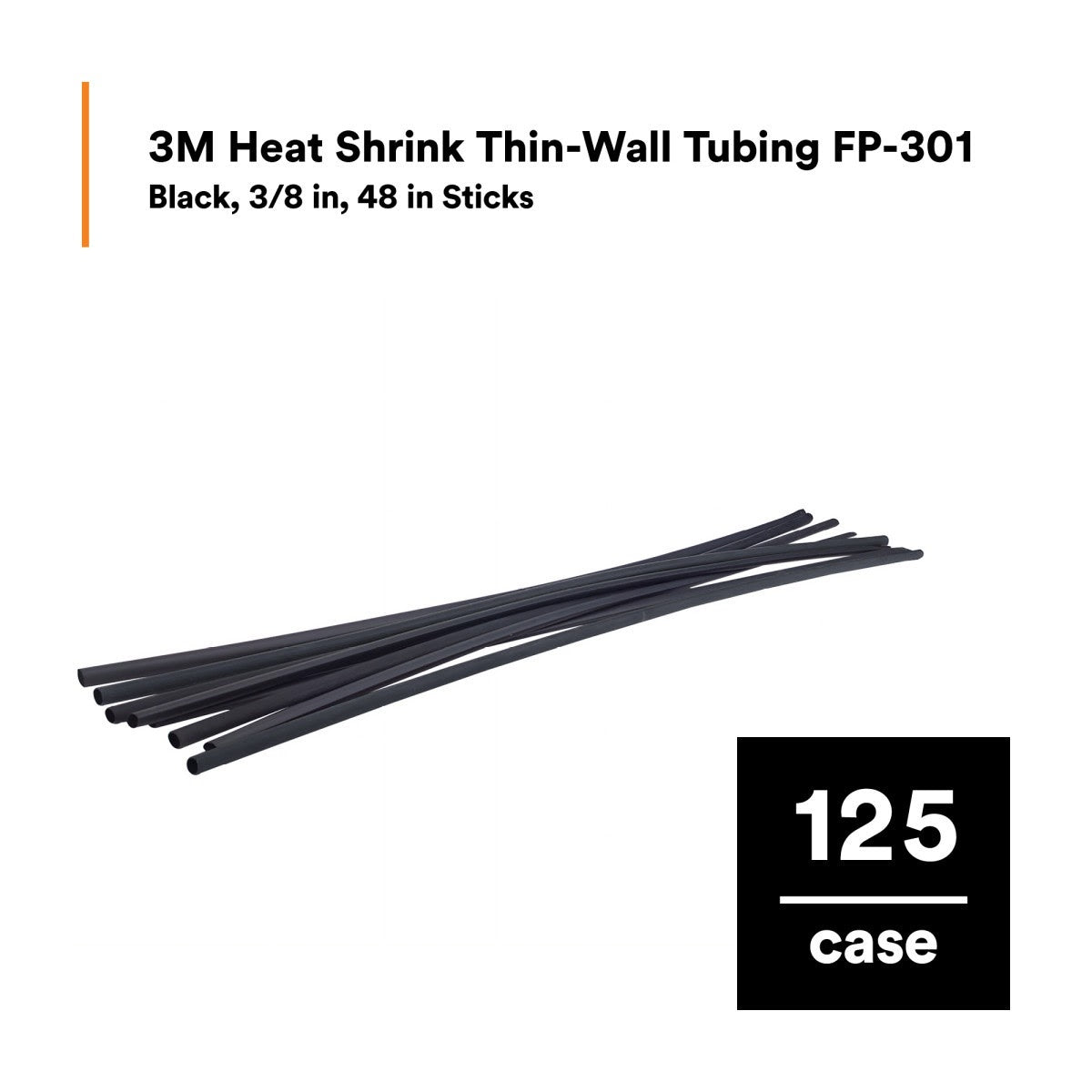

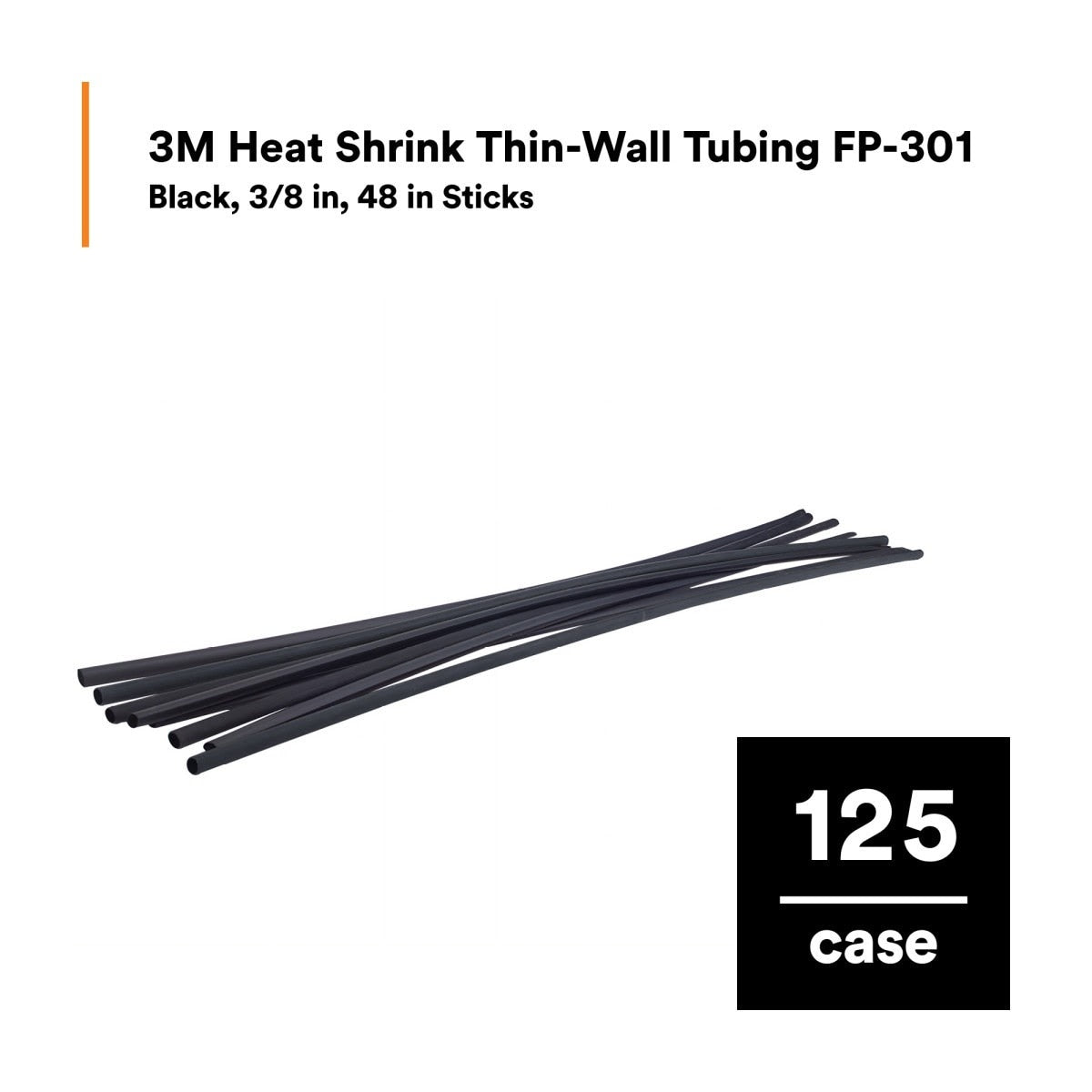

- (125) 3M 7100086437 Heat Shrink Thin Wall Tubing Stick, Black, 3/8 in x 48 in
3M 7100086437 Features

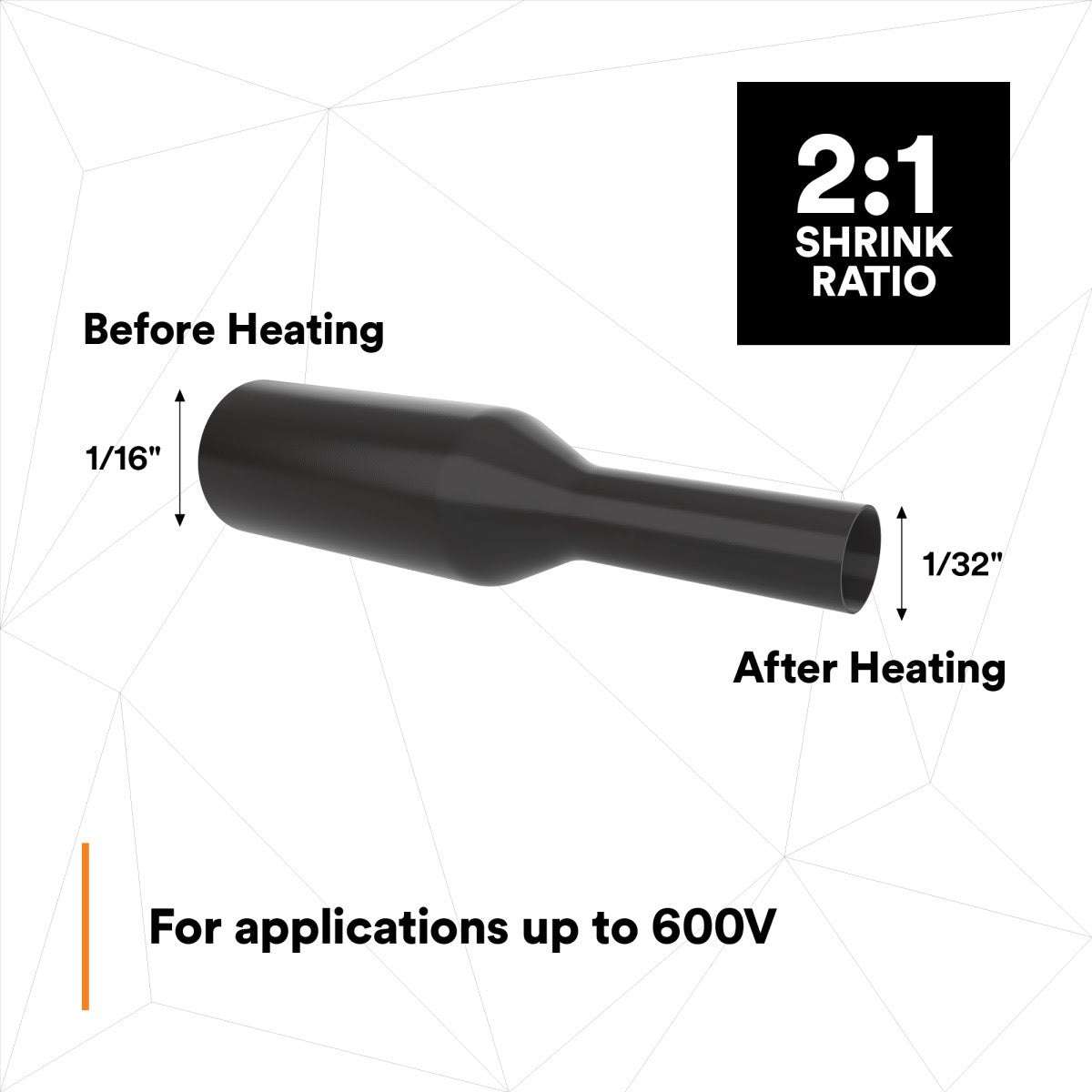

- 2 to 1 shrink ratio for secure shrink fit insulation
- Flame retardant tubing for applications up to 600V
- Thin wall single wall polyolefin construction
- Moisture seal protection for electrical connections

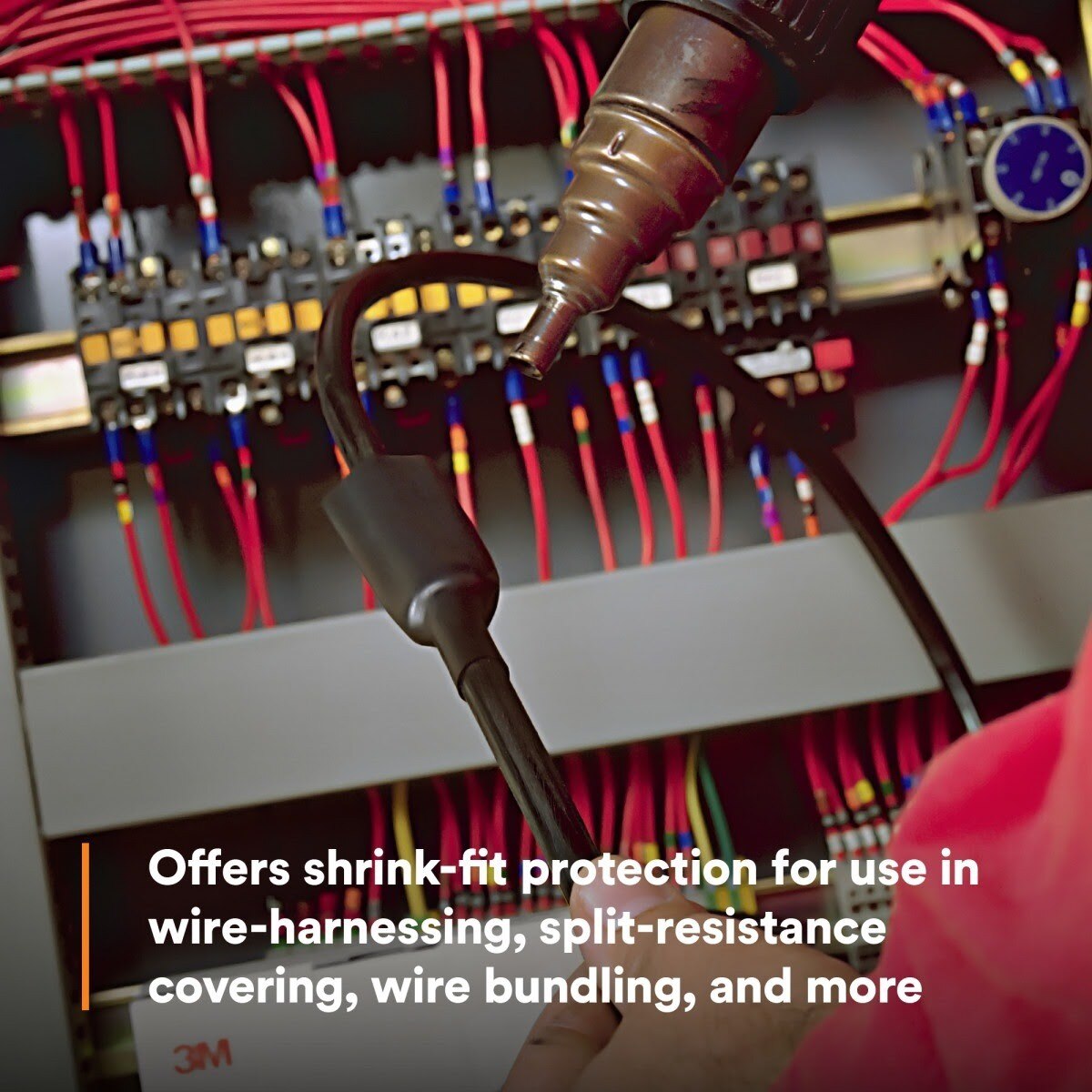

- Suitable for wire harnessing, wire bundling, wire marking, and component packaging
- Mechanically tough and split resistant design
- Operating temperature range from minus 67 Degree Fahrenheit to 275 Degree Fahrenheit

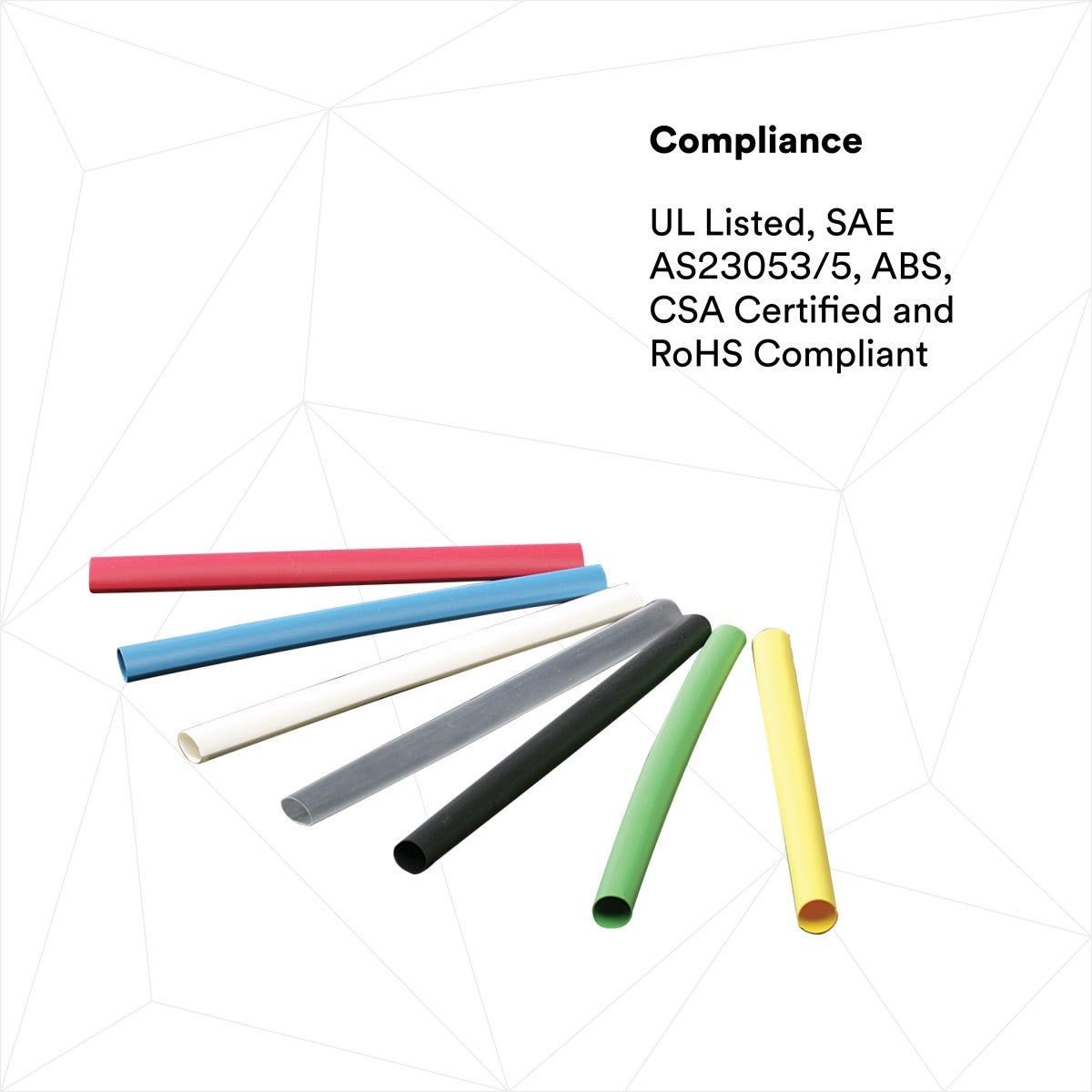

- UL Listed and CSA Certified
- Meets AMS DTL 23053/5 Class 1 specification
- Black color for identification and organization
3M 7100086437 Specifications
| Product Type | Heat Shrink Tubing |
| Series | FP-301 |
| Heat Shrink Type | Single Wall Polyolefin Heat Shrink Tubing |
| Tubing Type | Single Wall Thin |
| Color | Black |
| Expanded Inner Diameter | 0.375 in |
| Recovered Inner Diameter | 0.187 in |
| Overall Length | 48 in |
| Shrink Ratio | 2:1 |
| Material | Polyolefin |
| Flame Retardant | Yes |
| Voltage Rating | 600 Volt |
| Operating Temperature Range | -67 Degree Fahrenheit to 275 Degree Fahrenheit |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Elongation | 400 Percent |
| Tensile Strength | 2400 psi |
| UL Approval | Yes |
| Mil Spec | AMS DTL 23053/5 Class 1 |
| Secondary Part Number | FP0.375BK48L |
Toolup Part # :
854700
