At a Glance
Diameter
3/8 in
Length
6 in
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description

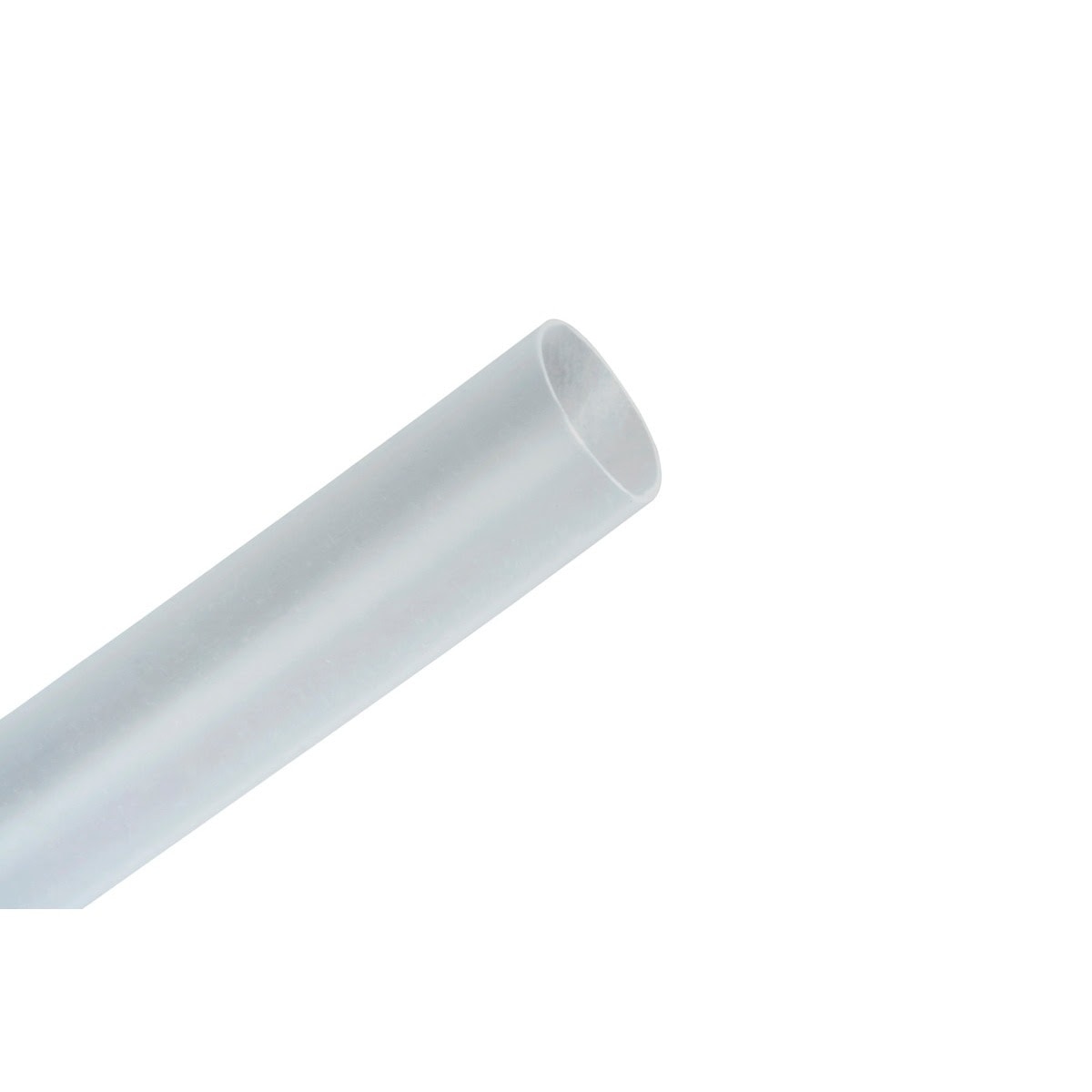

3M 7100047905 Description

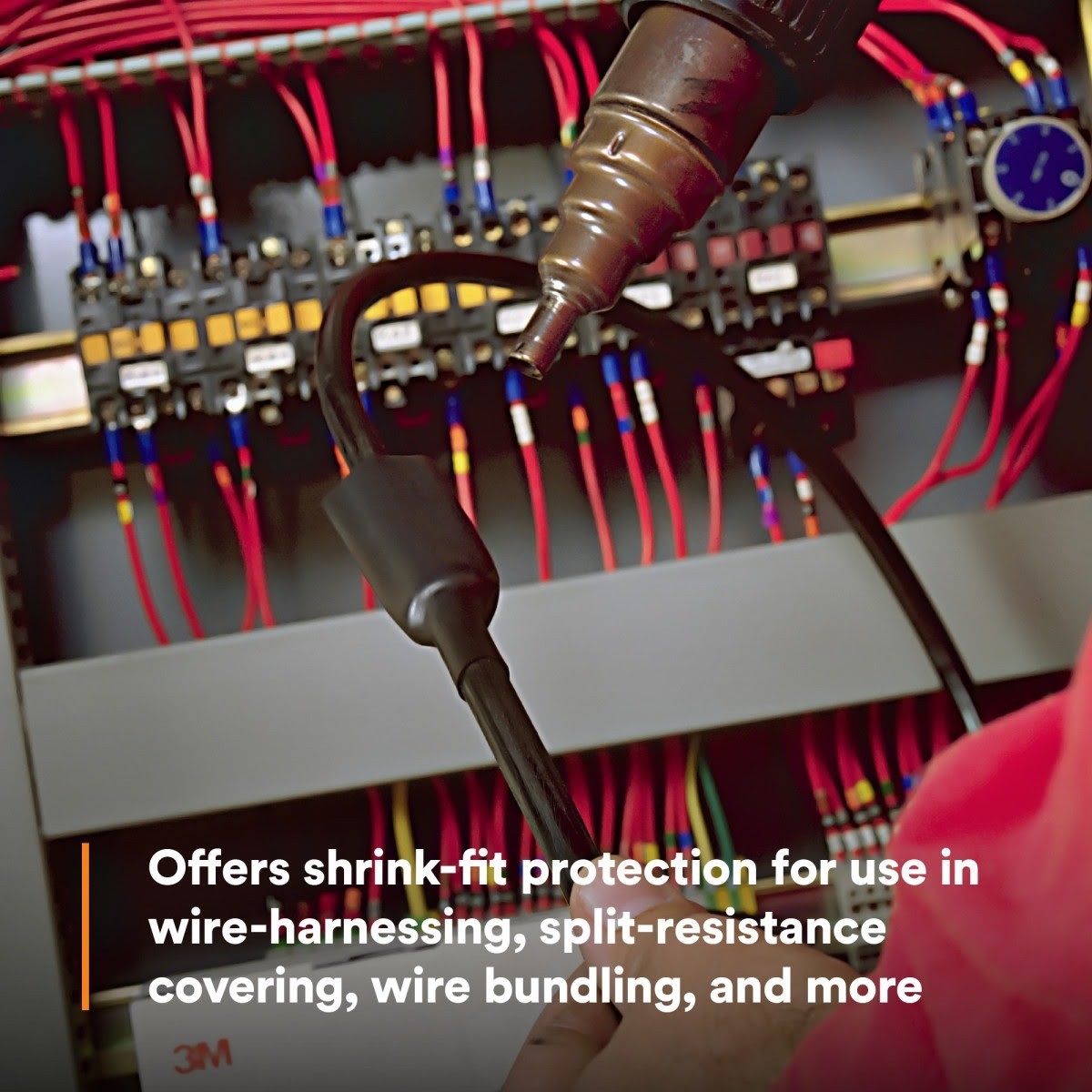

3M Heat Shrink Tubing FP-301 is a general purpose thin wall tubing designed to provide shrink-fit electrical insulation and protection for wire splices, terminations, and harnessing. It features a 2:1 shrink ratio, polyolefin construction, and moisture seal protection for applications up to 600V.
3M 7100047905 Includes
- (100) - 3M 7100047905 Heat Shrink Thin-Wall Tubing FP-301-3/8-6"-Clear, 6 in Length
3M 7100047905 Features
- 2:1 shrink ratio for shrink-fit insulation and protection
- Thin wall single-wall polyolefin construction

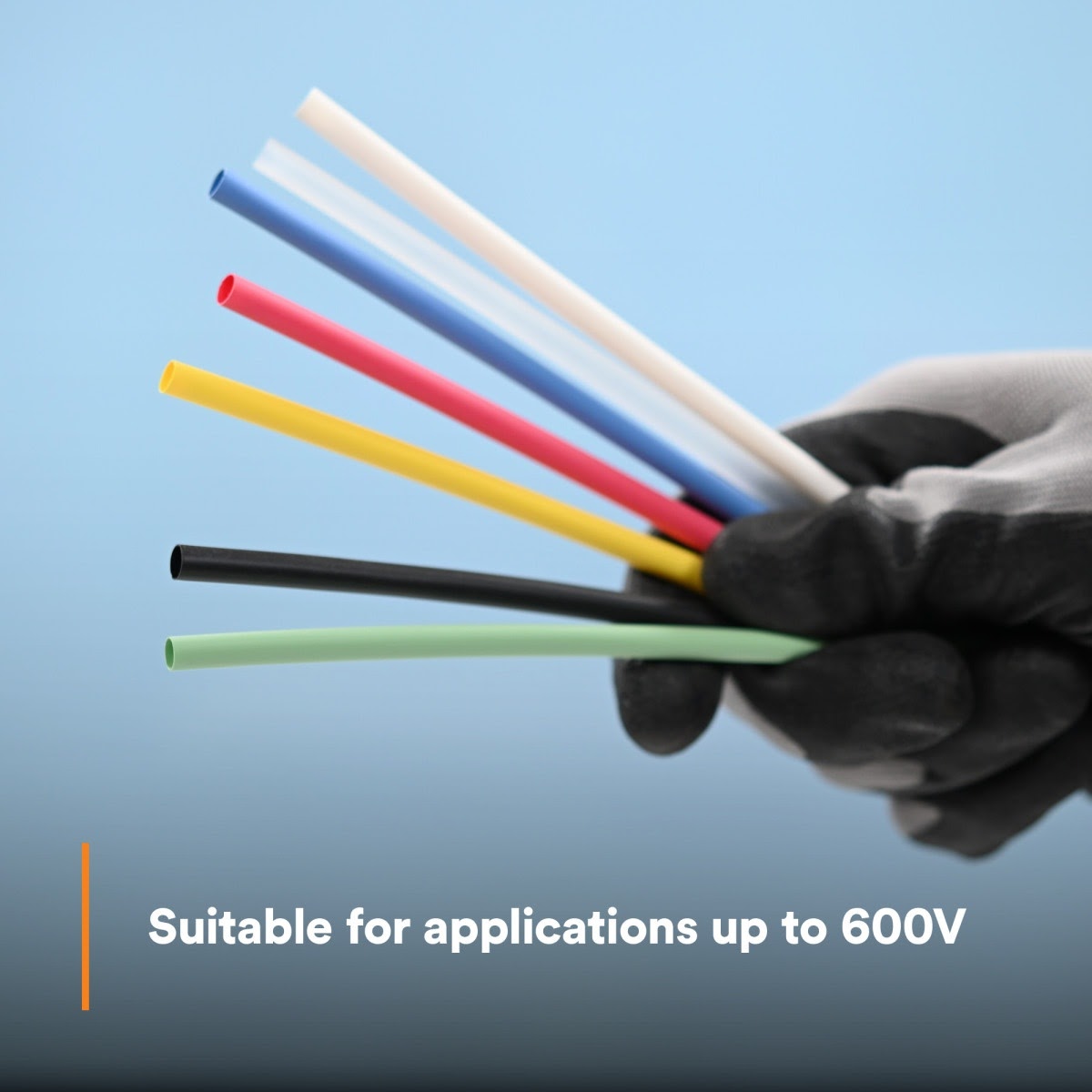

- Suitable for applications up to 600V
- Operating temperature range -67 Degree Fahrenheit to 275 Degree Fahrenheit
- Moisture seal protection and split resistance

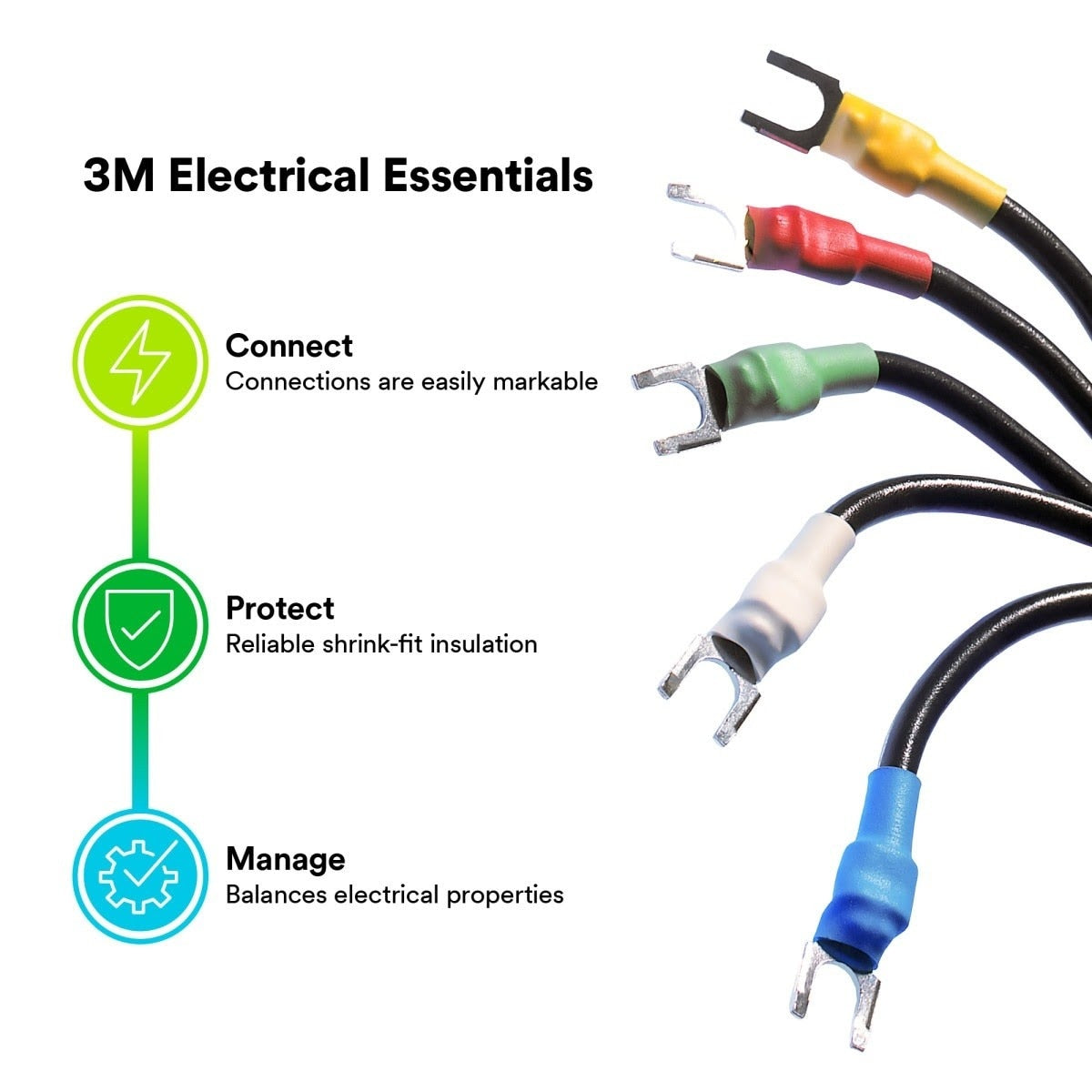

- Easily markable for wire identification

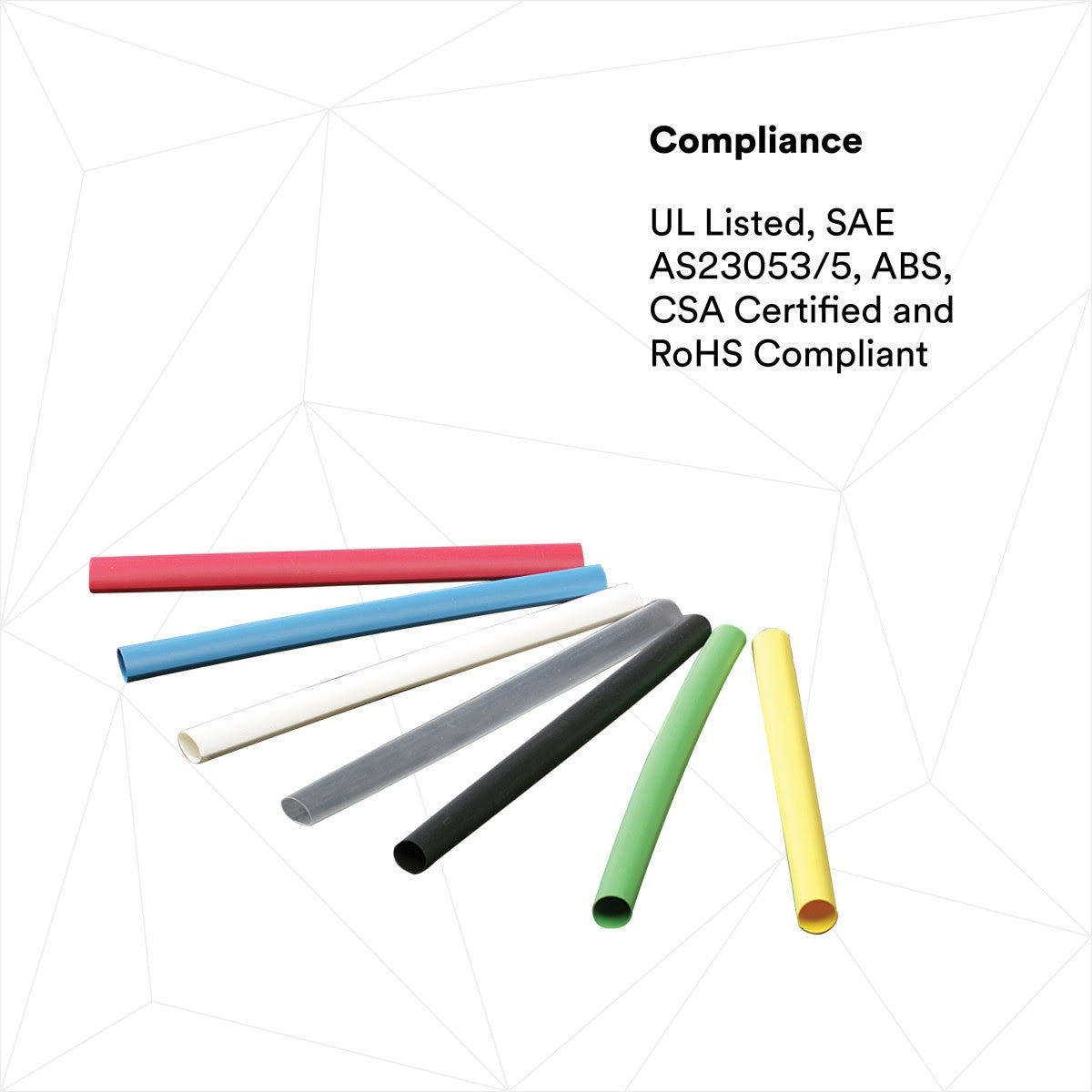

- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7100047905 Specifications
| Series | FP-301 |
| Color | Transparent |
| Material | Polyolefin |
| Shrink Ratio | 2:1 |
| Expanded Inner Diameter | 0.375 in |
| Recovered Inner Diameter | 0.187 in |
| Overall Length | 6 in |
| Voltage Rating | 600 Volt |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 Degree Fahrenheit to 275 Degree Fahrenheit |
| Flame Retardant | No |
| UL Approval | Yes |
Toolup Part # :
858361
