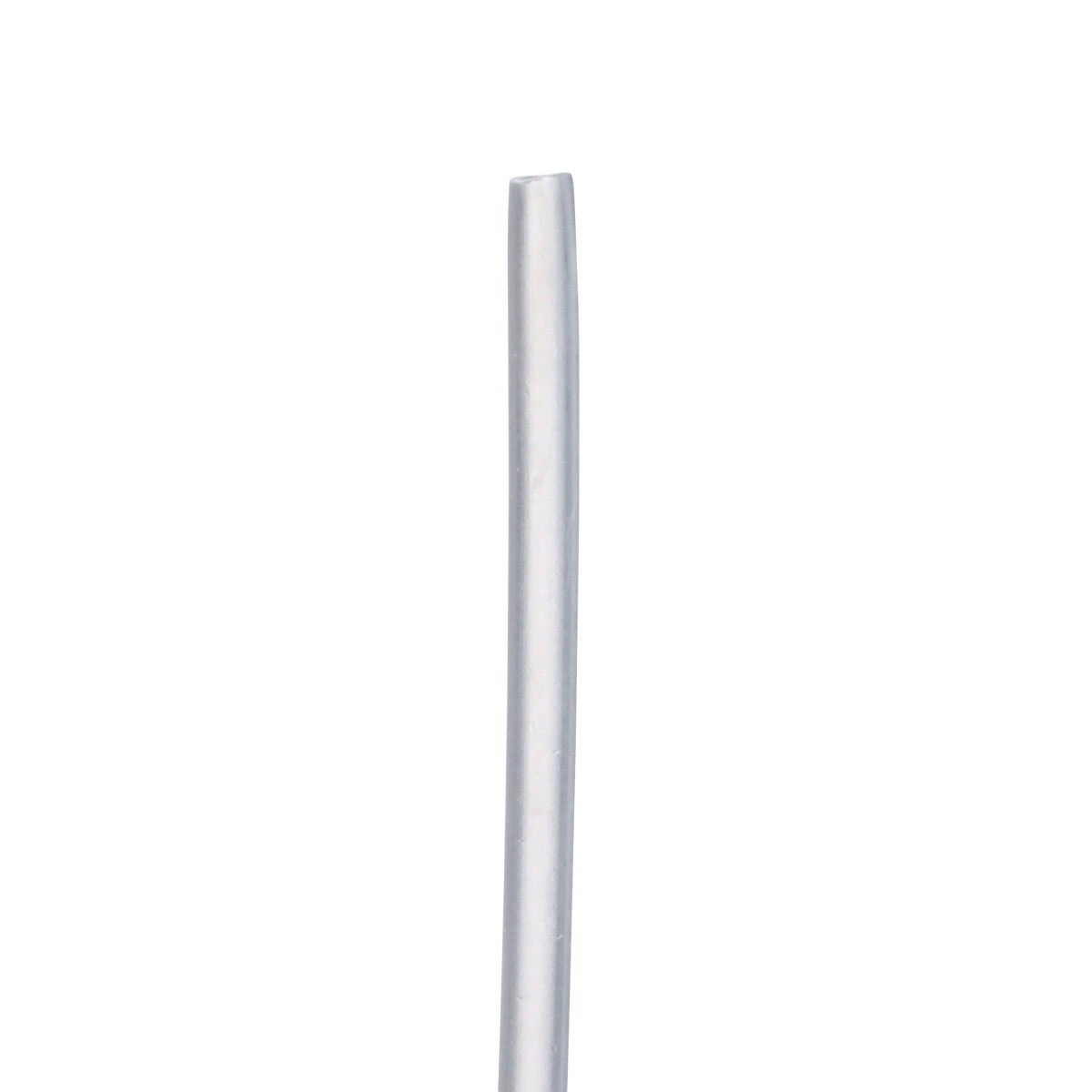

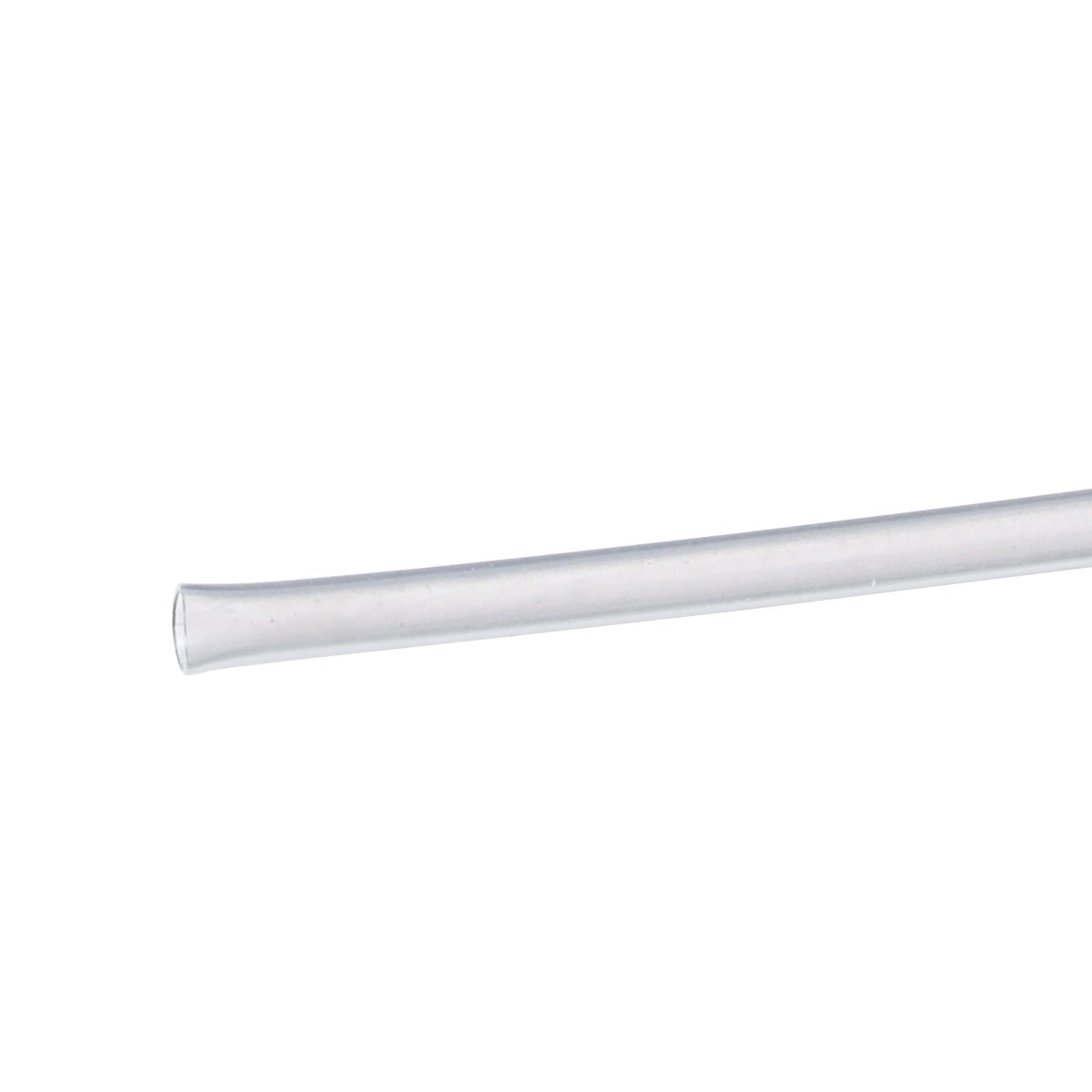

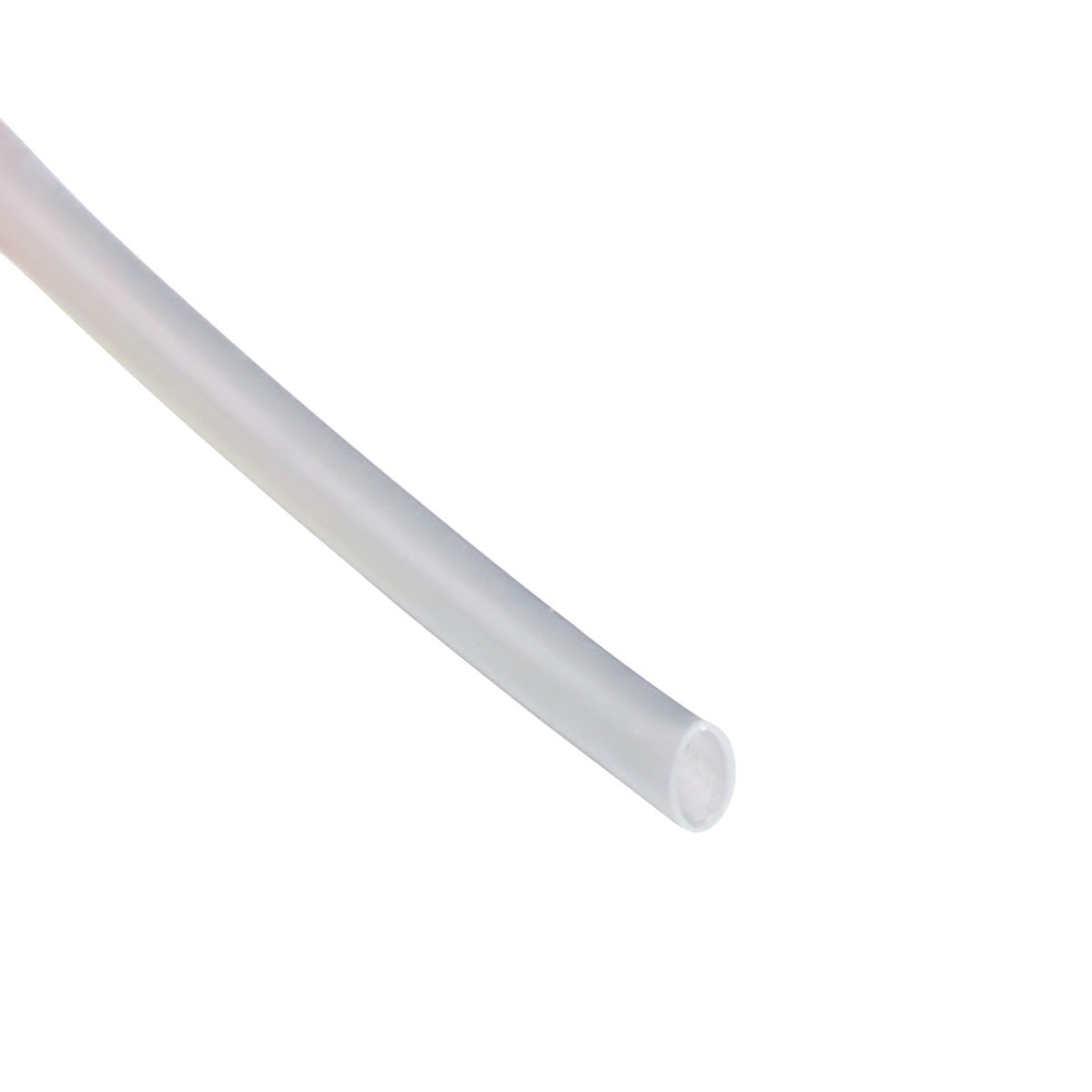

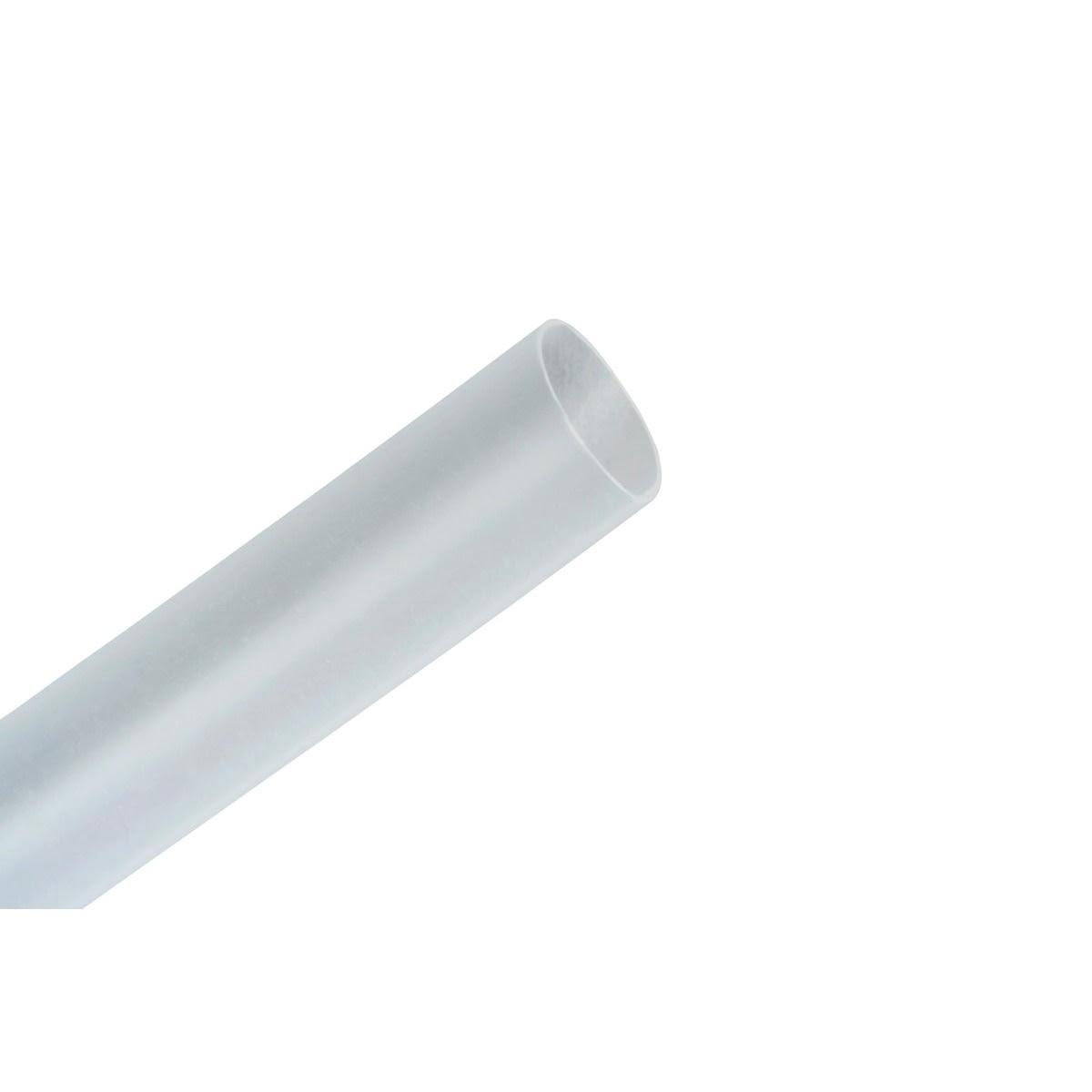

3M 7100030622 Description
3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing designed to provide durable electrical insulation and protection for wire splices and terminations. It features a 2:1 shrink ratio, moisture protection, and performance up to 275 Degree F for demanding industrial applications.
3M 7100030622 Includes

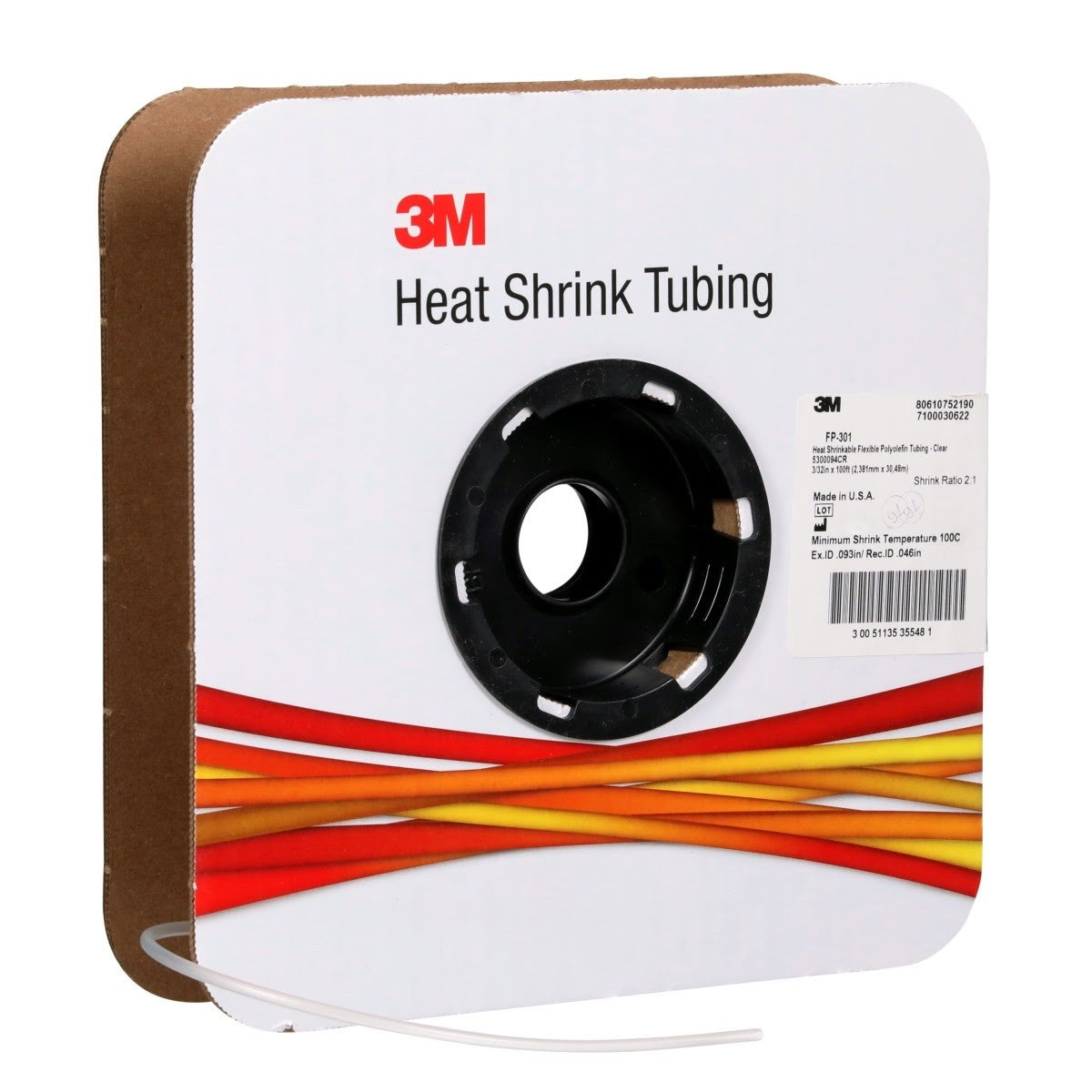

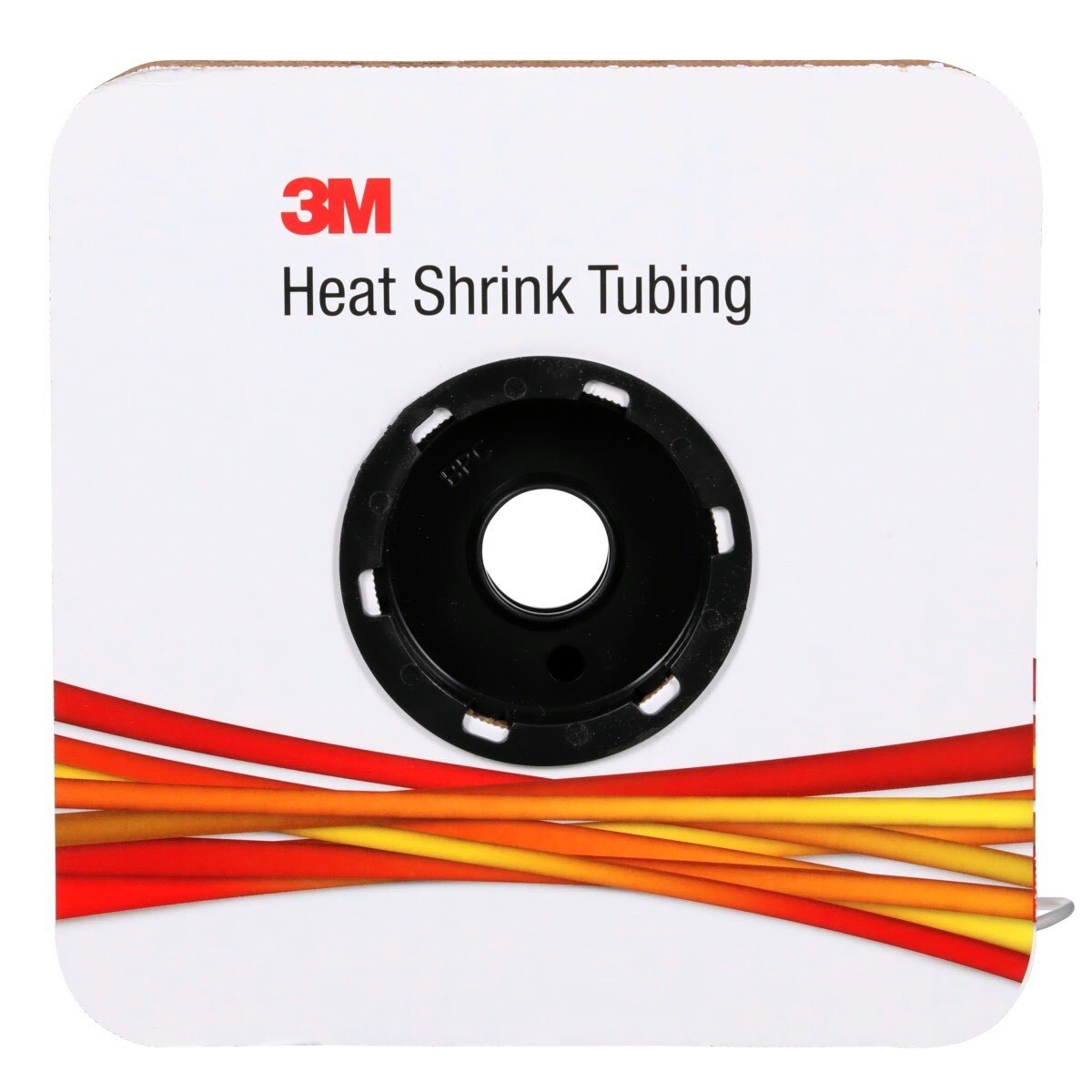

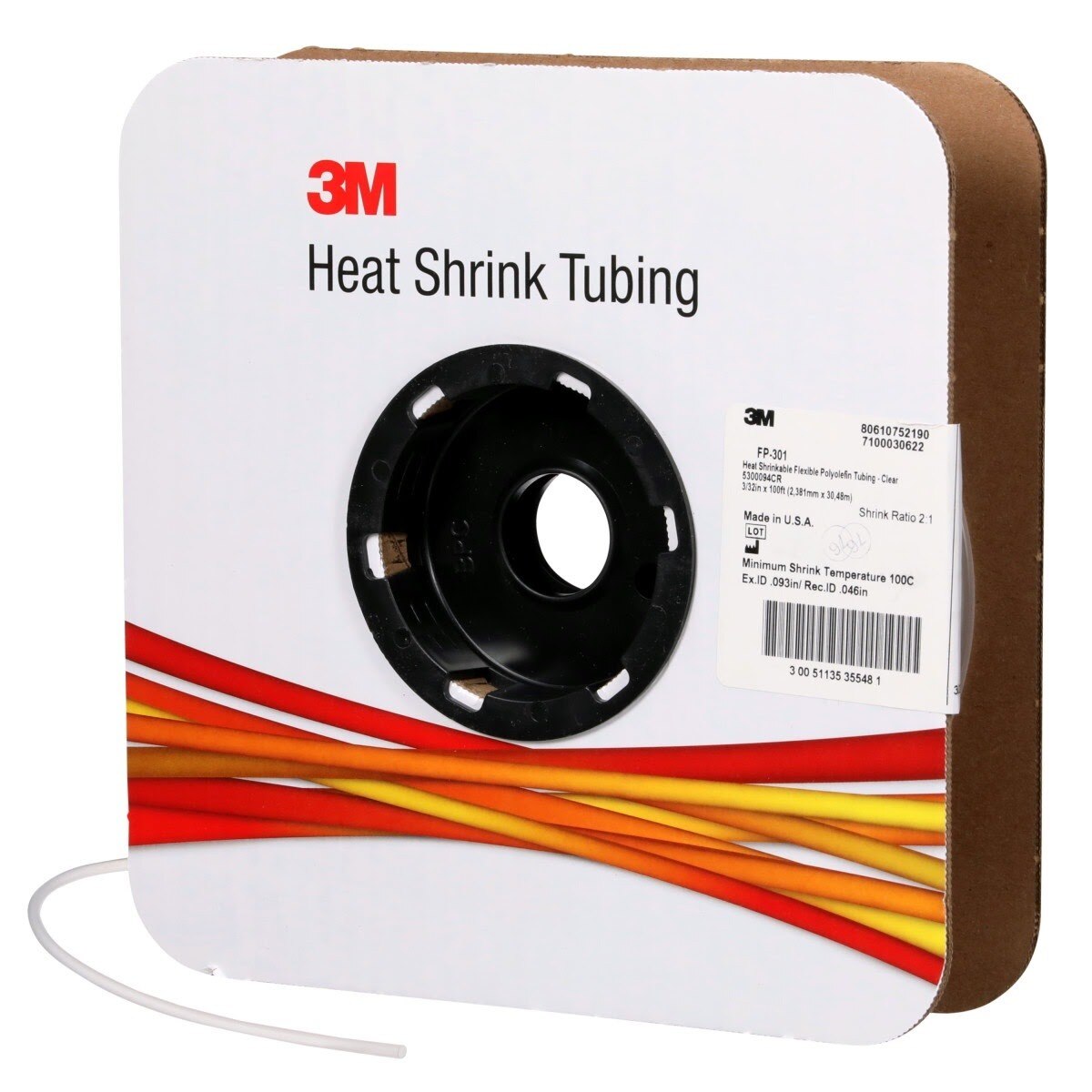

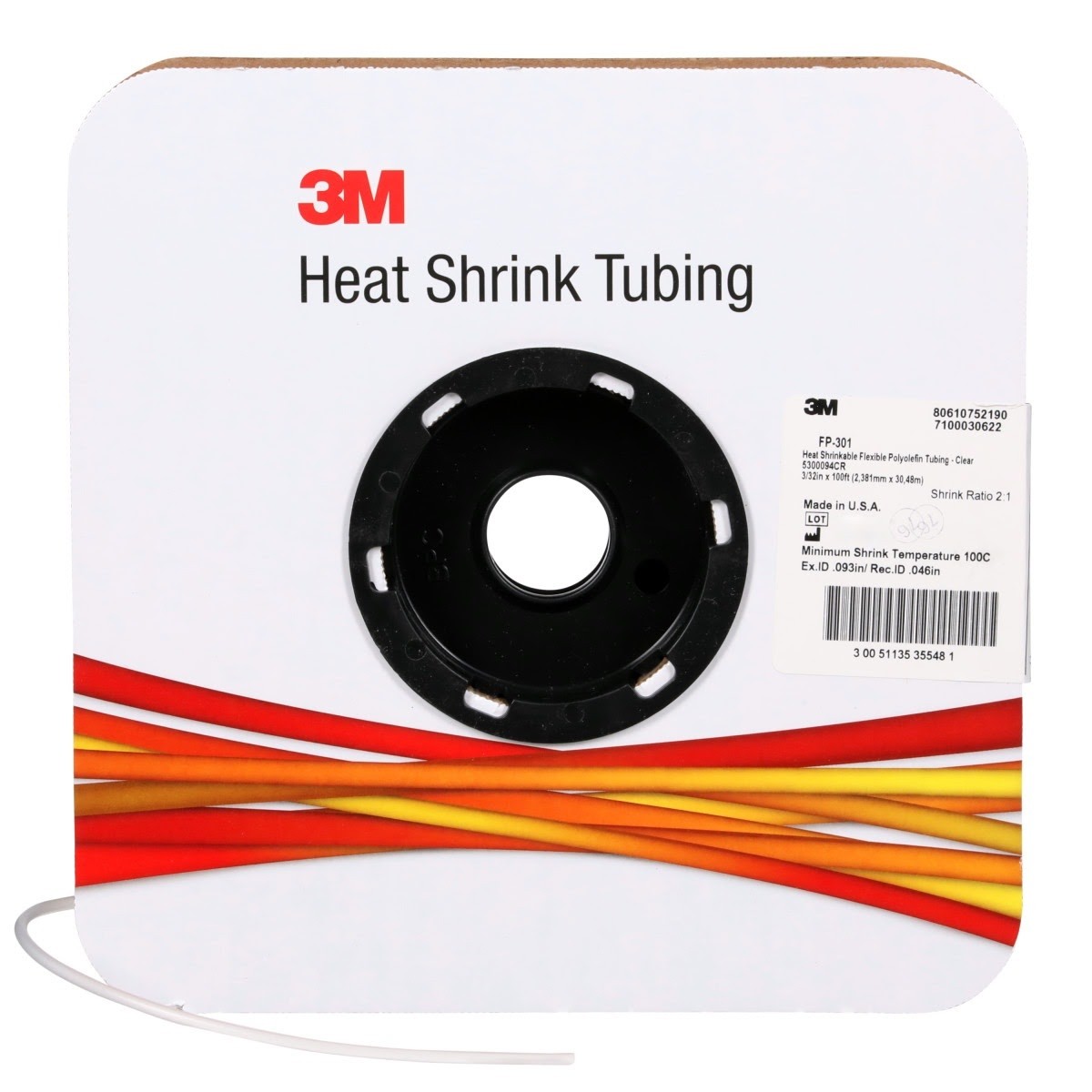

- (3) - 3M 7100030622 Heat Shrink Thin-Wall Tubing FP-301, Clear, 3/32, 100 ft spool length
3M 7100030622 Features
- Thin wall single-wall polyolefin heat shrink tubing for wire insulation and protection
- 2:1 shrink ratio for a secure shrink fit over splices and terminations
- Suitable for applications up to 600V
- Moisture protection with flexible polyolefin construction
- Operating temperature range -67 Degree F to 275 Degree F (-55 Degree C to 135 Degree C)
- Non-corrosive material
- UL Listed (File E-39100)
- SAE-AMS-DTL-23053/5, Class 2 (clear)
- CSA Certified
- RoHS 2011/65/EU compliant
3M 7100030622 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Series | FP-301 |
| Color | Transparent |
| Product Form | Spool |
| Overall Length | 100 ft |

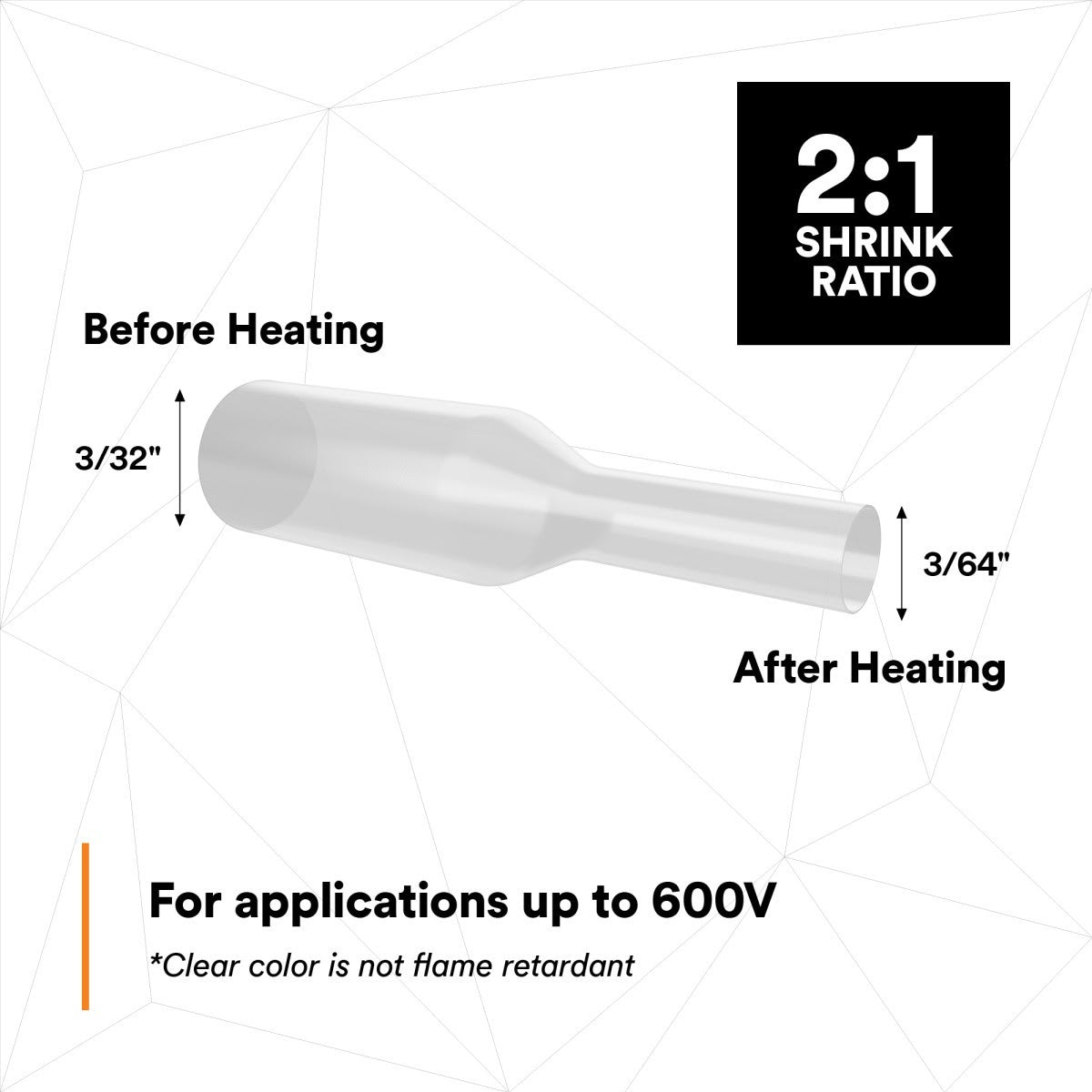

| Inner Diameter Before Shrink | 0.093 in |
| Inner Diameter After Shrink | 0.046 in |
| Shrink Ratio | 2:1 |
| Material | Flexible Polyolefin |
| Tubing Type | Single Wall (Thin) |
| Maximum Operating Temperature | 135 Degree Celsius |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -55 to 135 Degrees Celsius |
| Operating Temperature Range | -67 Degree F to 275 Degree F |
| Flame Retardant | No |
| Elongation | 400 % |
| Tensile Strength | 2400 psi |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | SAE-AMS-DTL-23053/5, Class 2 |
