At a Glance
Diameter
1/2 in
Length
33 yd
Max Temperature
275�F
Material
Polyolefin
Application
Electrical
Description
Description
3M 7000021421 Description

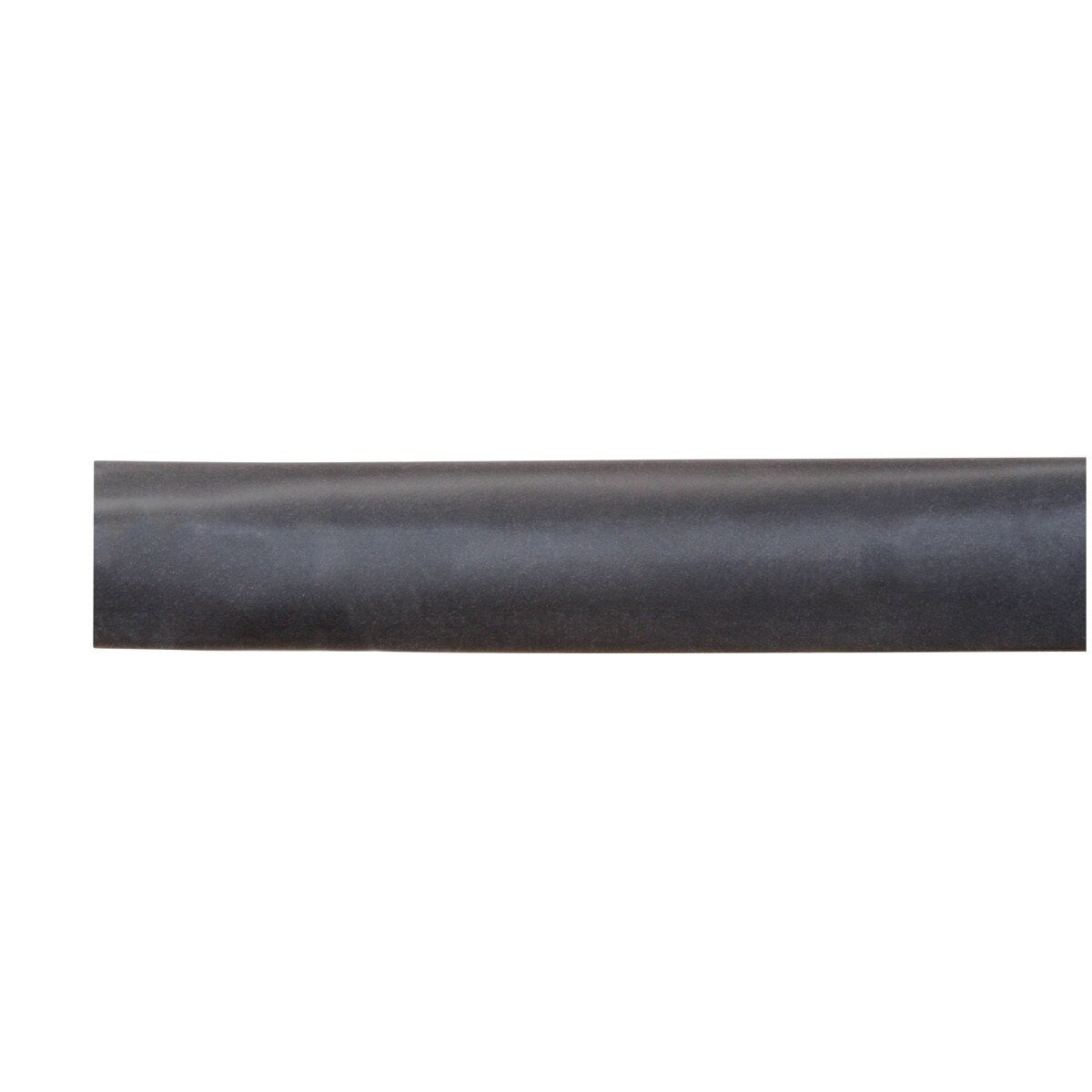

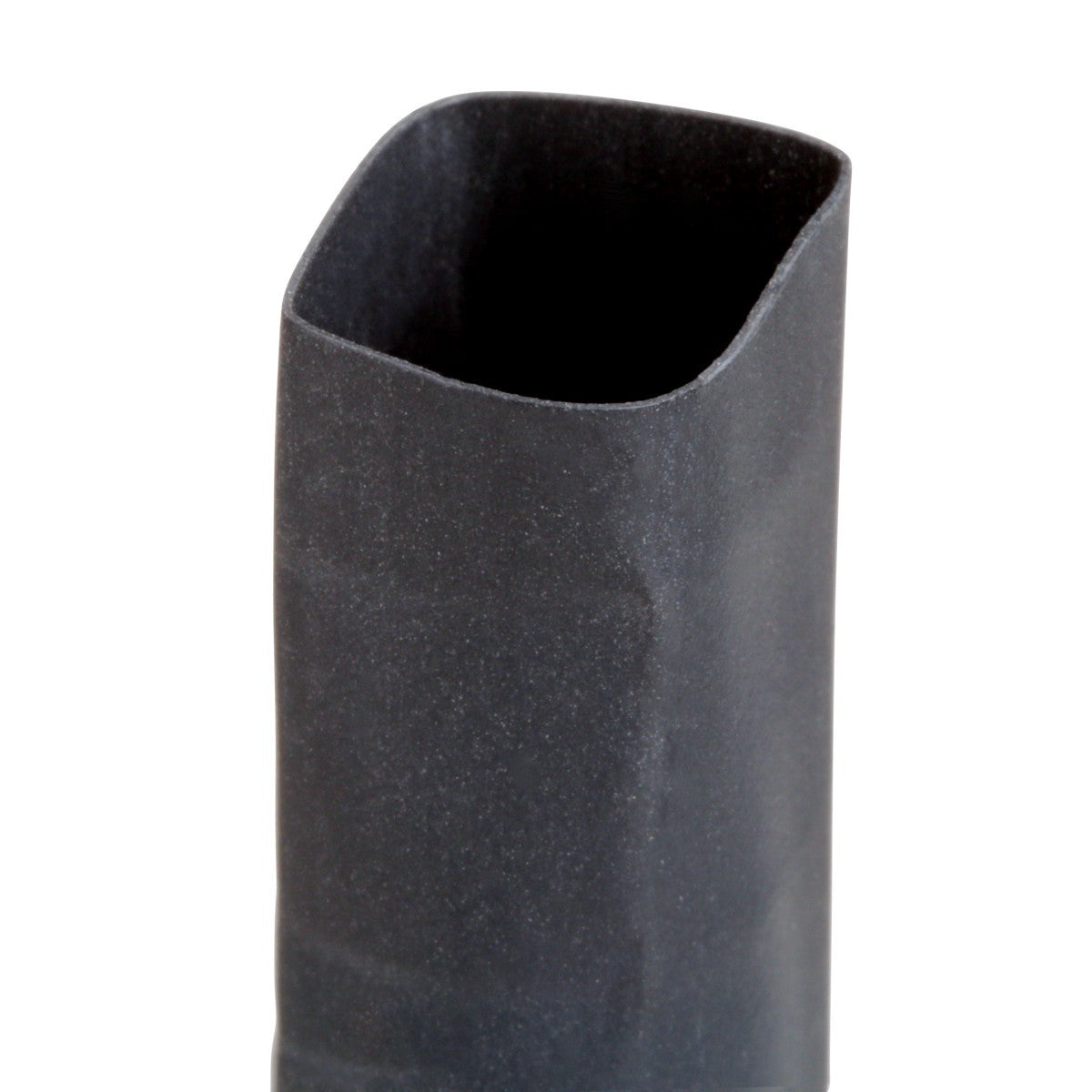

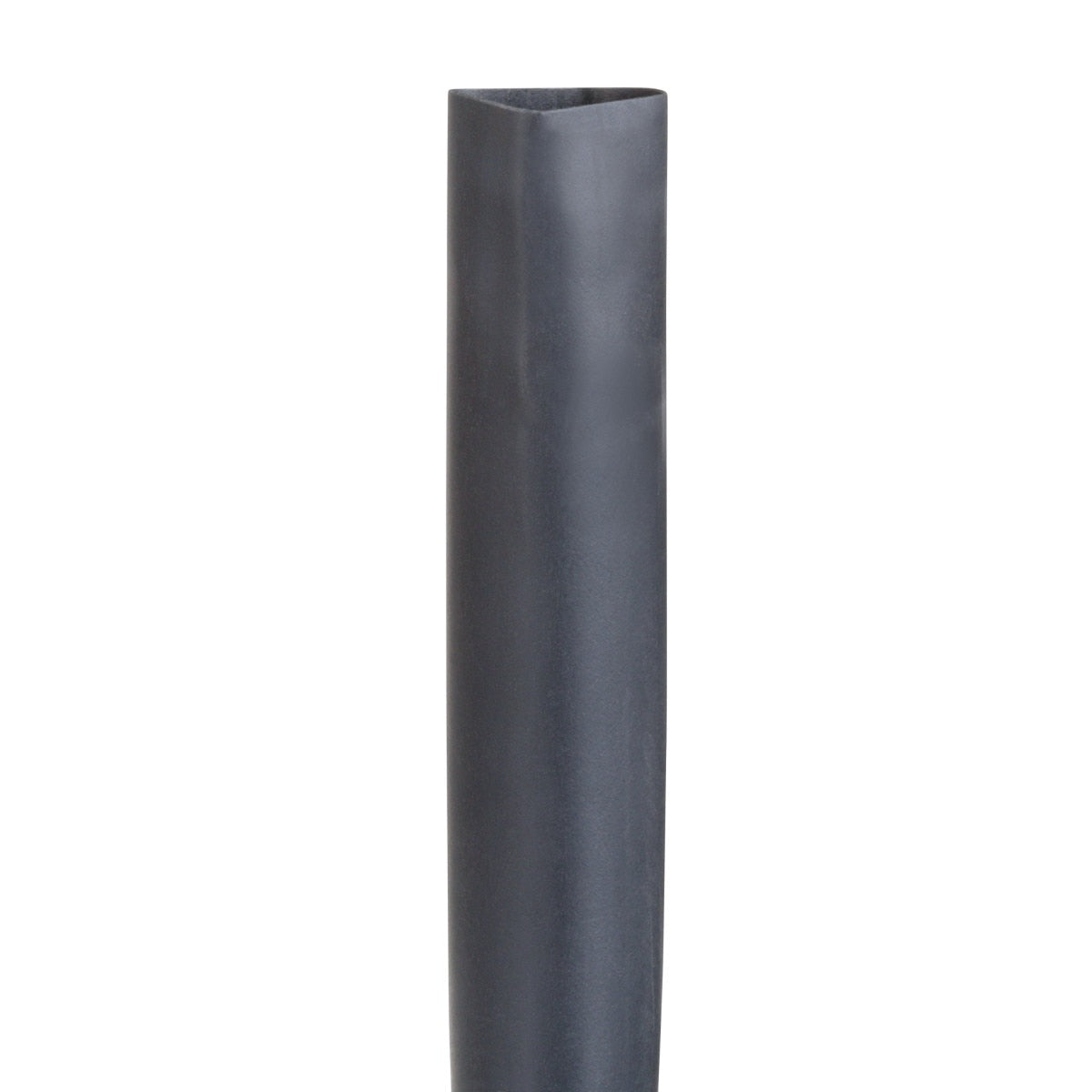

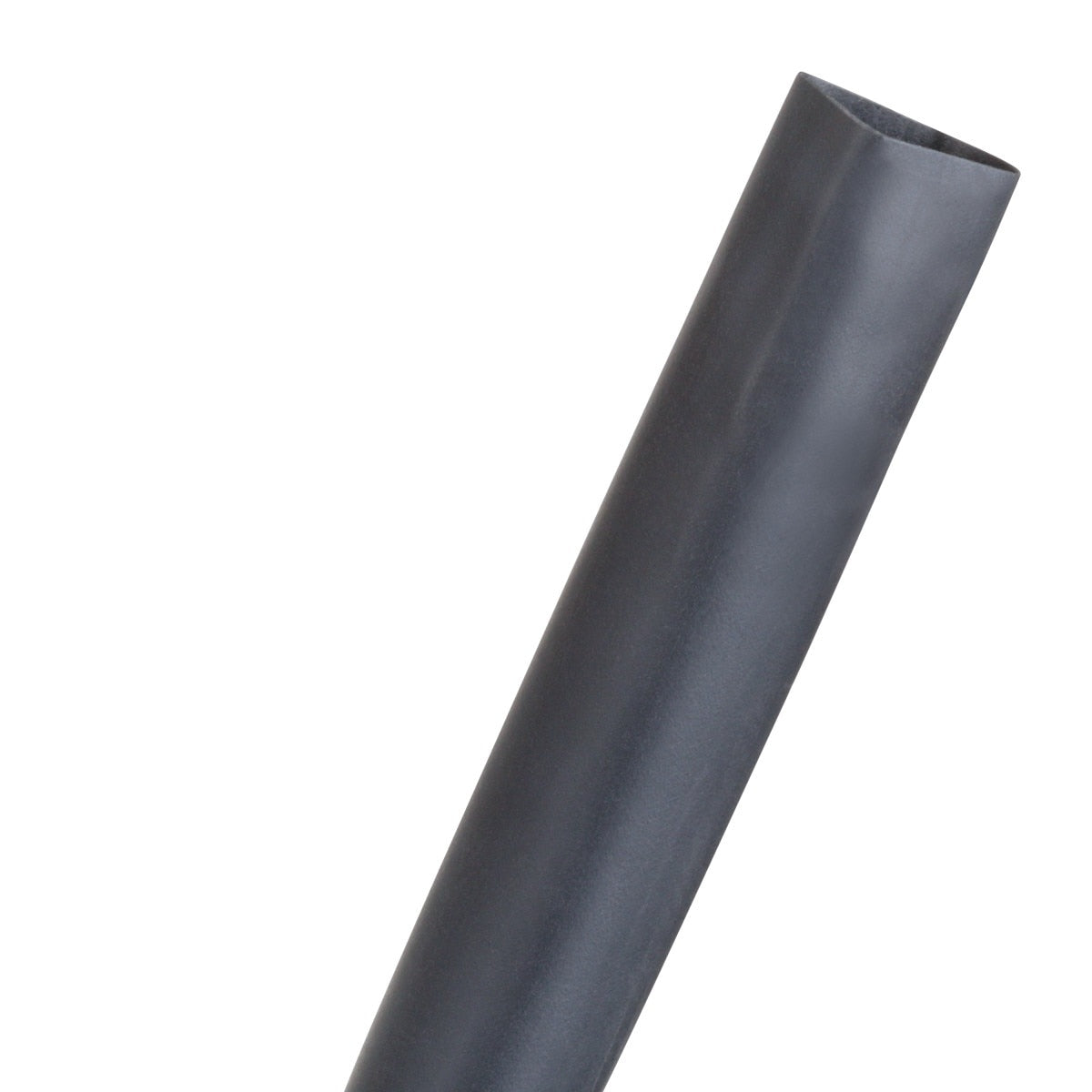

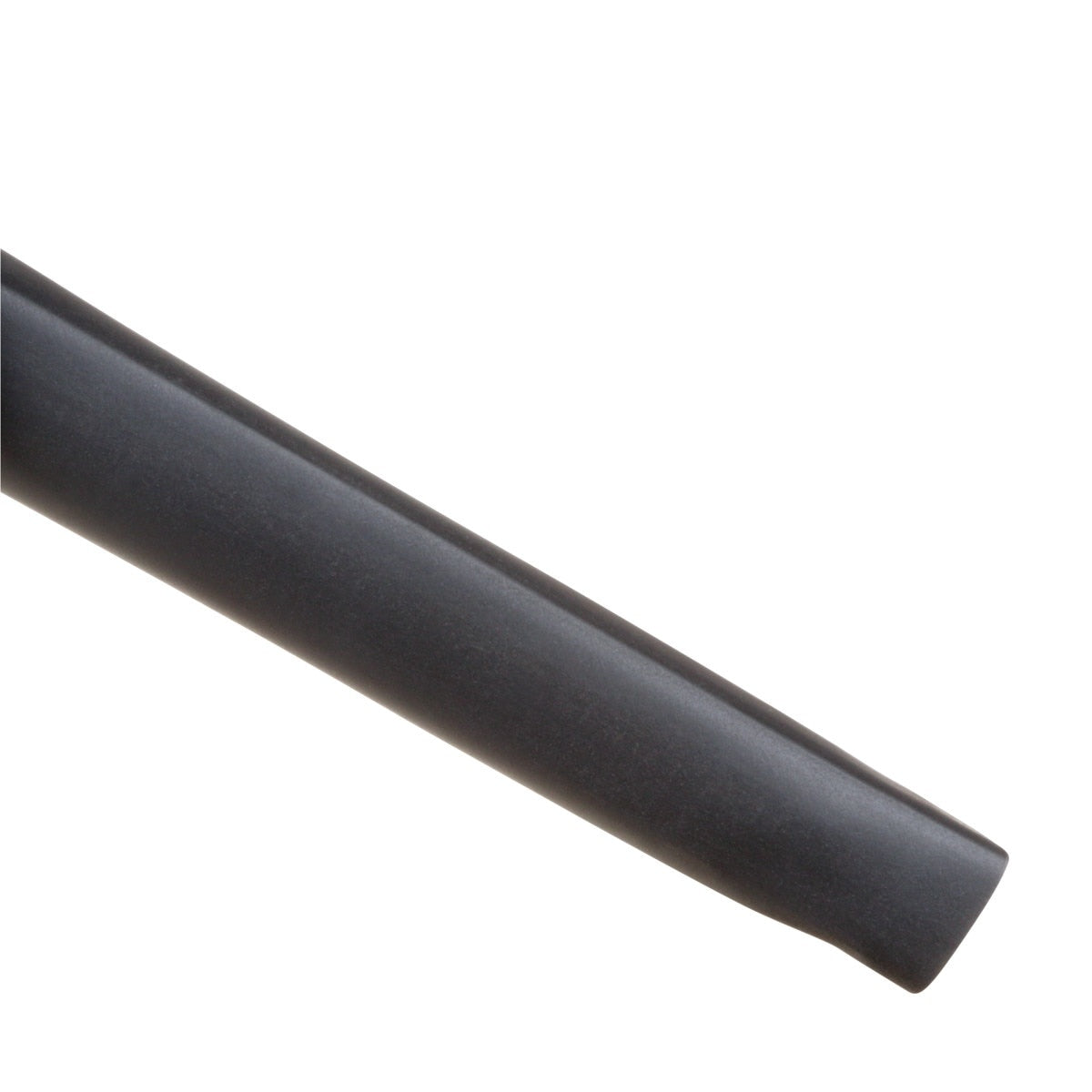

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin tubing that provides flame retardant electrical insulation and moisture seal protection for cable splices and terminations in demanding industrial applications.
3M 7000021421 Includes

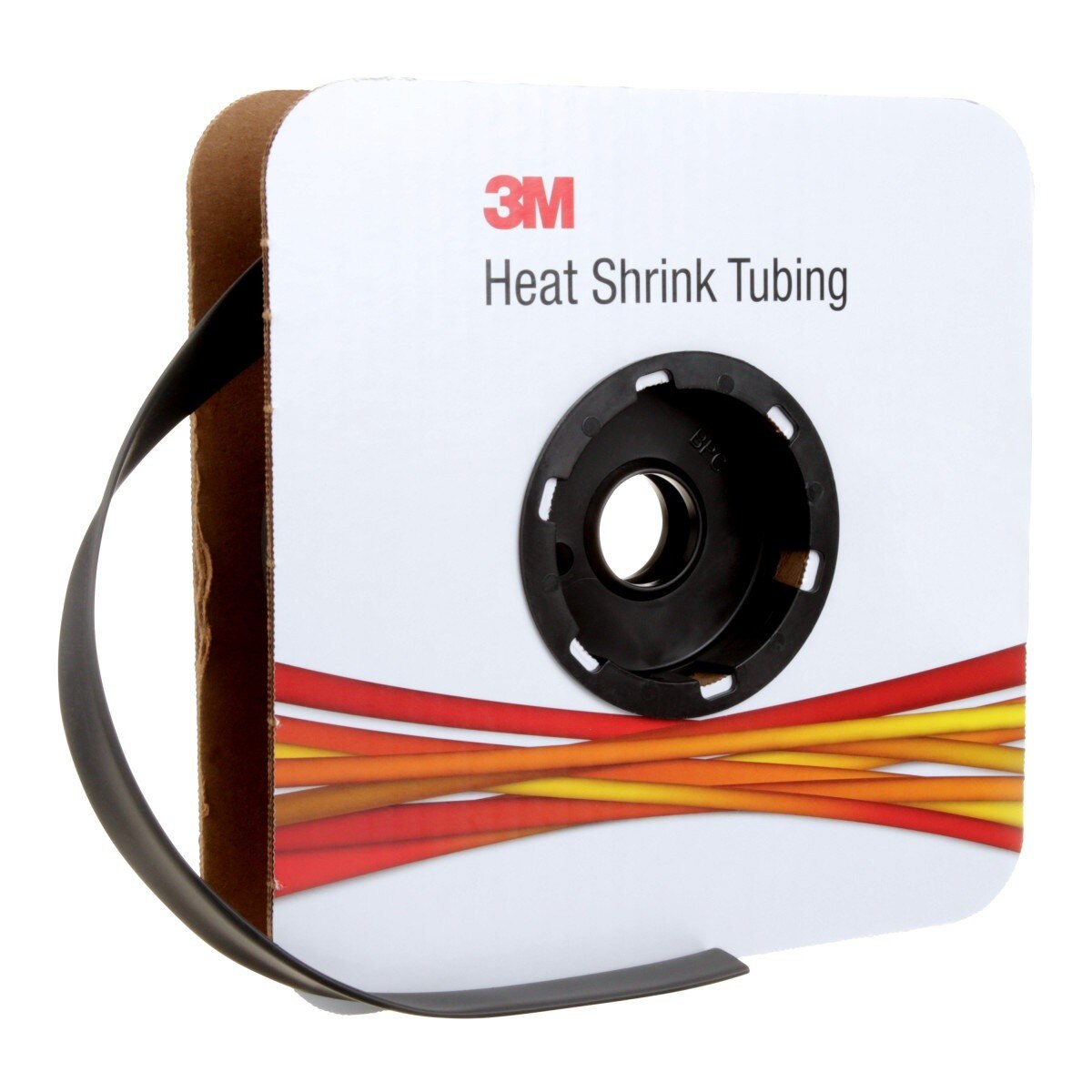

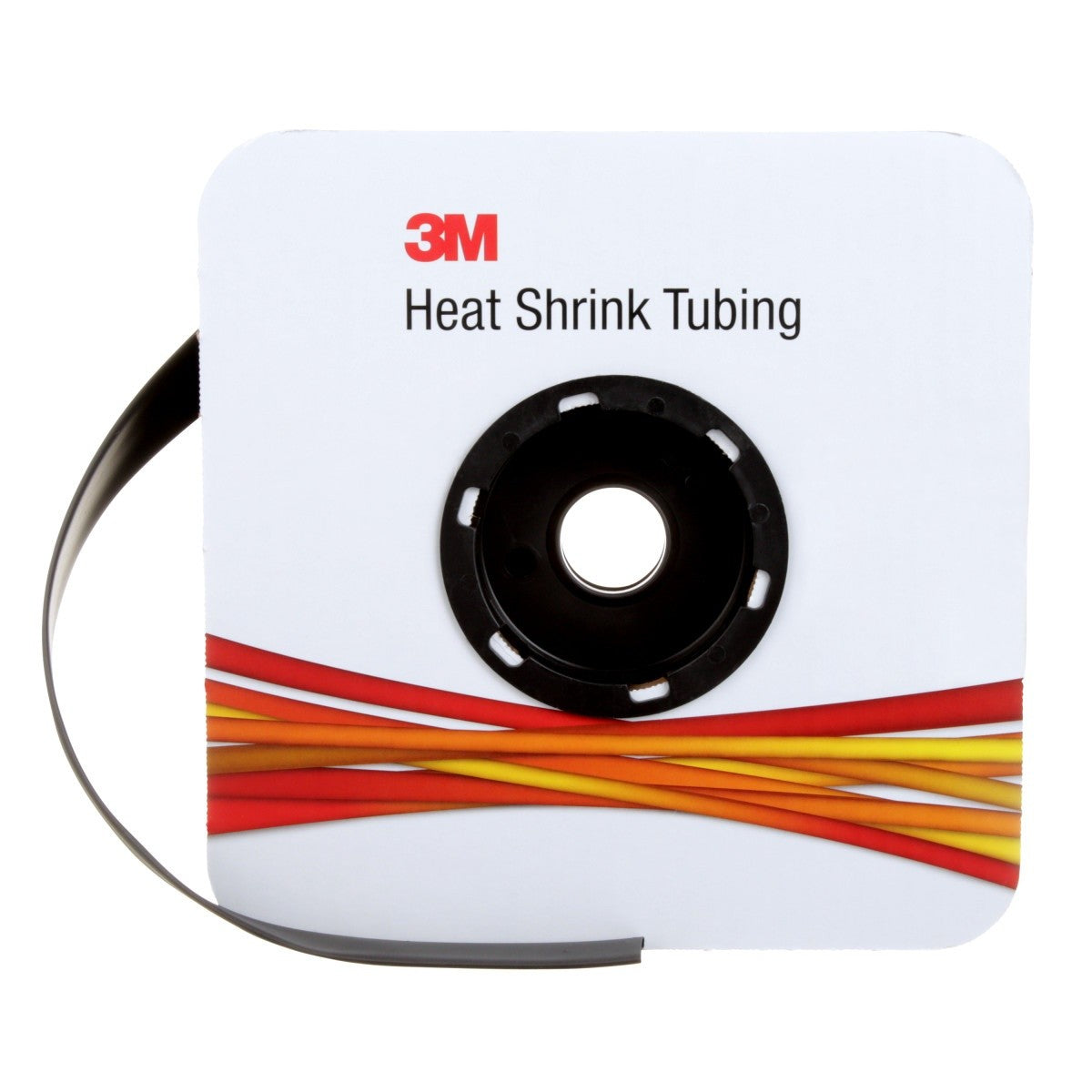

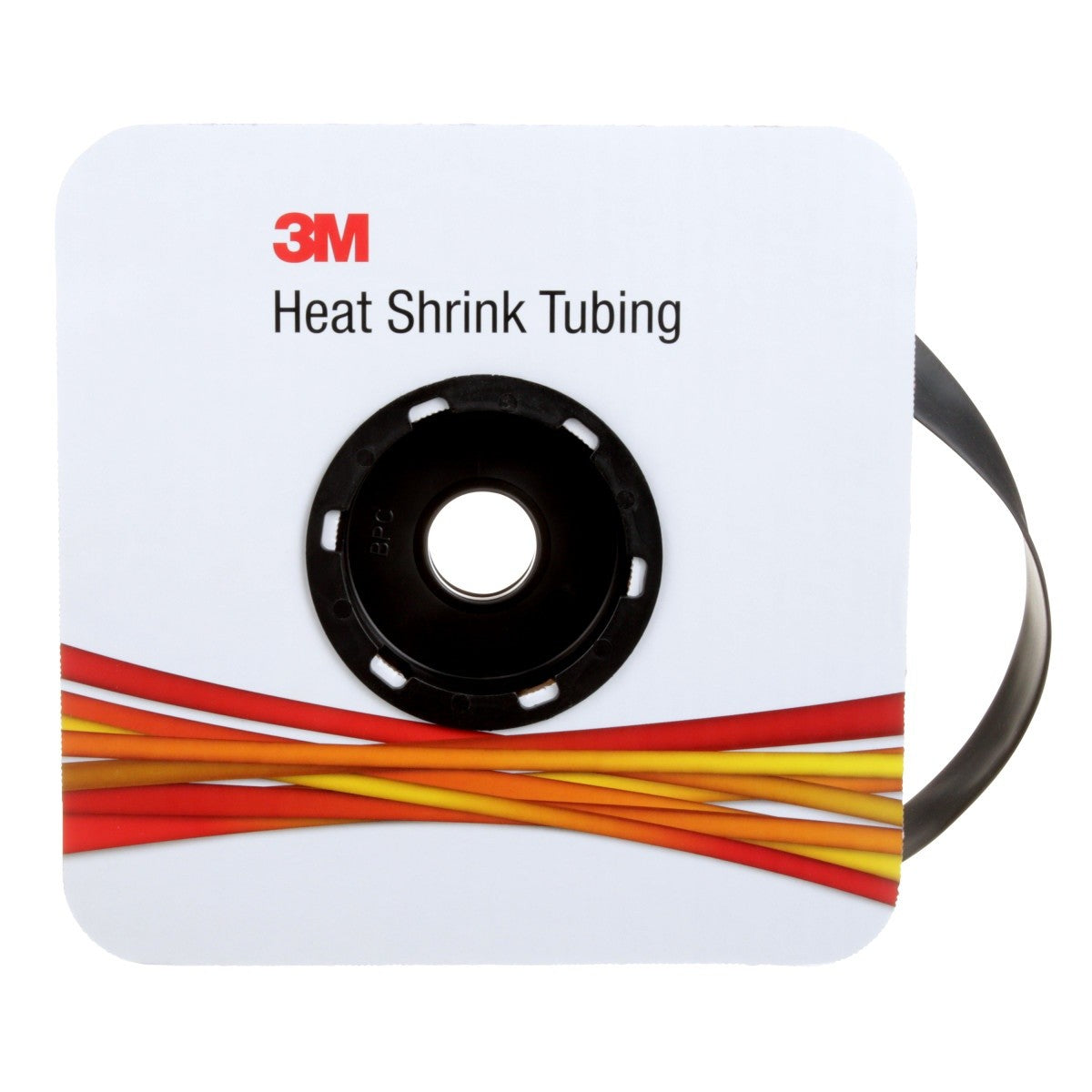

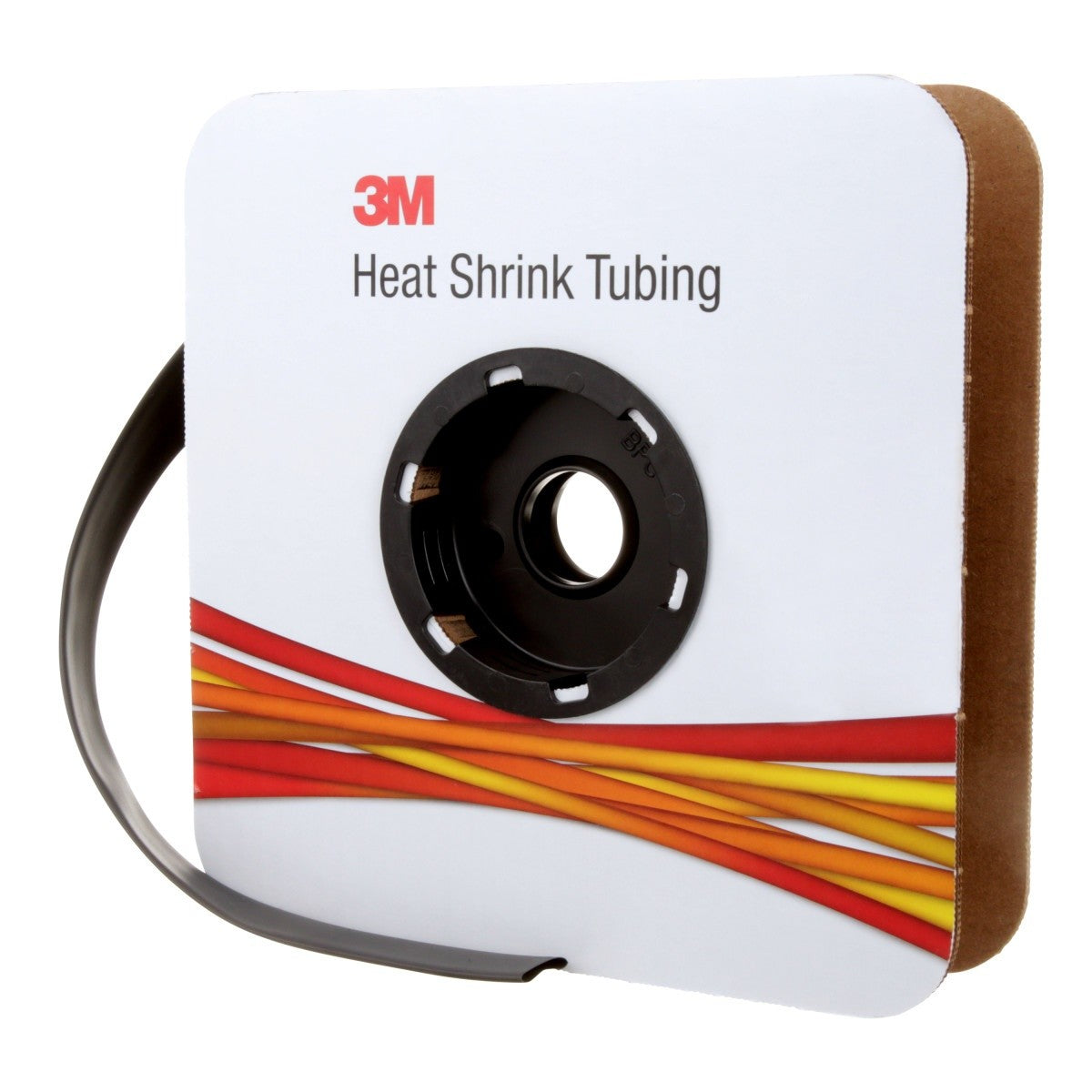

- (300) - 3M 7000021421 Heat Shrink Thin-Wall Tubing FP-301, Black, 2 to 1 Shrink, 1/2 in, 100 ft Spool (FP0.500BK100'S)
3M 7000021421 Features

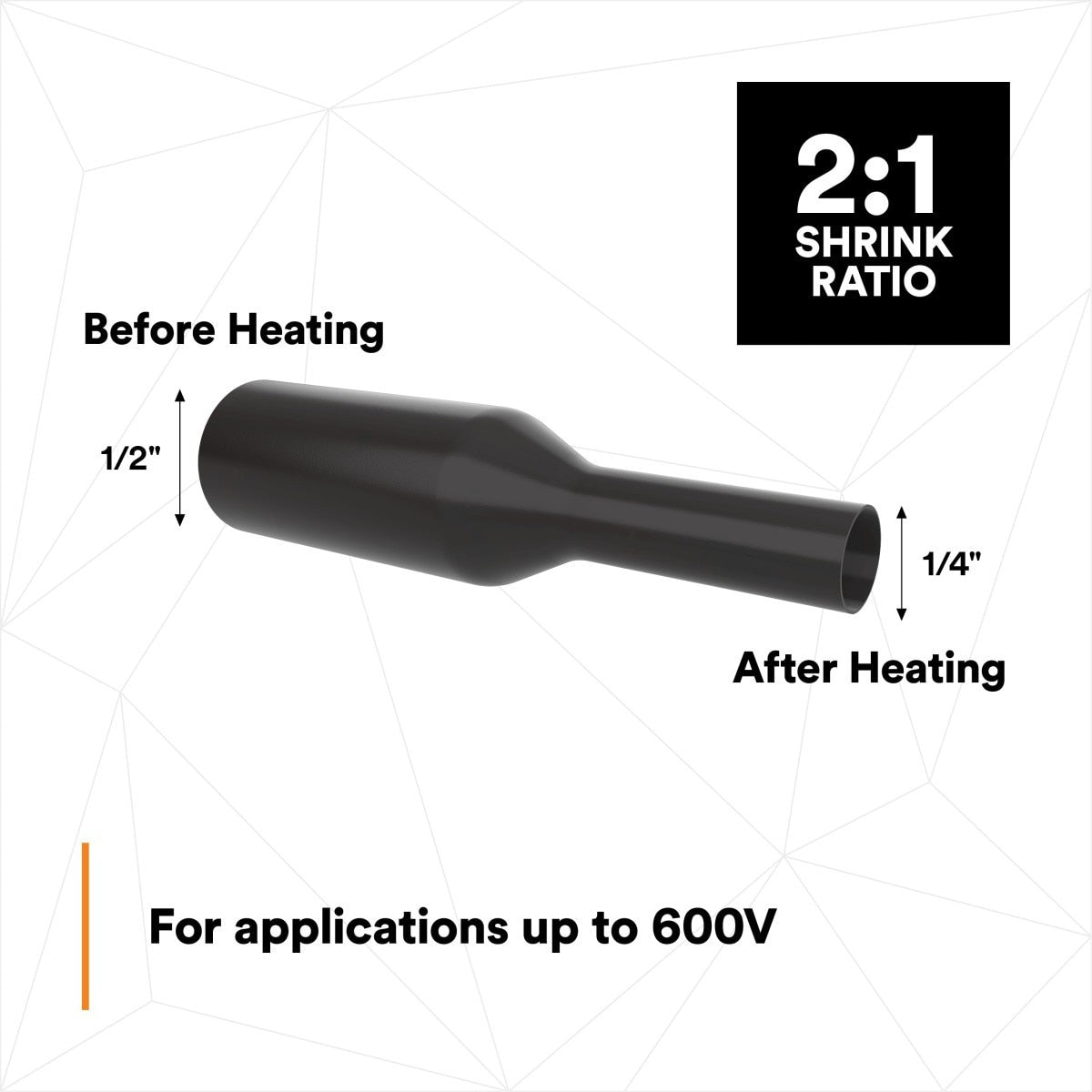

- 2 to 1 shrink ratio for shrink fit protection
- Flame retardant tubing for applications up to 600V
- Flexible polyolefin construction helps provide moisture seal protection
- Mechanically tough and split resistant and resists cold flow
- Suitable for wire harness covering wire marking wire bundling and component packaging
- Operating temperature range minus 67 Degree F to 275 Degree F
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000021421 Specifications
| Product Type | Single (Thin) Wall Tubing |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Tubing Type | Single Wall (Thin) |
| Color | Black |
| Shrink Ratio | 2:1 |
| Overall Length | 100 ft |
| Expanded Inner Diameter | 0.5 in |
| Inner Diameter Before Shrink | 0.472 in |
| Inner Diameter After Shrink | 0.252 in |
| Recovered Inner Diameter | 0.25 in |
| Material | Flexible Polyolefin |
| Flame Retardant | Yes |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 Degree Fahrenheit to 275 Degree Fahrenheit |
| UL File Number | E-39100 |
Toolup Part # :
860761
