3M 7100030651 Description

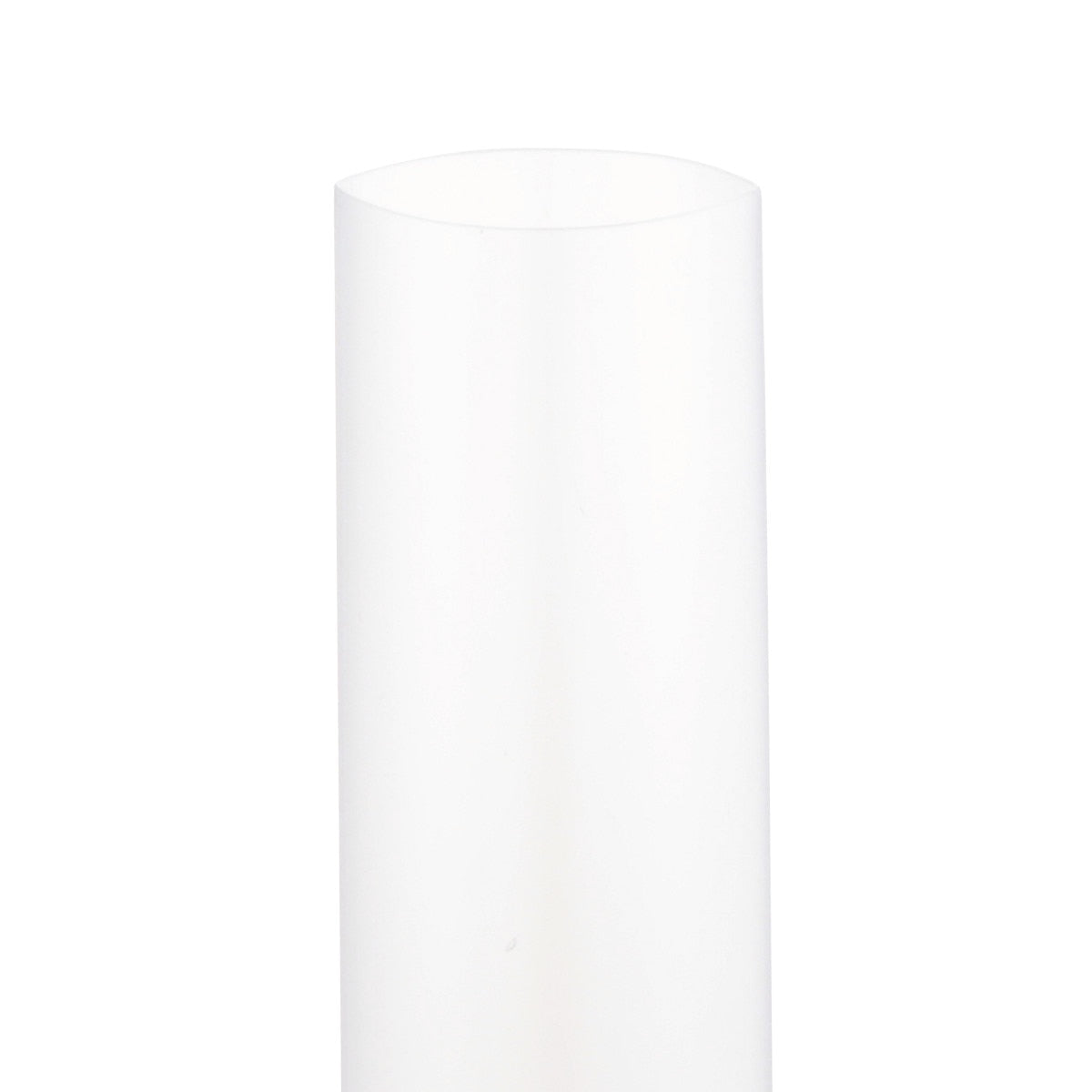

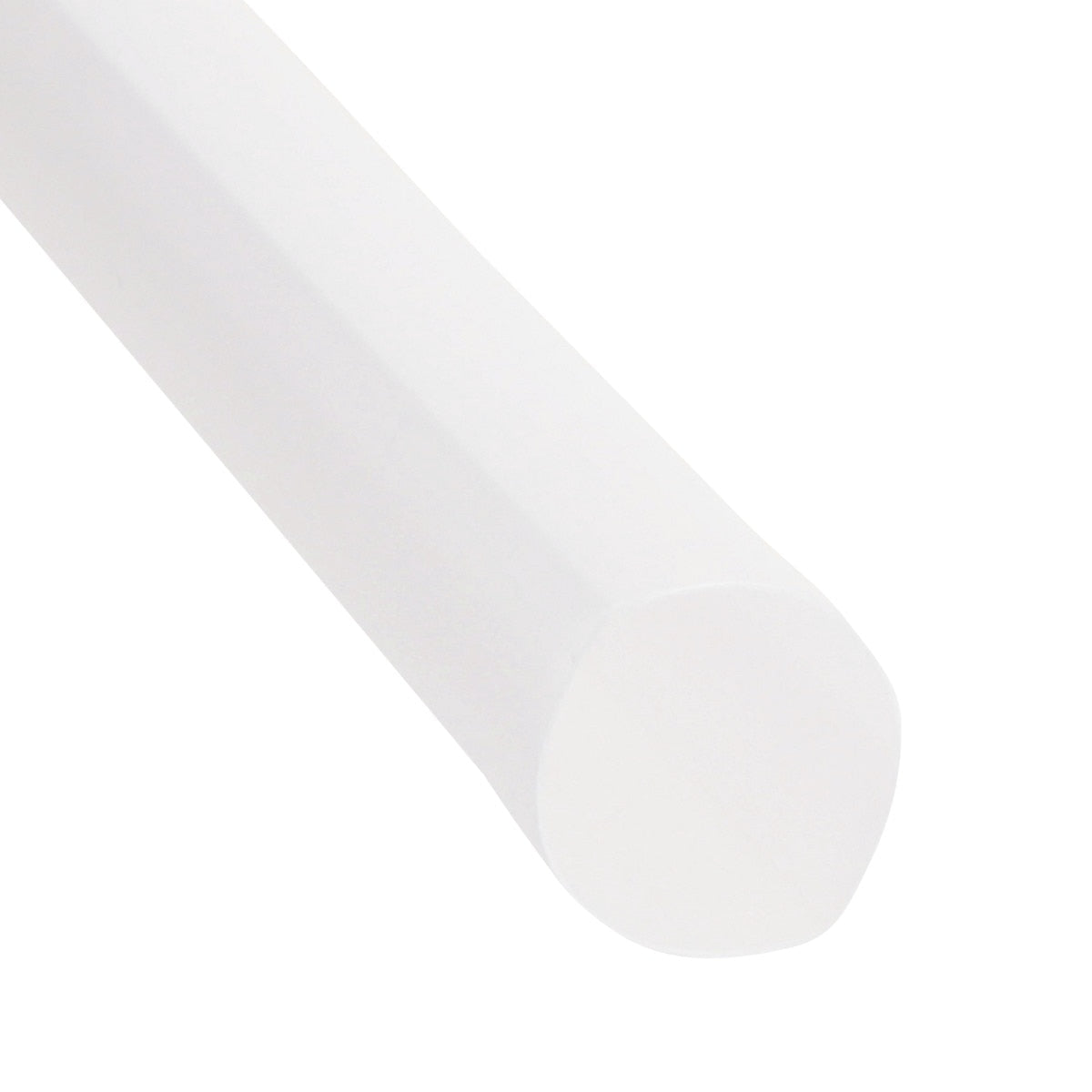

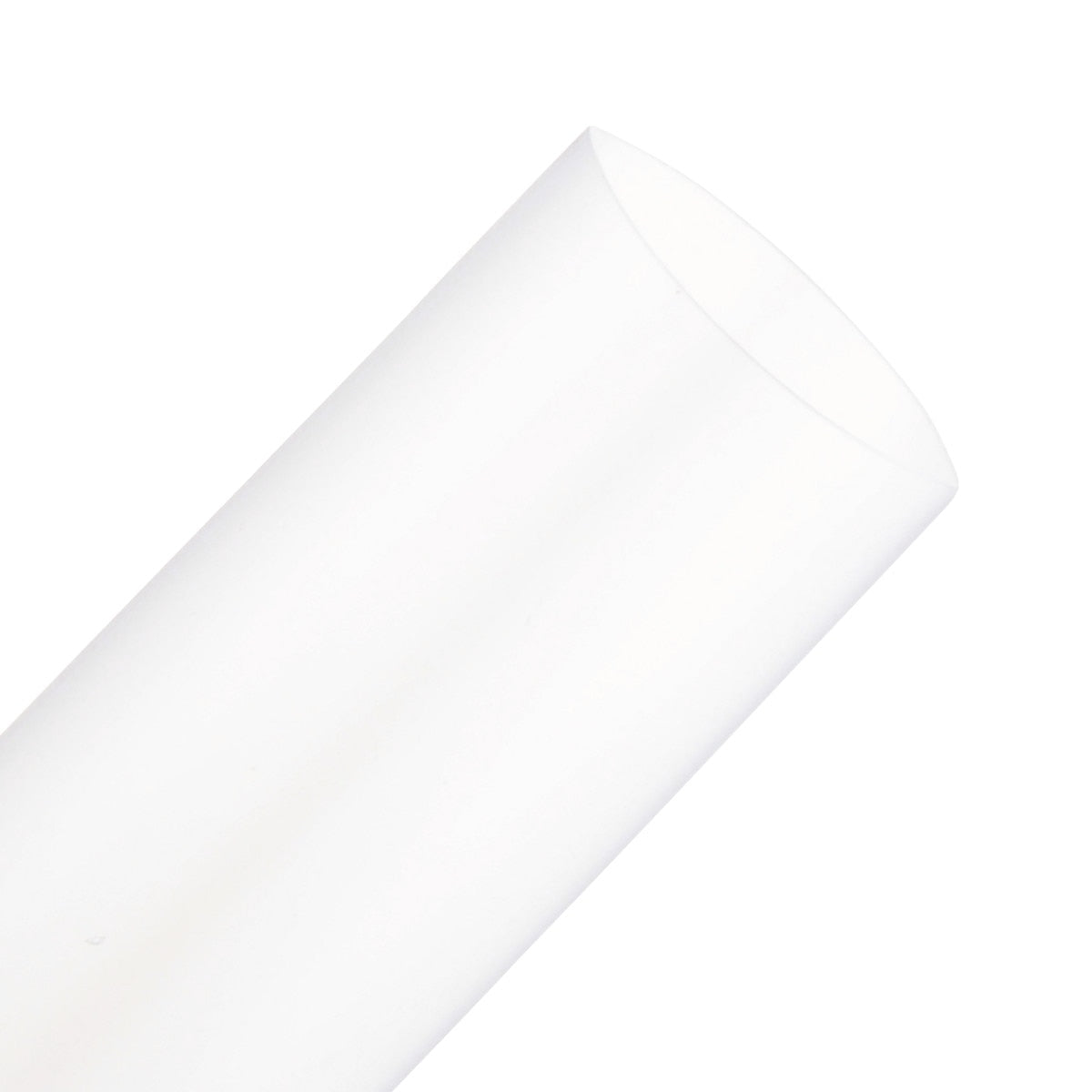

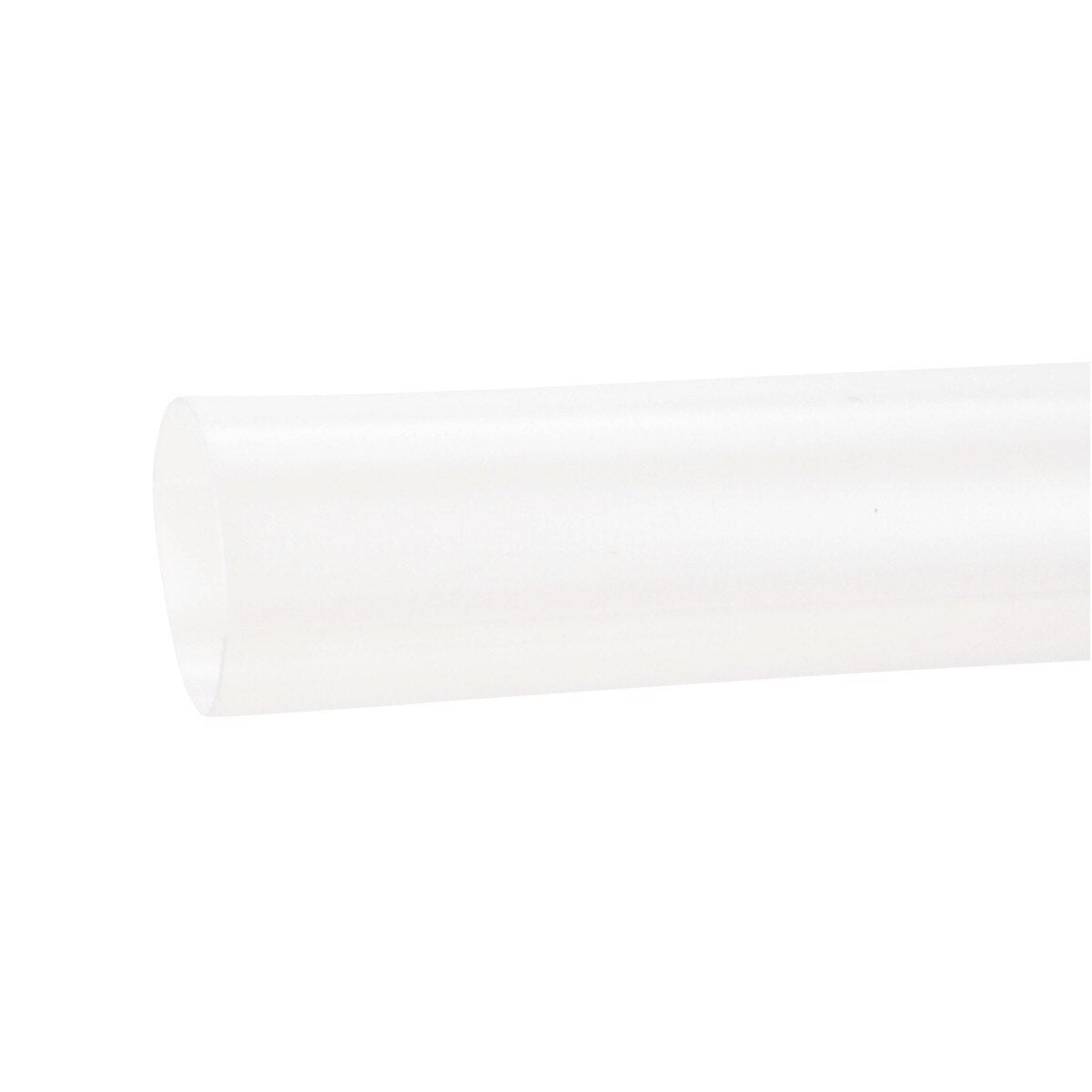

3M Heat Shrink Tubing FP-301 is a general purpose thin wall polyolefin heat shrink tubing designed to provide electrical insulation and durable protection for wire splices, terminations, harnessing, bundling, and component packaging. The clear tubing features a 2:1 shrink ratio and is rated for applications up to 600V.
3M 7100030651 Includes

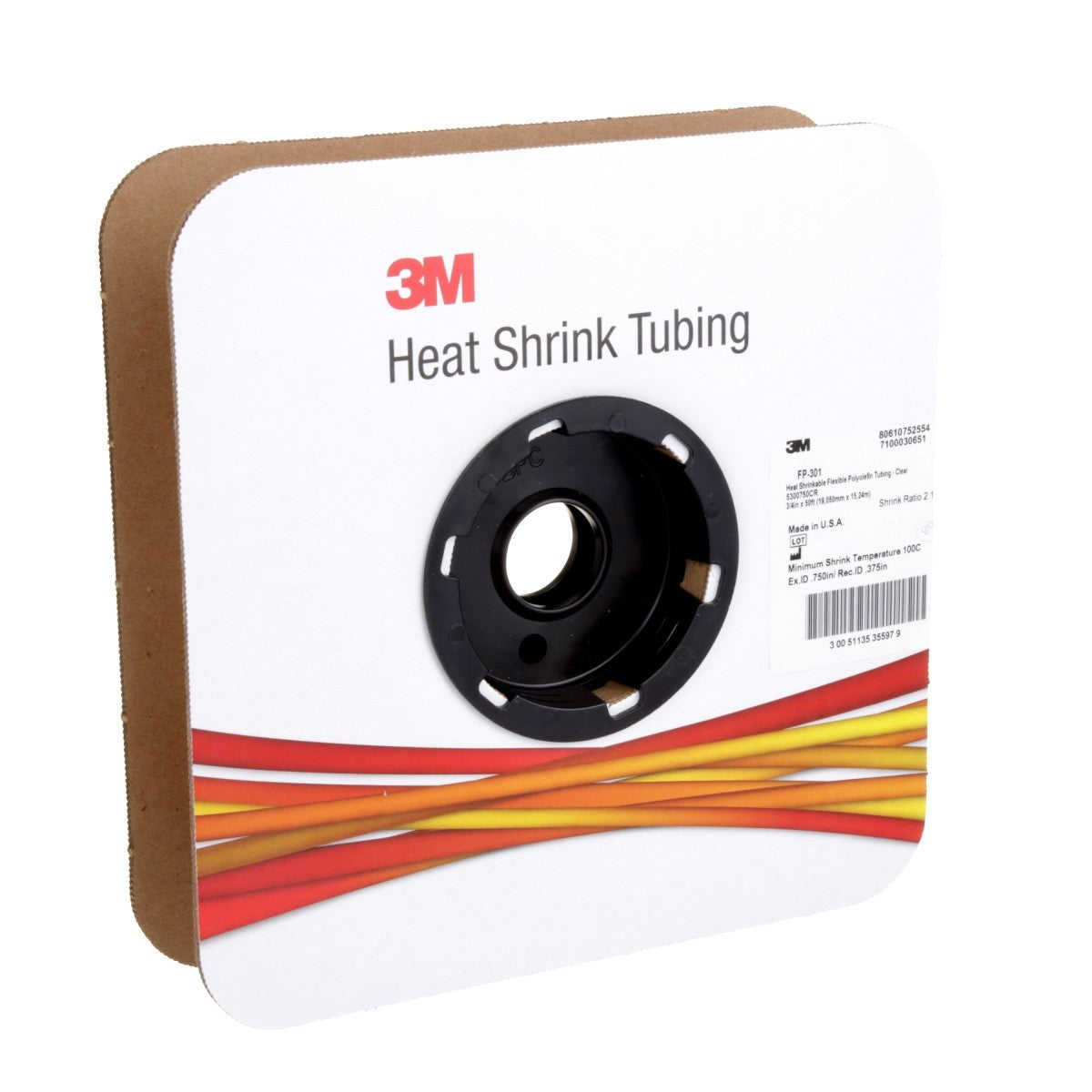

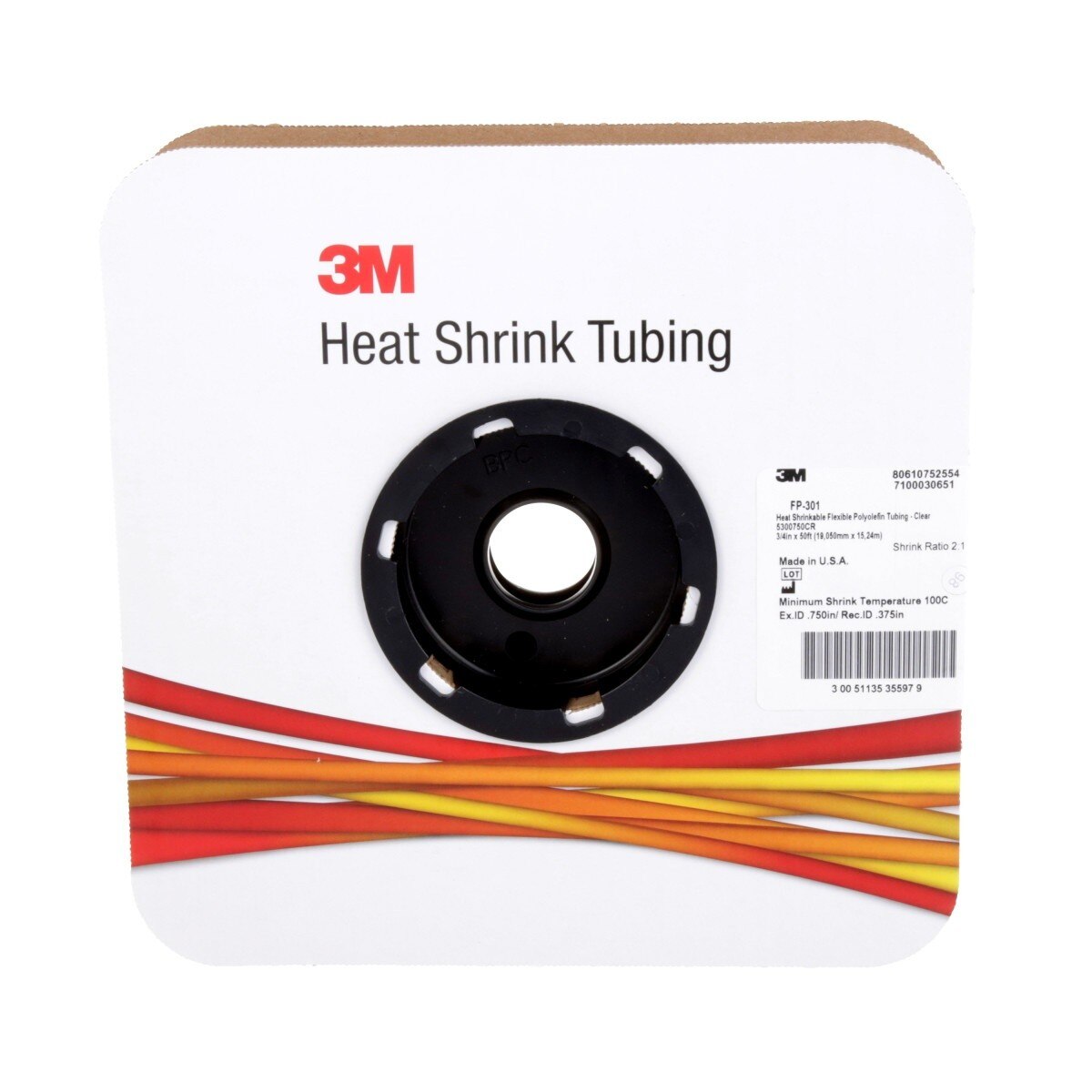

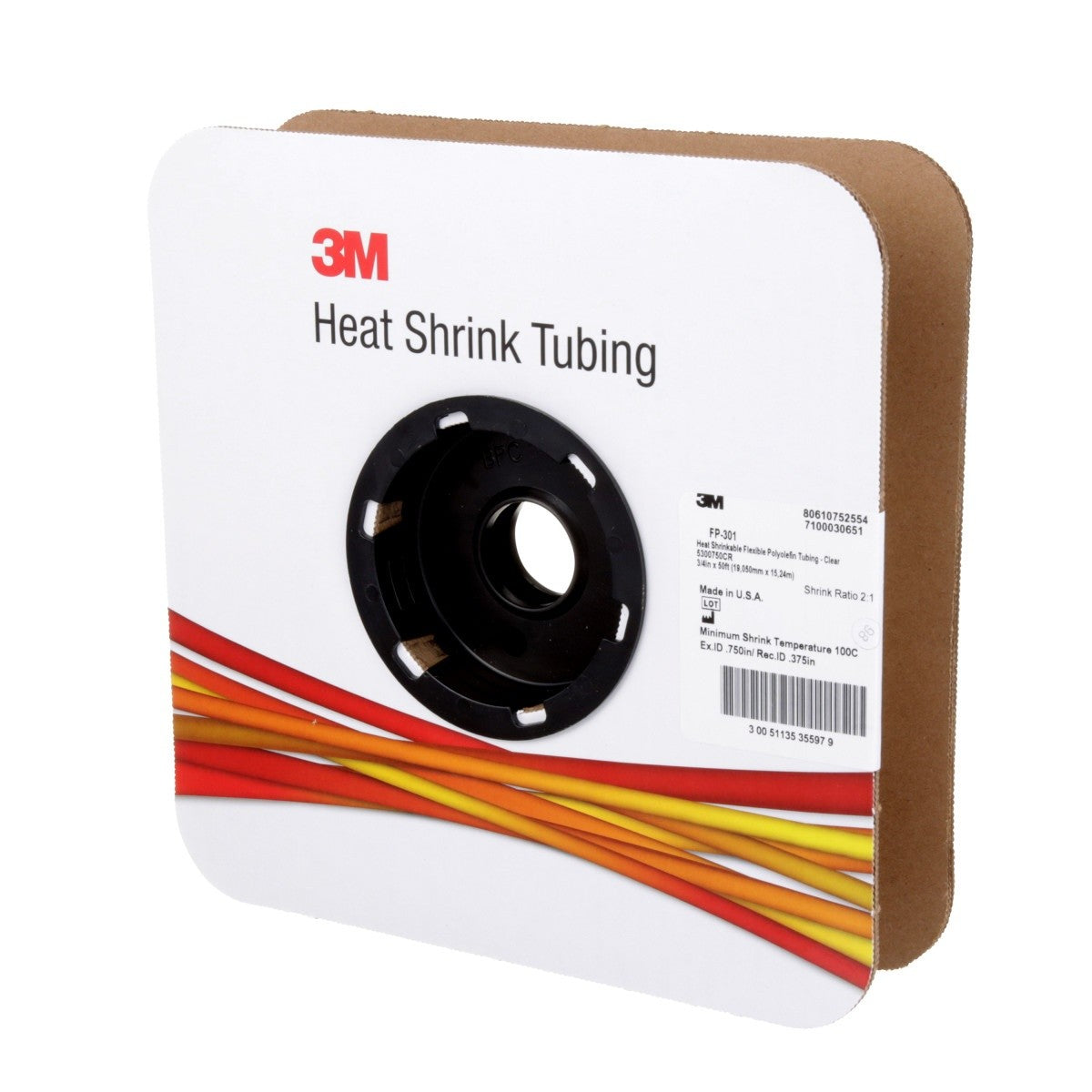

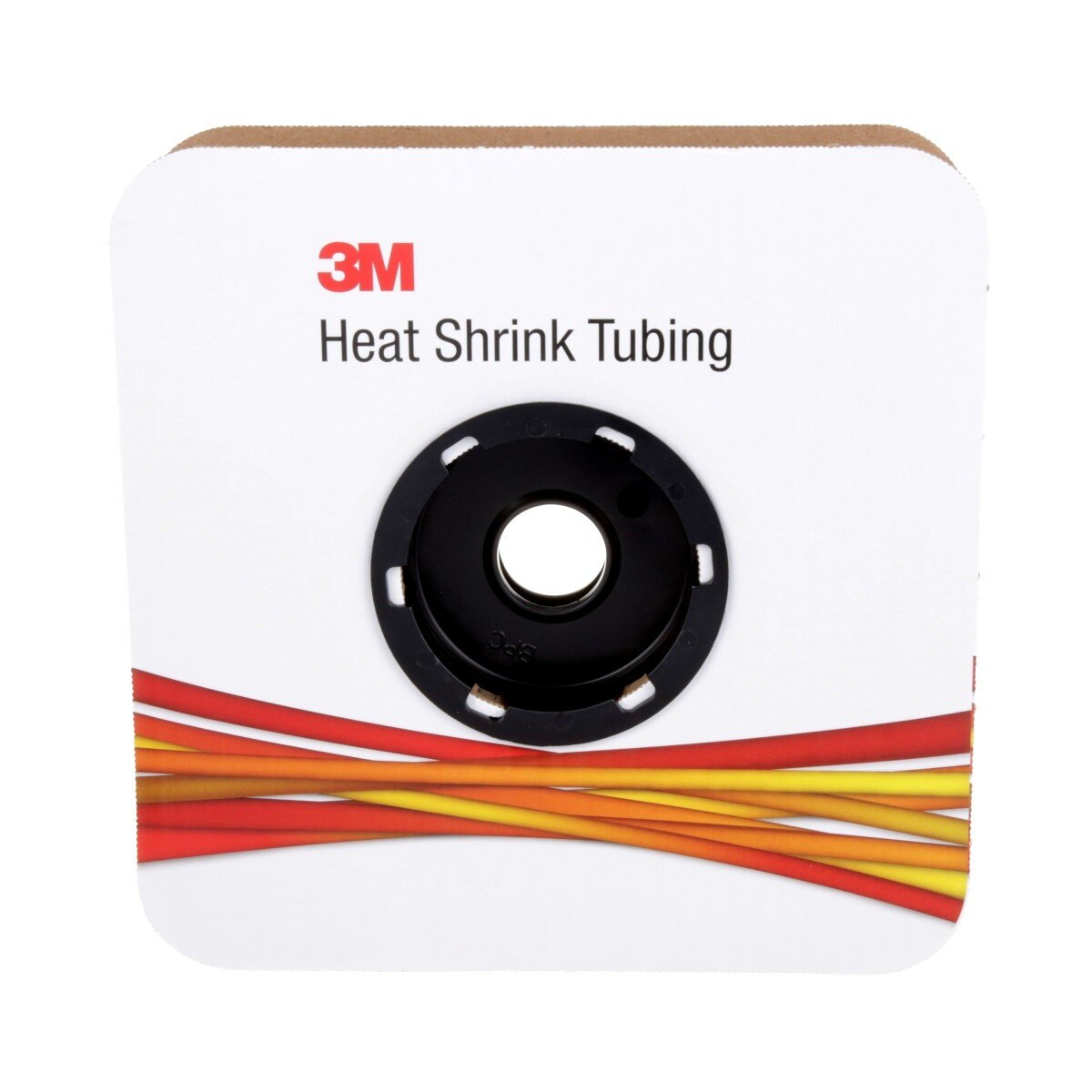

- (3) - 3M 7100030651 Heat Shrink Thin-Wall Tubing FP-301, Clear Color, 2 to 1 Shrink, High Strength Protection, Electrical Insulation, 3/4 in, 50 ft Spool, 1 Spool (FP0.750CR50'S)
3M 7100030651 Features
- 2:1 shrink ratio for shrink fit coverage over cables and splices
- Thin wall single wall polyolefin construction
- Electrical insulation for applications up to 600V
- Provides a balance of electrical physical and chemical properties for industrial applications
- Moisture seal protection
- Split resistant tubing for wire harnessing and bundling
- Mechanically tough and resists cold flow
- Easily markable for identification
- Operating temperature range from -67 Degree Fahrenheit to 275 Degree Fahrenheit
- UL listed and CSA certified
- RoHS 2011/65/EU compliant
3M 7100030651 Specifications
| Product Type | Heat Shrink Tubing |
| Tubing Type | Single Wall (Thin) |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Color | Transparent (Clear) |

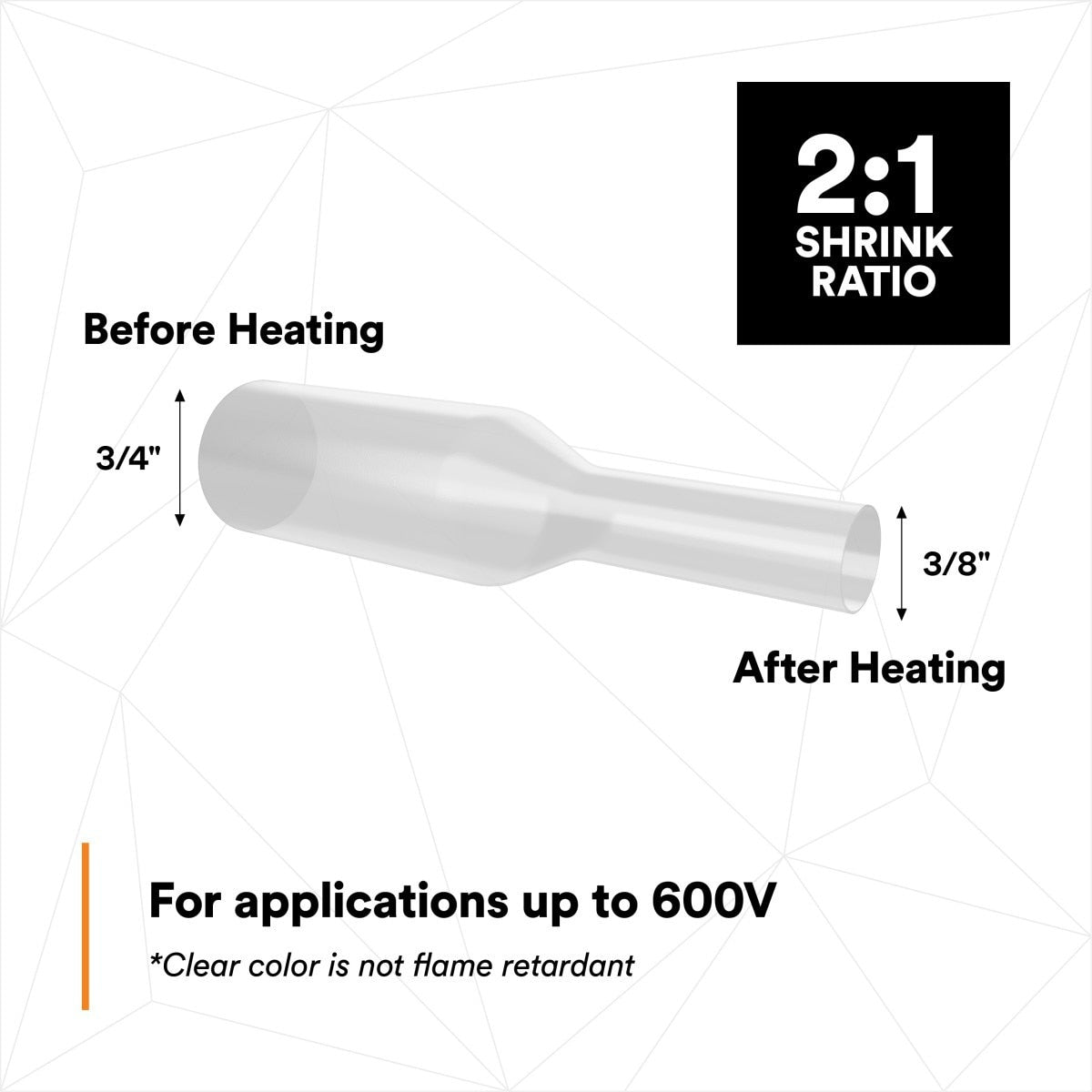

| Shrink Ratio | 2:1 |
| Inner Diameter Before Shrink | 0.75 in |
| Inner Diameter After Shrink | 0.375 in |
| Overall Length | 50 ft |
| Material | Flexible Polyolefin |
| Flame Retardant | No |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 Degree Fahrenheit to 275 Degree Fahrenheit |
| Elongation | 400% |
| Tensile Strength | 2400 psi |
| Non-Corrosive | Yes |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5, Class 2 |
| Minimum Shrink Temperature | 100 Degree Celsius |
| Made in | USA |
Toolup Part # :
861077
