3M 7010320417 Description

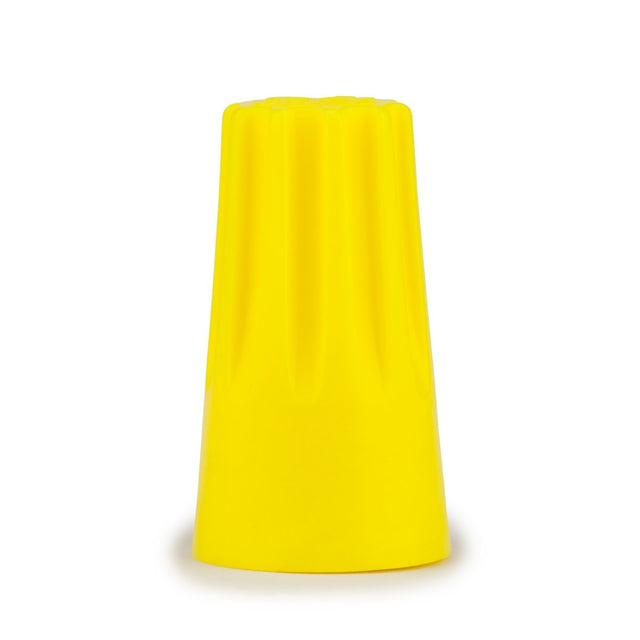

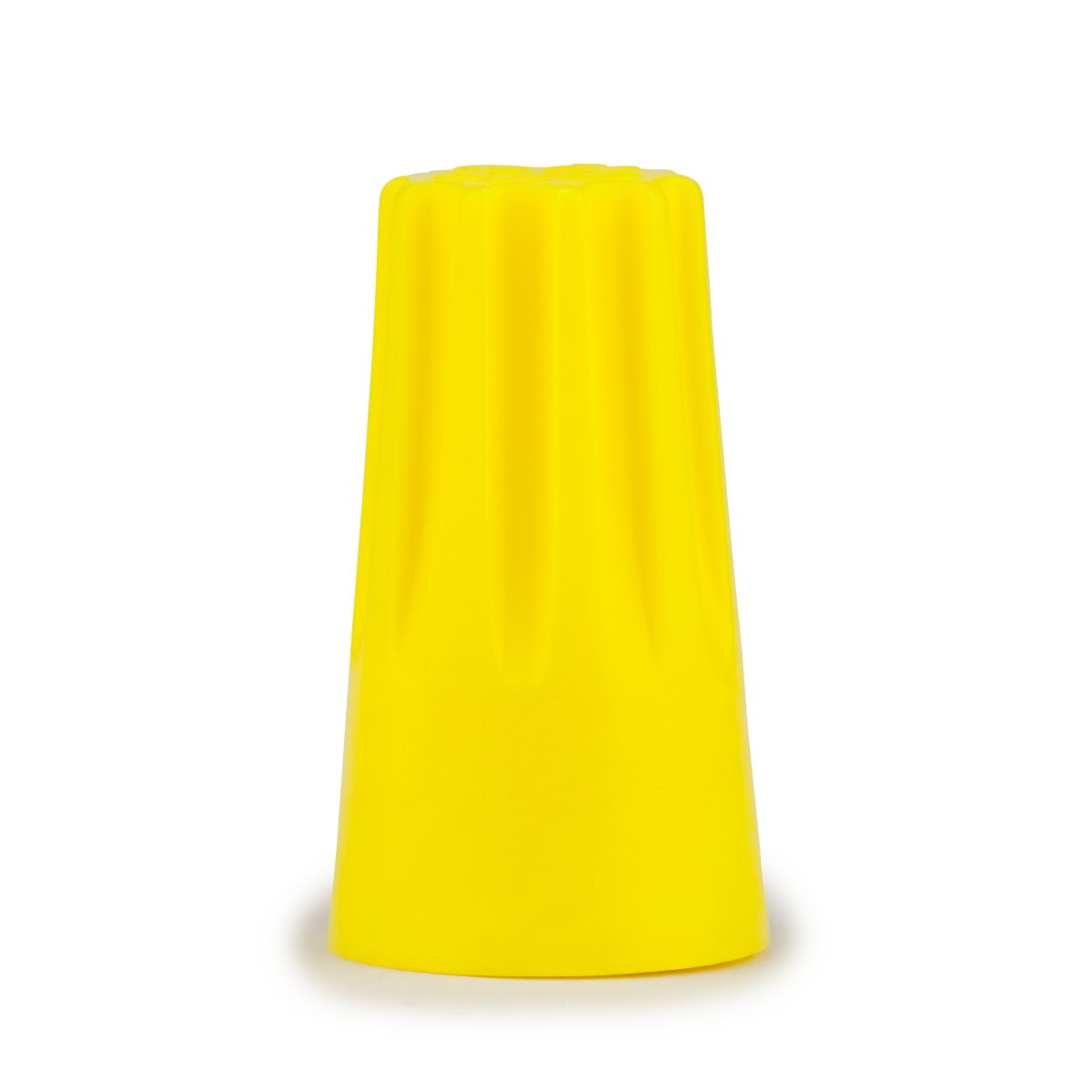

3M Highland Wire Connector H-33 twist on connectors help quickly connect and insulate pigtail wire splices for 18 to 12 AWG solid or stranded copper conductors. The yellow, color coded shell is UL Listed and designed to withstand operating temperatures up to 221 Degree F 105 Degree C.
3M 7010320417 Includes
- (5000) 3M Highland Wire Connector H-33
3M 7010320417 Features
- Twist on wire connector for pigtail wire connections
- Color coded yellow connector for quick identification
- Fits conductor range 18 to 12 AWG
- Works with solid or stranded copper wire
- UL Listed
- Rated up to 600 V maximum in building wire
- Shell designed to withstand temperatures up to 221 Degree F 105 Degree C
- RoHS 2011 65 EU compliant without exemption
3M 7010320417 Specifications
| Brand | 3M Highland |
| Model | H-33 |
| Part Number | H-33-KEG |
| Product Type | Twist-on Wire Connector |
| Connector Style | Twist On |
| Color | Yellow |
| Conductor Size Range | 18 - 12 AWG |
| Minimum Conductor Size | 18 AWG |
| Maximum Conductor Size | 12 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Flame Retardant | No |
| RoHS | RoHS 2011/65/EU compliant without exemption |
| Case Quantity | 5000 |
